new to me 1976 KZ 900, wires go where?
- F64
- Offline
- User
- 81-KZ440D2
Less
More
22 Dec 2021 12:30 - 22 Dec 2021 12:32 #859489
by F64
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Replied by F64 on topic new to me 1976 KZ 900, wires go where?
Run a ground wire from the battery negative post to the engine case
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Last edit: 22 Dec 2021 12:32 by F64.
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
22 Dec 2021 12:30 #859490
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?
Thanks @Mikaw, the color schematic does help.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
22 Dec 2021 12:30 #859491
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic new to me 1976 KZ 900, wires go where?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
22 Dec 2021 12:31 - 22 Dec 2021 12:32 #859492
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic new to me 1976 KZ 900, wires go where?
Tried to scan not sure is it’s readable.
If you both pm me your address I can email a pdf copy.
If you both pm me your address I can email a pdf copy.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 22 Dec 2021 12:32 by Mikaw.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
22 Dec 2021 12:48 #859493
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic new to me 1976 KZ 900, wires go where?
rscone11 email sent
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
Less
More
- Posts: 3036
- Thank you received: 1090
22 Dec 2021 12:52 - 22 Dec 2021 12:53 #859495
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic new to me 1976 KZ 900, wires go where?
Ok, @F64 thank you for the help. let me know when to put those wires back together.

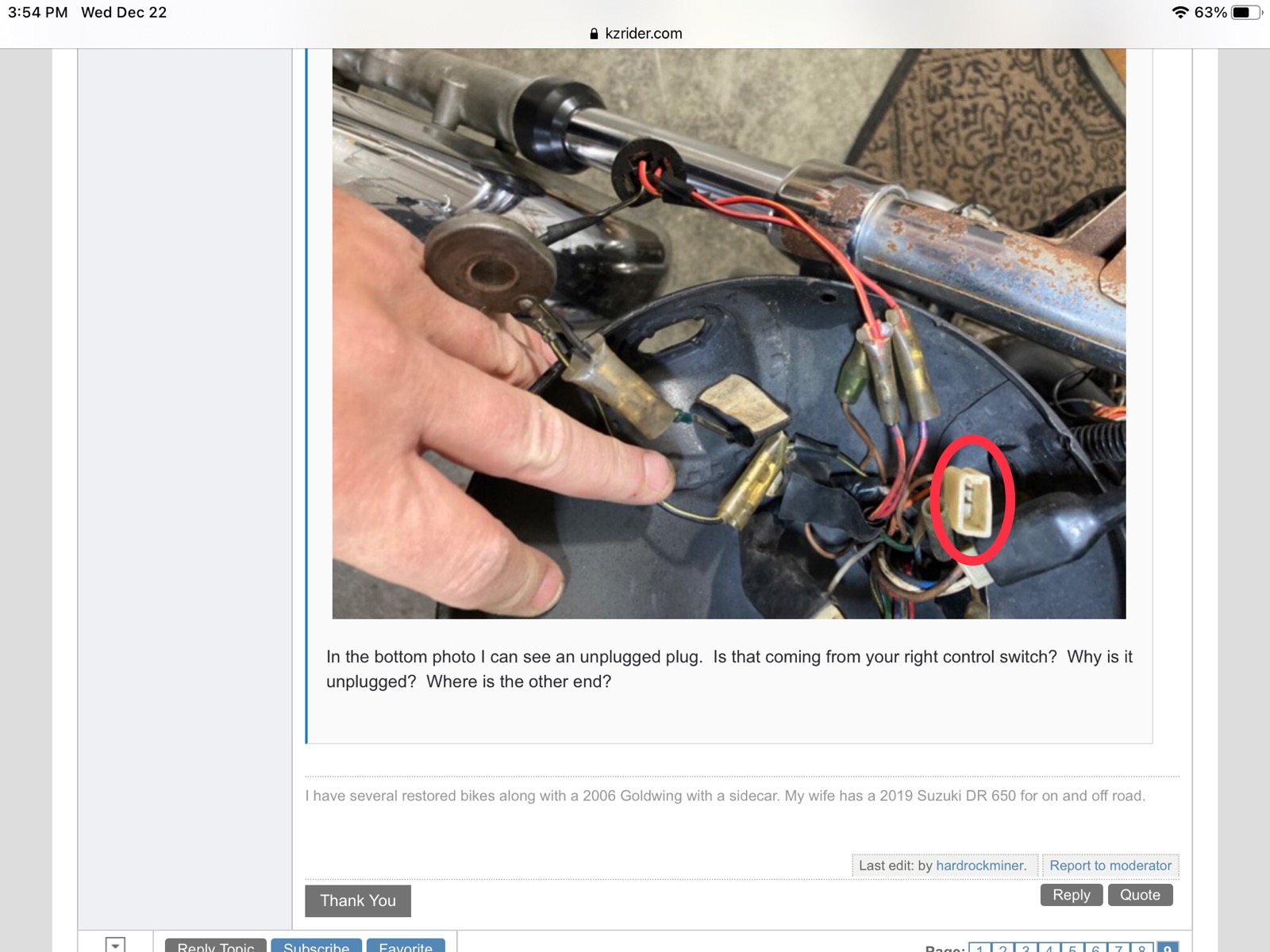

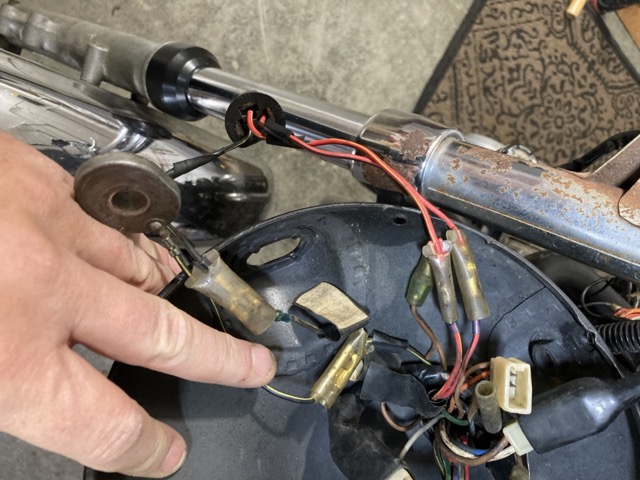

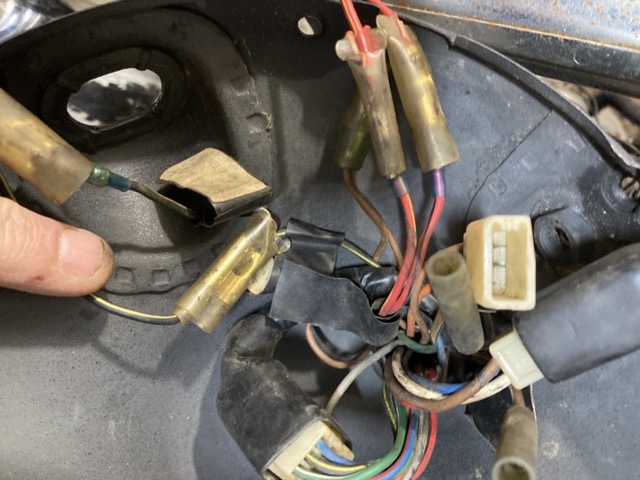

I am attaching photos below of the headlight bucket, it's a bit of spaghetti.
It looks like the main blk/yel wire coming into the bucket from the main loom goes to the headlight wiring and a turn signal ground.
In the bottom photo I can see an unplugged plug. Is that coming from your right control switch? Why is it unplugged? Where is the other end?
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Last edit: 22 Dec 2021 12:53 by hardrockminer.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
22 Dec 2021 12:56 #859496
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic new to me 1976 KZ 900, wires go where?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
22 Dec 2021 13:02 #859497
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?
@F64
Ground wire is now run from battery negative terminal to engine case.
Readings are
Red probe + , black probe to neg - = 11.7v
Red probe on pos and black probe engine case = 11.6v
Ground wire is now run from battery negative terminal to engine case.
Readings are
Red probe + , black probe to neg - = 11.7v
Red probe on pos and black probe engine case = 11.6v
Please Log in or Create an account to join the conversation.
- F64
- Offline
- User
- 81-KZ440D2
Less
More
- Posts: 1112
- Thank you received: 398
22 Dec 2021 13:03 #859498
by F64
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Replied by F64 on topic new to me 1976 KZ 900, wires go where?
Does your neutral light come on?
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
22 Dec 2021 13:09 #859500
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?
@F 64 ,Neutral light comes on
Please Log in or Create an account to join the conversation.
- F64
- Offline
- User
- 81-KZ440D2
Less
More
- Posts: 1112
- Thank you received: 398
22 Dec 2021 13:13 #859502
by F64
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Replied by F64 on topic new to me 1976 KZ 900, wires go where?
Ok,
Reconnect that small black/yellow relay connector.
Take the jumper wire off that connects it to the negative battery post.
Put the big black cable from the starter back on the starter relay terminal.
Try to start the bike.
Reconnect that small black/yellow relay connector.
Take the jumper wire off that connects it to the negative battery post.
Put the big black cable from the starter back on the starter relay terminal.
Try to start the bike.
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
22 Dec 2021 13:18 #859503
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?
Ok, done
Ok,
Reconnect that small black/yellow relay connector. check
Take the jumper wire off that connects it to the negative battery post. check
Put the big black cable from the starter back on the starter relay terminal. this has been always connected,
Try to start the bike. nothing
Ok,
Reconnect that small black/yellow relay connector. check
Take the jumper wire off that connects it to the negative battery post. check
Put the big black cable from the starter back on the starter relay terminal. this has been always connected,
Try to start the bike. nothing
Please Log in or Create an account to join the conversation.
