new to me 1976 KZ 900, wires go where? 22 Dec 2021 11:09 #859476

rscone11 Topic Author Offline User Posts: 121 Thank you received: 9	@F64, is the wiring in the headlight bucket correct?
	Please Log in or Create an account to join the conversation.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 11:12 #859477

F64 Offline User 81-KZ440D2 Posts: 1031 Thank you received: 353	It looks like a mess but I don't see anything wrong with the headlight wiring. Duh. I read it wrong. The wiring is everywhere. The taillight has a connector as does the headlight bucket. Try the headlight first. 81-KZ440-D2. Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html Motogadget m-unit blue installed 2017. LIC, NY
	Please Log in or Create an account to join the conversation. Last edit: by F64.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 11:18 #859478

rscone11 Topic Author Offline User Posts: 121 Thank you received: 9	@F64 Ok so the black/yellow in the headlight should ground to the turn signal and goes to the headlight. taillight is currently disconnected.
	Please Log in or Create an account to join the conversation. Last edit: by rscone11.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 11:20 #859479

rscone11 Topic Author Offline User Posts: 121 Thank you received: 9	@F64, ok try the headlight yellow/black to check for power? Key on? Ignition on? Light on?
	Please Log in or Create an account to join the conversation.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 11:21 #859480

F64
Offline
User
81-KZ440D2
Posts: 1031
Thank you received: 353

Yep
Key on
Ignition on
You want to see 0.0v on the black/yellow.

Red probe on black/yellow in headlight housing

Black probe anywhere on the engine case. Just not on the black/yellow wire.
We want to see if the engine case has a good ground.

81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

The following user(s) said Thank You: rscone11

Please Log in or Create an account to join the conversation.

Last edit: by F64.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 11:31 #859481

rscone11 Topic Author Offline User Posts: 121 Thank you received: 9	@Mikaw, F64. Yes the headlight bucket is a mess, looks like the headlight itself was spliced in, plus lots of other wires with electrical tape. Can I eliminate some of it to try to get the starter working? I currently get the neutral light but no action from the starter when I press start. Thanks
	Please Log in or Create an account to join the conversation.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 11:35 #859482

rscone11 Topic Author Offline User Posts: 121 Thank you received: 9	ok, just saw your note below checking on this..... You want to see 0.0v on the black/yellow. Red probe on black/yellow in headlight housing Black probe anywhere on the engine case. Just not on the black/yellow wire. We want to see if the engine case has a good ground.
	Please Log in or Create an account to join the conversation.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 11:46 #859484

F64 Offline User 81-KZ440D2 Posts: 1031 Thank you received: 353	We'll try to start it in a bit. Not right now. We need to get your ground wire sorted. 81-KZ440-D2. Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html Motogadget m-unit blue installed 2017. LIC, NY
	Please Log in or Create an account to join the conversation.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 12:13 #859485

rscone11 Topic Author Offline User Posts: 121 Thank you received: 9	@F64, @Mikaw The rear black/yellow connector goes to the turn signals, that shows 84v when touching black probe to engine case. Black/yellow shows 82v at the headlight bucket.
	Please Log in or Create an account to join the conversation.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 12:22 #859486

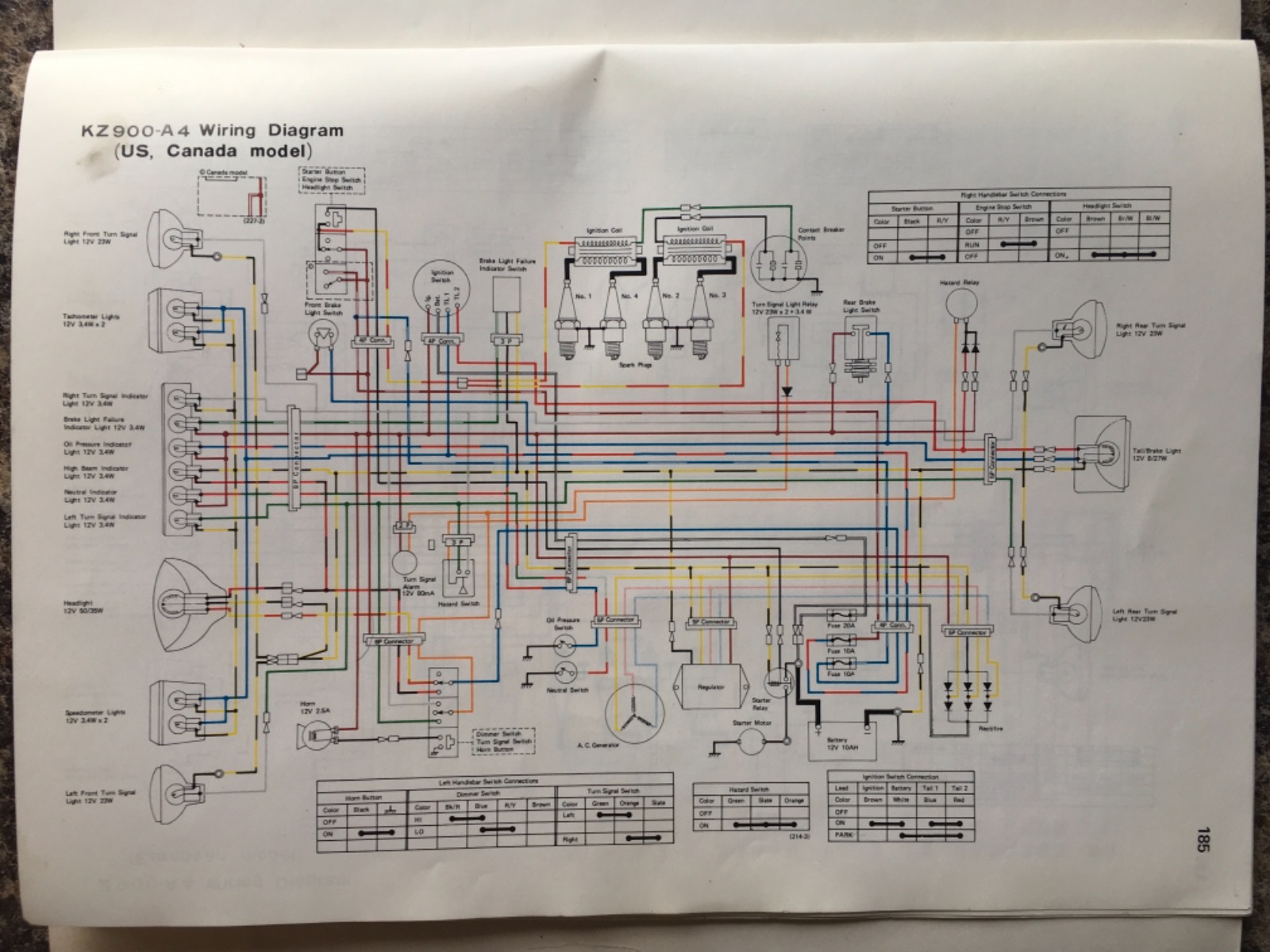

Mikaw Offline Sustaining Member Posts: 4901 Thank you received: 1863	Does this help. 1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4 1976 KZ 900 B1 LTD 1978 KZ 1000 B2 LTD 1980 KZ 750 E1 Kowledge Speaks, But Wisdom Listens. Jimi Hendrix. Attachments:
	Please Log in or Create an account to join the conversation.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 12:23 #859487

F64 Offline User 81-KZ440D2 Posts: 1031 Thank you received: 353	Key on Ignition on Red probe on battery positive post Black on battery negative post What is your voltage? Move black probe to engine case. What is your voltage? 81-KZ440-D2. Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html Motogadget m-unit blue installed 2017. LIC, NY
	Please Log in or Create an account to join the conversation.

new to me 1976 KZ 900, wires go where? 22 Dec 2021 12:28 #859488

rscone11 Topic Author Offline User Posts: 121 Thank you received: 9	results... Key on Ignition on, Just FYI, I notice when I switch the ignition on and off the neutral light dims Red probe on battery positive post Black on battery negative post What is your voltage? 11.7v Move black probe to engine case. What is your voltage? 116.2v
	Please Log in or Create an account to join the conversation.
