With reference to vacuum sync for Mikuni 33 smoothbore carbs,

wiredgeorge wrote: Don't see a reason why you couldn't drill/tap intake runners. I have installed vacuum spigots from an old set of carb holders into a set of larger carb holders. It is kind of a pain to get them out of the old rubber but it can be done. If you drill/tap, you will have to use adapters to do the sync but if you modify the rubber carb holder, you can just shove the hoses from the manometer onto the vacuum fittings you installed.


Per Sudco:



Sudco recommends only mechanical sync for smoothbore carbs.

Such mechanical sync is also known as bench sync, where the carb assembly has been removed from the engine and is on the work bench with the top caps removed to allow access to the throttle slide adjustments in each carb.

After the bench sync, when a "running sync" with manometer or vacuum gauges might be thereafter performed, Sudco says the detached caps allow air leaks which adversely impact a "running sync."

In summary, Sudco says to carefully bench sync, followed by pilot air screw tuning of the idle circuits with the carbs fully assembled (i.e., caps attached).

However, the stock Mikuni carbs with manual slides and side-located pilot air screws would be expected to have the same "air leak" with their caps removed, as noted by Sudco. Moreover, the Kawasaki FSM details the procedure for both bench sync (basically same as the mechanical sync described by Sudco), followed by a running sync with caps removed and manometer or vacuum gauges attached.

Am thinking most smoothbore tuners, including wiredgeorge, perform both bench sync and running sync, the same as for stock manual slide Mikuni's as provided in the FSM. And I have long enjoyed success in syncing smoothbores by following the FSM stock carb sync procedure for Mikuni mechanical throttle slide carbs. The dreaded "air leaks" with caps removed hasn't been an issue. And in any event, running sync may be easily verified by reading the manometer or vacuum gauges after the top caps are replaced.

Let's say that bench sync has been done, and the carb assembly is now reattached to the engine, and the carb caps are off, and manometer or vacuum gauges are attached, and engine is idling, and sync screws have been adjusted to provide the best equal vacuums in all carbs, and the slide adjustments have been locked. Next, turn off the engine, remove the manometer or vacuum gauges, and replace the caps. Then re-start the engine and proceed with final fine tuning of the pilot air screws.

Remember to have a fan blowing on the engine to keep it from over-heating while the engine is at idle rpm during the running sync process and pilot screw fine tuning adjustments.

Here's a tip about bench sync that might not be mentioned in the FSM.
When setting the slides to equal heights (with paper clip, drill bit, wire, or whatever), be sure to have the idle adustment screw threads in approximate mid-position or at least in a position to assure that the slides may be lowered during the running sync. Neglecting this step may result in being unable to sufficiently lower the idle rpm. For example, when fine tuning the pilot air screws gets the idle rpm too high, it's important to have some threads remaining on the idle adjustment screw in order to reduce the idle speed.

Good Fortune! :)
1973 Z1
KZ900 LTD
Attachments:
The following user(s) said Thank You: daveo, DobbinsCMA

Please Log in or Create an account to join the conversation.

Last edit: by Patton.

Mikuni VM 33 Carbs 26 Feb 2016 20:24 #712684

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 18474
  • Thank you received: 1685
Never had a problem doing it plus I've dialed out a stumble this way.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 26 Feb 2016 20:26 #712685

  • daveo
  • daveo's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 1868
  • Thank you received: 244
Thanks again, Patton :kiss: :pinch:
1982 KZ1100A-2 (sort-of)
January 2016 BOTM

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 26 Feb 2016 20:31 #712686

  • daveo
  • daveo's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 1868
  • Thank you received: 244

swest wrote: Never had a problem doing it plus I've dialed out a stumble this way.
Steve


Keep them suggestions coming Steve! :woohoo:
1982 KZ1100A-2 (sort-of)
January 2016 BOTM

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 26 Feb 2016 20:56 #712690

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 18474
  • Thank you received: 1685
Here's a pic of one of them . LOUSY work. They weren't even drilled well. Lore pics later.
Steve

Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 27 Feb 2016 07:24 #712715

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 18474
  • Thank you received: 1685
Here's the vac taps on the outside carbs. The inside are smaller holes and drilled off center. :sick: Poorly placed too. I plan on redoing them but I don't have a die that small. Some day.
Steve





Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 27 Feb 2016 07:56 #712717

  • daveo
  • daveo's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 1868
  • Thank you received: 244
Are the vacuum nipples easy to access on the inner carbs?

I've been riding with the opinion that an air box is preferable to pods in my BS34 application, but...
What performance effect does an air box have on these 33's or Flatslide carbs?


I had a dream. Something changed my friendly old pet into an uncontrollable ravenous beast. :ohmy:
Must be the carbs... :evil:
1982 KZ1100A-2 (sort-of)
January 2016 BOTM

Please Log in or Create an account to join the conversation.

Last edit: by daveo. Reason: Updated

Mikuni VM 33 Carbs 27 Feb 2016 08:42 #712719

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 18474
  • Thank you received: 1685
The air box is always preferable for all weather riding. With my 28's I could tell I was running out of gas at high speeds under load in 5th on the grade going into town. I changed the float valves from 2.0 to 2.5 and that helped. Once I got the 33's working properly kinda, that wasn't an issue. At first the way they were set up it was all on or all off. Now I can cruse through the parking lot or slow streets and when I want to get on it, it's all there. :woohoo:
The two inner ports are hard to get to so I made extensions with short tubing with nipples on the ends. As suggested here I will use solid brake line for my fittings. I can experiment with my old holders to see if I can install ports in them. If so I can have Jeff fill the holes and sync them that way. We'll see. :whistle:
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 27 Feb 2016 10:09 #712724

  • daveo
  • daveo's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 1868
  • Thank you received: 244
Does the air box have an effect on the performance with these carbs, like smoothing out irregularities or in general making the engine run better than if pods are used? :blink:
1982 KZ1100A-2 (sort-of)
January 2016 BOTM

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 27 Feb 2016 10:19 #712726

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 18474
  • Thank you received: 1685
I'm sure I'll get an argument there but think of this, at speed the air is rushing by creating a vortex in that area. As explained to me so long ago, the frame becomes pressurized allowing more air to be available to the carbs. Aside from issues of air starvation, wet conditions, carb issues, the air box is the way to go to prevent this, that is unless you're on the track doing 10 second passes. IMO
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 28 Feb 2016 06:37 #712817

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 18474
  • Thank you received: 1685
While looking at carb sync tools I found these and bought them. $10 shipped. ;)
Steve

Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:
The following user(s) said Thank You: blackumi

Please Log in or Create an account to join the conversation.

Mikuni VM 33 Carbs 28 Feb 2016 09:12 #712856

  • kaw-a-holic
  • kaw-a-holic's Avatar
  • Offline
  • Member
  • Member
  • Posts: 1814
  • Thank you received: 249

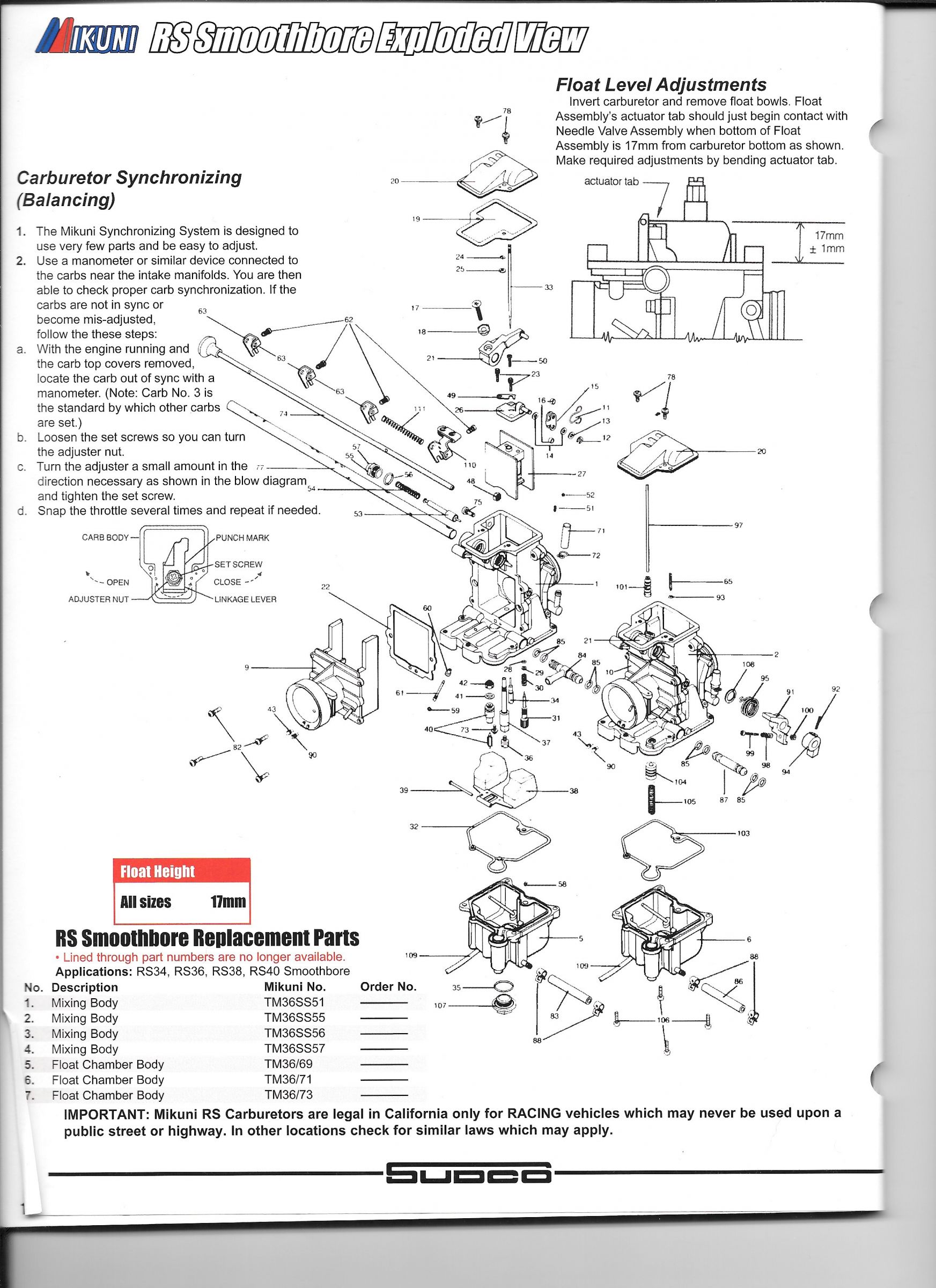

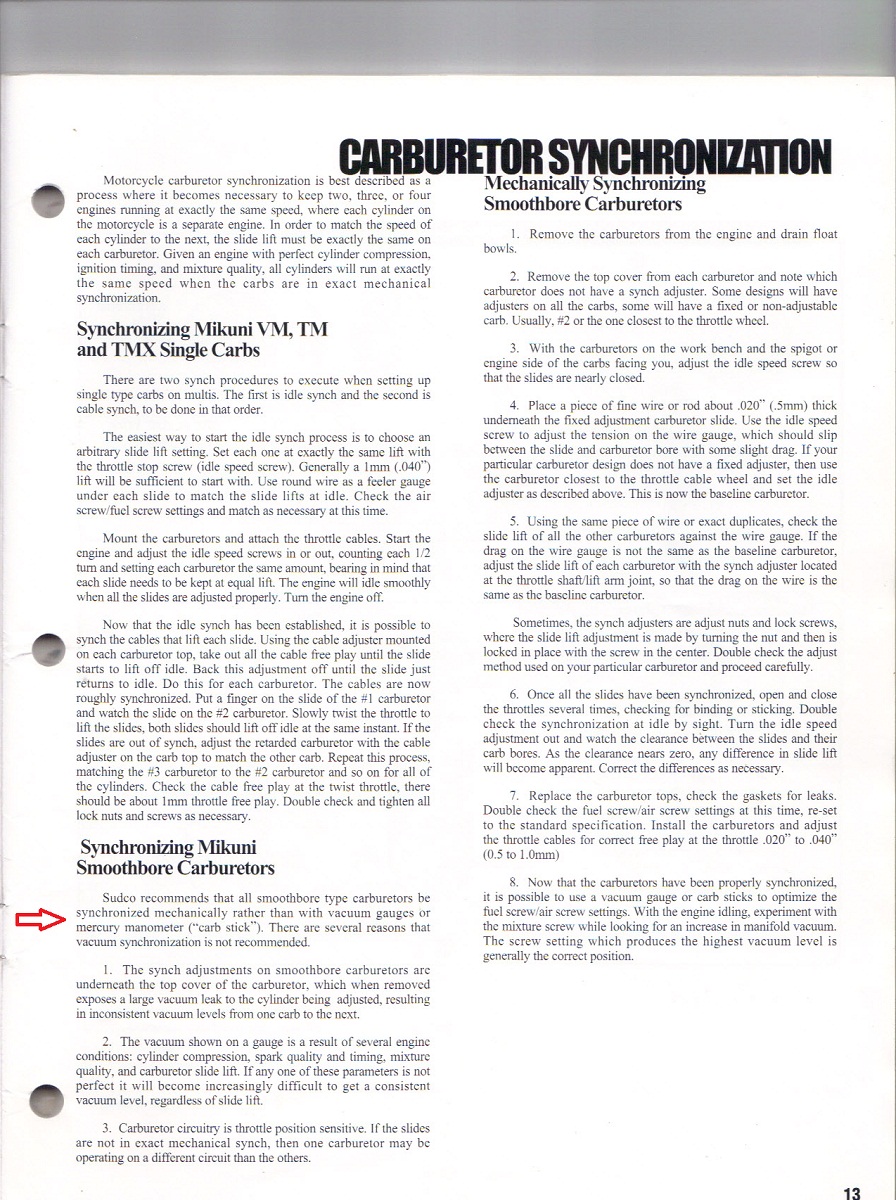

This is going to contradict what Patton says. This is a page out of the Sudco 5th edition tuning manual
