It runs!!!! BUT!
- missionkz
- Offline
- Sustaining Member
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Please Log in or Create an account to join the conversation.
- bromz
- Topic Author
- Offline
- User
- 1981 kz1000 csr
- Posts: 227
- Thank you received: 2
Attachment ImageUploadedByTapatalk1430196272.372715.jpg not found
Advancer
Attachment ImageUploadedByTapatalk1430196286.607045.jpg not found
Cams. Getting better?
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22977
- Thank you received: 2750
Steve
Please Log in or Create an account to join the conversation.
- bromz
- Topic Author
- Offline
- User
- 1981 kz1000 csr
- Posts: 227
- Thank you received: 2
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22977
- Thank you received: 2750
Steve
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
This helps determine that the ignition system is serviceable and capable of producing adequate sparks.
If so, it's then necessary to determine whether the sparks are timed correctly, which is the ignition timing set by aligning the F mark on the advancer with the timing mark on the case.
The ignition system doesn't know what the valves are doing.
A separate consideration is the cam timing, which governs opening and closing of the valves in relation to crankshaft rotation.
The cams don't know what the sparks are doing.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
swest wrote: Looks like the advancer has been tampered with. Is it even the right one?
Steve
Excellent question! I understand that my advancer will be a little different because it is for a KZ650-C1, but the one in his picture may be fiddled with. It has fewer coils than mine and so it is stretched a bit tighter; this may be perfectly normal for his model - I cannot say. However, it appears to have a piece of metal inside the coils (see yellow arrow in image below). Is that just a photo anomaly, or is it really there. If it really is there, is that normal for the advancer on his model? The second image below shows the KZ650-C1 advancer for comparison. Ed
Attachment 00003a-18.jpg not found
Attachment AdvancerCloseup-2.jpg not found
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22977
- Thank you received: 2750
Steve
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Use a pencil or short length of coat hanger into the spark plug hole to feel the piston.
Put a vise grip on the big nut to turn the crank with no slop. ( i usually use the bolt on the alternator, it's more robust.)
Rock the vise grip back and forth across TDC and find where the stick stops moving at either end of the vise grip travel. The center of the vise grip movement is TDC. The T mark should line up at that point. If not, then you have to figure out if the advancer is original or not.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- bromz
- Topic Author
- Offline
- User
- 1981 kz1000 csr
- Posts: 227
- Thank you received: 2
Attachment not found
Picture from FSM
As you can see in my blurred image the advancer springs do appear slightly stretched but my pic and manual pic are identical. Same number of coils on springs
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- missionkz
- Offline
- Sustaining Member

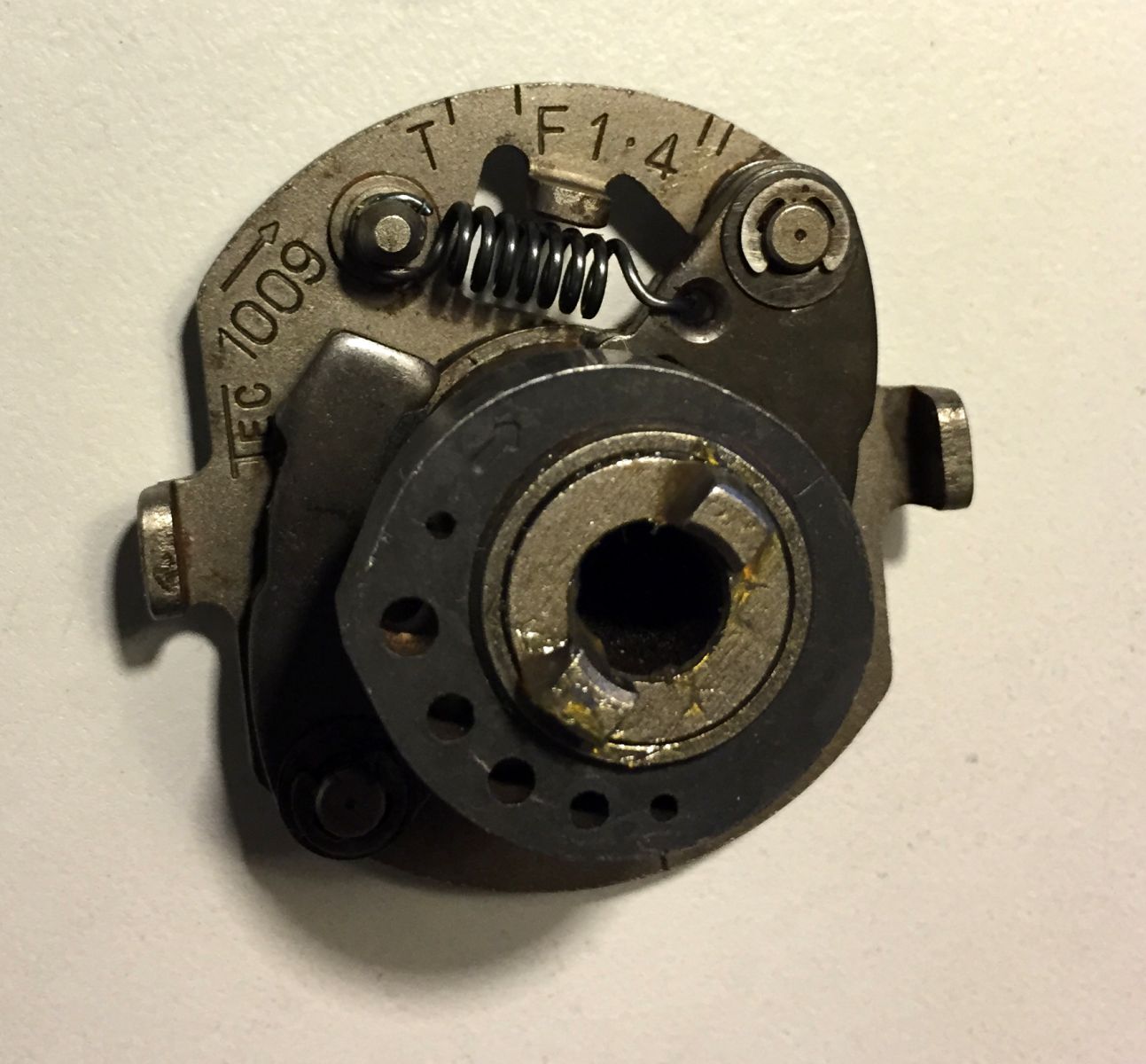

Here is a picture of one of my extra parts from a bike like this and it shows the springs in the same tension... I think yours is stock and not altered... but I don't know if there is a piece of metal in there or just an anomaly in the photo....bromz wrote: The advancer is original. I've had this bike for 4 years and my uncle had it for the rest. The advancer matches pictures in both manuals I have. The bike ran with this advancer for many years.
Attachment not found
Picture from FSM
As you can see in my blurred image the advancer springs do appear slightly stretched but my pic and manual pic are identical. Same number of coils on springs
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Please Log in or Create an account to join the conversation.
