Re: OMR: '76 KZ900 Restoration/Modification
19 Feb 2012 10:24
Very nice job Dave.
how did u attatch the speedo inside the cup ?
how did u attatch the speedo inside the cup ?
76 KZ, frame gusset work,1200CC.Ported by Larry Cavanaugh, 1.5mm.over intakes, Carron Pipe, ZRX12 rear end, and seat,96zx9 front end.
01 CBR600F4i Track bike.
Cobourg, Ont. Can.
~ ~ ~_@
~ ~ _- \,
~ (k) / (z)
01 CBR600F4i Track bike.
Cobourg, Ont. Can.
~ ~ ~_@
~ ~ _- \,
~ (k) / (z)
Please Log in or Create an account to join the conversation.
- Old Man Rock
-
Topic Author
- Offline
- User
- Posts: 6224
- Thanks: 225
Re: OMR: '76 KZ900 Restoration/Modification
19 Feb 2012 12:03 - 19 Feb 2012 12:04
"how did u attatch the speedo inside the cup ?"...
Long story short...

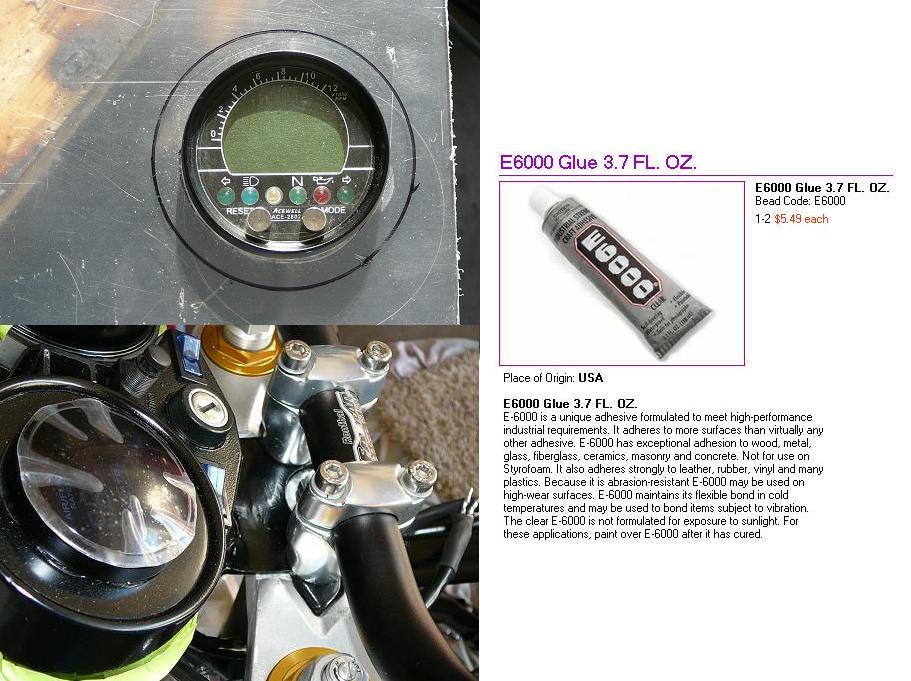

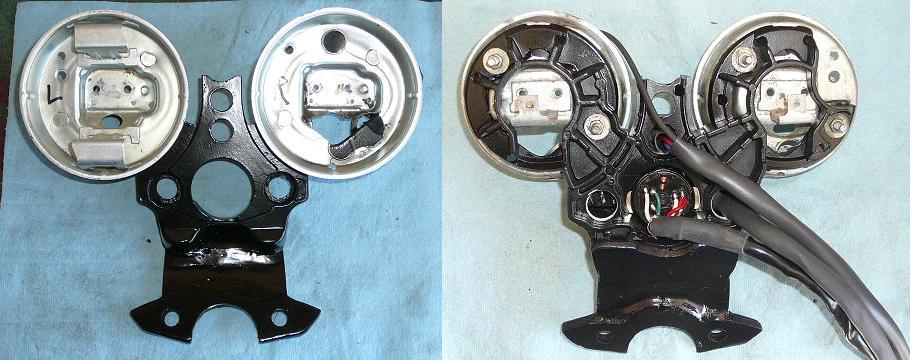

* The inner plexi glass opening is cut/filed for a snug fit for the gauges (Upper left images).
* The outer plexi glass opening is cut/filed for a snug fit for the inner cups.
* Insert the plexi rings, and E6000 them into place.
* Paint and cure.
* Insert gauges and E6000 them into place (Inside cup side).
Voila!...
95% done on the wiring (included new L/S power panel w/Fuse block) then onto head cylinder clean and hone... Then the carb clean out and bench sync, especially # 4...
She's coming along nicely!
Long story short...
* The inner plexi glass opening is cut/filed for a snug fit for the gauges (Upper left images).
* The outer plexi glass opening is cut/filed for a snug fit for the inner cups.
* Insert the plexi rings, and E6000 them into place.
* Paint and cure.
* Insert gauges and E6000 them into place (Inside cup side).
Voila!...
95% done on the wiring (included new L/S power panel w/Fuse block) then onto head cylinder clean and hone... Then the carb clean out and bench sync, especially # 4...
She's coming along nicely!
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Last edit: 19 Feb 2012 12:04 by Old Man Rock.
Please Log in or Create an account to join the conversation.
- 650ed
-
- Offline
- User
- Posts: 15343
- Thanks: 2829
- Old Man Rock
-
Topic Author
- Offline
- User
- Posts: 6224
- Thanks: 225
- LarryC
-
- Offline
- User
- Posts: 1241
- Thanks: 309
Re: OMR: '76 KZ900 Restoration/Modification
19 Feb 2012 12:15650ed wrote:Old Man Rock wrote: Holly crapola... You guys actually believe I drew out the bolt patterns... :blink: I might be crazy but I'm not stupid...
Whoa......... New invention out these days, called a printer.... of the parts fiche file.
:whistle: :laugh: :laugh: :laugh:
All I did was record what bolts & sizes/threads went where. I also used this when comparing SS bolt kit listings insuring I had everything I needed... Not really a big deal... Card board pattern idea works great no doubt. Same time, this worked for me...
Besides, both of my basket case KZ's had a mix matched set of screws/bolts holding them together so came in handy...
As for the Sunlight on the gauges... I've been running the Acewell Speedo/tach for the last couple years now, no issues for the characters/numbers are in black. The volt meter is analog, again no issues. Unknown about the AF/R gauge but not worried about it for this will mostly be beneficial during tune ups/jetting/emissions and occasional glances during rides for where she's burning...
It's all good...
OMR,
You might want to consider adding the dimensions to the drawing on your computer. I bet you could sell copies of it on eBay to folks who have torn their engines down without recording anything on paper or on cardboard and to folks whose kids have pulled the bolts out of their cardboard templates.Ed
Ahhh.... both of those groups of people would be better off if they never touched tools :kiss:
Larry C.
Please Log in or Create an account to join the conversation.
- Old Man Rock
-
Topic Author
- Offline
- User
- Posts: 6224
- Thanks: 225
Re: OMR: '76 KZ900 Restoration/Modification
19 Feb 2012 12:19
Back @ U... :kiss:
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Please Log in or Create an account to join the conversation.
- Patton
-
- Offline
- KZr Legend
- Posts: 18640
- Thanks: 2099
Please Log in or Create an account to join the conversation.
- Old Man Rock
-
Topic Author
- Offline
- User
- Posts: 6224
- Thanks: 225
- Old Man Rock
-
Topic Author
- Offline
- User
- Posts: 6224
- Thanks: 225
Re: OMR: '76 KZ900 Restoration/Modification
19 Feb 2012 13:31 - 19 Feb 2012 13:35
Back to subject matter....

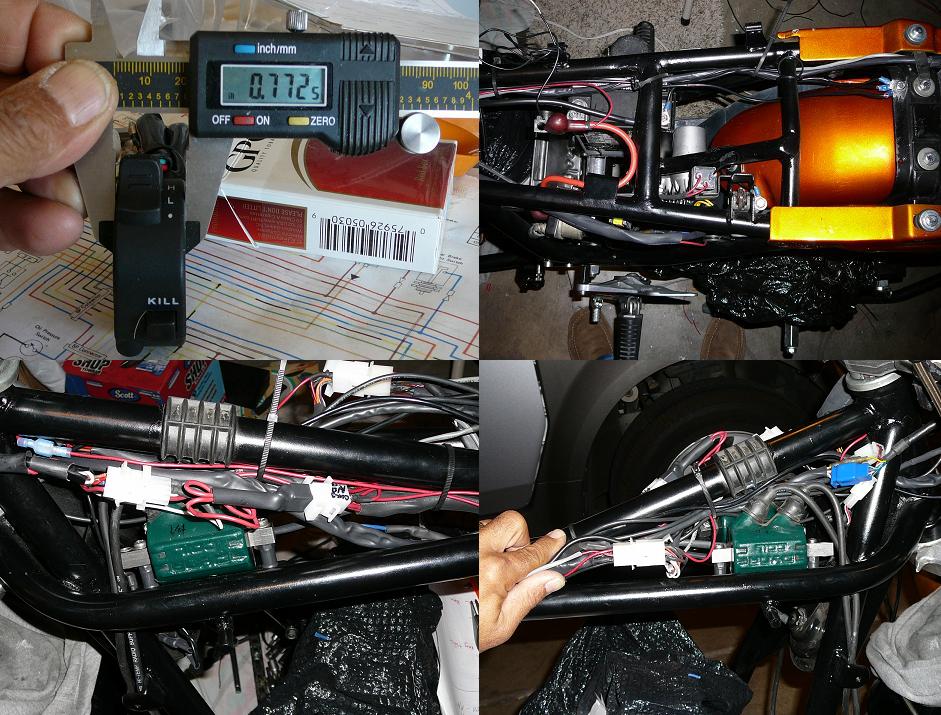

Wiring panel & harness... Still have some final heat shrink tubing and tie wraps to complete but not until all electrical/running up to specs.... Later... Basic electrical operations such as Headlights, speedo/tach indicators, horn, turn signals w/LED relay, tail lights, break lights all operational.
