Wiring diagram with munit - REVIEW
- Wookie58
-
- Busy
- Moderator
-
Registered
- Posts: 5000
- Thanks: 3048
Re: Wiring diagram with munit - REVIEW

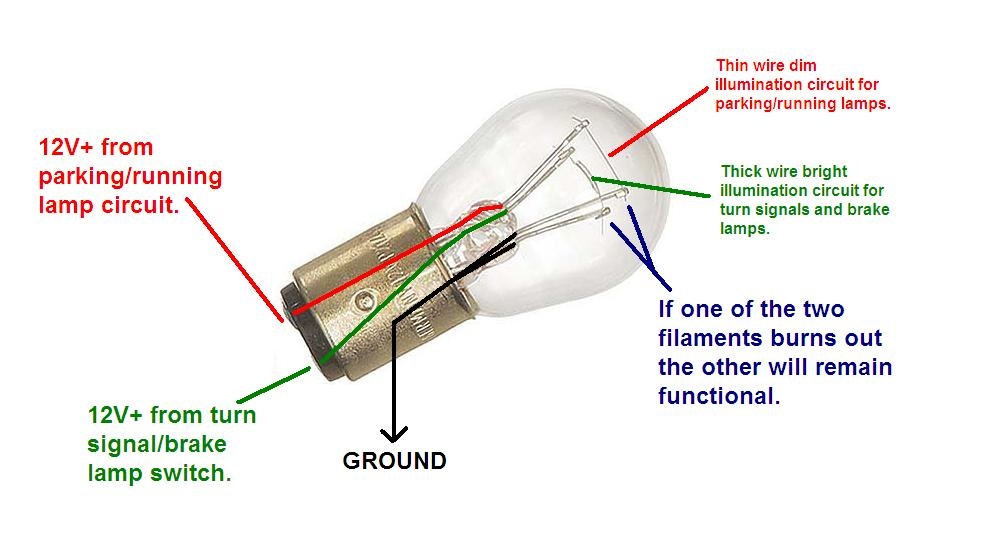

27 May 2025 09:28I assume this is an incandescent bulb ? the reason you are getting continuity between the two inputs is they share a common ground - the way a bulb works is that initially it is close to a short circuit, the current flow then causes a heat build up in the filament which generates resistance and makes it glow (this is why bulbs often blow when you first turn them on during the "short circuit phase") when voltage is applied to one of the inputs the path of least resistance is ground so the other filament doesn't illuminate, are you sure it's wired correctly to the Mo-Unit (low beam is fed constantly with the ignition, the high/low switch function working correctly through the Mo-Unit?)I have another challenge as well — the high beam indicator on the speedo. I’ve connected it to the high beam output that goes to the front light. The problem is that it’s always on as long as the light is on. I measured the resistance on the bulb itself, and it’s close to 0 between the low and high beam positive terminals. Any ideas?
Maybe I connected wrong terminal to the ground…. Need to check![]()
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1478
- Thanks: 84
Re: Wiring diagram with munit - REVIEW
27 May 2025 12:12
Thnx
The wiring from m-unit is correct, but it looks like I have connected ground to the bulb wrong.
Can that be the problem?
low light is always on and when I switch high beam on the light turn on stronger…
Maybe I can configure the high beam to shutoff low beam….?
The wiring from m-unit is correct, but it looks like I have connected ground to the bulb wrong.
Can that be the problem?
low light is always on and when I switch high beam on the light turn on stronger…
Maybe I can configure the high beam to shutoff low beam….?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Busy
- Moderator
-
Registered
- Posts: 5000
- Thanks: 3048
Re: Wiring diagram with munit - REVIEW
27 May 2025 12:22
I would expect the low beam to switch off when high beam is activated, this is the norm
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1478
- Thanks: 84
Re: Wiring diagram with munit - REVIEW
28 May 2025 11:19 - 28 May 2025 13:40
I disconnected the bulb today and took some measurements:
- With the high beam not activated:
– 12V between the low beam wire and ground
– 0V between the high beam wire and ground - With the high beam activated:
– 12V between the high beam wire and ground
– 0V between the low beam wire and ground
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Last edit: 28 May 2025 13:40 by gordone.
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Busy
- Moderator
-
Registered
- Posts: 5000
- Thanks: 3048
Re: Wiring diagram with munit - REVIEW

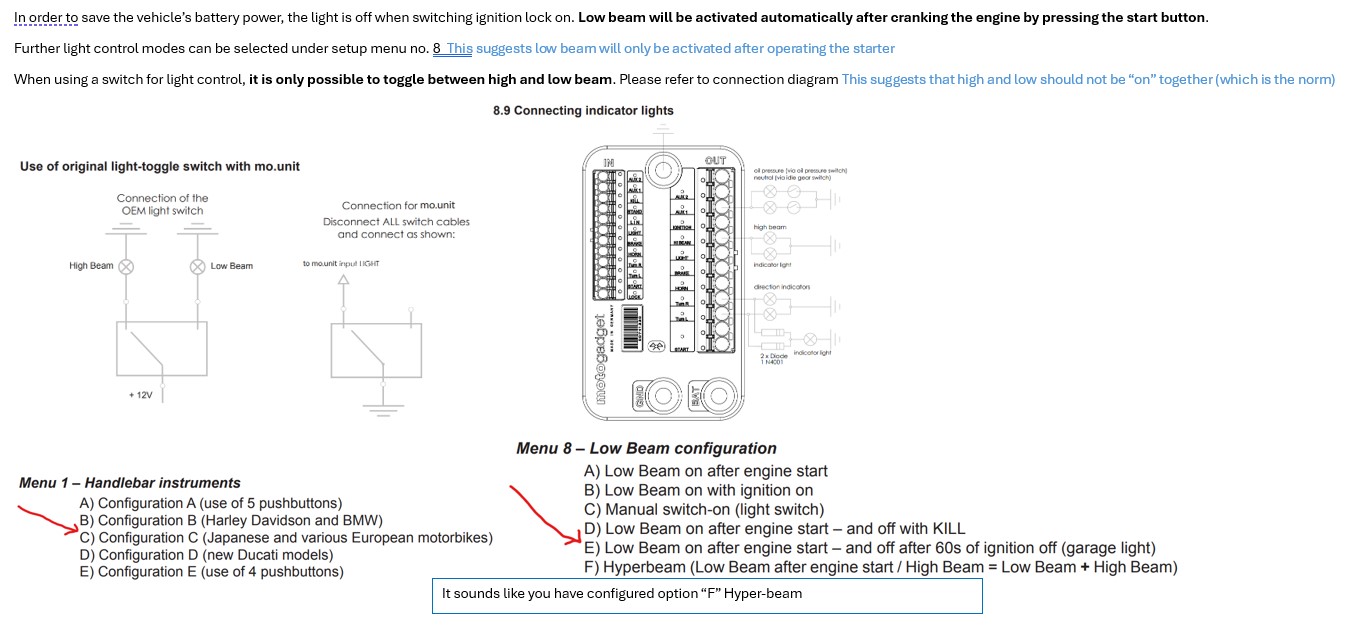

28 May 2025 11:49I disconnected the bulb today and took some measurements:Interestingly, there is always 12V between the low beam and high beam wires, but the polarity changes depending on whether the high beam is activated or not This makes little sense since both "high " and "low" are fed from the Mo-Unit - if the high/low switch is wired correctly this would point to a configuration issue (if I get chance I will look at the moto gadget manual tomorrow) . Could this behavior help explain why the high beam indicator on the speedometer isn’t working correctly? Potentially as the indicator is a LED so polarity sensitive (The speedometer input has high resistance.) That is normal given you are measuring an LED
- With the high beam not activated:
– 12V between the high beam wire and ground
– 0V between the low beam wire and ground- With the high beam activated:
– 12V between the high beam wire and ground
– 0V between the low beam wire and ground
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1478
- Thanks: 84
Re: Wiring diagram with munit - REVIEW
28 May 2025 13:42
I wrote wrong on point 1, text is corrected.
When I have the light connected it works with low and high beam easy to see the difference in intencity, but are not sure if both high and low is on the same time for high beam.
When I have the light connected it works with low and high beam easy to see the difference in intencity, but are not sure if both high and low is on the same time for high beam.
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Busy
- Moderator
-
Registered
- Posts: 5000
- Thanks: 3048
Re: Wiring diagram with munit - REVIEW
29 May 2025 05:26
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1478
- Thanks: 84
Re: Wiring diagram with munit - REVIEW
02 Jun 2025 03:24Will check these out ! Thnx !
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1478
- Thanks: 84
Re: Wiring diagram with munit - REVIEW
Yesterday 22:58
I noticed earlier that I had swapped the ground wire with the high or low beam wire to the bulb. I made some temporary cables to connect it correctly, but the problem with the high beam indicator was still present.However, yesterday I disconnected all three wires and reconnected them properly... and then — it worked! Both low and high beams, including the indicator on the speedometer, were functioning correctly.
Thank you all for taking the time to help me! And sorry for being slow to reply — I have a small child, so I try to squeeze in some time for motorcycle work whenever I can. 😊
I`m wrapping everything up now so I can do a test drive to see how things is working.
The only thing I have left from what I know is the RPM... so need to look more into that in the next weeks, but it will be nice to be able to drive again now...
Thank you all for taking the time to help me! And sorry for being slow to reply — I have a small child, so I try to squeeze in some time for motorcycle work whenever I can. 😊
I`m wrapping everything up now so I can do a test drive to see how things is working.
The only thing I have left from what I know is the RPM... so need to look more into that in the next weeks, but it will be nice to be able to drive again now...
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
The following user(s) said Thank You: Wookie58
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Busy
- Moderator
-
Registered
- Posts: 5000
- Thanks: 3048
Re: Wiring diagram with munit - REVIEW
Yesterday 00:22
Glad you got it resolved, and that you have your priorities right
