- Posts: 232
- Thank you received: 19
1973 Z1 Maui
- MauiZ1
- Topic Author
- Offline
- User
Less
More
25 Nov 2021 07:14 #858319
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui

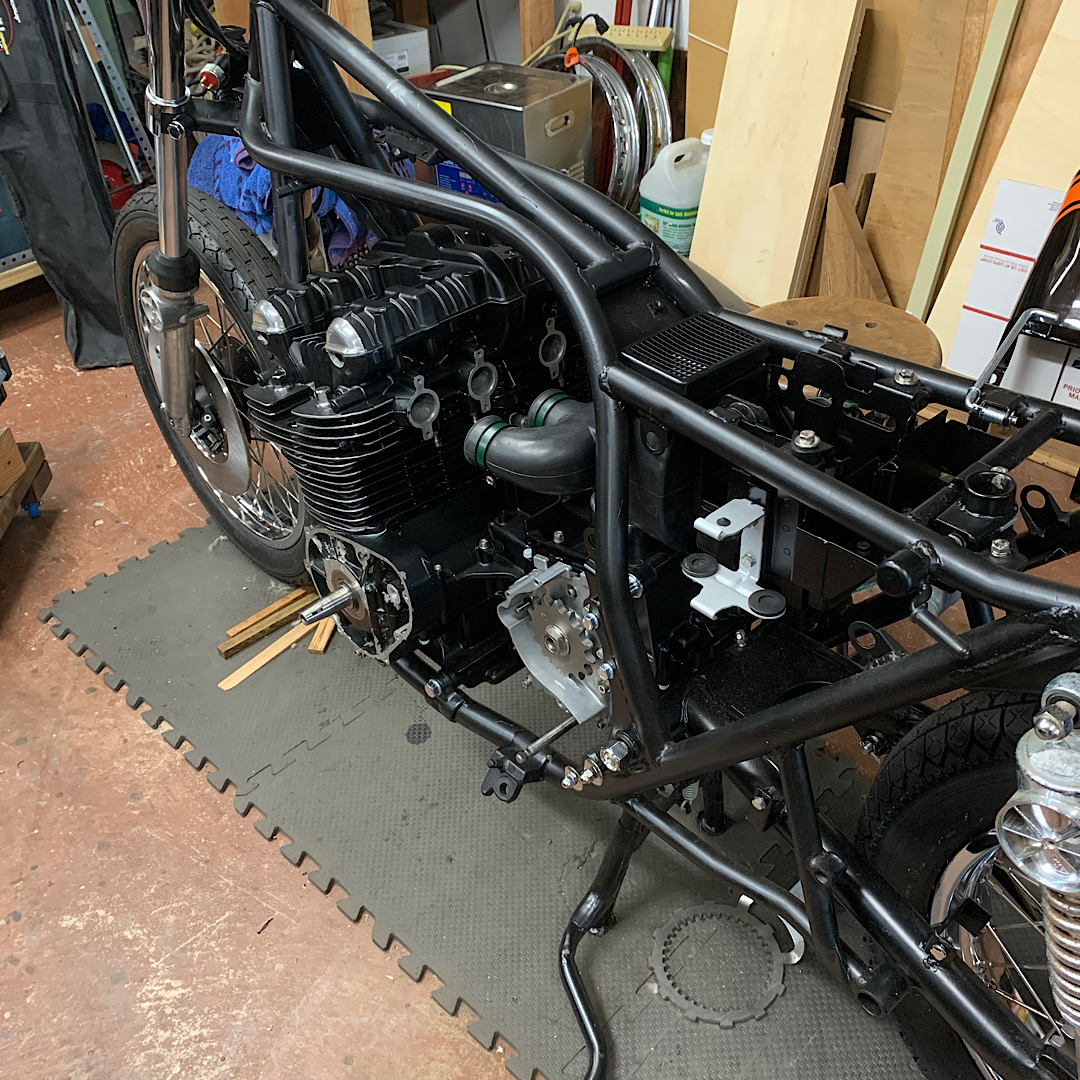

I installed the head after fixing the rocking motion I felt the first time the cylinders went on. The lower idler had rotated some and the rubber bumpers were up. Fixed that. The head went on with a little drama, one of the shims was out of place and broke as I tightened it down, I should have just left them out and put them in later. Now I have to find the valve adjustment tool I bought to set the valves properly. They all show about 0.005" right now. Timing went pretty easy, easier than I expected. Since I've never done a Z1 I don't really know what to expect. Onward and upward.
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
27 Nov 2021 13:55 #858369
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui

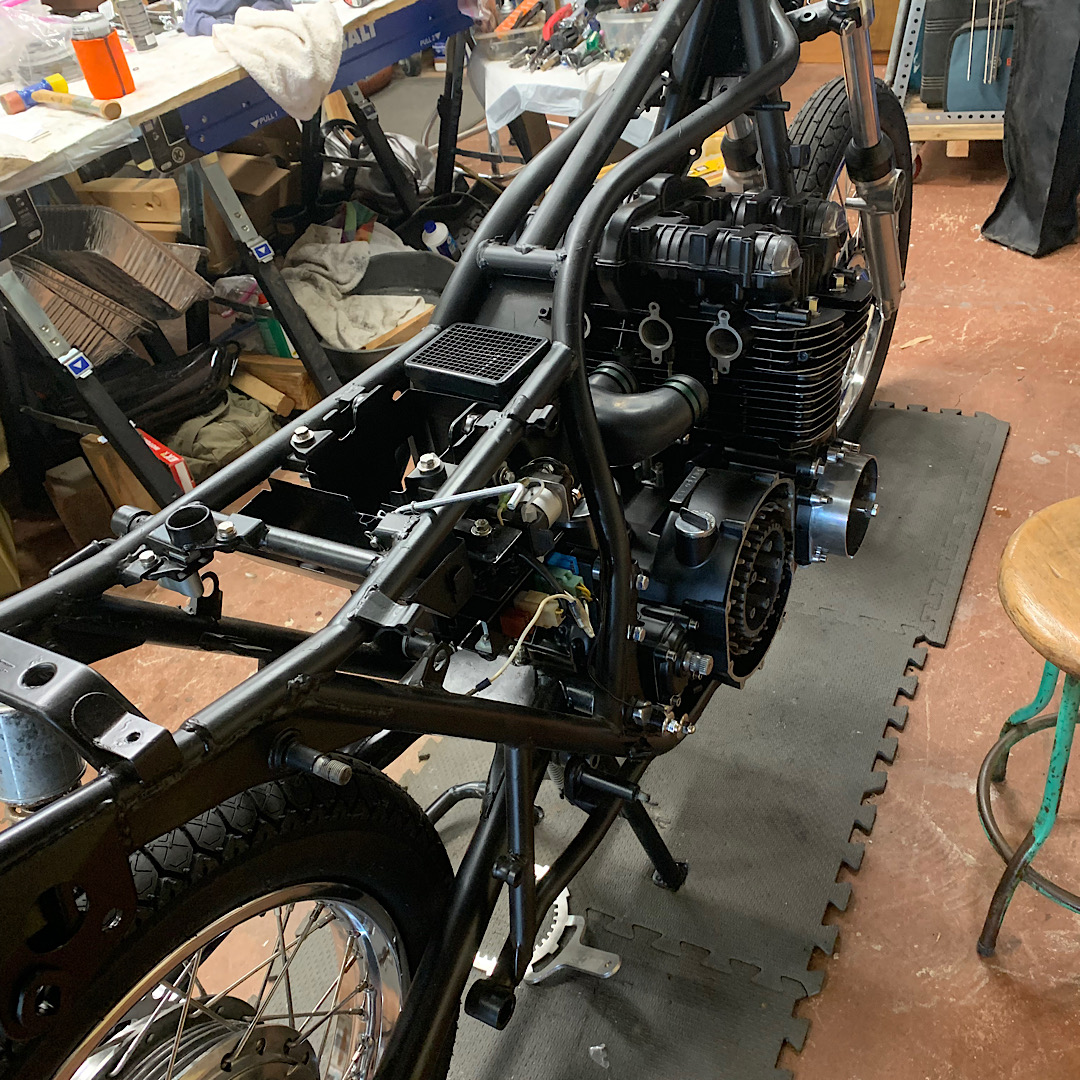

I got the valves adjusted and started to get the Dynamo assembled.. I discovered something I missed earlier, my wires on the stator were abraded through the insulation on two wires where they are close to the rotor, the previous owner must not have been very careful. I ordered a new one just in case, I’ll also see if I can come up with a repair.
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
29 Nov 2021 07:11 #858425
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui
Please Log in or Create an account to join the conversation.
- DOHC
- Offline
- Sustaining Member
- Those Doe-Hawks really go!
Less
More
- Posts: 1286
- Thank you received: 549
29 Nov 2021 08:36 - 29 Nov 2021 08:36 #858429
by DOHC
That's tricky. Anything you put over the exposed wire could come off and wander around the sump. The stator is exposed to oil, so whatever it is would need to be compatible with the oil and survive the oil temperature of an air cooled engine.
It looks like the factory put some covering over the joint where the yellow wire is attached to the enameled wire. You could open that up and solder a new wire in place, but I don't know what that material is or where you could find it.
The safest thing would be to replace it. But that's not cheap.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Replied by DOHC on topic 1973 Z1 Maui

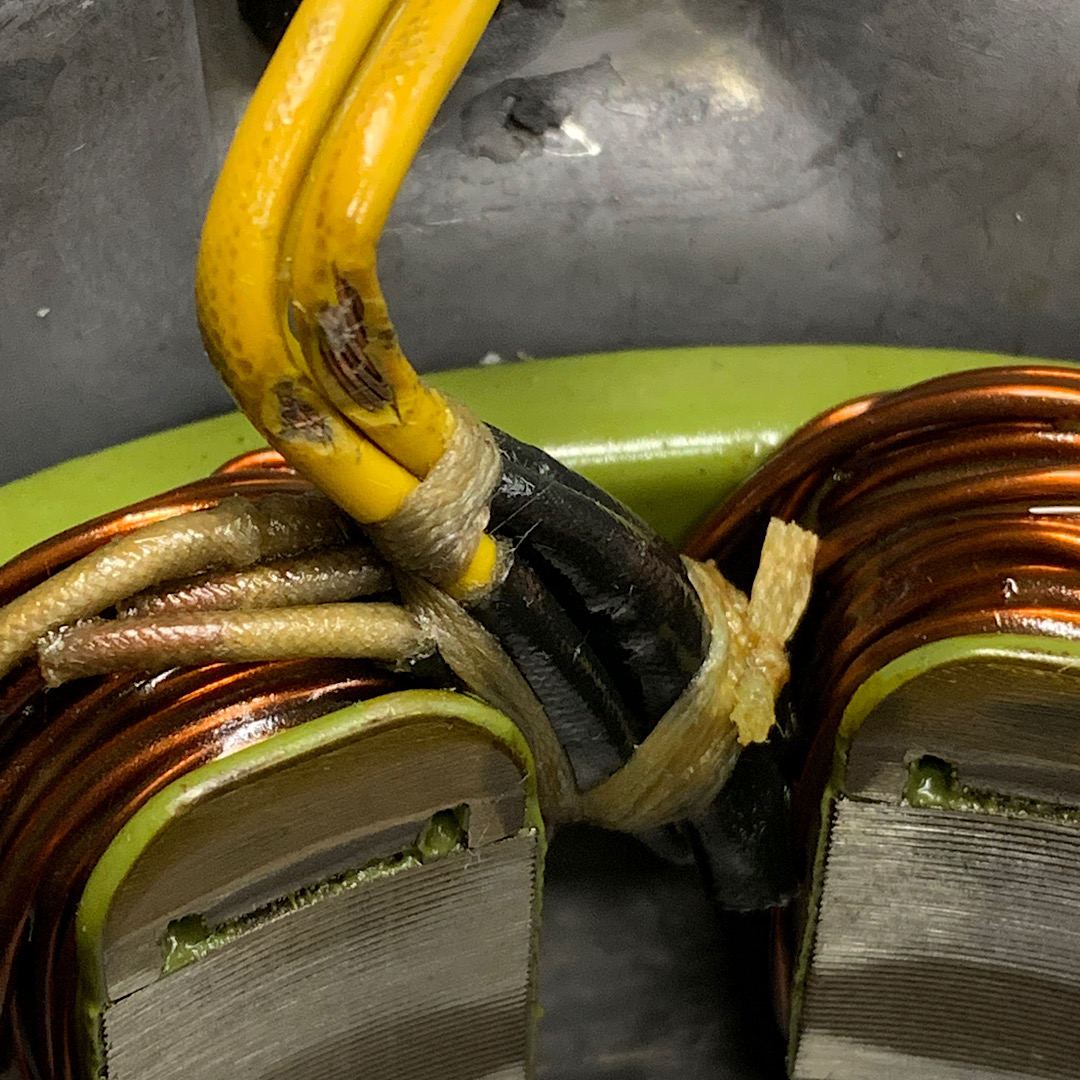

Here is the damaged stator wire, still deciding what I want to do, I have a new grommet.
That's tricky. Anything you put over the exposed wire could come off and wander around the sump. The stator is exposed to oil, so whatever it is would need to be compatible with the oil and survive the oil temperature of an air cooled engine.
It looks like the factory put some covering over the joint where the yellow wire is attached to the enameled wire. You could open that up and solder a new wire in place, but I don't know what that material is or where you could find it.
The safest thing would be to replace it. But that's not cheap.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Last edit: 29 Nov 2021 08:36 by DOHC.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 23039
- Thank you received: 2761
29 Nov 2021 09:33 #858430
by SWest
Replied by SWest on topic 1973 Z1 Maui
I used ultra black silicon to seal the wires. It works great.
Steve
Steve
Please Log in or Create an account to join the conversation.
- willemZ900
- Offline
- User
- Z1B 4 ever
Less
More
- Posts: 191
- Thank you received: 57
29 Nov 2021 10:04 #858431
by willemZ900
Replied by willemZ900 on topic 1973 Z1 Maui
Steve just curious. I see all your electric parts are on the left side of your bike, did you do that or was it the former owner or is it normal for a Z1B in the US ?
Because i am working on the electric parts of my bike at the moment and all the parts are on the right side of my bike, a Z1B 1975 europe.
Willem
Because i am working on the electric parts of my bike at the moment and all the parts are on the right side of my bike, a Z1B 1975 europe.
Willem
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4185
- Thank you received: 2390
29 Nov 2021 10:49 #858435
by Wookie58
Replied by Wookie58 on topic 1973 Z1 Maui
It looks like some of the conductors are also broken, is it an option to get the stator "re-wound" as opposed to the cost of new (this is after all the heart of your electrical system)
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4185
- Thank you received: 2390
29 Nov 2021 10:56 #858436
by Wookie58
Replied by Wookie58 on topic 1973 Z1 Maui
The below is an example from a uk company (I know that's not much help to you but gives a price indication)
www.rexs-speedshop.com/wp-content/upload...Pricing-Guide-V7.pdf
www.rexs-speedshop.com/wp-content/upload...Pricing-Guide-V7.pdf
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 23039
- Thank you received: 2761
29 Nov 2021 11:41 - 29 Nov 2021 11:42 #858437
by SWest
Replied by SWest on topic 1973 Z1 Maui
Steve just curious. I see all your electric parts are on the left side of your bike, did you do that or was it the former owner or is it normal for a Z1B in the US ?
Because i am working on the electric parts of my bike at the moment and all the parts are on the right side of my bike, a Z1B 1975 europe.
Willem
No my bike was ruined in 86 in the wreck. I bought a frame but was ripped off. It's a KZ900 frame so I used the parts from the wrecked KZ900 I had on hand. It will never be stock again. It's mine and I'm doing all the mods I want now making it faster, more stable and going with Mag's off a KZ750G to customize how I always wanted it to be.
The frame is thicker and I'm adding gussets to stiffen up the frame. Went with a 98 KZP swing arm that is 1 1/2" longer and stronger than stock. NO MORE WOBBLES.
In your case it looks like the wires were barely touched. I'd solder the bare parts, test the windings for shorts against the case and if good clean and coat the wires then put it back together.
Keep us posted on your progress.
Steve
Last edit: 29 Nov 2021 11:42 by SWest. Reason: sp
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
29 Nov 2021 13:59 #858445
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui
Actually, most of the electric stuff is under the right side cover, this switched to the left side on later models. The left side cover on a Z1 covers the chain oil tank.
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
29 Nov 2021 14:01 #858446
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
Less
More
- Posts: 3043
- Thank you received: 1093
29 Nov 2021 15:13 #858451
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic 1973 Z1 Maui
I think it's fixable. I wouldn't cut the wires. Just try to patch the exposed sections with a liquid plastic. Or maybe buy some heat shrink insulator tubes, cut them and place them over the exposed sections and shrink them.
If you decide to buy a used one let me know. I have a couple that came from Z1B's. Same make and model.
If you decide to buy a used one let me know. I have a couple that came from Z1B's. Same make and model.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
