1973 Z1 Maui
- MauiZ1
- Topic Author
- Offline
- User
Less
More
13 Nov 2021 13:47 #857891
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui

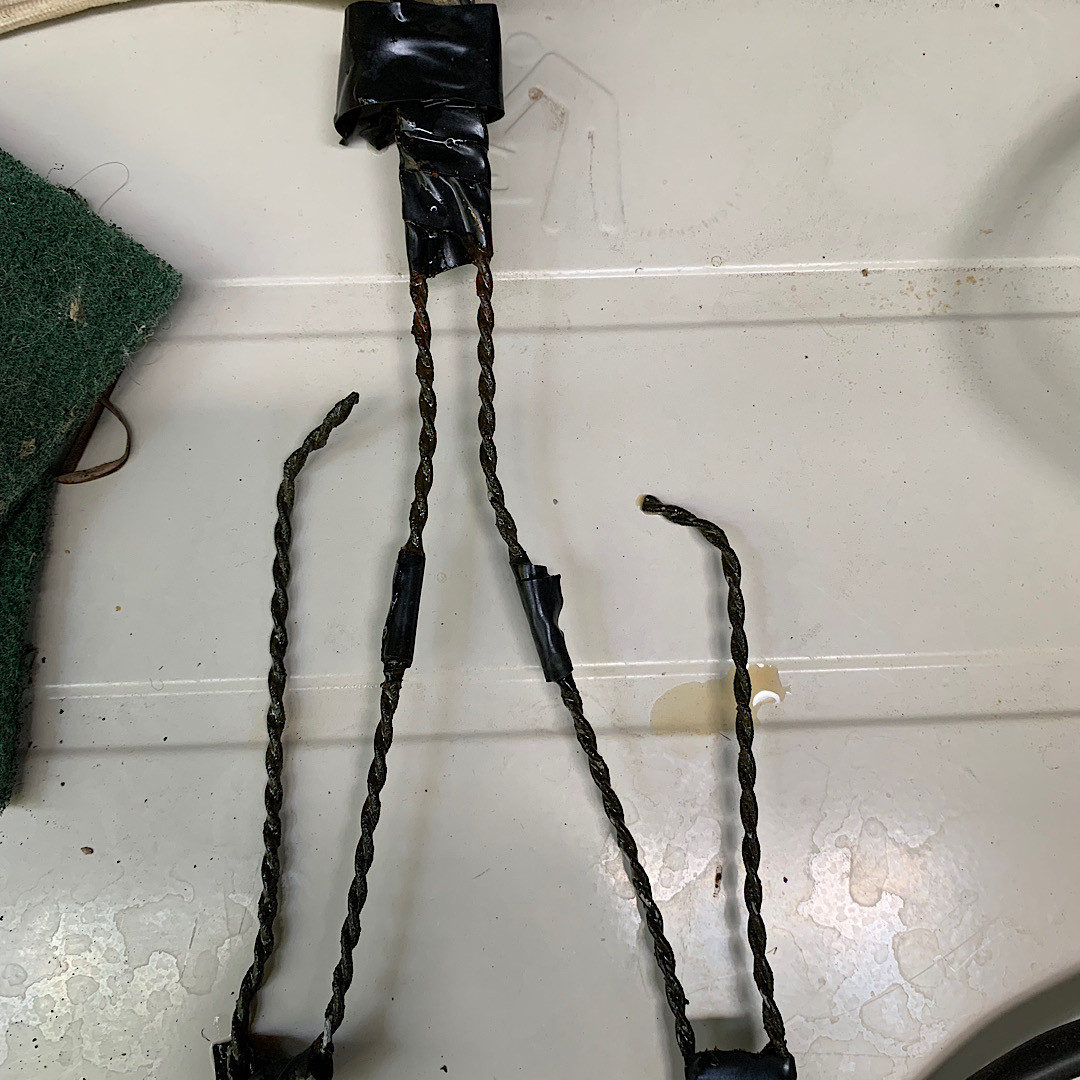

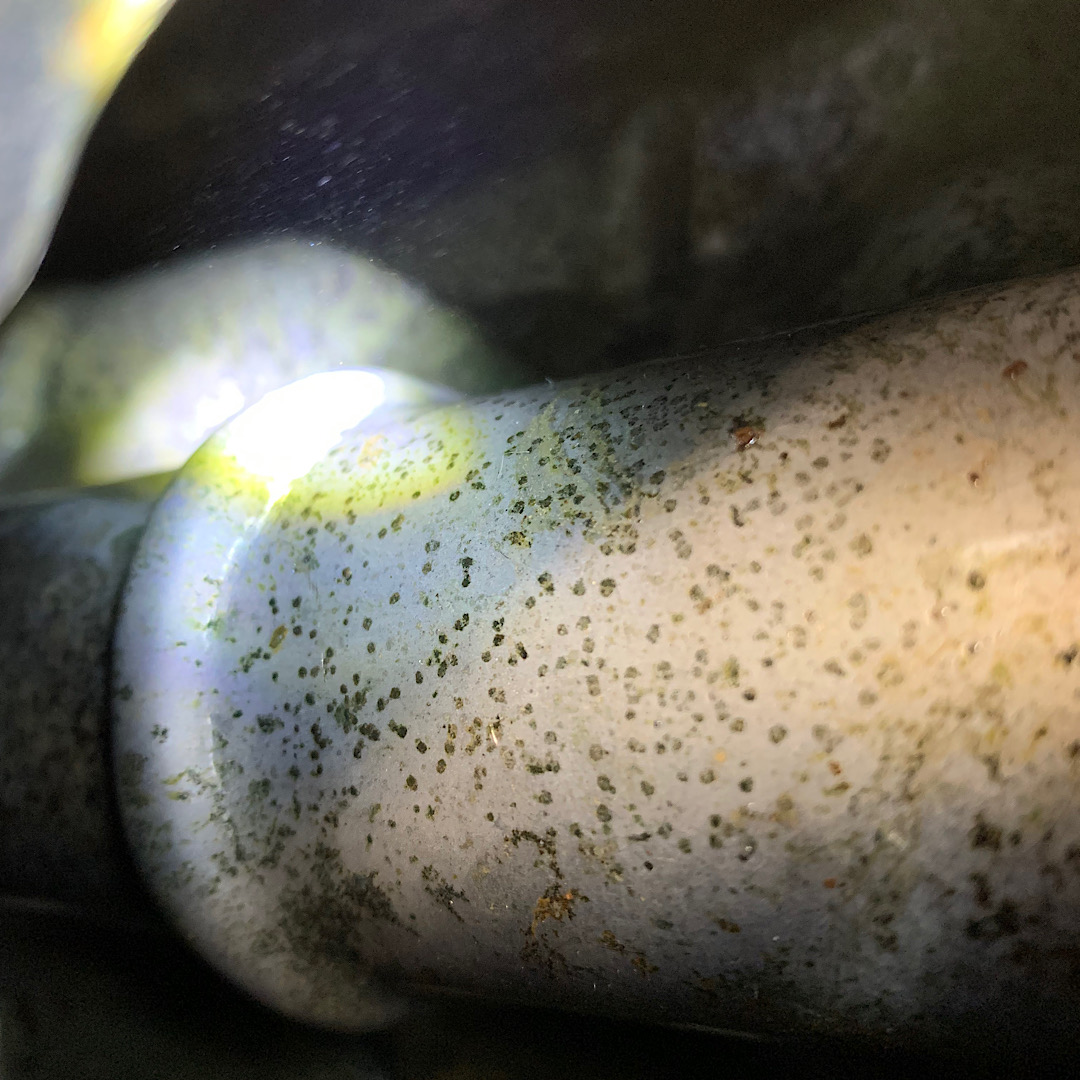

Anyone know what it’s made of? I think I found some here.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
13 Nov 2021 15:27 - 13 Nov 2021 15:41 #857896
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic 1973 Z1 Maui
Can’t help you with the batch design but here’s the website
www.metalrescue.co.uk/
EDIT; It’s mostly water. I bought a few gallons as I need that much to cover the item. The directions say you can pour it back into the gallon and refill the jug with water to replace what has evaporate. Well I had two or more gallons in a plastic tote and didnt mark a level when new so I had know idea how much had evaporated. I took a chance and just left it in the tote but covered. Checking every couple of days I saw the lever dropping. Thinking well there goes my money evaporating into thin air. One day the level just stopped dropping. No more has disappeared in over a year. When I need to soak something I have about 3” in an 18 gallon tote. Just pop the top and drop stuff in. If I need more coverage I till the tote by placing a board or equivalent under one end. It’s darker and sediment in the bottom but doesn’t seem to have lost any strength.
www.metalrescue.co.uk/
EDIT; It’s mostly water. I bought a few gallons as I need that much to cover the item. The directions say you can pour it back into the gallon and refill the jug with water to replace what has evaporate. Well I had two or more gallons in a plastic tote and didnt mark a level when new so I had know idea how much had evaporated. I took a chance and just left it in the tote but covered. Checking every couple of days I saw the lever dropping. Thinking well there goes my money evaporating into thin air. One day the level just stopped dropping. No more has disappeared in over a year. When I need to soak something I have about 3” in an 18 gallon tote. Just pop the top and drop stuff in. If I need more coverage I till the tote by placing a board or equivalent under one end. It’s darker and sediment in the bottom but doesn’t seem to have lost any strength.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 13 Nov 2021 15:41 by Mikaw.
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
14 Nov 2021 14:50 - 28 Dec 2021 13:54 #857936
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui
Last edit: 28 Dec 2021 13:54 by Street Fighter LTD.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
14 Nov 2021 16:22 #857940
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic 1973 Z1 Maui
Looks like your moving along very well
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
16 Nov 2021 17:35 #857995
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
21 Nov 2021 18:54 #858179
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui

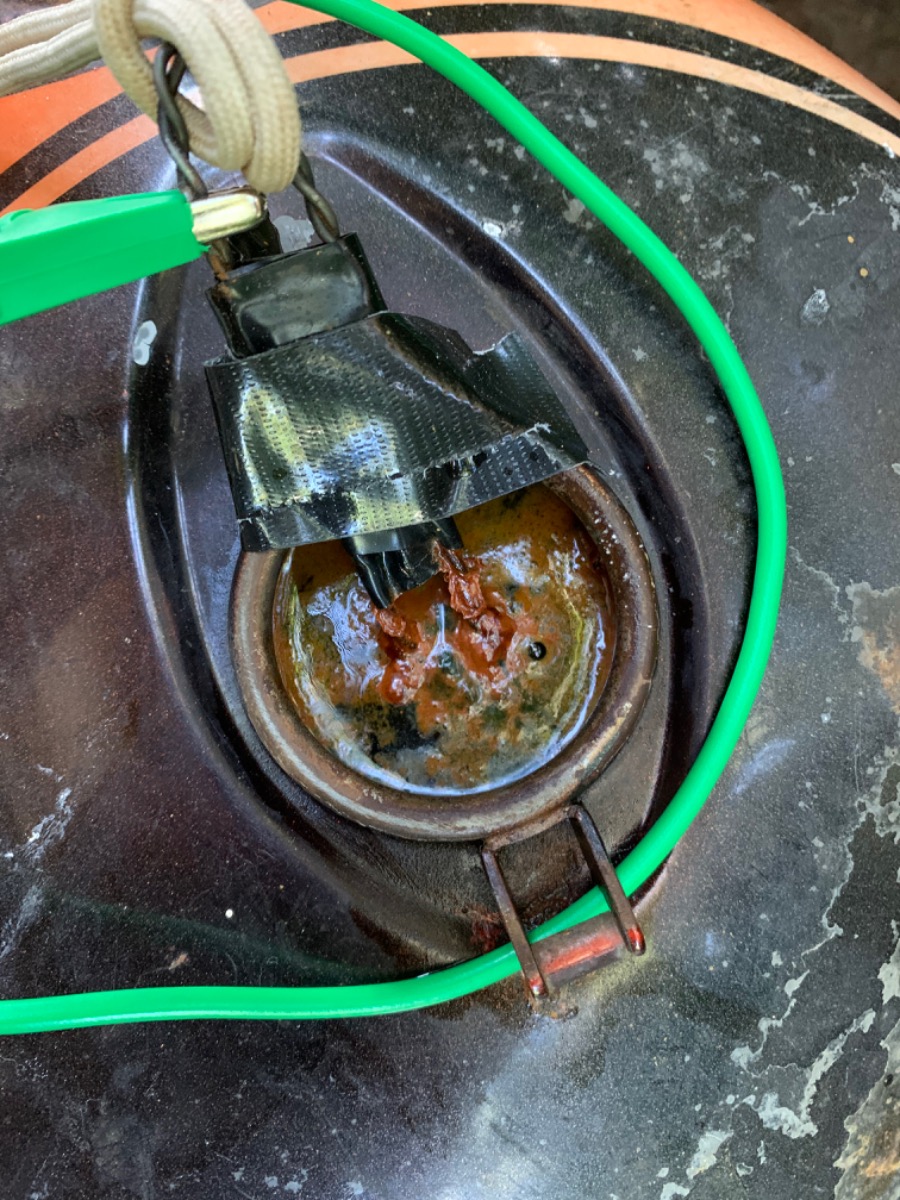

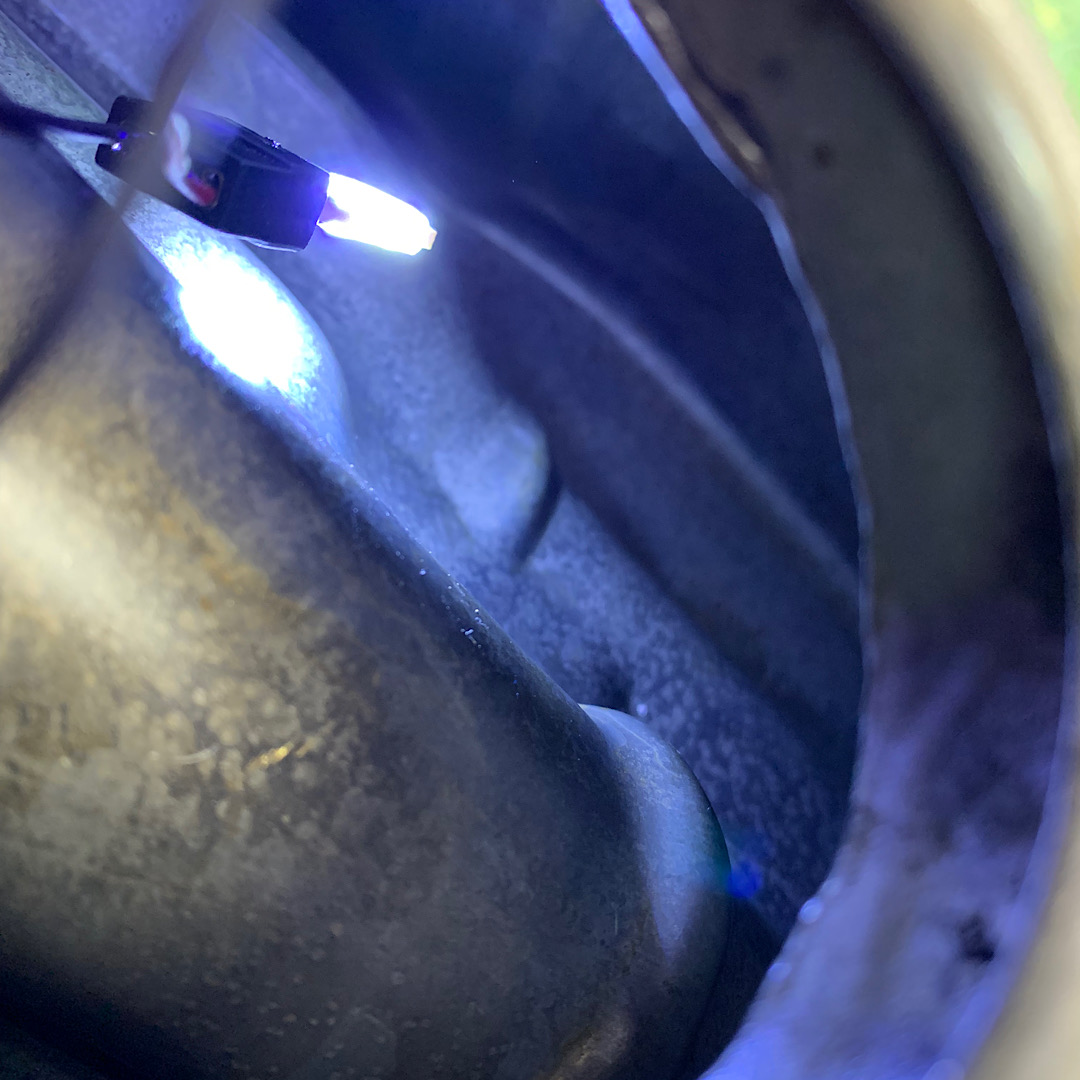

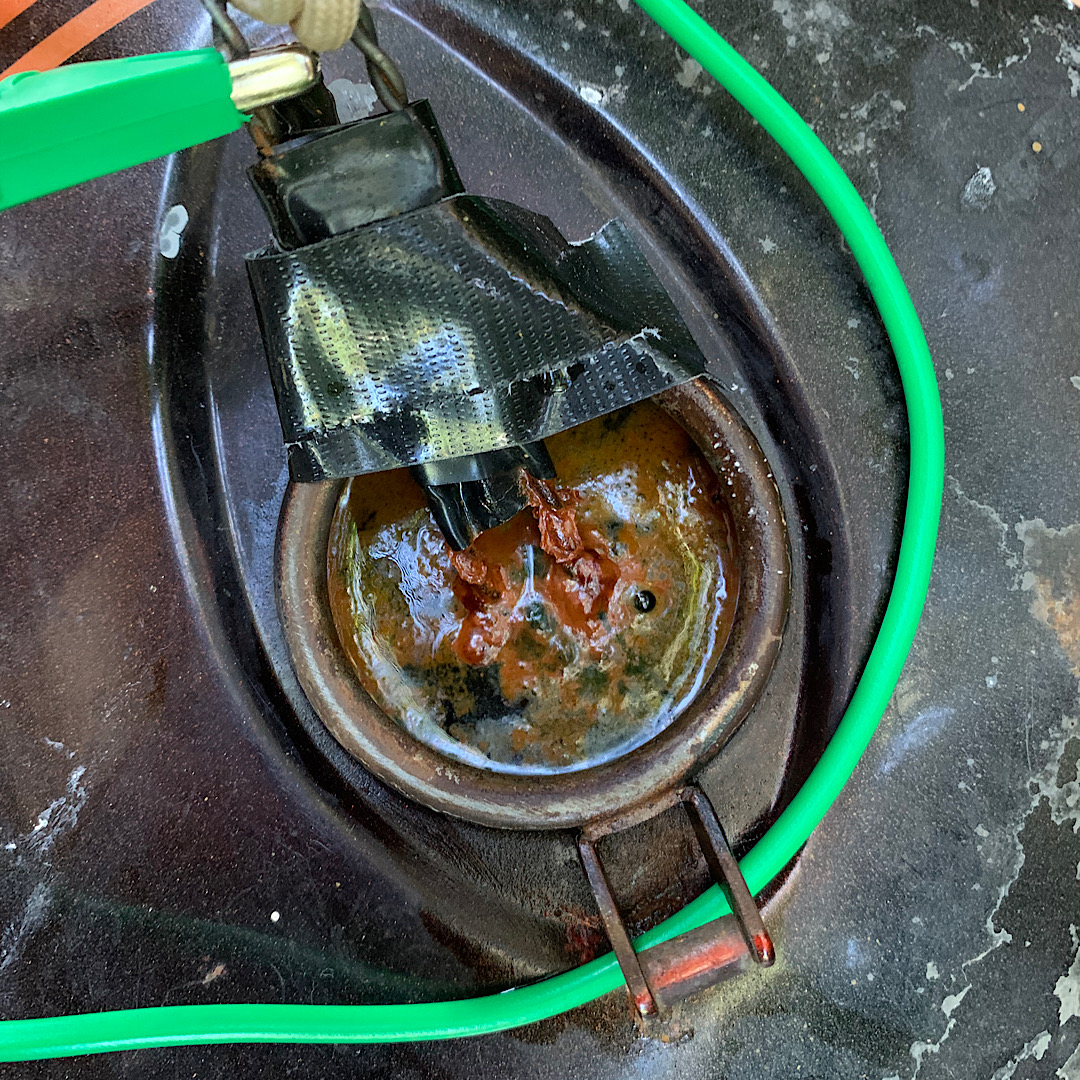

I did a 3 hour soak with Metal Prep, diluted, the tank looks much better now. On to repair next month.

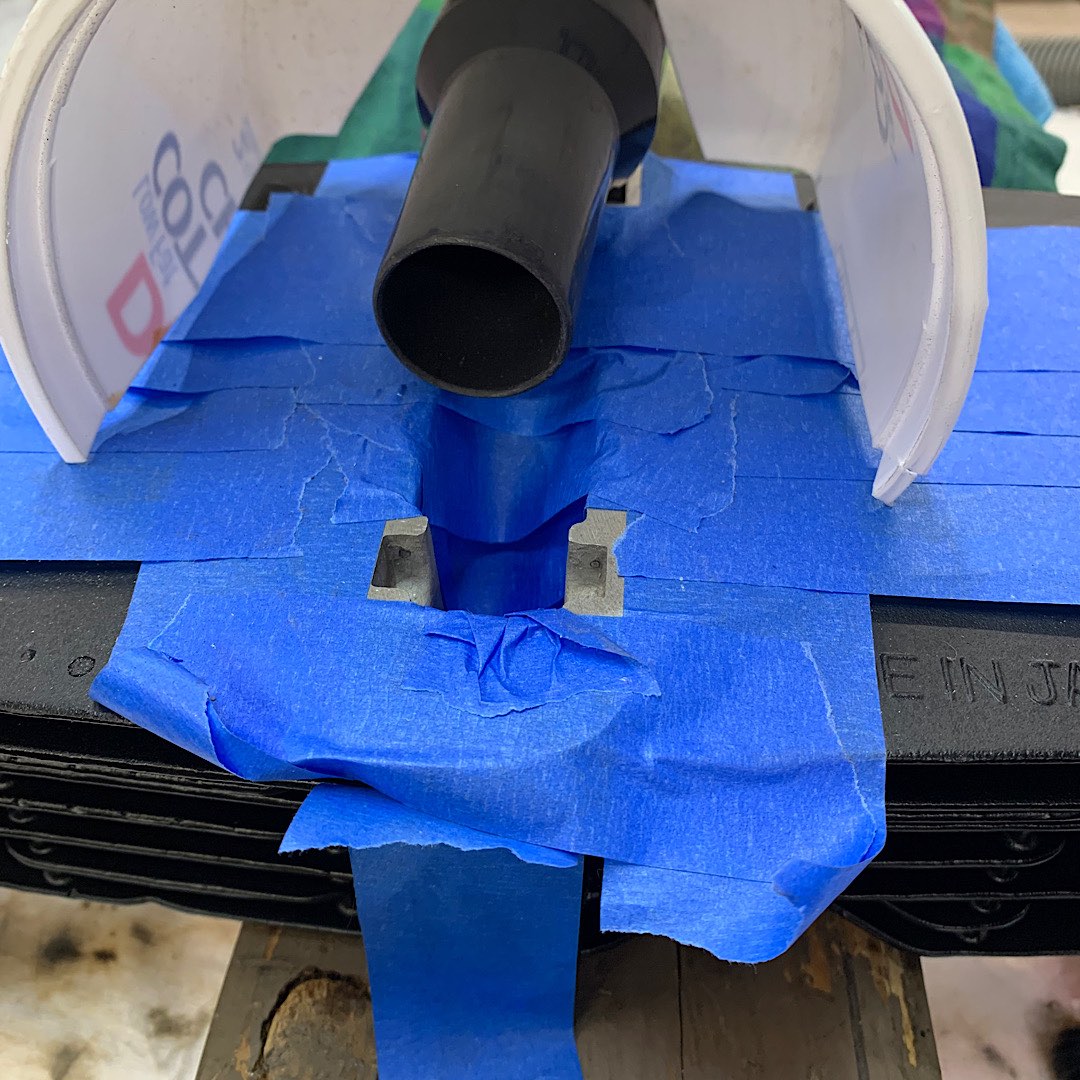

I also spent some time on the top end getting ready to assemble. As I suspected the TSB Z25 was incomplete. The PO did not relieve the inboard area of the slots to let the pin settle into the slot properly. I hope to fix that tomorrow.
I also spent some time on the top end getting ready to assemble. As I suspected the TSB Z25 was incomplete. The PO did not relieve the inboard area of the slots to let the pin settle into the slot properly. I hope to fix that tomorrow.
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
23 Nov 2021 07:25 #858242
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui

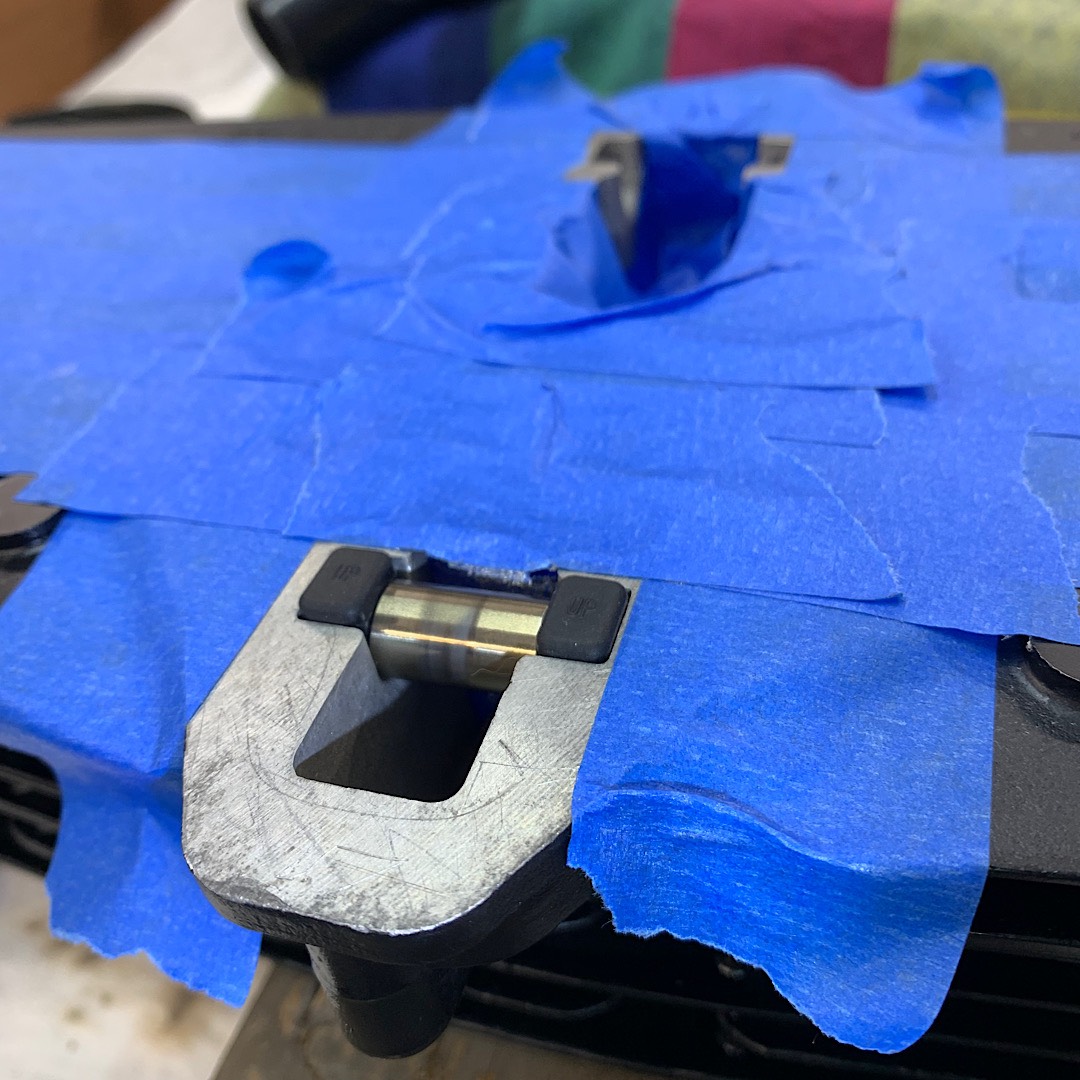

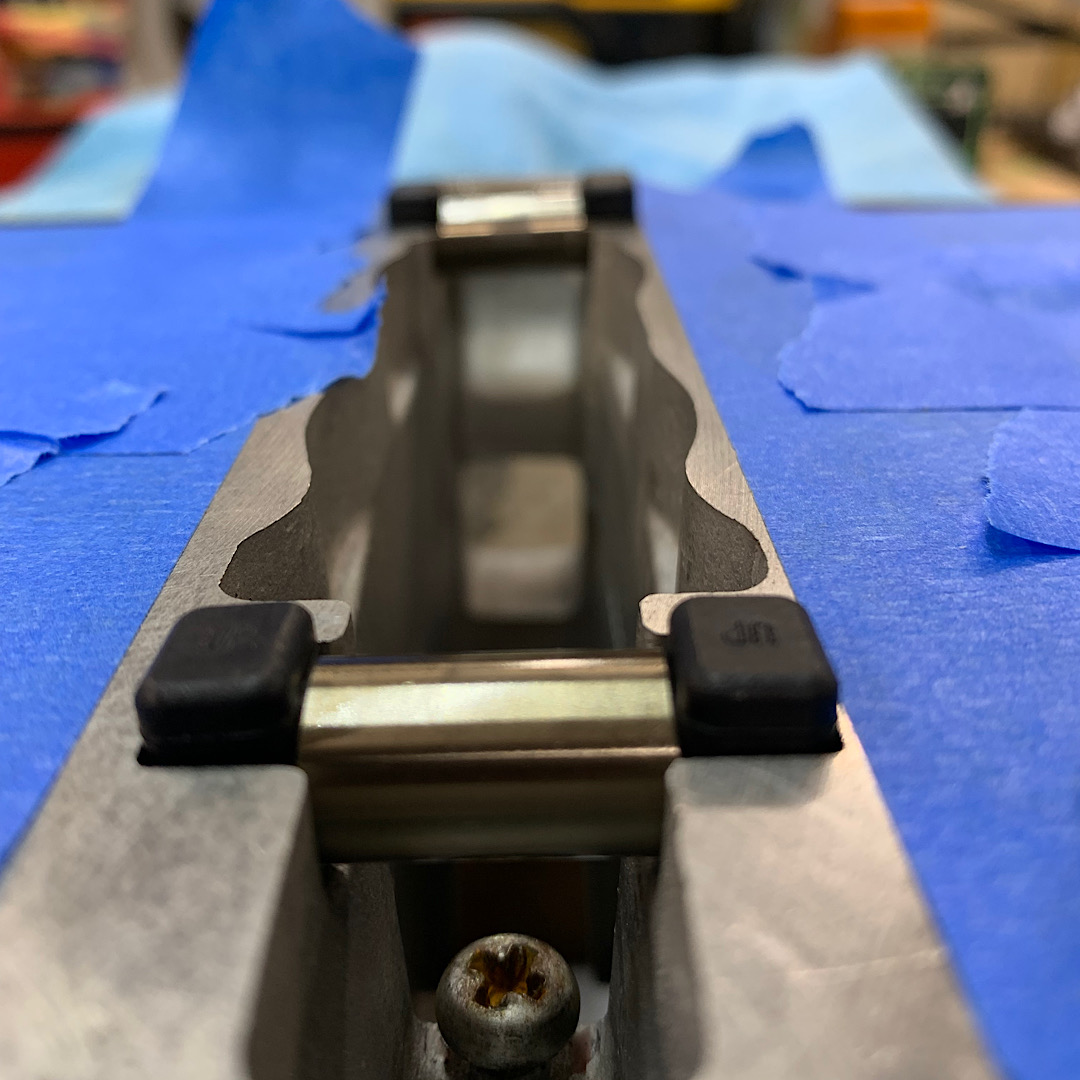

i worked on getting the idler sprockets to fit correctly. much better now.

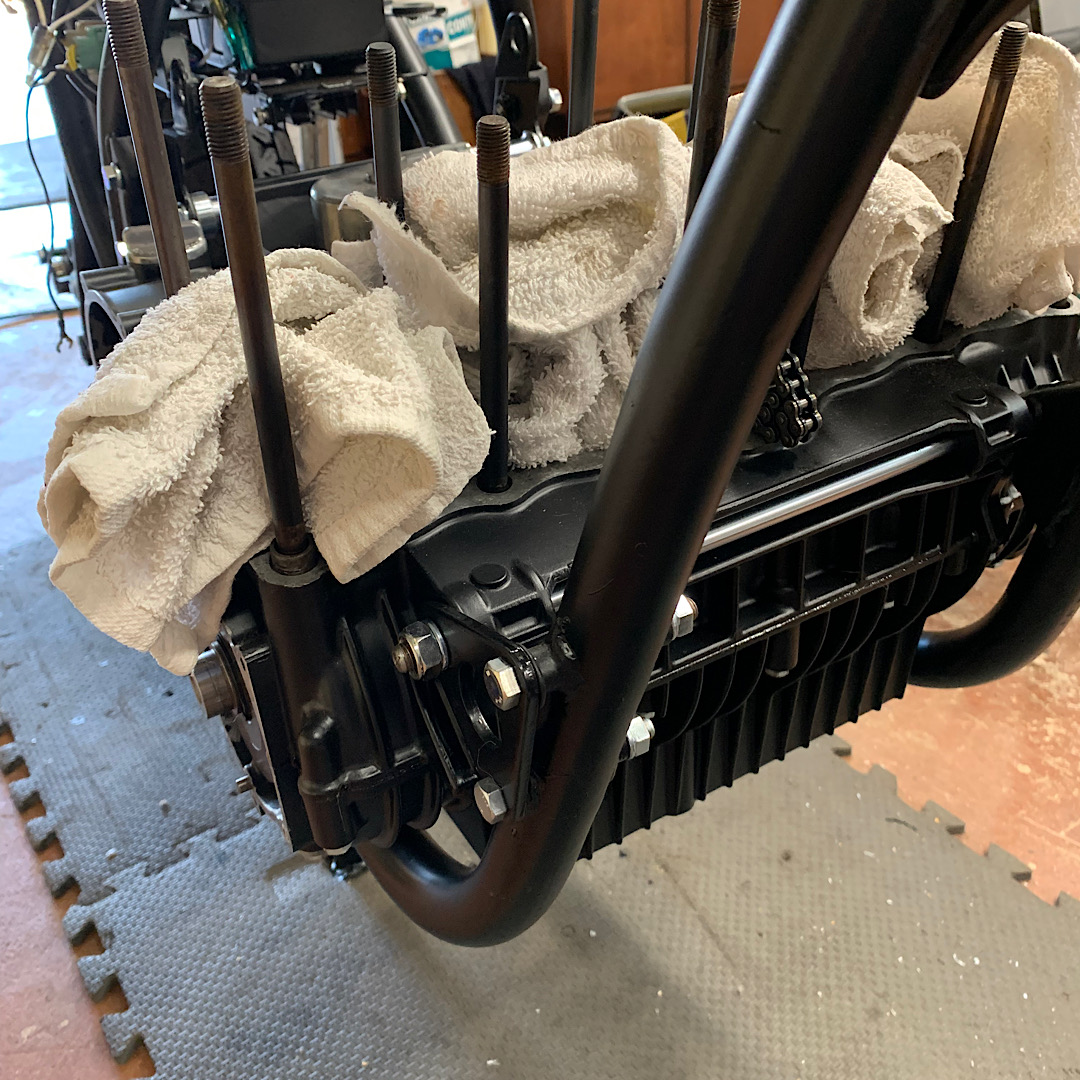

i also fit the cylinders. they went on easily enough but they rock a bit when all the way down, i suppose it's the rubber blocks on the lower idler, i lifted the cylinder a bit to look and I also notice the sleeve o rings managed to slip down some, I wish they stayed in place, I suppose i need to remove the cylinder to push them back up but I'm not sure it will do any good
i also fit the cylinders. they went on easily enough but they rock a bit when all the way down, i suppose it's the rubber blocks on the lower idler, i lifted the cylinder a bit to look and I also notice the sleeve o rings managed to slip down some, I wish they stayed in place, I suppose i need to remove the cylinder to push them back up but I'm not sure it will do any good
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
Less
More
- Posts: 3037
- Thank you received: 1090
23 Nov 2021 15:08 #858263
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic 1973 Z1 Maui
I can;'t reall any rocking motion of the cylinders when installed. There should be two locating pins between the cylinders and the case. Do you have them installed?
As far as I am aware I've never had a problem keeping the o rings in place, but I've never looked. Did they come with a gasket kit?
As far as I am aware I've never had a problem keeping the o rings in place, but I've never looked. Did they come with a gasket kit?
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
- z1kzonly
- Offline
- User
- Sustaining Member
Less
More
- Posts: 2890
- Thank you received: 540
23 Nov 2021 19:58 #858273
by z1kzonly
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Replied by z1kzonly on topic 1973 Z1 Maui

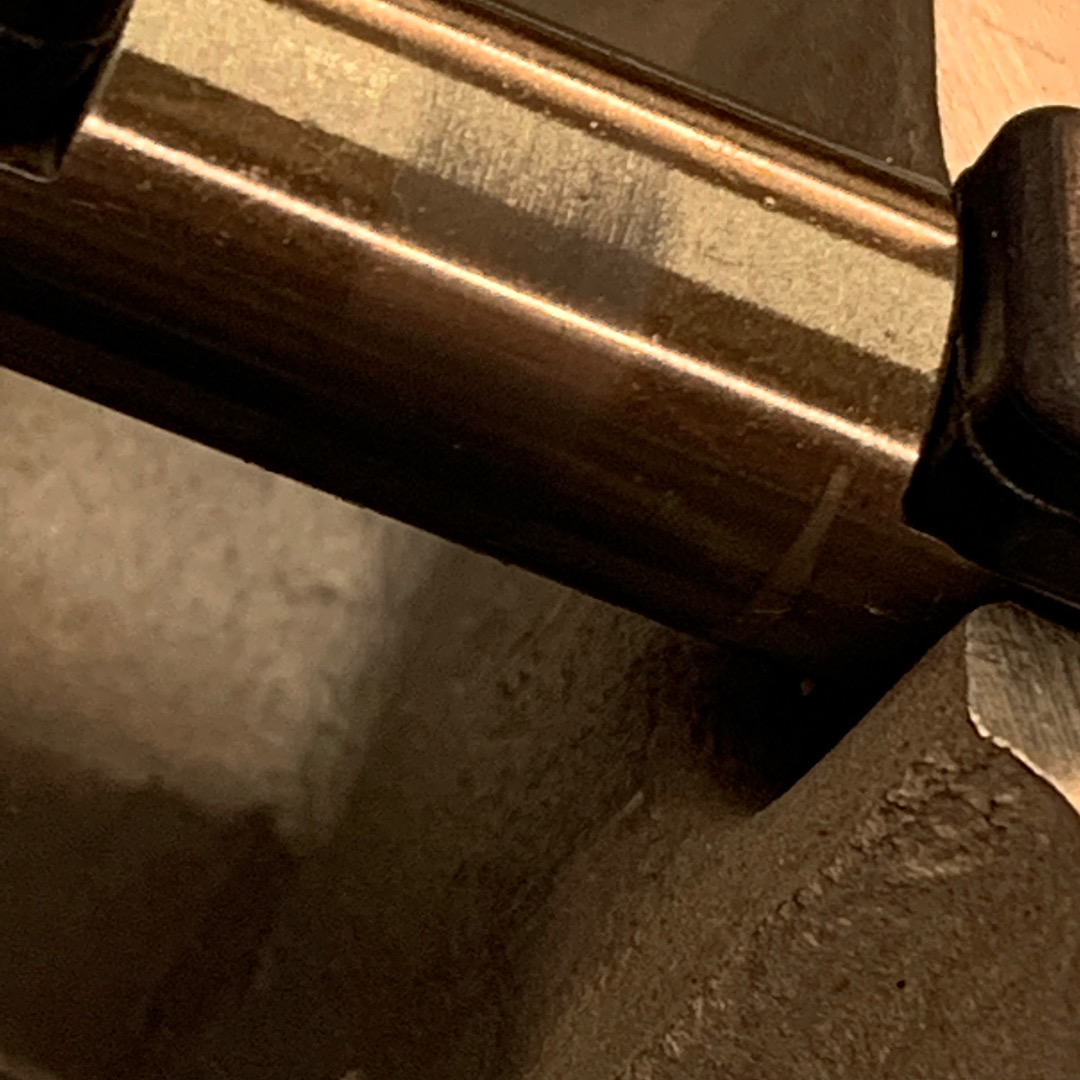

There are 2 sizes of those dampners. Top 2 idlers & lower one in the block on engine case. You have te correct ones? And that idler shaft looks a little worn too?
I wish I had your energy and drive! You are moving right along there!
I wish I had your energy and drive! You are moving right along there!
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
24 Nov 2021 06:48 #858286
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui
I'll remove the cylinders and check everything just to be sure.
The dowels are there
The rubbers are correct with the "up" side up.
I'm going to have a big slow down while I wait for my tank to be fixed. I am hoping this comes out ok, if it works I'll have the original tank on the bike. I'll keep the spare in case.
The dowels are there
The rubbers are correct with the "up" side up.
I'm going to have a big slow down while I wait for my tank to be fixed. I am hoping this comes out ok, if it works I'll have the original tank on the bike. I'll keep the spare in case.
Please Log in or Create an account to join the conversation.
- MauiZ1
- Topic Author
- Offline
- User
Less
More
- Posts: 232
- Thank you received: 19
24 Nov 2021 13:51 #858298
by MauiZ1
Replied by MauiZ1 on topic 1973 Z1 Maui
I removed the cylinders and found that the lower idler shaft had rotated a bit making the rubber block too proud. I put it back and lightly tamped it down so it would sit still.I also coaxed the o rings into the grooves which isn’t easy as they like to kink up. Second time was a charm, went right together, all torqued up. Move on to the head, which went on nicely, working on cams right now, I’ll get new photos.
I took a look at my old cams and the exhaust is even worse than I thought, I’m glad I got a set of hollow stock cams from Johnny’s.
I ordered the exhaust, it will be fun to hear it run with stock exhaust and a choke system that works.
I’ll recheck torque in a few days just for grins.
I took a look at my old cams and the exhaust is even worse than I thought, I’m glad I got a set of hollow stock cams from Johnny’s.
I ordered the exhaust, it will be fun to hear it run with stock exhaust and a choke system that works.
I’ll recheck torque in a few days just for grins.
The following user(s) said Thank You: ghostdive
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
Less
More
- Posts: 3037
- Thank you received: 1090
25 Nov 2021 04:55 #858309
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic 1973 Z1 Maui
It's a lovely sound when the bike starts up for the first. time....makes my back shiver!
