1973 Z1 Maui 30 Nov 2021 07:15 #858470

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 232
  • Thank you received: 19

Steve just curious. I see all your electric parts are on the left side of your bike, did you do that or was it the former owner or is it normal for a Z1B in the US ?
Because i am working on the electric parts of my bike at the moment and all the parts are on the right side of my bike, a Z1B 1975 europe.
Willem
No my bike was ruined in 86 in the wreck. I bought a frame but was ripped off. It's a KZ900 frame so I used the parts from the wrecked KZ900 I had on hand. It will never be stock again.   It's mine and I'm doing all the mods I want now making it faster, more stable and going with Mag's off a KZ750G to customize how I always wanted it to be.
The frame is thicker and I'm adding gussets to stiffen up the frame. Went with a 98 KZP swing arm that is 1 1/2" longer and stronger than stock. NO MORE WOBBLES.
In your case it looks like the wires were barely touched. I'd solder the bare parts, test the windings for shorts against the case and if good clean and coat the wires then put it back together.
Keep us posted on your progress.
Steve
Actually, the  bike is a Z1 built in 1972. I think they were different.


The following user(s) said Thank You: willemZ900

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 30 Nov 2021 07:16 #858471

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583
If damage to the copper strands is minimal, heat shrink tubing should work.  If too many strands are severed, current capacity of the conductors will be reduced.

If the grommet is being replaced anyway, the Y wires will be free at the pin connector ends so the grommet can be slid over them.  That seems it would be the time to slide the outer sheath off of the dyno wire bundle.  Cut some heat shrink tubing to cover the exposed conductors, maybe even two layers, and slide them over the length of the wires to the damaged areas.

  Perhaps talk to an auto electric shop for advice on any specialized heat/oil-resistant insulator tubing for this repair.  It could be that a shop that rewinds alternators, starters & such could replace the Y wires and secure the splices, or at least supply a few inches of tubing.  The difficult part may be to replicate the fiber twine ties that were done during manufacture before the whole assembly was shellacked, and the shellacking itself for mechanical stability.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 30 Nov 2021 14:29 #858491

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 232
  • Thank you received: 19
Yes, those knots were made very nicely and very tiny. Beautiful work.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 01 Dec 2021 13:47 #858523

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 232
  • Thank you received: 19
Does anyone have a photo of how the wiring harness gets bunched up around the headlamp? Is it all inside the can? It’s a lot of stuff and of course I didn’t adequately photograph it when I took it apart. I never take enough photos.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 06 Dec 2021 07:04 #858678

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 232
  • Thank you received: 19

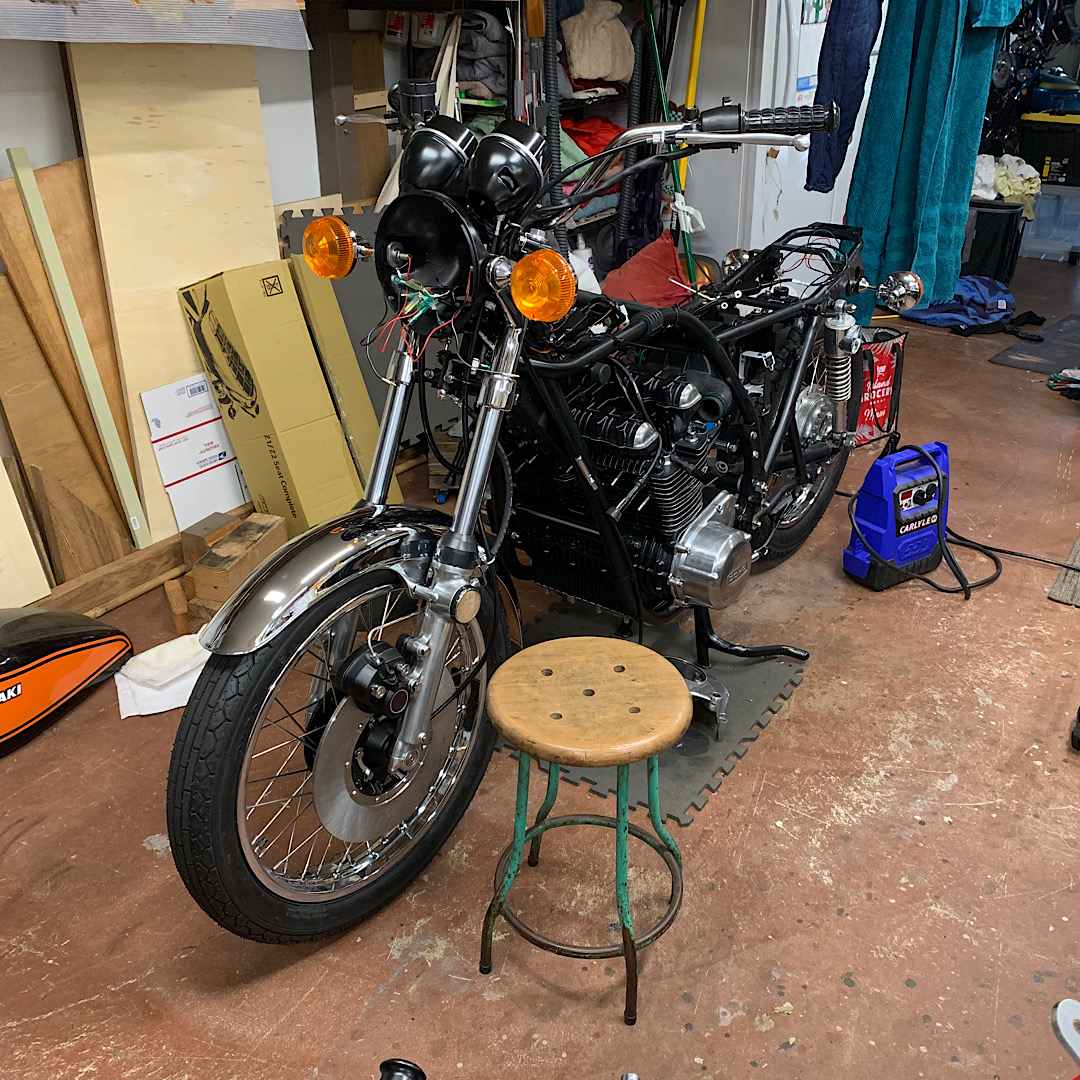

Making progress.
Still waiting on some parts, doing little things like setting the points. For some reason I find these points harder to set than my K3 750 Honda, not sure why, I'll get there.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Street Fighter LTD.

1973 Z1 Maui 07 Dec 2021 07:02 #858722

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 232
  • Thank you received: 19
I figured out the points issue. I have two back plates, one is a TEC one is un marked. The un marked one looked to be in better shape so I used it. Turns out it is a sloppy fit to the counterbore on the engine and as such would not center up. Switched to the TEC, problem solved.
As I hand turn the motor I can feel a little rumble like the cam chain going by the slipper, it turns easily. I wonder if the slight rumble feel is something to worry about. I may drop the oil pan and look from below just to check things. I re-checked cam timing, it's ok. I released the tensioner bolt, no change,

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 07 Dec 2021 16:34 #858761

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
You won't be able to see much.  The cam chain sprocket is covered by the center bearing cap.  The oil pump is also in the way.  If you want to look at the chain tensioner you could remove it and go in with a light to make sure it's centered.  Or maybe a camera on a flex rod.

If the motor rotates completely around a full cycle then your timing is OK.  But if you rotate the crank and you feel something solid stopping it....you probably are hitting a valve with a piston.  When checking after setting timing I normally rotate the engine with the kick starter, but I do it very slowly, and I keep the spark plugs out to relieve compression.  I don't use the end of the crank because I once broke the timing pin that way.  Had to tear the engine back down and remove the crank to have a machinist replace it.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 07 Dec 2021 17:01 #858765

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 232
  • Thank you received: 19
I checked timing, it’s good. I took the oil pump out to eliminate that. I’m going to take the cams out next. If I can’t figure it out I’ll remove the top end and check everything again. The odd feel coincides with two cam lobes depressing valves. I checked and each time I felt it an intake and exhaust lobe were down, it didn’t matter which two. It only happens when valves are depressed. Plenty of assembly lube on everything. No spark plugs in.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 07 Dec 2021 17:14 #858767

  • 73z1
  • 73z1's Avatar
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103

Does anyone have a photo of how the wiring harness gets bunched up around the headlamp? Is it all inside the can? It’s a lot of stuff and of course I didn’t adequately photograph it when I took it apart. I never take enough photos.

Main harness enters the headlight on left side of frame neck.
Both handle bar harness go on right side of frame neck.

As I hand turn the motor I can feel a little rumble like the cam chain going by the slipper, it turns easily. I wonder if the slight rumble feel is something to worry about. I may drop the oil pan and look from below just to check things. I re-checked cam timing, it's ok. I released the tensioner bolt, no change,

Turning crank with left bolt or right bolt you will feel a change as valves open and close this is normal.
Spray oil on cam shims so them slide on cam.[/quote]

Please Log in or Create an account to join the conversation.

Last edit: by 73z1.

1973 Z1 Maui 07 Dec 2021 22:53 #858777

  • Skidmark
  • Skidmark's Avatar
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256
I had a similar feeling with my KZ750 when turning it over slowly with a wrench.  It seemed to bind up at a certain point in the revolution.  I had to reverse rotate it and come back.  After going over it a few more times and verifying the valve timing was right, I just went with it.  The motor runs fine without issue (except for carb sync'ing and tuning).
Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 08 Dec 2021 08:11 #858800

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 232
  • Thank you received: 19
Thank you to all, I was thinking I was just obsessing about it. My past experience with my sohc Honda didn’t help.


Please Log in or Create an account to join the conversation.

1973 Z1 Maui 08 Dec 2021 10:28 #858814

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

I had a similar feeling with my KZ750 when turning it over slowly with a wrench.  It seemed to bind up at a certain point in the revolution.  I had to reverse rotate it and come back.  After going over it a few more times and verifying the valve timing was right, I just went with it.  The motor runs fine without issue (except for carb sync'ing and tuning).


Thanks for the information. The fresh rebuilt engine I bought would do the same thing. I put mystery oil in the cylinders and have only turned it over Two full revolution and felt a tight spot so I stopped. I was concerned as Maui was. Appears it might be a characteristic of these engines. Thanks.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
