1977 KZ1000 Restomod 17 Mar 2024 14:19 #896533

  • Rolf1976_KZ900
  • Rolf1976_KZ900's Avatar
  • Offline
  • User
  • Posts: 356
  • Thank you received: 138
Your bike looks fantastic ! the wheels is awesome to
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 18 Mar 2024 01:05 #896552

  • howardhb
  • howardhb's Avatar
  • Offline
  • Sustaining Member
  • God, I trust
  • Posts: 433
  • Thank you received: 444
Looking uber cool!

I vote that your Kerker emblem to goes on!

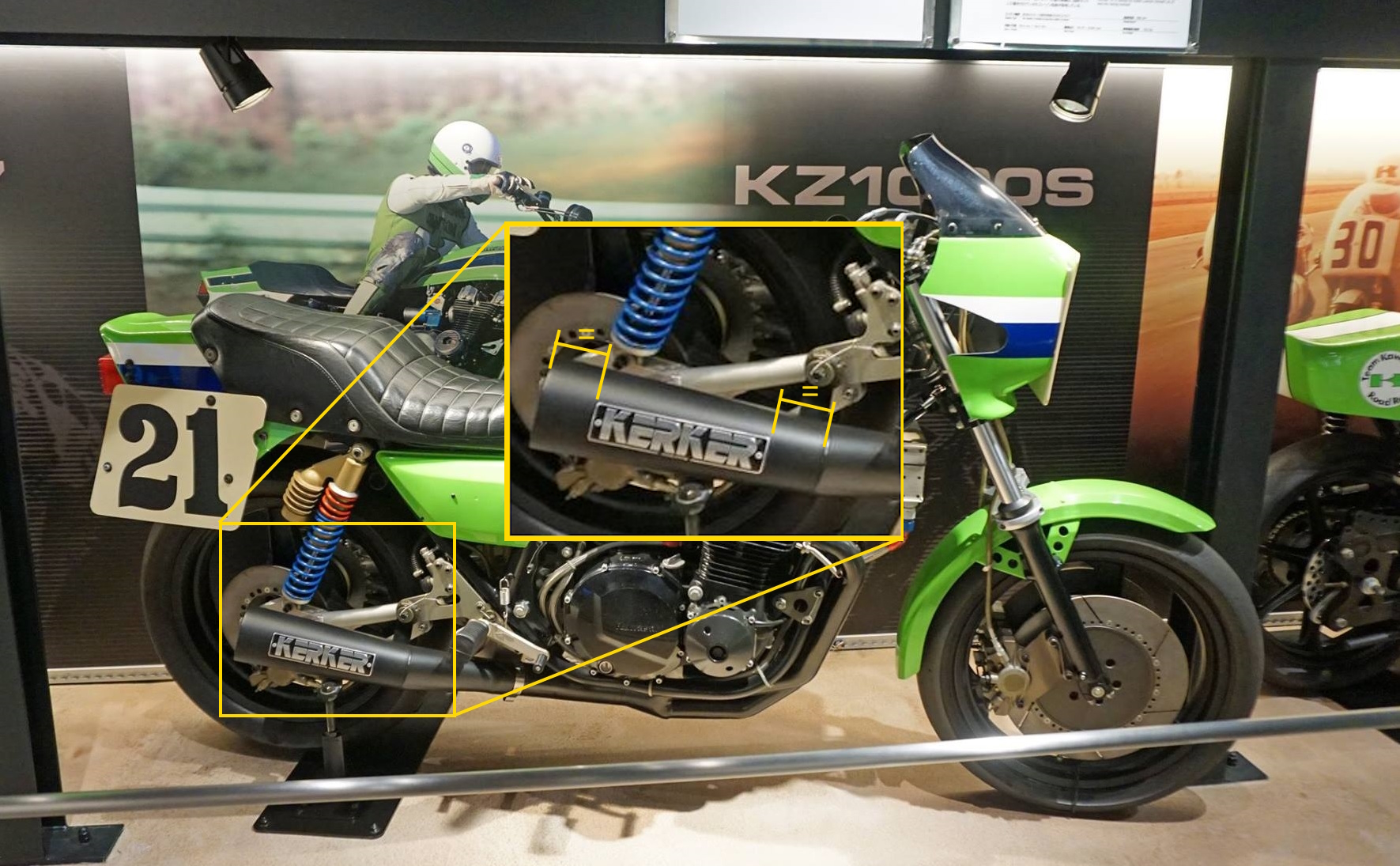

For emblem position reference, see below picture from the Kawasaki Museum...



And, may I suggest a blob or 3 of black TRV silicone under it, to prevent it vibrating and making the rivet holes oval, to a point that it falls off!
(ask me how I know !!!)

H.

'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Attachments:
The following user(s) said Thank You: ThatGPzGuy, calum

Please Log in or Create an account to join the conversation.

Last edit: by howardhb.

1977 KZ1000 Restomod 18 Mar 2024 12:43 #896573

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1121
  • Thank you received: 394
@howardhb: Thanks for the pictures, will make sure I centre the emblem and use some silicone on it (would never have thought to do that).

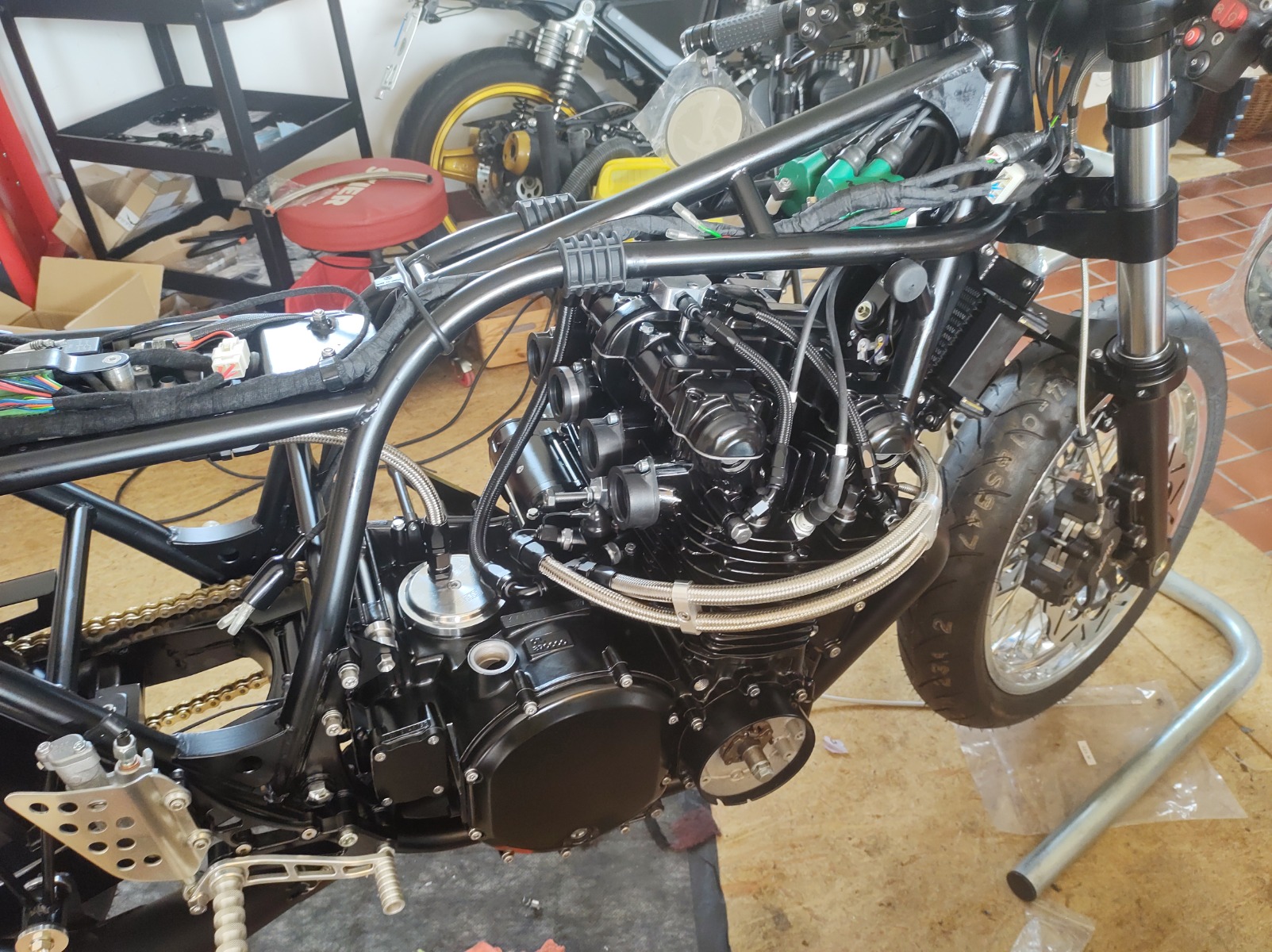

I put the instruments and front brake lines on today and hooked up all the electrics at the front of the bike. I needed to put the coils on before I did the oil lines so I just hooked everything up in one go. After that I got the oil lines from the manifold to the camshaft galleries made up.




Attachments:
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

Last edit: by calum.

1977 KZ1000 Restomod 19 Mar 2024 10:49 #896628

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1121
  • Thank you received: 394

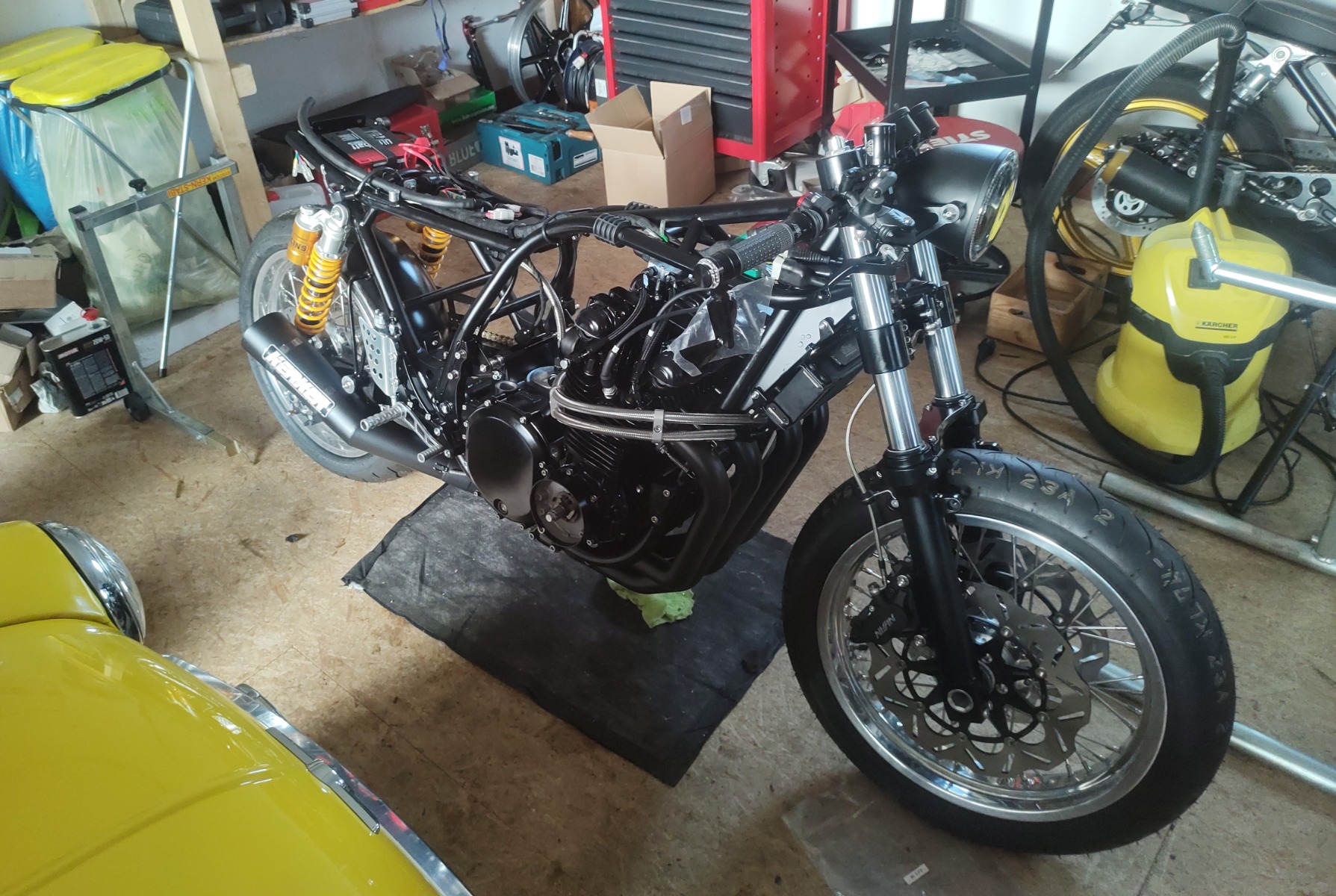

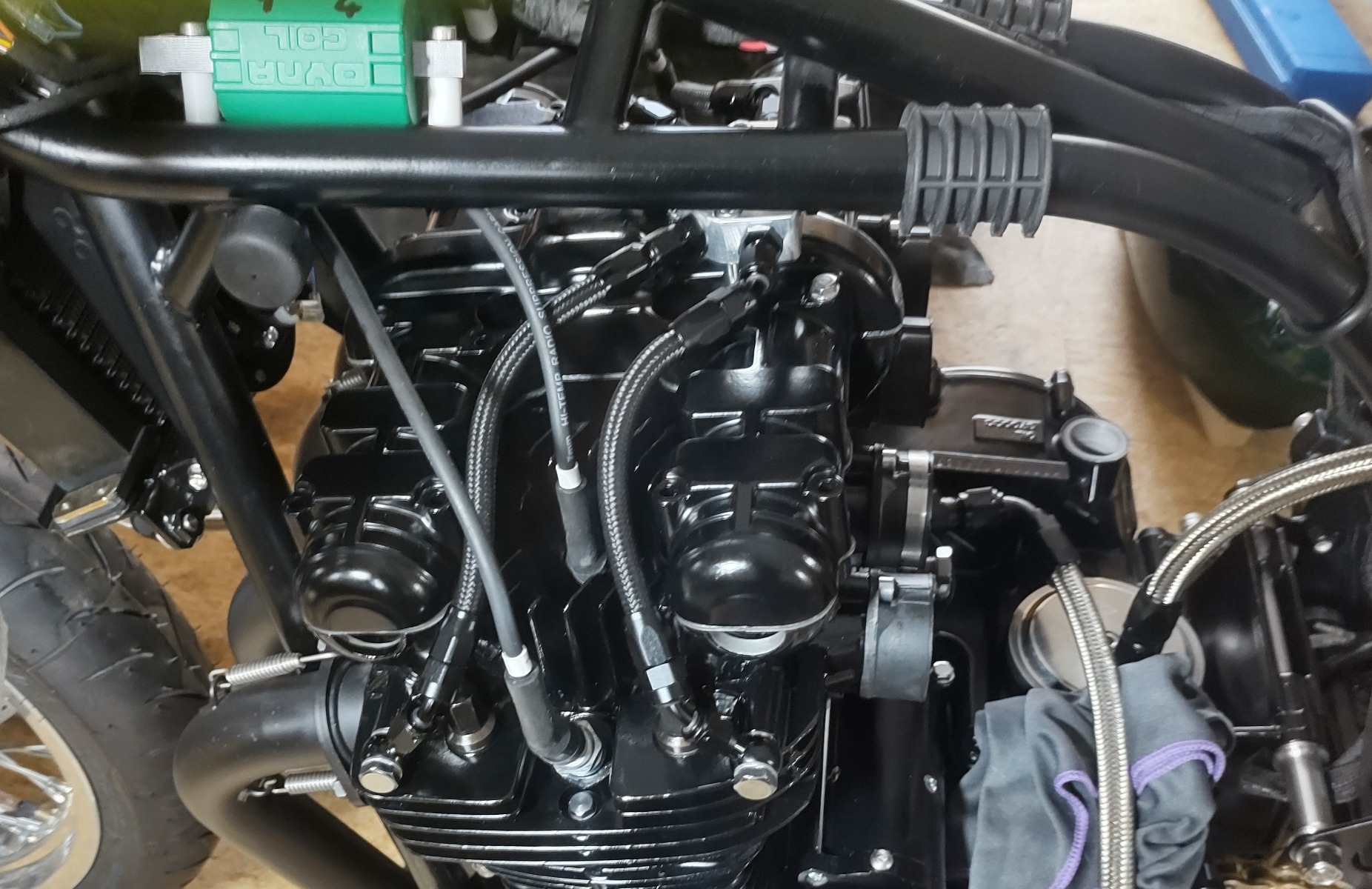

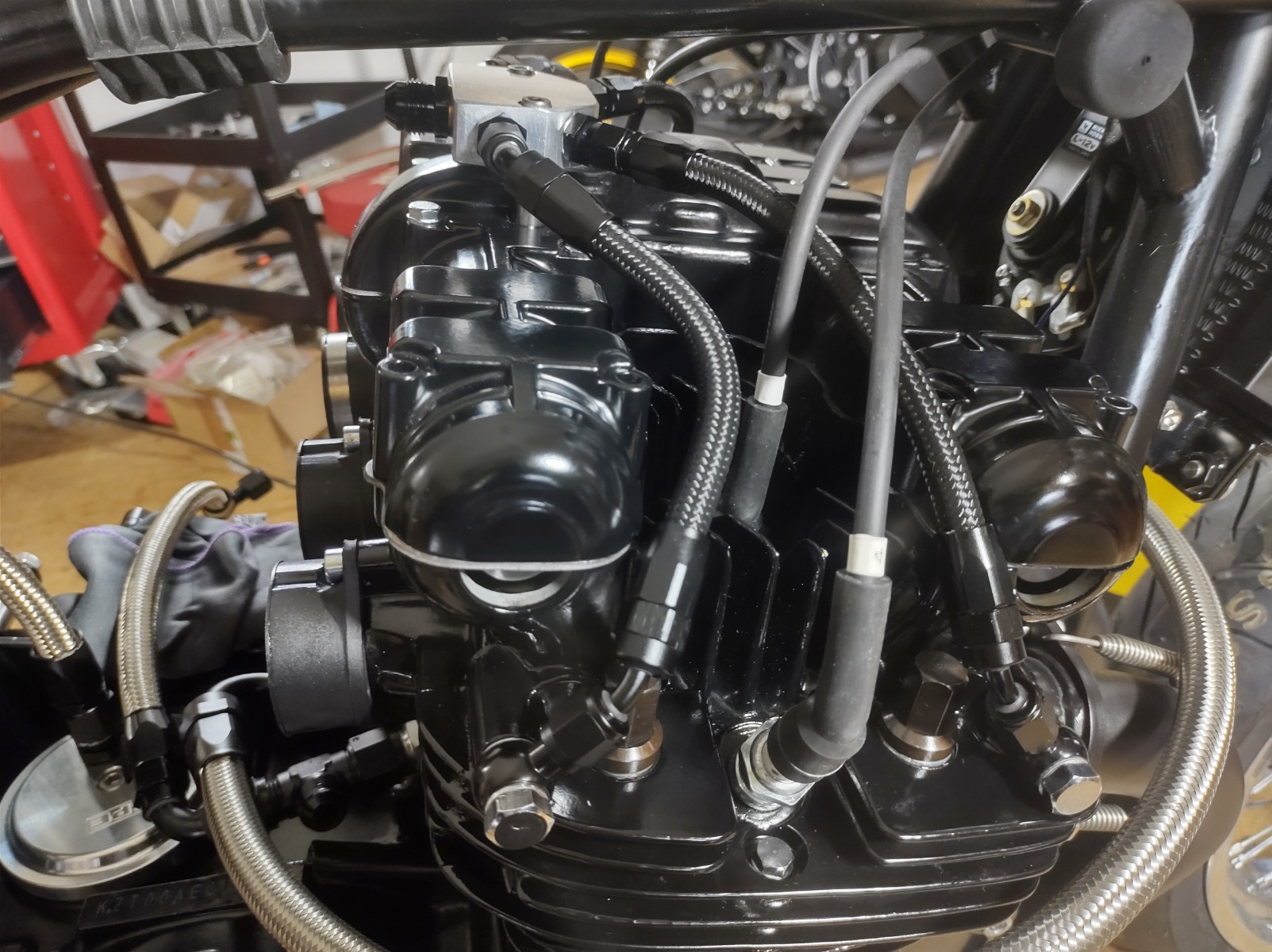

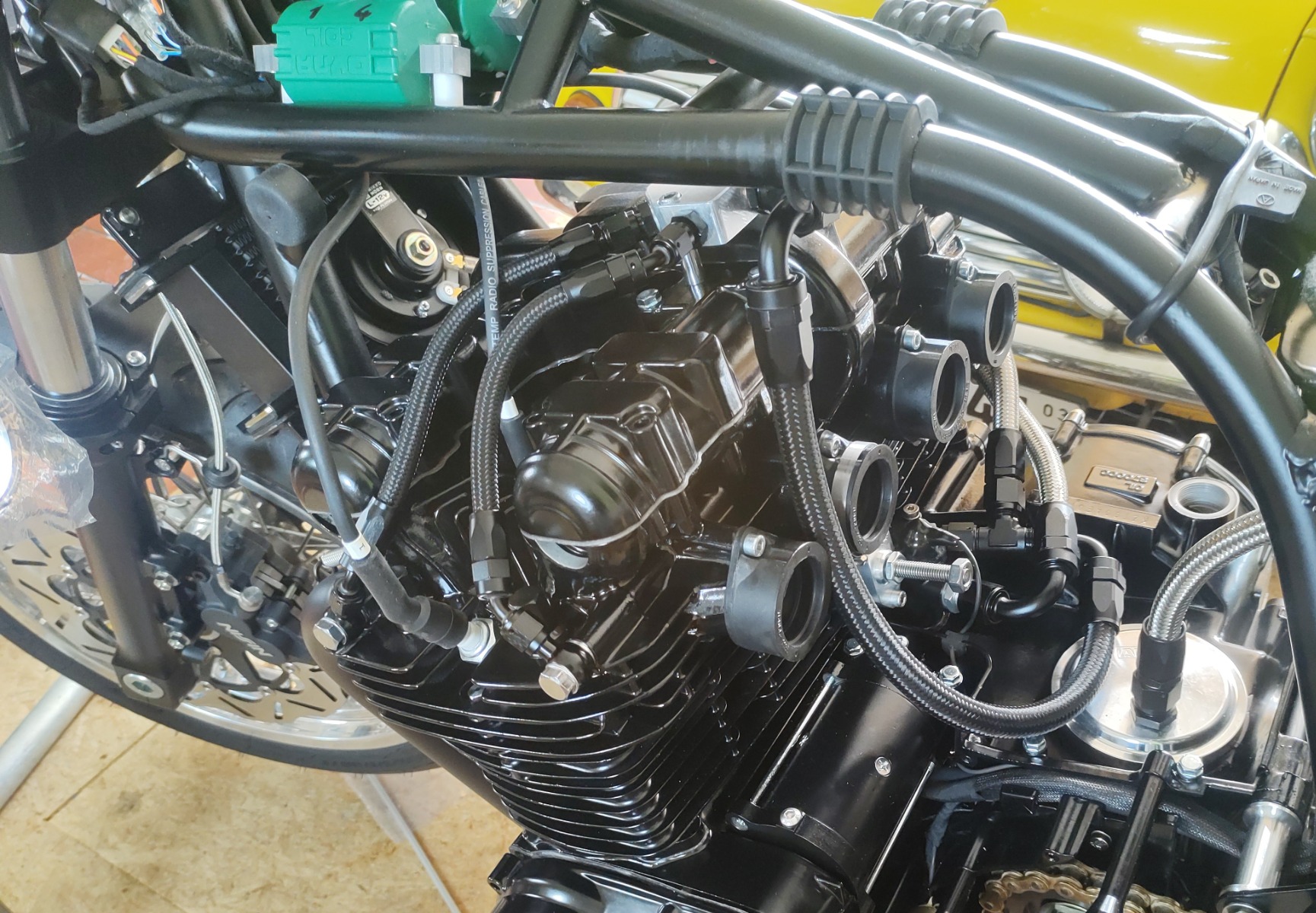

Got all the oil lines done and most of the electrics hooked up. Was putting the clutch cable in and had the clips for the frame there. I knew they would scratch the paint but went ahead and tried to put them on anyway   It's not too bad but I'm pretty pissed at myself.






Attachments:
The following user(s) said Thank You: howardhb, Wookie58, Jaerho218_750E

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 19 Mar 2024 15:48 #896639

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1248
  • Thank you received: 519
Those oil feed and cooling lines look super cool.  Fantastic.

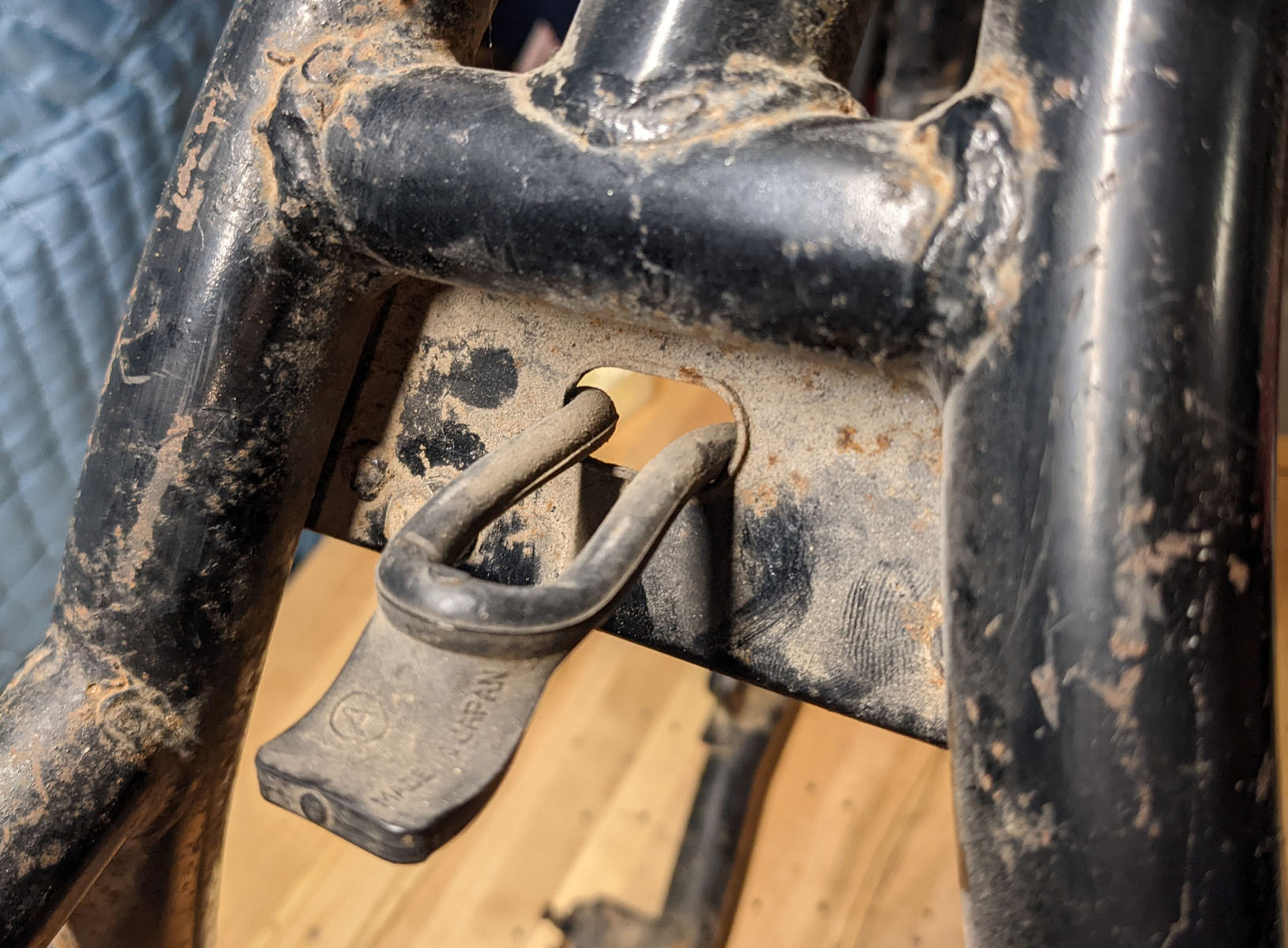

I was wondering why the tank hold-down strap is routed over the outside of the frame tubes?  All of my bikes have it coming up through the hole in the plate there.  Would that interfere with your electronics?



'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Attachments:
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 19 Mar 2024 20:33 #896652

  • sf4t7
  • sf4t7's Avatar
  • Offline
  • Sustaining Member
  • Posts: 444
  • Thank you received: 273
Wow.  When I got my Z1A in 1979, the rubber strap was around the outside of the tubing like calum's photo.  I  just assumed that's how it was from new.  But maybe thru the slot was the original setup ?
Edit:  Just found a photo in the FSM that shows the strap around the outside of the tubes.
Scotty

1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

Last edit: by sf4t7.

1977 KZ1000 Restomod 20 Mar 2024 02:20 #896655

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1121
  • Thank you received: 394
I always thought that hole was for the breather tubes from the carbs. I guess it would work putting the tank strap through there, but it's doing a good job of holding the wire harness in place.

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 20 Mar 2024 06:15 #896659

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1248
  • Thank you received: 519

  Just found a photo in the FSM that shows the strap around the outside of the tubes.

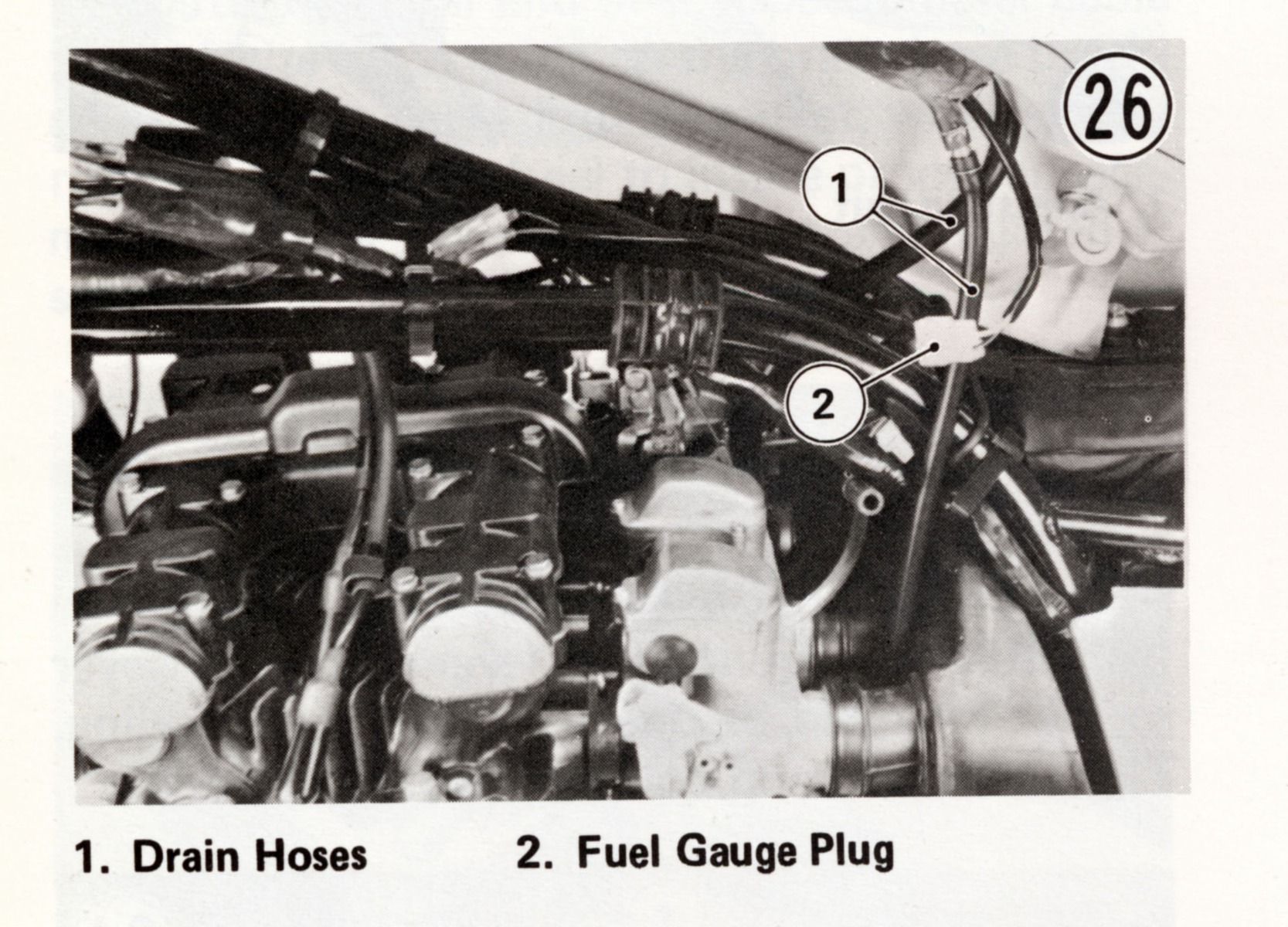

I also found a photo, from the Z1R assembly and prep manual.  It also shows it going around the outside as you said.
What are the chances that all three of my Z1Rs had a previous owner who rerouted the tank strap?
How odd...  Am I really the only one?



'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Attachments:

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 20 Mar 2024 09:17 #896661

  • sf4t7
  • sf4t7's Avatar
  • Offline
  • Sustaining Member
  • Posts: 444
  • Thank you received: 273
Just out of curiosity, how is the strap routed on your '74 Z1 ?
Scotty

1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 20 Mar 2024 18:20 #896684

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1248
  • Thank you received: 519

Just out of curiosity, how is the strap routed on your '74 Z1 ?


I'm curious as well, but that bike is in storage and I can't get to it right now.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
The following user(s) said Thank You: sf4t7

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 20 Mar 2024 20:47 #896687

  • Cra-z1
  • Cra-z1's Avatar
  • Offline
  • User
  • Posts: 168
  • Thank you received: 102
I have only seen the strap routed on the outside of the frame tubes never through that hole. On my original 74 they are on the outside of the tubes.
The following user(s) said Thank You: sf4t7

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 22 Mar 2024 15:35 #896760

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1121
  • Thank you received: 394

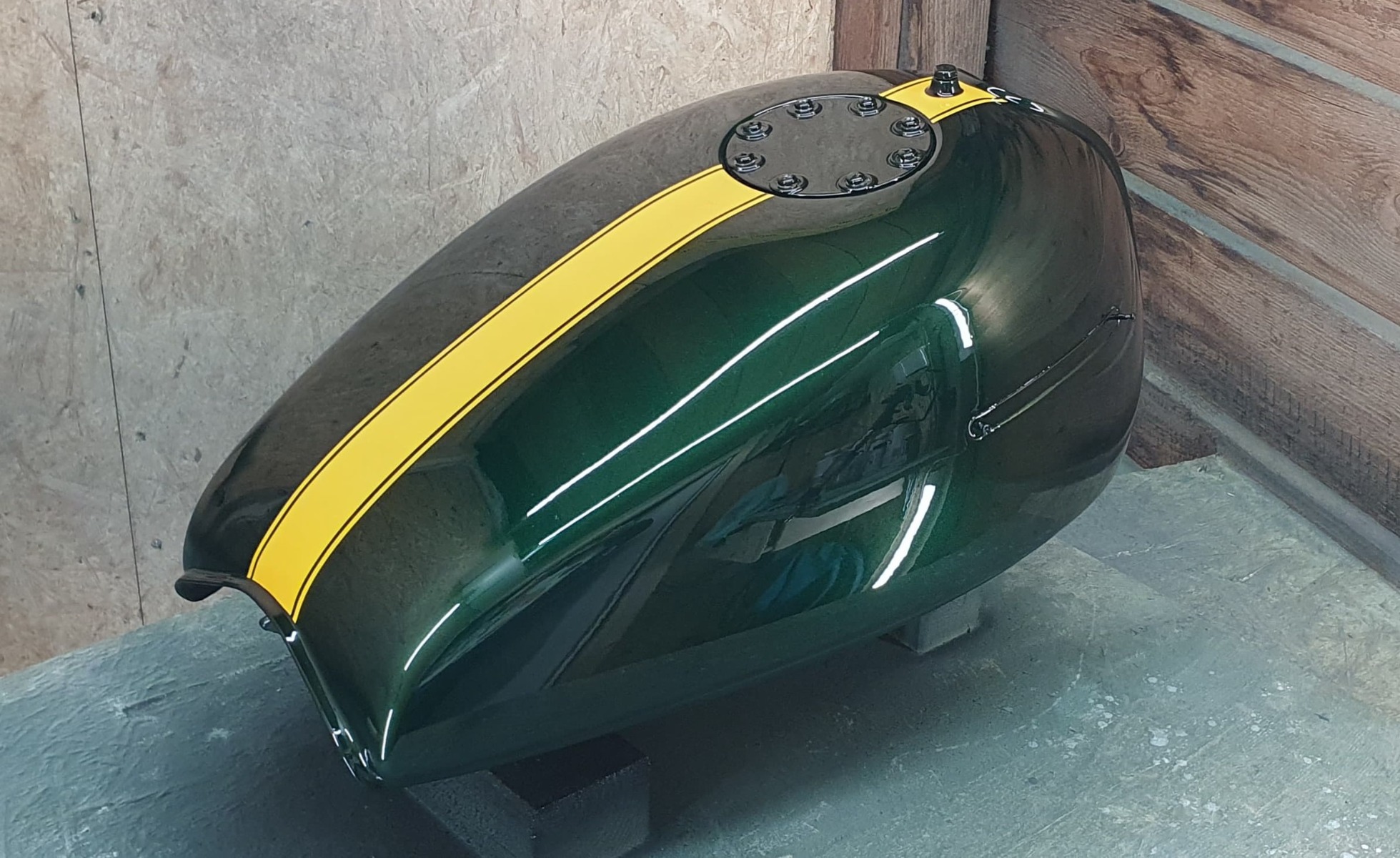

Put the stripes on the tank and front mudguard today. Shot a thin coat of clear over them and will do the tail and another thin coat on all three tomorrow. I'm off to see the old man for a couple of weeks on Sunday so I'll shoot the final coat of clear when I get back. Wanted to try and get this thing started before I left but when I took the battery off the shelf it was at 0.1 V. Not much use to me so a new one is on the way. I guess I took a bit long with this build...


Attachments:
The following user(s) said Thank You: howardhb, Wookie58, Kelly E

Please Log in or Create an account to join the conversation.
