That would be nice. I'm using the low tech beam and pointer.650ed wrote: What did you have the torque set at on the torque wrench? Ed
News flash, I just double checked the specs in the FSM compared to Haynes. The Haynes is typoed so it looks like 104 ft. lbs. not in. lbs. Son of a.... I'm now glad only one snapped. I don't even have an in. lbs. wrench. I'll be picking one of those up asap.
Please Log in or Create an account to join the conversation.
- GPzMOD750
- Topic Author
- Offline
- User
- Posts: 1365
- Thank you received: 148

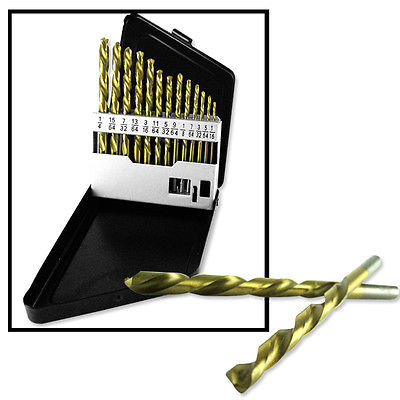

I think it's more about my crappy drills. I'll borrow some carbide ones from work tomorrow. Jesus I'm throwing that Haynes manual away.swest wrote: I use oil on my drills. I was taught that in metal shop and I was a Machinist for a short time. (drilling out punch tailings on SS Allen head aircraft bolts. Thousands of them.) :sick: The oil keeps the bit from overheating and helps it in cutting.
The cases are milled as a set. You can't replace just one side. Better off having it welded, drill and tap a new hole.
Steve
I'll figure out something to patch that block up until I can get a full rebuild going.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22957
- Thank you received: 2744
Steve
Please Log in or Create an account to join the conversation.
- GPzMOD750
- Topic Author
- Offline
- User
- Posts: 1365
- Thank you received: 148
Cover screws? It only has one right now. I'll figure something out.swest wrote: It will run with two.
Steve
Please Log in or Create an account to join the conversation.
- Tyrell Corp
- Offline
- User
- "You were made as well as we could make you"
- Posts: 1650
- Thank you received: 261
Drilling out is firstly using a dot punch, cutting fluid or oil and very slow drill speed until you are centred. I've done it with an ezee out before. You may even be able to turn the broken bolt out if not tight.
If you are using a 2.00 shim and the clearance is still under you may be able to shorten the valve slighty. Maybe check this first otherwise you need to lift the head anyway.
Don't blame the Haynes manual, even the FSM has some typos. clearly no M6 is going to take 106 ft/lbs .
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
GPzMOD750 wrote:
That would be nice. I'm using the low tech beam and pointer.650ed wrote: What did you have the torque set at on the torque wrench? Ed
News flash, I just double checked the specs in the FSM compared to Haynes. The Haynes is typoed so it looks like 104 ft. lbs. not in. lbs. Son of a.... I'm now glad only one snapped. I don't even have an in. lbs. wrench. I'll be picking one of those up asap.
That's what I suspected. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- GPzMOD750
- Topic Author
- Offline
- User
- Posts: 1365
- Thank you received: 148
Thanks. Yeah in the In. lb range you can pretty much count that as "snug". I've got a full set of new bolts on the way.Tyrell Corp wrote: I've had too many of these m6 cam bolts snapping in the past, now I put the tourque wrench away and trust my hands on this. also I usually replace with new high tensile steel bolts, they stretch as you have noticed.
Drilling out is firstly using a dot punch, cutting fluid or oil and very slow drill speed until you are centred. I've done it with an ezee out before. You may even be able to turn the broken bolt out if not tight.
If you are using a 2.00 shim and the clearance is still under you may be able to shorten the valve slighty. Maybe check this first otherwise you need to lift the head anyway.
Don't blame the Haynes manual, even the FSM has some typos. clearly no M6 is going to take 106 ft/lbs .
I'm all centered up its just the crappy HSS drill bits I have on hand don't want to bite. I'll grab some carbide bits from work from the "worn but not useless" pile.
I have a Hot Cams set that goes down to 1.85, hopefully, that will be enough.
Please Log in or Create an account to join the conversation.
- Tyrell Corp
- Offline
- User
- "You were made as well as we could make you"
- Posts: 1650
- Thank you received: 261
New drill bits needed -several, they break, and I also build a 'dam' of blu tac or similar around the area to keep the swarf contained. Much easier done with the head on a bench -hence my valve clearance question.
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
Please Log in or Create an account to join the conversation.
- GPzMOD750
- Topic Author
- Offline
- User
- Posts: 1365
- Thank you received: 148
In the shop I work our "worn" bits are considered barely broken-in most everywhere else. Between gunsmithing for 20 yrs and rebuilding a few cars and trucks this is not the first broken bolt I've done battle with. This was a dumb mistake on my part by not double checking the torque specs since I've never worked on a motorcycle to this extent it didn't throw up any red flags. Lesson learned.Tyrell Corp wrote: On this, if you are not confident get a pro to do it. Much easier if the head and broken bolt haven't been butchered already. Broken bolts can usually be extracted with Ezee Out, other option is spark erosion.
New drill bits needed -several, they break, and I also build a 'dam' of blu tac or similar around the area to keep the swarf contained. Much easier done with the head on a bench -hence my valve clearance question.
If the head comes off I'm just going to take it to a machine shop unless it looks squeaky clean. I'd do the work myself but I don't have access to the appropriate machines long enough to make sure I have everything set up well enough and do the necessary operations.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22957
- Thank you received: 2744
A lot of times the bolt will come out on it's own.
Steve
Please Log in or Create an account to join the conversation.
- GPzMOD750
- Topic Author
- Offline
- User
- Posts: 1365
- Thank you received: 148
Please Log in or Create an account to join the conversation.
- GPzMOD750
- Topic Author
- Offline
- User
- Posts: 1365
- Thank you received: 148

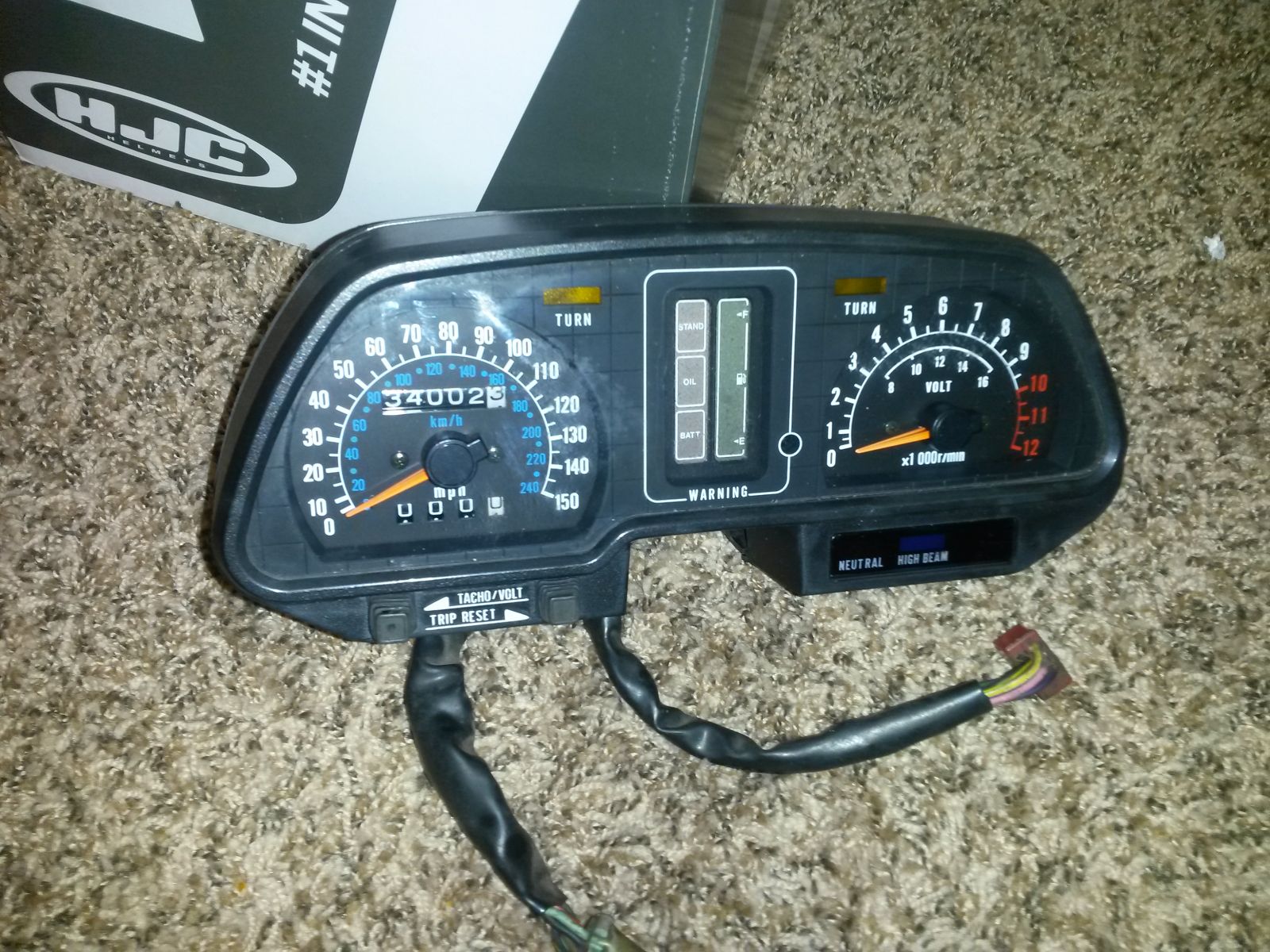

I got the replacement instrument cluster, Looks really god except for some scrapes to the plastic on the upper corner. Definitely in better shape than mine.
