Re: 1980 750H bare bones for mattylight
07 Mar 2021 18:53

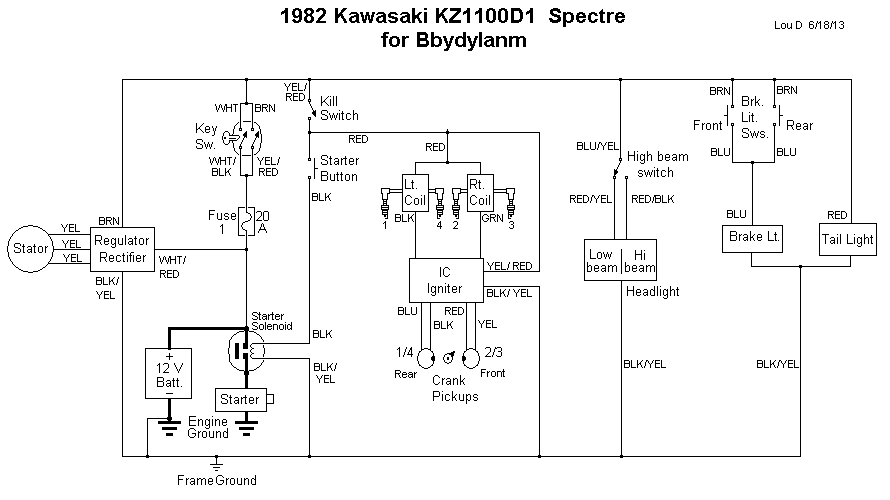

Yes, that looks pretty much correct. The reg/rec will only have a single ground wire and a single output wire. You show two lines for each of those, but there will only be one actual wire for ground and one for output. The color fro ground will be either black or black with a yellow or white stripe. The output can be white or red or some stripe variation of white and red. The brown wire is correct as you show it. It is critical for regulation.
The ignition looks correct, but some Dyna S models came with some weird color wires. Sometimes the wires are the wrong color but they will have a little plastic tube around the wire to indicate what color the wire should be. I have a graphic for various Dyna S models if you need it.
The ignition looks correct, but some Dyna S models came with some weird color wires. Sometimes the wires are the wrong color but they will have a little plastic tube around the wire to indicate what color the wire should be. I have a graphic for various Dyna S models if you need it.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Kz550 valve train warning.
Other links.
The following user(s) said Thank You: dthemac
Please Log in or Create an account to join the conversation.
- dthemac
-
- Offline
- User
- Posts: 47
- Thanks: 1
Re: 1980 750H bare bones for mattylight
10 Mar 2021 18:40
I appreciate it! I managed to get running just without too much of an issue. I'm currently working on getting the various lights on the bike working while waiting for new clutch and throttle cables.
Please Log in or Create an account to join the conversation.
- Whoscreechin928
-
- Offline
- User
- Posts: 1
- Thanks: 0
Re: 1980 750H bare bones for mattylight
25 Apr 2021 00:21
1979 kz1000 e1 st (shaft) bare bones wiring diagram, anyone got one? Any and all help appreciated
Please Log in or Create an account to join the conversation.
- chris_heiges
-
- Offline
- User
- Posts: 65
- Thanks: 0
Re: 1980 750H bare bones for mattylight
11 Aug 2024 14:03 - 11 Aug 2024 14:04Would I be able to use this same wiring for a 2000 kzp? My clymer manual puts the 82-2002 using the same wiring diagram. Could I use this simplified version?
Gloucester Va
2000 KZP
2007 Harley Fatglide
2000 KZP
2007 Harley Fatglide
Last edit: 11 Aug 2024 14:04 by chris_heiges. Reason: Misspelling
Please Log in or Create an account to join the conversation.
- TexasKZ
-
- Offline
- Platinum Member
- Posts: 7686
- Thanks: 2320
Re: 1980 750H bare bones for mattylight
11 Aug 2024 14:28
Yes, but keep in mind that there will be no instruments, no horns and no turn signals. If local laws require any of those, you will need to add circuits for them.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
