Re: 1980 750H bare bones for mattylight

20 May 2012 12:44 - 13 Jan 2019 13:58
#523542

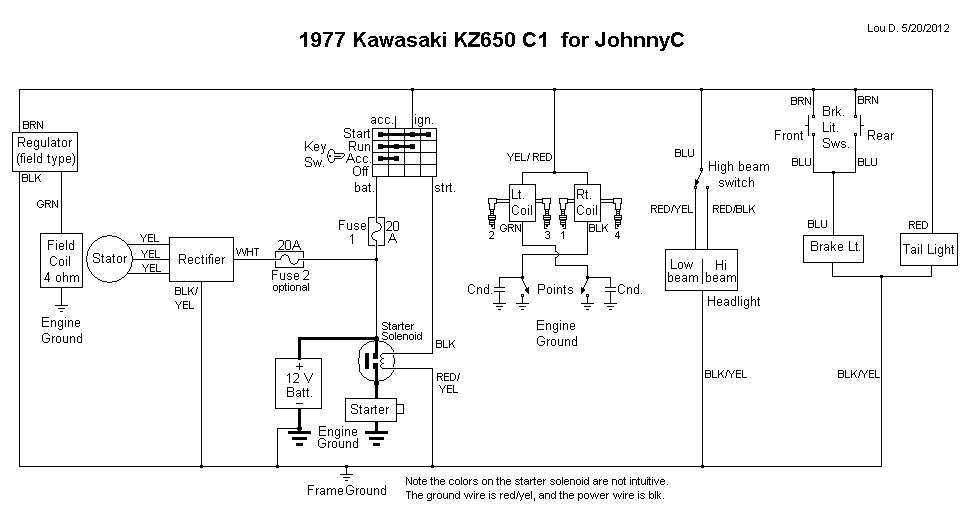

1977 KZ650 C1 for JohnnyC



EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1977 Kawasaki Kz650C1 with aftermarket ignition switch for JohnnyC
Kz650C Kz650 C1 Kz 650 C 650C1 650C
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 13 Jan 2019 13:58 by loudhvx.

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

07 Oct 2012 03:16 - 13 Jan 2019 13:59
#552880

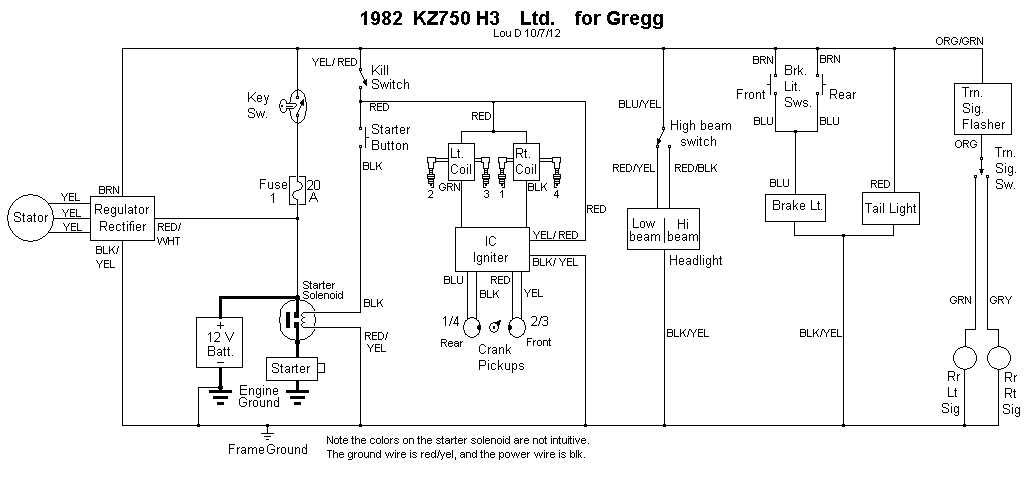

1982 KZ750 H3 for Gregg.


EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1982 Kawasaki Kz750H3 for Gregg
Kz750H Kz750 H3 Kz 750 H 750H3 750H
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 13 Jan 2019 13:59 by loudhvx.
The following user(s) said Thank You: 82bobber750h2

Please Log in or Create an account to join the conversation.

  • 82bobber750h2
  • 82bobber750h2's Avatar
  • Offline
  • User
  • Posts: 1
  • Thanks: 0

Re: 1980 750H bare bones for mattylight

07 Oct 2012 10:25
#552897
thanks so much loudhvx wasent able to find that anywhere

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

19 Dec 2012 16:19 - 13 Jan 2019 14:01
#563699
1976 KZ750 B1 twin for Jradofarms.



EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1976 Kawasaki Kz750B1 twin with aftermarket ignition switch for Jradofarms
Kz750B Kz750 B1 Kz 750 B 750B1 750B
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 13 Jan 2019 14:01 by loudhvx.
The following user(s) said Thank You: Jradofarms

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

03 Jan 2013 15:01 - 13 Jan 2019 14:03
#565702

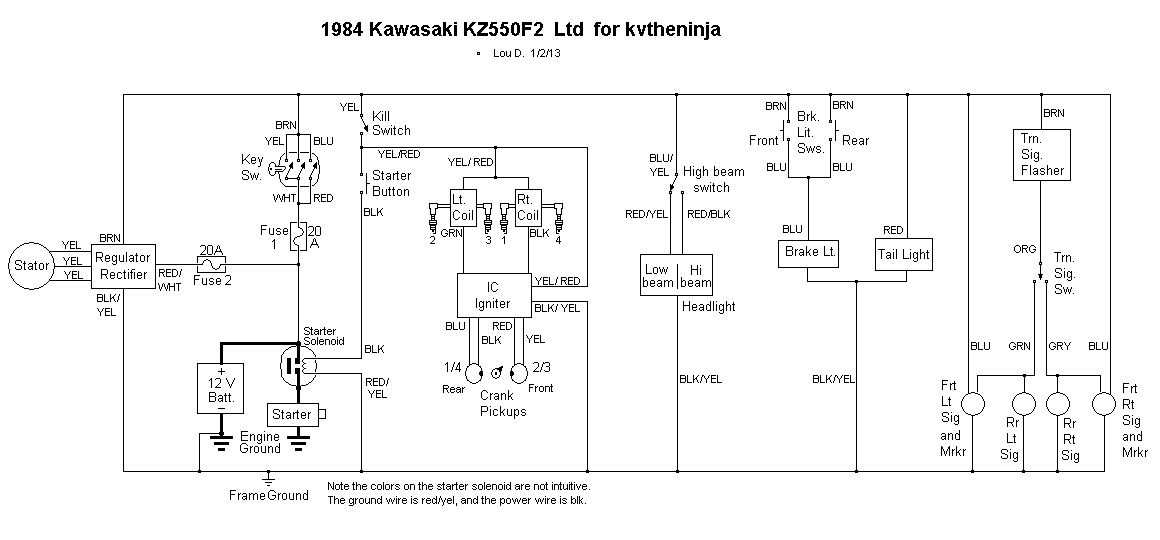

1984 KZ550F2 Ltd, (based on 1983 F1 wiring), for kvtheninja


EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1984 Kawasaki Kz550F2 Ltd for Kvtheninja
Kz550F Kz550 F2 Kz 550 F 550F2 550F
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 13 Jan 2019 14:03 by loudhvx.
The following user(s) said Thank You: kvtheninja

Please Log in or Create an account to join the conversation.

  • kvtheninja
  • kvtheninja's Avatar
  • Offline
  • User
  • Posts: 1
  • Thanks: 0

Re: 1980 750H bare bones for mattylight

03 Jan 2013 15:38
#565713
Thanks for the help. I'm going to try to get the new wiring done this weekend.

Please Log in or Create an account to join the conversation.

  • NickMac
  • NickMac's Avatar
  • Offline
  • User
  • Posts: 33
  • Thanks: 0

Re: 1980 750H bare bones for mattylight

08 Jan 2013 18:41
#566391
Loudhvx
,
I just wanted to thank you for all the posting you have done on this topic.. This has helped immensely with my build.

I have a 77 kz650b and am wondering if the 77 kz650c diagram you posted a few times is applicable to my bike?

Thanks,
Nick

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

08 Jan 2013 19:39
#566402
Thanks Nick, and yes the 77 KZ650B basic wiring should be the same as the 77 KZ650C.
Later KZ650's used very different charging systems.

The way to know if your 650 engine is in fact a 1977 version, is to look on the alternator cover. In the middle of the face of the cover, there should be 3 philips-head screws in a triangle pattern. Later models did not have the screws.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Please Log in or Create an account to join the conversation.

  • NickMac
  • NickMac's Avatar
  • Offline
  • User
  • Posts: 33
  • Thanks: 0

Re: 1980 750H bare bones for mattylight

09 Jan 2013 12:51
#566537
I'll take a look at that when my bike gets back from the shop.

Again thanks!

Please Log in or Create an account to join the conversation.

  • Hollywoodmx
  • Hollywoodmx's Avatar
  • Offline
  • User
  • Posts: 562
  • Thanks: 16

Re: 1980 750H bare bones for mattylight

06 Mar 2013 00:07
#575562
Hi loudhvx,

Could you put together a diagram for a simplification diagram for a 77 kz1000 with a dyna ignition, battery and a fuel pump (power and ground) for me please?

Thanks!
- 82 GPz1100injection
- 77 Kz1075 Supercharged
- 81 Yamaha TR-1
- 81 Yamaha xv920
Calgary

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

06 Mar 2013 20:41
#575712
Sure, give me a day or so.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

09 Mar 2013 01:40 - 13 Jan 2019 14:04
#576075
1977 KZ1000 with fuel pump for Hollywoodmx



EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1977 Kawasaki Kz1000 with Dyna S for Hollywoodmx
Kz 1000
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 13 Jan 2019 14:04 by loudhvx.
