1980 750H bare bones for mattylight 04 Apr 2013 13:43 #580544

  • Redhedgoon
  • Redhedgoon's Avatar
  • Offline
  • User
  • Posts: 4
  • Thank you received: 0
Ill see what I can scrounge up. And yes, you are correct, it has an electric ignition.

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 04 Apr 2013 20:52 #580588

  • Redhedgoon
  • Redhedgoon's Avatar
  • Offline
  • User
  • Posts: 4
  • Thank you received: 0
cyclepsycho.com/kz1000p/kz1000pwiring3.jpg

I found this. Not sure what year. But this looks like it could be it. Thanks for the info

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 05 Apr 2013 13:41 #580708

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
That looks promising. I'll sift through it and see what comes out.

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 05 Apr 2013 14:41 #580717

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

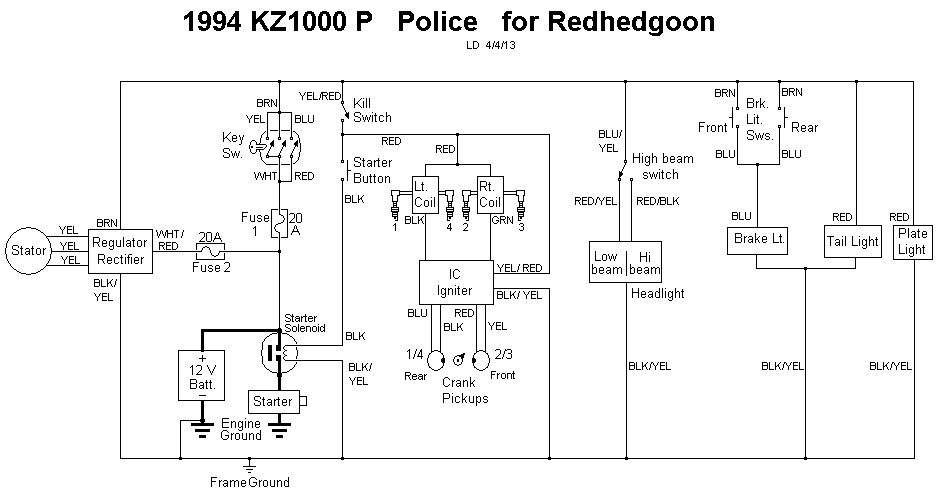

1994 Kz1000P Police for Redhedgoon



EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1994 Kawasaki Kz1000P police bike for Redhedgoon
Kz1000 P Kz 1000 1000P
Attachments:
The following user(s) said Thank You: Redhedgoon, old_kaw

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

bare bones for nkymain485 02 May 2013 04:50 #585251

  • lightitup
  • lightitup's Avatar
  • Offline
  • User
  • Posts: 236
  • Thank you received: 10

loudhvx wrote: This was originally for Nelson, but maybe nkymain485 can use it too.

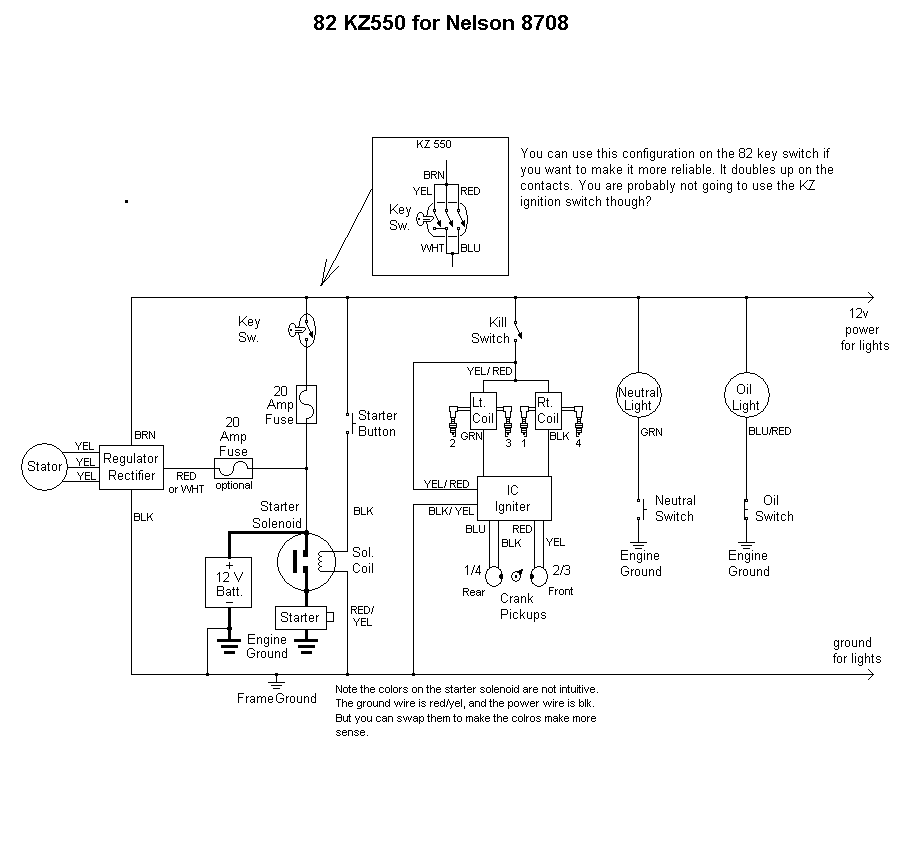

1982 KZ550 bare bones for Nelson8708 Nelson_8708

.



will this work with an 81 kz550 ltd c1 as well
81 kz 550 ltd

Please Log in or Create an account to join the conversation.

bare bones for nkymain485 02 May 2013 13:43 #585288

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Yes,it should. The horizontal fuse (the lower left one) is optional. It does provide a slight bit of safety against wires shorting, or the reg/rec shorting, but is not included in the factory setup, so I often mark it as optional on more recent drawings. That's an older one, so it is not marked optional.

(If you don't want the optional fuse, you would replace it with wire.)

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 02 May 2013 14:24 #585294

  • lightitup
  • lightitup's Avatar
  • Offline
  • User
  • Posts: 236
  • Thank you received: 10
if you could post the newest one that would be awesome
81 kz 550 ltd

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 02 May 2013 14:54 #585300

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
There really isn't a "newest" one. Each one is different based on what the person wants. I was just saying the second fuse is optional.


Attachments:
The following user(s) said Thank You: lightitup

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 14 May 2013 02:43 #587275

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

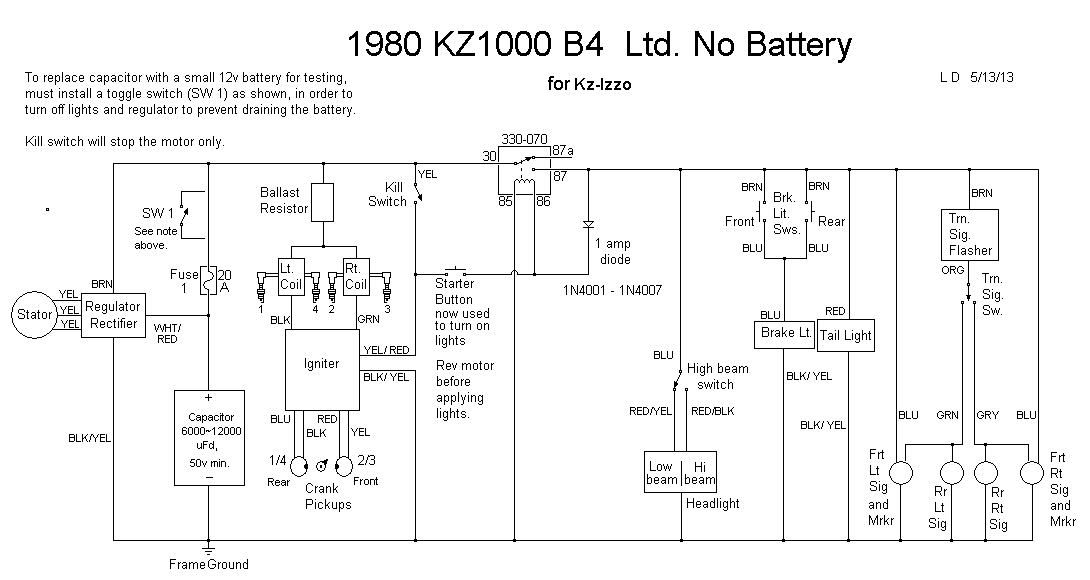

1980 kz1000b4 ltd batteryless for Kz-Izzo


EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1980 Kawasaki Kz1000B4 batteryless for Kz-Izzo
Kz1000B Kz1000 B4 Kz 1000 B 1000B4 1000B
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 31 May 2013 16:03 #590113

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

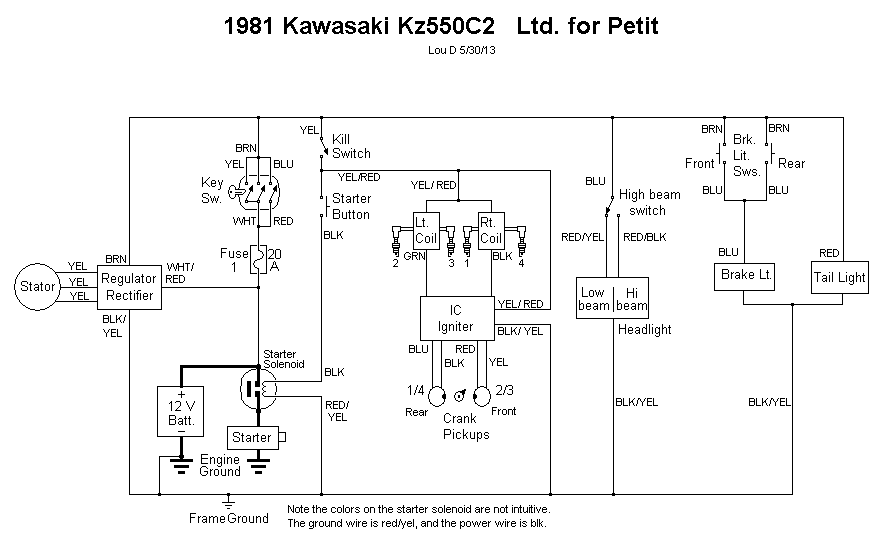

1981 Kawasaki KZ550C2 Ltd. cafe


for Petit.

EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz550C2 for Petit
Kz550C Kz550 C2 Kz 550 C 550C2 550C
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 04 Jun 2013 18:36 #590852

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

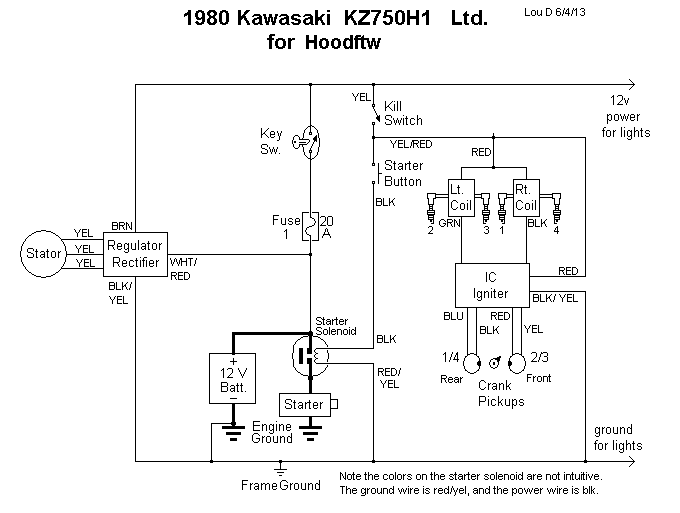

1980 Kawasaki KZ750H1 Ltd. for Hoodftw



EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1980 Kawasaki Kz750H1 for HoodFtw
Kz750H Kz750 H1 Kz 750 H 750H1 750H
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 05 Jun 2013 14:07 #590951

  • Hoodftw
  • Hoodftw's Avatar
  • Offline
  • User
  • Posts: 34
  • Thank you received: 0
Awesome! Thank you so much.
1980 KZ750 LTD
1980 KZ1000 LTD
1997 VLX 600
New Orleans LA

Please Log in or Create an account to join the conversation.
