16 Sep 2024 07:46 #904348
by Injected
Replied by Injected on topic KZ650 Sleeper Build (KZ1000 engine transplant)

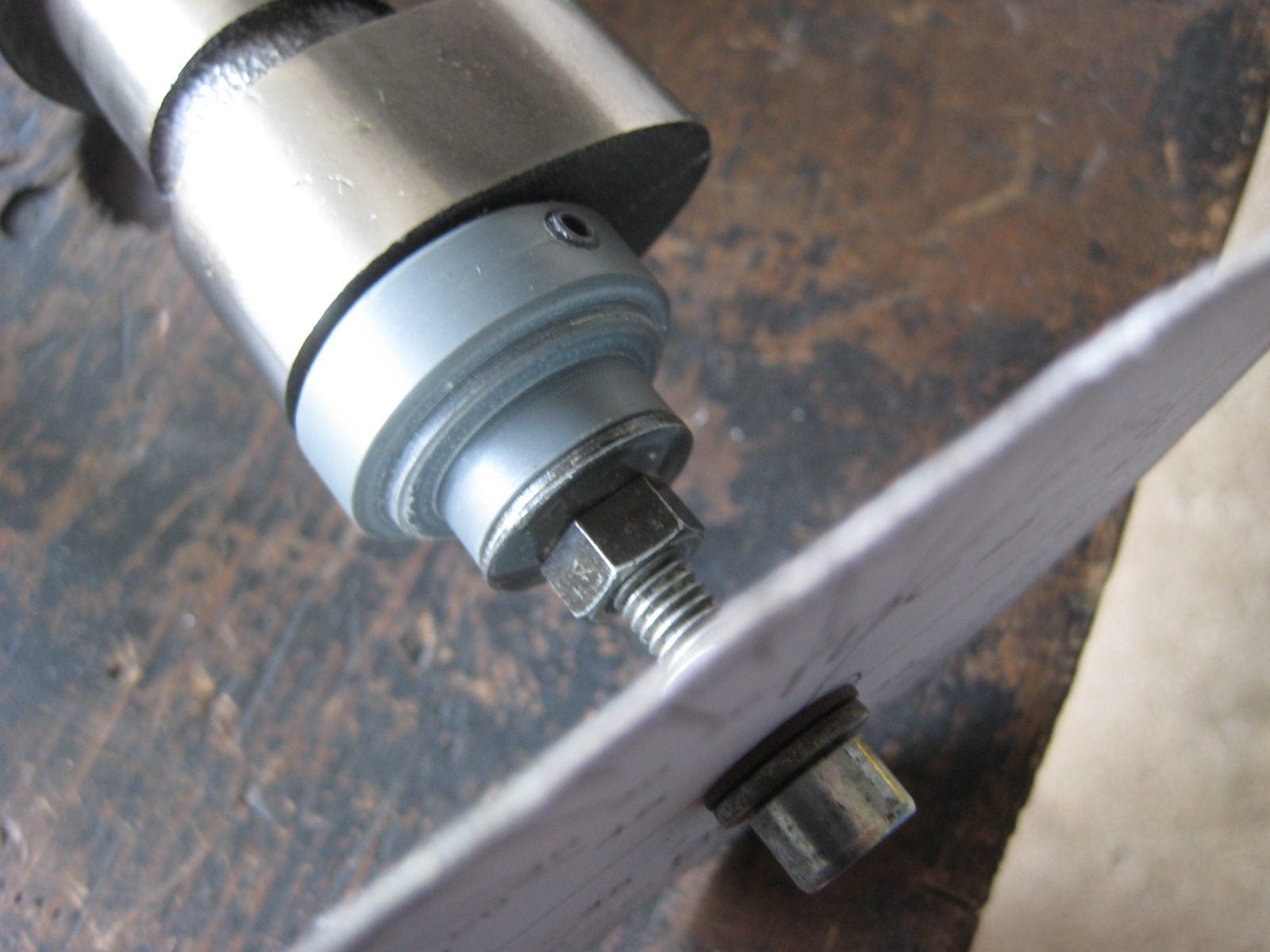

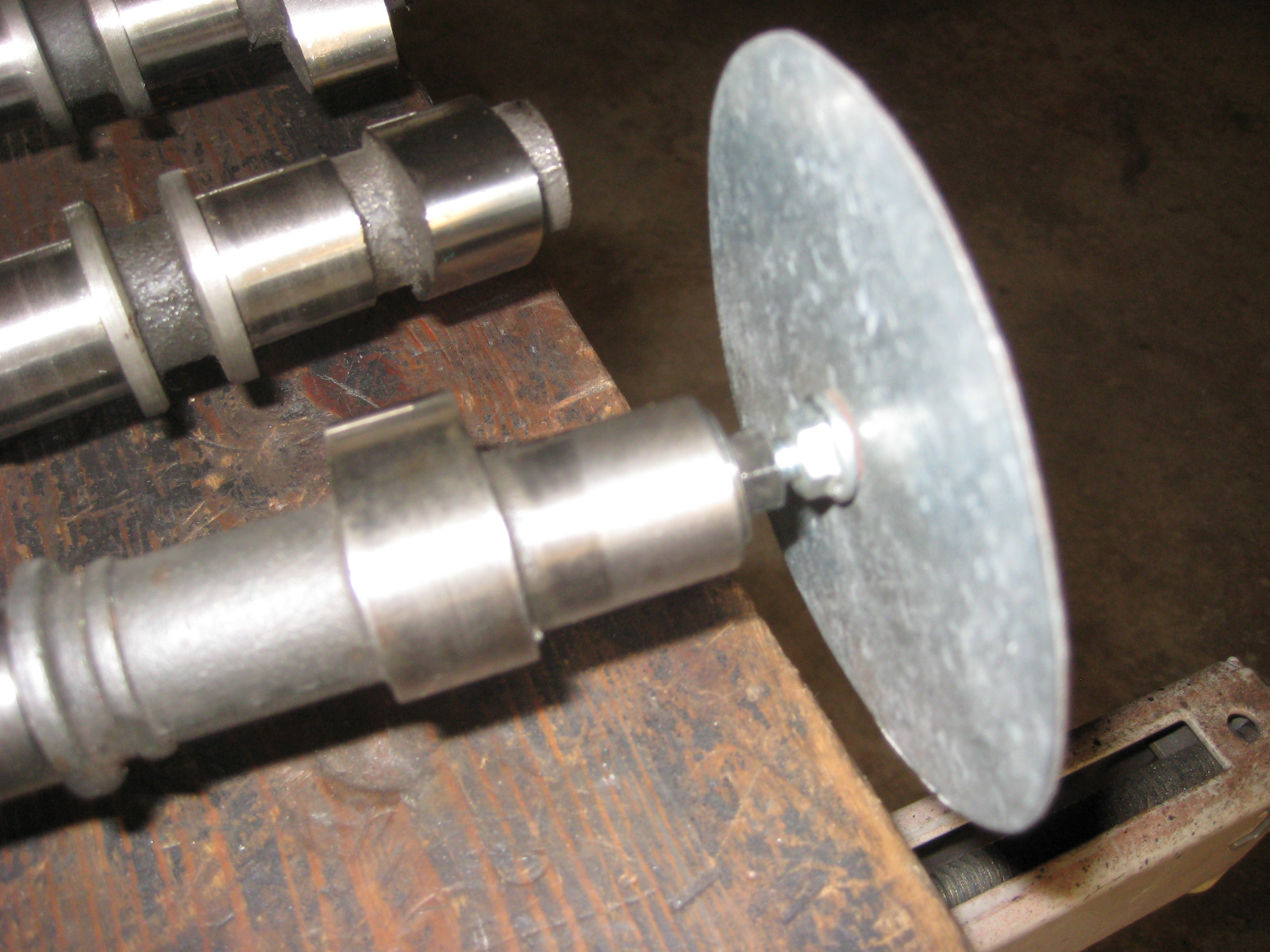

Discovered these RC cams don't have a M6 thread on them like the Yosh 650 cams have in them.

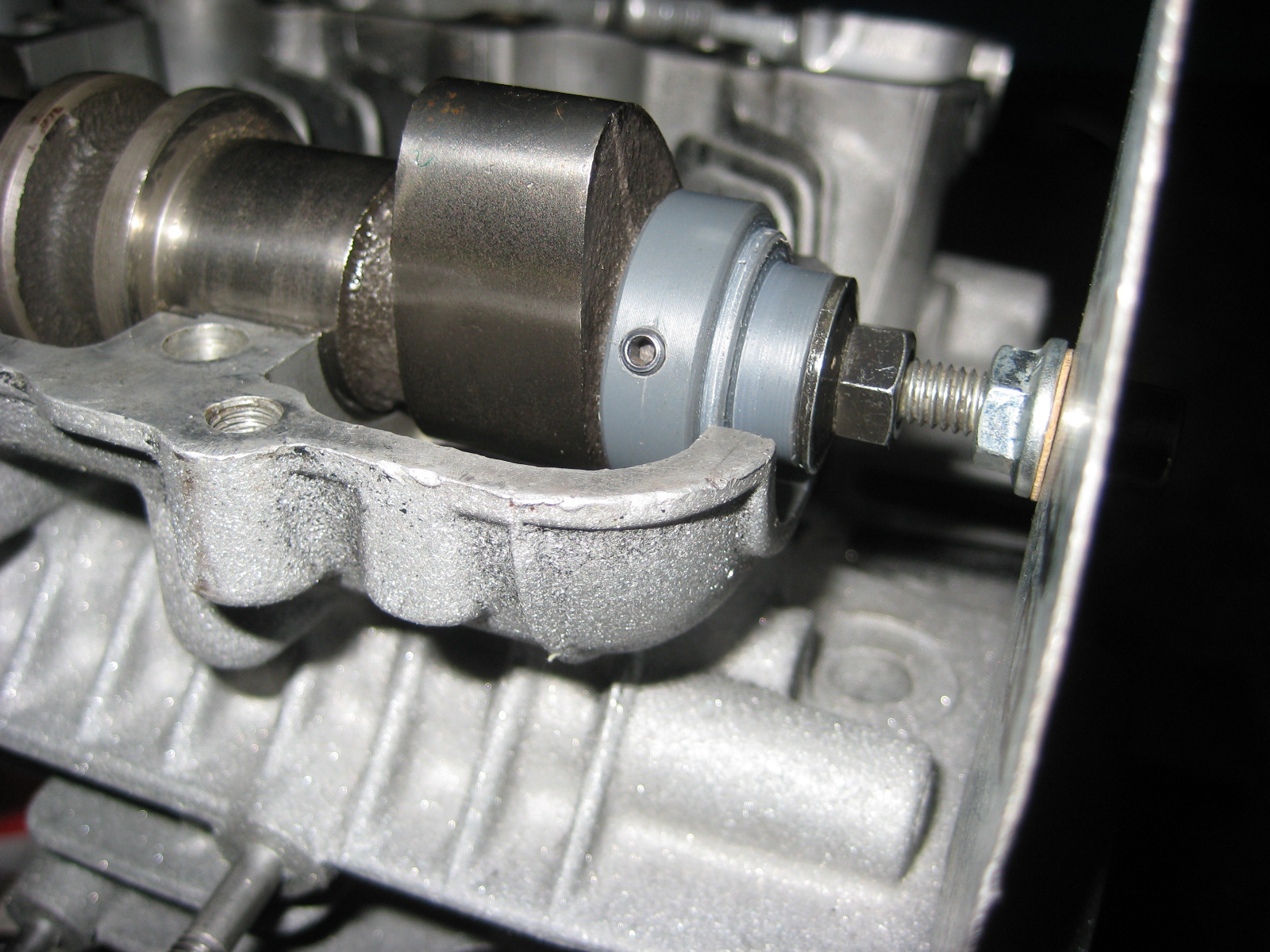

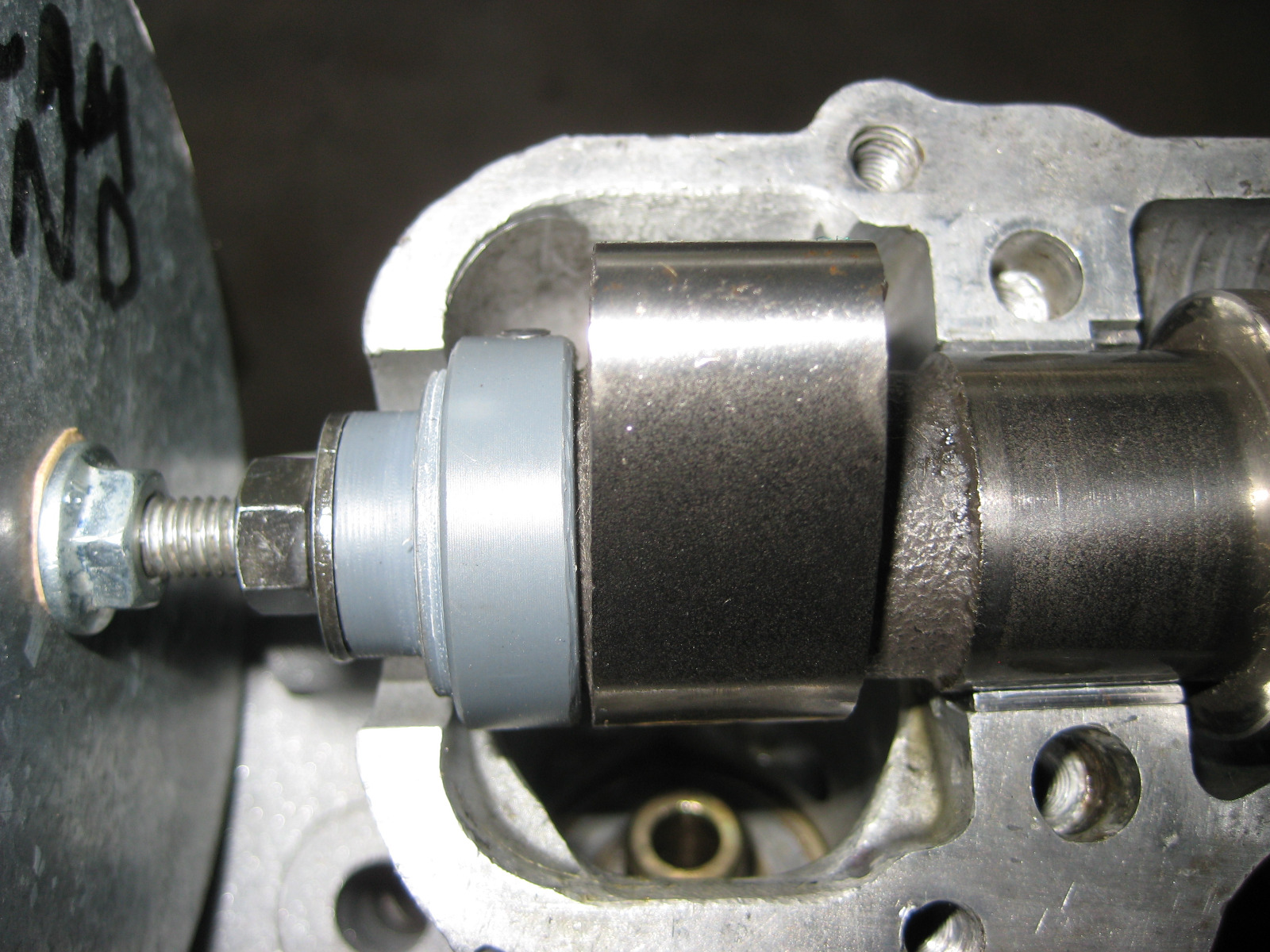

Will need to make up a slip collar for those cam ends to be able to use the degree wheel. Will get it turned on the lathe.

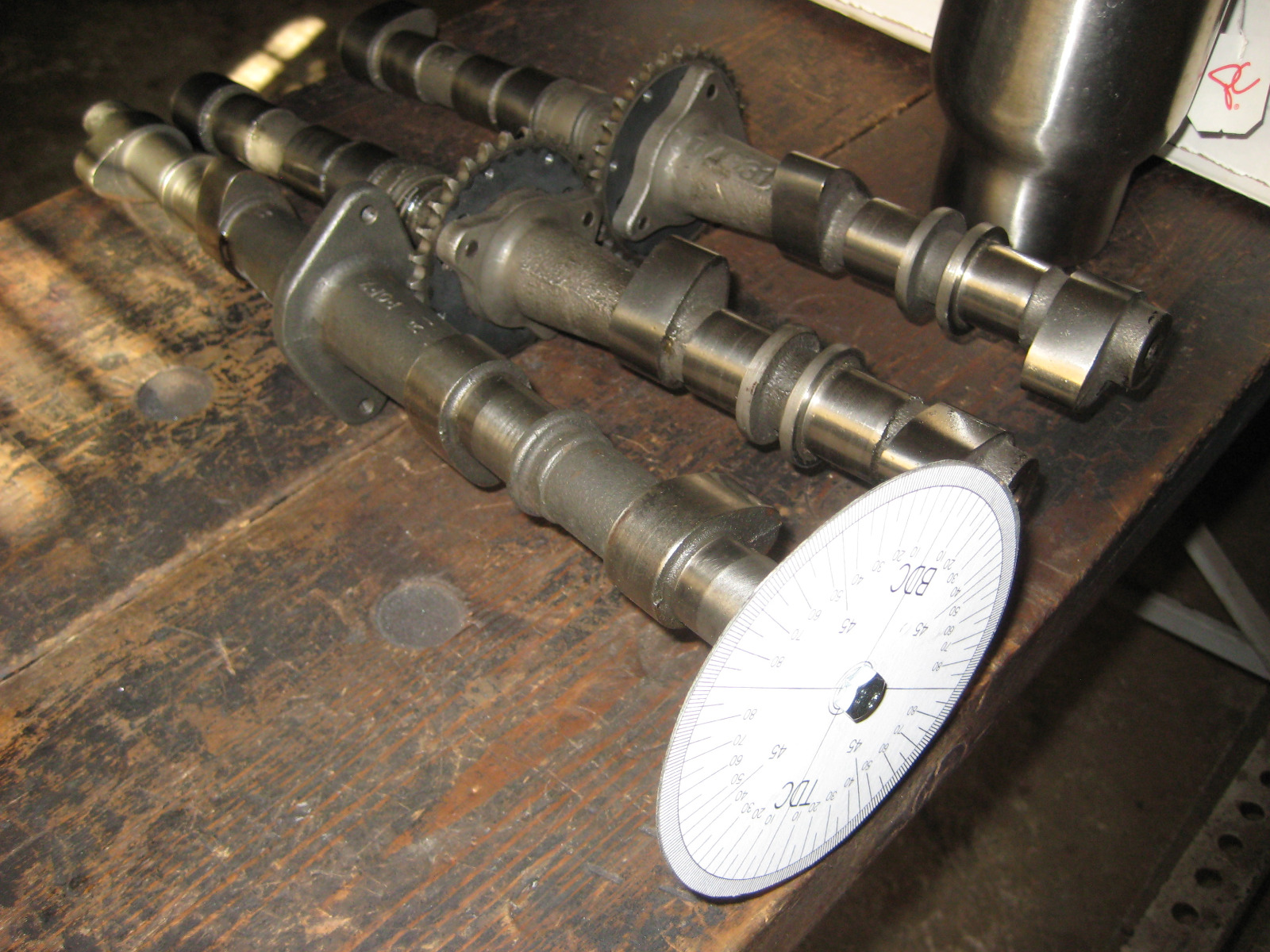

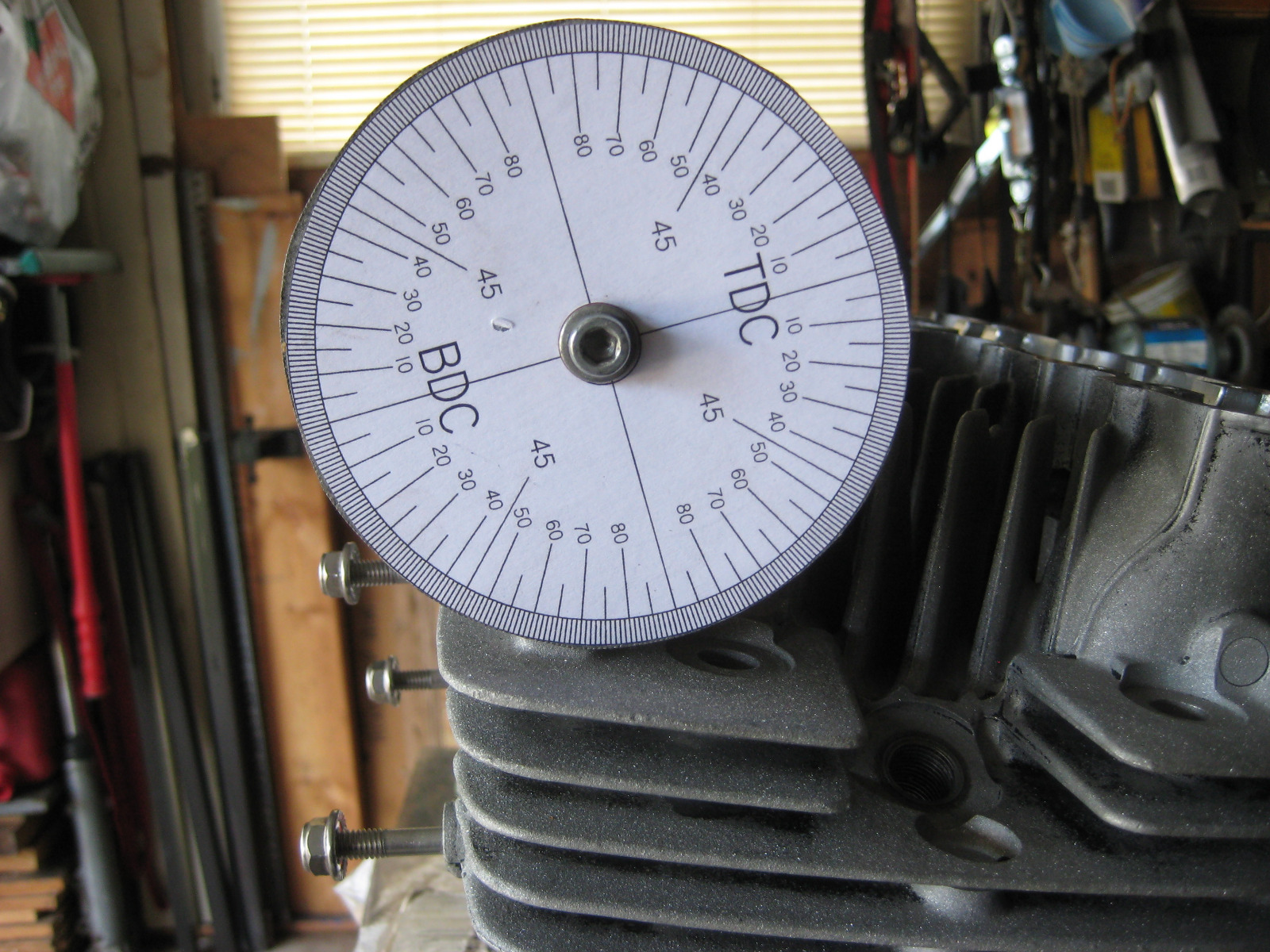

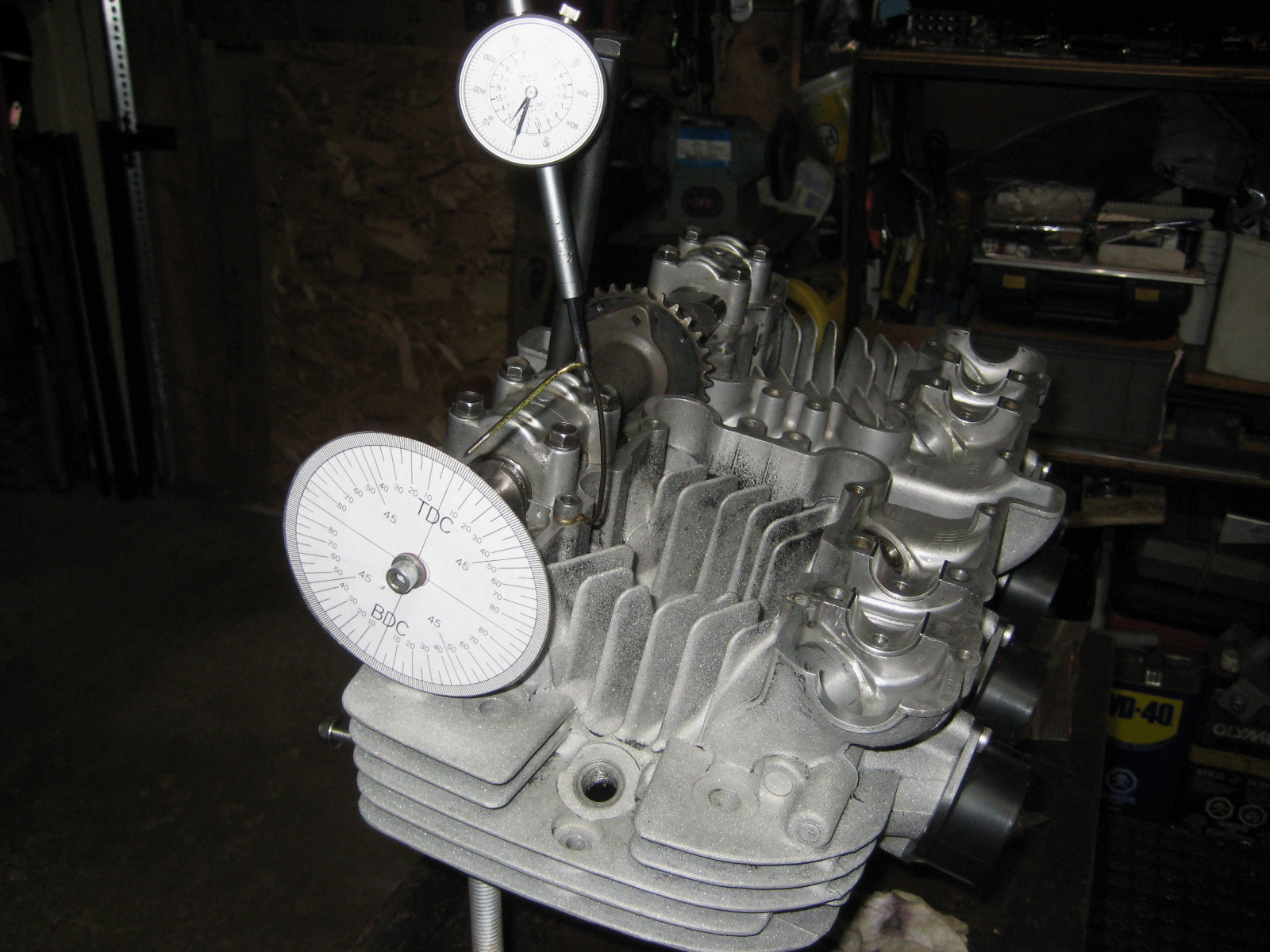

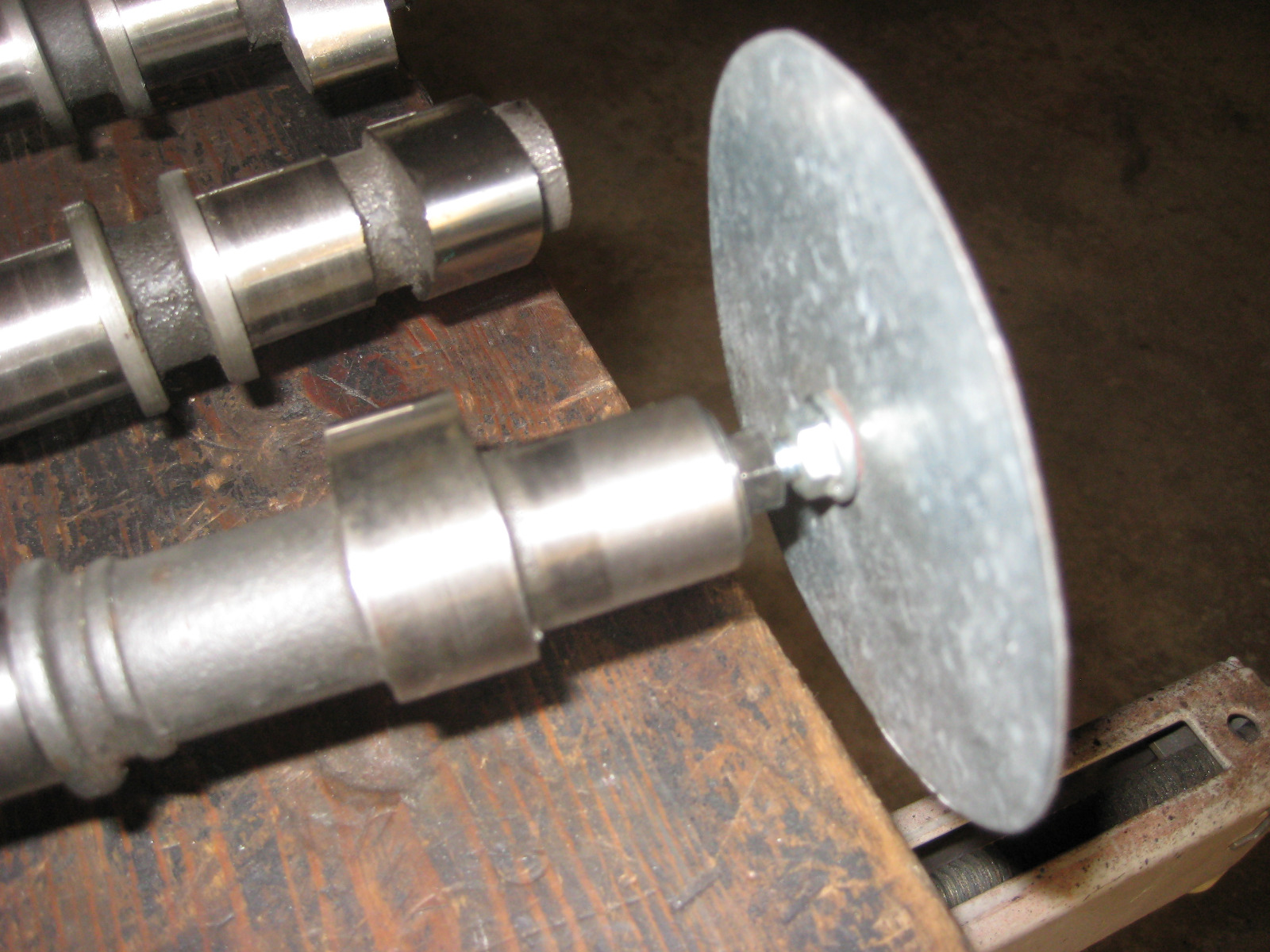

I made up this degree wheel years ago to bench test those Pop Y stage 2 cams because I could not find a timing card for them. I wanted to know the duration so it was a solution to do it off the bike. At that time I did not want to tear into a engine to do it but had did have plenty of spare heads sitting about.

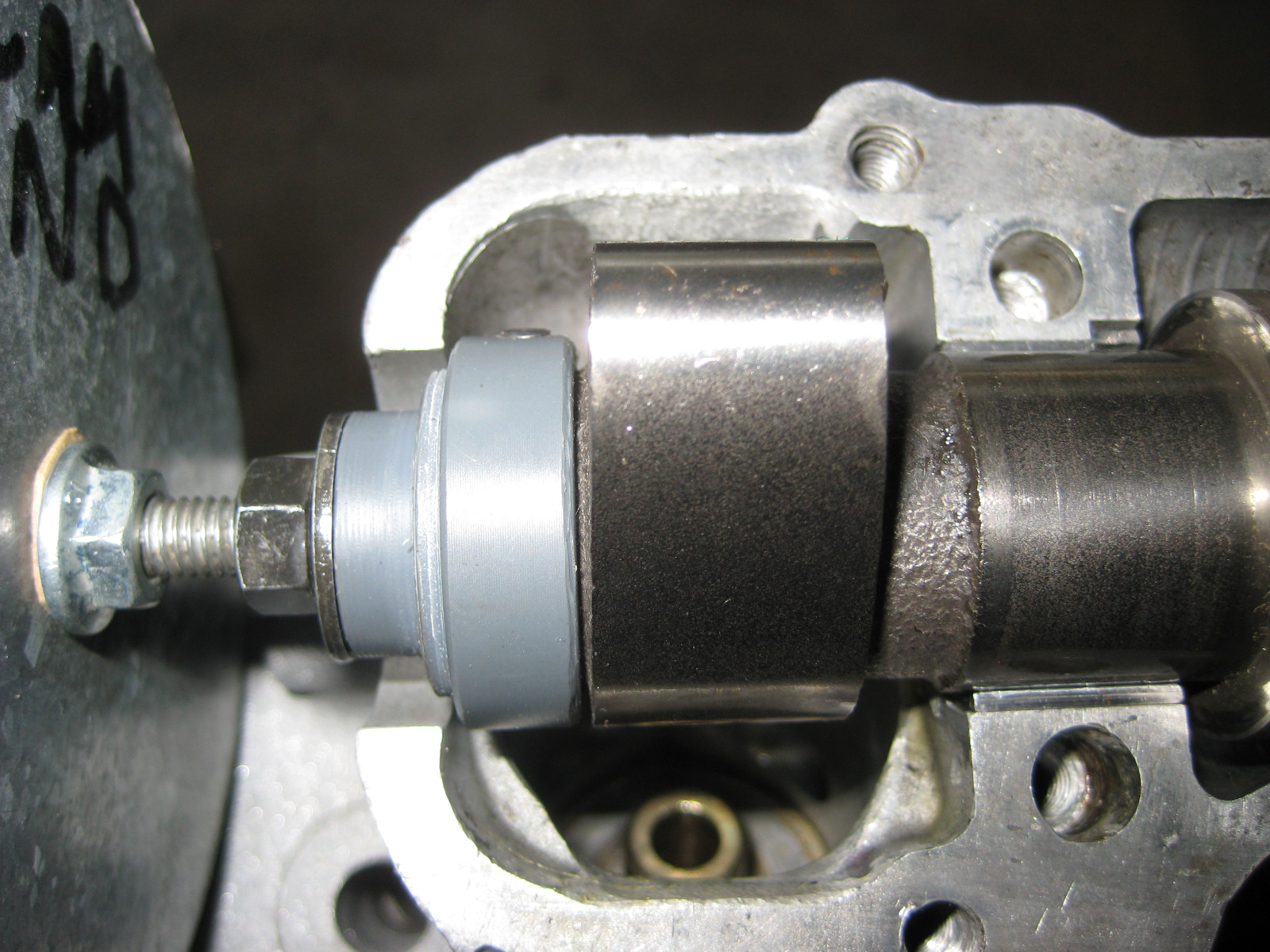

Will need to make up a slip collar for those cam ends to be able to use the degree wheel. Will get it turned on the lathe.
I made up this degree wheel years ago to bench test those Pop Y stage 2 cams because I could not find a timing card for them. I wanted to know the duration so it was a solution to do it off the bike. At that time I did not want to tear into a engine to do it but had did have plenty of spare heads sitting about.
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4181
- Thank you received: 2059
16 Sep 2024 15:18 - 16 Sep 2024 15:18 #904360
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic KZ650 Sleeper Build (KZ1000 engine transplant)
Are you sure that cam timing with the degree wheel on the cam shaft instead on the crank shaft gives you accurat readings?
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 16 Sep 2024 15:18 by Scirocco.
Please Log in or Create an account to join the conversation.
- Injected
- Topic Author
- Offline
- User
Less
More
- Posts: 1005
- Thank you received: 532
16 Sep 2024 17:27 #904368
by Injected
Replied by Injected on topic KZ650 Sleeper Build (KZ1000 engine transplant)

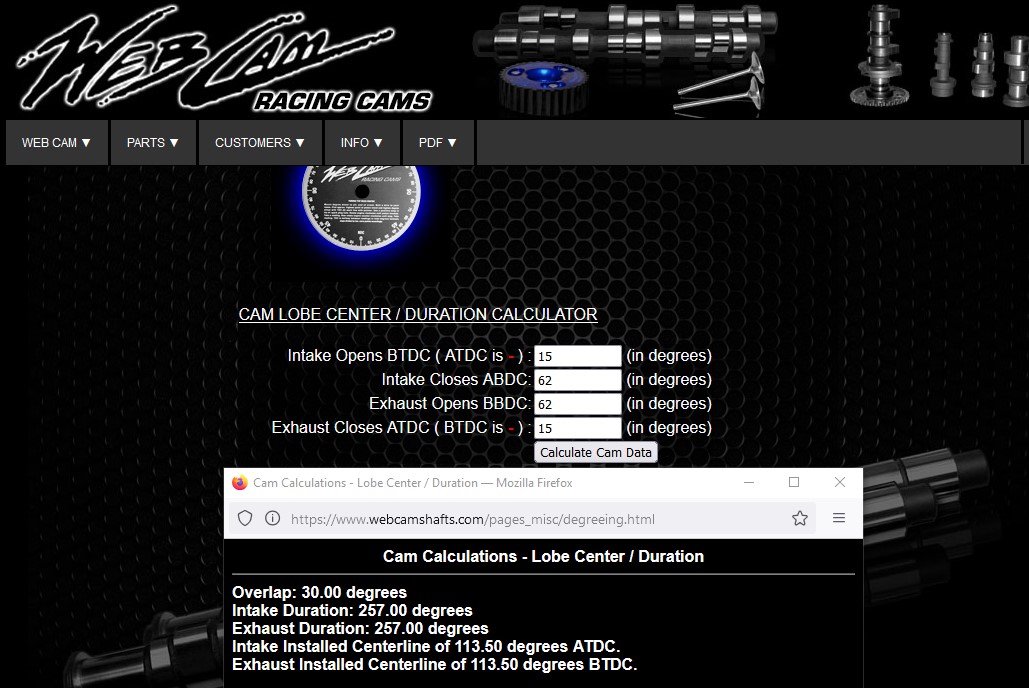

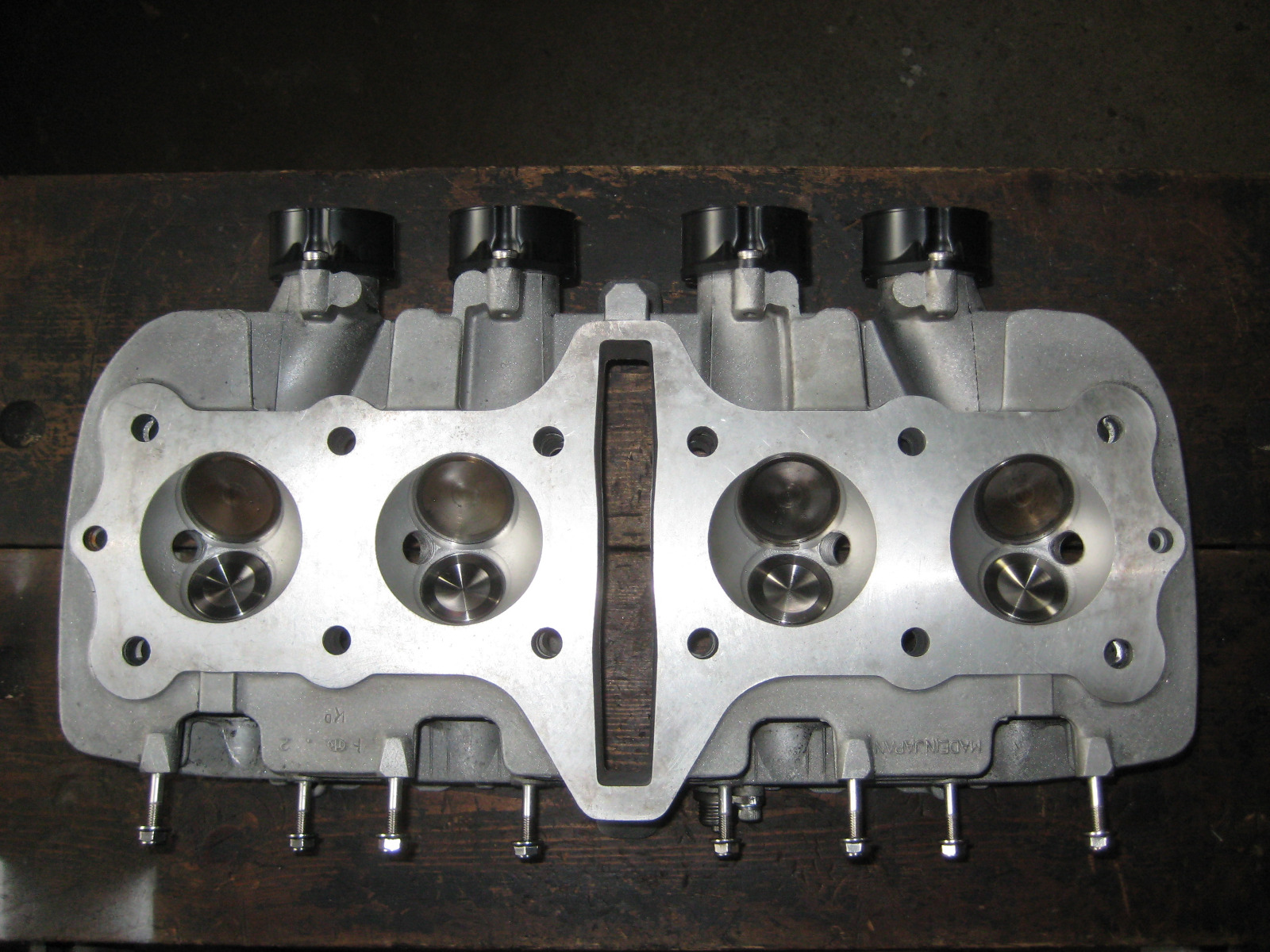

This was only to find the duration of the cam lobe with no cam card specs available using the bare cylinder head on the bench.Are you sure that cam timing with the degree wheel on the cam shaft instead on the crank shaft gives you accurat readings?
