27 Sep 2011 19:11 #480021 by 79MKII
Replied by 79MKII on topic '78 KZ1000 makeover

531blackbanshee wrote: found this while perusing a sanctuary blog.




thought that you might enjoy.

leon

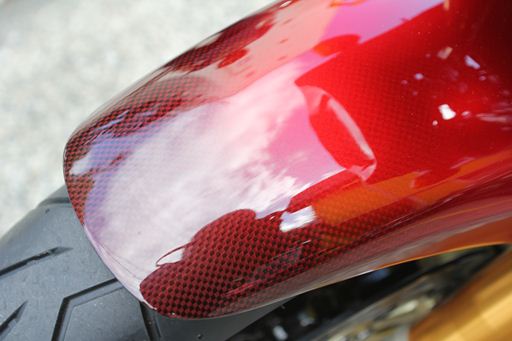

That looks cool. I wonder though if it's the actual carbon fiber pattern showing through or a painted on pattern?

The Kaw List:
Current: 79 KZ1000 A3 MKII, 78 KZ1000 A2, 78 KZ1000 Z1-R, 78 KZ650 SR, 80 KE175
Former: 03 KLX400SR, 99 ZRX1000, 82 KZ750 LTD, 80 KZ1000 A4 MKII, 80 KZ1000 LTD, 78 KZ1000 A2, 74 H-2 750 Triple, 78 KL250

Please Log in or Create an account to join the conversation.

  • porchev914
  • Topic Author
  • Offline
  • User
  • Whats that? Half of my swingarm is missing?!?!?
More
27 Sep 2011 20:53 #480045 by porchev914
Replied by porchev914 on topic '78 KZ1000 makeover
Thanks for sharing Leon! To answer the question, it's not a painted on pattern. It is a hybrid weave, with carbon fiber in one direction and red dyed kevlar fibers on the opposite direction. Then they may have tinted the resin red, or dusted it with a pearl coat before cleacoating. Cool effect Leon....Maybe I'll make a set of bodywork just like that...it would look soooo cool!

FRANKEN Z!
1978 KZ1000 A2A with 08'Speed Triple SSSA and '06 GSXR1000 front end

Please Log in or Create an account to join the conversation.

  • porchev914
  • Topic Author
  • Offline
  • User
  • Whats that? Half of my swingarm is missing?!?!?
More
02 Oct 2011 23:02 #481072 by porchev914
Replied by porchev914 on topic '78 KZ1000 makeover

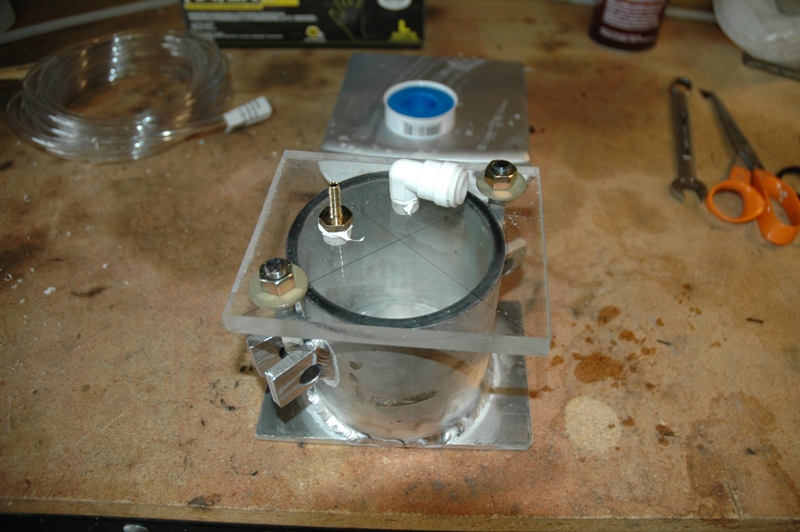

Getting a little saltier Leon :P Making a resin catch pot for resin infusion for my larger moulds.


FRANKEN Z!
1978 KZ1000 A2A with 08'Speed Triple SSSA and '06 GSXR1000 front end
Attachments:

Please Log in or Create an account to join the conversation.

  • testarossa
  • Offline
  • User
  • Attack life, it's only trying to kill you.
More
03 Oct 2011 08:36 #481133 by testarossa
Replied by testarossa on topic '78 KZ1000 makeover

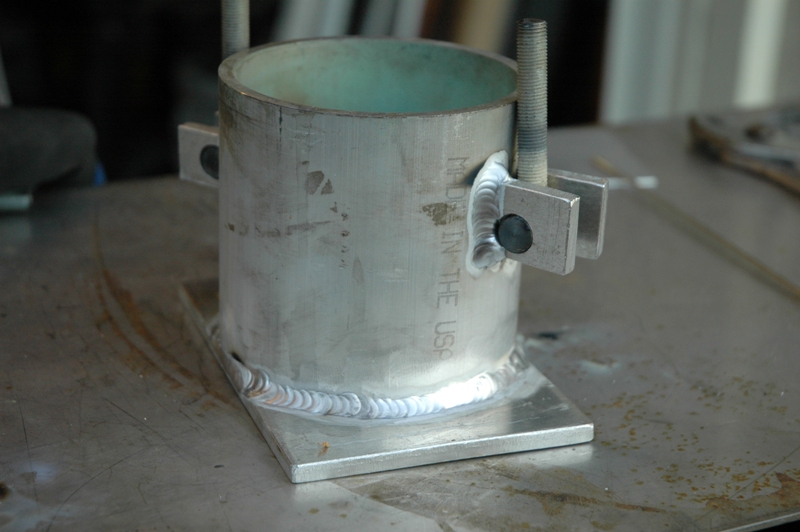

The welds look good. :) Have you leak tested it yet?

1978 KZ1000 A2 Click--->Build Thread
2004 ZX-10R
2007 Harley Sportster 1200
2020 Harley Street Glide Special
Angola, IN

Please Log in or Create an account to join the conversation.

  • porchev914
  • Topic Author
  • Offline
  • User
  • Whats that? Half of my swingarm is missing?!?!?
More
03 Oct 2011 12:07 #481158 by porchev914
Replied by porchev914 on topic '78 KZ1000 makeover
Thanks Josh, I'll leak test it later today. I needed some fitting that I have to pick up later. Shortly after I finished the vacuum pot, I prepped my right sidecover mould and laminated a sidecover. I demoulded it this morning and it turned out pretty damn good :woohoo: I'd say easily my best part yet B) I'll post a pic in the carbon bodywork thread in a bit.

FRANKEN Z!
1978 KZ1000 A2A with 08'Speed Triple SSSA and '06 GSXR1000 front end

Please Log in or Create an account to join the conversation.

More
03 Oct 2011 12:34 #481164 by 531blackbanshee
Replied by 531blackbanshee on topic '78 KZ1000 makeover

porchev914 wrote: Getting a little saltier Leon :P


i'd say so :) .

leon

skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

  • mark1122
  • Offline
  • User
  • Keep twisting it
More
04 Oct 2011 11:39 #481323 by mark1122
Replied by mark1122 on topic '78 KZ1000 makeover
I have no idea what a resin catch pot is , but :


Attachment images.jpg not found


76 KZ, frame gusset work,1200CC.Ported by Larry Cavanaugh, 1.5mm.over intakes, Carron Pipe, ZRX12 rear end, and seat,96zx9 front end.
01 CBR600F4i Track bike.
Cobourg, Ont. Can.

~ ~ ~_@
~ ~ _- \,
~ (k) / (z)
Attachments:

Please Log in or Create an account to join the conversation.

  • porchev914
  • Topic Author
  • Offline
  • User
  • Whats that? Half of my swingarm is missing?!?!?
More
04 Oct 2011 12:23 #481324 by porchev914
Replied by porchev914 on topic '78 KZ1000 makeover
Mark, a resin catch pot is used in a type of composites construction called "resin transfer moulding" or "resin infusion". In these processes, you layup the fiber reinforcement dry in the mould. This gives you unlimited working time, advantageous when working with a larger mould like, say, a fuel tank. A layer of "flow media" is placed as the last layer on top of the laminate. It lookes like miniaturized expanded steel grate, made out of super thin plastic. You add a spiral cut line on one side of the mould for resin distribution and connect a fesin feed line. Your vacuum line goes on the other side of the part then you bag the part as usual and pull a vacuum on it with the resin feed line clamped. You mix some resin, place the resin feed tube in your resin bucket and release the clamp. The vacuum draws the resin into the mould, and pulls it across the part. In order to insure you get a complete infusion of resin into the part, you must alow some of the resin get pulled into the vacuum line on the other side of the part. (Here is where the catch pot comes in) So that you do not risk getting resin into your vacuum pump and destroying it, your vacuum line comes out of the part and into the resin catch pot before going to you pump. This gived you a reservoir to catch excess resin. I had everything I needed to try a resin infusion except the resin catch pot. I wasn't going to try another fuel tank top until I could experiment with the infusion process, and I wanted to try it out on a tail first. Not having this little pot has been holding me back a bit, but now thats not an excuse anymore :P


FRANKEN Z!
1978 KZ1000 A2A with 08'Speed Triple SSSA and '06 GSXR1000 front end
Attachments:

Please Log in or Create an account to join the conversation.

More
04 Oct 2011 12:37 #481326 by T_Dub
Replied by T_Dub on topic '78 KZ1000 makeover
Thats excellent, I can't wait to see how your stuff turns out now that you're doing it this way!

1977 KZ650B1
-810cc
-Cavanaugh Racing Head
-Mikuni RS34's
-GPR Muffler

Please Log in or Create an account to join the conversation.

  • mark1122
  • Offline
  • User
  • Keep twisting it
More
04 Oct 2011 13:00 #481330 by mark1122
Replied by mark1122 on topic '78 KZ1000 makeover
Thanks for the explanation Adam. Very interesting stuff . B)

76 KZ, frame gusset work,1200CC.Ported by Larry Cavanaugh, 1.5mm.over intakes, Carron Pipe, ZRX12 rear end, and seat,96zx9 front end.
01 CBR600F4i Track bike.
Cobourg, Ont. Can.

~ ~ ~_@
~ ~ _- \,
~ (k) / (z)

Please Log in or Create an account to join the conversation.

More
04 Oct 2011 17:25 #481355 by 531blackbanshee
Replied by 531blackbanshee on topic '78 KZ1000 makeover


'not much holding me back now'
said in whiny lil' girl voice :woohoo: .

just finish the damn thing,will ya?





jeez!!!!!!!!!!!!!!

:P

leon

skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:

Please Log in or Create an account to join the conversation.

  • trianglelaguna
  • Offline
  • User
  • New and improved - extra strength
More
04 Oct 2011 18:49 #481362 by trianglelaguna
Replied by trianglelaguna on topic '78 KZ1000 makeover
a carbon fiber tail tray would make a nice stocking stuffer....sell em like hot cakes

1976 KZ900
2003 ZX12R
2007 FZ1000
2004 ninja 250R for wife
