new to me 1976 KZ 900, wires go where?
- Wookie58
- Offline
- Moderator
Less
More
07 Jan 2022 14:30 #860199
by Wookie58
Replied by Wookie58 on topic new to me 1976 KZ 900, wires go where?
The green and black only determine which coil triggers which plugs, I would pull the plug leads and put a plug in the lead and rest it on the engine so you can see if it sparks
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
07 Jan 2022 14:31 #860200
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic new to me 1976 KZ 900, wires go where?
If I heard correctly? The up off position no click. Turn to the run and dash lights dim slightly, no click. Then switched to the lower off you hear a click. Is this correct?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
07 Jan 2022 14:31 #860201
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?
ok @ wookie58
with the left yellow coil wire disconnected the neutral light doesn't dim.
with the right yellow disconnected the neutral light STILL DIMS!
with the left yellow coil wire disconnected the neutral light doesn't dim.
with the right yellow disconnected the neutral light STILL DIMS!
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
07 Jan 2022 14:32 #860203
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?
@Mikaw, yes that is correct.
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
07 Jan 2022 14:33 #860204
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?
@wookie, I have been laying the plug on the engine but no spark.
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4097
- Thank you received: 2337
07 Jan 2022 14:36 #860205
by Wookie58
Replied by Wookie58 on topic new to me 1976 KZ 900, wires go where?
Ok so now with both wires disconnected from the left coil, switch your meter to resistance and measure from the positive terminal on the left coil to the mounting lug of the left coil (it sounds like a short in the left coil bringing everything down)
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
07 Jan 2022 14:39 #860206
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic new to me 1976 KZ 900, wires go where?
Dimming of the neutral light is just an indication the coils are adding a draw to the battery, normal on a battery not in fully charged state. The click is an indication of a device either getting power on loosing power. I’m going to guess it’s loosing power and in the run position it an added draw knocking your coil voltage down. Just a guess. Try ti find the source of the click. It can only be a hazard or turn signal relay. I can’t think of anything OEM that would cause that. You may have to start unplugging connectors till we source the problem. Don’t do that now, first find the source of the click.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4097
- Thank you received: 2337
07 Jan 2022 14:43 #860207
by Wookie58
Replied by Wookie58 on topic new to me 1976 KZ 900, wires go where?
Hi Mikaw, get what you are saying but it is strange only one coil effects the dash light and it's the same one that showed an excessive volt drop in an earlier test ?
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
07 Jan 2022 15:28 #860211
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?
@wookie and Mikaw and all you others, I appreciate everyones help.
@ Wookie58 when you say switch to resistance? Ohms? I am not sure which setting on the meter
@ Wookie58 when you say switch to resistance? Ohms? I am not sure which setting on the meter
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4097
- Thank you received: 2337
07 Jan 2022 15:33 #860213
by Wookie58
Replied by Wookie58 on topic new to me 1976 KZ 900, wires go where?
Yes ohms, there should be no continuity between the positive terminal and the mounting lug (centre core) if there is then the points can't switch off the primary winding which means no spark from the secondary winding. Do the same check on the right coil with it disconnected if your reading is anything other than "infinity"
Please Log in or Create an account to join the conversation.
- rscone11
- Topic Author
- Offline
- User
Less
More
- Posts: 122
- Thank you received: 10
07 Jan 2022 15:53 #860214
by rscone11
Replied by rscone11 on topic new to me 1976 KZ 900, wires go where?

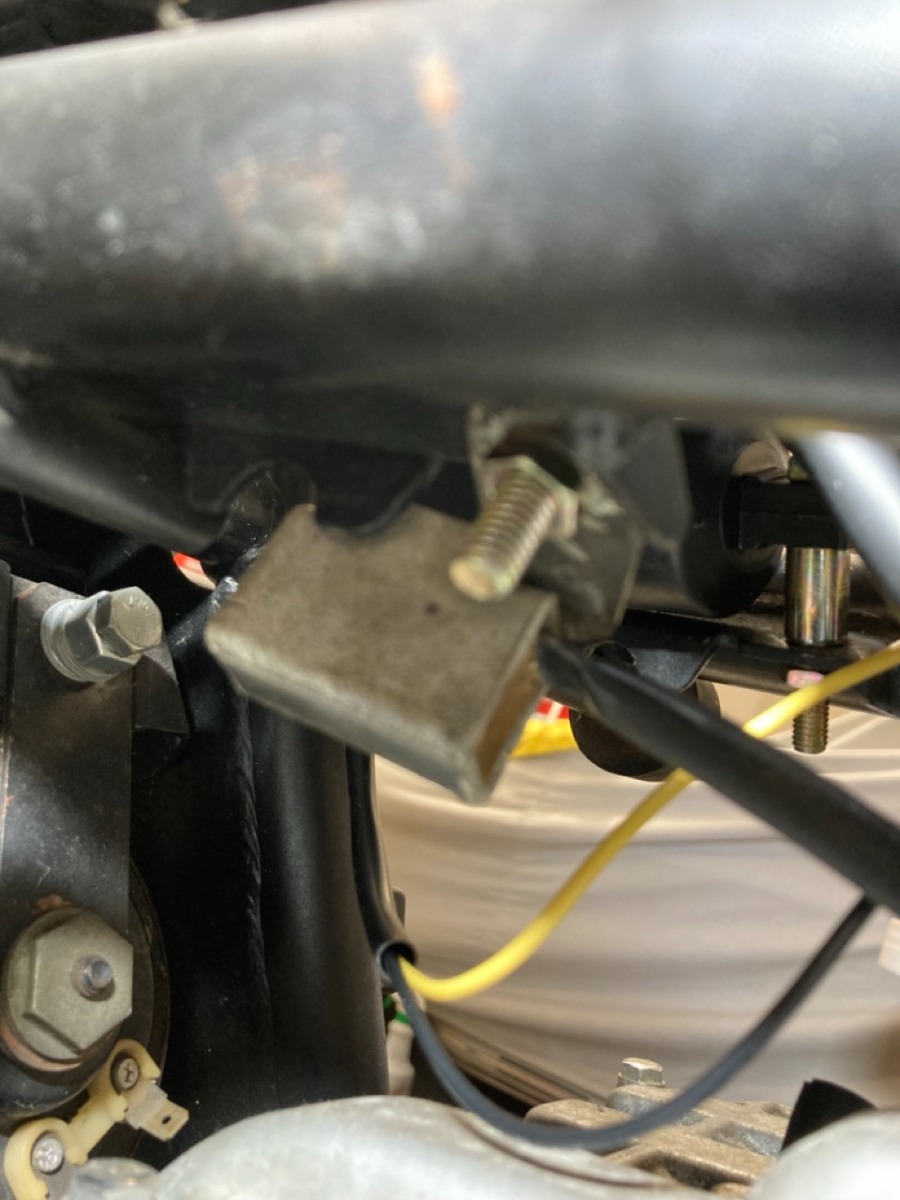

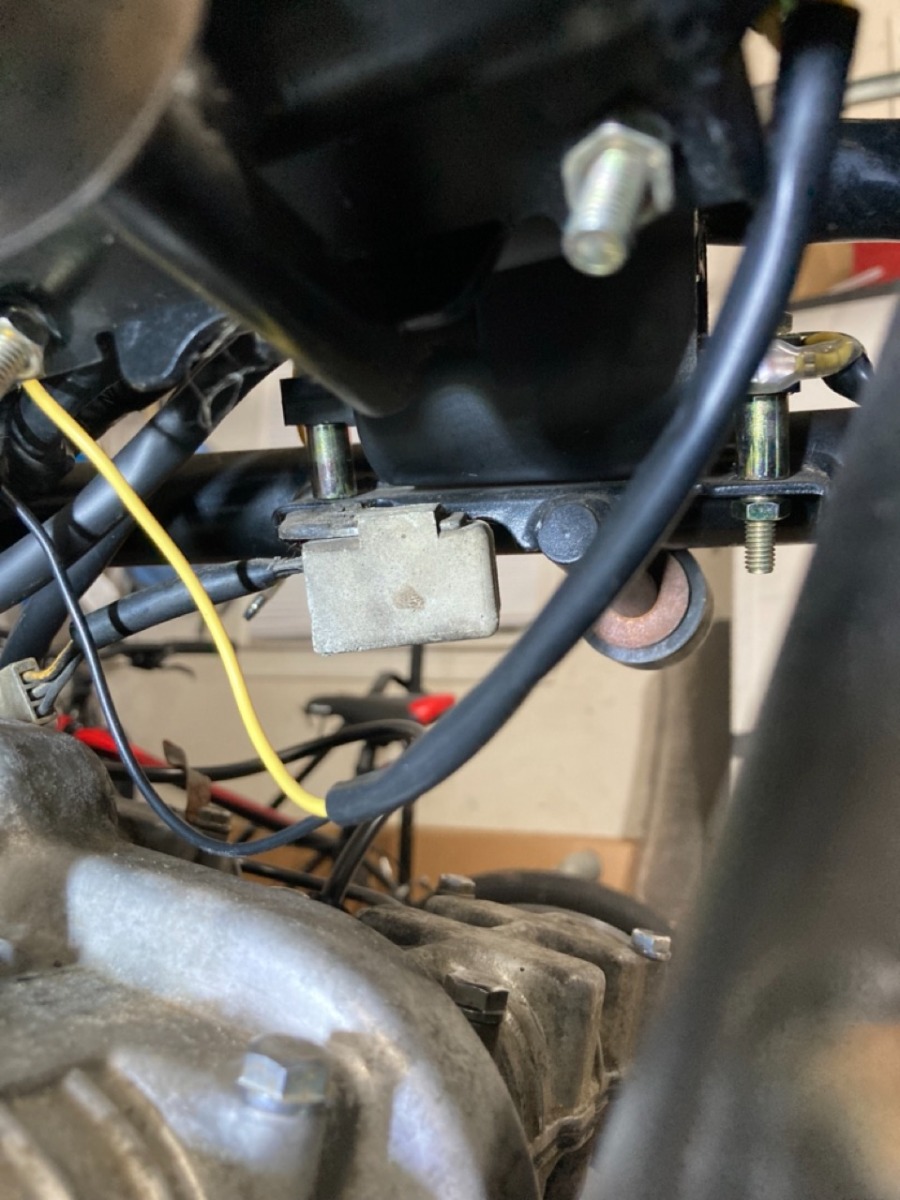

Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
07 Jan 2022 15:55 #860215
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic new to me 1976 KZ 900, wires go where?
Brake light out warning relay. It’s solid state so it won’t click. If your brake light goes out the dash brake light will glow constantly
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
