gpz550 ignition switch 12 Jan 2020 20:54 #816998

  • Caleator
  • Caleator's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 102
  • Thank you received: 4
Howdy,

So my ignition switch has started to do nothing all of a sudden. It has happened before, but previously would solve by turning the key off and on until it decided to work.
Now in the middle of a canyon ride I stopped at the top to take in the views and it stopped working, and never came back.

my question is: is it possible to rebuild/revive an ignition switch? I would like to keep using my original key, which works for everything.

but if i'm doomed to have to replace the ignition switch entirely, which should I go with? Have been reading on the forum that the EMGO ones seems to be pretty decent. I don't really care for a steering lock, current clip ons do not allow it anyways.
1981 Kawasaki GPZ550 (KZ550D-1)

Please Log in or Create an account to join the conversation.

Last edit: by Caleator.

gpz550 ignition switch 12 Jan 2020 21:27 #817004

  • TexasKZ
  • TexasKZ's Avatar
  • Away
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 5254
  • Thank you received: 1205
One fairly common problem with all the switchgear on these old bikes is the solder. It gets brittle with age, and can vibrate apart. If that is the problem, it should be pretty easy to fix with a fine tip, some new solder and some patience.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: Caleator

Please Log in or Create an account to join the conversation.

gpz550 ignition switch 13 Jan 2020 06:02 #817018

  • Caleator
  • Caleator's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 102
  • Thank you received: 4
haven't taken it off and actually looked at it yet, but I will give this a shot. I hope it works
1981 Kawasaki GPZ550 (KZ550D-1)

Please Log in or Create an account to join the conversation.

gpz550 ignition switch 13 Jan 2020 07:49 #817024

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • Member
  • Member
  • Posts: 7197
  • Thank you received: 1340
Your ignition switch probably has a plastic cover at the base over the soldered wiring connections.
The cover probably has tabs that hold it in place >> access to the tabs is thru 2 rectangular holes in the body of the ign switch.
I use a terminal pin tool to press on the tabs, but a large paper clip, awl or something like that should work.

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

gpz550 ignition switch 13 Jan 2020 14:46 #817041

  • Caleator
  • Caleator's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 102
  • Thank you received: 4
so the whole wiring actually just comes out of the switch itself, that's neat.

I'm no electrician, what's the opinion about re-soldering this? No.3 (white) on the wiring diagram runs to the fuse box then the starter solenoid.

Do they sell these anywhere? I don't even know what to call it.
1981 Kawasaki GPZ550 (KZ550D-1)
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Caleator.

gpz550 ignition switch 13 Jan 2020 15:05 #817042

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 2930
  • Thank you received: 1277

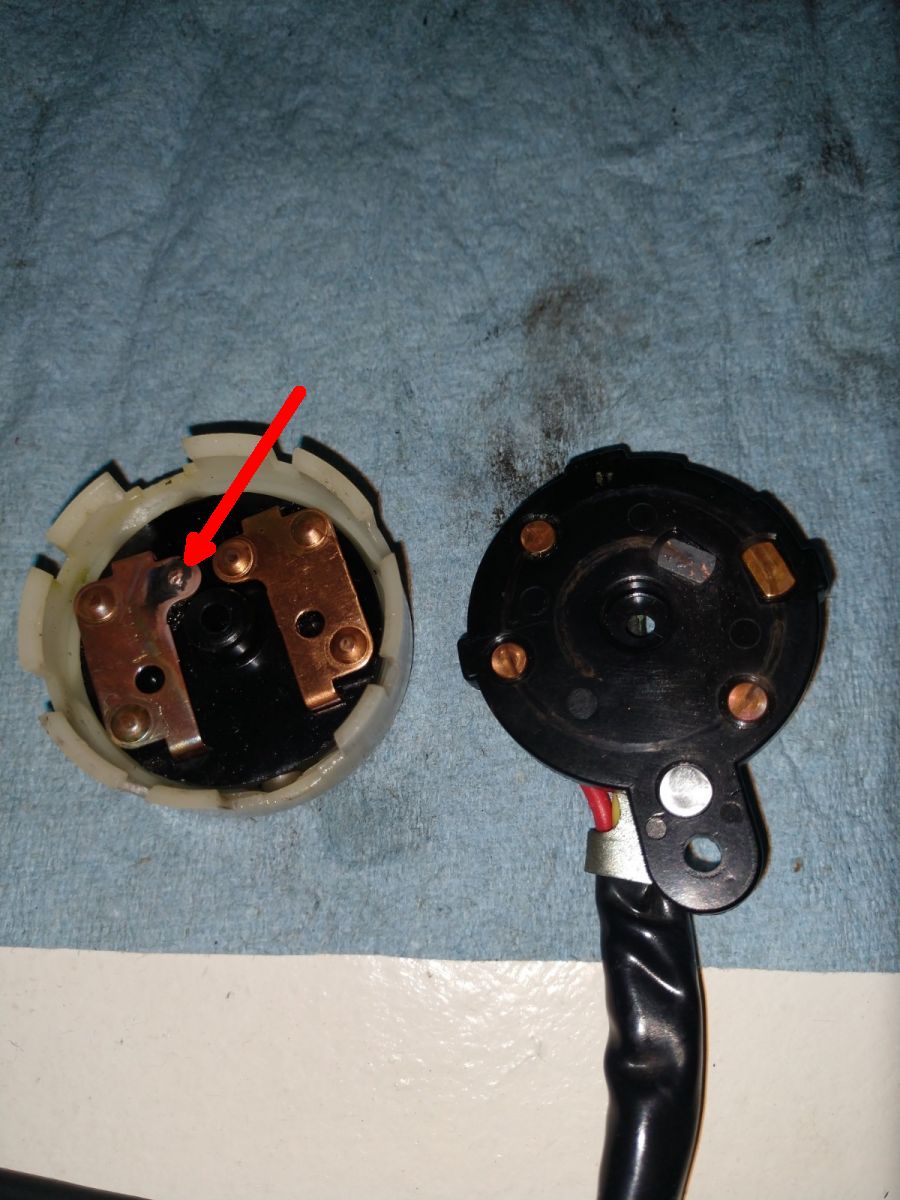

As you can see there is a lot of heat (current flow) that have melt and burn the solder point and White wire insulation ( battery +).
Any pics of the internal copper slider Switch block??



It Looks like you have a hidden short cut circuit or a device that need a lot of current for nothing. Any electric device upgrades in the past???
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

gpz550 ignition switch 13 Jan 2020 15:11 #817044

  • Caleator
  • Caleator's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 102
  • Thank you received: 4

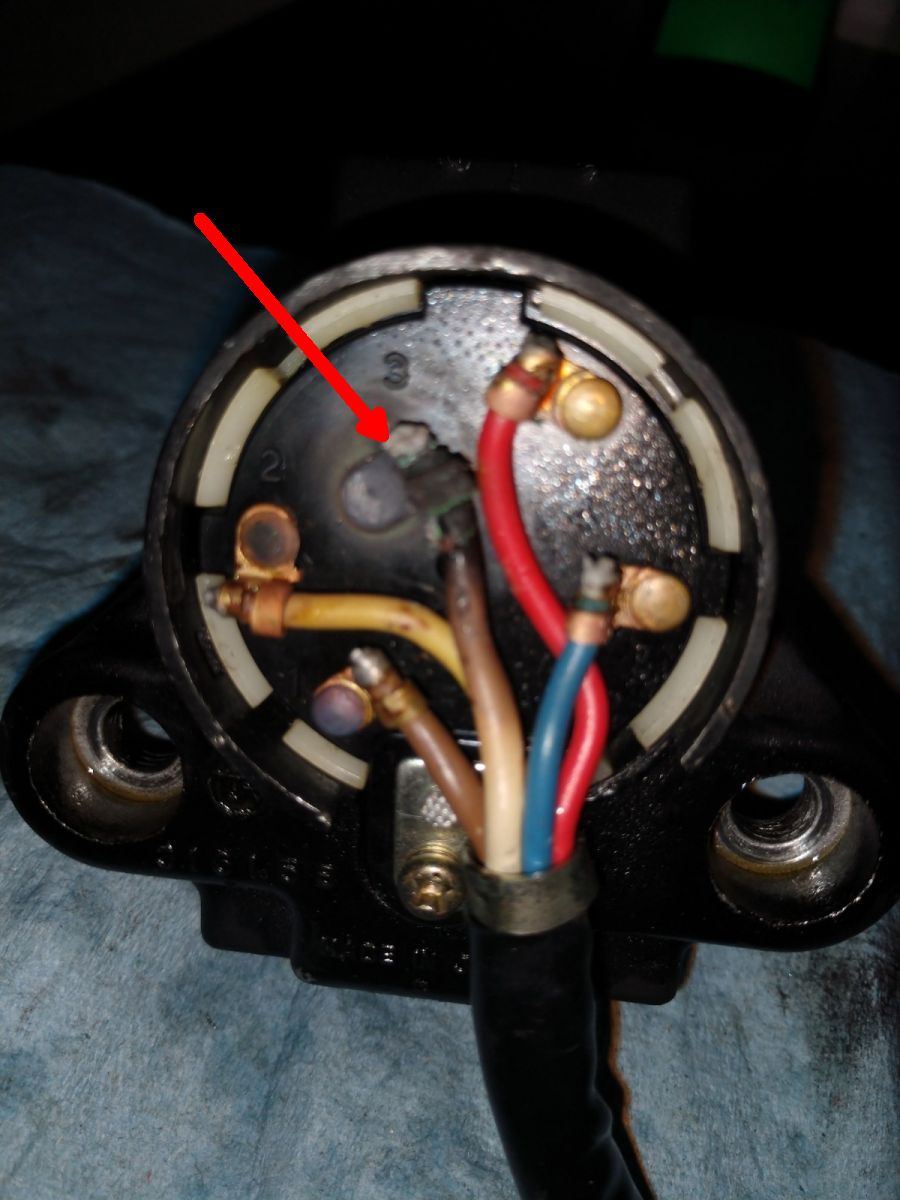

forgot to add it, the burnt one in the middle is the white no. 3


OEM parts diagrams don't show this as a separate part unfortunately

No electrical "upgrades" but a couple months ago I changed out the turn signals and the headlight, both of which use the same bulbs original parts, except smaller size.
i was running 13V bulbs in the rear for like a week last year, but I got proper ones soon.
1981 Kawasaki GPZ550 (KZ550D-1)
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Caleator.

gpz550 ignition switch 13 Jan 2020 15:51 #817046

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 2930
  • Thank you received: 1277
As i explain before, your ignition Switch block contcat is burned away and have to be replaced!!!!
Less contact and current load = more current, more heat/melting and so on and vice versa.... OHM`S LAW!!!
The weakest part of the main wiring give up first.

Attachments:

Please Log in or Create an account to join the conversation.

gpz550 ignition switch 13 Jan 2020 16:48 #817053

  • Caleator
  • Caleator's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 102
  • Thank you received: 4
I'm trying to locate a used ignition switch to steal the plate off of, but all the ones I can find are 6 pin connectors with an extra female plug on the side.

mine is only a 5 pin connector, both male and female.

would a 6 pin one still work? can't figure out what that extra wire is for on the others...
1981 Kawasaki GPZ550 (KZ550D-1)
Attachments:

Please Log in or Create an account to join the conversation.

gpz550 ignition switch 13 Jan 2020 17:17 #817054

  • Caleator
  • Caleator's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 102
  • Thank you received: 4
Okay so it appears that after 1981 they added a "hazard relay" wire to the switch. My question now is did the wire for the hazards just take up the empty space? or did it get re-arranged in the connector after 1981? very obscure information...

pre 1982 kz 550 ignition switches run $150 on bike bandit, yikes!

let me know if you see something floating around. might run with an after market one until I can find one.
1981 Kawasaki GPZ550 (KZ550D-1)

Please Log in or Create an account to join the conversation.

Last edit: by Caleator.

gpz550 ignition switch 13 Jan 2020 18:51 #817058

  • Caleator
  • Caleator's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 102
  • Thank you received: 4
Starting to think someone custom made this one or something, or it was specifically on the GPZ. cant not find any switch with the same connector.

anyone with an 81 gpz550 want to show me their switch connector? just for comparison
1981 Kawasaki GPZ550 (KZ550D-1)

Please Log in or Create an account to join the conversation.

gpz550 ignition switch 13 Jan 2020 19:20 #817060

  • Mikaw
  • Mikaw's Avatar
  • Away
  • Sustaining Member
  • Sustaining Member
  • Posts: 1603
  • Thank you received: 352
does this help... I don't know anything about your bike... trying to help...
www.regulatorrectifier.com/catalog/1980-...-ignition-key-switch
