Piston Hole Kz1000LTD 1982
- Wookie58
- Offline
- Moderator
Less
More
05 Jan 2023 00:24 #878543
by Wookie58
Replied by Wookie58 on topic Piston Hole Kz1000LTD 1982
Given what was done to the top yolk the PO was an "animal" who obviously abused this bike until it wouldn't run any longer, nice to see it being saved
The following user(s) said Thank You: cartal, hardrockminer
Please Log in or Create an account to join the conversation.
- cartal
- Topic Author
- Offline
- User
Less
More
- Posts: 189
- Thank you received: 83
05 Jan 2023 01:25 #878544
by cartal
Replied by cartal on topic Piston Hole Kz1000LTD 1982
Yes. A really abused bike in the past.
New carb boots, new carb internals, new air filter (new cap and funnel that were missing), and ngk right plugs are already waiting.
will take the head for new valves to a reputable shop and of course new valve seals. Head will be checked and skimmed if needed.
have already eyed some +0,50 pistons and will have the cylinders bored.will take The pan off for a check. I like the gas oil flush idea.
cheers
New carb boots, new carb internals, new air filter (new cap and funnel that were missing), and ngk right plugs are already waiting.
will take the head for new valves to a reputable shop and of course new valve seals. Head will be checked and skimmed if needed.
have already eyed some +0,50 pistons and will have the cylinders bored.will take The pan off for a check. I like the gas oil flush idea.
cheers
Please Log in or Create an account to join the conversation.
- cartal
- Topic Author
- Offline
- User
Less
More
- Posts: 189
- Thank you received: 83
05 Jan 2023 05:49 - 05 Jan 2023 05:52 #878545
by cartal
Replied by cartal on topic Piston Hole Kz1000LTD 1982
Hello,
I´ve found this piston set at IMD Pistons in the UK. They have a lot of excellent opinions. I assume this is the kit for my "J" engine.
imdpistons.com/products/kawasaki-kz1000-csr-998cc-piston-kit

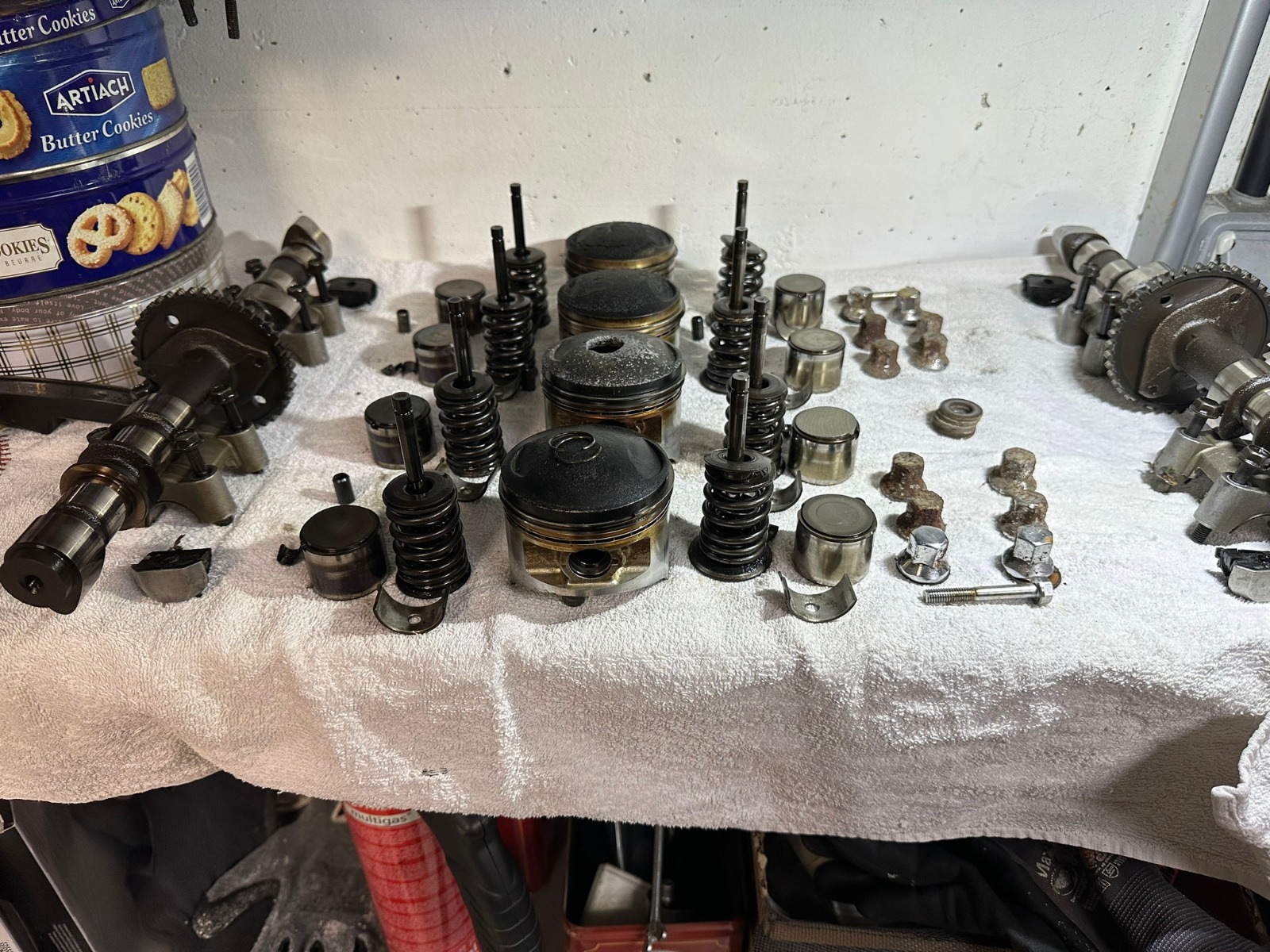

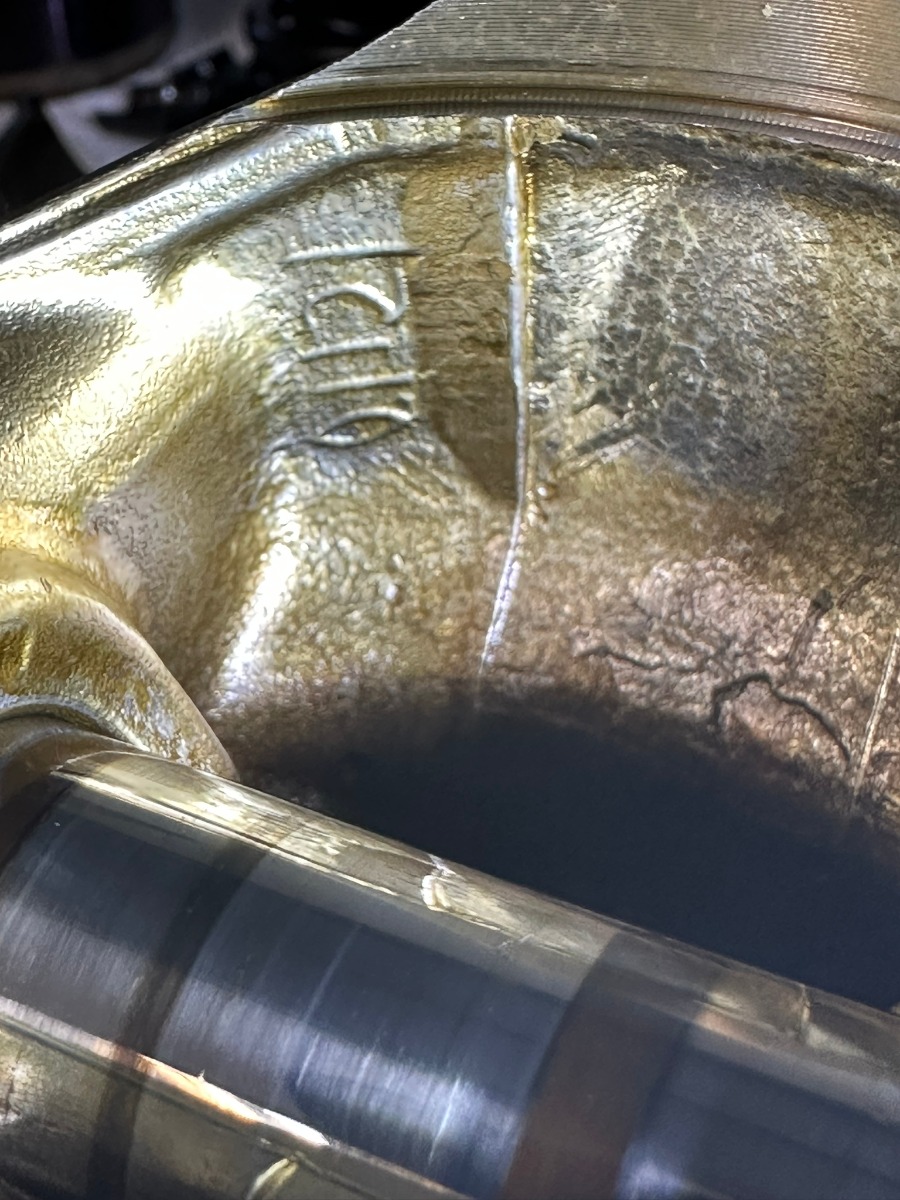

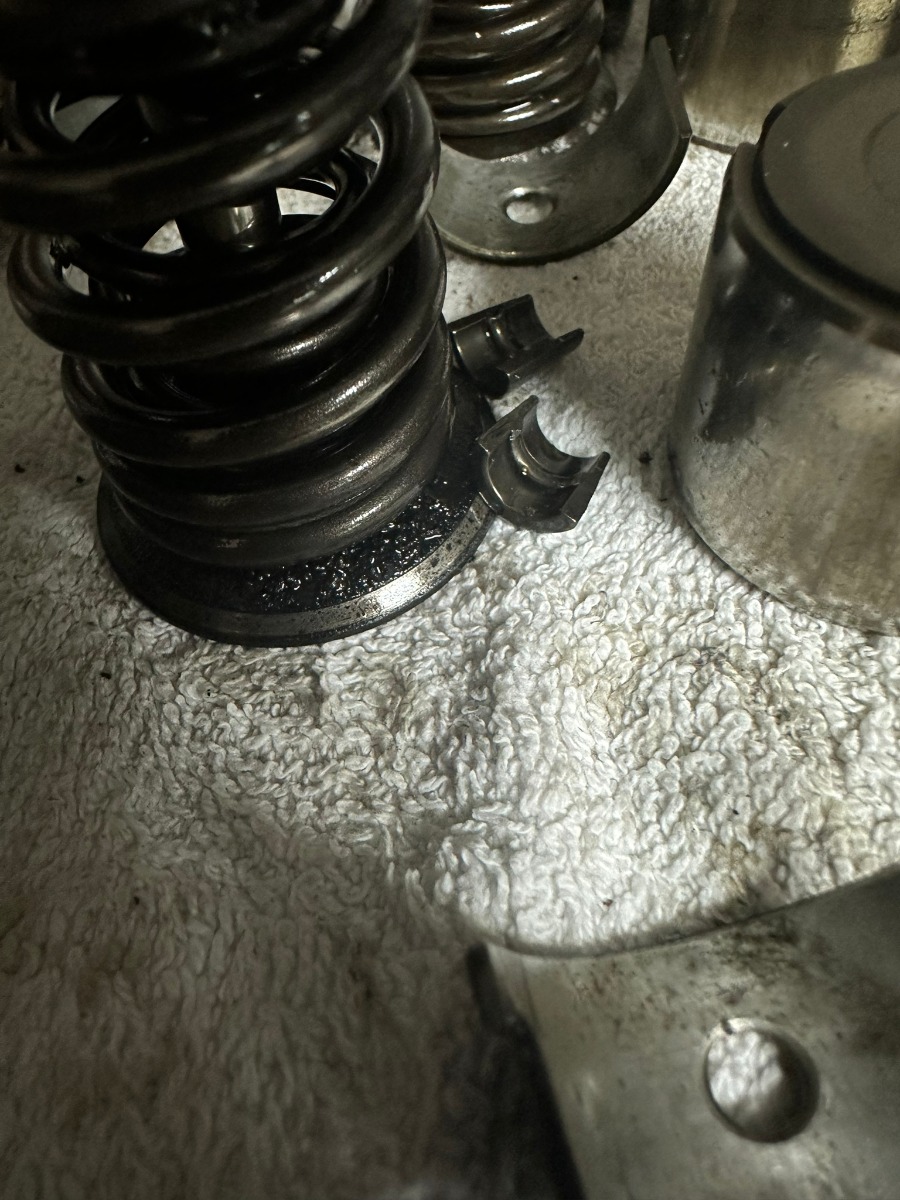

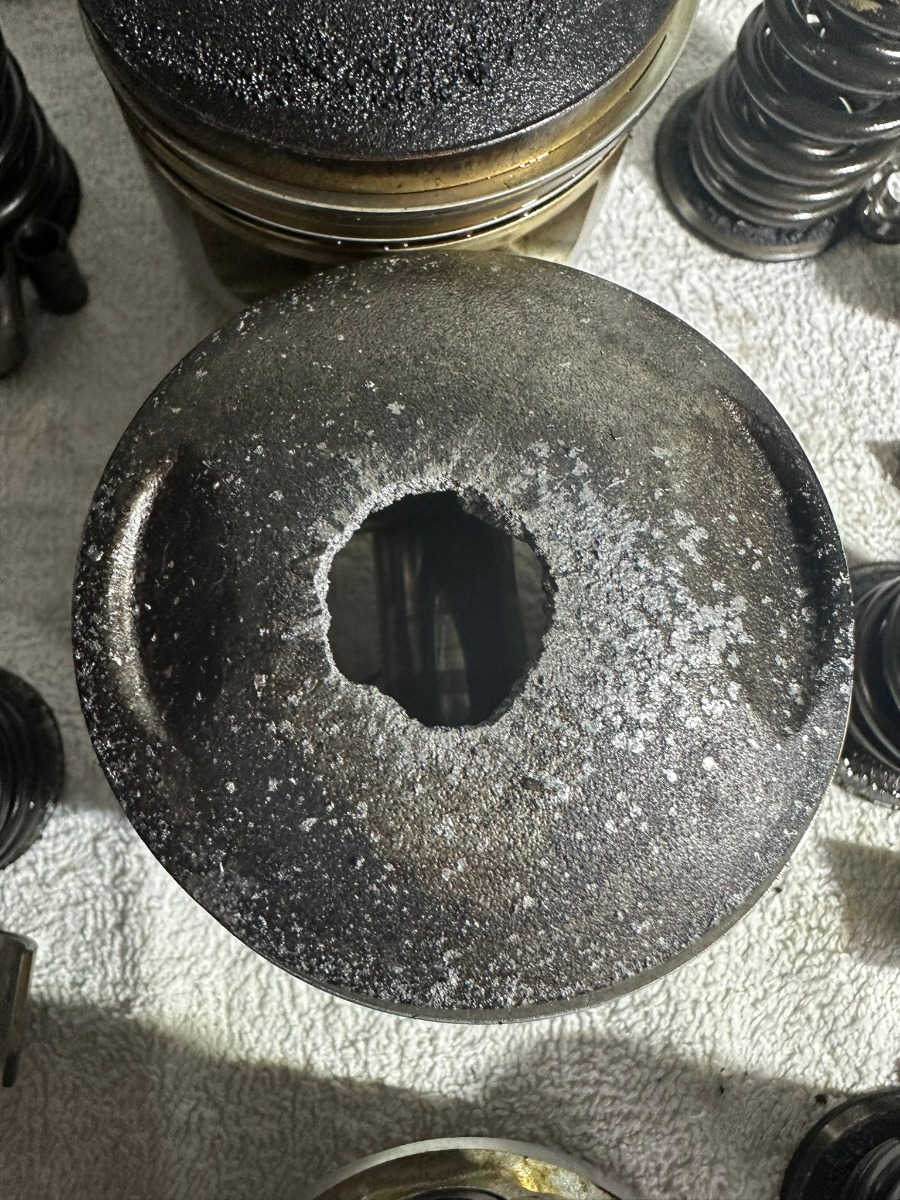

See some pics. Total dissasembly (pistons came out fairly easily). Some details on valve seats that will be done by a reputable shop. New valves and seals will also come in. There is also a pic from the underside of the piston with a hole. There is a little material projection to the underside, but the crank area right below was absolutely spotless.
I have no clue (although I believe so) if my pistons are standard. Can someone guide me here by taking a look at the markings inside the pics?
If they are standard, I should be OK with these pistons from IMD. They are a +0,50 oversize. I will of course get the cylinder block bored.
Thanks a ton.
Carlos
I´ve found this piston set at IMD Pistons in the UK. They have a lot of excellent opinions. I assume this is the kit for my "J" engine.
imdpistons.com/products/kawasaki-kz1000-csr-998cc-piston-kit

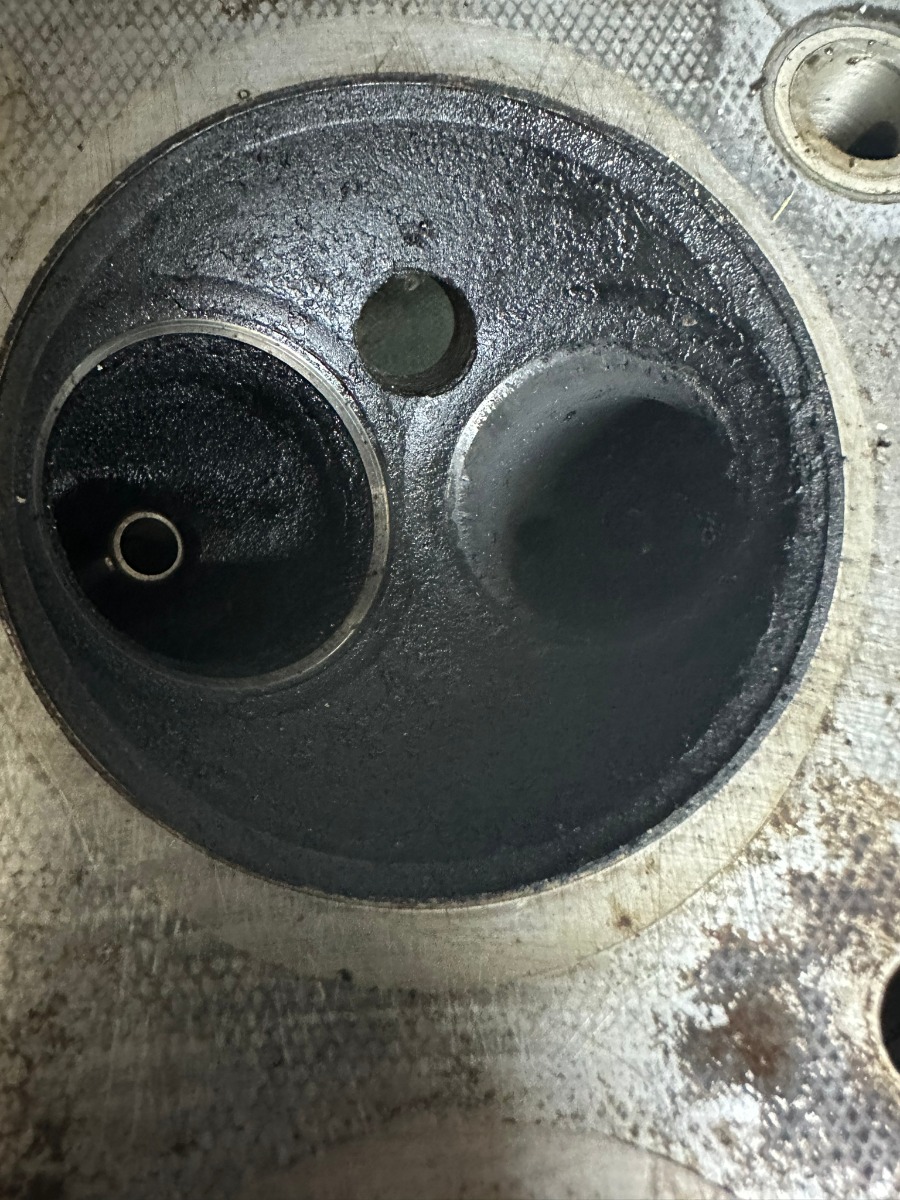

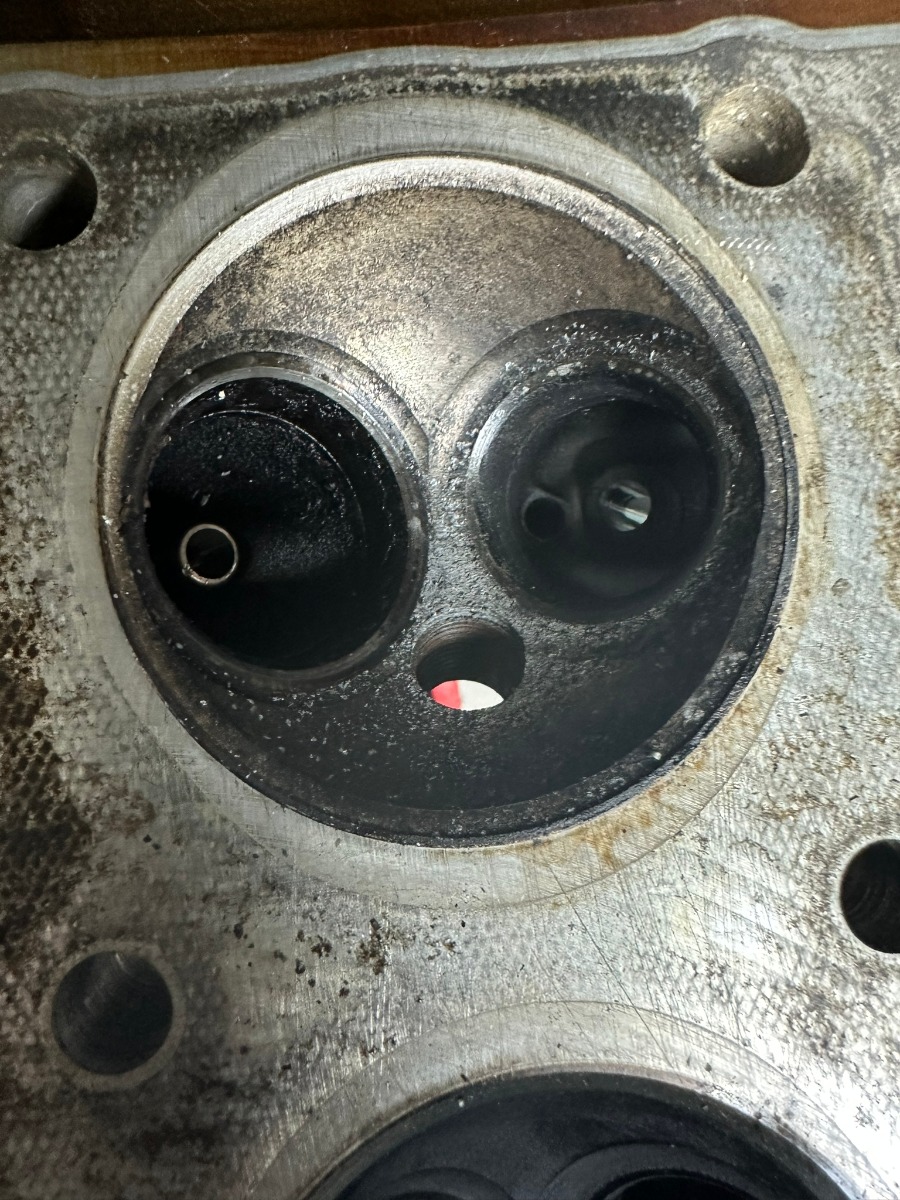

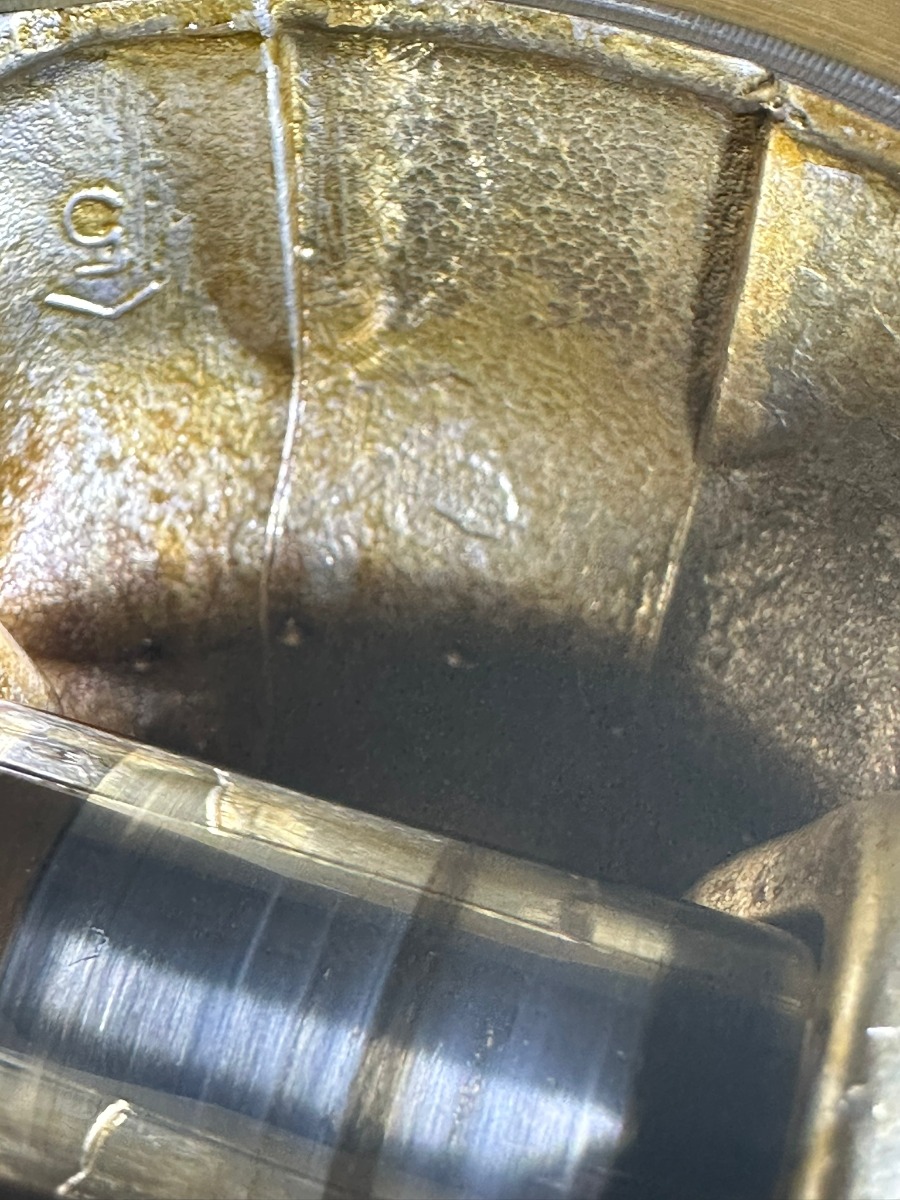

See some pics. Total dissasembly (pistons came out fairly easily). Some details on valve seats that will be done by a reputable shop. New valves and seals will also come in. There is also a pic from the underside of the piston with a hole. There is a little material projection to the underside, but the crank area right below was absolutely spotless.

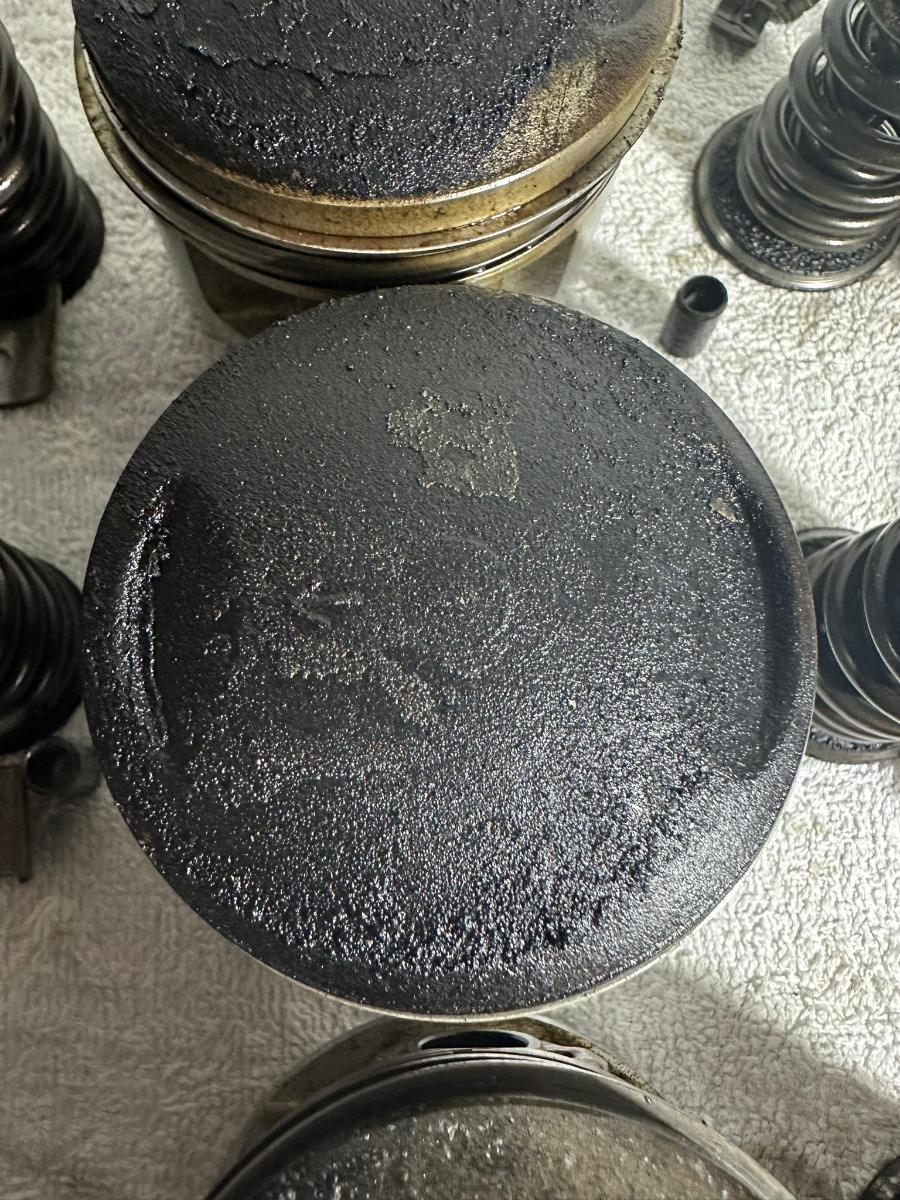

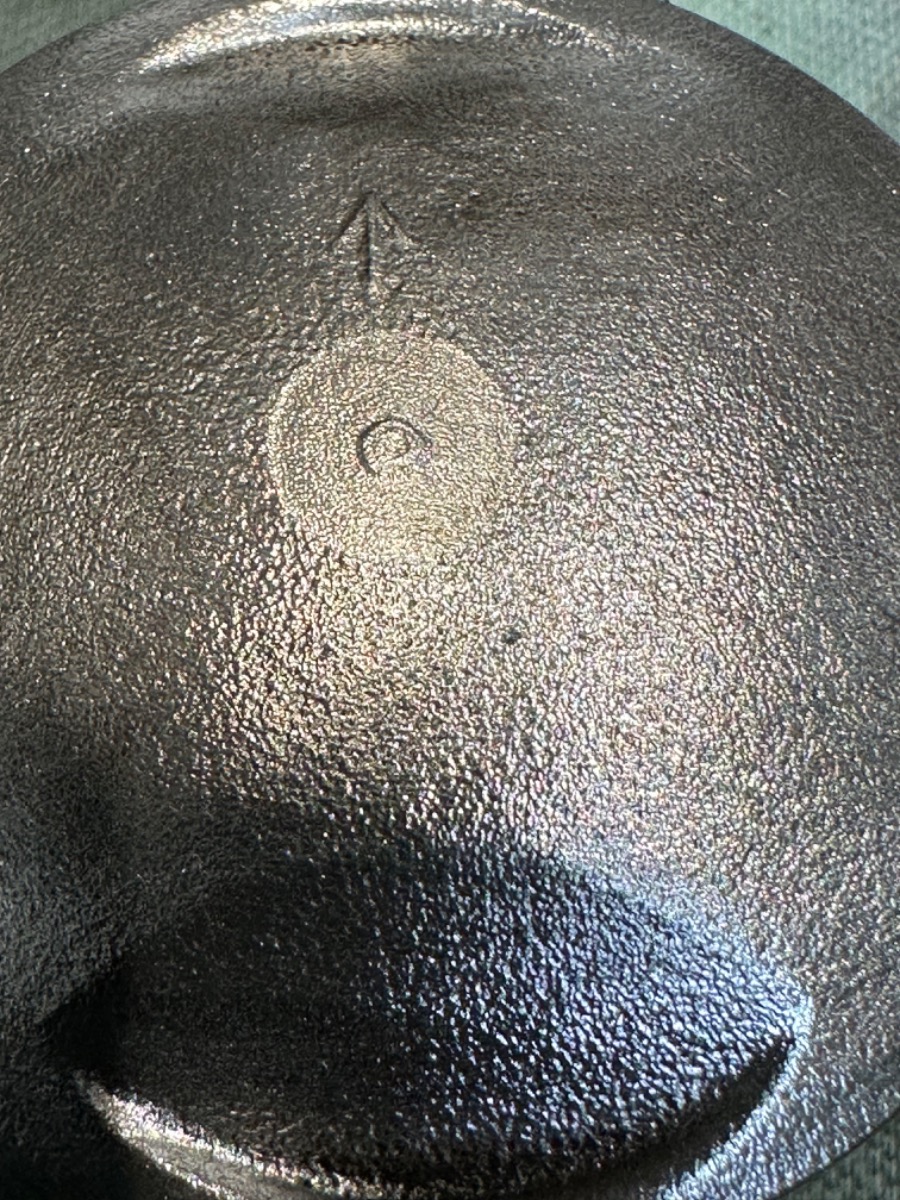

I have no clue (although I believe so) if my pistons are standard. Can someone guide me here by taking a look at the markings inside the pics?
If they are standard, I should be OK with these pistons from IMD. They are a +0,50 oversize. I will of course get the cylinder block bored.
Thanks a ton.
Carlos
Last edit: 05 Jan 2023 05:52 by cartal. Reason: forgot a link!
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4100
- Thank you received: 2338
05 Jan 2023 05:55 - 05 Jan 2023 06:01 #878546
by Wookie58
Replied by Wookie58 on topic Piston Hole Kz1000LTD 1982

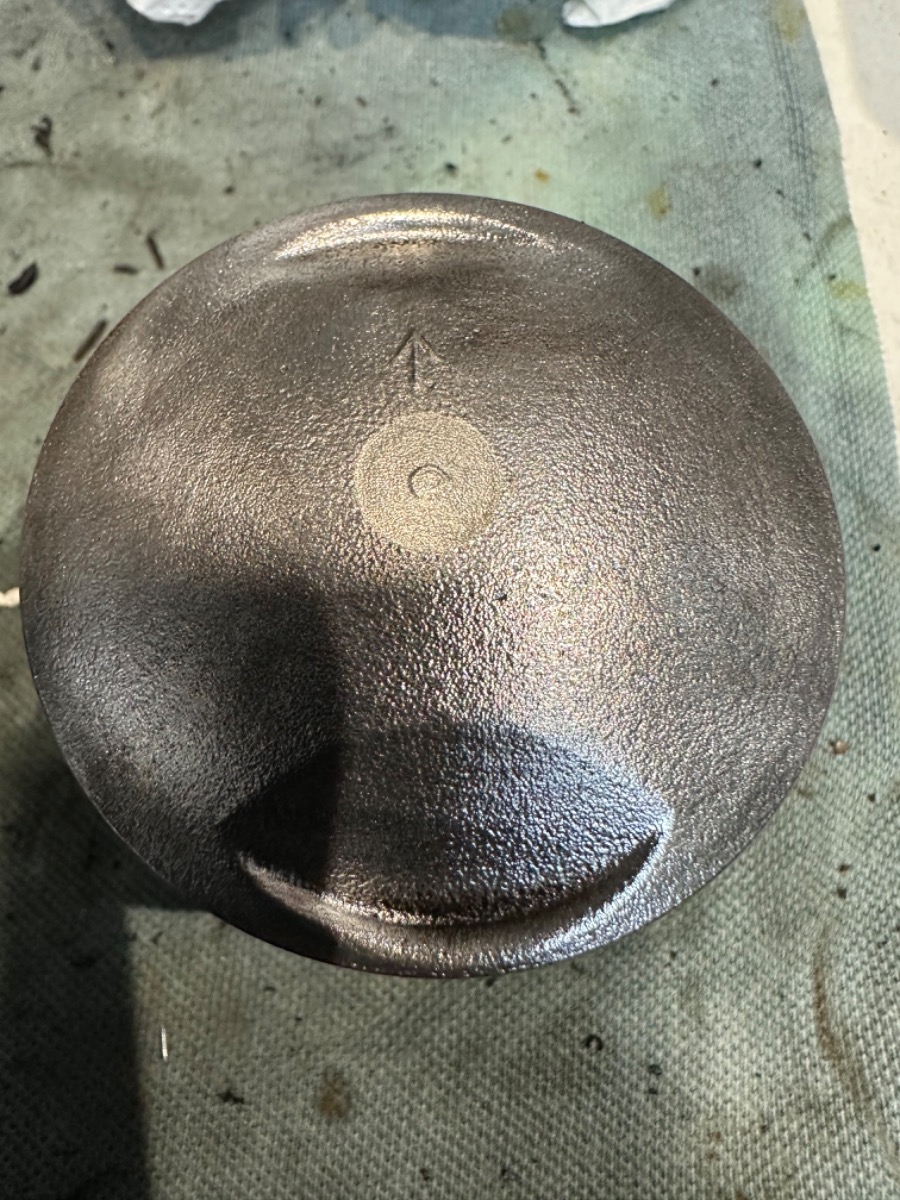

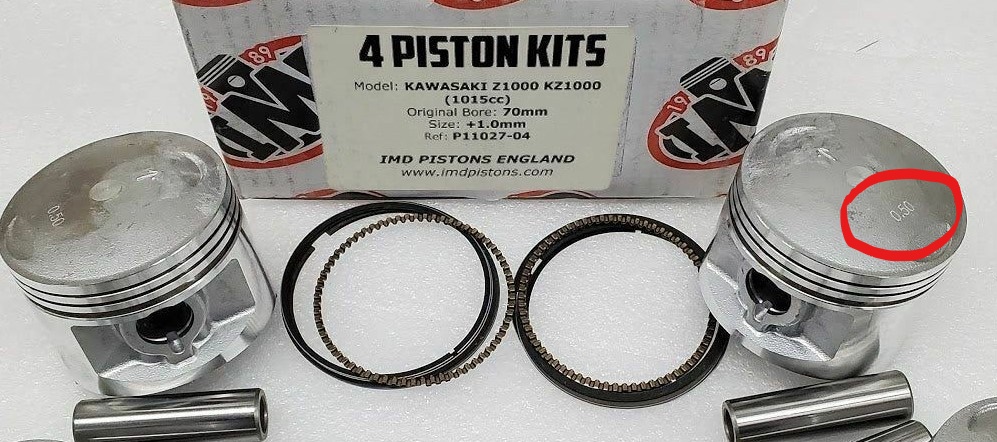

You would be best to carefully clean one of the piston crowns as this is where any oversize is marked (ref the below) and to be "belt and braces" you can measure them with a verier against the spec in the manual (I believe stock is 70mm in a "J" motor)
Last edit: 05 Jan 2023 06:01 by Wookie58.
The following user(s) said Thank You: cartal
Please Log in or Create an account to join the conversation.
- Warren3200gt
- Offline
- User
Less
More
- Posts: 1508
- Thank you received: 715
05 Jan 2023 06:28 #878547
by Warren3200gt
Replied by Warren3200gt on topic Piston Hole Kz1000LTD 1982
The following user(s) said Thank You: cartal, Wookie58
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4199
- Thank you received: 2068
05 Jan 2023 06:37 - 05 Jan 2023 06:44 #878548
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Piston Hole Kz1000LTD 1982

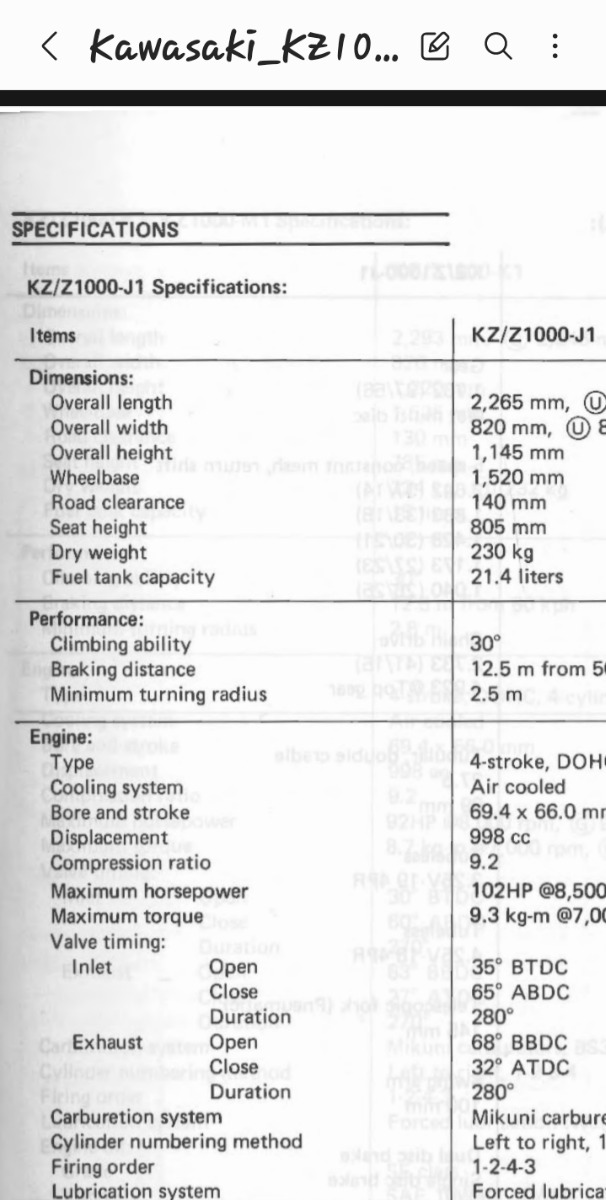

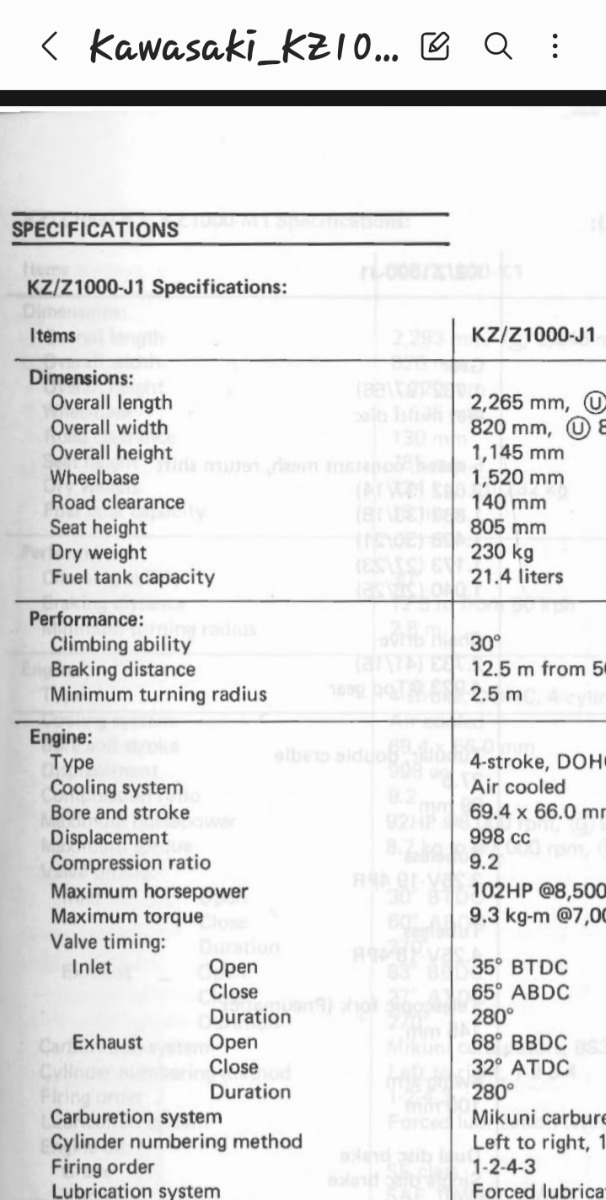

The KAWASAKI Z1000J standart bore diameter is 69,40 mm (998 ccm), Early KZ1000 is 70,00 mm (1015 ccm)
Over bore pistons are available in + 0,35 / 0,50 / 0,85 / 1,00 mm
www.scheuerlein-motorentechnik.de/motorr...1000-modelle/z1000j/
Edit: Warren3200gt was faster
Over bore pistons are available in + 0,35 / 0,50 / 0,85 / 1,00 mm
www.scheuerlein-motorentechnik.de/motorr...1000-modelle/z1000j/
Edit: Warren3200gt was faster
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 05 Jan 2023 06:44 by Scirocco.
The following user(s) said Thank You: cartal, Warren3200gt, Wookie58
Please Log in or Create an account to join the conversation.
- cartal
- Topic Author
- Offline
- User
Less
More
- Posts: 189
- Thank you received: 83
05 Jan 2023 06:55 #878549
by cartal
Replied by cartal on topic Piston Hole Kz1000LTD 1982
Will check with this info. You guys rock!
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4100
- Thank you received: 2338
05 Jan 2023 07:08 #878550
by Wookie58
Replied by Wookie58 on topic Piston Hole Kz1000LTD 1982
Just one big happy family CarlosWill check with this info. You guys rock!
The following user(s) said Thank You: cartal
Please Log in or Create an account to join the conversation.
- ronnieV
- Offline
- Sustaining Member
Less
More
- Posts: 409
- Thank you received: 339
05 Jan 2023 08:47 #878552
by ronnieV
77 ltd1000 80 ltd1000 78kz1000a ,02 red zrx 12r, 94 cb1000 big one ,03 valkyrie (my couch) 65 olds 442
Replied by ronnieV on topic Piston Hole Kz1000LTD 1982
Carlos,I hope you choose to donate on a regular basis,as you can see these guys know there shit.Wealth of information is here for the asking.
77 ltd1000 80 ltd1000 78kz1000a ,02 red zrx 12r, 94 cb1000 big one ,03 valkyrie (my couch) 65 olds 442
The following user(s) said Thank You: sf4t7, cartal
Please Log in or Create an account to join the conversation.
- cartal
- Topic Author
- Offline
- User
Less
More
- Posts: 189
- Thank you received: 83
05 Jan 2023 09:27 #878553
by cartal
Replied by cartal on topic Piston Hole Kz1000LTD 1982
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4100
- Thank you received: 2338
05 Jan 2023 09:31 #878554
by Wookie58
Replied by Wookie58 on topic Piston Hole Kz1000LTD 1982
Please Log in or Create an account to join the conversation.
- zed1015
- Away
- User
Less
More
- Posts: 3023
- Thank you received: 1554
05 Jan 2023 09:38 #878556
by zed1015
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-
Replied by zed1015 on topic Piston Hole Kz1000LTD 1982
Pistons are stock.

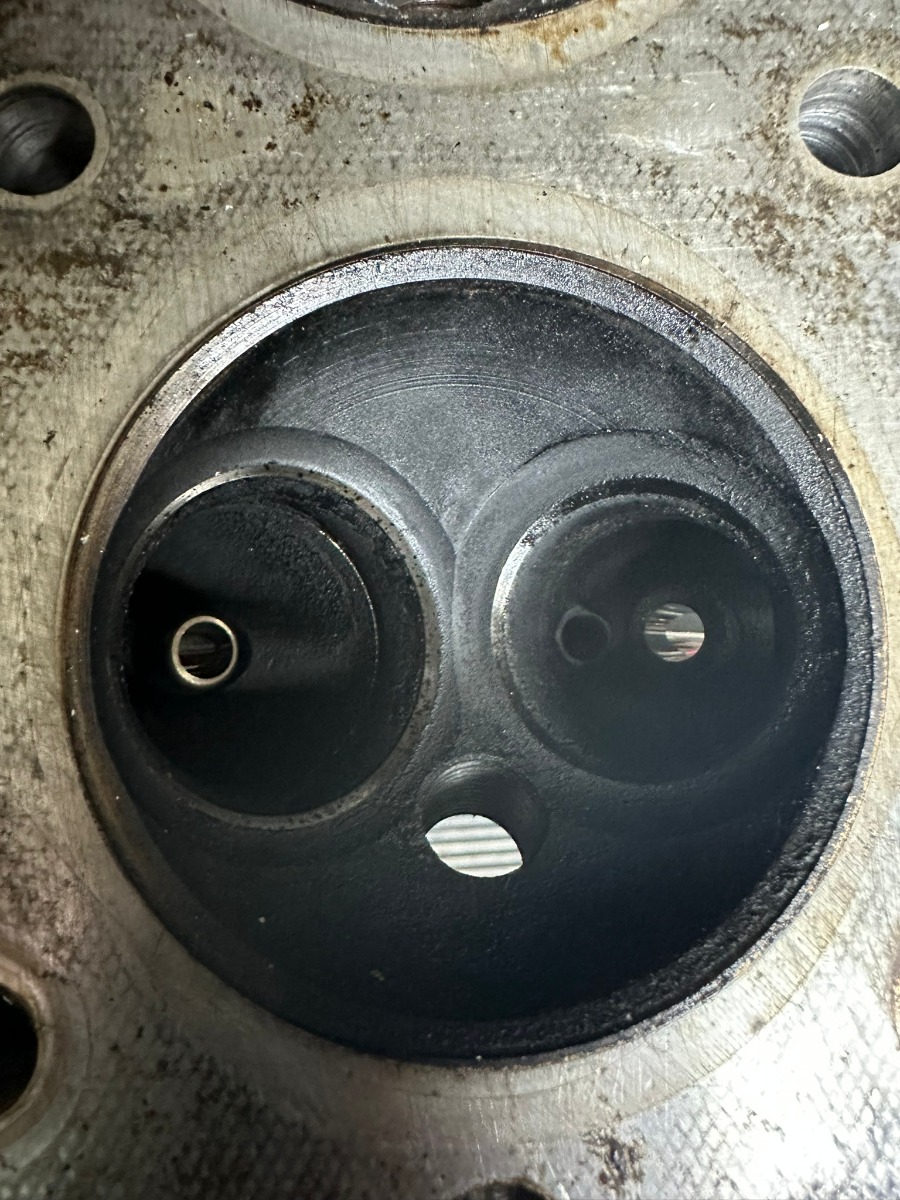

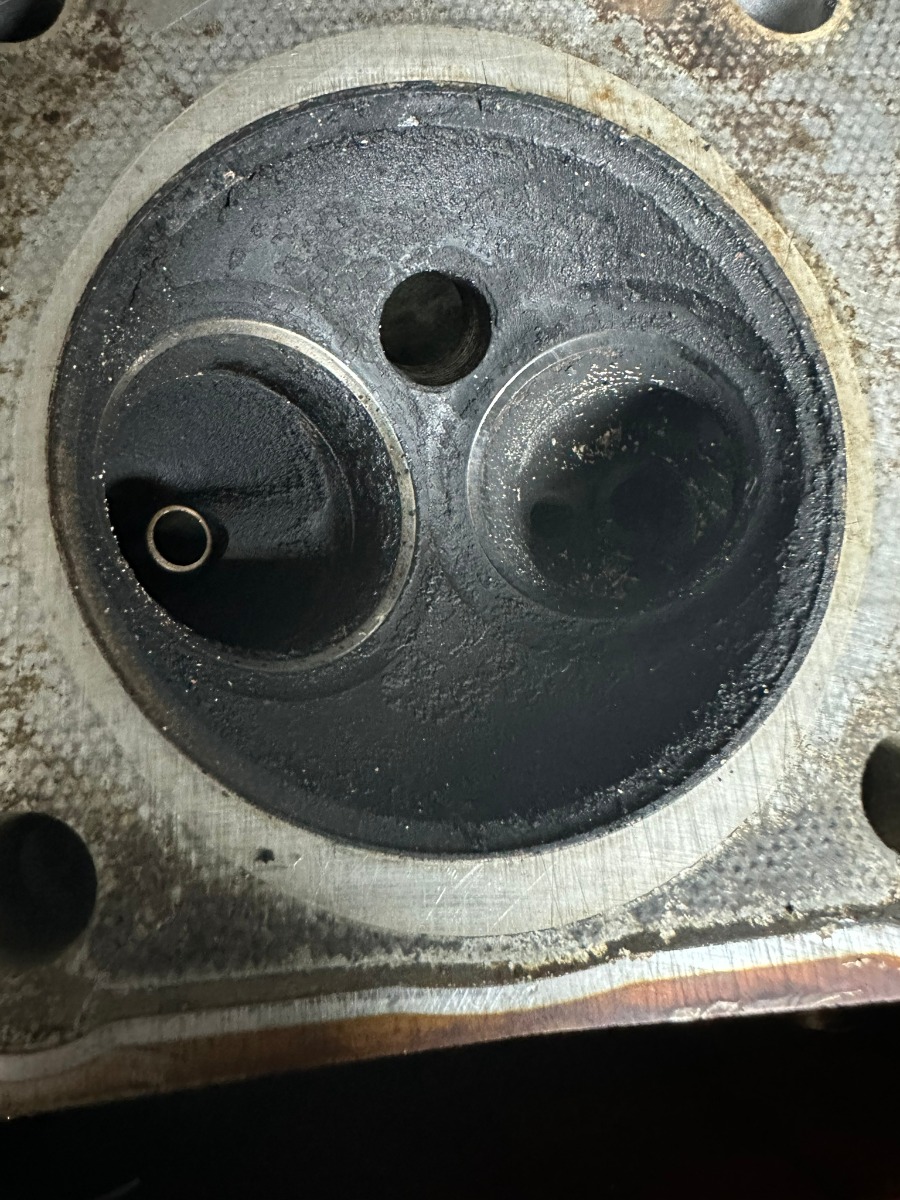

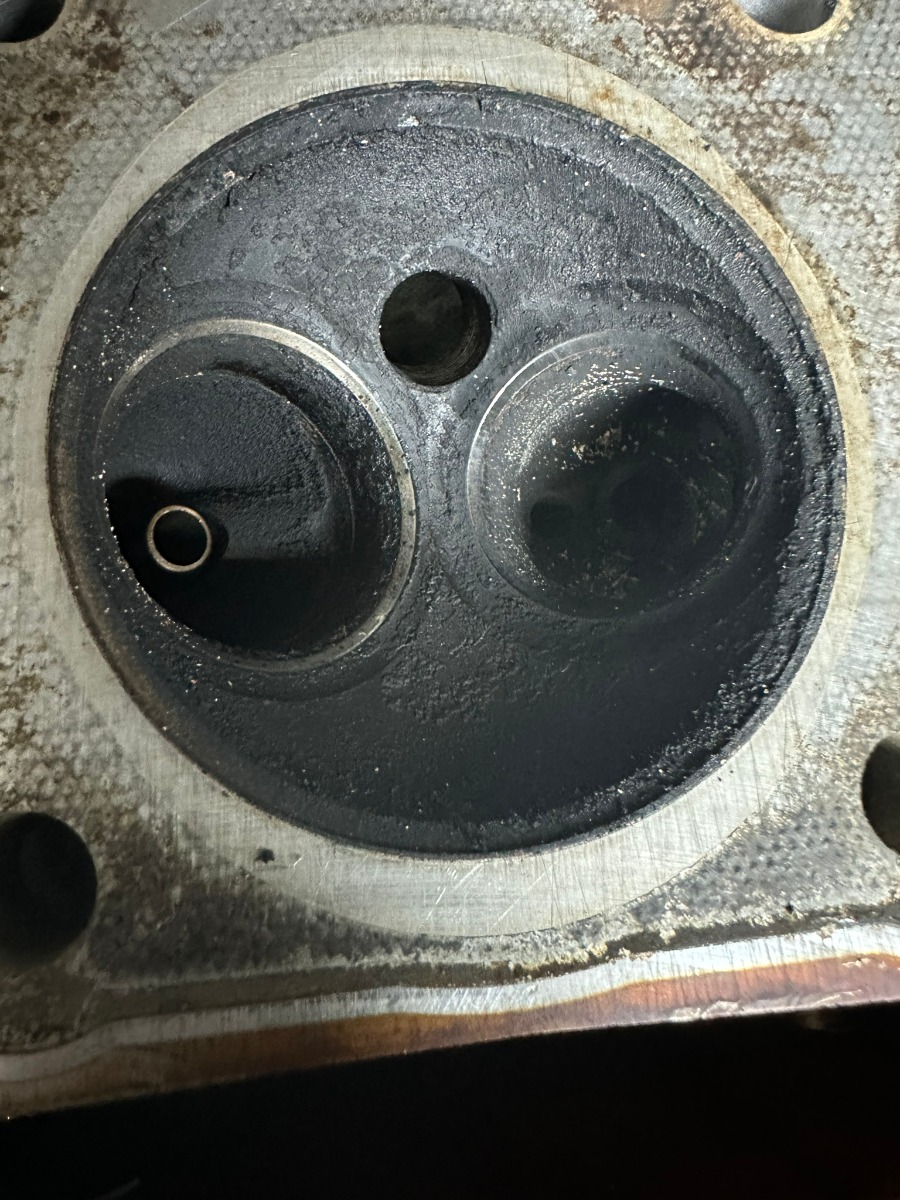

Exhaust seats look like they've been run with insufficient valve clearance.
If you take the head to a shop make sure they know what they are doing with bucket and shim motors when they cut the seats.
Exhaust seats look like they've been run with insufficient valve clearance.
If you take the head to a shop make sure they know what they are doing with bucket and shim motors when they cut the seats.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-
