Spark Plug Hole Thread Repair

  • daveo
  • Topic Author
  • Offline
  • Premium Member
More
30 May 2022 12:32 - 30 May 2022 12:41 #867911 by daveo
Replied by daveo on topic Spark Plug Hole Thread Repair

Time Sert inserts are copper plated for the heat transfer.

Found a lightly used Time-Sert M14 x 1.25 tool kit on ebay...

Just need four 44111-m14x1-25-x-660-16-8mm-washer-seat-spark-plug-inserts

Thanks y'all for the great input and suggestions!




1982 KZ1100-A2

Last edit: 30 May 2022 12:41 by daveo.

Please Log in or Create an account to join the conversation.

More
30 May 2022 13:05 #867912 by Mikaw
Replied by Mikaw on topic Spark Plug Hole Thread Repair

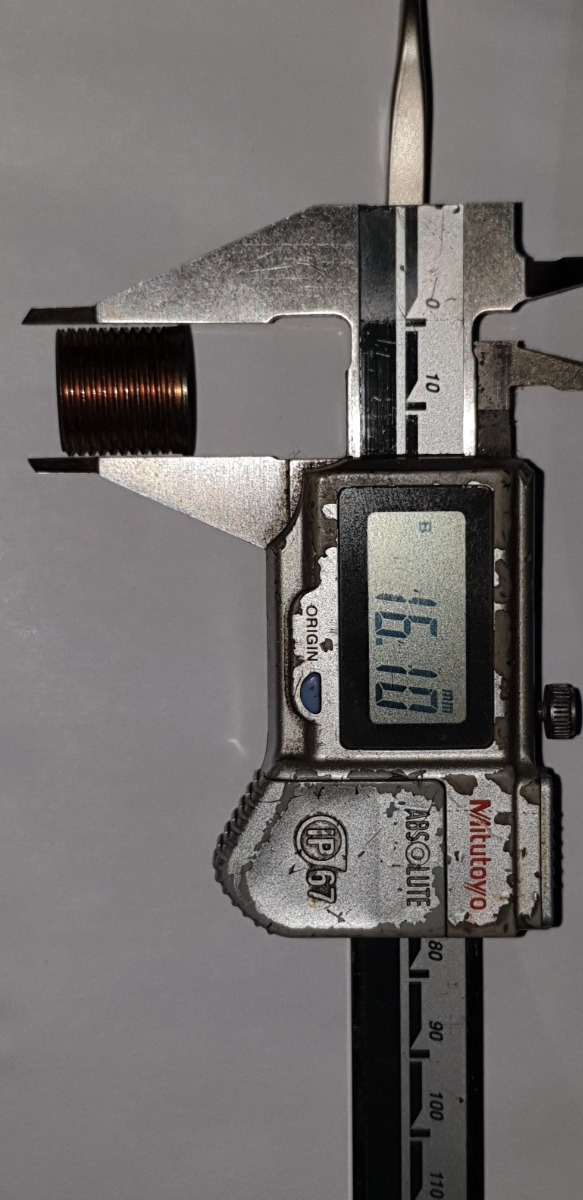

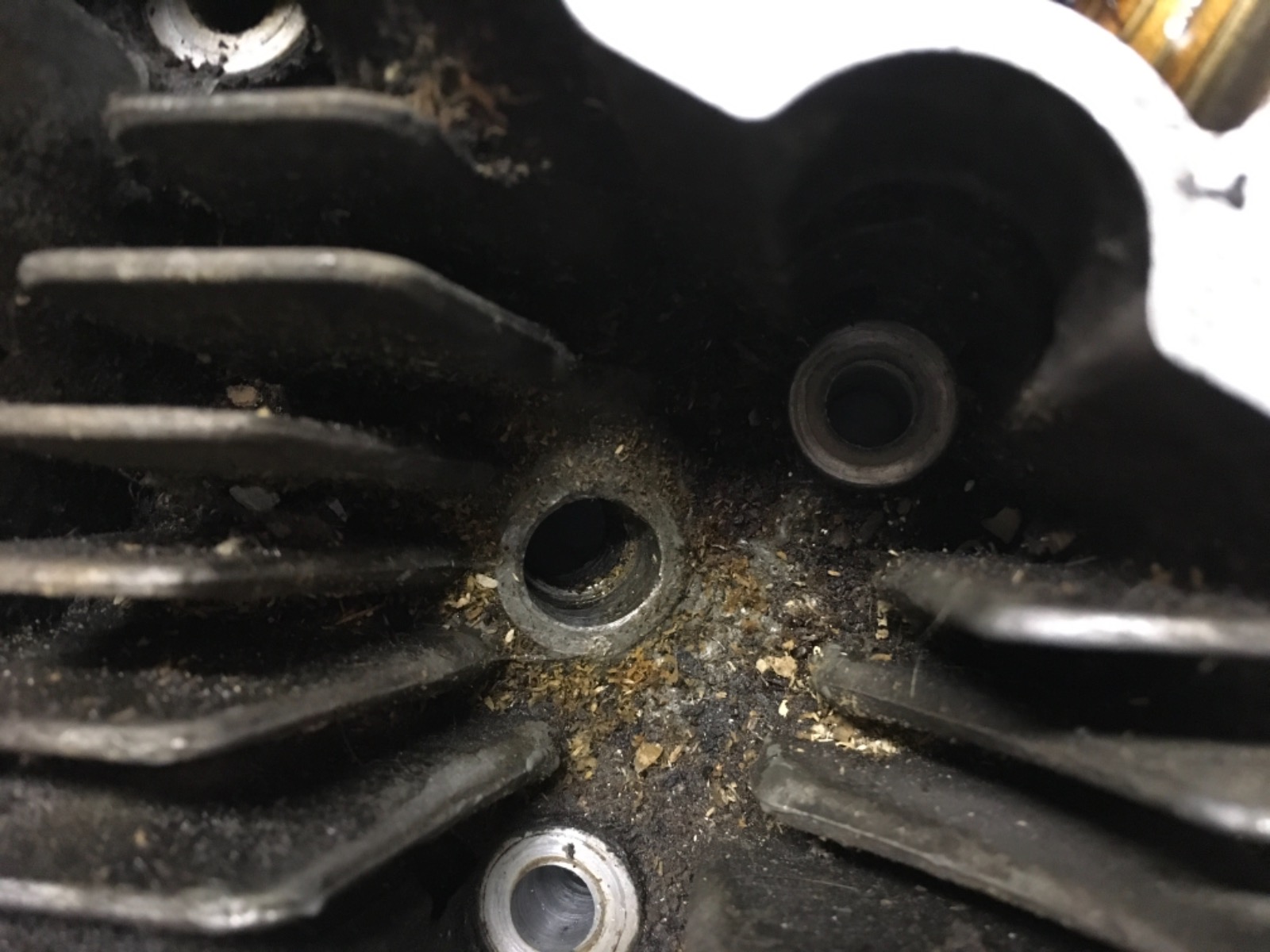

What’s the OD of the time-sent. I have a head I’m thinking of bringing back to life. One plug hole look like it was drilled our partially.



1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

  • daveo
  • Topic Author
  • Offline
  • Premium Member
More
30 May 2022 13:12 - 30 May 2022 14:15 #867913 by daveo
Replied by daveo on topic Spark Plug Hole Thread Repair

1982 KZ1100-A2

Last edit: 30 May 2022 14:15 by daveo.

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Offline
  • Premium Member
  • Never change a running system
More
30 May 2022 14:35 - 30 May 2022 14:57 #867916 by Scirocco
Replied by Scirocco on topic Spark Plug Hole Thread Repair
Here it comes the info.

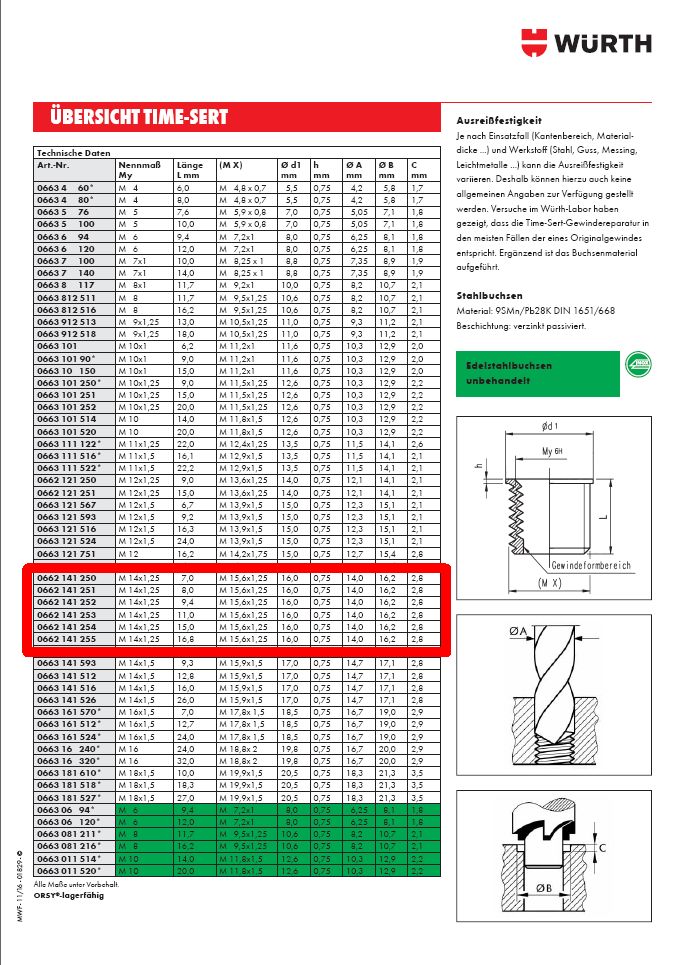

media.wuerth.com/stmedia/wuerth/document...s/LANG_de/122295.pdf







This browser does not support PDFs. Please download the PDF to view it: Download PDF

Last edit: 30 May 2022 14:57 by Scirocco.
The following user(s) said Thank You: daveo, Mikaw

Please Log in or Create an account to join the conversation.

More
30 May 2022 17:02 #867921 by Mikaw
Replied by Mikaw on topic Spark Plug Hole Thread Repair
Scirocco, thank you.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

  • daveo
  • Topic Author
  • Offline
  • Premium Member
More
03 Jun 2022 19:56 - 03 Jun 2022 21:14 #868174 by daveo
Replied by daveo on topic Spark Plug Hole Thread Repair
Time-Sert



The way to go!


1982 KZ1100-A2

Last edit: 03 Jun 2022 21:14 by daveo.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

  • SWest
  • Offline
  • Sustaining Member
  • 10 22 2014
More
03 Jun 2022 20:58 #868178 by SWest
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

  • daveo
  • Topic Author
  • Offline
  • Premium Member
More
04 Jun 2022 05:30 - 04 Jun 2022 08:40 #868189 by daveo
Replied by daveo on topic Spark Plug Hole Thread Repair

Looks good.
Steve

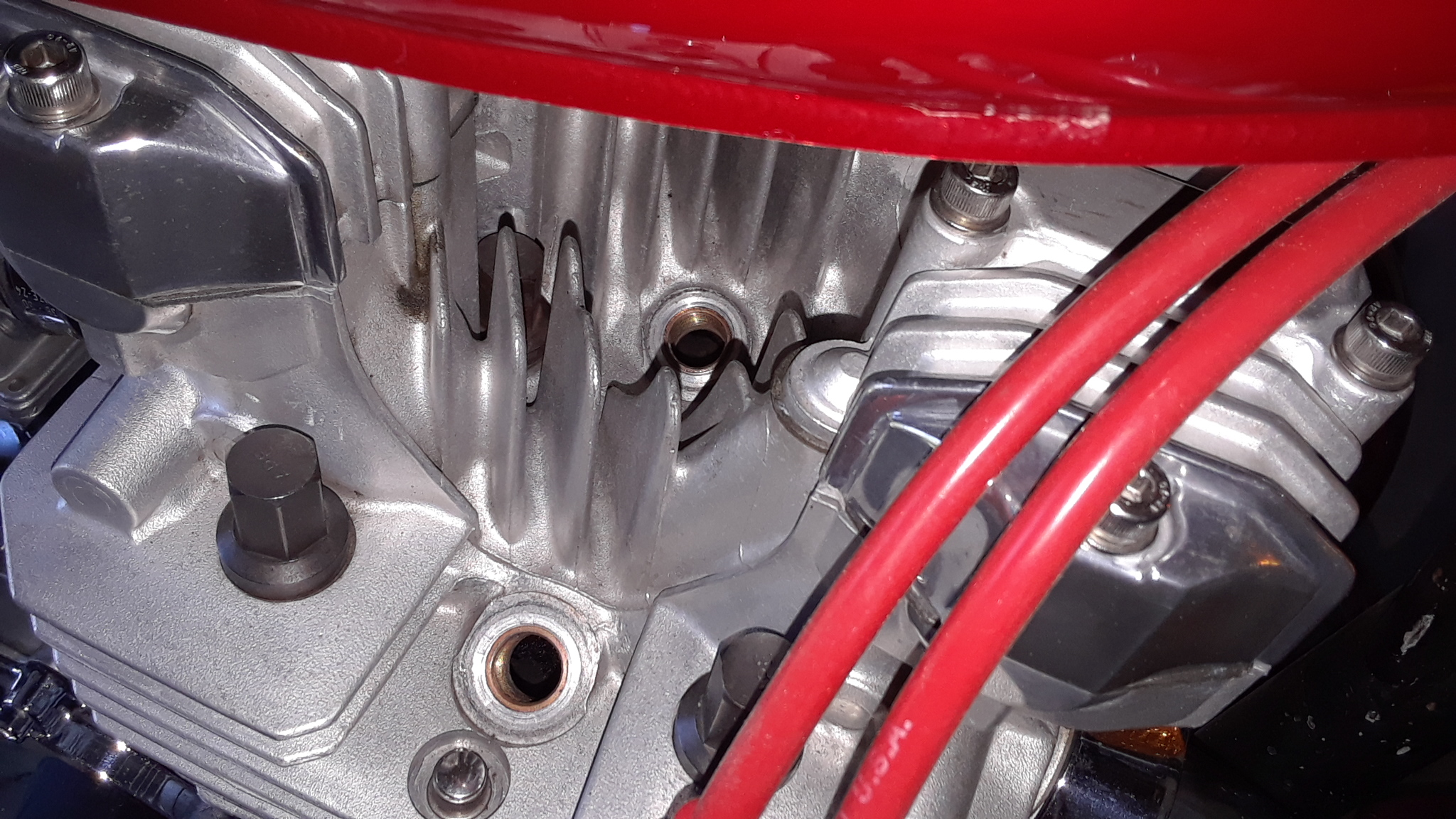

The result turned out better than I expected.  And it was an easy project to do, thanks to the all-round simplicity of Time-Sert.




Side note;  After the first ride I checked compression.  Readings noted were 165 160+ 165 165

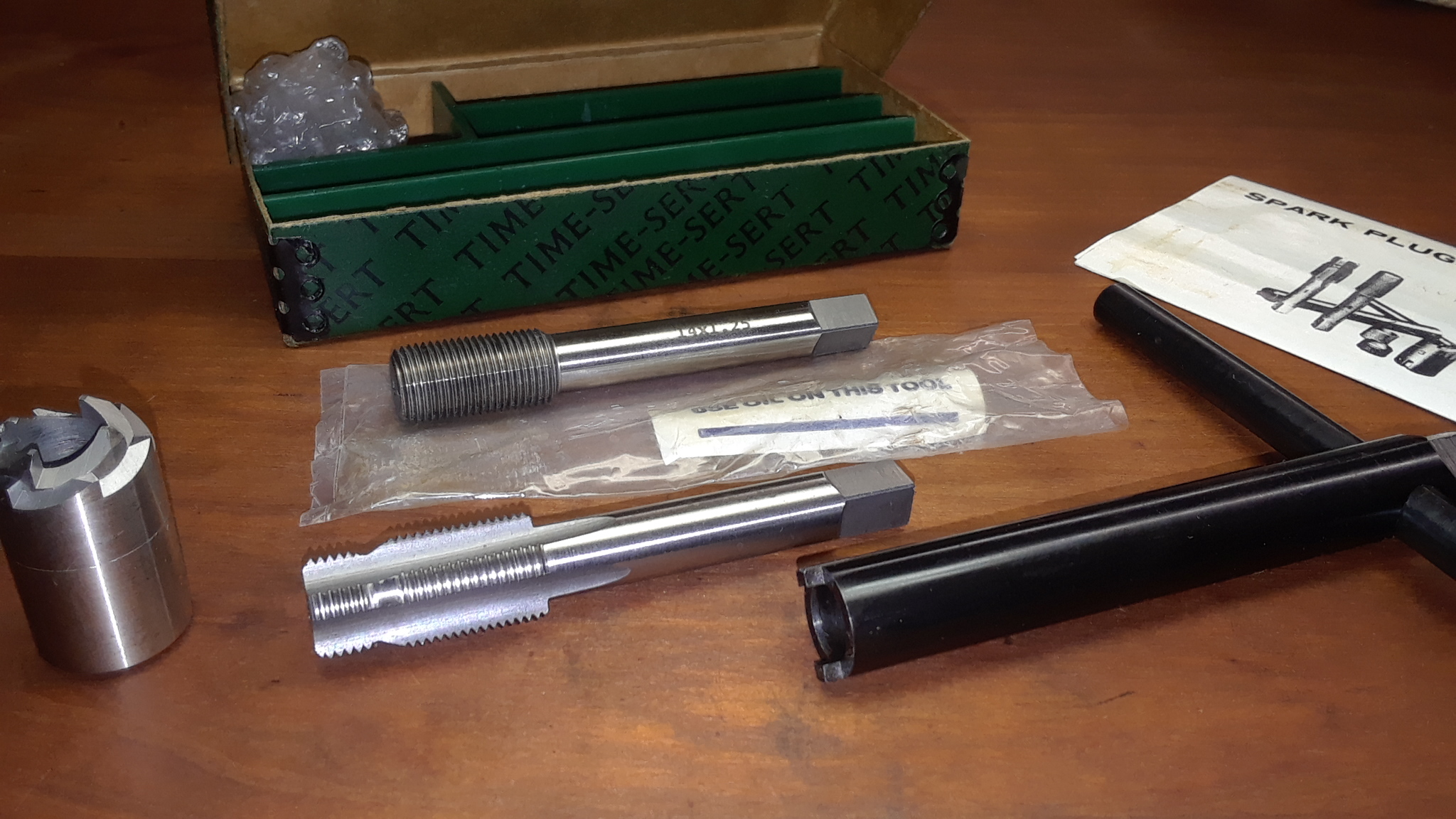

The kit:
