Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
- wdhewson
- Topic Author
- Offline
- User
Less
More
17 Sep 2023 05:24 #889462
by wdhewson
Nothing quite like the rip of a Big KZ
Replied by wdhewson on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
Thanks Kelly, I commit this to memory, which is to say, I'd better write it down!!
"Raymond is Apex Brakes.
Paul is my friend that I build bikes with. He does all of the ordering of parts."
"Raymond is Apex Brakes.
Paul is my friend that I build bikes with. He does all of the ordering of parts."
Nothing quite like the rip of a Big KZ
The following user(s) said Thank You: Kelly E
Please Log in or Create an account to join the conversation.
- wdhewson
- Topic Author
- Offline
- User
Less
More
- Posts: 158
- Thank you received: 52
18 Sep 2023 18:22 #889522
by wdhewson
Nothing quite like the rip of a Big KZ
Replied by wdhewson on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
More modest progress on the old girl today.

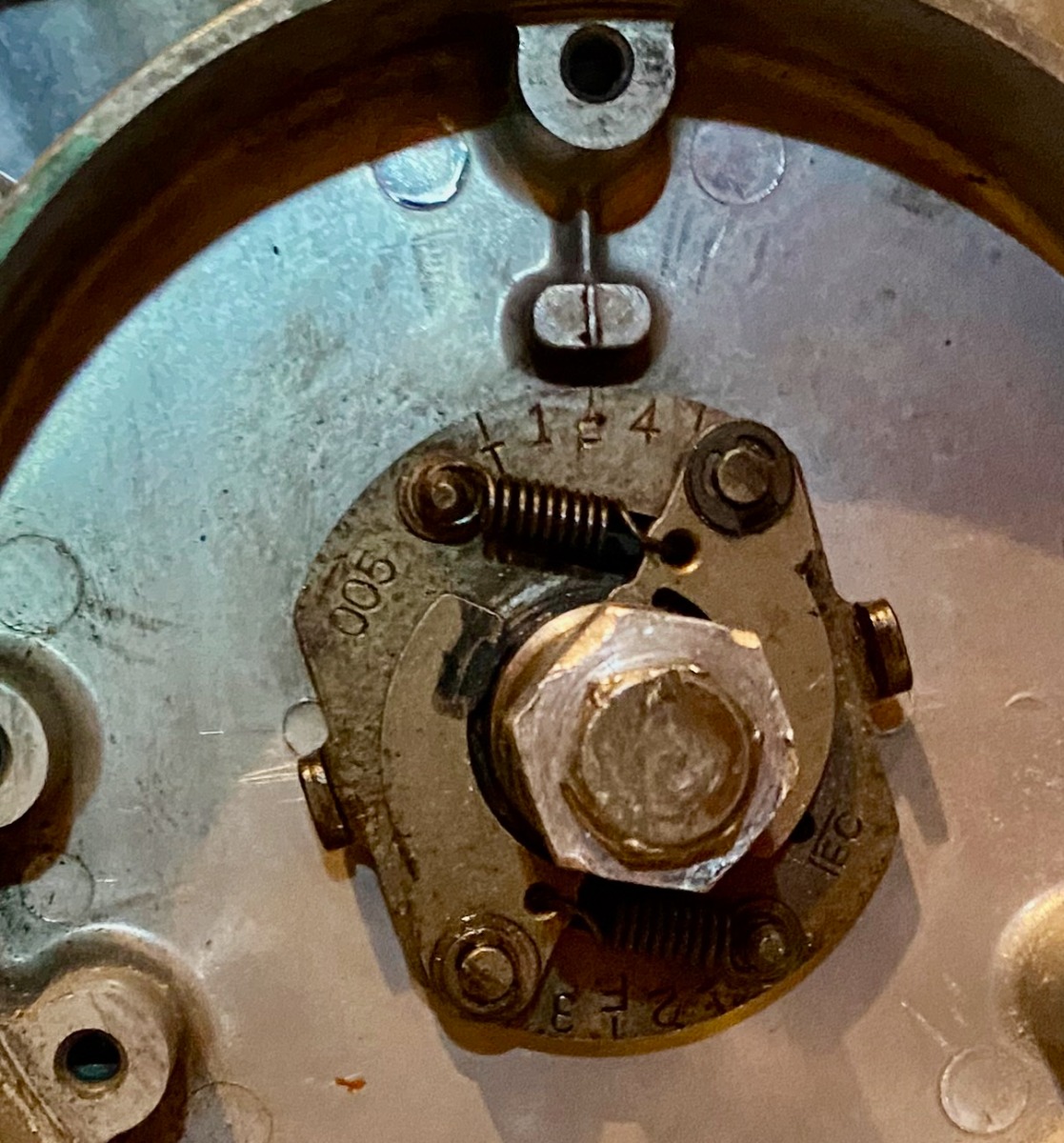

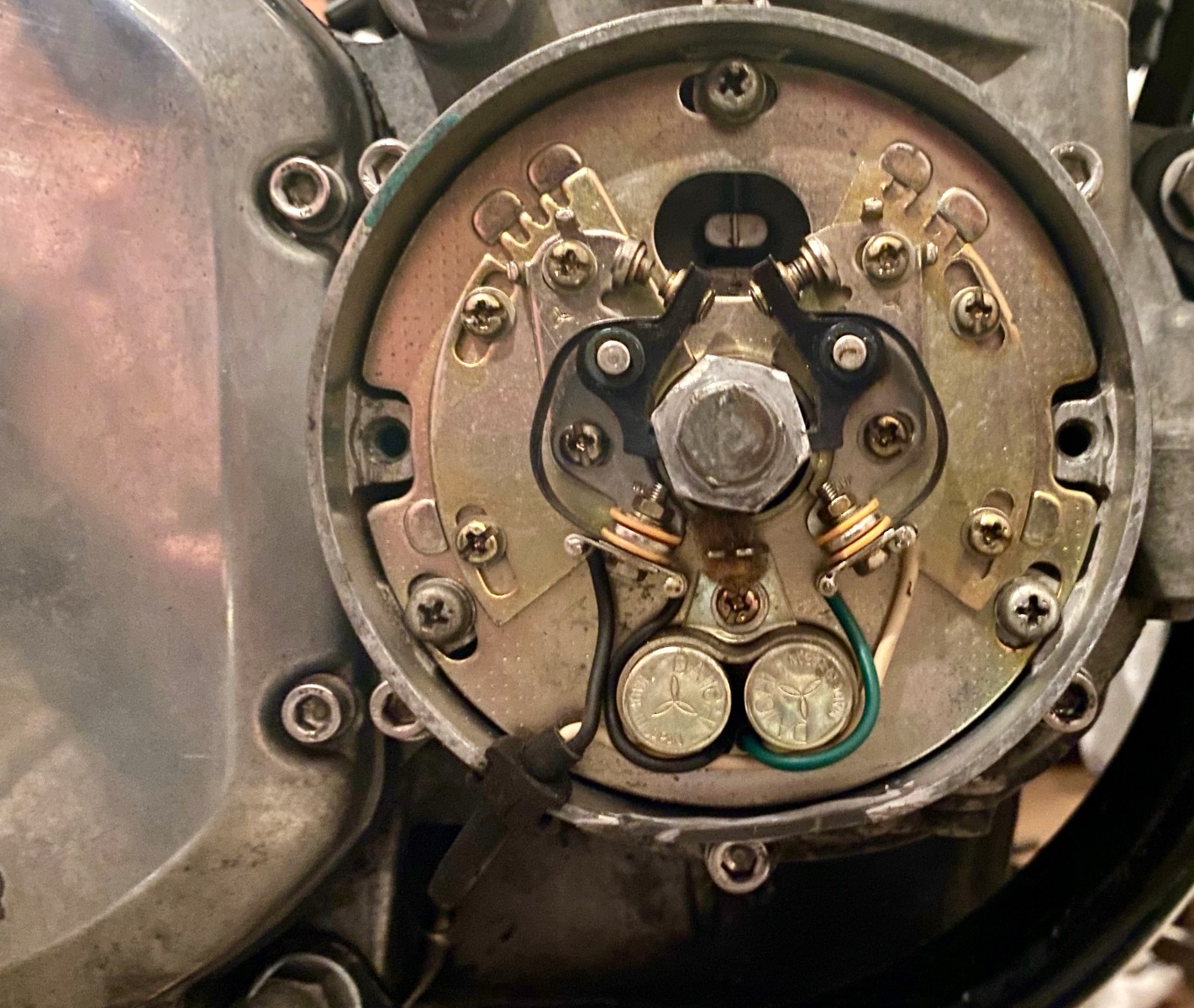

Lined up the F 1,4 to the index mark on the crankcase to set, I believe the left hand set of points, to fire cylinders 1 and 4. I'll use the old fashioned test light method where the light just winks out when the point open. It's fussy work setting points, but a little patience and the subsequent strobe will show it dead nuts on.
I'll fuss with the points tomorrow mornings.............'til then...........
Lined up the F 1,4 to the index mark on the crankcase to set, I believe the left hand set of points, to fire cylinders 1 and 4. I'll use the old fashioned test light method where the light just winks out when the point open. It's fussy work setting points, but a little patience and the subsequent strobe will show it dead nuts on.
I'll fuss with the points tomorrow mornings.............'til then...........
Nothing quite like the rip of a Big KZ
Please Log in or Create an account to join the conversation.
- wdhewson
- Topic Author
- Offline
- User
Less
More
- Posts: 158
- Thank you received: 52
20 Sep 2023 12:57 - 20 Sep 2023 13:01 #889566
by wdhewson
Nothing quite like the rip of a Big KZ
Replied by wdhewson on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
I haven't fussed the ignition timing yet, as I was preoccupied with final drive sprocket alignment.
By eye, by string, by straight-edge, and by hope and luck........I think I've got that alignment satisfactory, but not perfect. Toyed with the idea of some type of laser alignment.
No one likes the idea of the engine sprocket coming loose, in a 70 mph sweeper with thick woodlands on each side of the road, and oncoming traffic. So I was meticulous about torquing that nut to 60 ft-lbs, at the high end of the factory spec range. But my lock washer under the nut is for the stock sprocket where you bend a little nib on the washer into a hole in the sprocket, which to my mind seems to offer little security for the speed, torque, and vibration going into that sprocket.
So please give me an unreserved critique on what I've done.

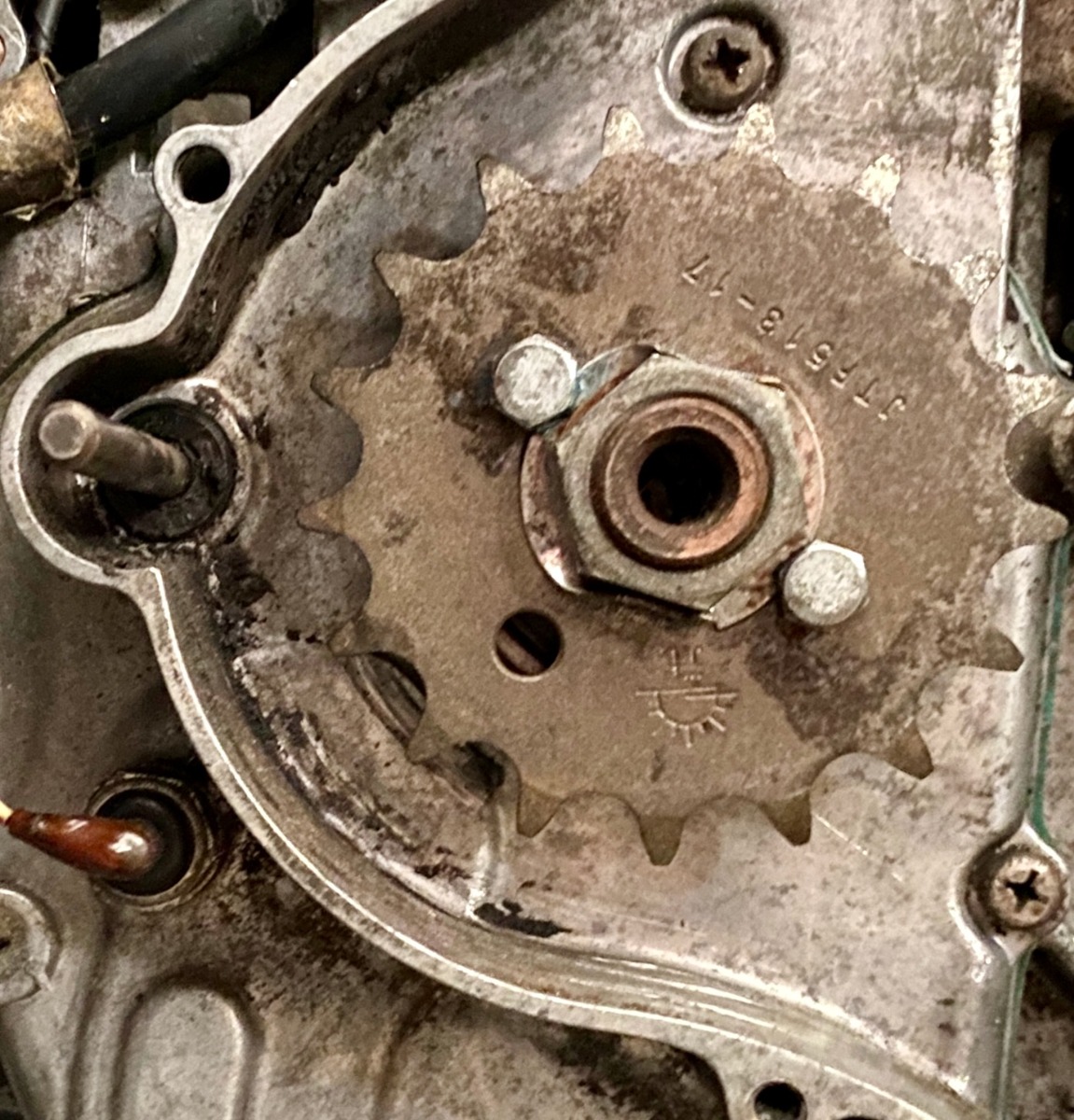

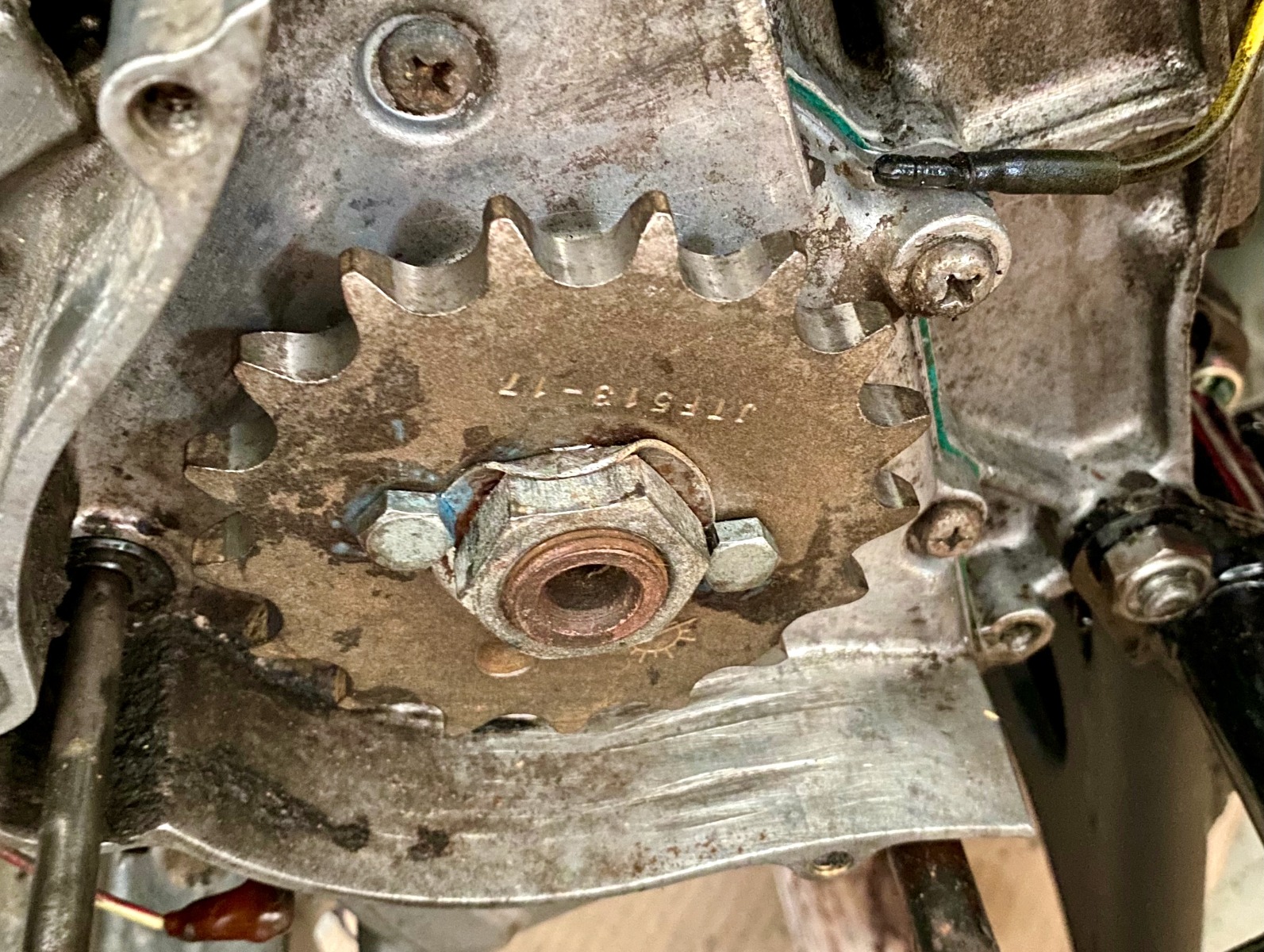

The JT 17T 530 sprocket has two threaded holes, perhaps for a puller, so I put in two short bolts where the bolt heads bear down on the washer under the main nut. I suspect 1 bolt would be enough, but I sought balance, and went with 2 bolts. Both bolts, cleaned and blue loctite applied. Then folded the washer onto the nut hex faces in two opposite locations.
Do you guys think this is a safe and adequate approach?
Thanks..................
By eye, by string, by straight-edge, and by hope and luck........I think I've got that alignment satisfactory, but not perfect. Toyed with the idea of some type of laser alignment.
No one likes the idea of the engine sprocket coming loose, in a 70 mph sweeper with thick woodlands on each side of the road, and oncoming traffic. So I was meticulous about torquing that nut to 60 ft-lbs, at the high end of the factory spec range. But my lock washer under the nut is for the stock sprocket where you bend a little nib on the washer into a hole in the sprocket, which to my mind seems to offer little security for the speed, torque, and vibration going into that sprocket.
So please give me an unreserved critique on what I've done.
The JT 17T 530 sprocket has two threaded holes, perhaps for a puller, so I put in two short bolts where the bolt heads bear down on the washer under the main nut. I suspect 1 bolt would be enough, but I sought balance, and went with 2 bolts. Both bolts, cleaned and blue loctite applied. Then folded the washer onto the nut hex faces in two opposite locations.
Do you guys think this is a safe and adequate approach?
Thanks..................
Nothing quite like the rip of a Big KZ
Last edit: 20 Sep 2023 13:01 by wdhewson.
The following user(s) said Thank You: Wookie58
Please Log in or Create an account to join the conversation.
- sf4t7
- Offline
- Sustaining Member
Less
More
- Posts: 578
- Thank you received: 378
20 Sep 2023 14:43 #889570
by sf4t7
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Replied by sf4t7 on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
The following user(s) said Thank You: wdhewson
Please Log in or Create an account to join the conversation.
- wdhewson
- Topic Author
- Offline
- User
Less
More
- Posts: 158
- Thank you received: 52
20 Sep 2023 14:54 #889572
by wdhewson
Nothing quite like the rip of a Big KZ
Replied by wdhewson on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
That nut isn't going anywhere !
Ambiguous reply........the nut owner or the threaded nut ??
Nothing quite like the rip of a Big KZ
The following user(s) said Thank You: slayer61, sf4t7, BCScott
Please Log in or Create an account to join the conversation.
- sf4t7
- Offline
- Sustaining Member
Less
More
- Posts: 578
- Thank you received: 378
20 Sep 2023 19:15 #889579
by sf4t7
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Replied by sf4t7 on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
The nut would be the threaded hardware. The owner would be the one with the screw loose. heehee
Just kidding !
Scotty
Just kidding !
Scotty
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
The following user(s) said Thank You: wdhewson
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 4831
- Thank you received: 1847
21 Sep 2023 05:13 #889586
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
I admit to at least one screw being loose. Might have a couple over torqued too!!!The nut would be the threaded hardware. The owner would be the one with the screw loose. heehee
Just kidding !
Scotty
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: wdhewson, sf4t7, Wookie58
Please Log in or Create an account to join the conversation.
- wdhewson
- Topic Author
- Offline
- User
Less
More
- Posts: 158
- Thank you received: 52
21 Sep 2023 05:16 #889587
by wdhewson
Nothing quite like the rip of a Big KZ
Replied by wdhewson on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
The nut would be the threaded hardware. The owner would be the one with the screw loose. heehee
Just kidding !
Scotty
LOL, I sense the lyrics of country music developing............
Nothing quite like the rip of a Big KZ
The following user(s) said Thank You: sf4t7
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
Less
More
- Posts: 2959
- Thank you received: 1079
21 Sep 2023 06:40 #889588
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
I had the nut come loose once, and the sprocket and chain fell off. Luckily I was in town and was able to coast home. No damage.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: wdhewson
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 23066
- Thank you received: 2770
21 Sep 2023 07:20 #889590
by SWest
Replied by SWest on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
I had one come loose a few times. The nut was kept in by the chain oiler boss and the sprocket was noisy but that was all. Tightened it to 100FP and went on my way.
Steve
Steve
The following user(s) said Thank You: wdhewson
Please Log in or Create an account to join the conversation.
- z1kzonly
- Offline
- User
- Sustaining Member
Less
More
- Posts: 2820
- Thank you received: 527
21 Sep 2023 12:36 - 21 Sep 2023 12:38 #889593
by z1kzonly
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Replied by z1kzonly on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
From 1978 - 2010 while working at a large commercial printing plant. Thanks work!
For 90% of all my hardware, oil seals, bearings, chemicals. 95% pure sulphuric acid, phosphoric powdered acid, shipping supplies, scrap items! Helped me. Maybe thats why they closed? I was in shipping and receiving, last 10 years I ran and ordered items running the receiving dock.For some reason? I always had my run of the plant and inventory! It was a great run!But this stuff! VIBRA-TITE. It is the best stuff! All the dragbike guys wanted it from me! Held a lot of parts together!Stays pliable! Never hardened! Not like blue or red Loc-tite!The Best! The Tonawanda GM Engine plant used it also.I use it still on my old Shovelhead!Not cheap! But? Get what you pay for!JMO!Marty in Buffalo
[
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Last edit: 21 Sep 2023 12:38 by z1kzonly.
The following user(s) said Thank You: wdhewson, sf4t7
Please Log in or Create an account to join the conversation.
- wdhewson
- Topic Author
- Offline
- User
Less
More
- Posts: 158
- Thank you received: 52
25 Sep 2023 08:32 - 25 Sep 2023 08:32 #889742
by wdhewson
Nothing quite like the rip of a Big KZ
Replied by wdhewson on topic Trying to Rescue a Late 1970s (1977??) Kawasaki KZ1000
Buckled down to the fussy business of setting the ignition timing with the points.
A friend asked me to charge his lawn tractor battery, so I thought I'd get busy before he wanted his battery back.
Both sets of points gapped at 15 thou on the base circle of the cam.
Then started fiddling until the left points (cyl 1,4) would open and wink out the test light (red arrow). Then the same for the right hand points (cyl 2,3).
The green arrow is where my test light leads went to the points wires harness. The blue arrow is just negative battery to the engine ground.
With more than a little patience you can get that light to wink out when the F mark is balls on the crankcase mark.
The vise grips on the battery terminal were present because my lead gator clip didn't bite wide enough.
Do you guys follow up with a strobe check, or is this method sufficient?
Thanks.
A friend asked me to charge his lawn tractor battery, so I thought I'd get busy before he wanted his battery back.
Both sets of points gapped at 15 thou on the base circle of the cam.
Then started fiddling until the left points (cyl 1,4) would open and wink out the test light (red arrow). Then the same for the right hand points (cyl 2,3).
The green arrow is where my test light leads went to the points wires harness. The blue arrow is just negative battery to the engine ground.
With more than a little patience you can get that light to wink out when the F mark is balls on the crankcase mark.
The vise grips on the battery terminal were present because my lead gator clip didn't bite wide enough.
Do you guys follow up with a strobe check, or is this method sufficient?
Thanks.
Nothing quite like the rip of a Big KZ
Last edit: 25 Sep 2023 08:32 by wdhewson.
