1977 KZ1000 Restomod 18 Dec 2020 07:18 #840273

  • calum
  • calum's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 544
  • Thank you received: 96
Thanks TexasKZ. I figured there would be no right answer :) Also figured that I'd find out pretty quickly if they were a bad fit for this build.

I wrote to the engine guy as soon as I saw the cams but I wanted to see what people said here as well. I would have bought the Web cams from my engine guy and was trying to make sure I was getting a straight up answer (not just 'buy the web's from me, they'll be better'). He got back to me today and told me to buy the Yoshimura cams before they were gone. They used to use them in their builds and he said they have a strong mid-range but still have enough pull upwards of 7000rpm.

I bought the cams - I'll trust the guys doing the engine work (incl. porting). I do tend to think that top-end power won't be all it could be but I'm hoping that the mid-range will make up for it - that's where I spend most of my time :)

If I'm lucky I can find a good set of web 110's before the project is finished and can compare the two directly.
1980 KZ750H (kzrider.com/forum/11-projects/612054-kz750h-restoration)
2000 BMW F650GS
2012 Honda Hornet
1993 Mini Cooper :)
The following user(s) said Thank You: Bent Trigger

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 18 Dec 2020 07:28 #840274

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 5648
  • Thank you received: 1323
You are absolutely right to focus on how you will actually ride the bike. It is too easy to get sucked into the horsepower black hole, and end up with a bike you hate to ride.

Here is LarryC on that very topic.

www.kzrider.com/forum/2-engine/606200-is...40hp?start=24#764725
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: Bent Trigger

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

1977 KZ1000 Restomod 18 Dec 2020 07:35 #840275

  • calum
  • calum's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 544
  • Thank you received: 96
"IT MAKES NO FINANCIAL SENSE WHAT SOEVER...YOU DO IT BECAUSE THAT IS THE BIKE YOU WANT AND YOU HAVE THE FINANCIAL RESOURCES TO DO IT CORRECTLY"

Yup, that's about the size of it :)
1980 KZ750H (kzrider.com/forum/11-projects/612054-kz750h-restoration)
2000 BMW F650GS
2012 Honda Hornet
1993 Mini Cooper :)

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 18 Dec 2020 09:57 #840281

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2300
  • Thank you received: 495
Larry was a great resource because was such a straight shooter. Wen i initially contacted him about head porting he talked me out of going big valve long duration craziness and sold me on a much milder engine package. 1075, port and polish, web 118 cams. I've had other much more powerful bikes but this is such a grunty engine and so different than my newer bikes that its truely fun to ride despite not having the big HP numbers behind it.
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 18 Dec 2020 10:13 #840282

  • calum
  • calum's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 544
  • Thank you received: 96
That setup sounds pretty close to what I'll have with the Yosh cams. Did you open up the valves at all or are they still stock?
1980 KZ750H (kzrider.com/forum/11-projects/612054-kz750h-restoration)
2000 BMW F650GS
2012 Honda Hornet
1993 Mini Cooper :)

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 18 Dec 2020 13:30 #840286

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2300
  • Thank you received: 495
stock valves
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 18 Dec 2020 19:57 #840304

  • DOHC
  • DOHC's Avatar
  • Away
  • Sustaining Member
  • Those DOHCs really go!
  • Posts: 579
  • Thank you received: 191

DoctoRot wrote: Larry was a great resource because was such a straight shooter.


His death is such a huge loss.

www.kz-1000.net/post/130285291257/faq-ab...kz1000-engines/embed
'78 Z1-R in blue, '78 Z1-R in black, '78 Z1-R in pieces
'95 GPZ1100 (sold) , '00 ZRX1100
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

Last edit: by DOHC.

1977 KZ1000 Restomod 19 Dec 2020 09:39 #840322

  • calum
  • calum's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 544
  • Thank you received: 96

DOHC wrote:

DoctoRot wrote: Larry was a great resource because was such a straight shooter.


His death is such a huge loss.

www.kz-1000.net/post/130285291257/faq-ab...kz1000-engines/embed


From all I've read it sounds like he will be sorely missed by those building KZ engines.

Thanks for the link.

"You can make a great 1197cc street motor with a KZ head using GPz11 Intake Valves with the correct cams to create a motor that makes great torque, idles well and behaves very well in stop and go traffic."
That was nice to hear. At 1075cc I may not need to go with 38mm intake valves, but it would mean I could swap out the block later down the road and would just need to drop in some different cams.
1980 KZ750H (kzrider.com/forum/11-projects/612054-kz750h-restoration)
2000 BMW F650GS
2012 Honda Hornet
1993 Mini Cooper :)

Please Log in or Create an account to join the conversation.

Last edit: by calum.

1977 KZ1000 Restomod 06 Jan 2021 11:47 #841236

  • calum
  • calum's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 544
  • Thank you received: 96

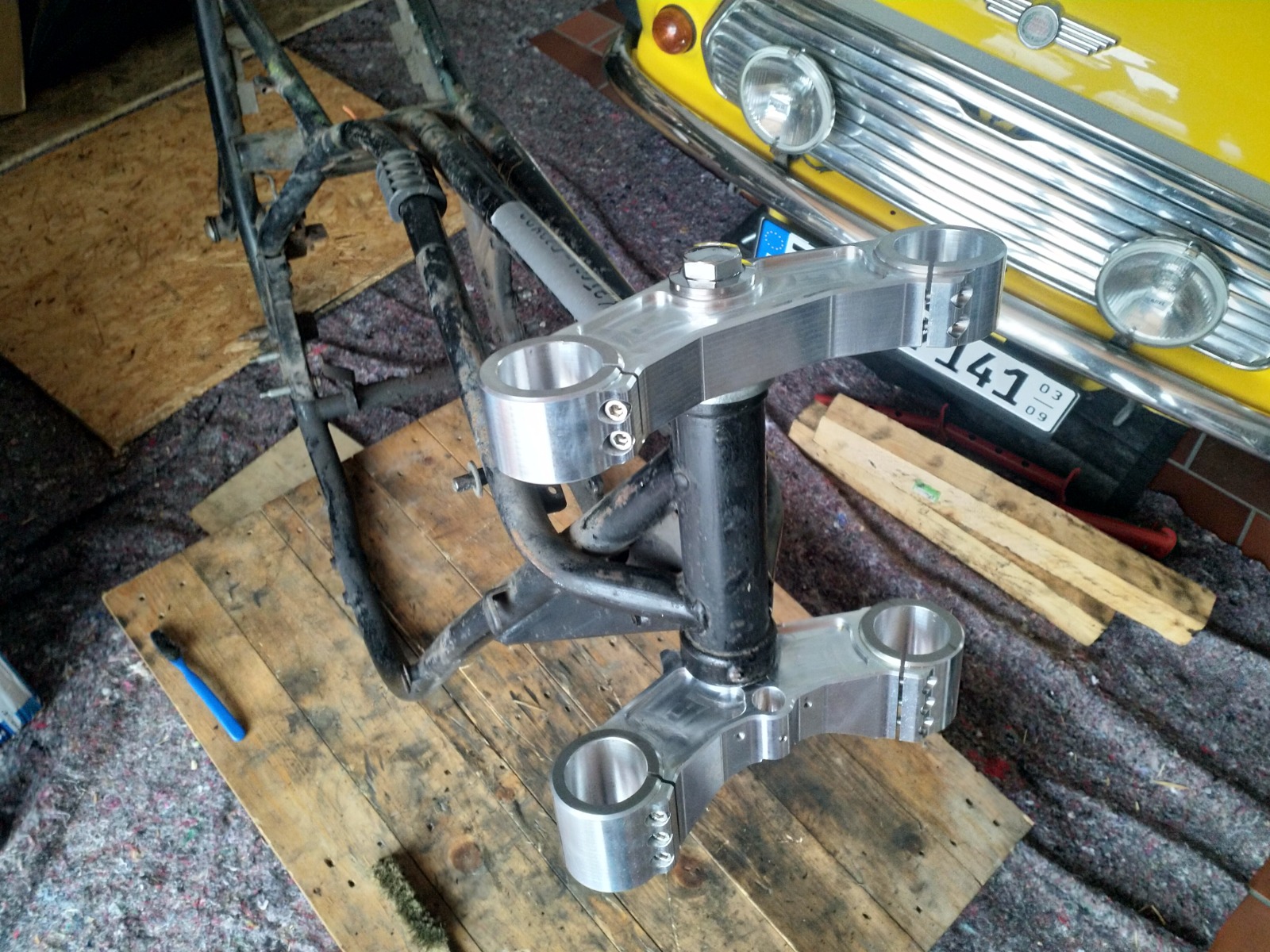

Finally started unpacking some of my shiny new parts today. Just trying to get the front end together to make sure everything fits. Will do the same at the back when the swingarm gets here. Then I will decide what work needs to be done on the frame and which parts will be polished and which will be painted.
Very limited space in the garage at the moment (as you can see in the photos). Between the 750, the Mini, the Zephyr and the KZ1000 parts and original frame it's hard to find somewhere to work.

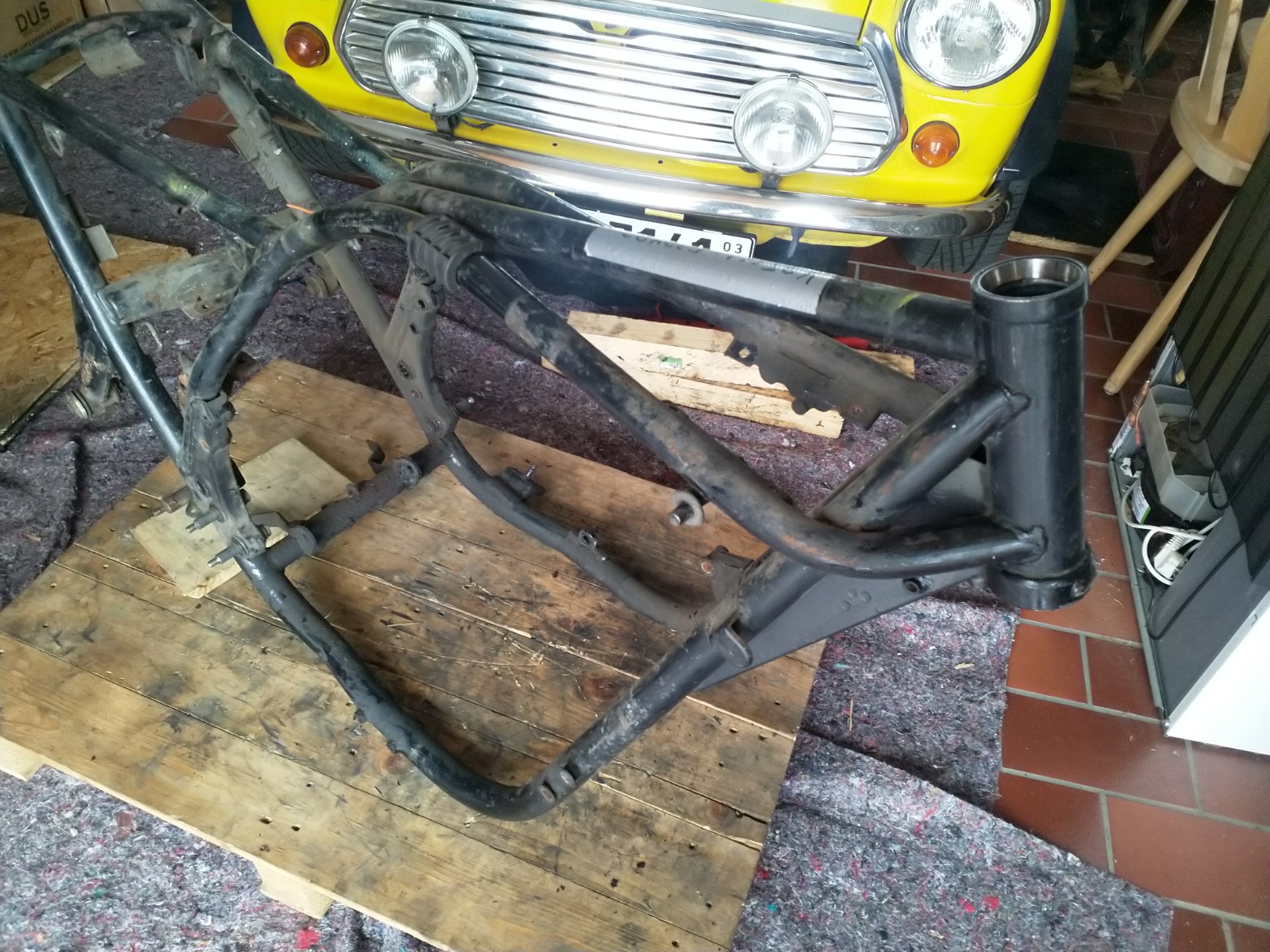

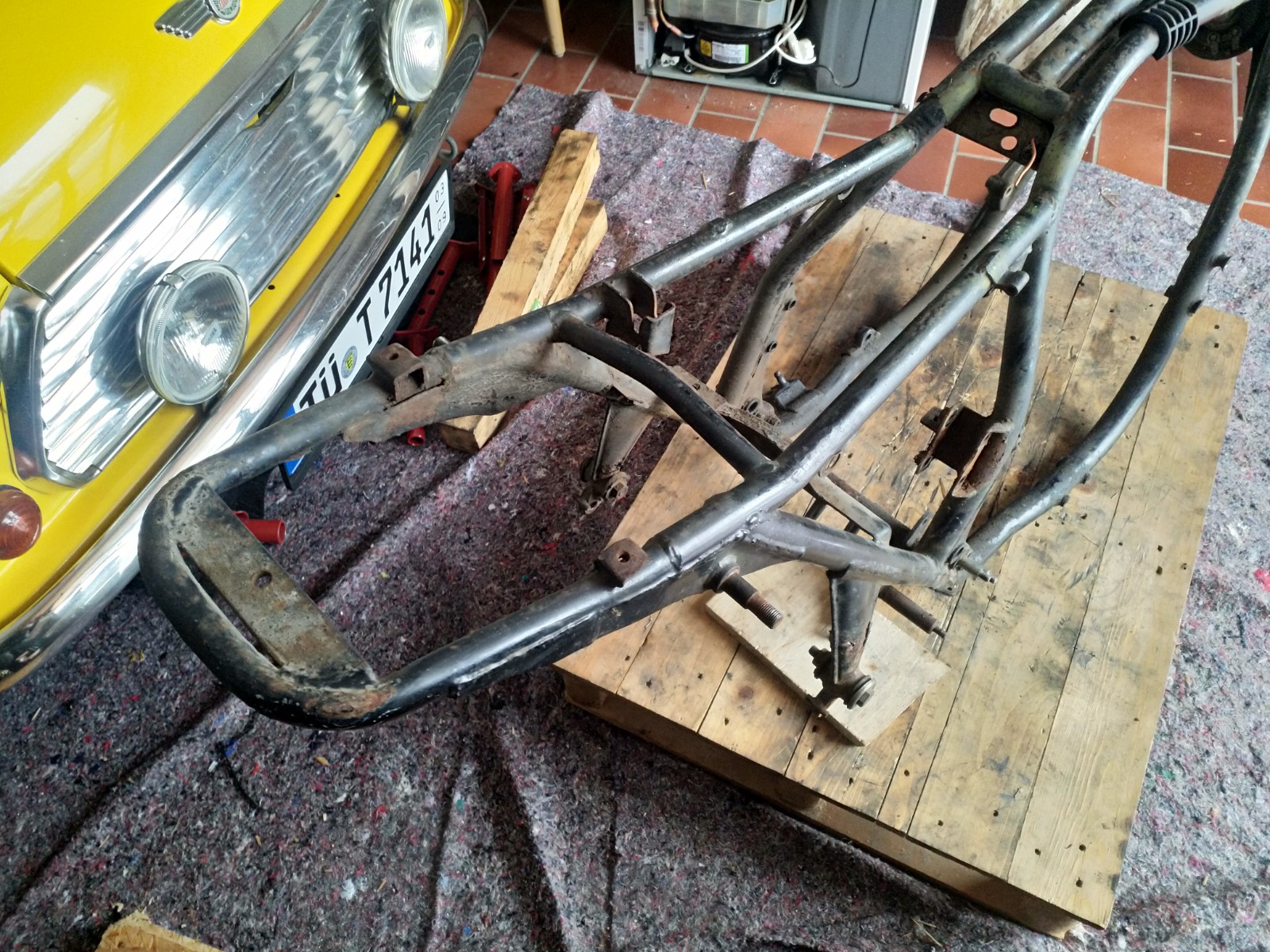

Here's the second frame I have. Back end has been butchered a bit (which is why I got it cheap). Doesn't look like it's been crashed though (steering stop and the plate behind it are still straight). Will get it checked out anyway - worth the cash to know everything is straight.

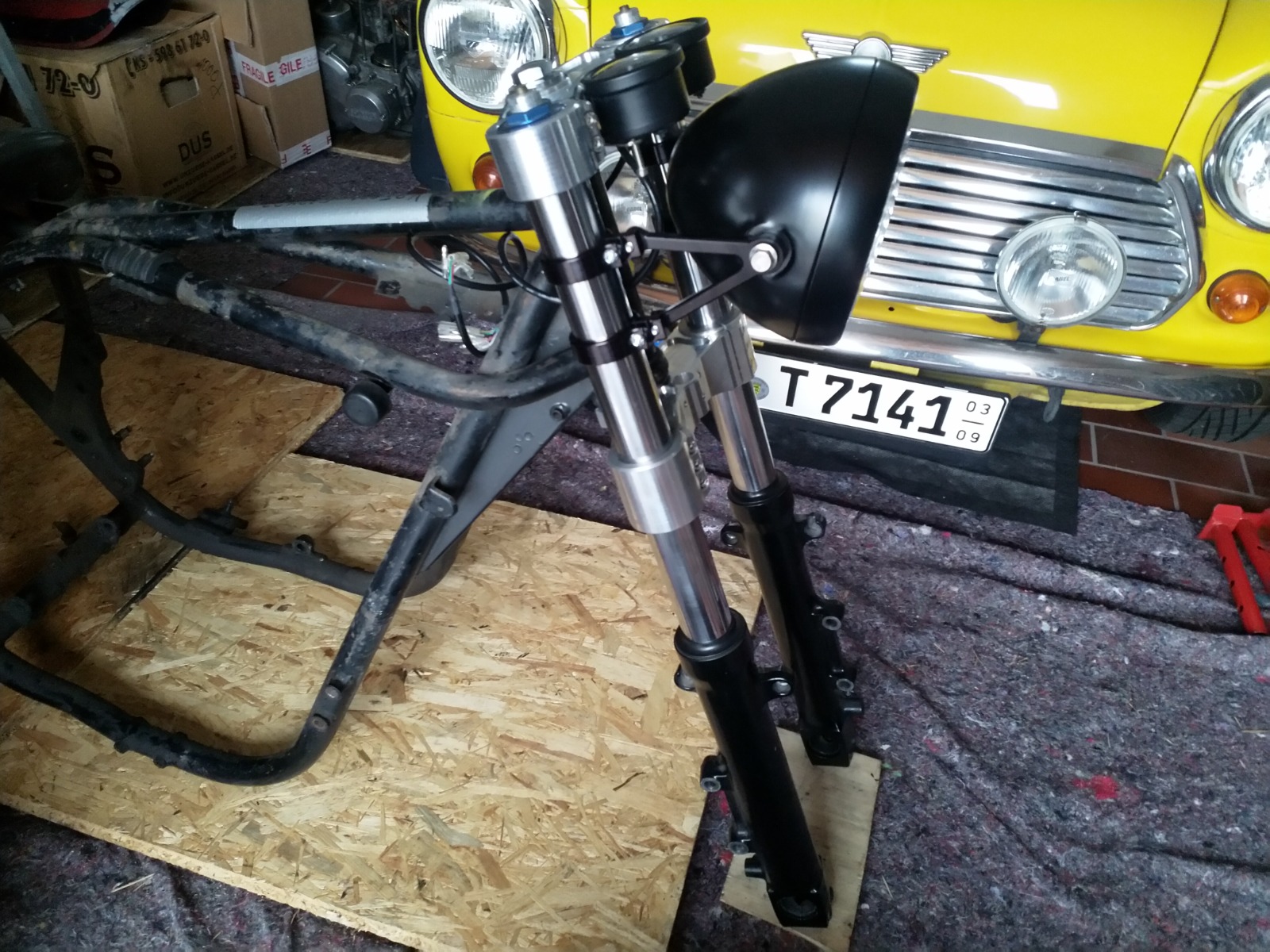

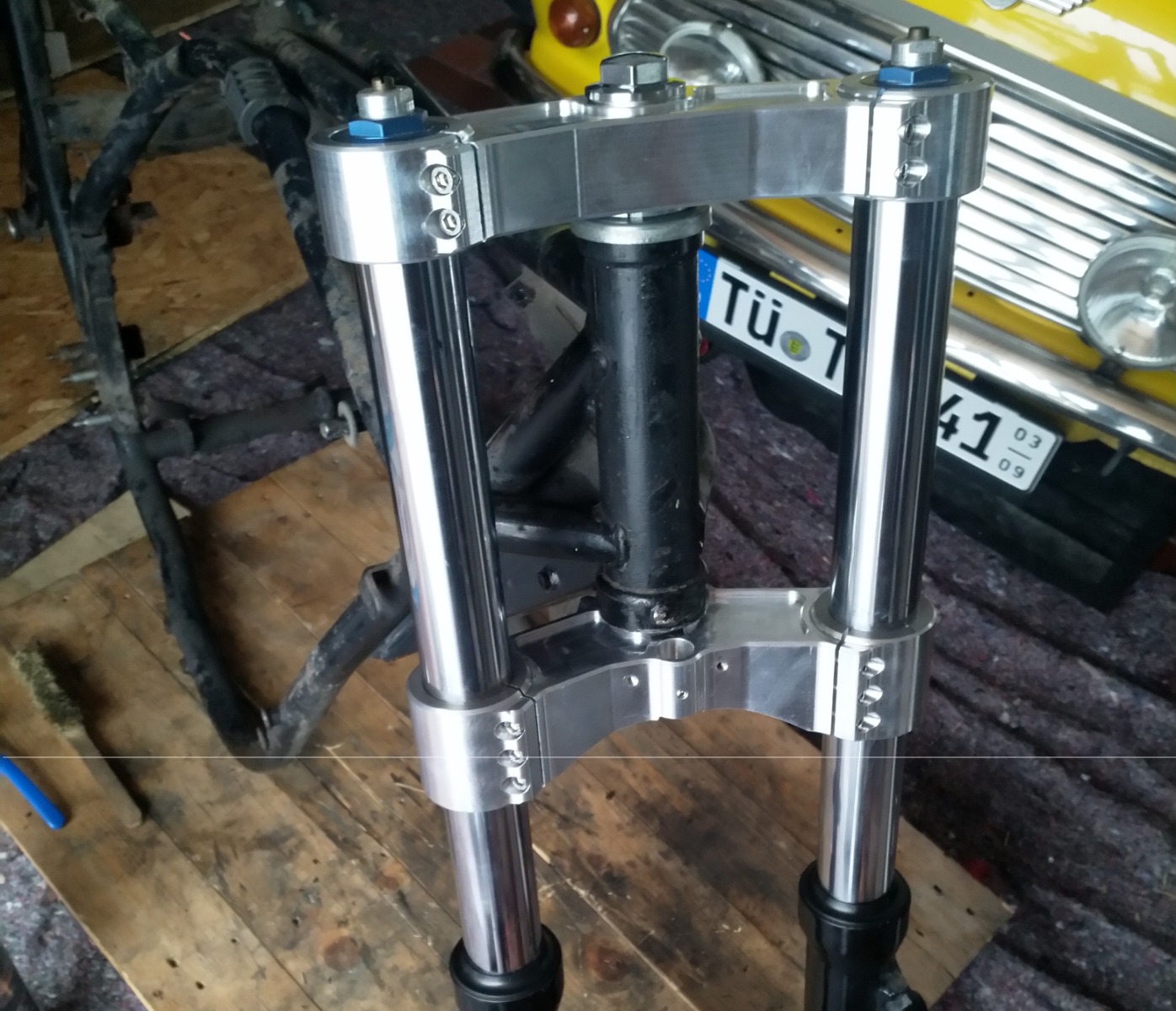

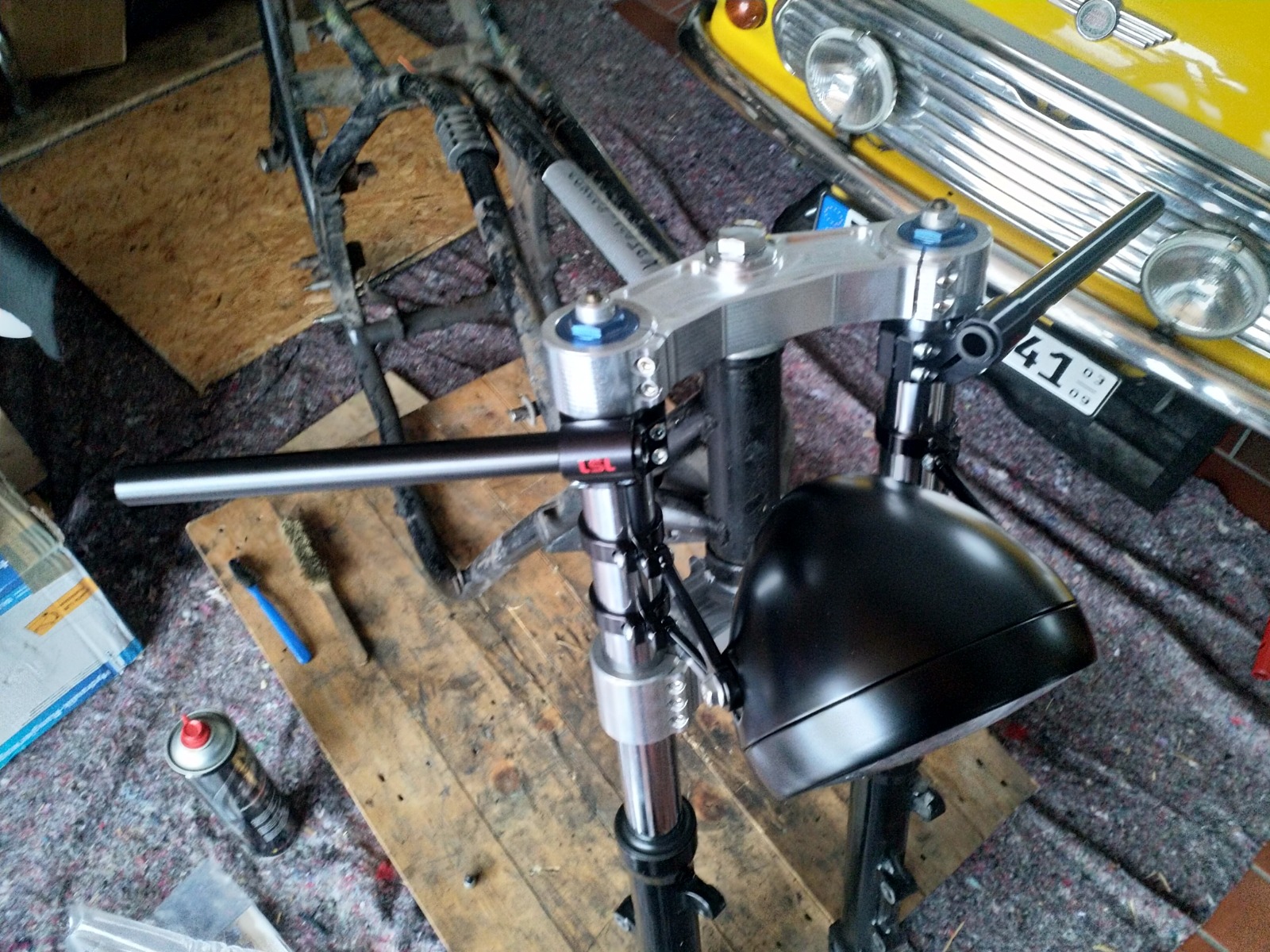

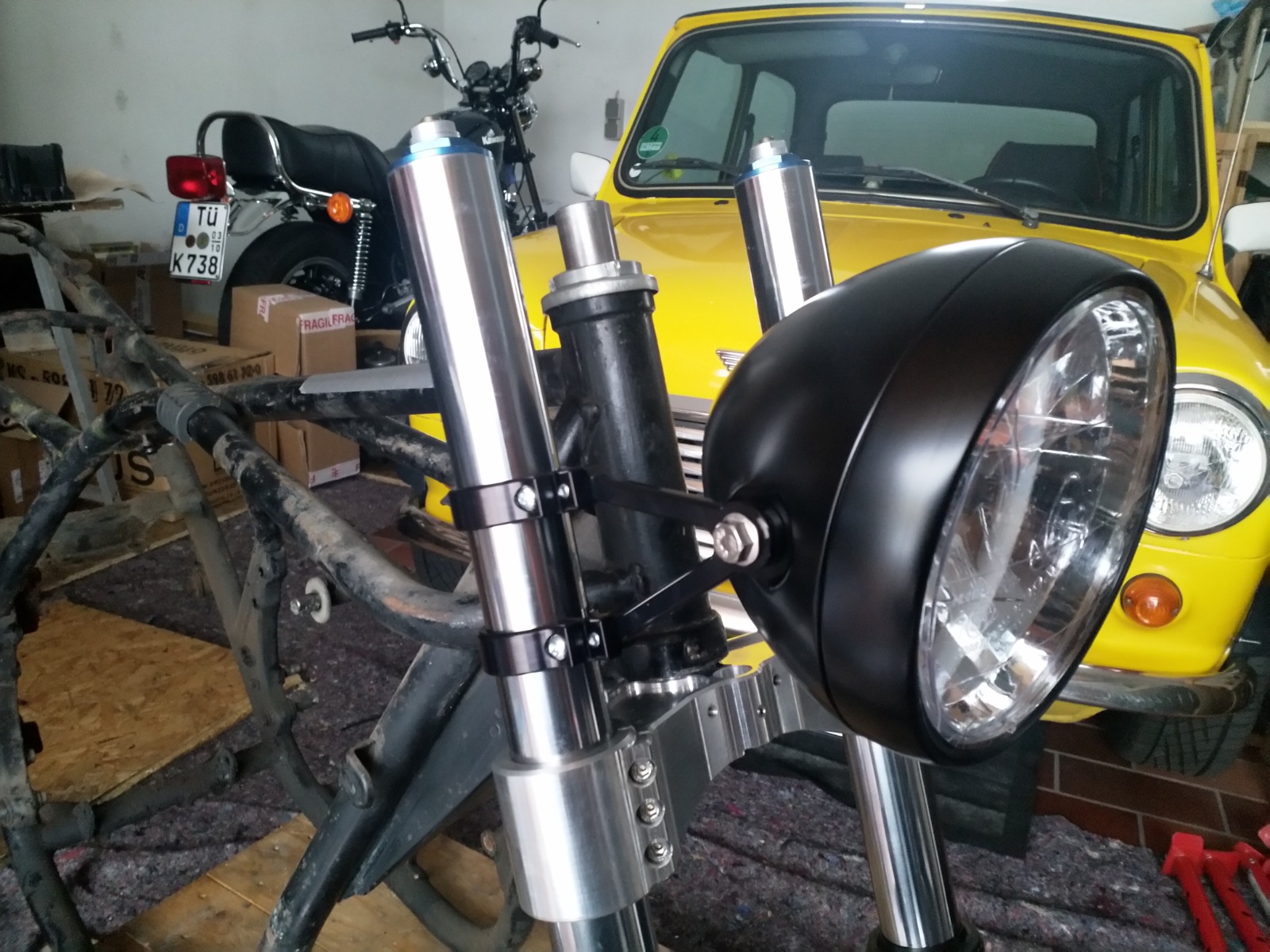

Assembled the triple clamp, forks, headlight and clip-ons :

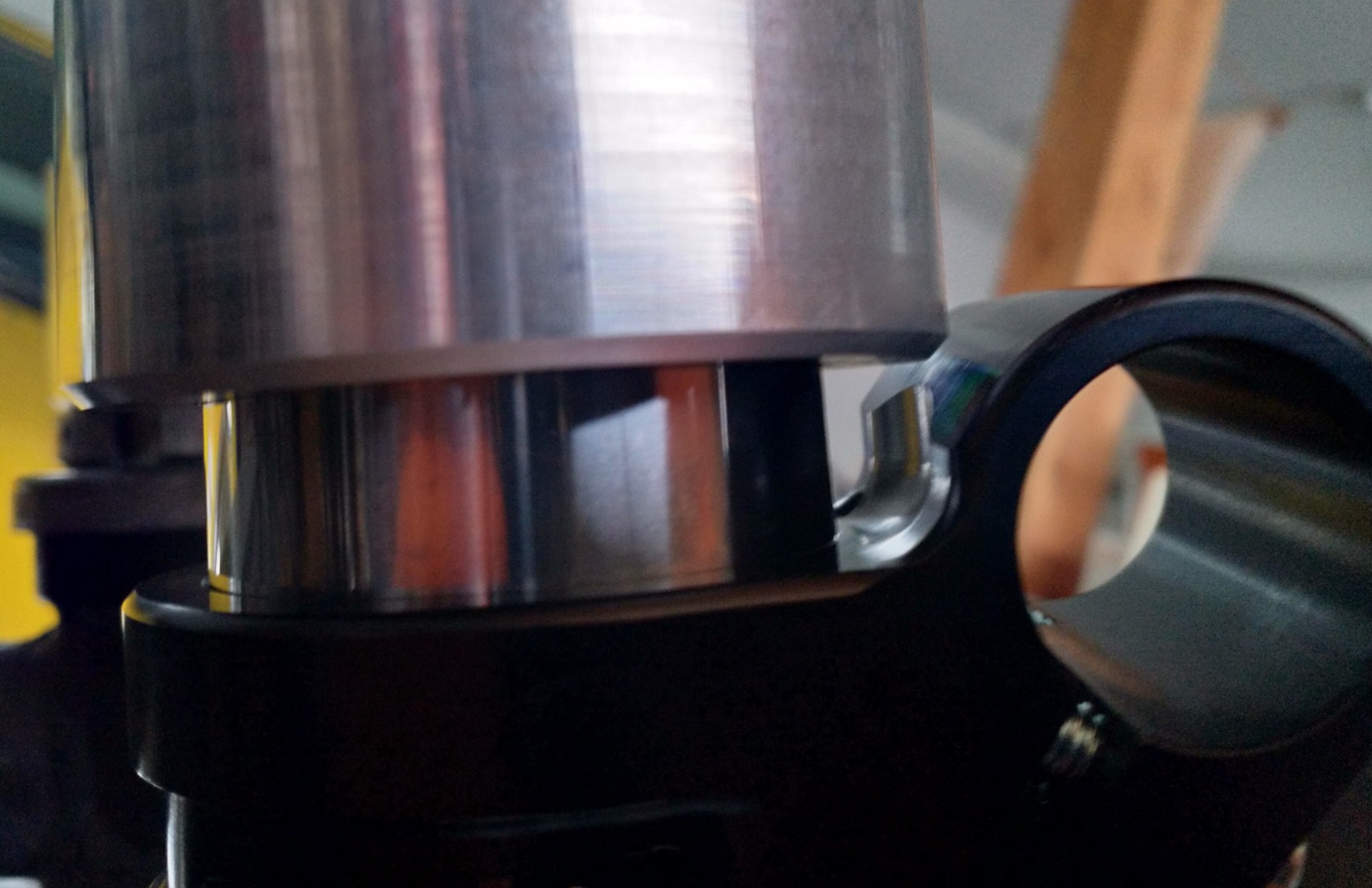

The brackets for the clip-ons hit the bottom of the top yoke. Have some different brackets on the way.

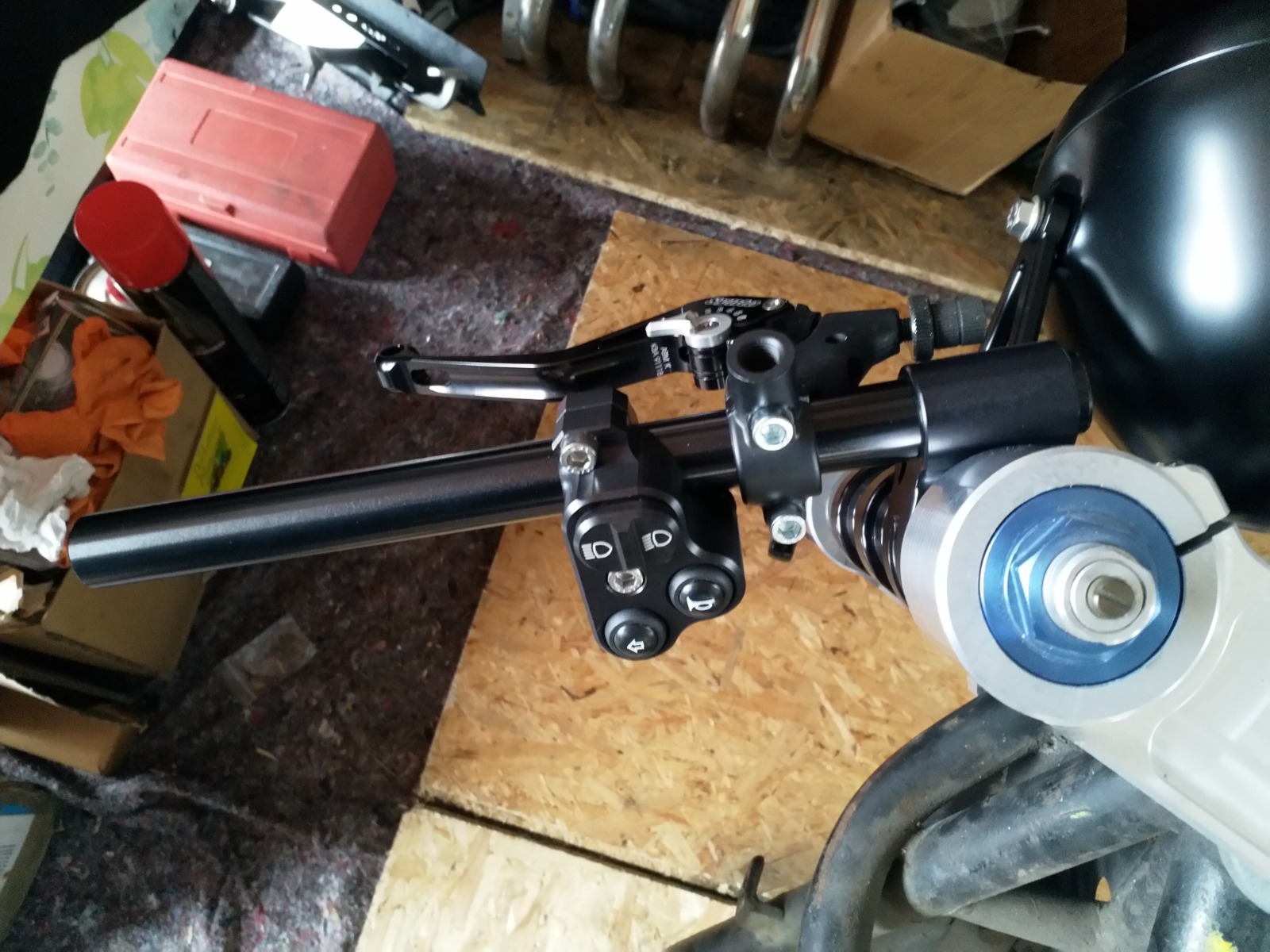

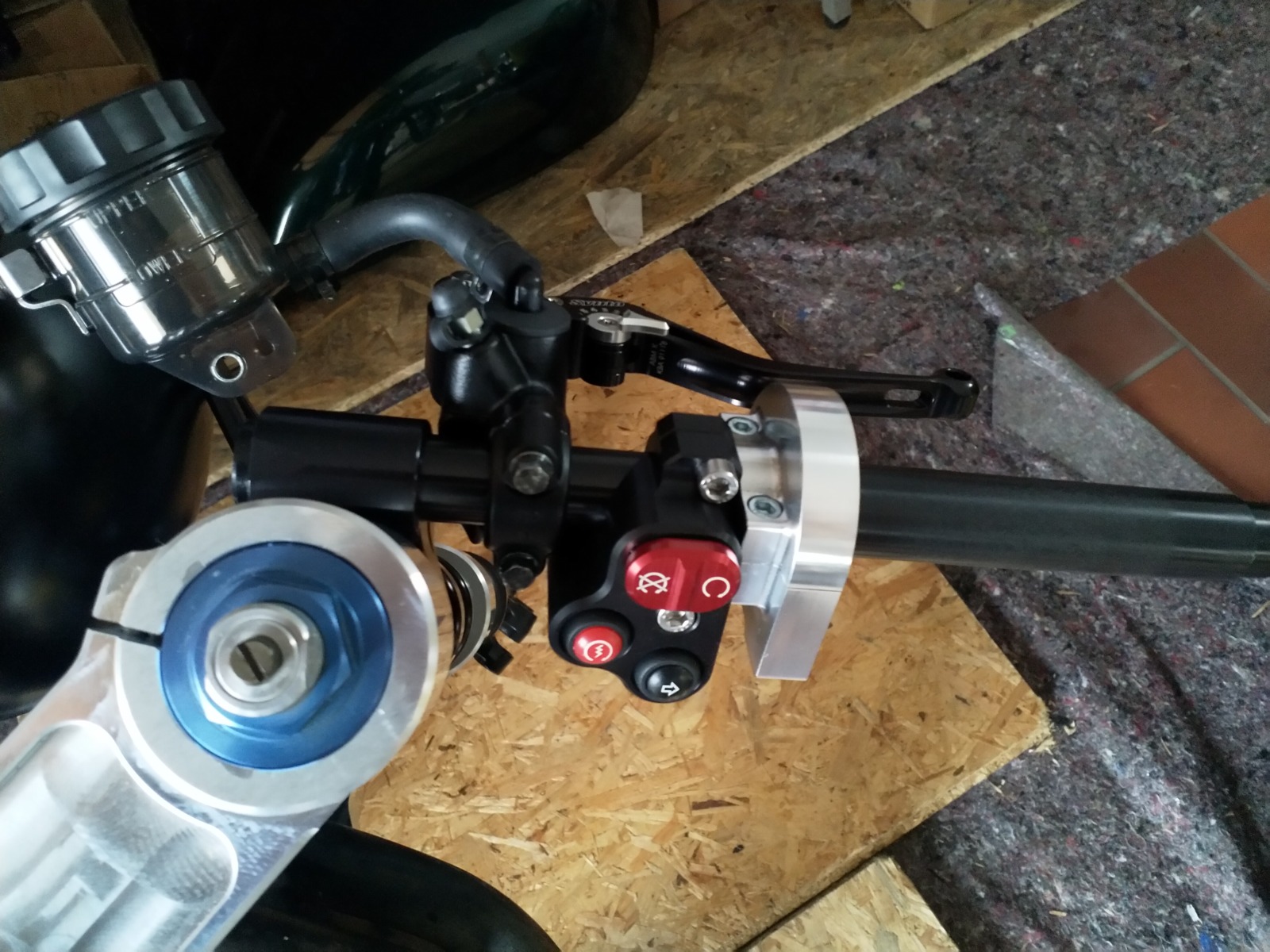

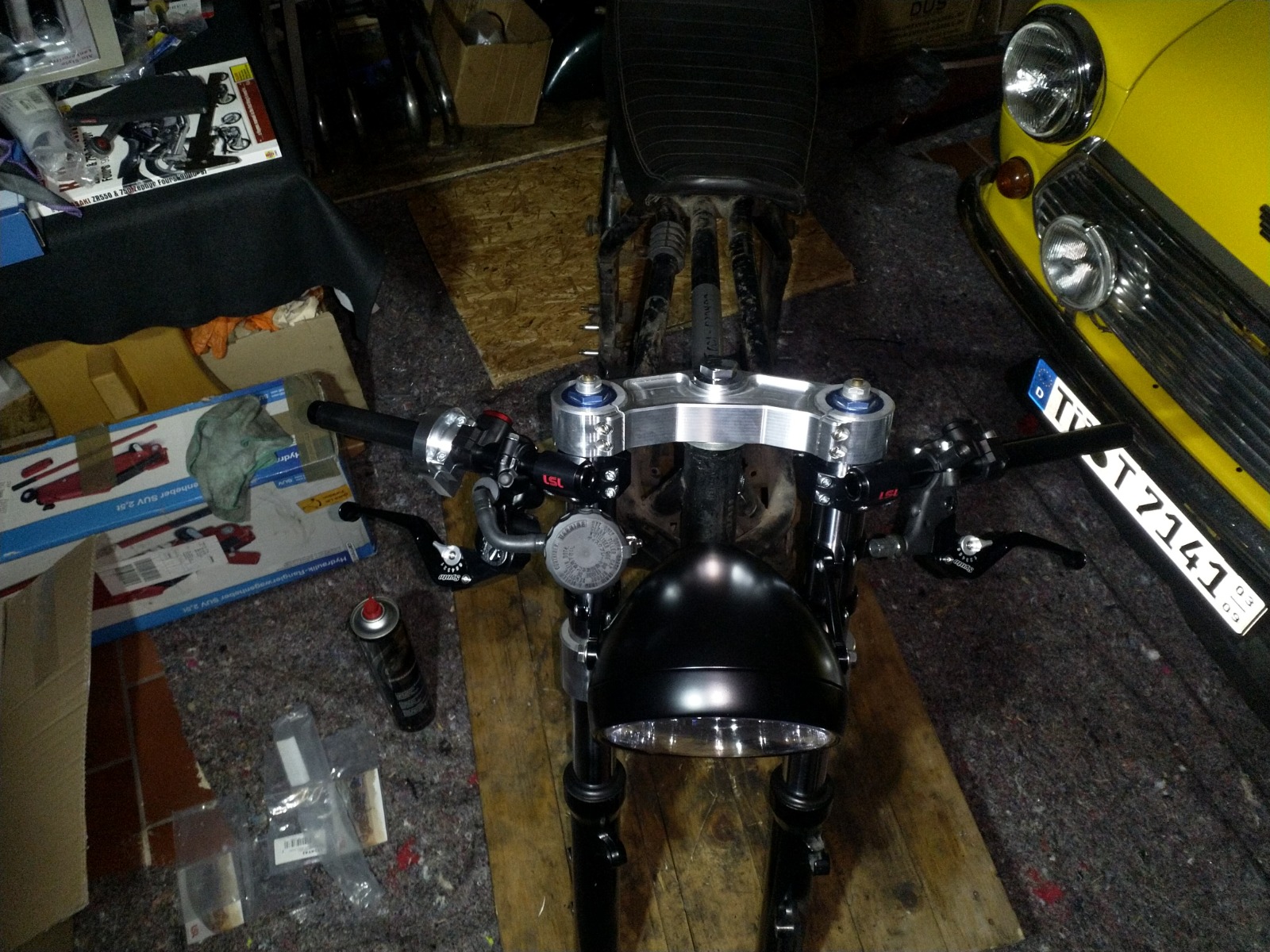

Got the levers, switch blocks and throttle on. Might be a bit tight with the cables but I should be able to get it to work. Left 12mm at the end of the bars for the mirrors (will be using motogadget blaze indicators so I can't use mirrors that go into the end of the bars). May need that 12mm though, so might get some bar extensions for the mirrors.
Was getting pretty dark, will take some more photos next time.



1980 KZ750H (kzrider.com/forum/11-projects/612054-kz750h-restoration)
2000 BMW F650GS
2012 Honda Hornet
1993 Mini Cooper :)

Please Log in or Create an account to join the conversation.

Last edit: by calum.

1977 KZ1000 Restomod 06 Jan 2021 12:54 #841238

  • slayer61
  • slayer61's Avatar
  • Offline
  • Platinum Member
  • KZR FLAG RELAY CARRIER #62
  • Posts: 607
  • Thank you received: 103
Those triples are badd ass! :evil:
Don't be ridiculous! It's only a flesh wound!

Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit
Wife's BIG bike...... 1981 GPZ 1100 Kerker and factory FI
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 07 Jan 2021 10:12 #841279

  • calum
  • calum's Avatar Topic Author
  • Offline
  • Platinum Member
  • Posts: 544
  • Thank you received: 96
Got the clocks out today to see how they fit. Took the bars off so I can send the brackets back so there's a lot of empty space. Tried to hold one of the bars in place and take a photo but t was a bit awkward. Would appreciate any opinions - it's really a matter of taste but please chime in anyway :)

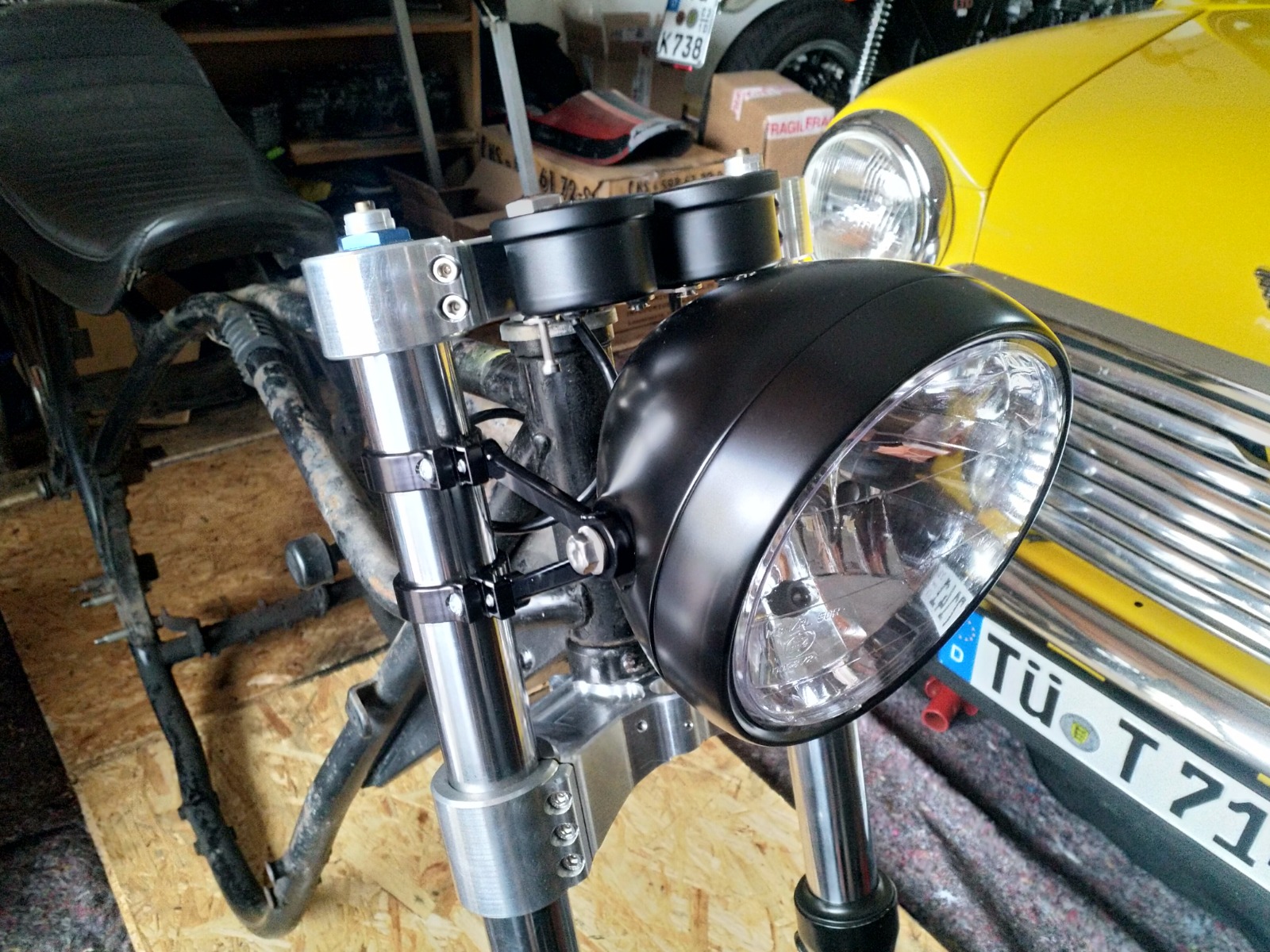

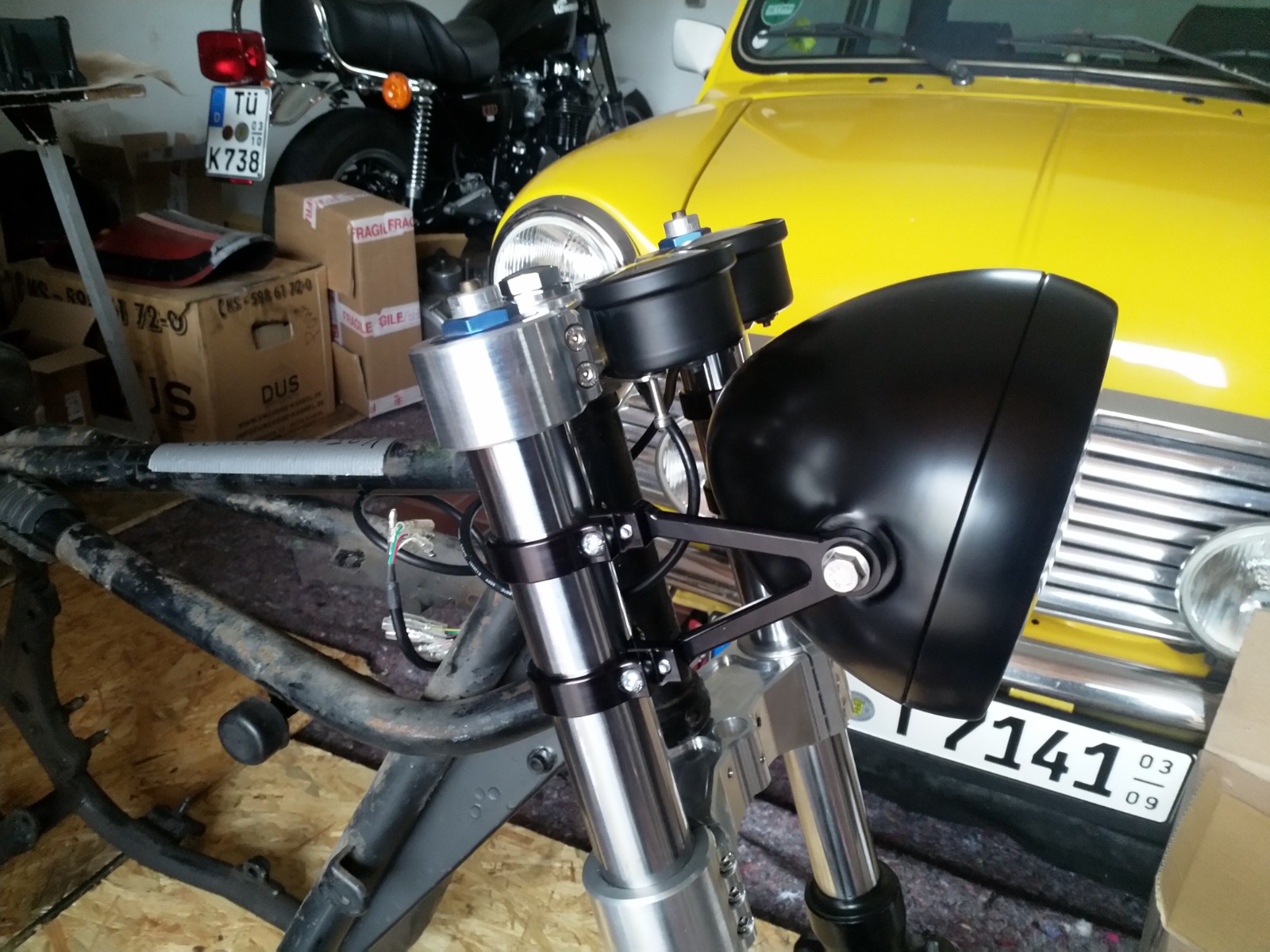

Not sure if I want the clocks in line with the top yoke (as in the picture) or tilted up slightly. Also not sure on the headlight, will have to see how it looks with the bars on but I think it might need to go back an inch or so.
Did some calculations and with the height and offset of the triples and the shorter forks the front end drops down 17.5mm. That's assuming rake stays at 26°. Will wait for the swingarm to get here then I can see how the back end looks. I'll be keeping the 18" wheels so losing 17.5mm at both ends should be fine.

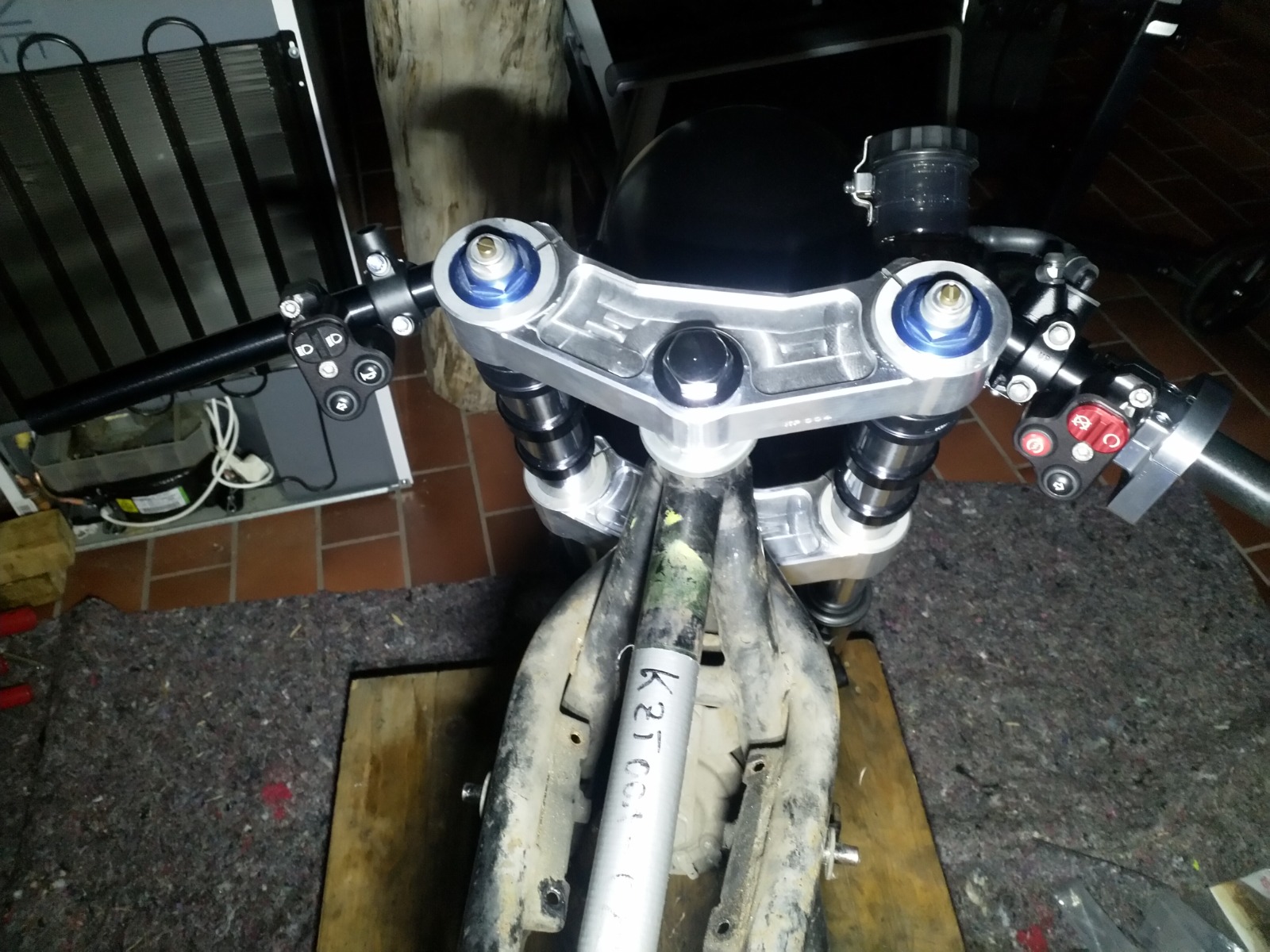

The bars before I took them off:

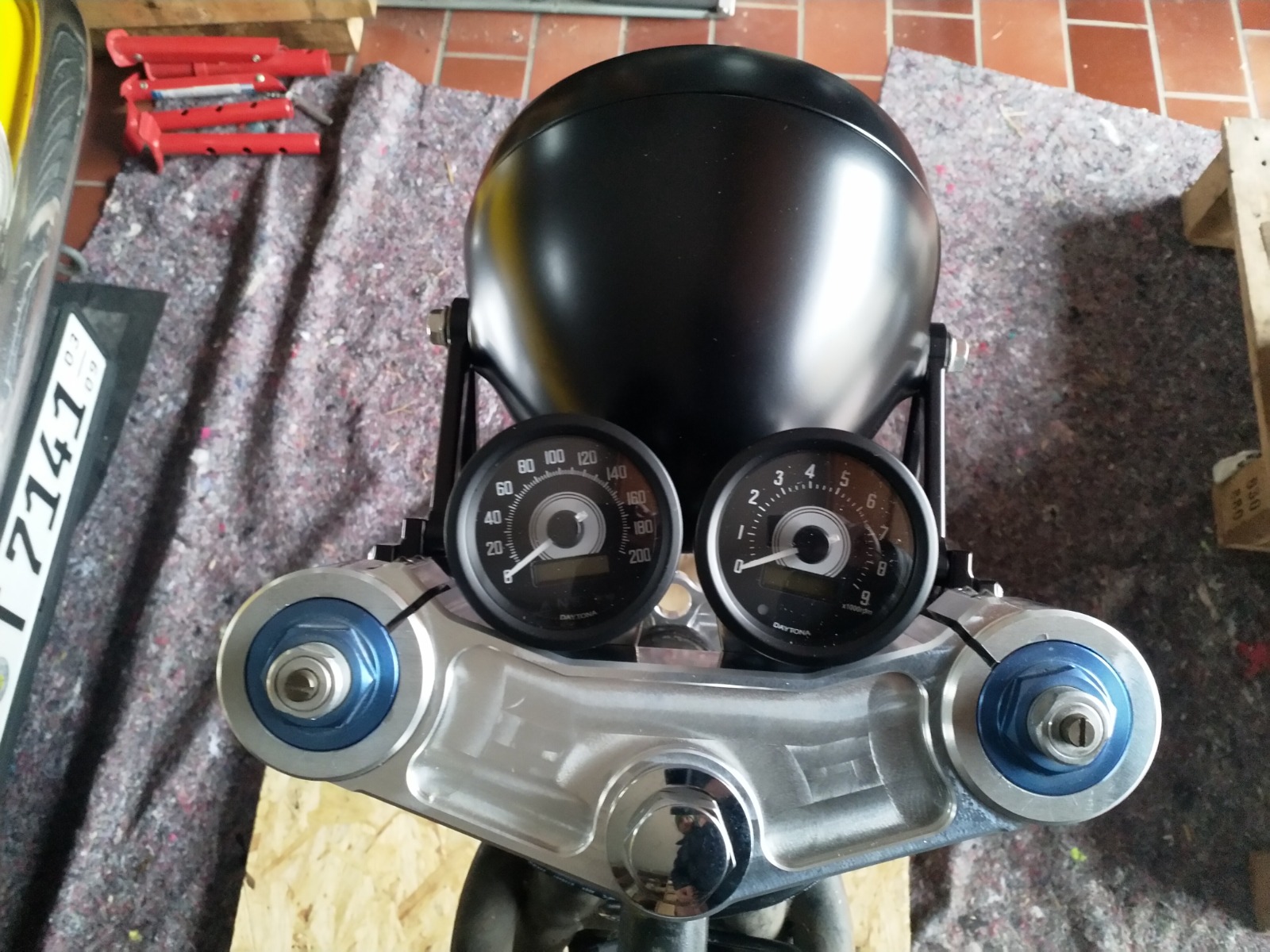

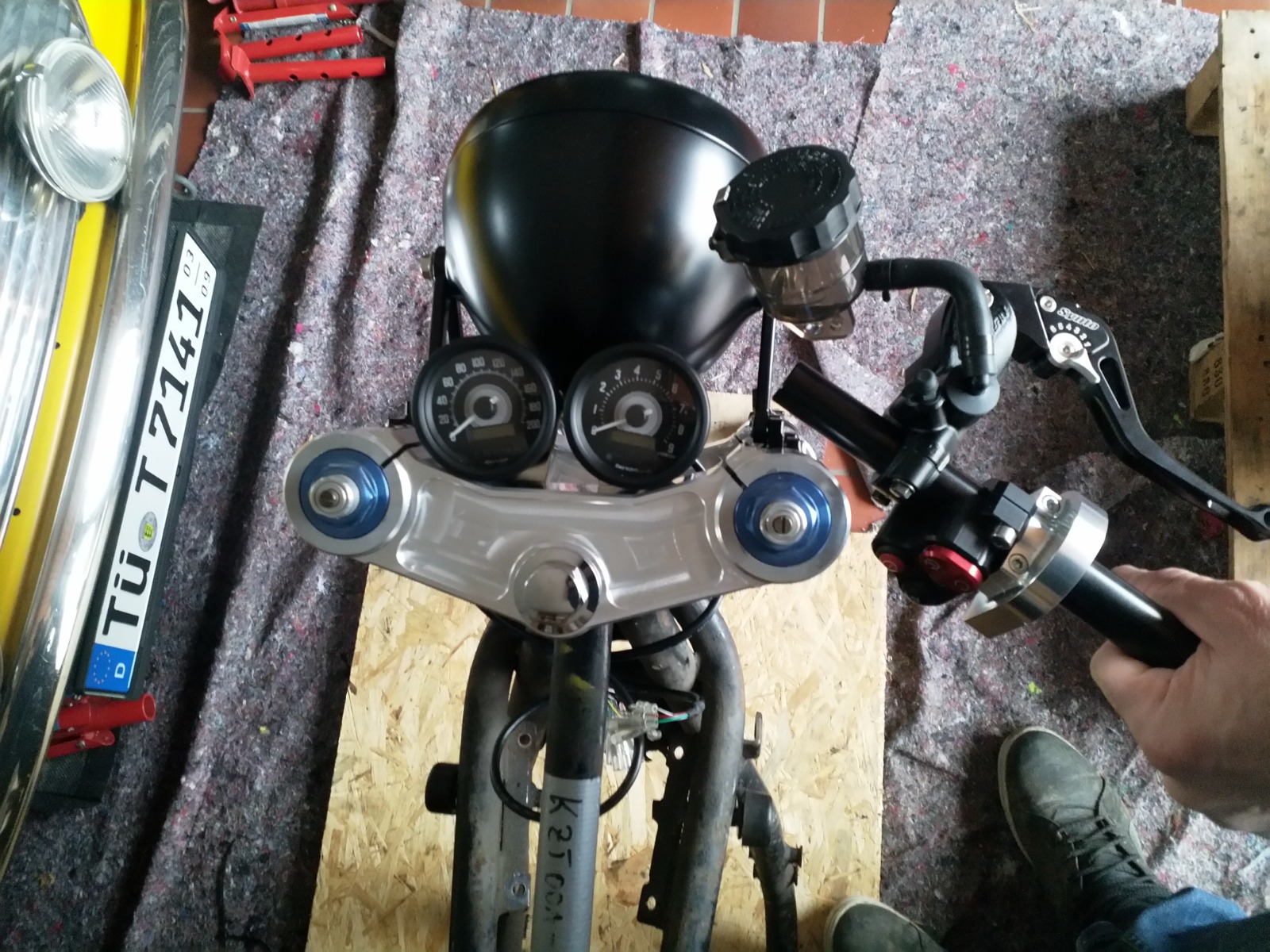

The clocks - maybe need to get them a bit further out from the clamps? not sure. Just used the brackets that came with them. May mock up a couple of options next week









1980 KZ750H (kzrider.com/forum/11-projects/612054-kz750h-restoration)
2000 BMW F650GS
2012 Honda Hornet
1993 Mini Cooper :)

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 07 Jan 2021 11:00 #841282

  • Skidmark
  • Skidmark's Avatar
  • Offline
  • Platinum Member
  • Posts: 770
  • Thank you received: 109
My take would be to have the face of them pointing directly at your face while in the rider position, to avoid any glare while riding. Having them parallel to the upper triple could allow reflection to prevent you from reading them.
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
The following user(s) said Thank You: slayer61, calum
