KZ650 cafe-racer 25 Jan 2020 12:42 #817862

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 564
  • Thank you received: 313
Thank you all yet one time! Sorry for keeping you without project progress posted. However I didn't score too much of it, as I had some orders to fulfill, not mentioning holidays.

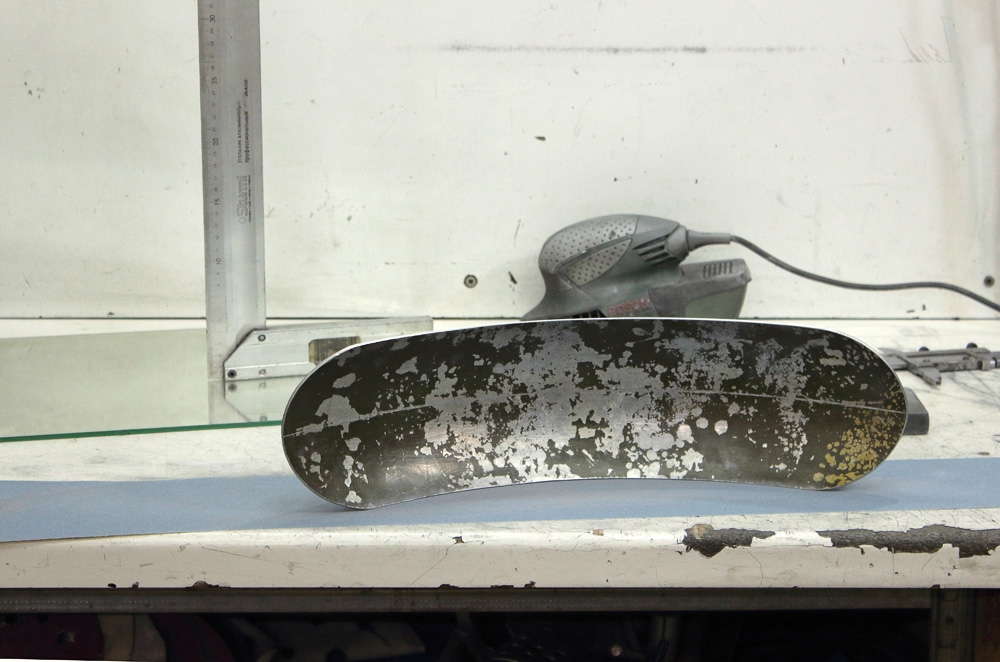

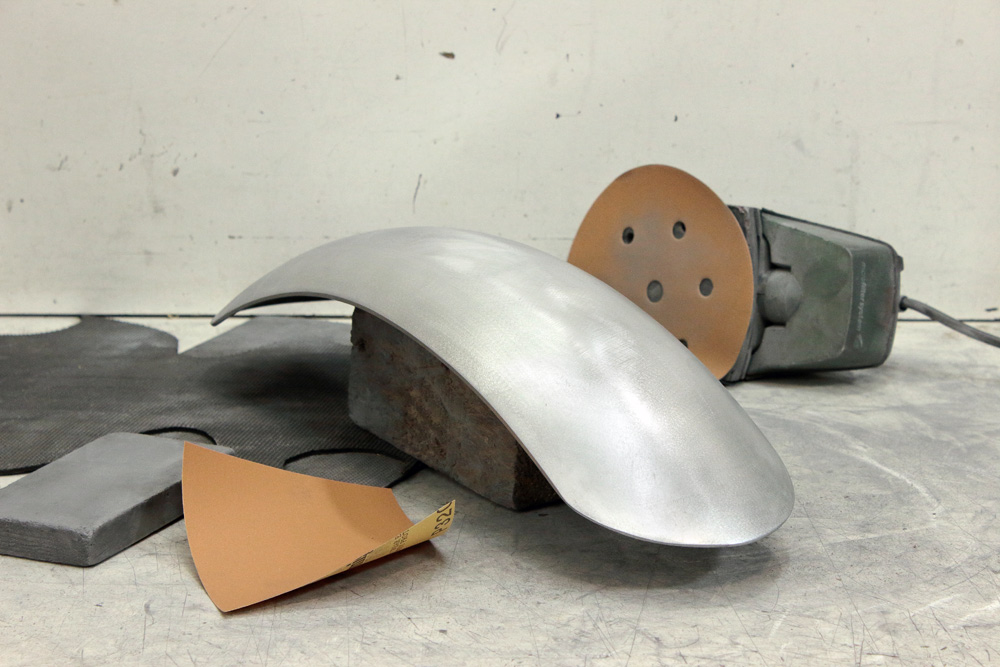

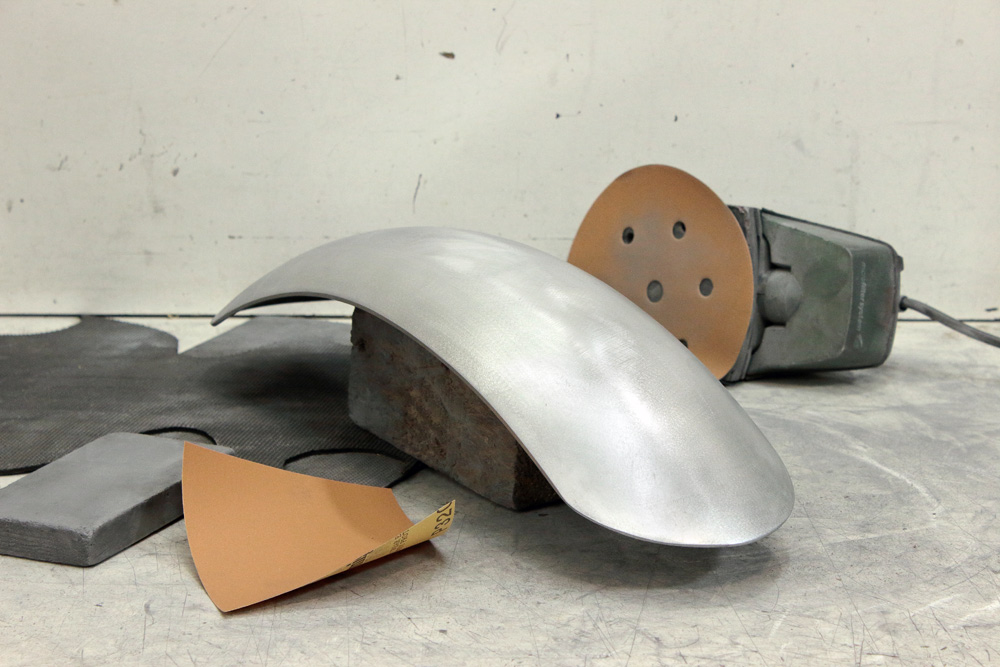

However let’s return to the front mudguard. After I finished hammering it was time for initial cutting, sandpapering , ends’ rounding and side edges’ aligning. To simplify the job I sandpapered outer (face) side of fender, but I left its inner surface untouched, so it still has central line which I scratched on it when mudguard was mere flat sheet of aluminum.

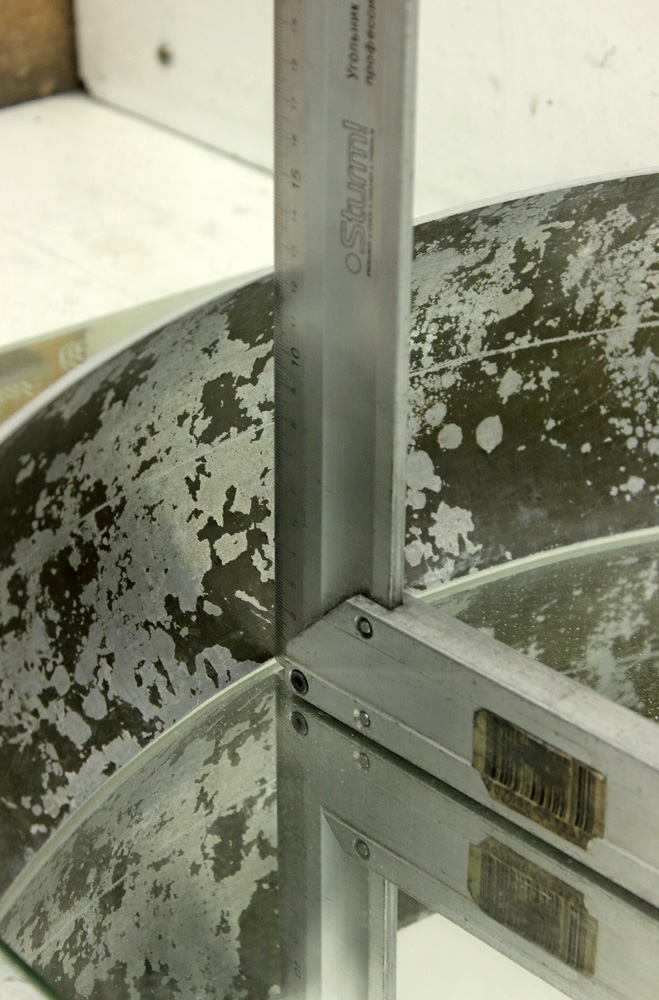

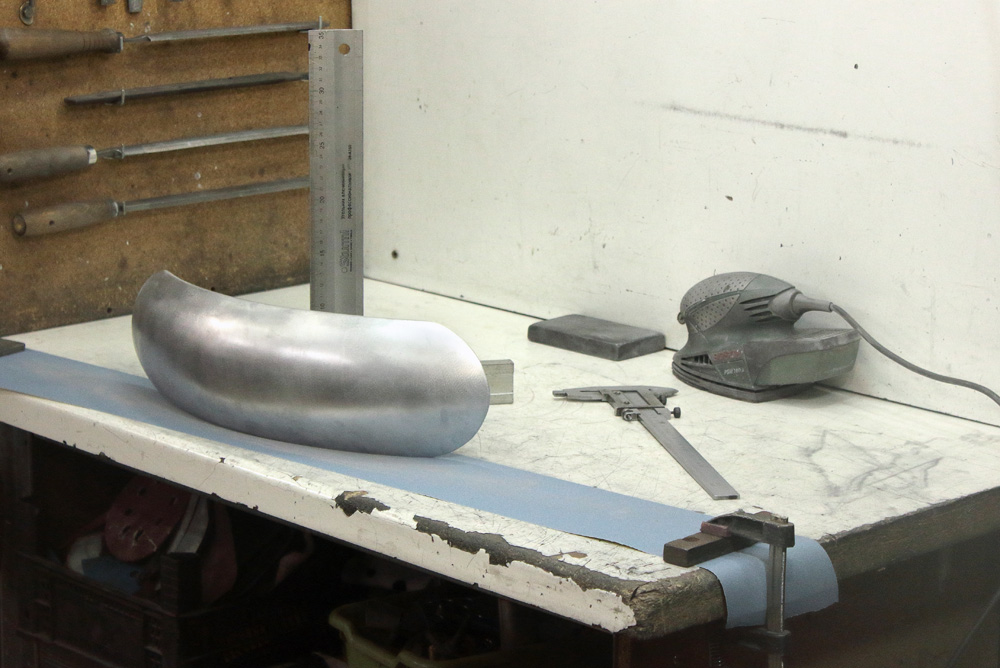

This central line helps to keep fender symmetrical, whenever you round its ends or align side edges. And talking about side edges: the simplest method to grind them on flat surface controlling with calipers and right angle tool.





As result I got two parallel flat side edges. Then I sandpapered fender up to the grit 400 continuously switching from hand work to grinder and back.

Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by gazzz.

KZ650 cafe-racer 25 Jan 2020 12:47 #817864

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 564
  • Thank you received: 313

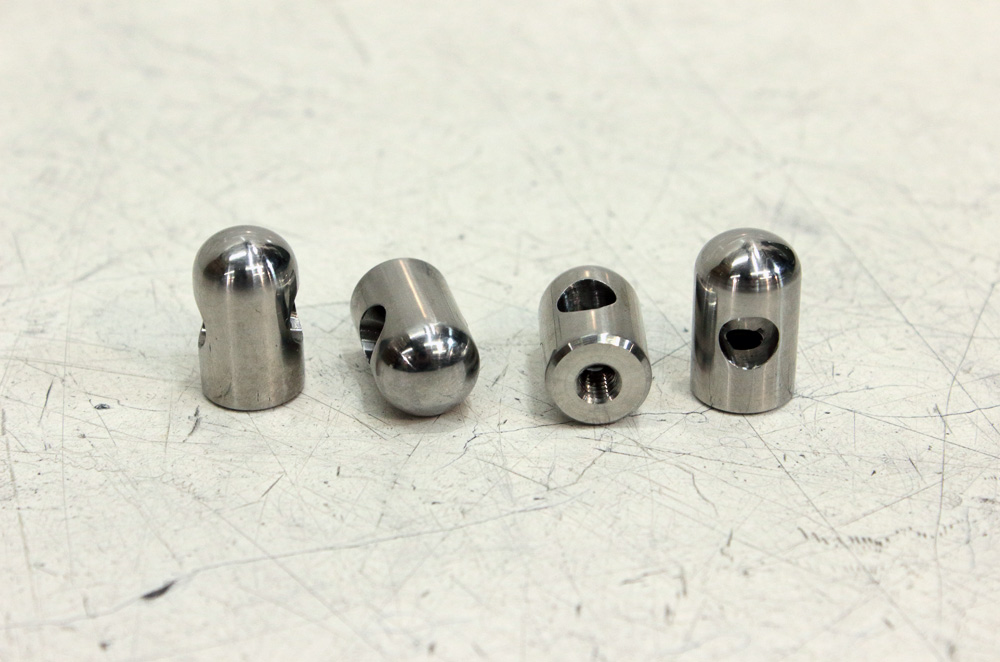

According to my design, the mount of the fender is quite complicated. It is to be made of stainless steel and to consist of four parts made on lathe:

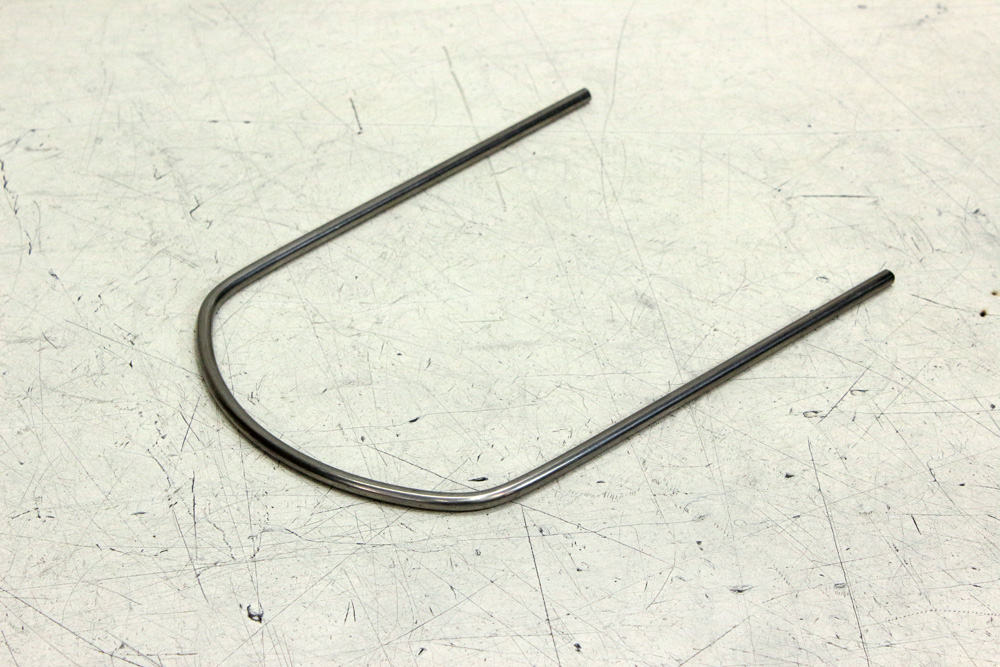

Two 6mm rods bent like this:

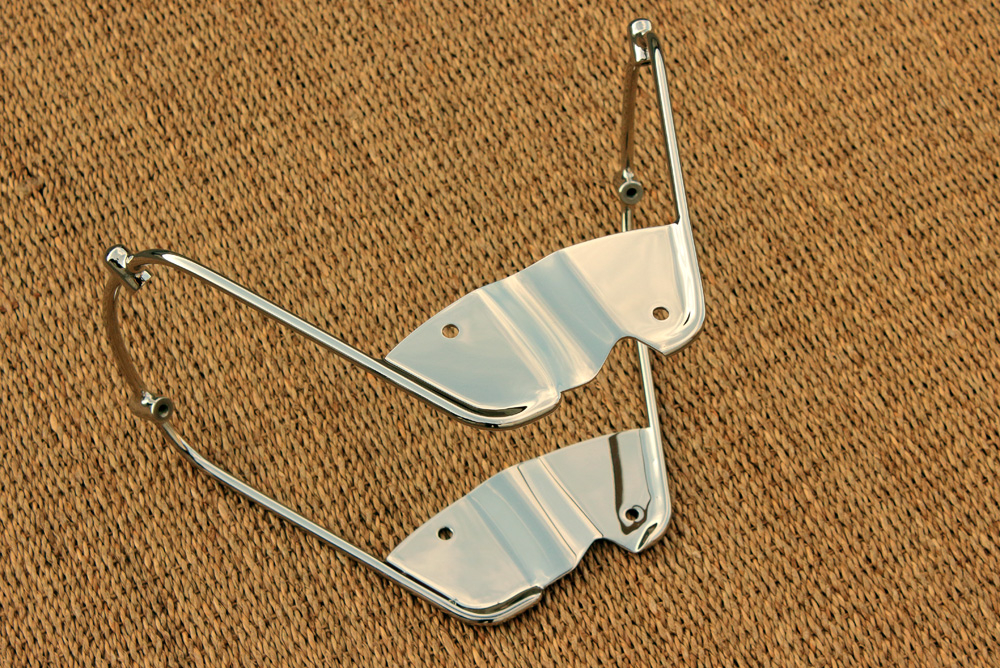

And also some mount plates. I didn’t order them to be cut on laser, as they would to be bent before drilling and cutting. However, to get two parts of identical dimensions I used old method: after I bent plates, I drilled mount holes, then screwed them together and only after that shaped them and grinded edges.

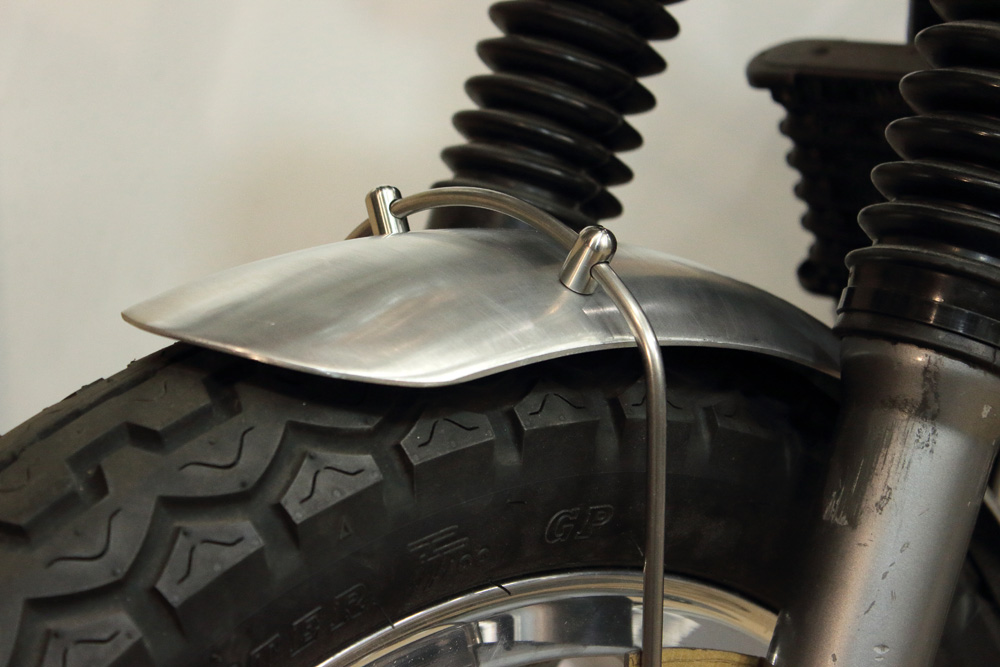

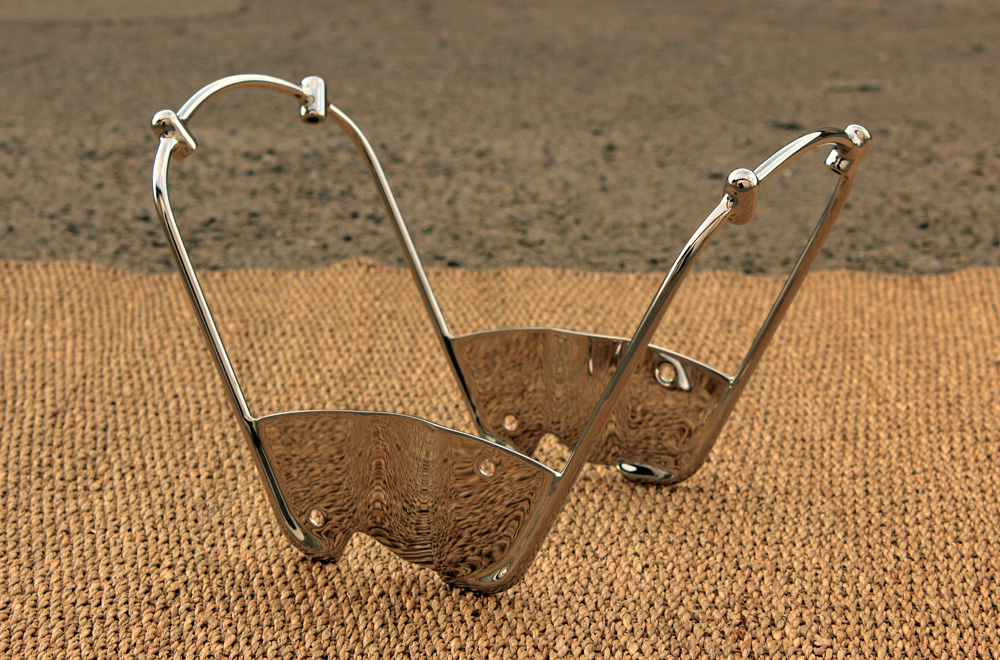

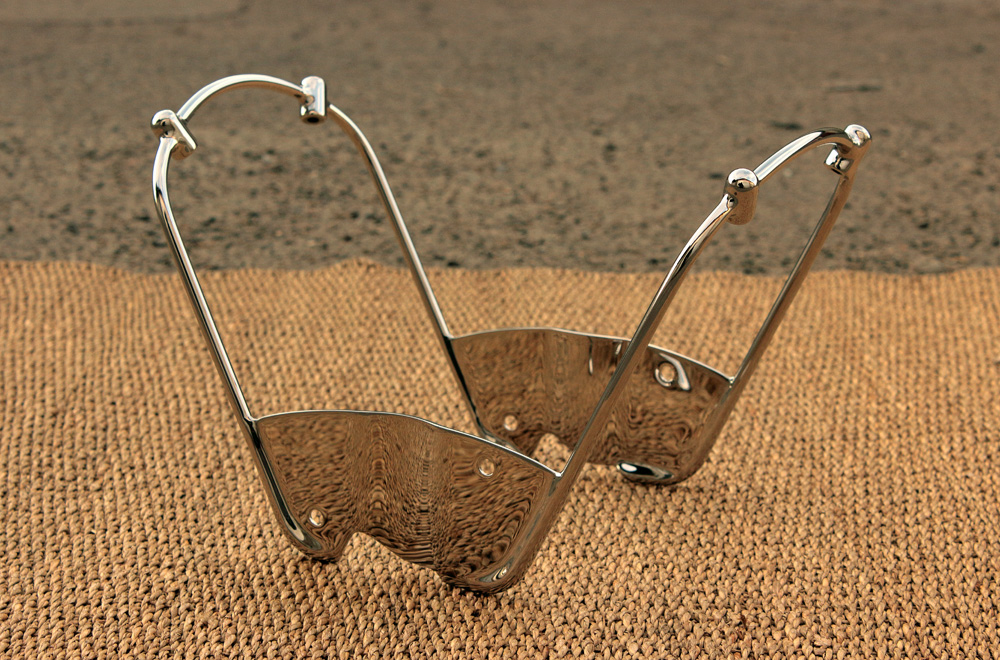

Photo "how it would look".

Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:
The following user(s) said Thank You: Scirocco

Please Log in or Create an account to join the conversation.

Last edit: by gazzz.

KZ650 cafe-racer 25 Jan 2020 12:51 #817866

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 564
  • Thank you received: 313

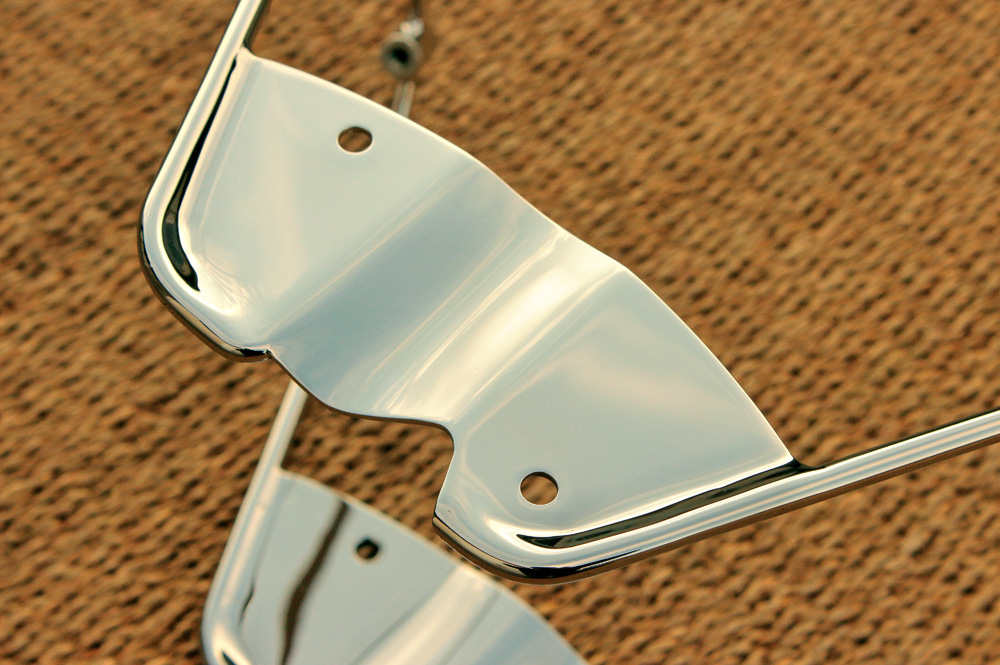

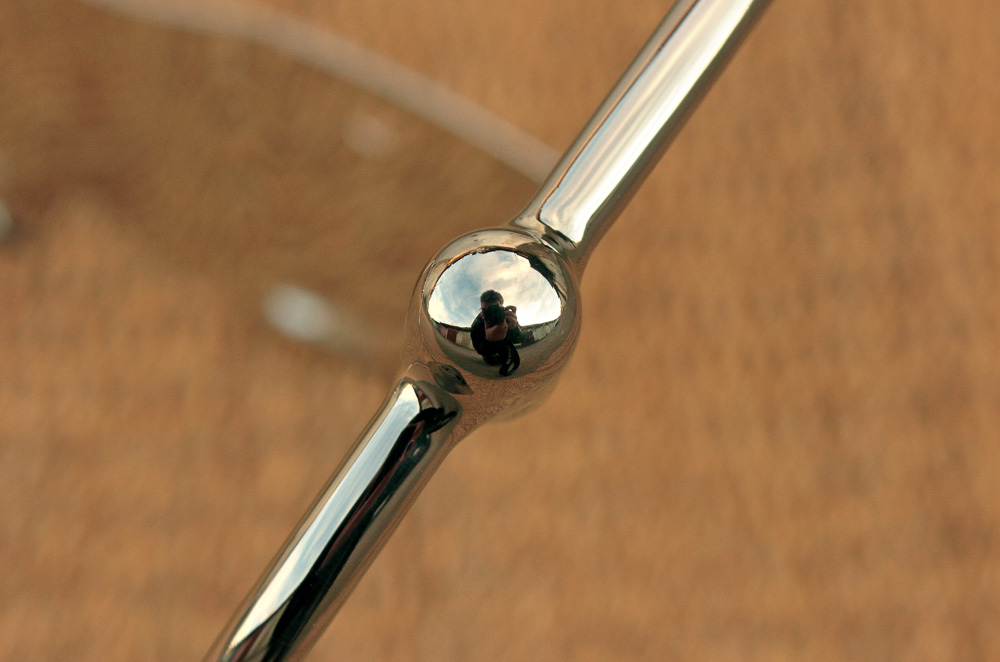

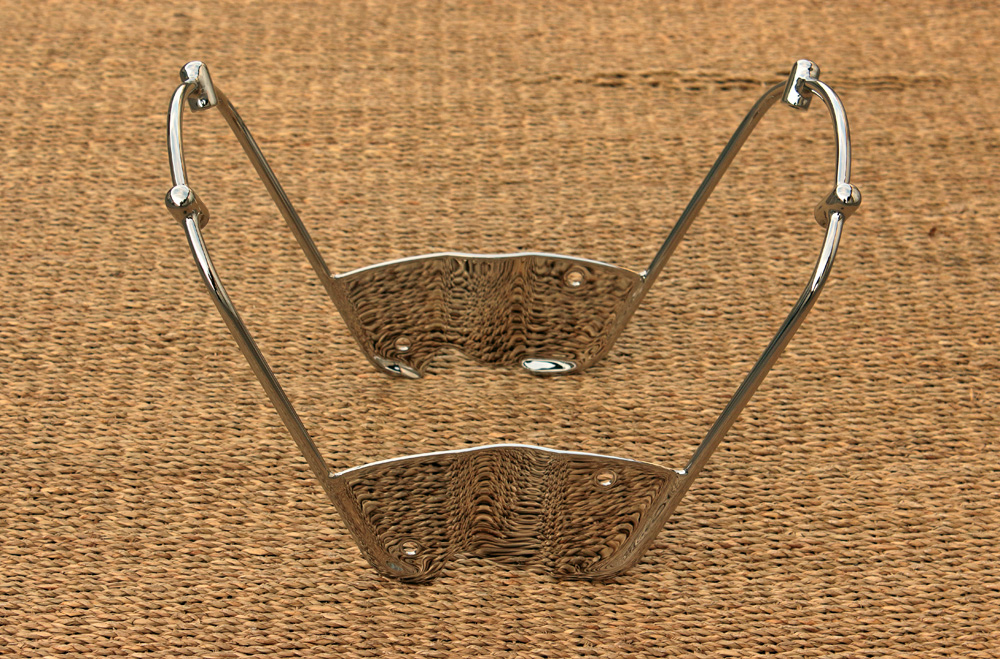

I prefer leaving behind the scenes of how I adjusted and welded together all eight parts of fender mount. After parts were welded together I had a lot of grinding work. And sure, some additional decorative welding was done were it was necessary (to make welding seam zones smooth).

Work took a lot of man-hours as it had to be done very accurately. When the finish of grinding and sandpapering became quite visible, mudguard mount already began to look really nice. I smoothed perfectly welding seams on outer sides of mounting plates, however I wasn’t so picky with inner sides: one have to know the edge between perfection and madness…
Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com

Please Log in or Create an account to join the conversation.

KZ650 cafe-racer 25 Jan 2020 12:56 #817868

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 564
  • Thank you received: 313

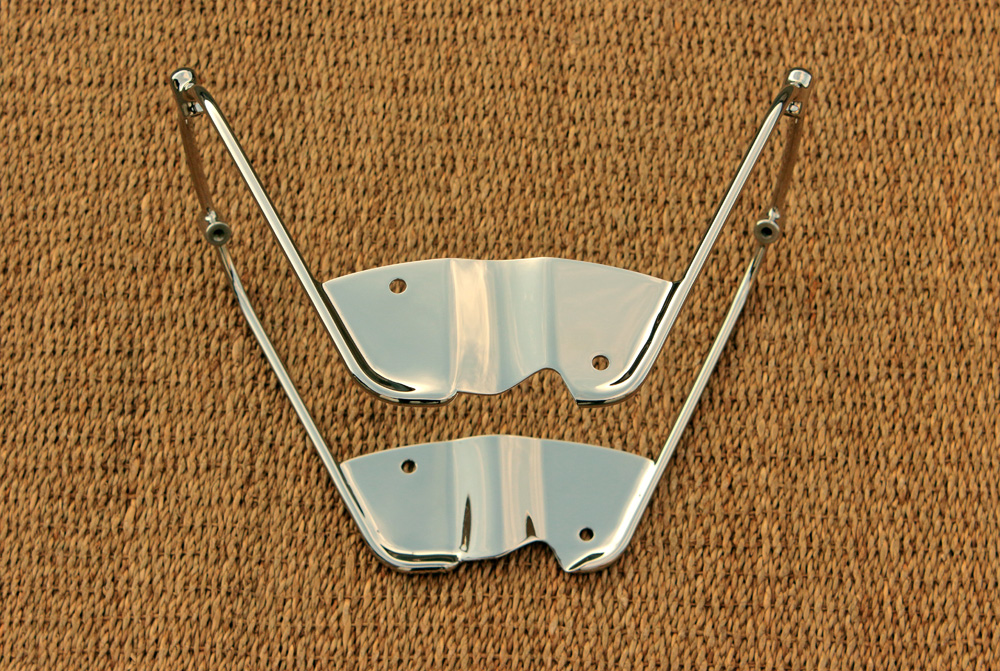

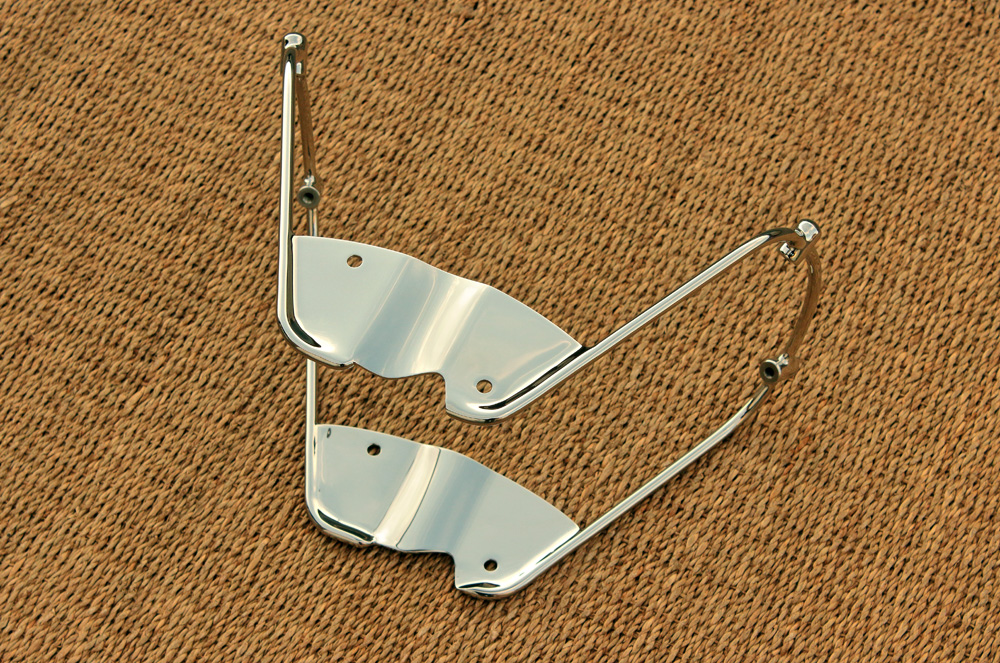

Final sandpapering took some time, still it’s essential to do the job right if you are about to get mirror finish after polishing. I have nothing to say about polishing itself, I just did it as usual: first polishing to show remained flaws in sandpapering, then correction sandpapering, then again polishing, and so on and so forth until I was satisfied. Result looks great:
