Been there, done that. That is, upgrade my '73 Z1-900 to wider wheels/tires: 17" Excel rims, SS spokes nipples, Avon radial tires, GS1100 swingarm to fit wider rear wheel and tire (166mm wide Avon radial), Works Performance shocks, Race Tech front fork springs w/emulators, braced frame and aftermarket engine bolt kit, offset countershaft sprocket, offset rear sprocket, etc. I knew it would not be an expensive endeavor, but in this iteration of my old Z1 (there have been earlier handling improvements on this beast), I wanted to see how the handling would change with my already braced frame with aftermarket engine bolt kit and the suspension upgrades accompanying the 17" wheels and radial tires.

Did I like the chagnes. You bet! The handling is better as is the braking, and the bike sits lower which suits my 29" better. I

That is really nice you should sell more than a few once word gets out..... always thought about and planned on it (4 or 6 over)when I got the 810 or 831 kit but then got old and got cheap.....

Was going through some old catalogs a few weeks ago and a place down south M and M racing had a set of fiber glass fenders, tank etc along with all the engine hop ups for cheap that I had prices circled in and "I swear to God" I had their street strip 4 inch over swing arm listed for 325 and I thought to myself man those were the good old days and then you put this up.

Yes basically it seems that I have 3 choices

1) 2 pack paint => most durable and glossy, toxic and better left to the professionals

2) Acrylic Lacquer => Great glossy finish, easy/quick to apply and buff, but prone to gasoline

3) Enamel => Not so glossy and takes forever to cure, But with some durability and resistance to gasoline


As I use the bike for riding and not so much show/concourse I think I'm going with option 3. I've used Duplicolor Engine Enamel with some success for my GPZ900R and they indeed are durable (used them for engine,swing arms and wheels)

gpzninja.blogspot.com.au/2016/11/gpz900r-restoration.html

Ok, I heard somewhere you can modify a clubfoot swingarm to accept bearings so you can use shocks.
A rigid with my back will not work.
Was I wrong or do anyone in this vast knowledge base we call kzrider know if this can be done ?

I repaired the wiring loom and rebuilt the carbs before firiring it up and riding around the block a couple of times. After that i stripped the bike down to its frame and started reassembling it, repairing or replacing parts when i thought they needed it,The bikes not a resto just cleaned up.with a couple of custom touches.
The main things done so far....
Repaired the wiring
rebuilt the carbs

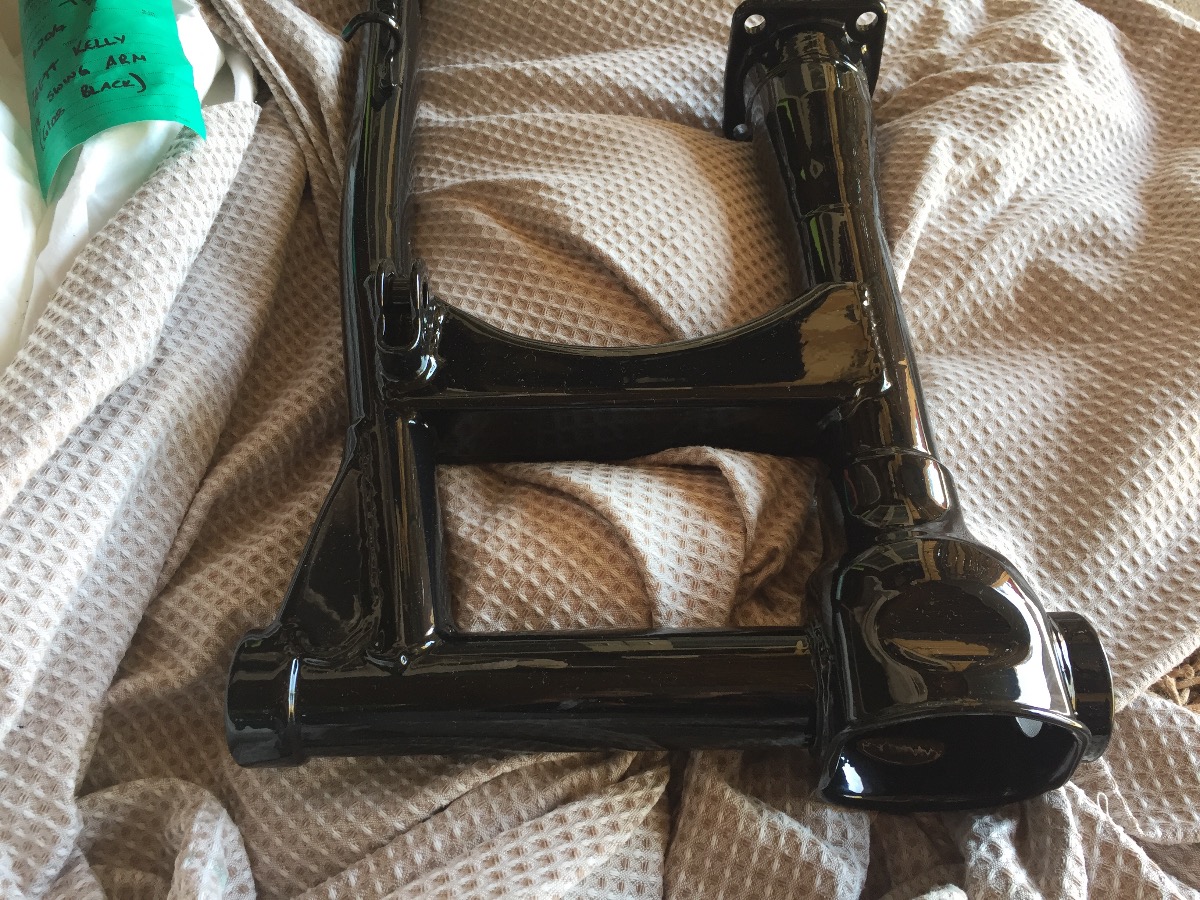

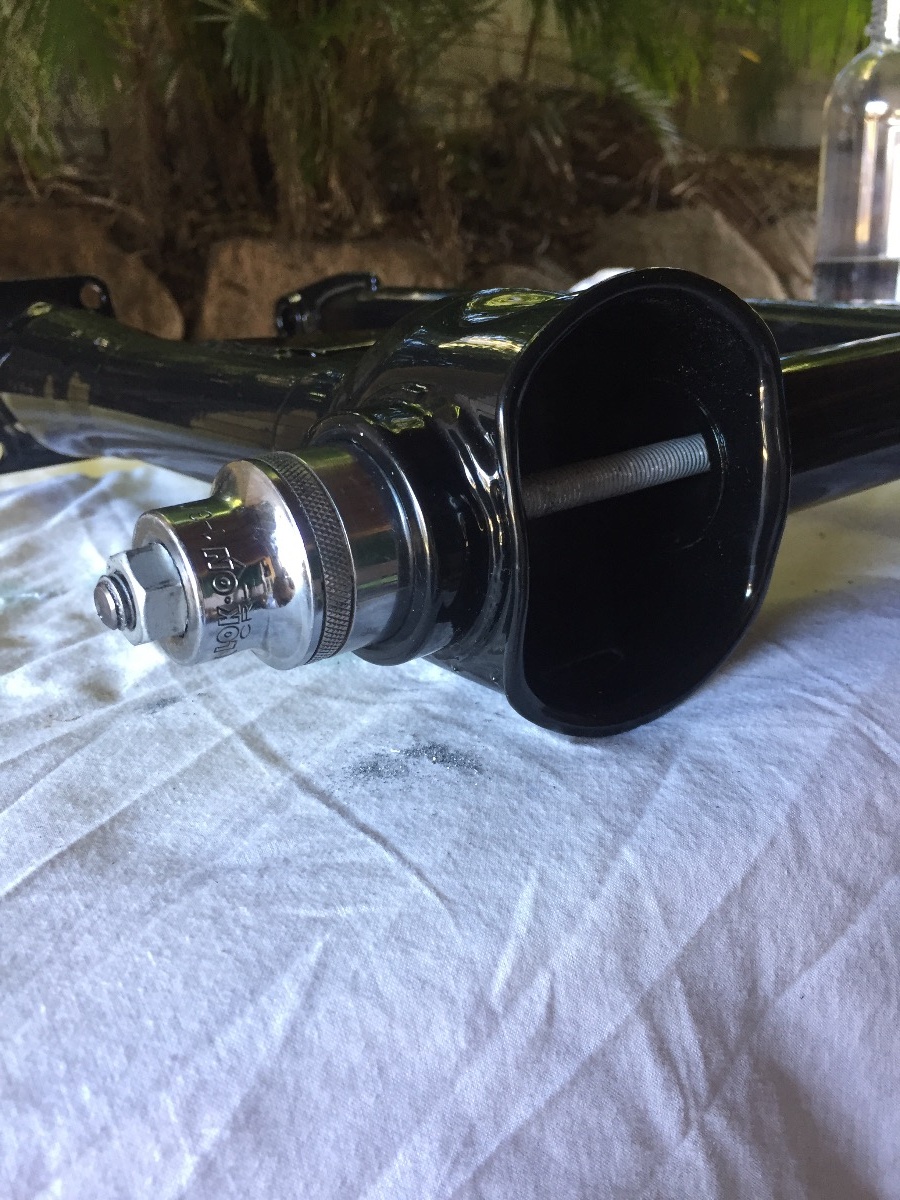

cleaned up the wheels and swing arm with new bearings and paint
Custom chain guard and modified front guard
stripped and rebuilt brakes s
new disks, pads and Braided lines

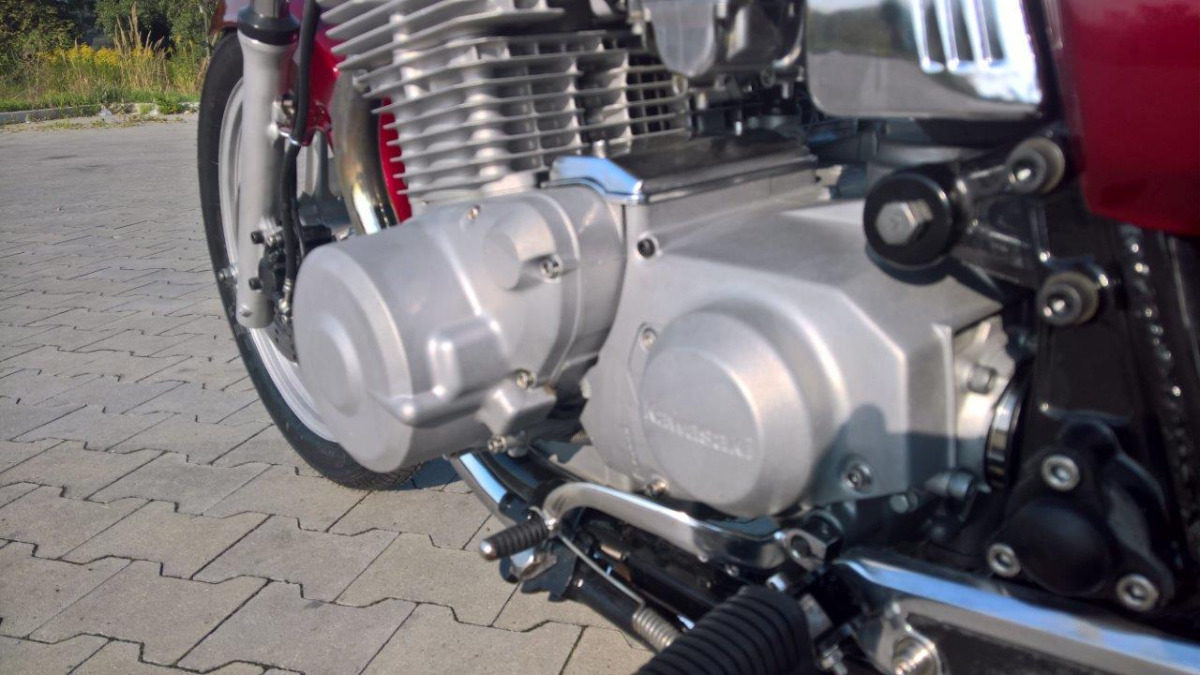

Full service of engine

I Still need to
Finish the paint
rebuild forks (waiting fork new stanchions and seals to arrive )
Fiinish exhaust
tune
ride
other stuff

It runs! And it started right up as soon as I pushed the start button ( well the second time, after I gave it a few seconds to let some fuel get to the carbs ) and it idled great. It was pretty warm yesterday, I had to take the chokes off in just a few seconds so that is a good sign. Between that and based on the jetting I'm using with the VM30s on my 76 I think the stock jetting on the VM28s will be pretty close. Though this one has had a little porting work done to the heads so it may flow a little better.





VM28 carbs, throttle cable and Uni filters were installed. Carbs synced and throttle cable adjusted. Had one small hiccup with the petcock, it leaked a little, but that was simply because the bolts holding it on had not been tightened - rookie mistake. Tightened them up and everything appears to be working fine - didn't spot any leaks at all. Then I put in fresh plugs and put a few squirts of oil into the cylinders. I kicked it over a few times before trying to start it to get some oil moving and make sure everything rotated okay.

Before I take her on her maiden voyage and start tuning the carbs I need to do a few things. I have the clutch adjusted for lever feel but I need to pull out the manual and make sure I have it adjusted properly. All the motor mount bolts need tightened to spec, everything is just finger tight now. The swingarm needs greased and torqued. The front and rear axles need torqued to spec and cotter pins added. And I need to check all the fork and triple tree and shock fasteners to make sure they're correct too. And for some reason my turn signals stopped working so at some point I'll have to track down a loose connection somewhere I'm sure.

It is pretty loud with just the open headers. I believe I have a pair of cheap emgo slip on mufflers sitting around somewhere, I will probably put them on for the time being until I start working on the new exhaust.

D) Narrow the swing arm.

Seems like tail wagging the dog here. Surely easier ways around it?

I know for the GPz z1000 J R etc chain drives there are arms that will accommodate fat tyres with basic machining and twin shock mounts fitted, IIIRC FZR or GSXR 600 ? ZRX 1100 are also quite a popular fit.

oh and just realised this is in the wrong section. Can a moderator please move it to the chassis section? thanks

Hey guys so I need some input please.

I have to widen my frame at the pivot point to accept a wider swingarm. It's about 45mm wider total. So I need 22.5mm (or about 7/8") either side if I keep things central.

The frame doesn't have enough metal to remove that much without weakening the pivot points. It's a shaft drive so the pivot points are also threaded to hold the pivot pin/bolts that hold the swingarm. Here are some pics so you can see what I'm referring to. The whole issue is complicated by the fact that 3 tubes join at this point of the frame and there is like a folded gusset over the inside and outside of the joint. What do you think would be the best way to widen the frame?



a) Cut the cross supports and stretch the frame at the pivot point, then weld in new cross supports and bracing? This may misalign the threaded pivot points from being perfectly parrallel.
b) Add material to the outside of the pivot points which will allow me to remove the required amount from the inside of the pivot point Downside is the added material won't be directly under the tubular sections that join at this location, but rather "next to them"
c) Cut out the entire pivot point and insert completely new section that can be laser cut from thick steel plating, with locating points that go into the tubular steel before welding it together. Then thread the new steel plating for the pivot bolts. (let me know if I need to draw something to explain this better)

Back at it again here and going to drive this across the finish line. I've decided I'm going to move the petcock location back a half inch since I have to redo the tank anyway. Fixed a headlight wiring issue, wired in the high beam indicator light and I believe that wraps up the wiring. After riding it late last season, the shock seals must have given out and the rear shock puked oil all over the garage floor. I've just finished replacing it with a ZR7s rear shock. Had to narrow the top shock mount bushing by 2mm and add two washers and a longer bolt on the lower mount. As this shock is 1/2 longer, I'm going to have to flip the chain adjustment bushings and move the axle towards the top of the swingarm or I can't use the center stand. The wheel and tire now set just a bit lower than the bottom of the center stand. Which brings up a question:
What is the best way to rotate the chain adjusters on an 83 to 85 GPz 750? I have to pound the bloody hell out of the to get them to budge. Pounding on things rubs my fur the wrong way. Yes I've loosened clamping bolts at the rear of the swingarm. What a massive PITA. Can't believe racing teams put up with this crap.

That indent you describe is a common problem. It is the result of damage known as "brinelling" see en.wikipedia.org/wiki/Brinelling .

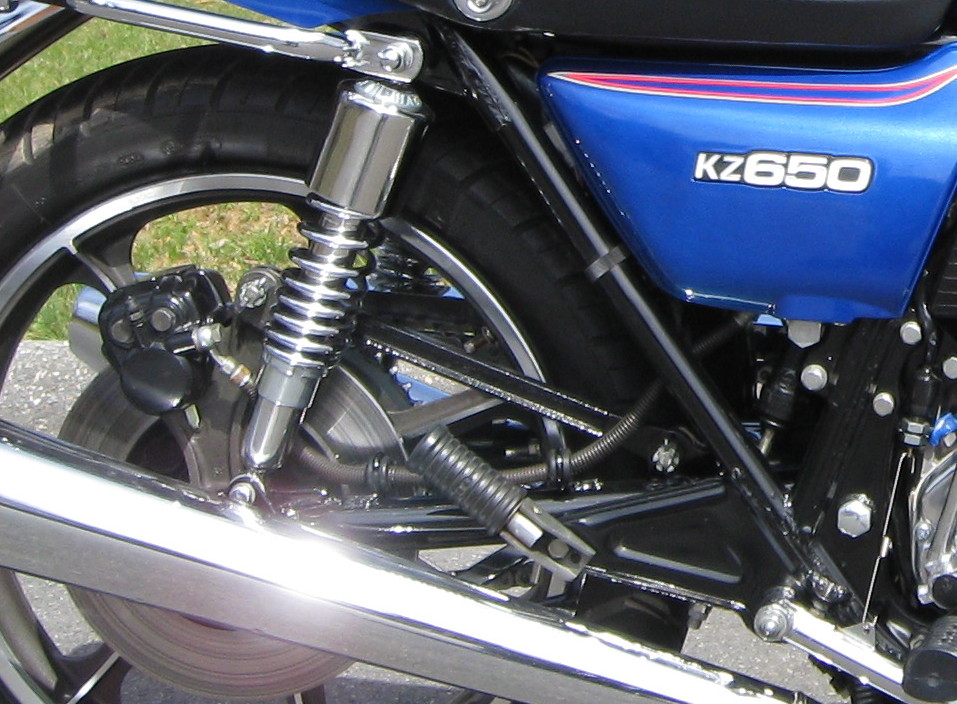

There is no repair for the problem other than replacing the bearings. You should replace the steering stem bearings with tapered roller bearings. The folks at www.allballsracing.com should be able to tell you exactly which ones you need for your bike. I installed their tapered roller bearings in my KZ650-C1 years ago and have found them to be vastly superior to the original ball bearings that came in my bike's steering stem.

Brinelling is the result of the balls making impressions in the races when the bike hits a bump or by the bearing pressure squeezing the balls against the races. If it is somewhat severe it can cause notchiness in the steering and sometimes you can feel the front end tend to seek being pointed straight ahead. This is sometimes referred to as "indexed steering." When these conditions occur the front can develop a bit of a low speed wobble (at least this was the case on my KZ650).

Tapered roller bearings give much more bearing surface area than loose ball bearings. Think of the bearing contact area of a tapered roller as a "stripe" for each roller that goes from one end of the roller to the other where the roller contacts the races. Then consider the bearing contact area of a ball as a small "spot" for each ball where the ball contacts the races. The total contact area of the roller bearing "stripes" is much greater than that of the ball bearing "spots." This additional contact area spreads the load reducing the pounds per square inch of pressure at the contact area and eliminates the "dimpling" that is common on ball bearing steering stem races. This reduced pressure also makes tapered roller bearings last longer than ball bearings mainly because the races are much less affected. The reason is easy to visualize when you consider the roller bearings making contact with the full width of the bearing races compared to the ball bearings running in a single line near the center of the races.

That may or may not be the total cause of the wandering, but you should not ignore it. If you have time, a torque wrench, and some other common tools and follow the instructions in the Kawasaki Service Manual you can replace the steering stem bearings yourself.

Here's how I did mine several years ago:

To do this work I had to remove the front forks. I did the work in my basement during the winter. I laid a 4’ x 8’ sheet of 7/8” hardboard on the floor and parked the bike on it. This was to protect the basement carpet from possible stains, and it also enabled me to very securely anchor the rear of the bike while the front forks were removed. With the bike on the center stand, I put a small bottle jack under the front of the engine with a piece of wood between the jack piston and the oil pan to protect the oil pan (image below). I jacked up the front of the bike until the rear wheel came in contact with the hardboard. Then I ran a cargo strap through the swing arm, attached the “S” hooks on the ends of the strap to the edge of the hardboard, and took the slack out of the strap. That strap made the bike very secure. You may want to use this same method if you remove your forks.
Ed
