LED taillight (kz400)

  • Wookie58
  • Away
  • Moderator
More
25 Jun 2024 01:20 #901282 by Wookie58
Replied by Wookie58 on topic LED taillight (kz400)

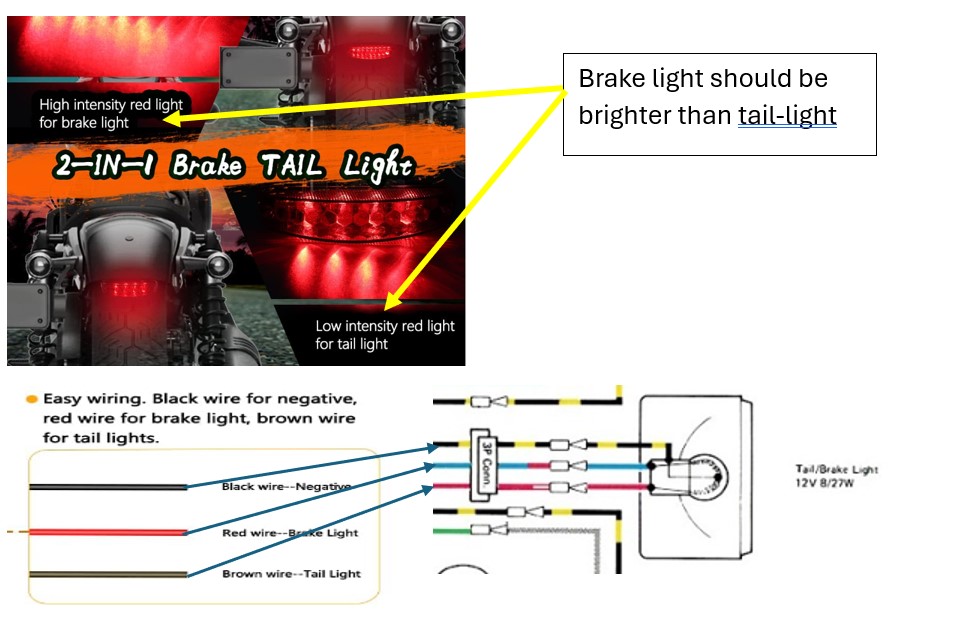

If you have wired it as per the below then the brake light should be brighter than the tail light. I would suggest checking with a voltmeter that you have power on the brake light feed (I know you say the old light works ok) if you have voltage on the blue brake light feed and everything else is wired correctly the lamp unit is probably faulty


The following user(s) said Thank You: ThatYeti

Please Log in or Create an account to join the conversation.

More
25 Jun 2024 04:51 #901288 by ThatYeti
Replied by ThatYeti on topic LED taillight (kz400)
Tried wiring it like that without any success. My money is on the light being bad but have the resistors coming today just to see if that'll help. If not I guess I'll order another of those lights and hope for better luck unless you have a link to the one you used.

'76 KZ400

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Away
  • Moderator
More
25 Jun 2024 05:00 #901289 by Wookie58
Replied by Wookie58 on topic LED taillight (kz400)

Tried wiring it like that without any success. My money is on the light being bad but have the resistors coming today just to see if that'll help. If not I guess I'll order another of those lights and hope for better luck unless you have a link to the one you used.
To be honest if you have the required voltage on the right wire at the right time it only really leaved the lamp unit (I guess at $10 bucks a pop the "quality control" is probably not great )

Please Log in or Create an account to join the conversation.

More
25 Jun 2024 05:46 #901292 by ThatYeti
Replied by ThatYeti on topic LED taillight (kz400)
Ya that's what I'm thinking, reordered another of those lights so if the resistor doesn't help, fingers crossed another light will do it.

'76 KZ400

Please Log in or Create an account to join the conversation.

More
25 Jun 2024 20:07 #901347 by ThatYeti
Replied by ThatYeti on topic LED taillight (kz400)

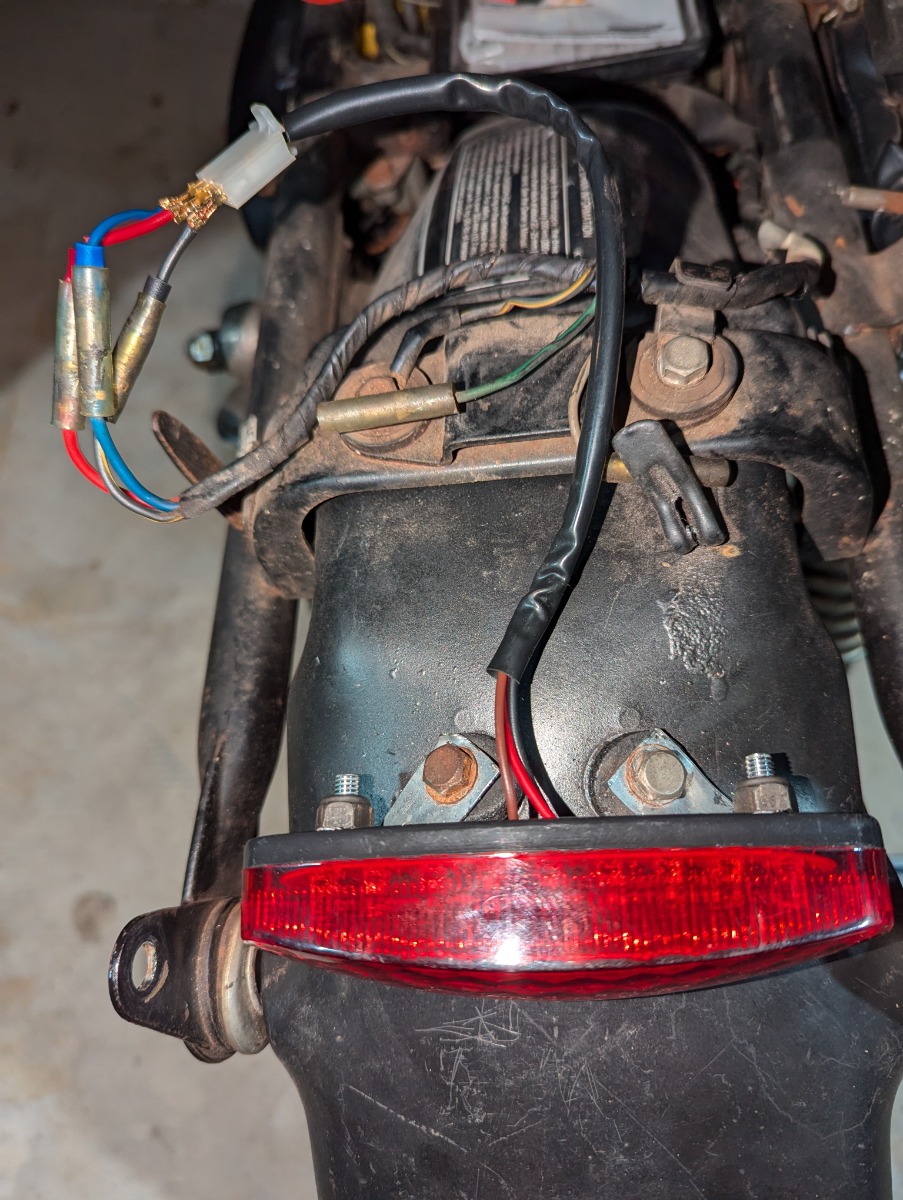

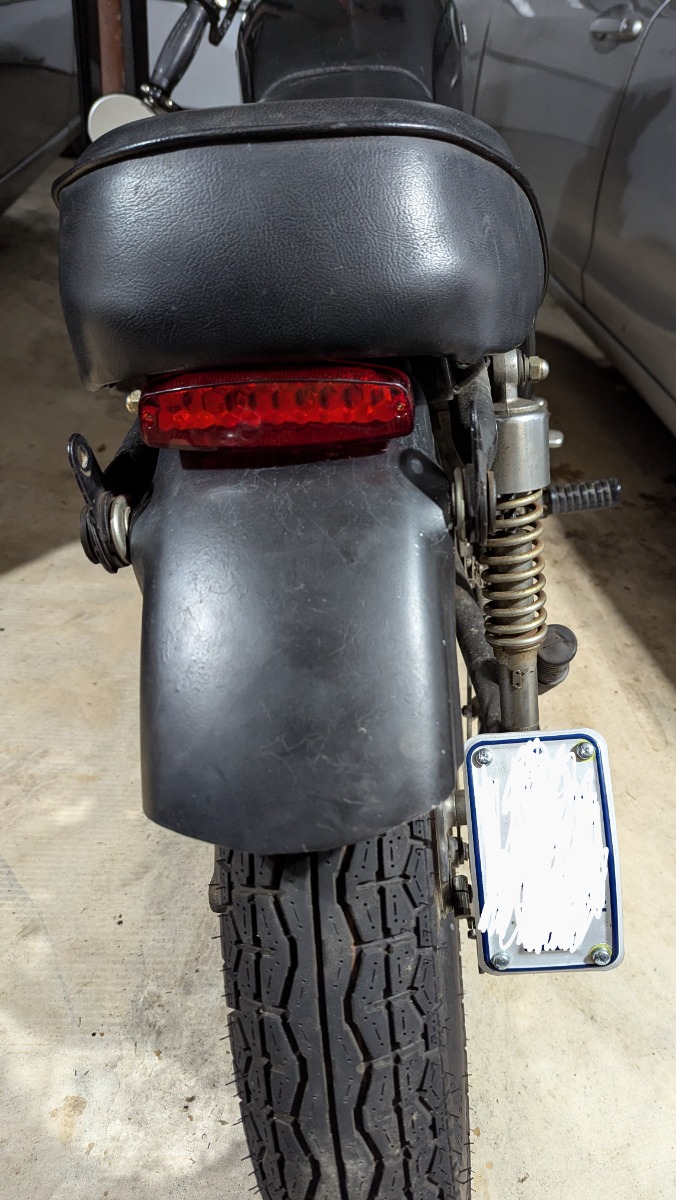

Ok, so I had the thing wired up loose and got it to work, showed the running light with the key on and flashed brighter with the lever and but the stop light on the dash was still flashing. Figured I'd just pull the bulb so went on making a bracket for the light, wired it up for solidly...and now I get no running lights no matter what and I can get the dash light to stop flashing with the resistor and brake light works fine.  No idea how or why but hoping that mess makes sense to someone else.

'76 KZ400

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Away
  • Moderator
More
25 Jun 2024 22:49 #901349 by Wookie58
Replied by Wookie58 on topic LED taillight (kz400)

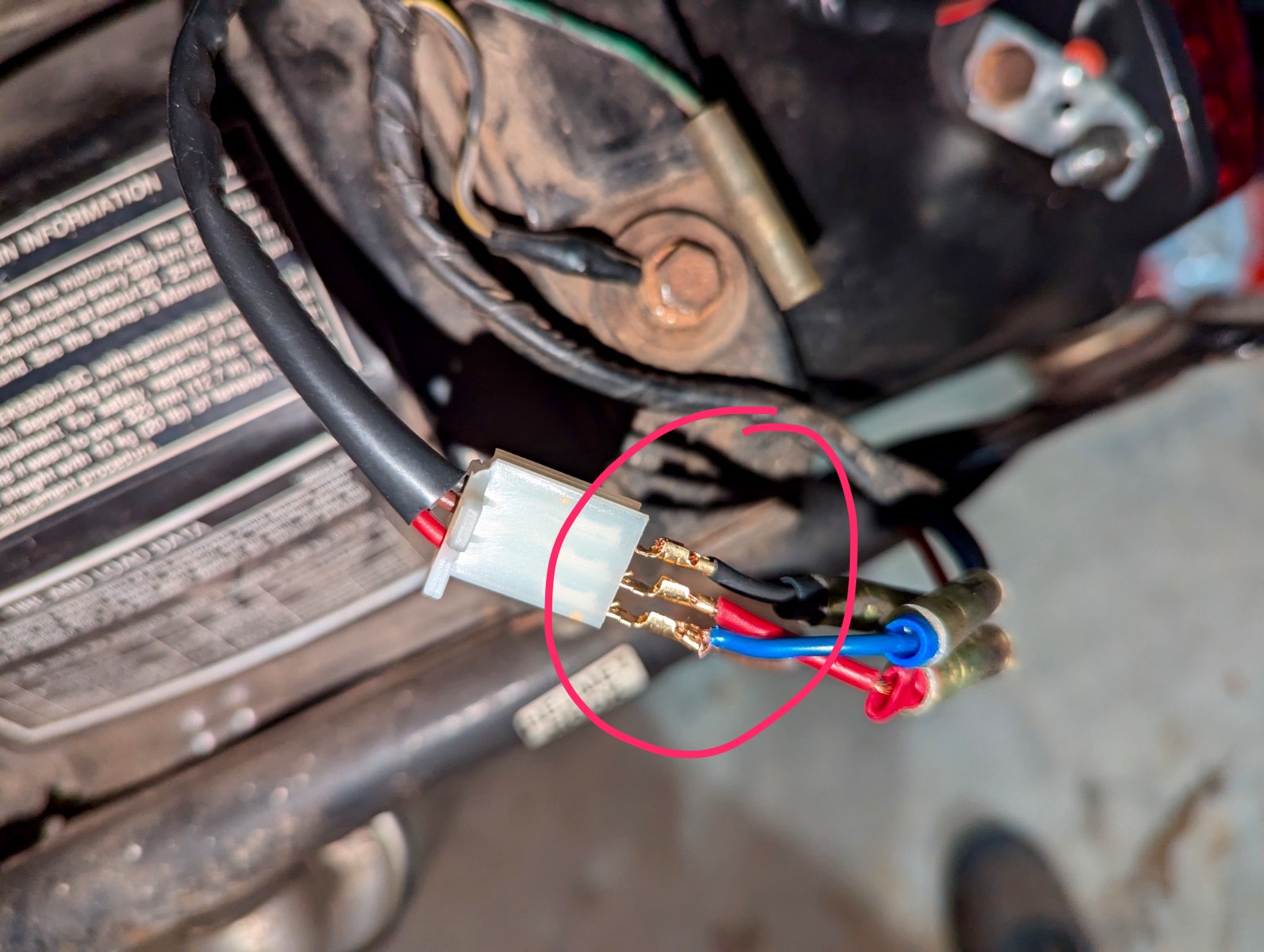

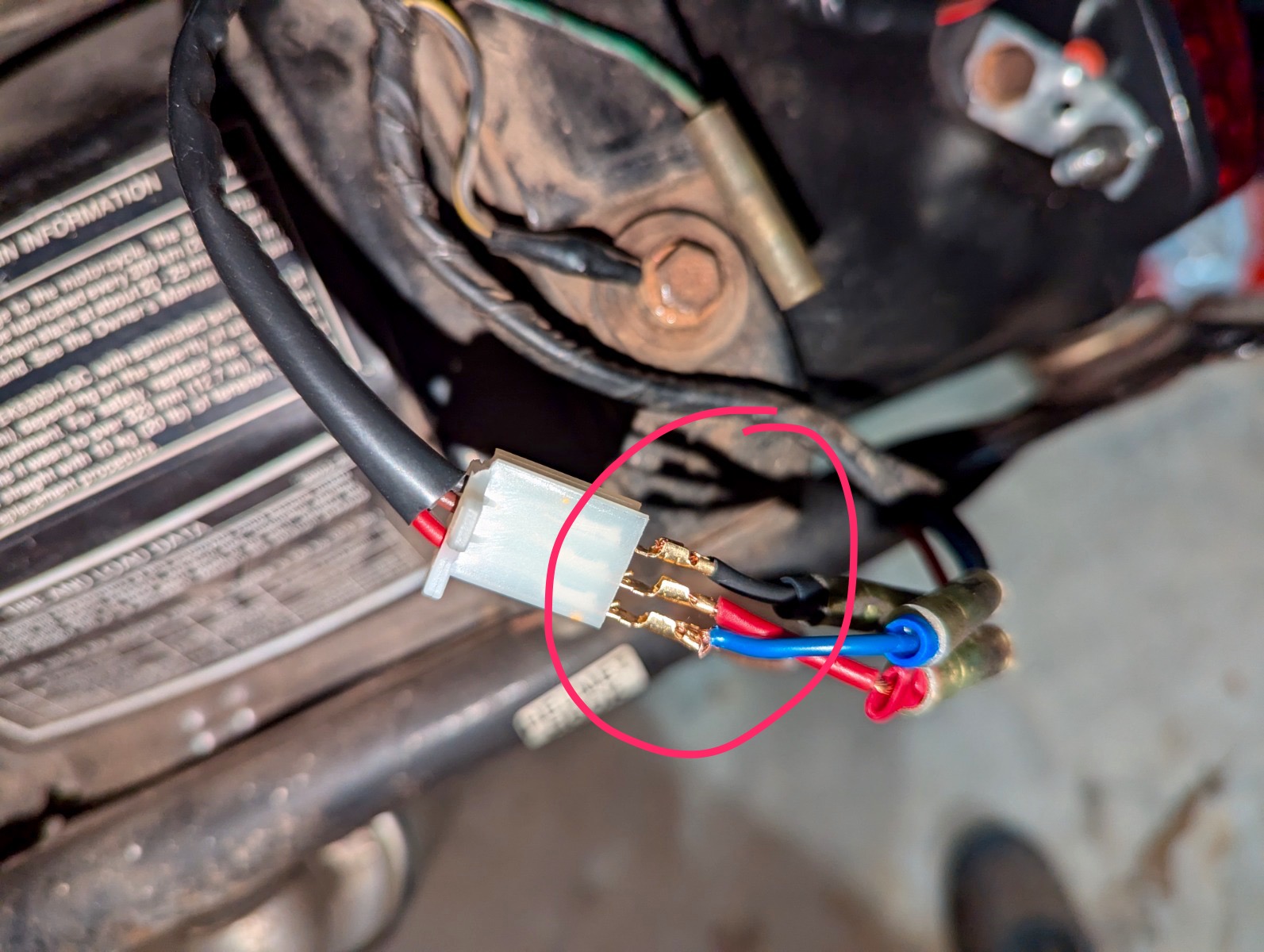

If this is the final version of your wiring I'm not surprised you are having issues, you need to cut that white plug off the light wiring and replace with insulated bullets that will connect to the bikes harness


The following user(s) said Thank You: ThatYeti

Please Log in or Create an account to join the conversation.

More
26 Jun 2024 03:52 #901360 by ThatYeti
Replied by ThatYeti on topic LED taillight (kz400)
Thanks and no, that was just my attempt to confirm it was all working before I crimped it all and found a spot to hide the wires. Had found a matching harness plug to mate with the one the light has but I think I may just match the factory bullets instead as the whole harness plug I got doesn't inspire a lot of confidence. All that said, why wouldn't I get the same results so long as everything is making contact?

'76 KZ400

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Away
  • Moderator
More
26 Jun 2024 04:10 #901361 by Wookie58
Replied by Wookie58 on topic LED taillight (kz400)
You need to hook up a voltmeter and see if there is power to the light unit when it isn't working
The following user(s) said Thank You: ThatYeti

Please Log in or Create an account to join the conversation.

More
26 Jun 2024 05:08 #901363 by ThatYeti
Replied by ThatYeti on topic LED taillight (kz400)
Can't recall if it's with or without the resistor attached but you can see it strobe faintly when it should be showing the running lights solid, so I'd say it definitely has power.

'76 KZ400

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Away
  • Moderator
More
26 Jun 2024 06:07 #901364 by Wookie58
Replied by Wookie58 on topic LED taillight (kz400)

Can't recall if it's with or without the resistor attached but you can see it strobe faintly when it should be showing the running lights solid, so I'd say it definitely has power.
The question is "how much" an LED will glow with 2v, the only way to take the guess work out of electrical diagnosis is with a voltmeter

Please Log in or Create an account to join the conversation.

More
26 Jun 2024 17:15 - 26 Jun 2024 17:27 #901388 by ThatYeti
Replied by ThatYeti on topic LED taillight (kz400)

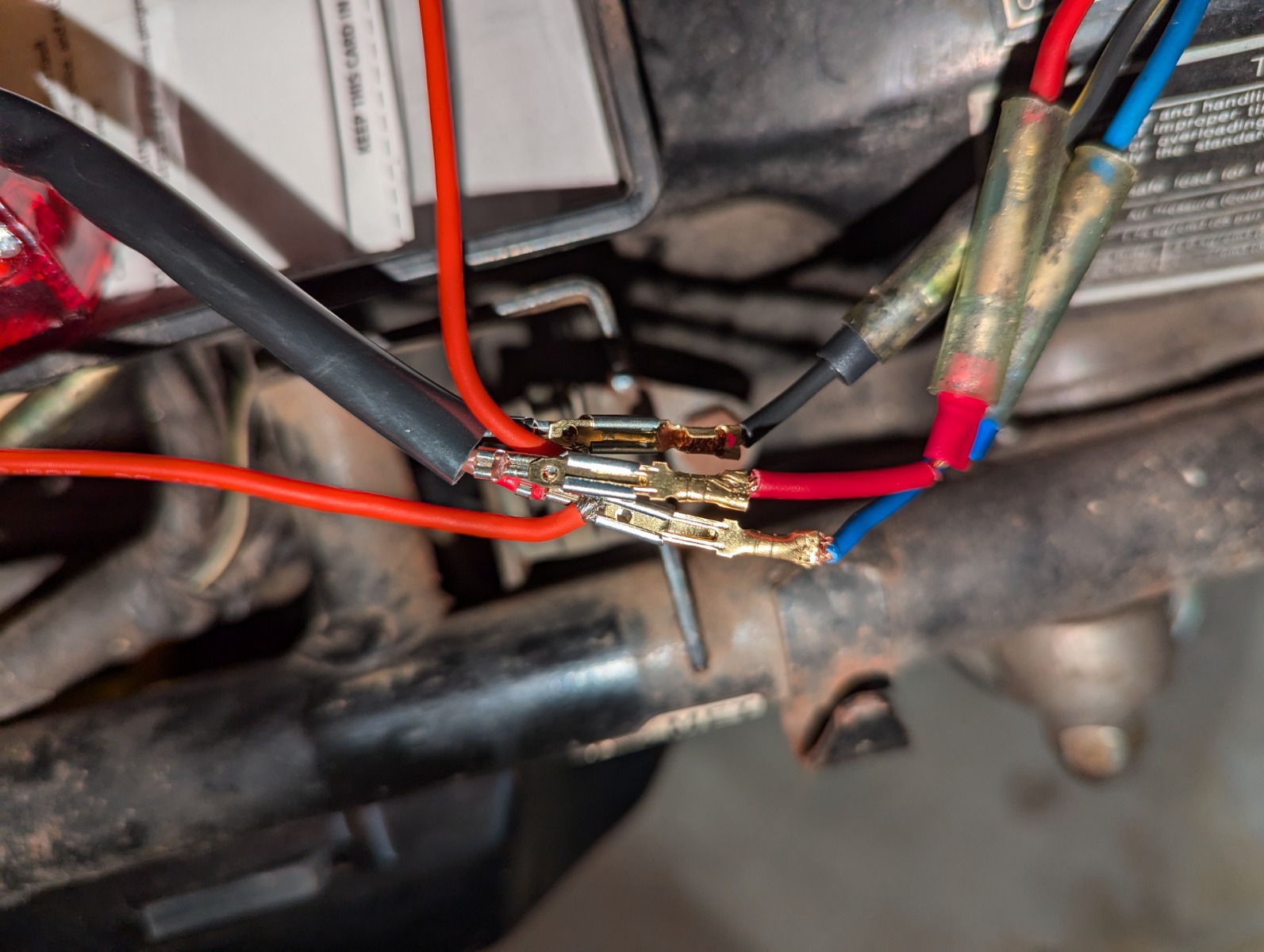

Pulled the connector off and tried wiring them right into the bullets with the new light that came today. Got it to show brake lights at first, but won't light up any more after trying the resistor a few different ways. Also took the new light and pressed the connectors into the clamps on a car jump pack battery and they lit up as expected. What would I check with the volt meter and how would I do it?

'76 KZ400
Attachments:
Last edit: 26 Jun 2024 17:27 by ThatYeti.

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Offline
  • Premium Member
  • Never change a running system
More
26 Jun 2024 17:39 #901389 by Scirocco
Replied by Scirocco on topic LED taillight (kz400)
Your connections looks like the "Gordian knot", OMG
The following user(s) said Thank You: ThatYeti

Please Log in or Create an account to join the conversation.
