2/3 Coil only fires half the time!!! RESOLVED :)
- clutch
- Topic Author
- Offline
- User
- I wish I had a tad more patience to do it better!
Southern Maryland, USA
1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)
Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098

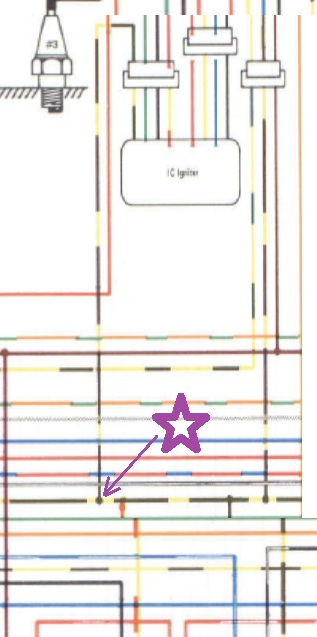

If not already done, would check for a good black/yellow wire connection.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- clutch
- Topic Author
- Offline
- User
- I wish I had a tad more patience to do it better!
- Posts: 1051
- Thank you received: 12
Southern Maryland, USA
1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)
Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...
Please Log in or Create an account to join the conversation.
- clutch
- Topic Author
- Offline
- User
- I wish I had a tad more patience to do it better!
- Posts: 1051
- Thank you received: 12
Southern Maryland, USA
1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)
Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...
Please Log in or Create an account to join the conversation.
- clutch
- Topic Author
- Offline
- User
- I wish I had a tad more patience to do it better!
- Posts: 1051
- Thank you received: 12
Southern Maryland, USA
1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)
Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
I see you swapped the plug wires and the coil wires. So did the problem stay with the green coil wire? Or did it move to the black coil wire?
(I assume you are using the tach to determine which coil wire (green or black) is firing intermittently.)
If it is always the green coil wire, then it's the green 2/3 circuit in the igniter, or it's the yellow/red pickup.
To determine which, you would have to make some jumpers and jumper the pickup wires to the igniter.
Black pickup wire jumps to yellow igniter wire, and yellow pickup wire jumps to black igniter wire.
Blue pickup wire jumps to red igniter wire, and red pickup wire jumps to blue igniter wire.
Then, you have to pull off the timing plate, and remove the timing rotor. You do this by advancing it, then pulling it off (after you remove the small bolt holding it on). Don't try to turn the big nut. It's actually not a nut, but is just keyed to the advancer hub to turn the crank. Be careful with the bolts on the advancer, they have a history of getting messed up.
Re-install the advancer pointer 180 degrees out from where it started. (Normally, originally, the pointer pointed toward the "TEC" logo.) You do this by holding the advancer arms open, then slide the pointer sleeve over the advancer hub. (Just the opposite of what you did to remove it.) (Hope you have 3 hands. )
Now, if the problem of the flakey tach stays on the green coil wire, it is the igniter that is bad.
If it is on the black coil wire, the problem is the red/yellow pickup.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- clutch
- Topic Author
- Offline
- User
- I wish I had a tad more patience to do it better!
- Posts: 1051
- Thank you received: 12
loudhvx wrote: On a 4 cylinder, you can use the swapping method to identify exactly what part is bad.
I see you swapped the plug wires and the coil wires. So did the problem stay with the green coil wire? Or did it move to the black coil wire?
(I assume you are using the tach to determine which coil wire (green or black) is firing intermittently.)
If it is always the green coil wire, then it's the green 2/3 circuit in the igniter, or it's the yellow/red pickup.
To determine which, you would have to make some jumpers and jumper the pickup wires to the igniter.
Black pickup wire jumps to yellow igniter wire, and yellow pickup wire jumps to black igniter wire.
Blue pickup wire jumps to red igniter wire, and red pickup wire jumps to blue igniter wire.
Then, you have to pull off the timing plate, and remove the timing rotor. You do this by advancing it, then pulling it off (after you remove the small bolt holding it on). Don't try to turn the big nut. It's actually not a nut, but is just keyed to the advancer hub to turn the crank. Be careful with the bolts on the advancer, they have a history of getting messed up.
Re-install the advancer pointer 180 degrees out from where it started. (Normally, originally, the pointer pointed toward the "TEC" logo.) You do this by holding the advancer arms open, then slide the pointer sleeve over the advancer hub. (Just the opposite of what you did to remove it.) (Hope you have 3 hands. )
Now, if the problem of the flakey tach stays on the green coil wire, it is the igniter that is bad.
If it is on the black coil wire, the problem is the red/yellow pickup.
Yes, the problem stayed with the green wire, not with the coil. I will try the swap/jumper method tomorrow to get the answer to whether it's the igniter or the pick up circuit. Many kudos to whomever thought this troubleshooting test up!
Southern Maryland, USA
1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)
Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...
Please Log in or Create an account to join the conversation.
- clutch
- Topic Author
- Offline
- User
- I wish I had a tad more patience to do it better!
- Posts: 1051
- Thank you received: 12
~Clutch
Southern Maryland, USA
1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)
Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
- Posts: 6650
- Thank you received: 540
GM HEI Ignition Modules (4 Pin) Cross Index
AC DELCO
DM1906 or D1906
WELLS
DR 100
ACCEL
ACC 35361/ACC 35367
PERTRONIX
D2000
CAR QUEST
21040
NAPA ECHLIN
ECH TP45
NIEHOFF
DR 400
BORG WARNER
Select CBE4/CBE22
GM
10482820
Mallory
607
Jegs
555-40600
Moroso
97857
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- clutch
- Topic Author
- Offline
- User
- I wish I had a tad more patience to do it better!
- Posts: 1051
- Thank you received: 12
Southern Maryland, USA
1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)
Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
But all is not lost. I use Accel 3-ohm coils with no problems on my HEI version of the factory ignitions (and the 3-ohm Accels are very similar to the 3-ohm Dyna green coils). It will typically only be a problem if you have higher than normal compression, or have the plug gaps opened much wider than stock. And if you really wanted to, you could probably easily sell the green coils, and get the gray coils.
Also, if you really are worried about the money, you could do 1/2 of the HEI mod. That way you only have to buy one HEI module (typically $20 ~ $25) and the two diodes and resistor.
For me, it's a no-brainer,... the HEI modules are available at any parts store. You can get pickups cheap, if you check ebay regularly, and they are available at Kawasaki brand new, but not cheap. You can use the actual pickup from any of the models using them (550, 650, 750, 1000, 1100), but the timing plate just has to be swapped between big motors and small motors.
If you ever swap the actual individual pickups, I have a page describing how to get the magnet orientation correct.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- clutch
- Topic Author
- Offline
- User
- I wish I had a tad more patience to do it better!
- Posts: 1051
- Thank you received: 12
loudhvx wrote: The other thing that makes the decision more difficult, is that you bought 3 ohm coils. They are right for the Dyna S, but not quite the ones you want for the factory ignition. For the factory ignition, (And HEI version), you would want the 2.2 ohm (gray) coils from Dyna.
But all is not lost. I use Accel 3-ohm coils with no problems on my HEI version of the factory ignitions (and the 3-ohm Accels are very similar to the 3-ohm Dyna green coils). It will typically only be a problem if you have higher than normal compression, or have the plug gaps opened much wider than stock. And if you really wanted to, you could probably easily sell the green coils, and get the gray coils.
Also, if you really are worried about the money, you could do 1/2 of the HEI mod. That way you only have to buy one HEI module (typically $20 ~ $25) and the two diodes and resistor.
For me, it's a no-brainer,... the HEI modules are available at any parts store. You can get pickups cheap, if you check ebay regularly, and they are available at Kawasaki brand new, but not cheap. You an use the actual pickup from any of the models using them, but the timing plate just has to be swapped.
If you ever swap the actual individual pickups, I have a page describing how to get the magnet orientation correct.
Dude...you are so making this harder. You should have just stopped with the part about the 3 ohm coils being the right ones for the Dyna-S system. LOL!
