Re: 1980 750H bare bones for mattylight

14 Sep 2013 14:29 - 14 Jan 2019 18:28
#606409
Thanks D.

1982 KZ1000K2 Ltd. for Beaner242 based on 1981 KZ1000K1 Ltd.


EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1982 Kawasaki Kz1000K2 for Beaner242
Kz1000K Kz1000 K2 Kz 1000 K 1000K2 1000K
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 14 Jan 2019 18:28 by loudhvx.

Please Log in or Create an account to join the conversation.

  • Beaner242
  • Beaner242's Avatar
  • Offline
  • User
  • Posts: 247
  • Thanks: 16

Re: 1980 750H bare bones for mattylight

16 Sep 2013 22:43
#606731
Thanks so much
1982 KZ1000K LTD Chopper

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

24 Oct 2013 12:18 - 14 Jan 2019 18:30
#611033
Kawasaki KZ900 points, with and without battery.
For fastestz1.

Batteryless version requires reg/rec sense line tied directly to reg/rec output, and also requires lights to be off when starting, so requires on/off switch for lights.





EDIT 1/14/2019:
Mattylight Barebones Bare Bones
Kawasaki Kz900 with and without battery for FastestZ1
Kz 900
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 14 Jan 2019 18:30 by loudhvx.

Please Log in or Create an account to join the conversation.

  • Beaner242
  • Beaner242's Avatar
  • Offline
  • User
  • Posts: 247
  • Thanks: 16

Re: 1980 750H bare bones for mattylight

24 Oct 2013 12:24
#611034
what program do you use to draw these?
1982 KZ1000K LTD Chopper

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

24 Oct 2013 12:33
#611035
Just plain old Microsoft MSpaint. It comes on every version of Windows so it's convenient for me. I can't install programs at work, but it's already there. I'm sure any raster drawing program should be able to edit it.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
The following user(s) said Thank You: Beaner242

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

27 Nov 2013 13:04 - 14 Jan 2019 18:32
#614234

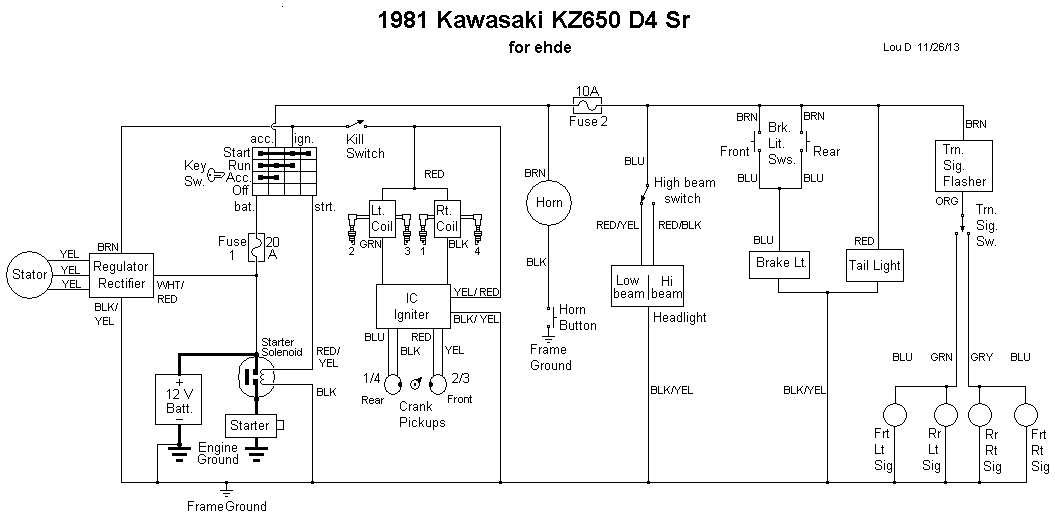

1981 Kawasaki KZ650D4 for Ehde.

with automotive ignition switch.


EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz650D4 with aftermarket ignition switch for Ehde
Kz650D Kz650 D4 Kz 650 D 650D4 650D
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 14 Jan 2019 18:32 by loudhvx.

Please Log in or Create an account to join the conversation.

Re: 1980 750H bare bones for mattylight

30 Nov 2013 05:59
#614440
Awesome! I'm so grateful!

One question though. My ignition switch only have three positions. Off-ign-start, I suppose this will make a differene?

Thanks!

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

04 Dec 2013 11:01
#614767
been really busy. I'll redo it when I get some time.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

06 Dec 2013 03:25 - 14 Jan 2019 18:34
#614894

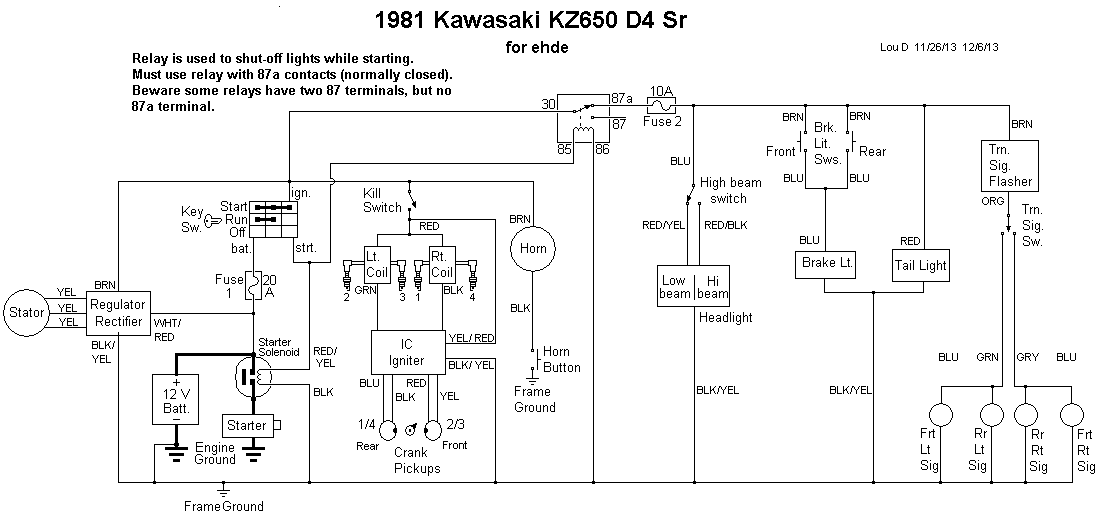

1981 Kawasaki KZ650D4 SR for Ehde.
Redone using relay instead of common car ignition switch toturnoff lights while starting.

EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz650D4 with automatic headlight dimmer for Ehde
Kz650D Kz650 D4 Kz 650 D 650D4 650D
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 14 Jan 2019 18:34 by loudhvx.

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1618

Re: 1980 750H bare bones for mattylight

21 Jan 2014 23:39 - 14 Jan 2019 18:35
#619583

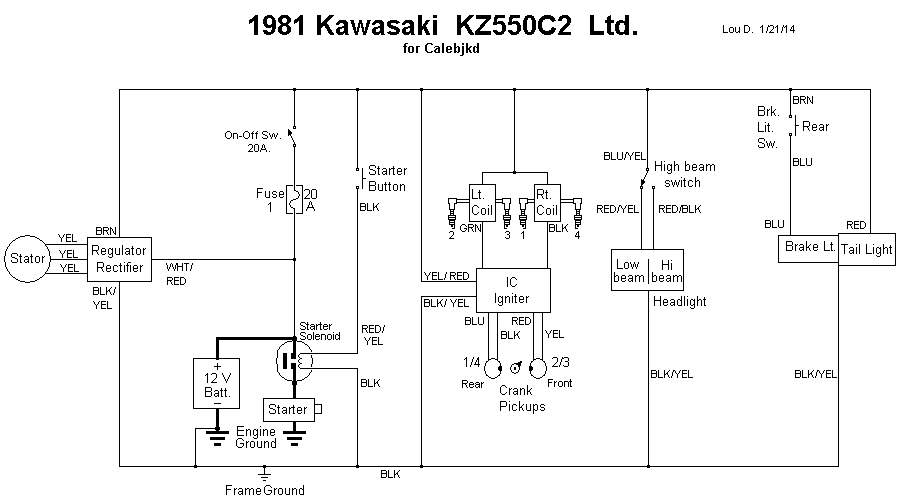

1981 Kawasaki KZ550C2 Ltd. for Calebjkd
