You win a few, and lose a few... 10 Sep 2022 10:14 #873658

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1004
  • Thank you received: 253
The Kawasaki site list the 900 A5 with carb assembly # 255 it shows an air screw and the connector plate. The partzilla site shows the same things.
1977 KZ650 B1
Pods and Denco header


This is my Z

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

You win a few, and lose a few... 10 Sep 2022 11:32 #873665

  • Nessism
  • Nessism's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 6347
  • Thank you received: 2080
Speaking of Partzilla, they show the plate fitting a large number of different models.

www.partzilla.com/product/kawasaki/16065...bcec919ce0de9457b7f5
Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre)

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Please Log in or Create an account to join the conversation.

You win a few, and lose a few... 17 Sep 2022 11:50 #874011

  • Nessism
  • Nessism's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 6347
  • Thank you received: 2080

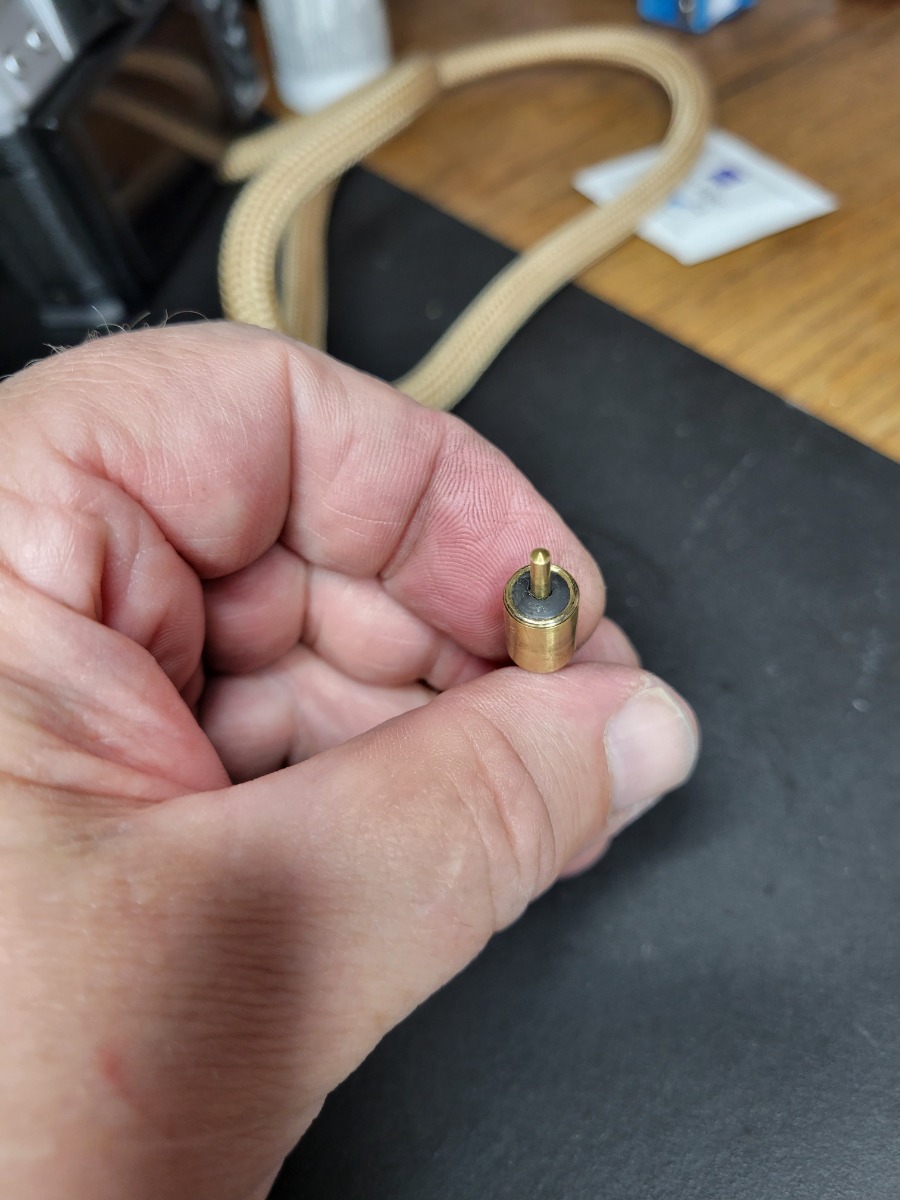

New choke plunger seals using 2mm thick Viton this time.  Once I figured out the proper size for the donut seal, they weren't overly difficult to install into the plunger.  No need to "unroll" the lip, just tuck them in.  This said, I'm not discrediting Zed in the way he refurbishes these parts, I'm just saying this is what I did, and it seems to work okay.


Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre)

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Attachments:
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

You win a few, and lose a few... 19 Sep 2022 07:49 #874102

  • Nessism
  • Nessism's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 6347
  • Thank you received: 2080
I installed new 2mm rubber donuts in 7 more choke plungers yesterday, and now my fingers hurt.  Tucking in the donut works, but it's slow and painful on the fingers.  Zed's method of uncrimping the lip is no doubt better for doing a lot of plungers.

While doing the above a few measurements were taken...

A choke plunger with no rubber donut sticks up 21.41mm above the carb body
A choke plunger with a 1.5mm donut sticks up 22.12mm
A choke plunger with a 2.0mm donut sticks up 22.75mm

This tells me that with a 1.5mm donut, there would have to be a .71mm depression in the rubber before the plunger would bottom out.  Seems unlikely to me, but regardless, I'll use 2mm on all future builds.

Oh, and the donut size of 1.8mm ID and 7.5mm OD works well.  The 7.5 may be a little large even.  Next time I come across a thrashed plunger I'll cut it open and measure properly.
Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre)

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: DOHC

Please Log in or Create an account to join the conversation.

You win a few, and lose a few... 19 Sep 2022 10:32 #874106

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2478
  • Thank you received: 1053

 Zed's method of uncrimping the lip is no doubt better for doing a lot of plungers.



I don't uncrimp the lip.
I don't know where that information comes from but i have never stated that.
The lip remains entirely untouched.
I built mandrels and insertion jigs to get the seals past and under the lip without them touching it and even then some need a second attempt due to one reason or another.
Seals of the correct size and minimum 75 shore are almost impossible to insert manually without damaging the lip or marking it at the very least which is unacceptable for my purposes.
Early manual repairs on my own plungers revealed that the lips can simply fracture around the crimp line due to work hardening, the age of the material and the reduced thickness at that point.



AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL MIKUNI CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

You win a few, and lose a few... 19 Sep 2022 11:07 #874111

  • Nessism
  • Nessism's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 6347
  • Thank you received: 2080

 Zed's method of uncrimping the lip is no doubt better for doing a lot of plungers.






I don't uncrimp the lip.
I don't know where that information comes from but i have never stated that.
The lip remains entirely untouched.






My bad.  I misunderstood your comment about the tooling you made.

Oh, and just to be clear, I don't use my hands to pinch the donut into the plunger, other than to get it started.  That would be impossible.  I get the donut started on one edge, then a couple of different spoon tools are used to slowly pinch/press the donut into the plungers recess.
Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre)

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

You win a few, and lose a few... 19 Sep 2022 18:34 #874143

  • Nessism
  • Nessism's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 6347
  • Thank you received: 2080

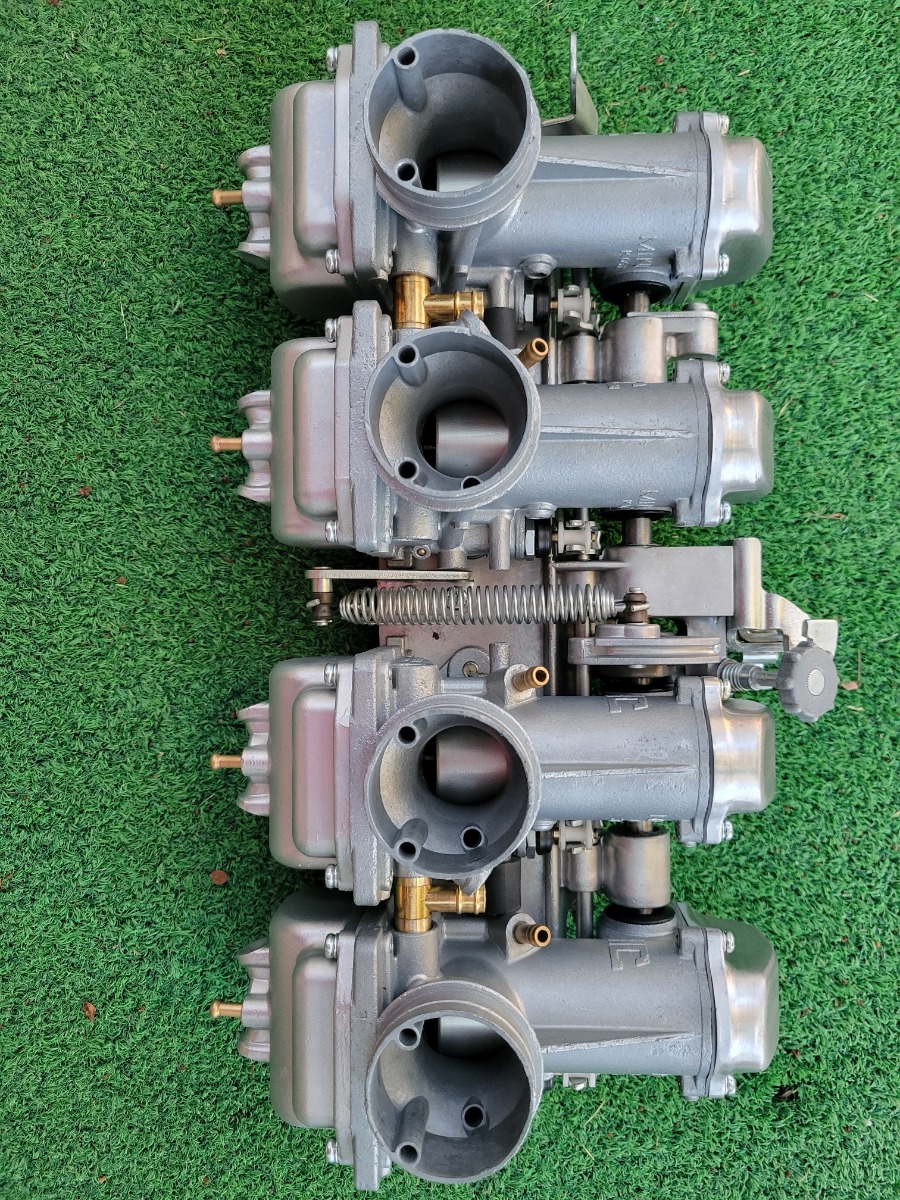

Yet another set (almost) done.  Still need to set the fuel level and install the drain plugs.  This set has a vacuum port on the carbs and code (hard to read) is 102 5A.

Sold the set posted earlier with the fuel screws.  I thought the air screw set would sell first, but apparently not.

Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre)

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Attachments:
The following user(s) said Thank You: gd4now, Mikaw

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

You win a few, and lose a few... 19 Sep 2022 19:12 #874145

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1004
  • Thank you received: 253
Thanks for the info, with a vacuum port on #3 they were intended for a vacuum petcock. I think that was first offered in 1978 and later models.  It may of been used on some very late 77 models, but have found very little info saying so.
1977 KZ650 B1
Pods and Denco header


This is my Z

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

You win a few, and lose a few... 19 Sep 2022 19:28 #874146

  • Mikaw
  • Mikaw's Avatar
  • Online
  • Sustaining Member
  • Posts: 4057
  • Thank you received: 1295
No personal comparison but I have heard the fuel pilots are a better set of carbs.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

You win a few, and lose a few... 22 Sep 2022 09:32 #874256

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1004
  • Thank you received: 253
Not to be a nit-picker but feel like better is a rather subjective term. Will say in my experience pilot screw as opposed to air screw carbs (talking Mikuni vm carbs) are somewhat more forgiving or easier to tune when making changes to intake or exhaust systems, Not sure if that means they are better carbs overall, but what do I know?

1977 KZ650 B1
Pods and Denco header


This is my Z

OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.

You win a few, and lose a few... 24 Sep 2022 07:49 #874408

  • Nessism
  • Nessism's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 6347
  • Thank you received: 2080
Next project...

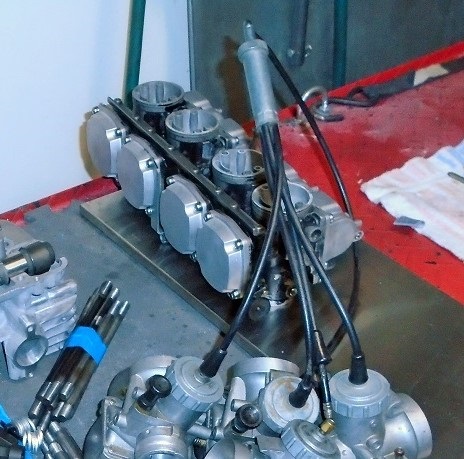

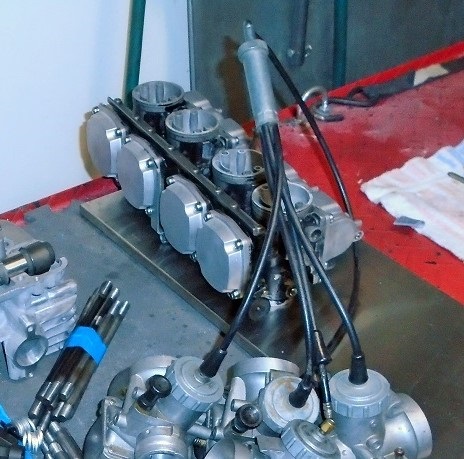

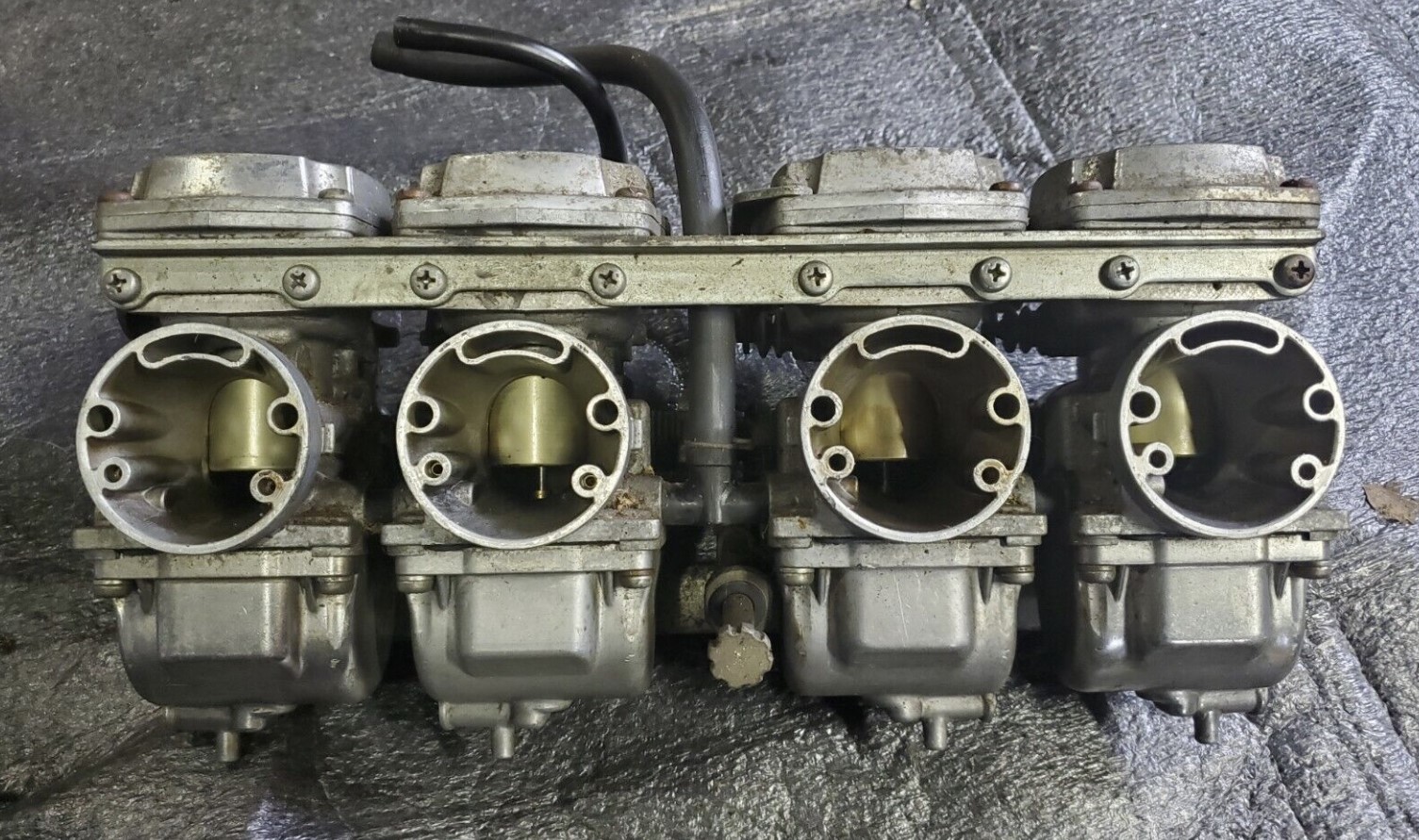

Bought on eBay.  Ad didn't specify model or year other than 1000 & 1100.  The aluminum top caps are nice, compared to some others that used steel.

Tore them down last night.  The various screws were so tight I was afraid of breaking something hammering the impact driver to get them out.  Thankfully, all went okay.


Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre)

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.
