z750L: Repair starter clutch
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1494
- Thanks: 85
z750L: Repair starter clutch
08 Jun 2025 09:40
Hi,
I have discussed the issue with Wookie58 in another thread, but I want to start a new one since it no longer has anything to do with the electrical.
Wiring diagram with munit - REVIEW - KZRider Forum - KZRider, KZ, Z1 & Z Motorcycle Enthusiast's Forum
The issue is that the starter clutch are not engages an make bad metal sound... I tried to removed the spark plug and than was it able to rotate the engine without any bad sound....
I need to start prepare the job....
My first question is about the special tools I need. From what I understand, the only special tool required is a bearing puller?
Do you have a link to one so I can see how it looks like?
I will go over the part diagram to see what gaskets I needs... but what about other parts like the starter clutch it self?
I have discussed the issue with Wookie58 in another thread, but I want to start a new one since it no longer has anything to do with the electrical.
Wiring diagram with munit - REVIEW - KZRider Forum - KZRider, KZ, Z1 & Z Motorcycle Enthusiast's Forum
The issue is that the starter clutch are not engages an make bad metal sound... I tried to removed the spark plug and than was it able to rotate the engine without any bad sound....
I need to start prepare the job....
My first question is about the special tools I need. From what I understand, the only special tool required is a bearing puller?
Do you have a link to one so I can see how it looks like?
I will go over the part diagram to see what gaskets I needs... but what about other parts like the starter clutch it self?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- Nessism
-
- Offline
- Sustaining Member
-
Registered
- Posts: 7721
- Thanks: 3101
Re: z750L: Repair starter clutch
08 Jun 2025 11:02
How much do you love your bike? Ha ha. Sorry, loaded question.
Reason for asking, is that there are a lot of possible upgrades you can do to the bike at the same time you have the engine apart. Replacing the clutch hub rubber dampers, replacing the cush hub rubber dampers on the secondary shaft, replacing the starter clutch gear, and bearings on the secondary shaft. And then there are guys that install a ZR7 sprag starter clutch.
Regarding tools, as you mentioned, a puller to remove the gear. That's the only thing I can remember.
Reason for asking, is that there are a lot of possible upgrades you can do to the bike at the same time you have the engine apart. Replacing the clutch hub rubber dampers, replacing the cush hub rubber dampers on the secondary shaft, replacing the starter clutch gear, and bearings on the secondary shaft. And then there are guys that install a ZR7 sprag starter clutch.
Regarding tools, as you mentioned, a puller to remove the gear. That's the only thing I can remember.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Please Log in or Create an account to join the conversation.
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1494
- Thanks: 85
Re: z750L: Repair starter clutch
08 Jun 2025 11:07
Heh good question
I’m not planning to split the crankcase, understand I repeare the starter clutch with motor installed in frame and only opening up the transmisdion cover left side and the oil pan?
Do you have link to example off a puller I need to get the gear out?

I’m not planning to split the crankcase, understand I repeare the starter clutch with motor installed in frame and only opening up the transmisdion cover left side and the oil pan?
Do you have link to example off a puller I need to get the gear out?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5015
- Thanks: 3059
Re: z750L: Repair starter clutch
08 Jun 2025 11:19
I would suggest you read the relevant section in the FSM so you are fully familiar with what is required and the job itself. There is a tool number for the puller but I'm sure you can find a cheaper alternative than the factory tool
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1494
- Thanks: 85
Re: z750L: Repair starter clutch
08 Jun 2025 11:23
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- gd4now
-
- Offline
- User
-
Registered
- Denco where did you go?
- Posts: 1529
- Thanks: 562
Re: z750L: Repair starter clutch
08 Jun 2025 11:25
There is a pdf in the file base that shows/explains how to do this task.
kzrider.com/filebase-alias?view=download...utch-repair&catid=77
kzrider.com/filebase-alias?view=download...utch-repair&catid=77
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: KZQ, Wookie58
Please Log in or Create an account to join the conversation.
- Nessism
-
- Offline
- Sustaining Member
-
Registered
- Posts: 7721
- Thanks: 3101
Re: z750L: Repair starter clutch
08 Jun 2025 11:58None of the things I mentioned requires splitting the cases, nor removing the engine from the frame.Heh good question
I’m not planning to split the crankcase, understand I repeare the starter clutch with motor installed in frame and only opening up the transmisdion cover left side and the oil pan?
Do you have link to example off a puller I need to get the gear out?
Sorry, don't recall what kind of puller.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: gordone
Please Log in or Create an account to join the conversation.
- gordone
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 1494
- Thanks: 85
Re: z750L: Repair starter clutch
Yesterday 07:02 - Yesterday 07:02I’ve read a bit more now, so I understand better what you’re saying — but not completelyHow much do you love your bike? Ha ha. Sorry, loaded question.
Reason for asking, is that there are a lot of possible upgrades you can do to the bike at the same time you have the engine apart. Replacing the clutch hub rubber dampers, replacing the cush hub rubber dampers on the secondary shaft, replacing the starter clutch gear, and bearings on the secondary shaft. And then there are guys that install a ZR7 sprag starter clutch.
Regarding tools, as you mentioned, a puller to remove the gear. That's the only thing I can remember.

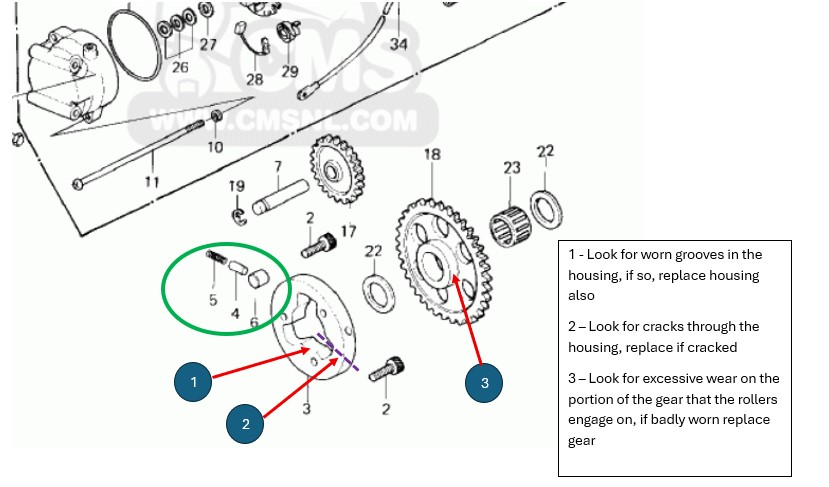

If I only replace the spring and piston (see picture below), should the starter work fine?What would I gain by replacing the clutch hub rubber dampers, the cush hub rubber dampers on the secondary shaft, the starter clutch gear, and the bearings on the secondary shaft?Is there anything I really should do while I have it open?The starter sprockets look fine, but I only saw them through the hole after removing the starter motor. Is that the sprocket you can see through the hole?I need to decide on the parts soon so I can place the order
