Need confirmation that timing is set wrong on my 1976 KZ900 27 Aug 2023 02:54 #888731

  • Rolf1976_KZ900
  • Rolf1976_KZ900's Avatar Topic Author
  • Offline
  • User
  • Posts: 376
  • Thank you received: 142
I have already posted this in the electrical section in the tread i made there that my bike started to run bad ,but i need to confirm that the timing is off because i have to be finished with the work on the bike today.

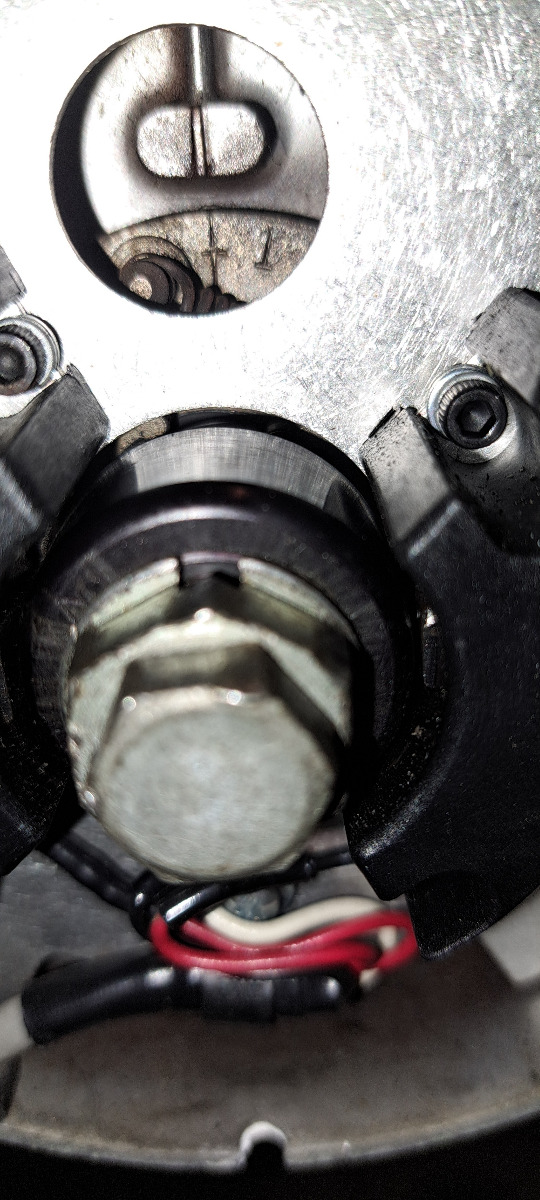

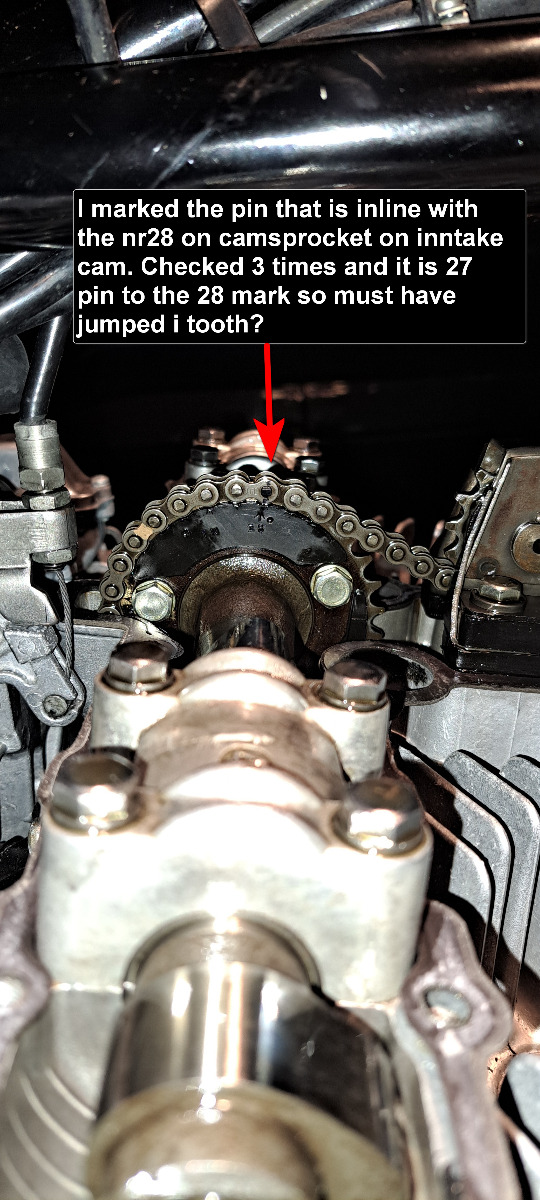

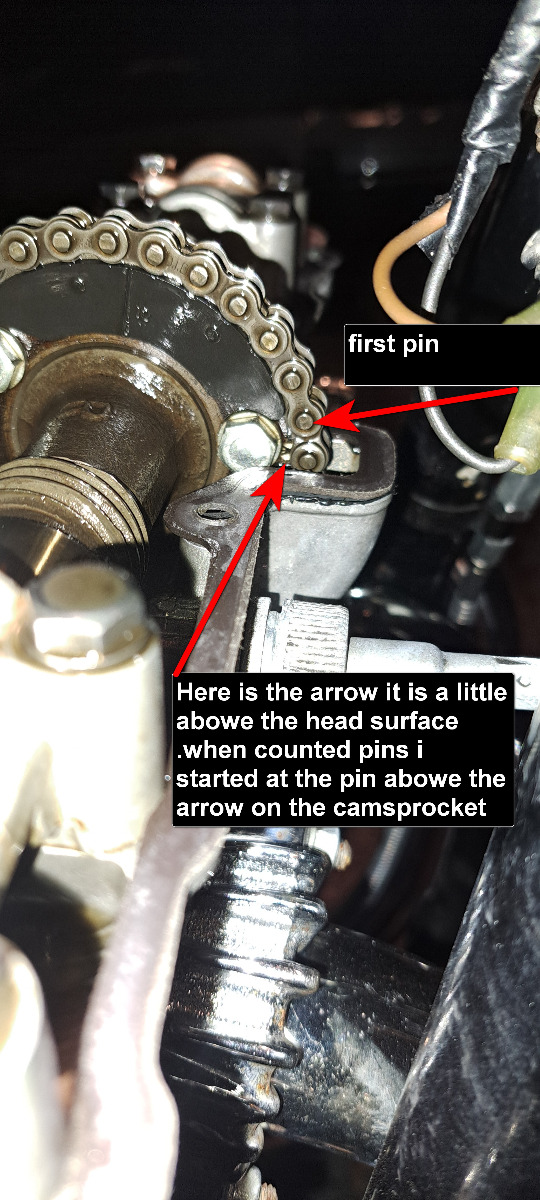

I need confirmation that the timing is not right set.I rotated engine to TDC 1 and 4 then the little arrow on the exhaustcam sprocket is just a little over the head surface not flush..So then i counted the pins on camchain.I started with the first pin above the little arrow mark on exhaustcamsprocket .I marked the pin that is in line with the 28 mark on inntakecamsprocket.Tested 3 times and it is only 27 pins to the 28 mark. Can you confirm i did this check right?   What will be the easyest way to move the chain take off the sprocket while i try to not make it jump on the crank sprocket? or will i get enouh slack in chain if take the cam chain tensioner out?
I may be wrong sice the compression is good
Attachments:
