Crankshaft Assembly Question 24 Mar 2023 08:49 #881920

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441

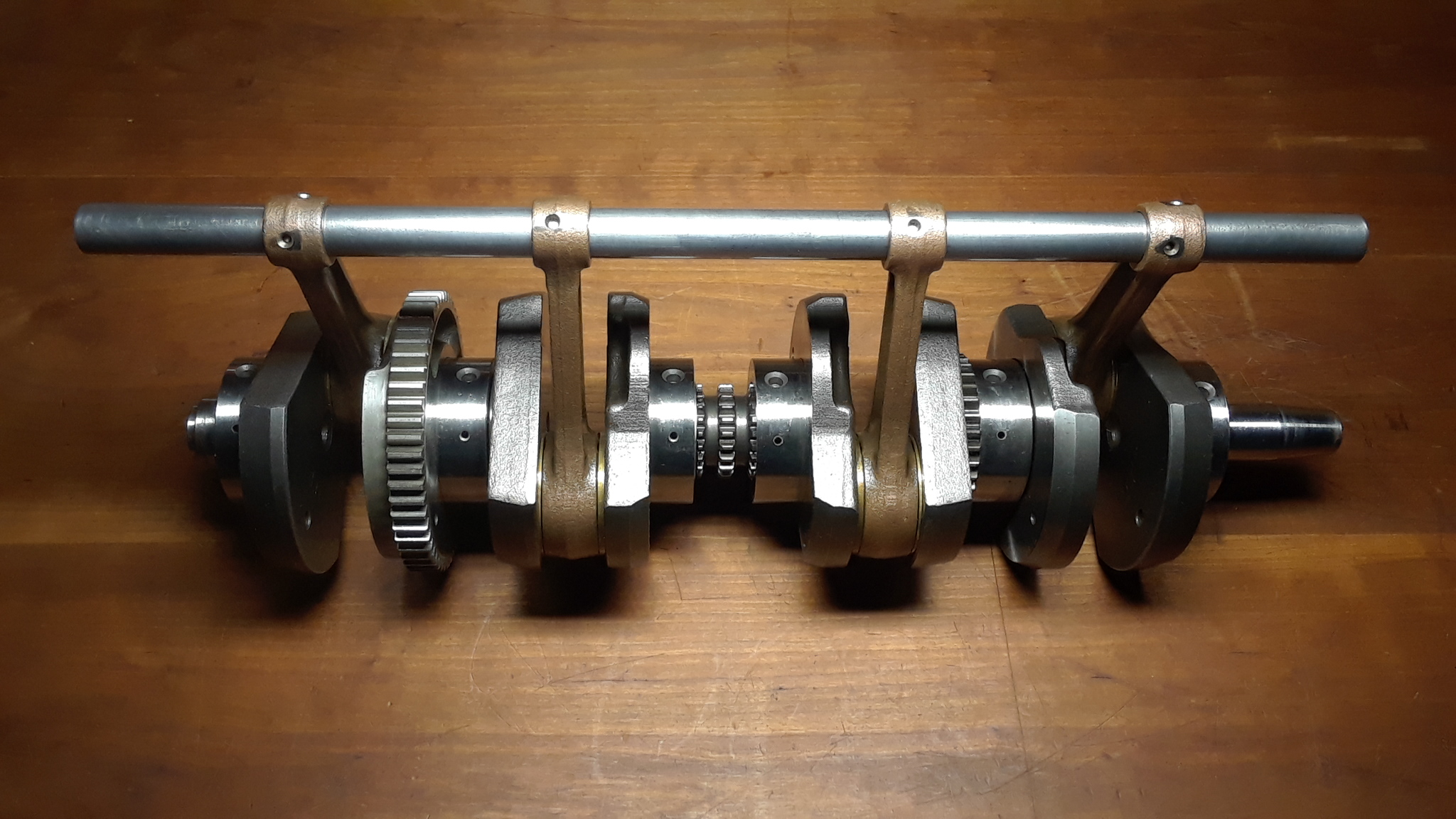

Optical Rod Indexing.  Any thoughts-opinions regarding efficacy?



Beats locating a proper18mm steel rod, and provided purpose for some old Lego's.





Not at all accurate enough and wouldn't show up any rod twist etc.

AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 24 Mar 2023 09:01 #881921

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

Not at all accurate enough and wouldn't show up any rod twist etc.



Anybody have a 18mm rod indexing rod available to borrow/rent?

1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 24 Mar 2023 09:18 #881922

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3092
  • Thank you received: 1720

Not at all accurate enough and wouldn't show up any rod twist etc.




Anybody have a 18mm rod indexing rod available to borrow/rent?

Not wanting to "bring things down" but given that you appear to have already made the purchase and it has been welded, are you not "shutting the stable door after the horse has bolted"
The following user(s) said Thank You: Nessism, daveo

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 24 Mar 2023 11:13 #881925

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659

Not at all accurate enough and wouldn't show up any rod twist etc.





Anybody have a 18mm rod indexing rod available to borrow/rent?

Not wanting to "bring things down" but given that you appear to have already made the purchase and it has been welded, are you not "shutting the stable door after the horse has bolted"

Agree.  Ignorance is bliss.

If forced, though, McMaster sells 18mm rods. You have to pay attention to straightness, because some are more accurate than others.
The following user(s) said Thank You: daveo, Wookie58

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 24 Mar 2023 21:00 #881951

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

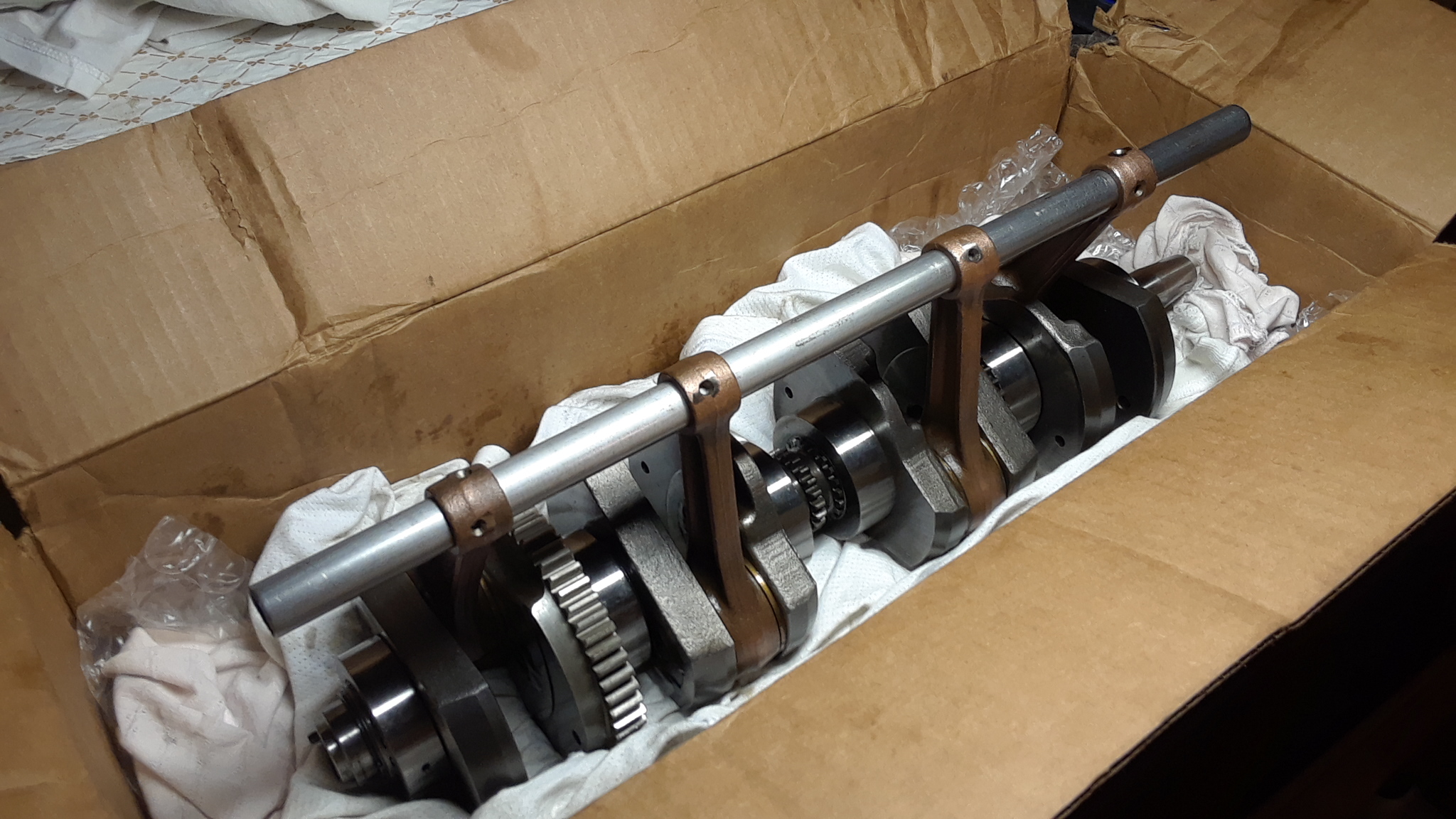

Found an alternative...




1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 24 Mar 2023 21:09 #881952

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622
McMaster Carr was out of stock last check.

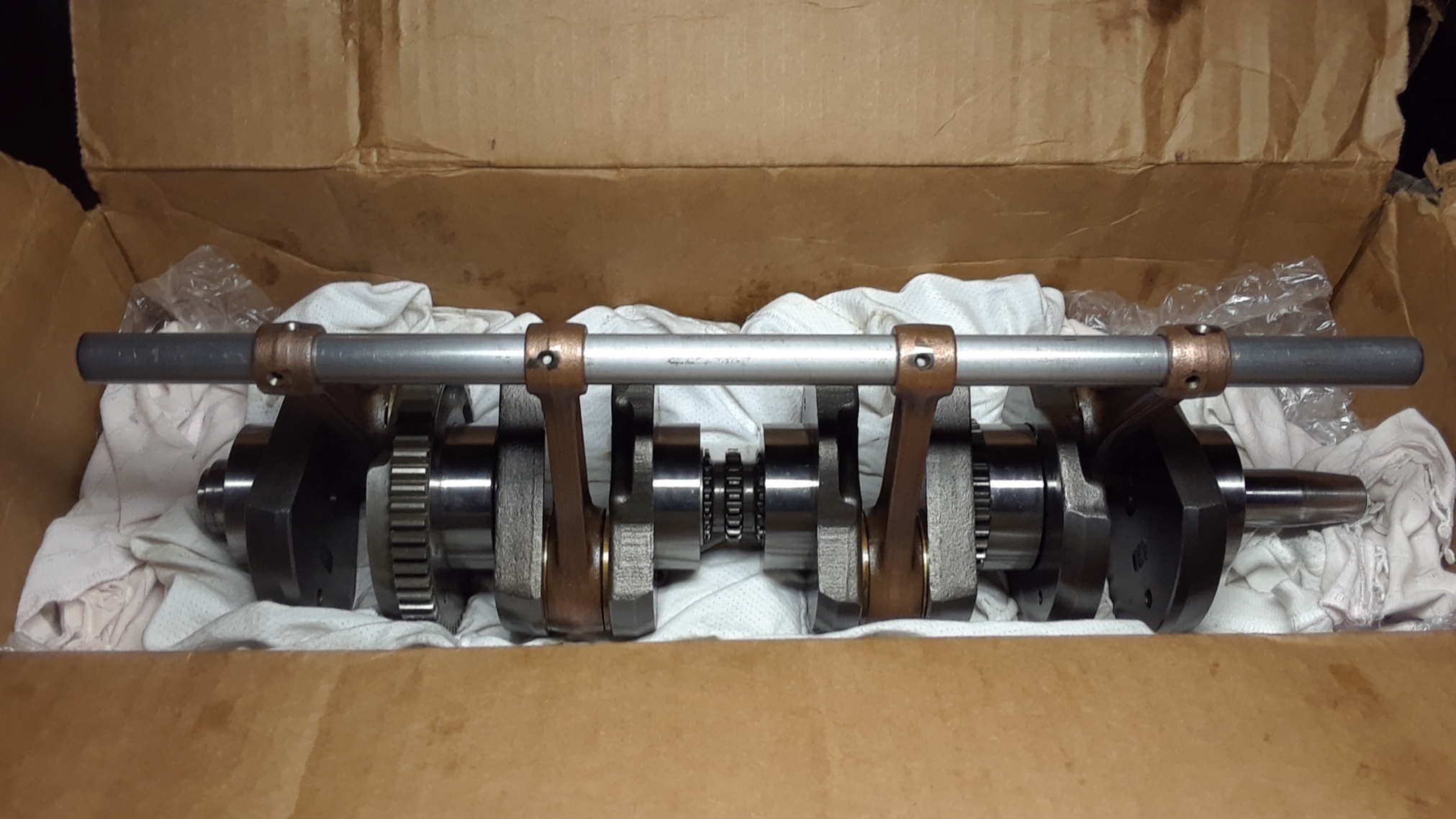

17.99 mm O.D. tube spins around smoothly by hand with no perceived play.






1982 KZ1100-A2

Attachments:
The following user(s) said Thank You: Street Fighter LTD, Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 24 Mar 2023 22:23 #881955

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

Not at all accurate enough and wouldn't show up any rod twist etc.






Anybody have a 18mm rod indexing rod available to borrow/rent?







Not wanting to "bring things down" but given that you appear to have already made the purchase and it has been welded, are you not "shutting the stable door after the horse has bolted"

Agree.  Ignorance is bliss.

If forced, though, McMaster sells 18mm rods. You have to pay attention to straightness, because some are more accurate than others.







As I understand, a rod is straight if it rolls smoothly on a flat surface without bumping.



Brief video:
photos.app.goo.gl/QDYuBiiUaVW7VGza9



Thanks zed1015
Email in profile
1982 KZ1100-A2

Attachments:
The following user(s) said Thank You: Street Fighter LTD, Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 26 Mar 2023 16:21 #882033

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622



Comments appreciated!

Happy riding!

1982 KZ1100-A2

The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 29 Apr 2023 10:09 #883954

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

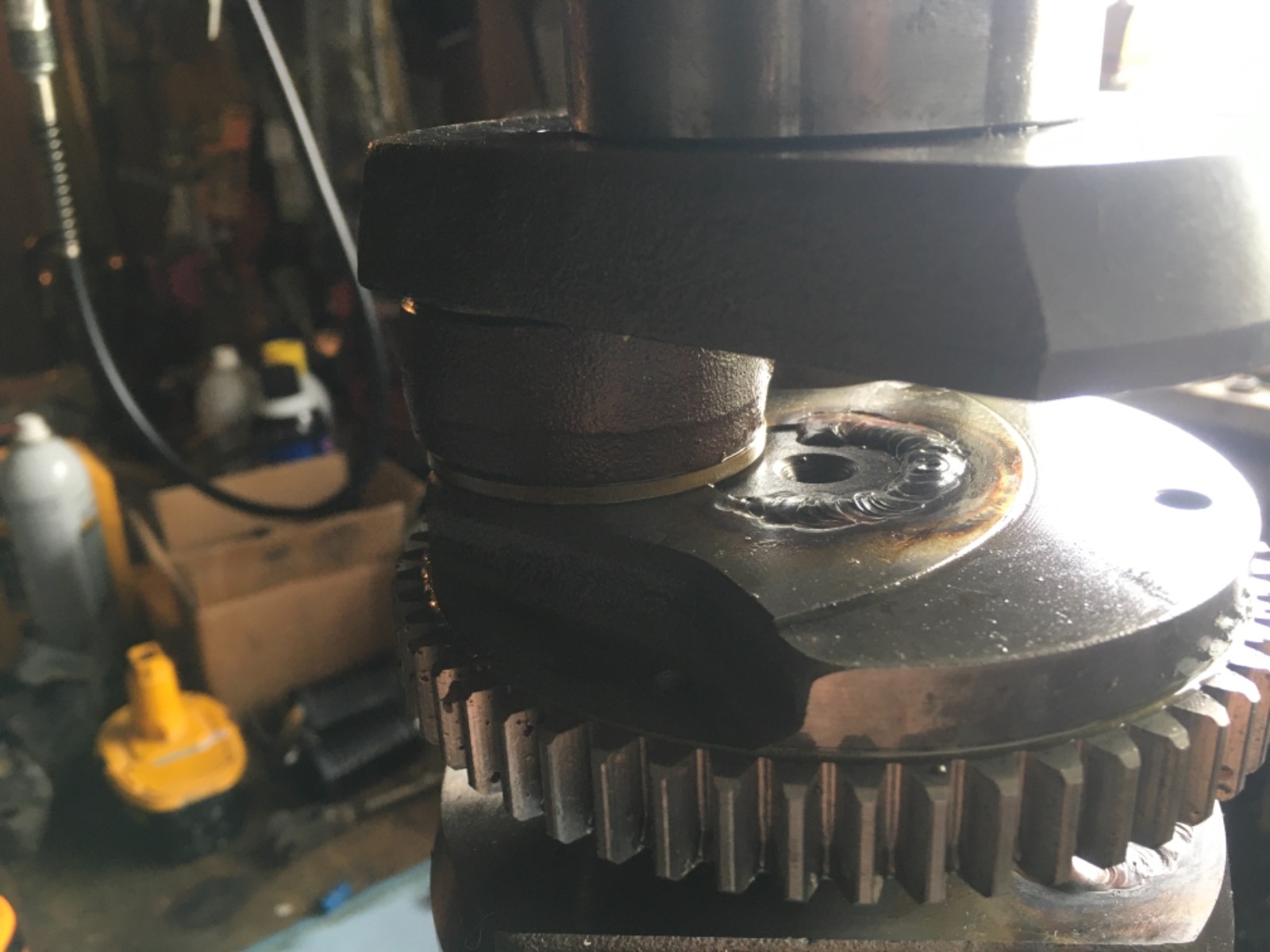

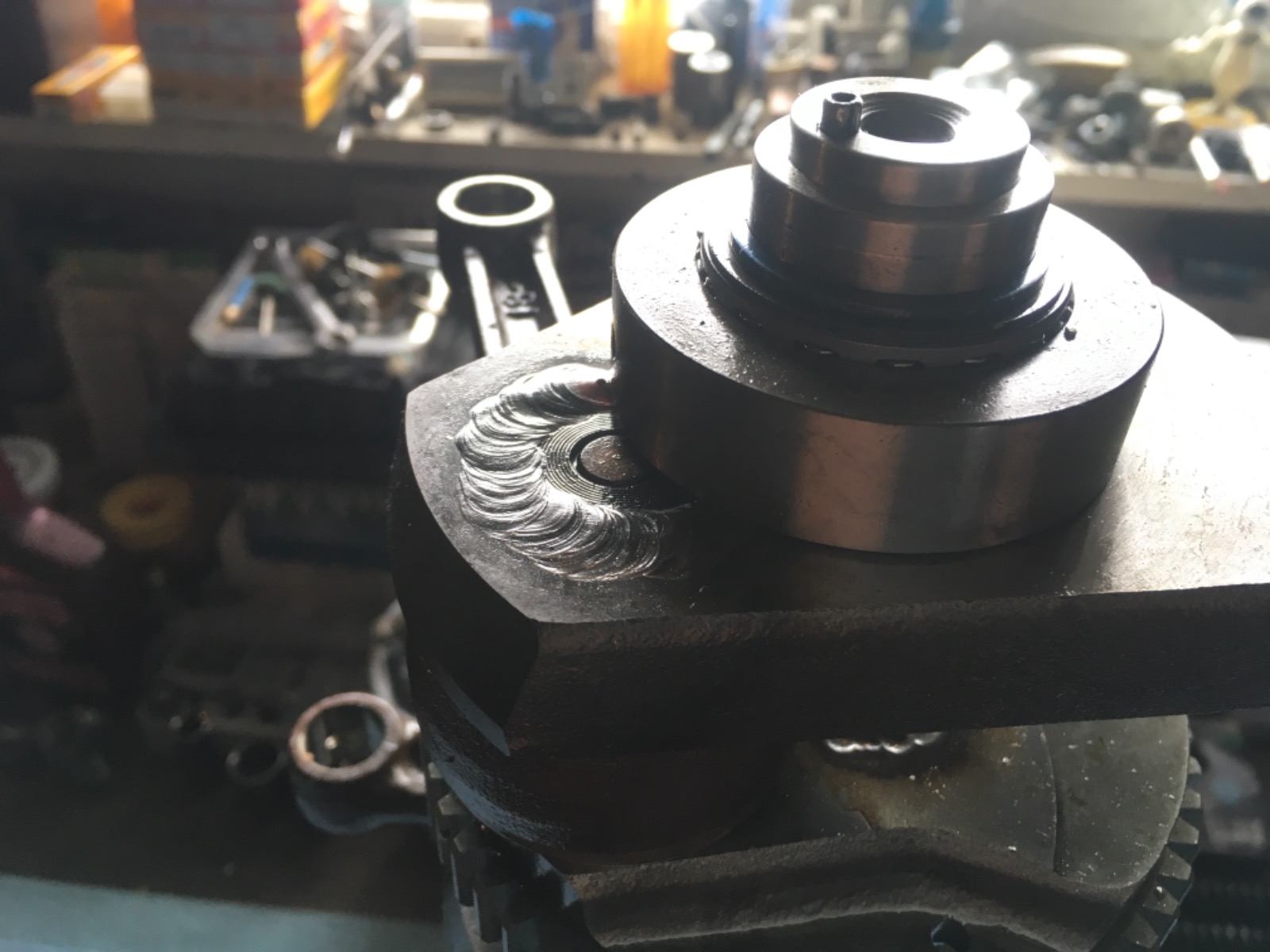

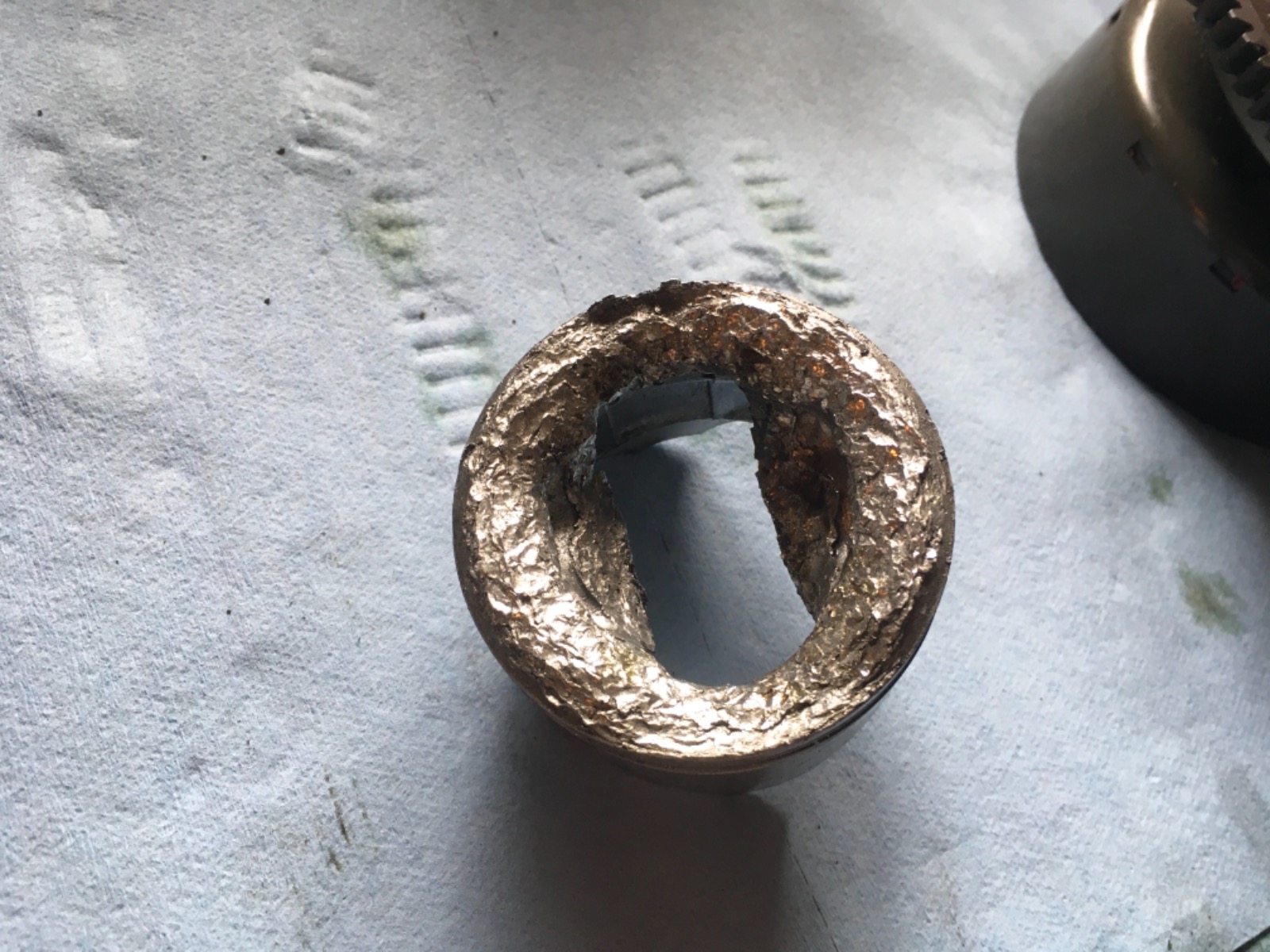

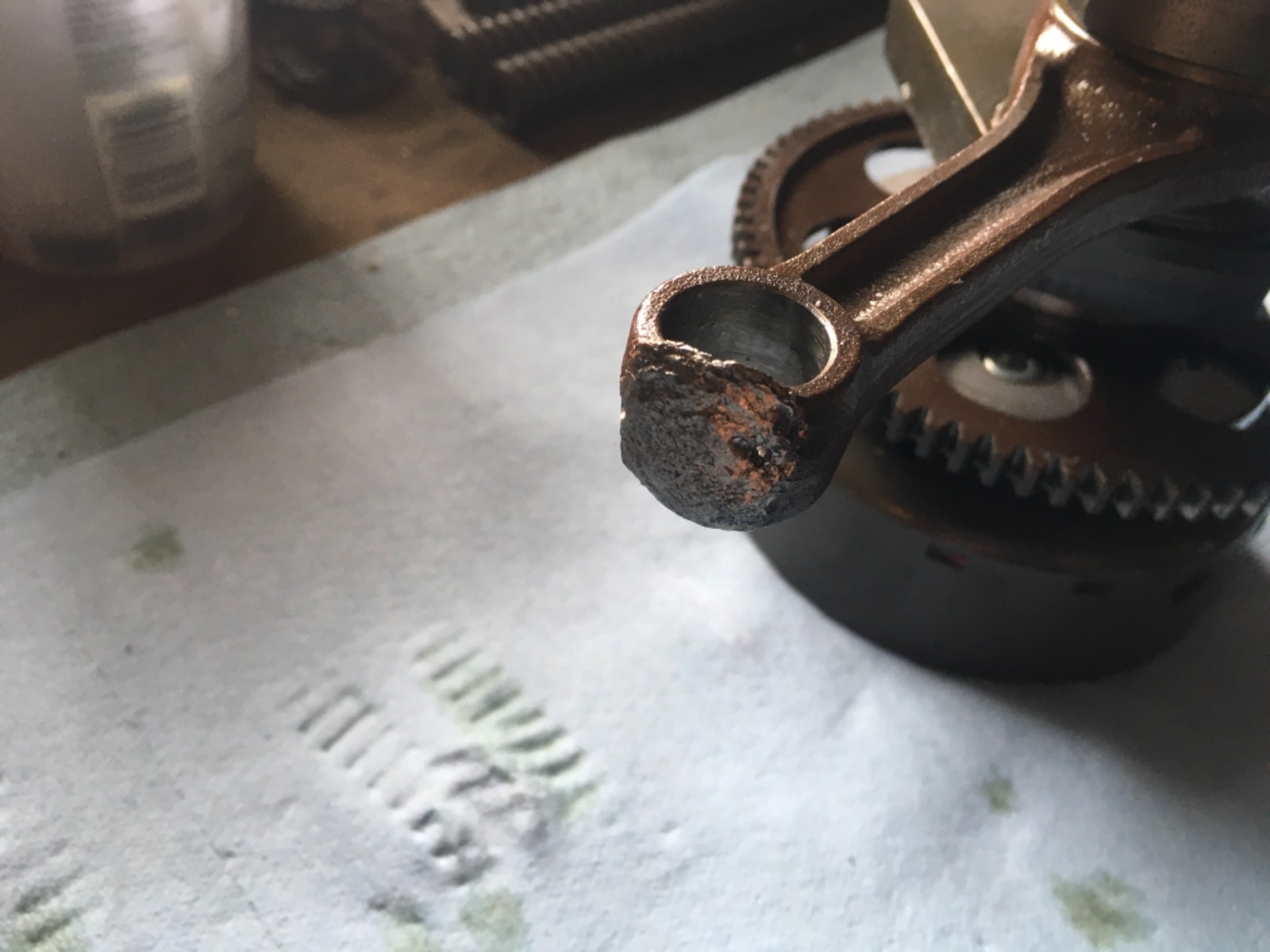

Daveo, we are about to jump down a welded crank rabbit hole. The CSR I recently bought had a #1 piston blown, I was hoping I could save the bottom end. I pulled it apart this week and not sure if I’m happy or cursed. The crank is welded. I’m starting the process to find out if a welded crank can be repaired. #1 rod is junk.







1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw. Reason: Photos

Crankshaft Assembly Question 29 Apr 2023 17:16 #883970

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622
I think that crank is toast, and replacement is the only reasonanble option.
Once welded there may be no going back.

1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 30 Apr 2023 07:17 #883987

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4796
  • Thank you received: 1952

I think that crank is toast, and replacement is the only reasonanble option.
Once welded there may be no going back.

Falicon  took mine apart with no extra fees and did the Supercrank thing to it .
Of course this is ancient history. Dont know if anyone today would be willing to do it .
DD

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 30 Apr 2023 07:47 #883993

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22347
  • Thank you received: 2599
Gardner Racing Concepts  is still doing them. Looks like they do good work.


Page · Motorcycle Repair Shop

1373 Bangor Rd, Ellsworth, ME, United States, Maine

+1 207-664-0377

This email address is being protected from spambots. You need JavaScript enabled to view it.

Always open

Price Range · $$$


Attachment not found
