Crankshaft Assembly Question 21 Mar 2023 17:24 #881876

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

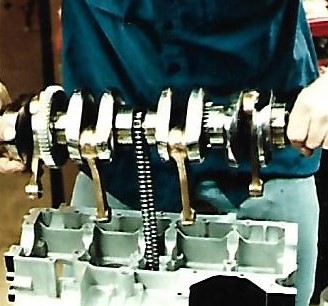

Crank porn


Attachments:
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 21 Mar 2023 19:18 #881877

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622
Michael, you gotta put a clean rag over that thing!




Holy Kaw, Wow!



1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 21 Mar 2023 19:28 #881878

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

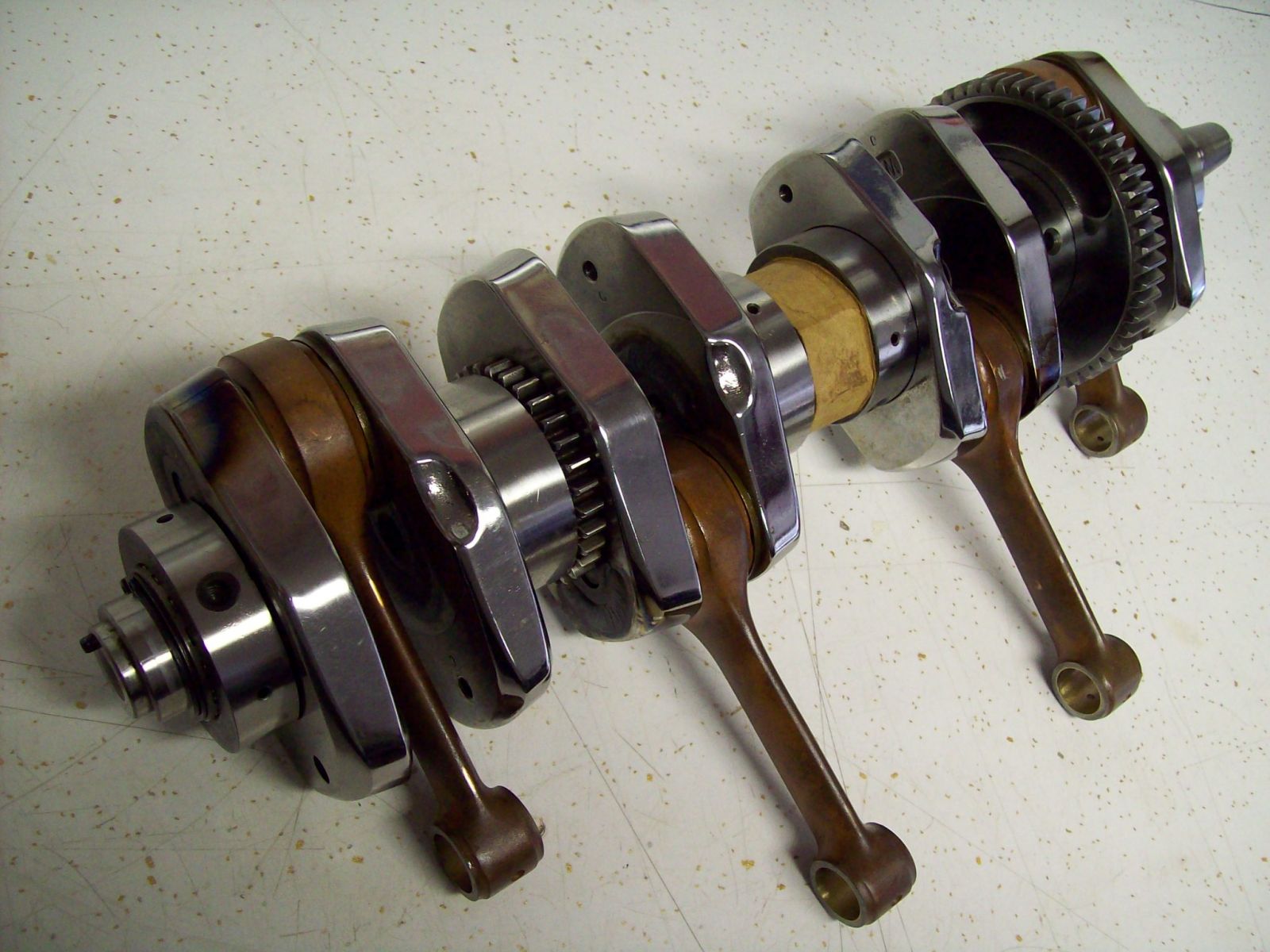

Here is a real Falicon

KZ 1000 crank
Ultra lite Supercrank
Round journals have been cut to porkchop 900 style to lighten
Then journals are knife edged to cut thru oil mist and air
Whole  thing is highly polished
All the normal crank work to rods ,bearings, welding , truing, indexing and of course  magic dust  LOL
Dave



Imagine the piles of dust it took to make that crank, and the ones left behind ever since.





1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 22 Mar 2023 12:46 #881881

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622
Optical method for checking the rod index:



Close enough for a cigar?



Tripple Checked



1982 KZ1100-A2

Attachments:
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 22 Mar 2023 14:04 #881882

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

My latest stash addition for some presently unknown future purpose:
I suspect there is a "plan" festering for this gem - "go on" you call tell us, we won't tell Mrs "O"

I have no idea, but she already knows.






1982 KZ1100-A2

Attachments:
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 22 Mar 2023 15:02 #881883

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622
Coming up, a clearance check with the feeler's:

1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 22 Mar 2023 15:21 #881884

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

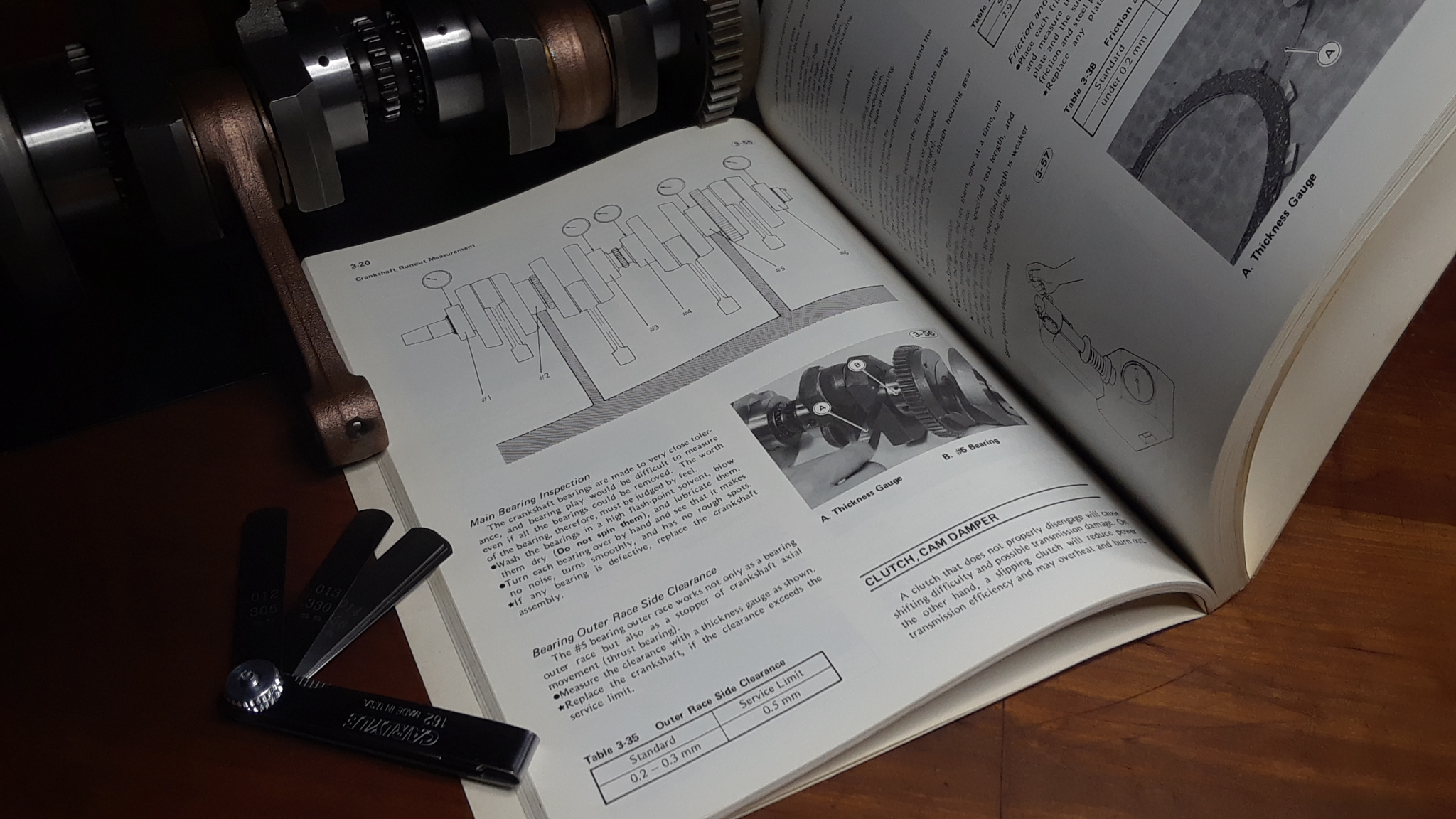

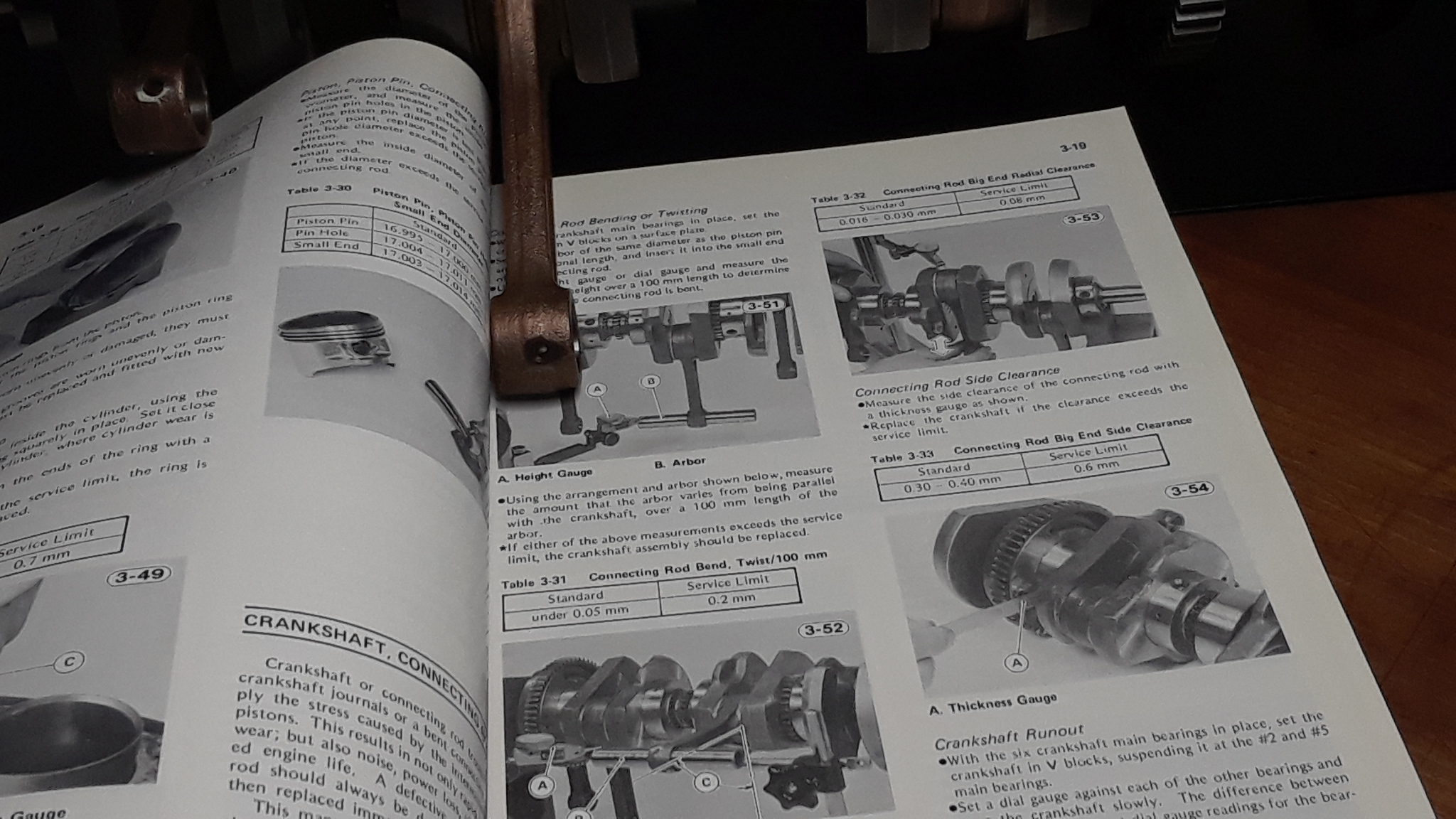

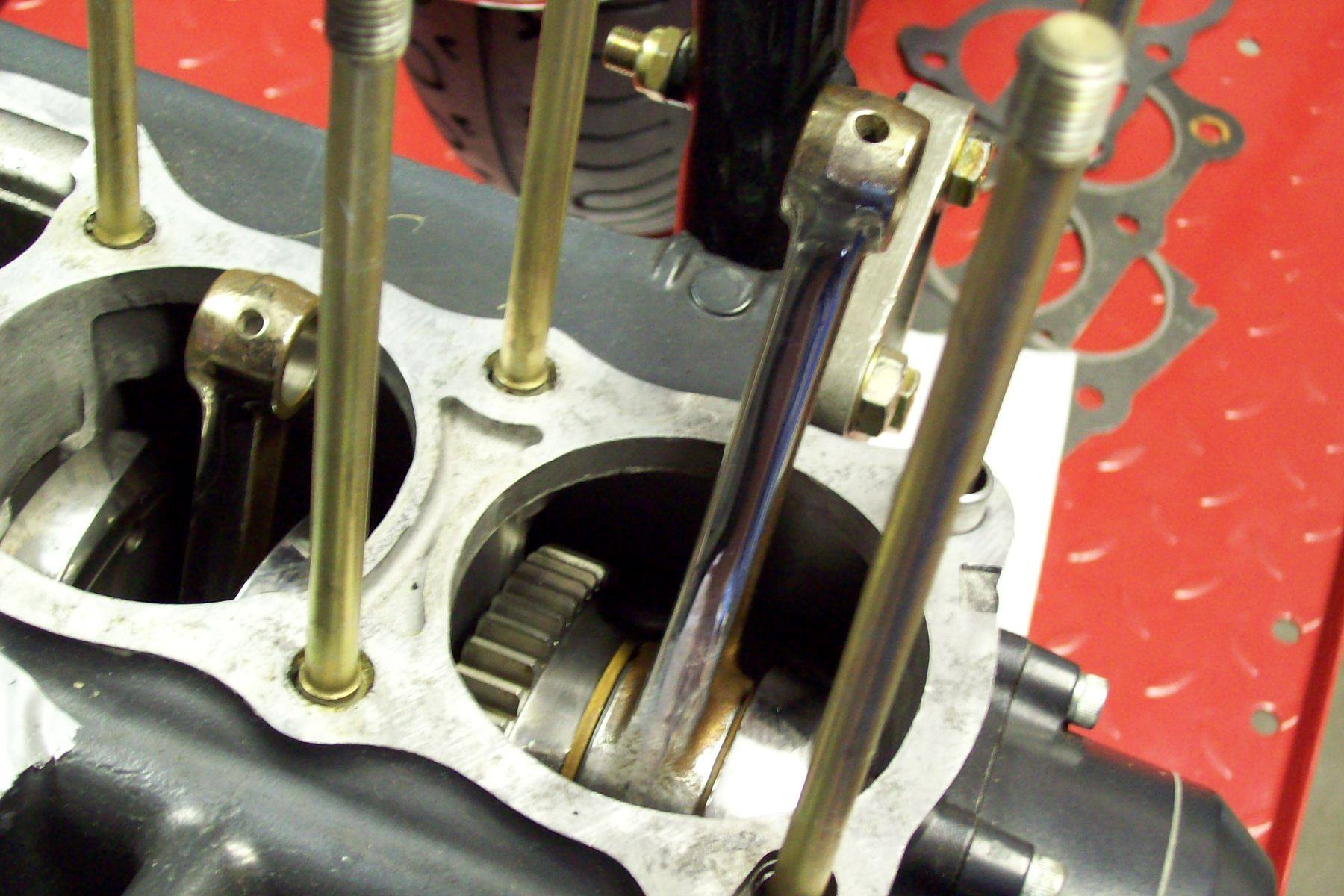

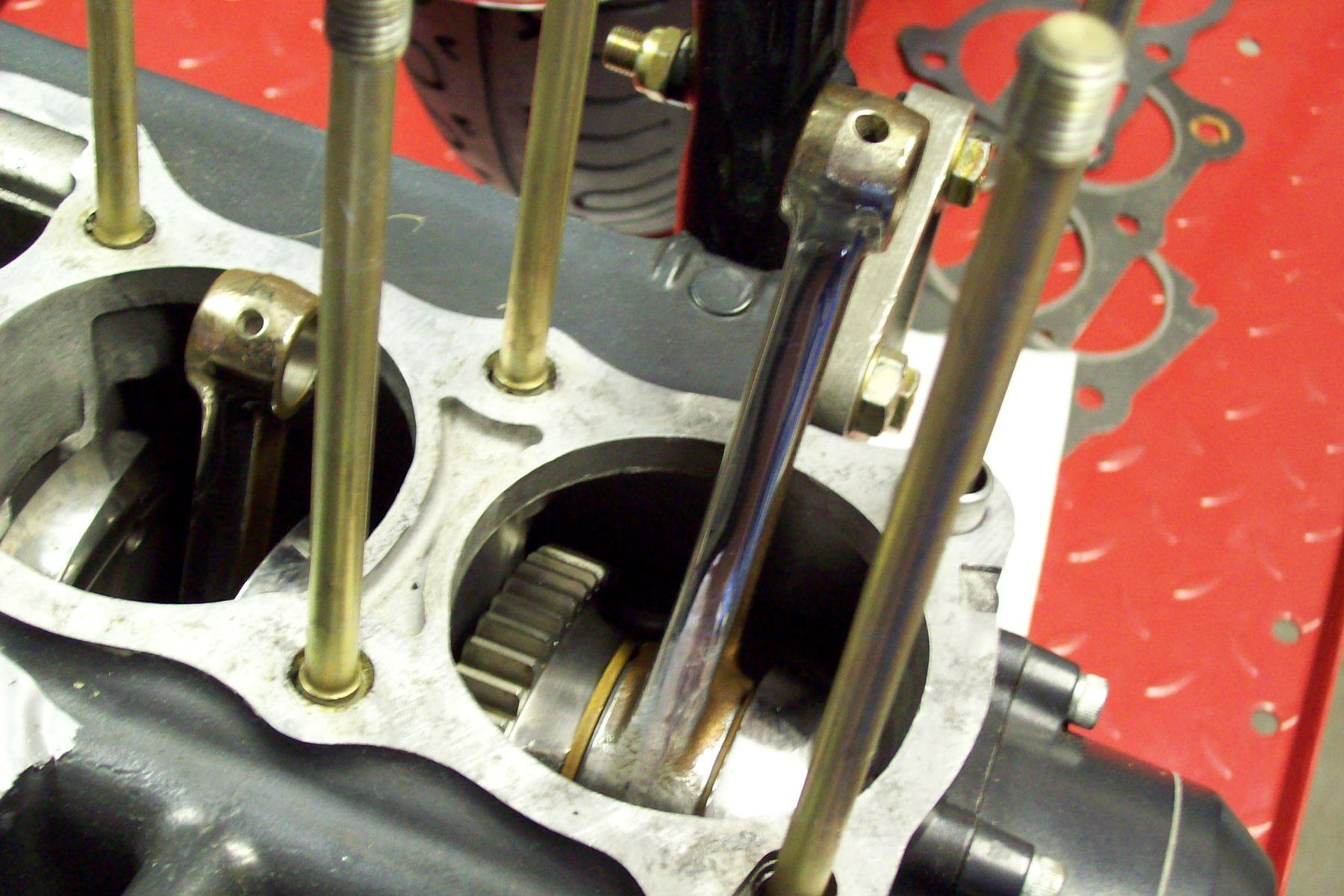

The two checks I feel capable of doing:

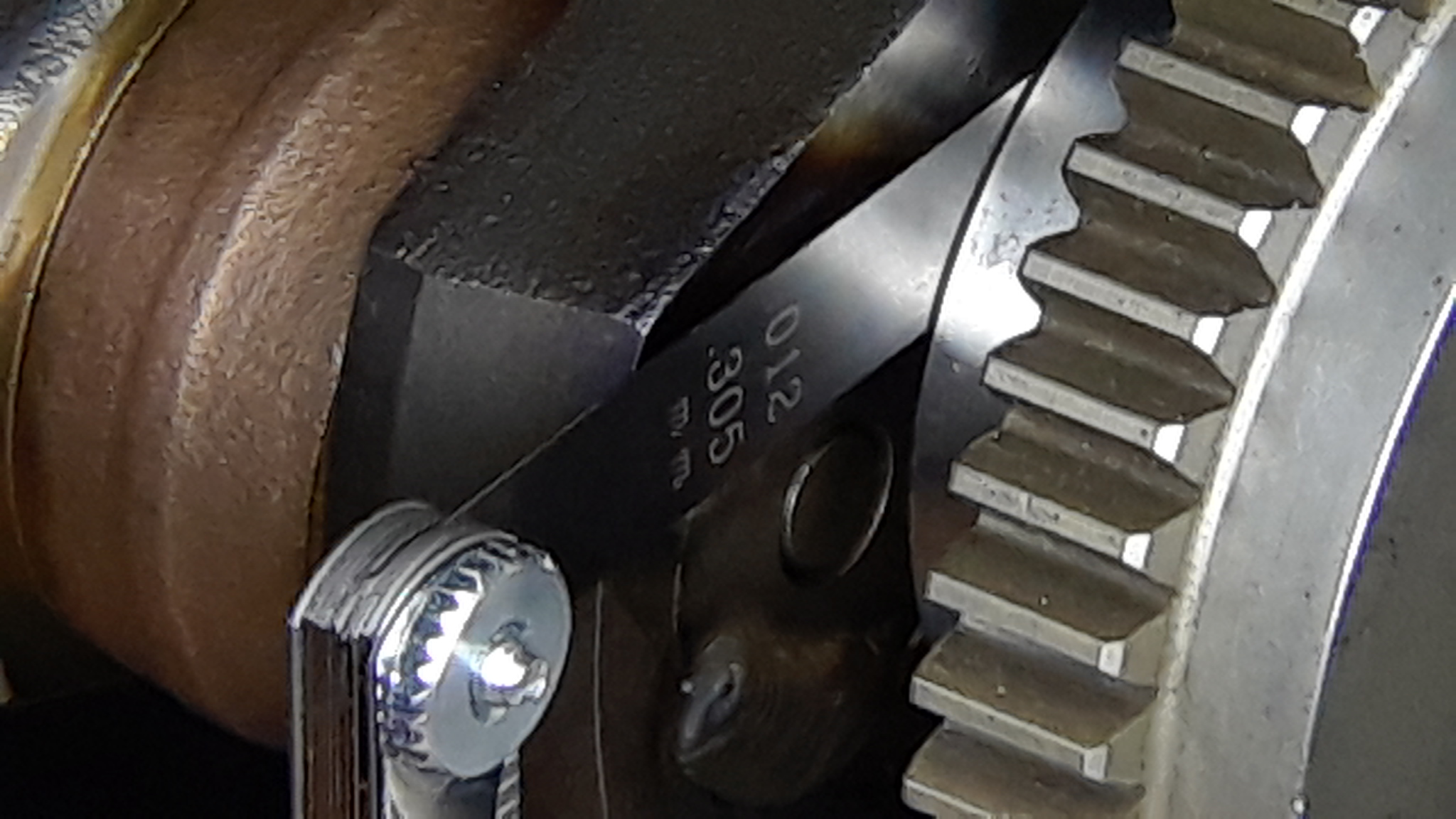

#5 Thrust Bearing Clearance



...and

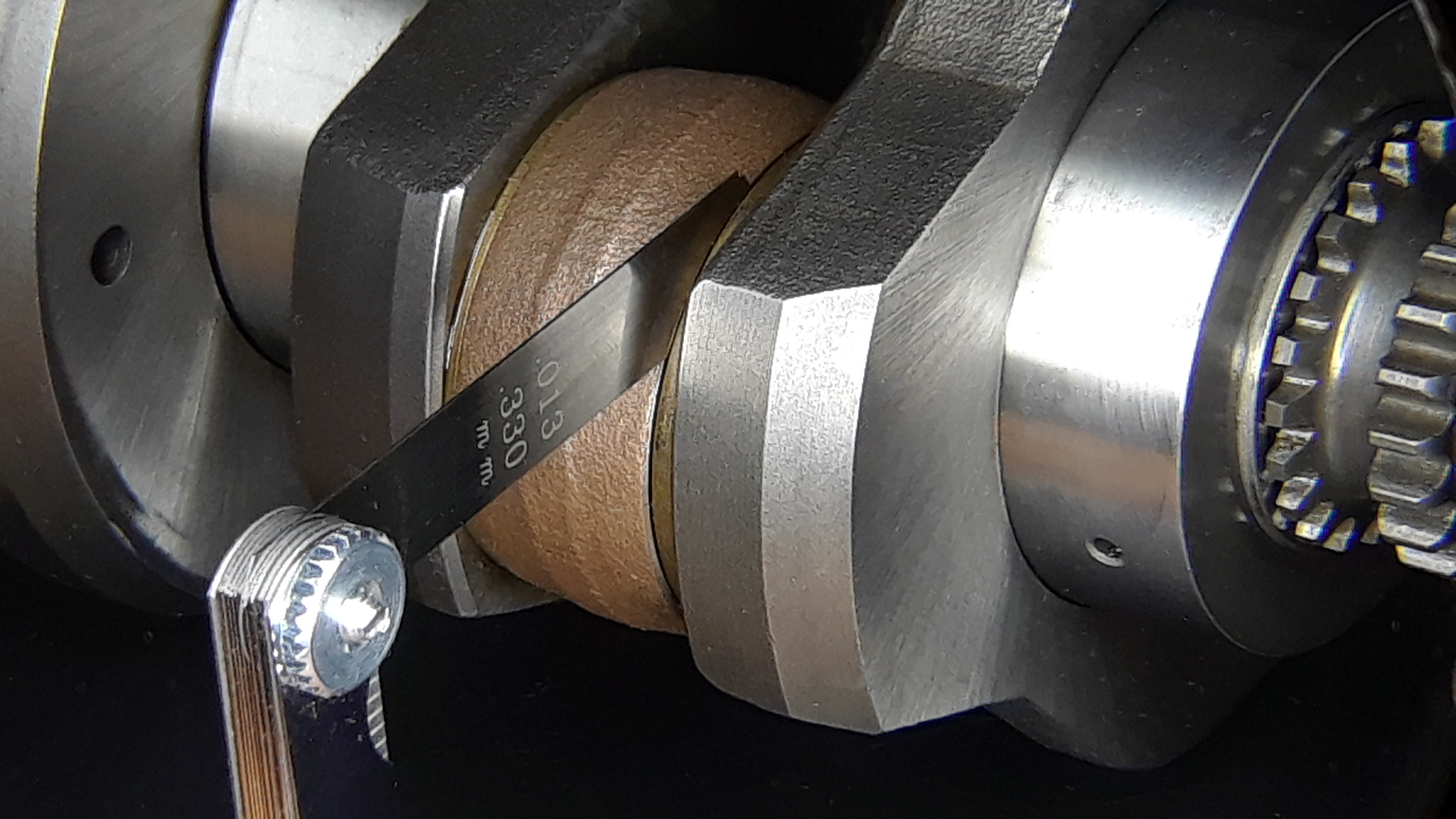

Rod Side Clearance



Bearings feel smooth

1982 KZ1100-A2

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 22 Mar 2023 16:22 #881885

  • Dr. Gamma
  • Dr. Gamma's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1221
  • Thank you received: 664

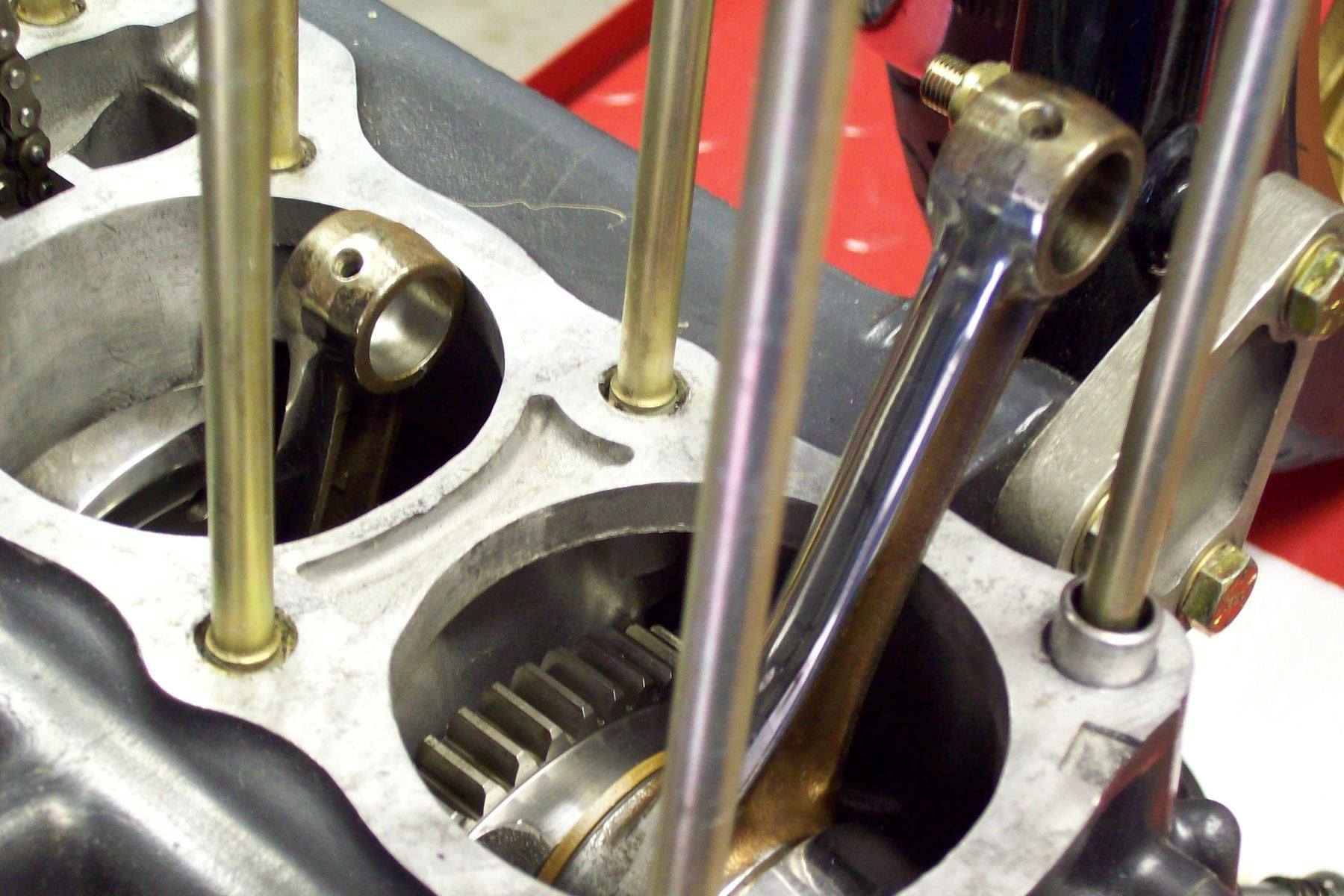

The very last Falicon Supercrank I had done I went with polished stock rods. I wish I would have had them bush the small end of the rods.
With all the compression I run in that motor I did have some minor galling in one rod!!!  Could of Would of Should of!!!




1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.
Attachments:
The following user(s) said Thank You: daveo, Dragbike_Mike

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 22 Mar 2023 17:12 #881888

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

The very last Falicon Supercrank I had done I went with polished stock rods. I wish I would have had them bush the small end of the rods.
With all the compression I run in that motor I did have some minor galling in one rod!!!  Could of Would of Should of!!!






Crankshaft appreciation 101:
en.wikipedia.org/wiki/Crank_(mechanism)

.
1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 22 Mar 2023 20:01 #881893

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
Here he is talking about honing the rods to proper clearances.
Steve
www.facebook.com/photo/?fbid=67270282132...=pcb.672702974653374
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

Crankshaft Assembly Question 24 Mar 2023 08:44 #881918

  • daveo
  • daveo's Avatar Topic Author
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

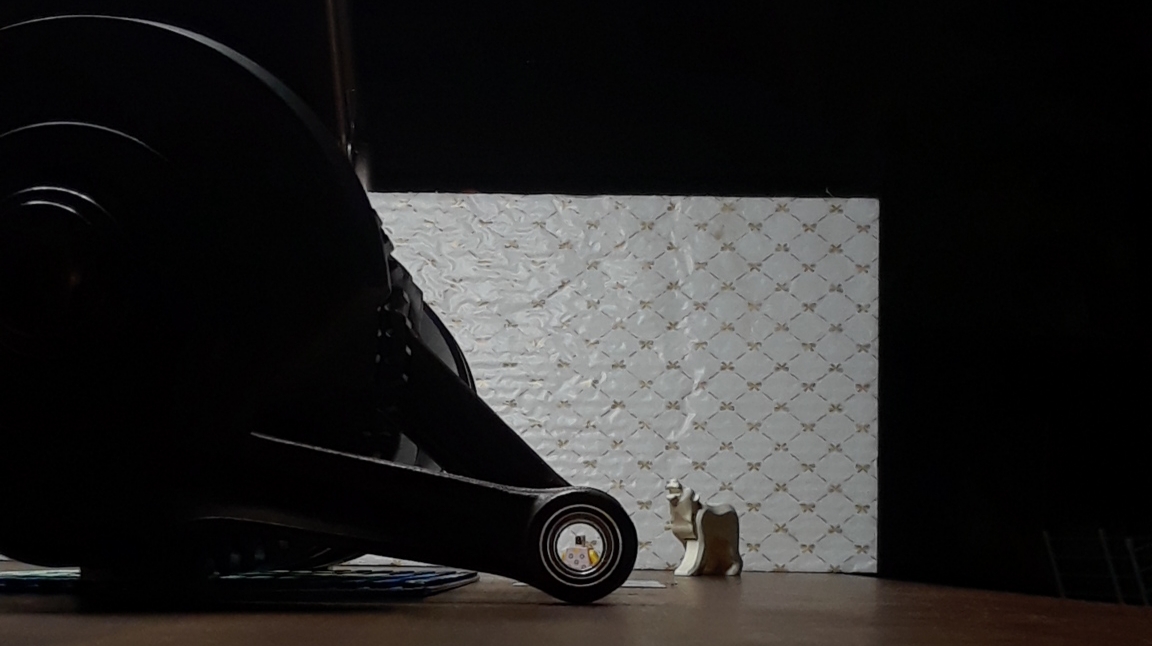

Optical Rod Indexing.  Any thoughts-opinions regarding efficacy?



Beats locating a proper 18mm steel rod, and provided purpose for some old Lego's.




1982 KZ1100-A2

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Crankshaft Assembly Question 24 Mar 2023 08:49 #881919

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
Looks good to me, why over complicate things. I don't know how many splines are on each crank section but I would imagine if you were 1 out, it would be obviously apparent
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.
