Cam install help 30 Jun 2021 18:59 #850990

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29

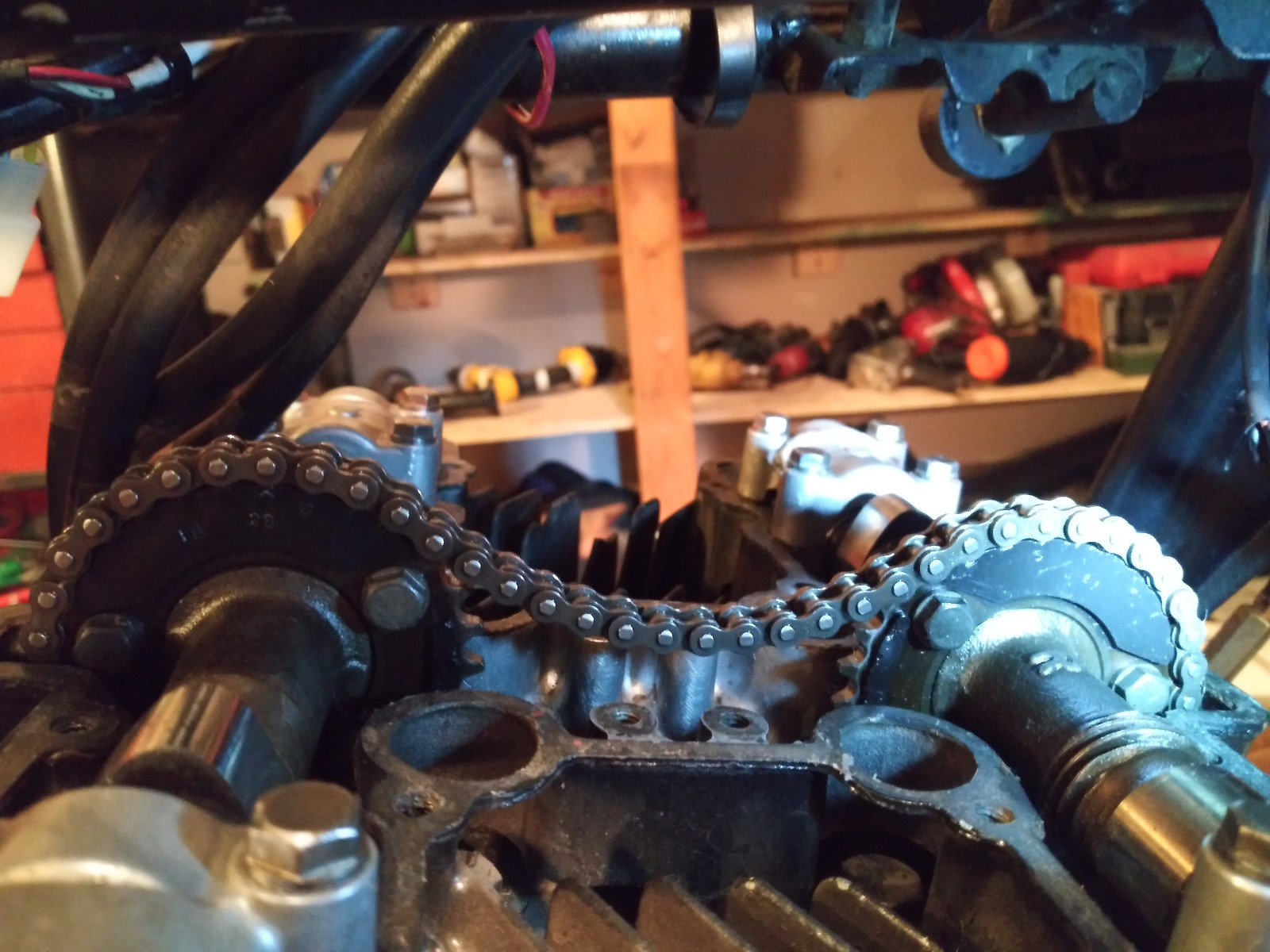

Got started reinstalling cams today...  1.  Lined up the index mark on 1/4 TDC  2.  Alligned the tiny, microscopic index mark on the right side of the EX cam with the head surface.  3.  Lined up the tiny, microscopic index mark in IN cam.  4.  Counted 28 pins from 1st pin above index mark on EX cam.  5.  Checked 28th pin lined up with 28 mark in IN cam.  Then I slowly tightened down the EX cam and then the IN cam using the sequence in the FSM.  Problem is as I tightened down the cams, a whole lot of slack was created between the cams, although the marks still are all lined up.  This much slack can't be right, can it?  (I started out nice and taught on the right side of the EX cam and kept it taught as I looped the IN cam, so any slack was on the back side of the chain.)
KZ900; Z1
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Robb2018.

Cam install help 30 Jun 2021 19:27 #850992

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2910
  • Thank you received: 429
I'm probably missng something and and not real familiar with the kz900 but isn't there supoosed to be a cam chain idler betweekn the sprockets holding the chain down???

sorry if this is a dumb question
1980 kz750E1, Delkevic exhaust

Please Log in or Create an account to join the conversation.

Cam install help 30 Jun 2021 19:49 #850993

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
Looks good to me. Install the idler, adjust the chain then rotate by hand to check timing.
Steve
The following user(s) said Thank You: Robb2018

Please Log in or Create an account to join the conversation.

Cam install help 30 Jun 2021 19:54 #850994

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29

I'm probably missng something and and not real familiar with the kz900 but isn't there supoosed to be a cam chain idler betweekn the sprockets holding the chain down???

sorry if this is a dumb question

Not a dumb question... yes there's an idler but that's the next step.  I didn't want to go there till I knew I was good up to here.

KZ900; Z1
The following user(s) said Thank You: JR

Please Log in or Create an account to join the conversation.

Cam install help 01 Jul 2021 01:37 #850998

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441
As long as your pin count is correct that's all ok.
Just install the top idler and then the tensioner.
Don't rotate the crank until the tensioner is fitted.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





The following user(s) said Thank You: Robb2018

Please Log in or Create an account to join the conversation.

Cam install help 01 Jul 2021 05:14 #851002

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29
Thanks for confirming Steve and Zed. Just one other thing...  in an old thread someone said not to install the tensioner until after installing the valve cover... repeated it a couple times in the thread actually. Does that make sense to anyone or was this possibly referring to a different bike or did I read it wrong?
KZ900; Z1

Please Log in or Create an account to join the conversation.

Cam install help 01 Jul 2021 05:21 #851003

  • krazee1
  • krazee1's Avatar
  • Offline
  • User
  • Posts: 365
  • Thank you received: 196
That advice is for the J-motors with the hyvo cam chain.  There is no top idler assembly, just a rubbing block in the cam cover to take up the slack  between the cams.

Mike
Former M.E. at Kawasaki Motors Manufacturing, Lincoln, NE
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1
1978 KZ1000 LTD
1976 KZ900B pile O parts
1980 KZ750E
1980 Honda XL250S (I know, wrong flavor!)
The following user(s) said Thank You: Robb2018

Please Log in or Create an account to join the conversation.

Cam install help 01 Jul 2021 05:23 #851004

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441

Thanks for confirming Steve and Zed. Just one other thing...  in an old thread someone said not to install the tensioner until after installing the valve cover... repeated it a couple times in the thread actually. Does that make sense to anyone or was this possibly referring to a different bike or did I read it wrong?
That only applies to the later J type HYVO chain equipped engines where a chain slipper guide ( which performs a similar function to the earlier top idler sprocket ) is located and held in the valve cover.

AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





The following user(s) said Thank You: Robb2018

Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

Cam install help 01 Jul 2021 15:05 #851033

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29

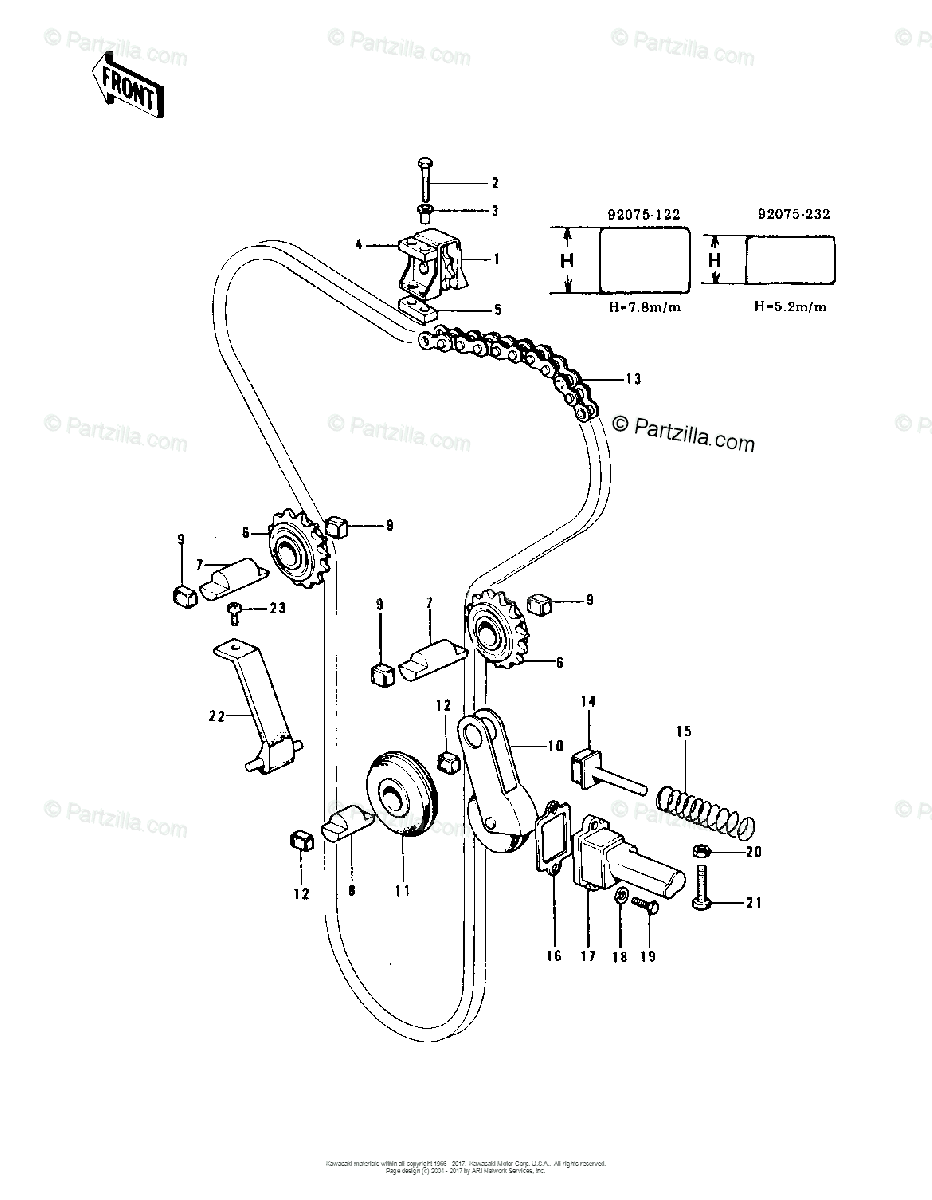

Well, I've got the cams in and I'm back to where I was a month ago.  With the Idler tower installed there is way too much slack.  Now as for the tensioner...  Here's the deal with that, not sure if it's not working right or if I just don't get it.  Without the intake cam bolted down, I can stick my finger in the hole and move the tensioner assembly (#10, the little swingarm with roller) back and forth freely and it provides enough travel to easily get rid of the excess slack I have between the cams after they're bolted down.  The thing is, as I'm tightening down the intake cam, this #10 tensioner assy gets harder and harder to move.  I haven't attempted to install the tensioner unit because that spring doesn't provide the pressure required now to take up the slack in the chain.  I have to put a blunt narrow object in the cam tensioner hole and push very hard to get the chain to tighten.  If anyone could provide any insight into what's going on here and what's normal and what's not, I'd appreciated it.
