Z2 750 crank (Bossie the Kaw) 21 Sep 2015 06:58 #691174

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
Ok, I'll do my valves this evening. Here it is. My last reading is 54.50. I took multiple pics because the measurements changed slightly.

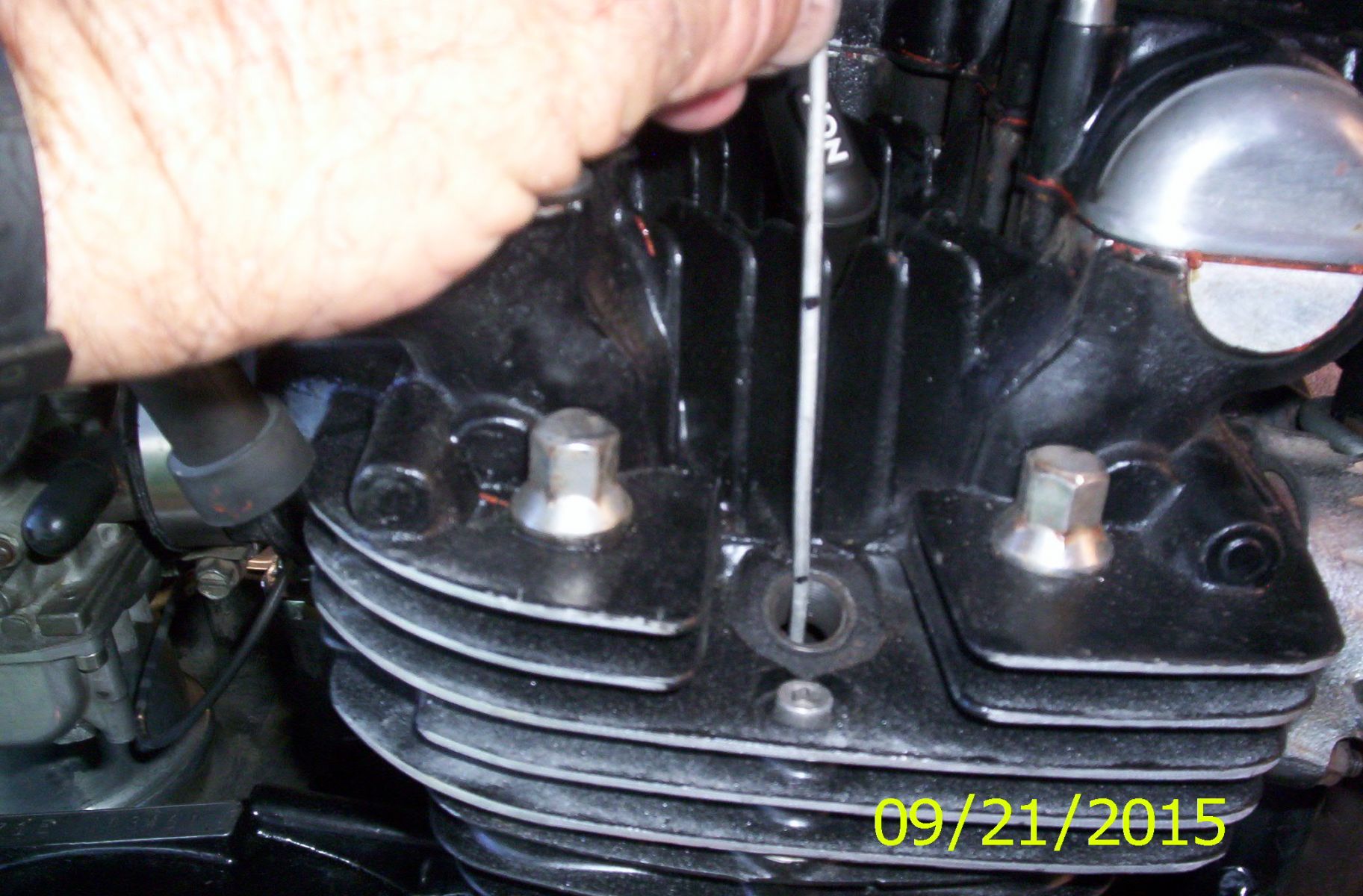

TDC

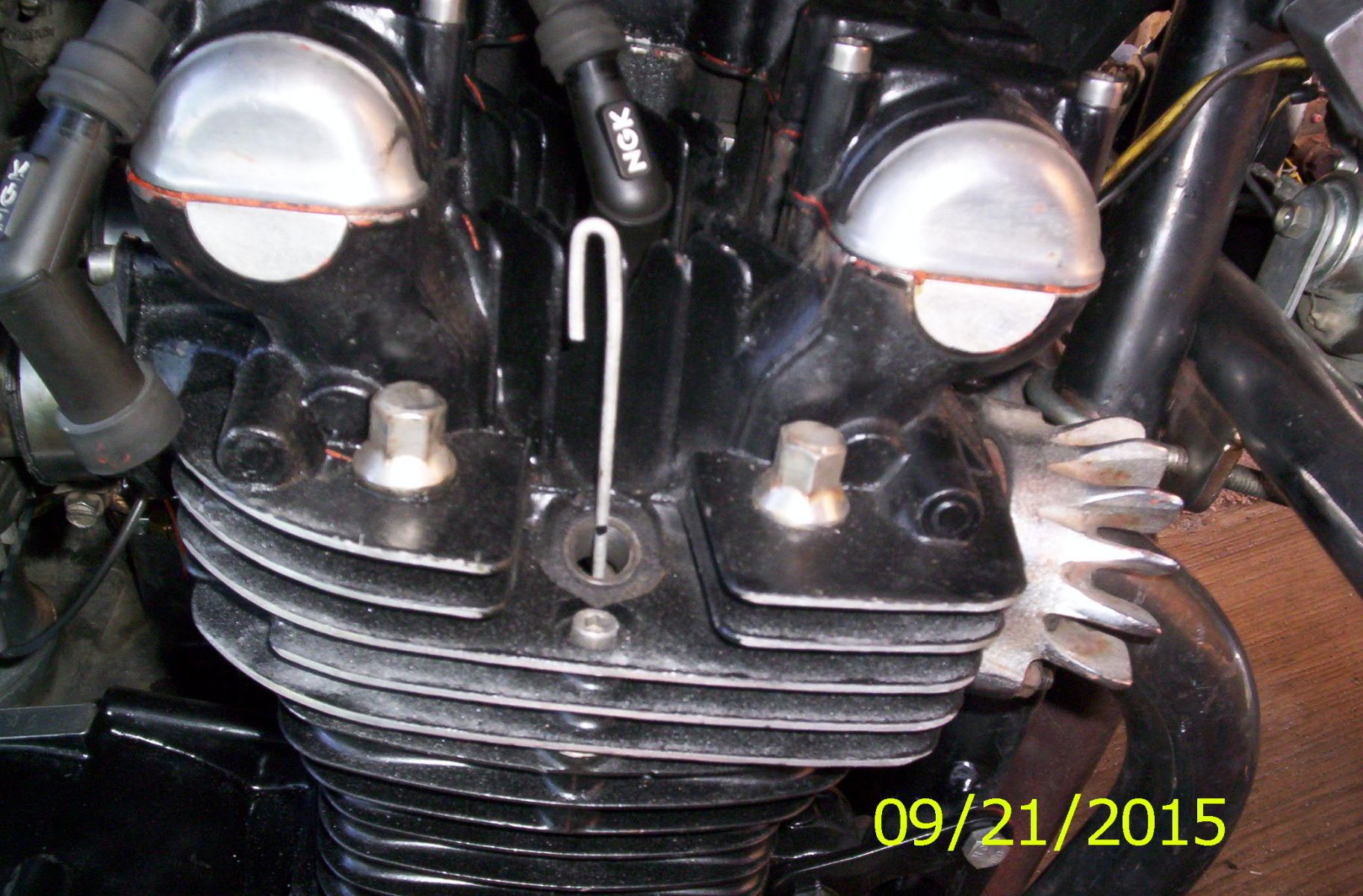

BDC

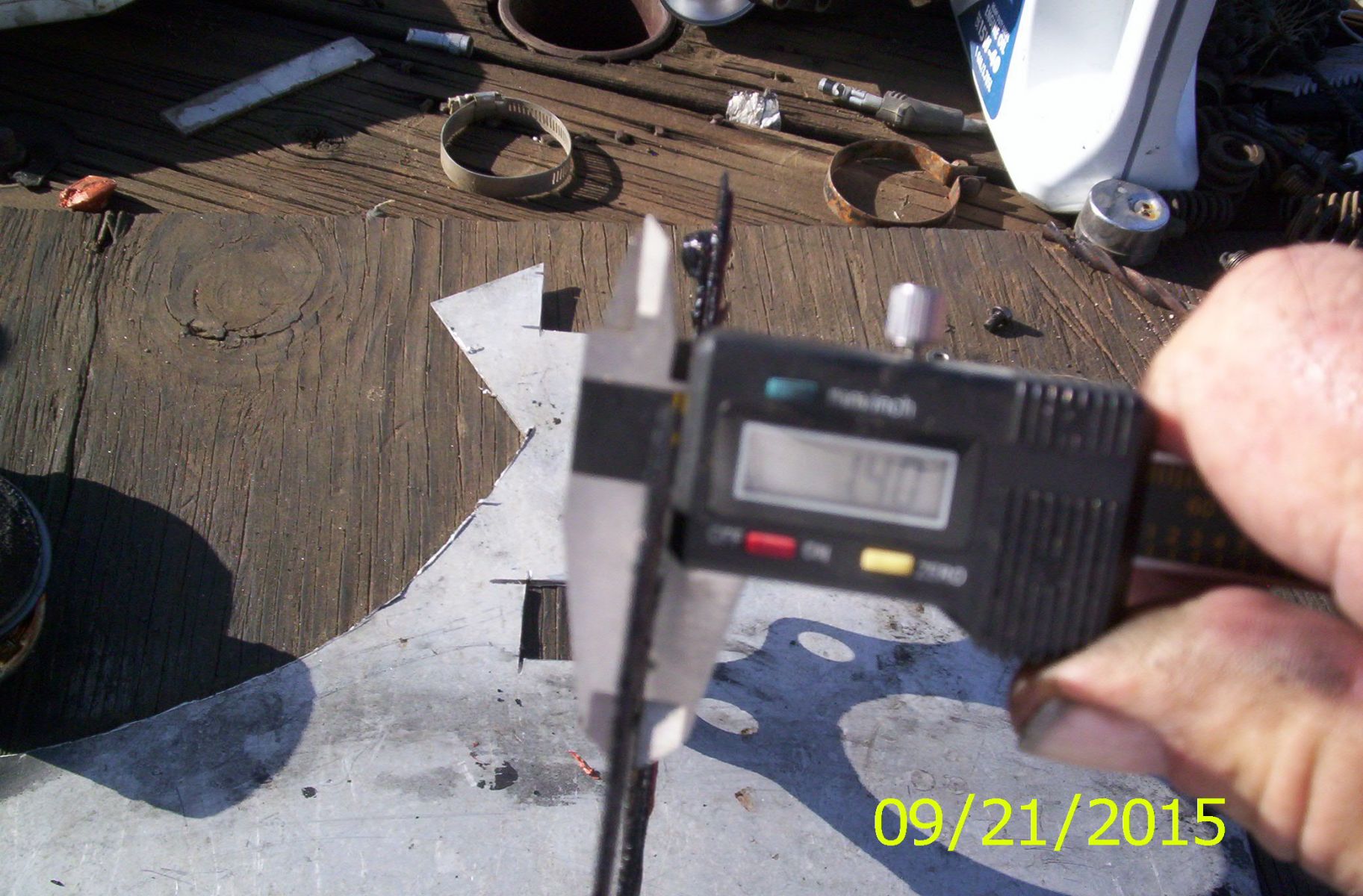

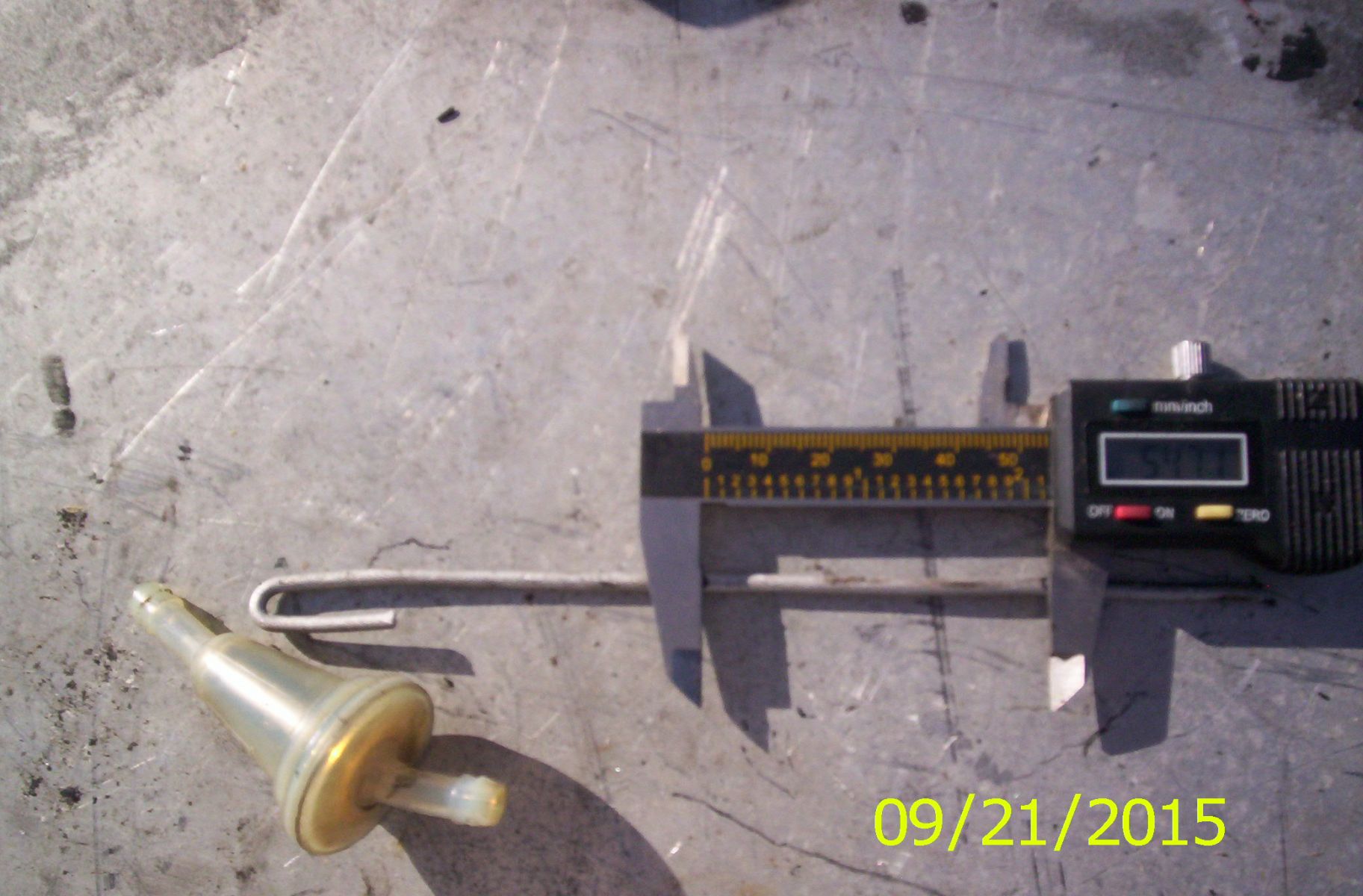

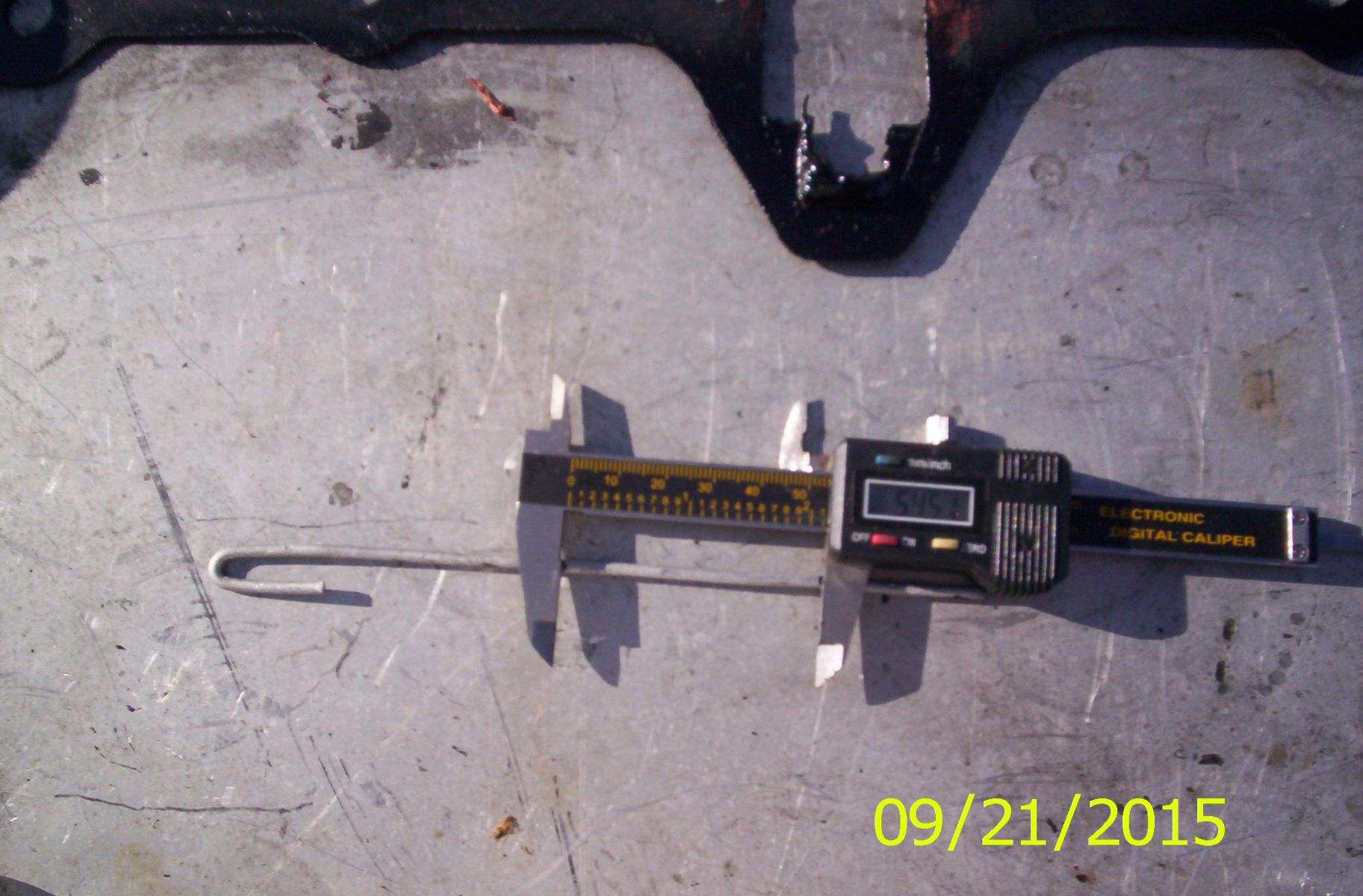

54.51mm


Old gasket

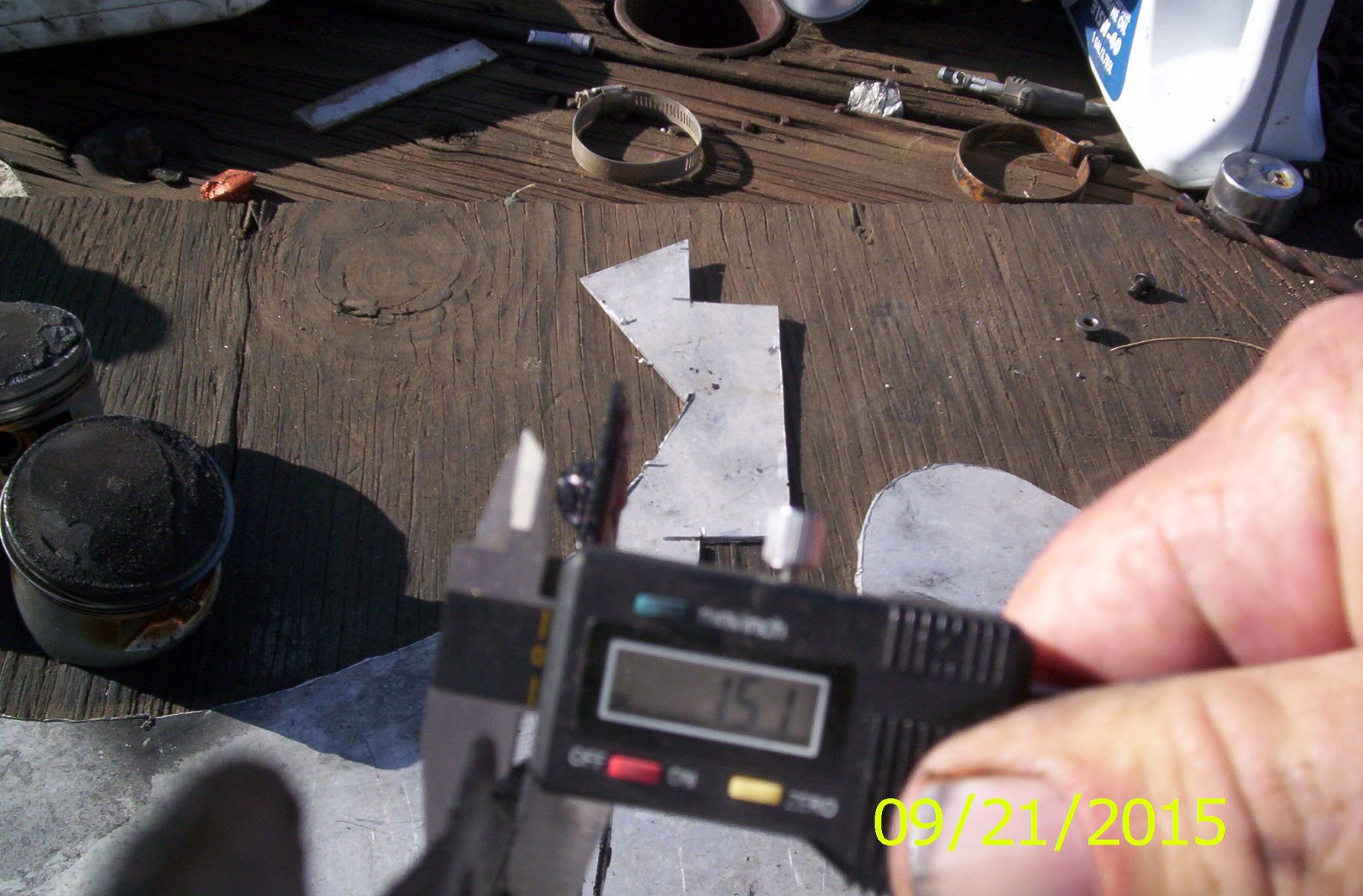

Another pic of depth.


I'm now sure it IS a 750 crank. 54.51 - 1.40= 53.11.
Next is the compression test.
Steve
