1973 Z1 rebuild 02 Sep 2022 05:46 #873210

  • blackozvet
  • blackozvet's Avatar Topic Author
  • Offline
  • User
  • Posts: 194
  • Thank you received: 79

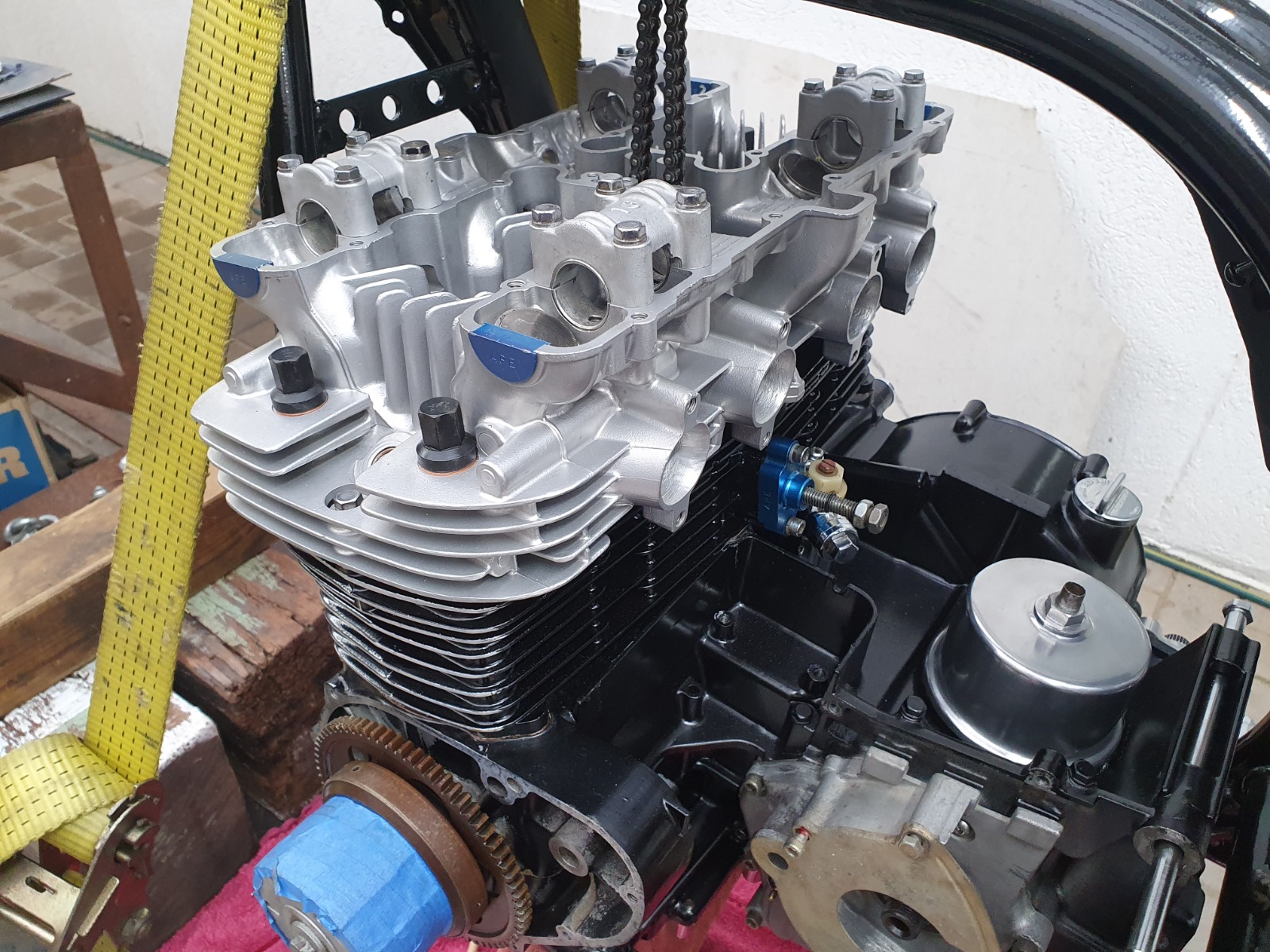

Just for info we weighed the engine (minus heads/cams/starter/covers) before we dropped into the frame - 55 kg (121 pounds)

1973 Z1 900 Kawasaki
Attachments:

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 02 Sep 2022 05:49 #873211

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3087
  • Thank you received: 1718
So I guess Zed1015's figure of 95KG for the complete unit is "bang on the money"

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 02 Sep 2022 16:38 #873265

  • blackozvet
  • blackozvet's Avatar Topic Author
  • Offline
  • User
  • Posts: 194
  • Thank you received: 79

So I guess Zed1015's figure of 95KG for the complete unit is "bang on the money"


I guess it depends on how "dressed" the engine is ?
The addition of head, cams, starter and engine covers wouldnt be another 40 kg ?
1973 Z1 900 Kawasaki

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 10 Sep 2022 01:15 #873633

  • blackozvet
  • blackozvet's Avatar Topic Author
  • Offline
  • User
  • Posts: 194
  • Thank you received: 79
Well I have had a week away from the bike as we went away with friends for a week of eating and drinking too much.

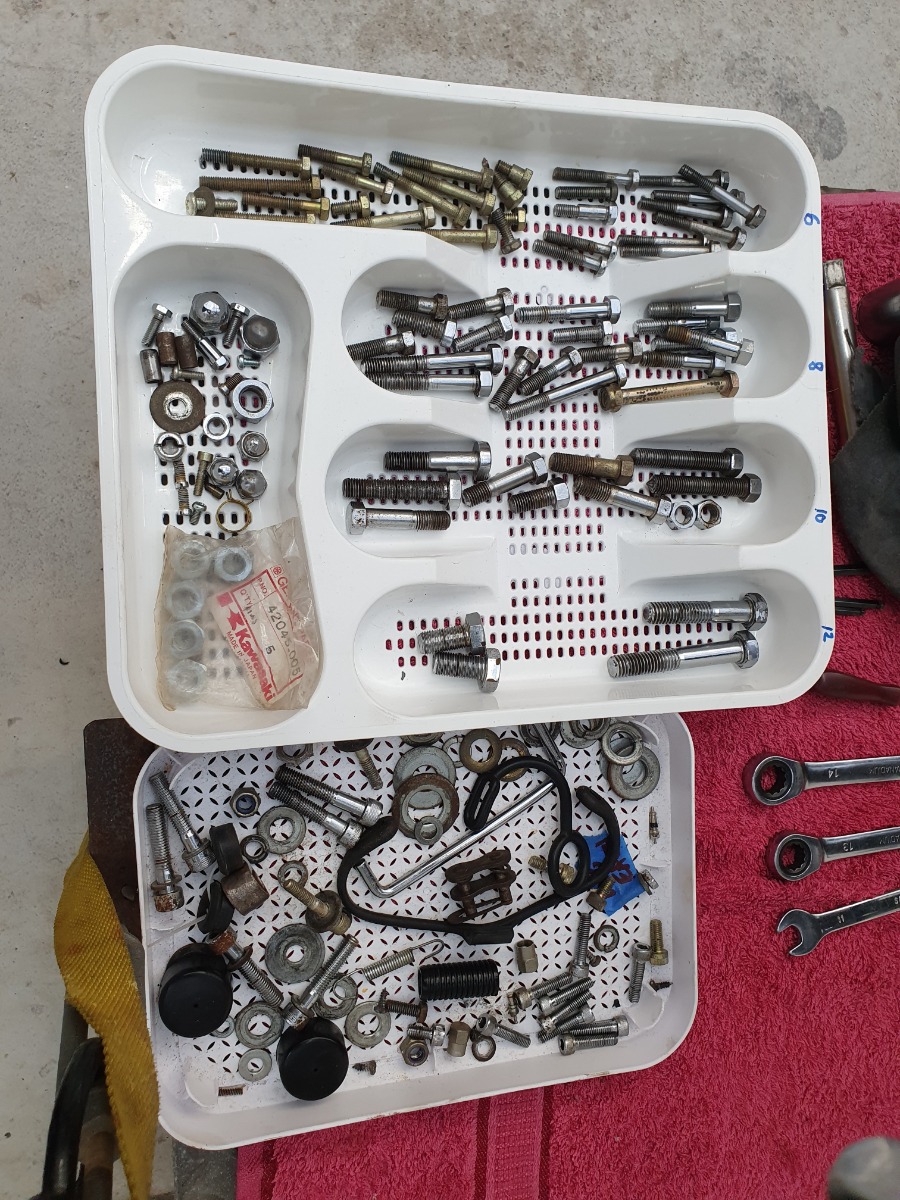

But now its time to get back to it again.  I had to dig through all the box's of stuff to see exactly what I have because I have bought stuff and then found those parts in a box somewhere.  Found a bunch of original nuts, bolts etc and started a little collection to help with bolting things together as most bolts on the bike had been changed over to cap head (Allen) bolts.
The amount of time (and money) spent on nuts, bolts and washers on a project is often under estimated.

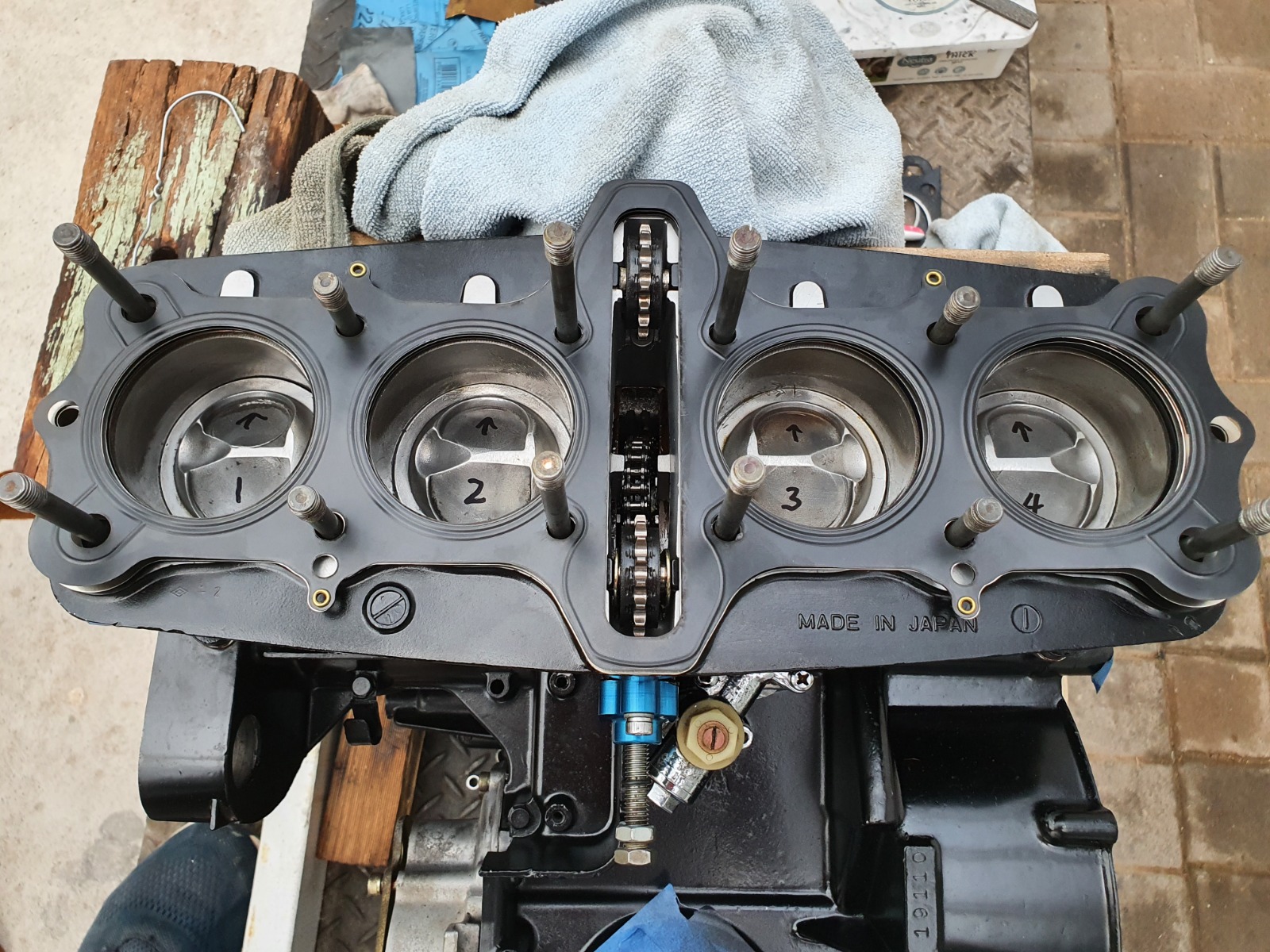

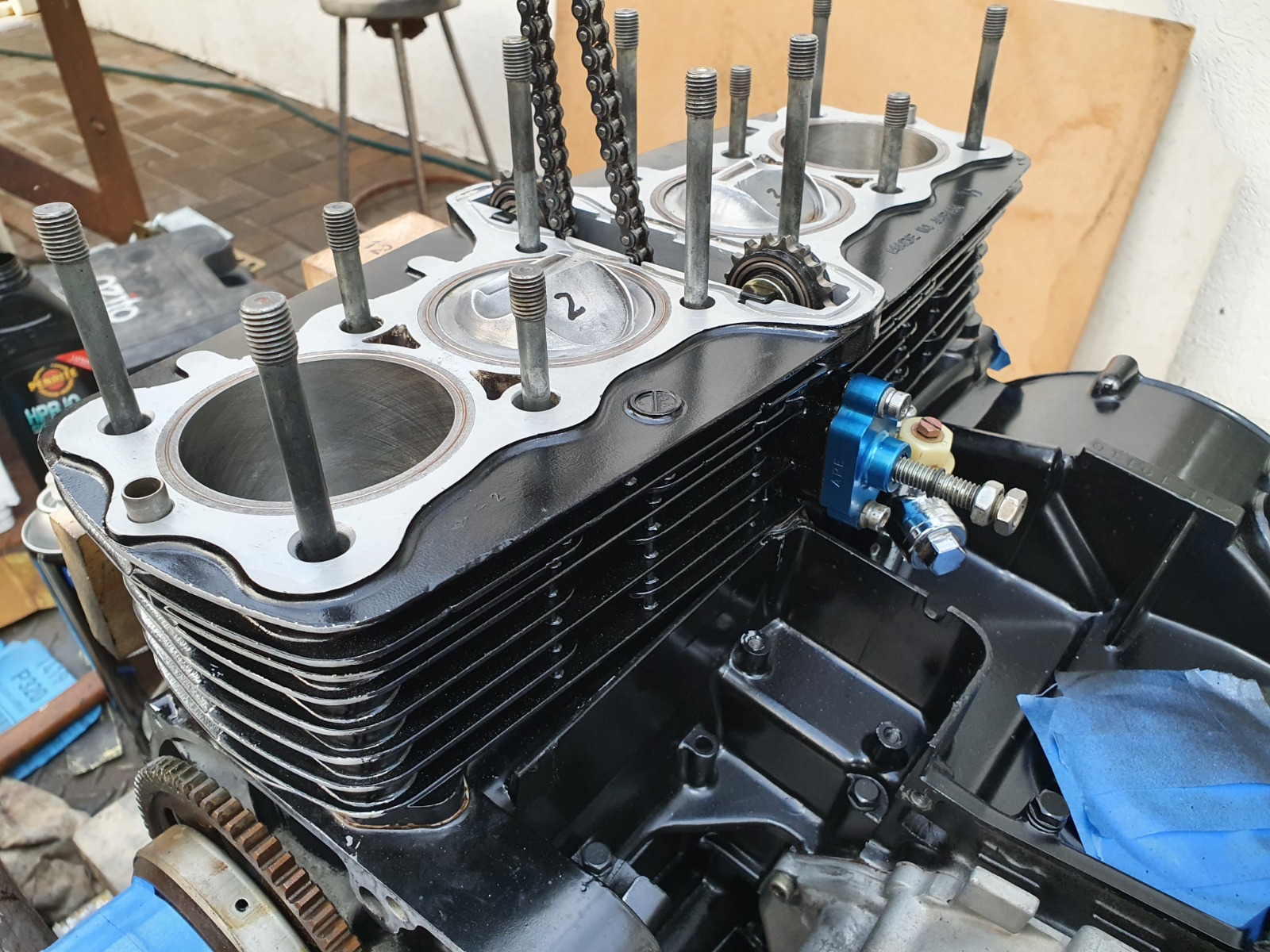

Next is getting the head back on, I cleaned up the surfaces and dropped the Cometic multi layer head gasket on, this gasket is embossed on both sides and is fitted dry.

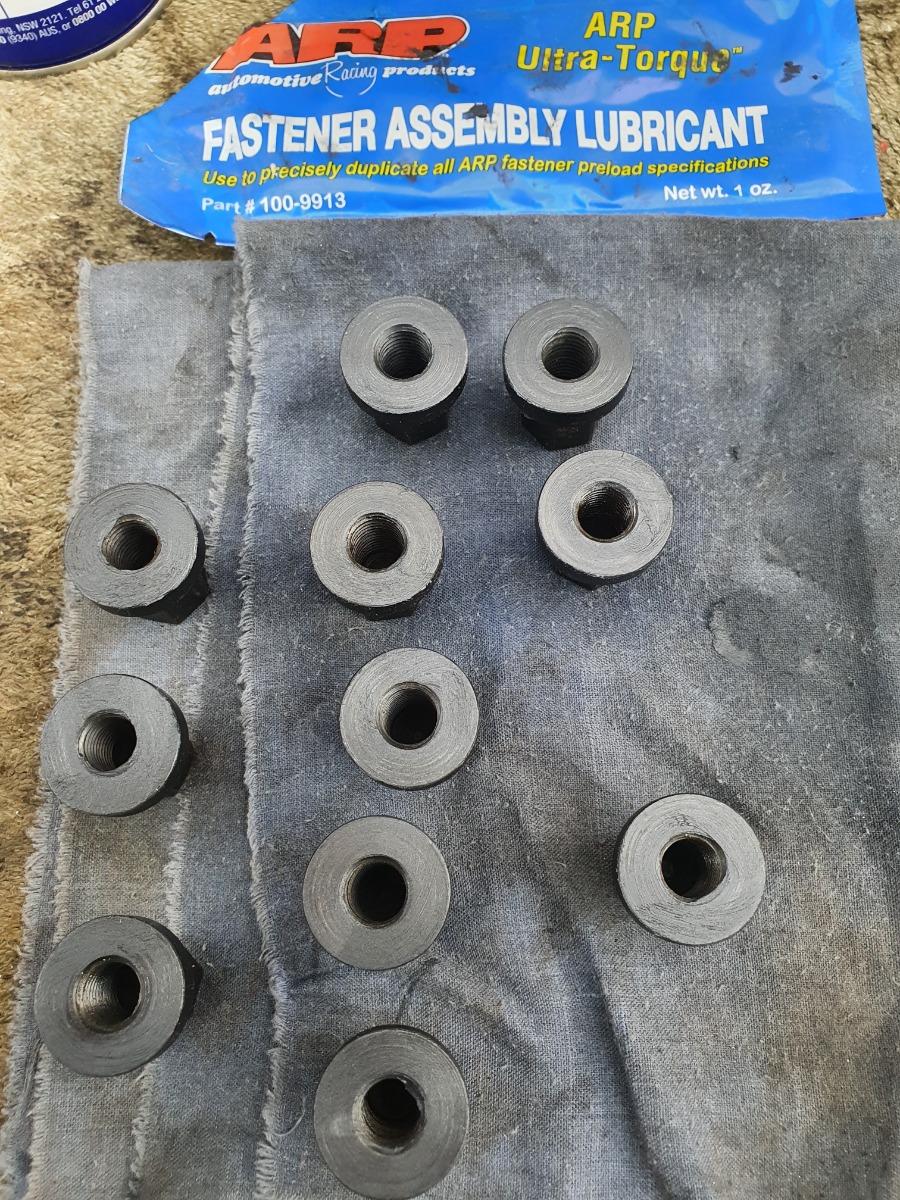

I will be using a new set of washers, and put a slight smear of ARP lube on the underside of the APE head bolts to get a consistent torque application.

The cylinder head is dropped into place and the head bolts torqued down gradually to 25 ft/lbs.
The cam buckets are cleaned and lubed before dropping in and cam caps/bolts cleaned and test fitted.

1973 Z1 900 Kawasaki
Attachments:
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 10 Sep 2022 01:53 #873634

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3087
  • Thank you received: 1718
This will be stunning when it's finished

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 10 Sep 2022 04:14 #873639

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
Most people also under estimate the time needed to restore or rebuild a vintage bike.  I started a 650 as a winter project and am now almost two years into it.  I'm not disappointed though, just making an observation.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 10 Sep 2022 04:27 #873640

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3087
  • Thank you received: 1718

Most people also under estimate the time needed to restore or rebuild a vintage bike.  I started a 650 as a winter project and am now almost two years into it.  I'm not disappointed though, just making an observation.
Ain’t that the truth, I am 4 months in and feel like I have barely scratched the surface

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 10 Sep 2022 09:50 #873655

  • Skidmark
  • Skidmark's Avatar
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256
Mine took 2-1/2 years before the first firing.  And it has been sitting a year waiting for me to get off my backside and synch the carbs.  Still hasn't been broken in...
Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 11 Sep 2022 00:57 #873690

  • blackozvet
  • blackozvet's Avatar Topic Author
  • Offline
  • User
  • Posts: 194
  • Thank you received: 79
The Z owners are having a 50th anniversary display at a bike show on November 6 and I want to have the bike together by then, so it gives me a deadline to meet.  Doesnt matter if it isnt up and running properly, as long as it all together.

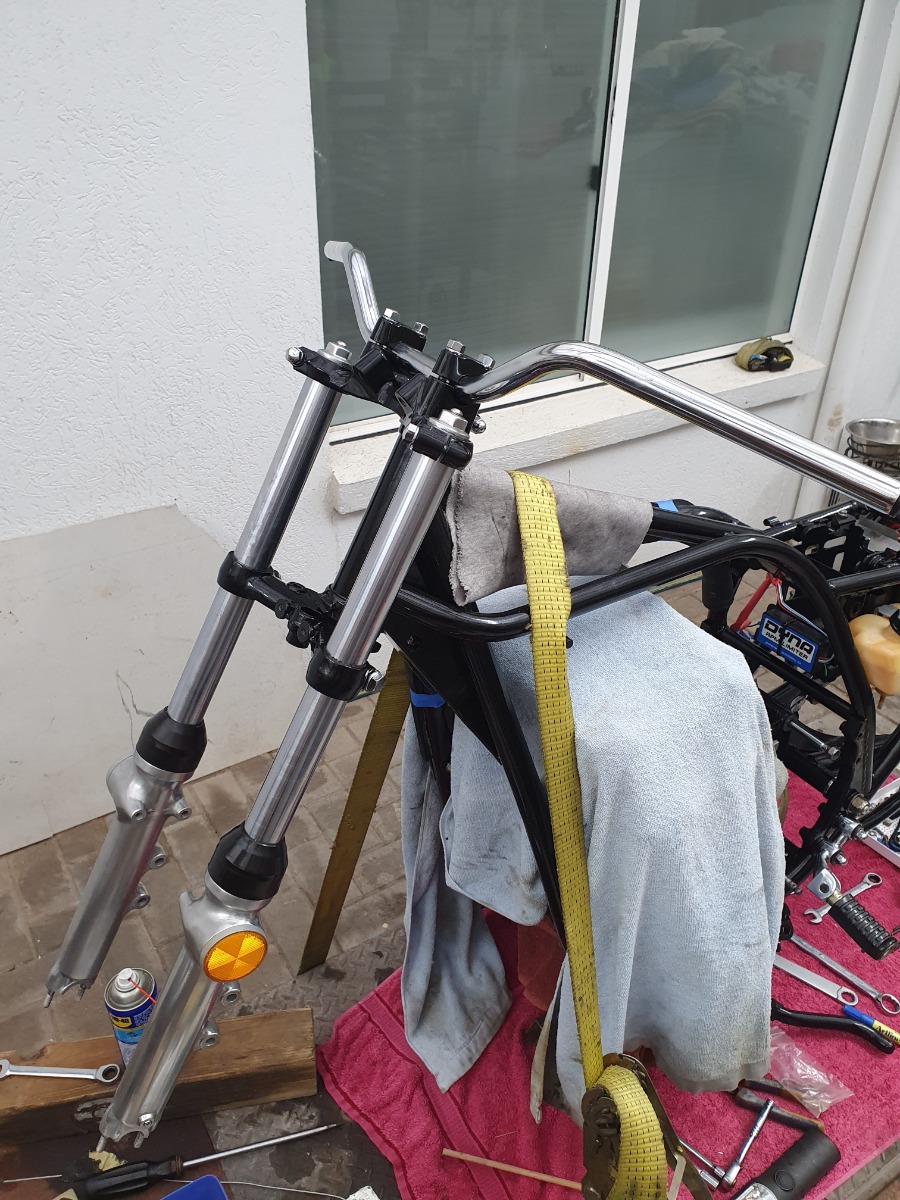

I spent some time today doing the front forks and triple tree.
The forks went back together with new inner and outer seals.  I cant find the original reflectors, I put them somewhere safe and Im just not sure where that is, so some spare replicas went on in the meantime.
The triple trees got greased up and ball bearings fitted.
It was tight trying to get the forks in, there was some powder coat in the holes that had to be sanded.
The new handlebars and bolts went on to top it all off

1973 Z1 900 Kawasaki
Attachments:

Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 11 Sep 2022 04:08 #873693

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441

The cylinder head is dropped into place and the head bolts torqued down gradually to 25 ft/lbs.

25ft/lbs is too loose and is the early figure which was amended in the later manuals.
Should be 28ft/lbs minimum and with stock studs you can go to 32 ft/lbs  .
You should go closer to the 32ft/lbs especially with the high comp pistons although those Cometic MLS gaskets are known to hold up even in turbo applications without the need for piano wired liners.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

1973 Z1 rebuild 11 Sep 2022 04:12 #873694

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
I try to bag everything with parts from each assembly in a separate bag.  I also try to keep everything in a bin.  But I still lose things!

Those front reflectors should have a black ring around the outside.  Kawasaki still sells originals.  You can get them from Partzilla.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Last edit: by hardrockminer.

1973 Z1 rebuild 11 Sep 2022 04:34 #873696

  • blackozvet
  • blackozvet's Avatar Topic Author
  • Offline
  • User
  • Posts: 194
  • Thank you received: 79

The cylinder head is dropped into place and the head bolts torqued down gradually to 25 ft/lbs.


25ft/lbs is too loose and is the early figure which was amended in the later manuals.
Should be 28ft/lbs minimum and with stock studs you can go to 32 ft/lbs  .
You should go closer to the 32ft/lbs especially with the high comp pistons although those Cometic MLS gaskets are known to hold up even in turbo applications without the need for piano wired liners.


yes, Im thinking you are probably right - I had to click them again after 24 hours.
I will go up to 32 lbs and hopefully that should take up better.
1973 Z1 900 Kawasaki

Please Log in or Create an account to join the conversation.
