1973 Z1 Maui 22 May 2022 04:07 #867467

  • 73z1
  • 73z1's Avatar
  • Offline
  • Sustaining Member
  • Posts: 481
  • Thank you received: 96

Went through all the bearing locations one at a time with the other end supported by a lower half shell. I learned that three locations were pinching the split. Two on intake, one on exhaust. I lightly eased the very edges of the split on the caps and head, just like removing an edge burr. This fixed the problem, cams move easily now when fully assembled.
this begs the question, why now?

My guess, the new bearing shells were not perfect, never seen this problem, I always check the cam spins free.

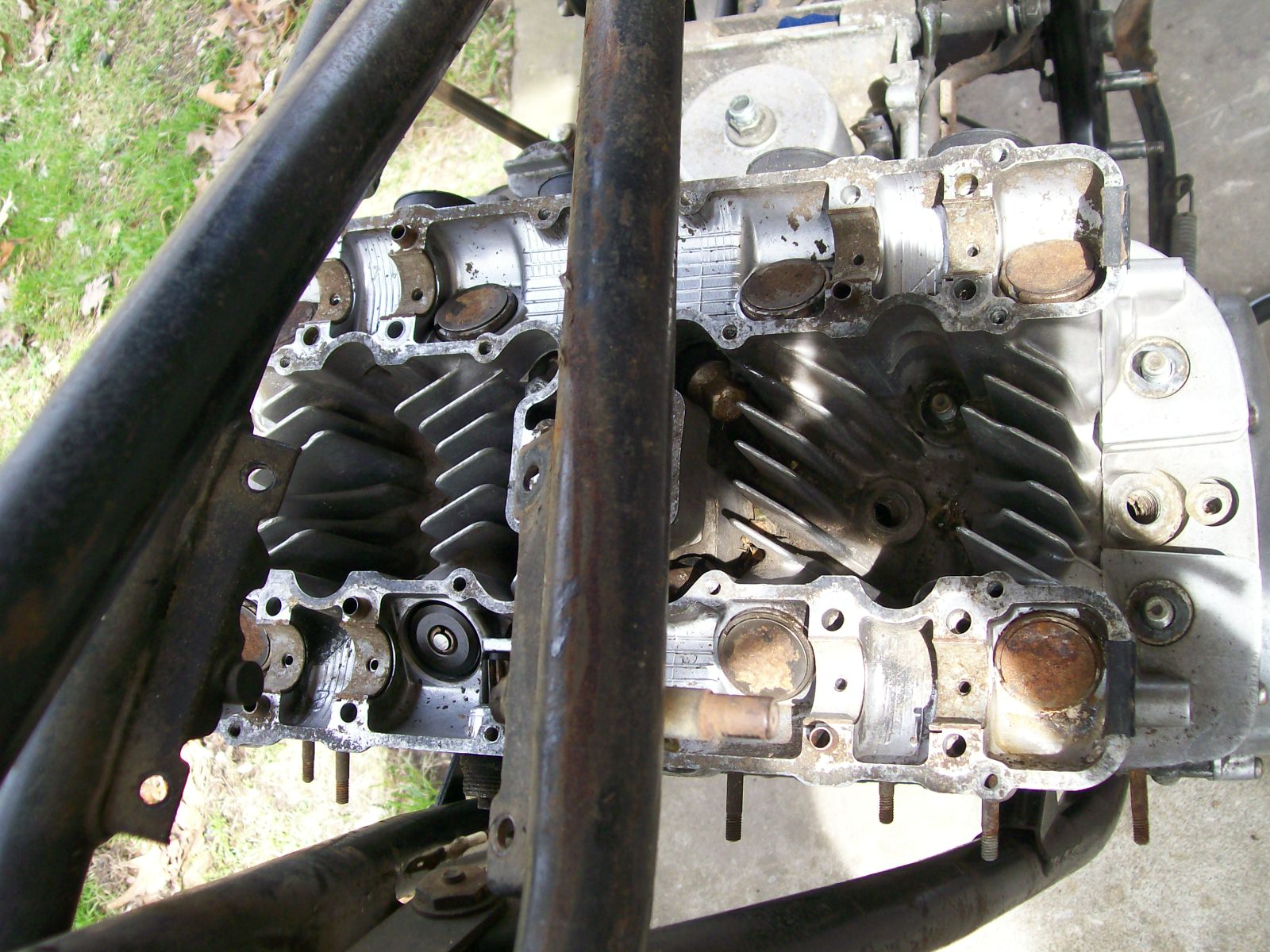

Newest project, camshafts and two bearing caps missing.


Attachments:

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 22 May 2022 14:29 #867509

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 229
  • Thank you received: 19
Obviously checking cam clearance with measuring tools and plastigauge is a must but I wonder about one thing. Aside from my specific problem I’ve suffered, let’s say you have good condition cams and new stock bearings. What if the clearance is somehow out of spec? I don’t think there are over or under size bearings available.
I’m going to replace these bearing shells and get a set of cams and I’ll of course do all the checks, hopefully the numbers come out ok.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 22 May 2022 15:09 #867514

  • Wookie58
  • Wookie58's Avatar
  • Online
  • Sustaining Member
  • Posts: 1467
  • Thank you received: 668
I guess with no other size bearings available you would have to remove a little material from the back of the bearing (the coating isn't thick enough to risk scraping the face - how it was done a very long time ago) to relieve tightness. don't know how you could reduce clearance for a loose fit without a big spend (build the cam up with hard weld and regrind to spec)
1982 KZ1000 Ltd

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 23 May 2022 04:52 #867551

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2519
  • Thank you received: 772
If you checked the cams, why are you going to replace them?  Were they damaged when the bearings turned?
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 24 May 2022 14:32 #867640

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 229
  • Thank you received: 19
There were a few spots that are damaged, I don’t think I should use them. They do measure near the top of the tolerance, if I could find a shop that could resurface them and stay above the minimum they are usable. I imagine it would require some pretty nice grinding equipment, there is only one machine shop here, I may ask them.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 24 May 2022 15:11 #867641

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 229
  • Thank you received: 19
I’m thinking an 8 or a 16 finish. Going down to a 4 might be too good and not pick up enough oil

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 25 May 2022 05:27 #867665

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2567
  • Thank you received: 1099
No eBay APP ID and/or Cert ID defined in Kunena configuration


it has heavy duty studs but I don’t see how that could cause this, there are a lot of hot rod Z1s out there running HD studs.




Hopefully you have found the cause of your issues but i just spotted this statment i missed which you may want to check up on..
The stud holes in the barrel casting taper in towards the center from each end leaving a raised casting flash midway down..
In some cases there is quite a restriction in that area when fitting the larger diameter HD studs that can severely restrict oil flow to the cams and has been known to cause cam and cam bearing damage.
I always bore the four outer holes straight through with a 12mm drill to ensure sufficient clearance and oil flow.
You don't get this issue with the stock stud due to their reduced shank diameter ..



AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL MIKUNI CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





The following user(s) said Thank You: slmjim+Z1BEBE, Mikaw, Rick H., Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

1973 Z1 Maui 25 May 2022 05:32 #867666

  • Wookie58
  • Wookie58's Avatar
  • Online
  • Sustaining Member
  • Posts: 1467
  • Thank you received: 668


it has heavy duty studs but I don’t see how that could cause this, there are a lot of hot rod Z1s out there running HD studs.





Hopefully you have found the cause of your issues but i just spotted this statment i missed which you may want to check up on..
The stud holes in the barrel casting taper in towards the center from each end leaving a raised casting flash midway down..
In some cases there is quite a restriction in that area when fitting the larger diameter HD studs that can severely restrict oil flow to the cams and has been known to cause cam and cam bearing damage.
I always bore the four outer holes straight through with a 12mm drill to ensure sufficient clearance and oil flow.
You don't get this issue with the stock stud due to their reduced shank diameter ..

Zed1015 is this still relevant to the later “J” motor
1982 KZ1000 Ltd

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 25 May 2022 05:46 #867667

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2567
  • Thank you received: 1099


it has heavy duty studs but I don’t see how that could cause this, there are a lot of hot rod Z1s out there running HD studs.






Hopefully you have found the cause of your issues but i just spotted this statment i missed which you may want to check up on..
The stud holes in the barrel casting taper in towards the center from each end leaving a raised casting flash midway down..
In some cases there is quite a restriction in that area when fitting the larger diameter HD studs that can severely restrict oil flow to the cams and has been known to cause cam and cam bearing damage.
I always bore the four outer holes straight through with a 12mm drill to ensure sufficient clearance and oil flow.
You don't get this issue with the stock stud due to their reduced shank diameter ..

Zed1015 is this still relevant to the later “J” motor
Yes! It's relevent to them all and worth checking.
It's just a result of the way the stud holes in the blocks are cast and they don't drill them through.
It's not an issue with stock stud because even if the 10mm threaded end only just slips through there'll be enough clearance around the reduced shank.
With the HD studs the diameter is the same all the way down so that's where the tapered casting can cause problems.



AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL MIKUNI CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 25 May 2022 06:00 #867668

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 831
  • Thank you received: 231
Thanks for the info Zed, I never heard of this before you clued us in on it.

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 25 May 2022 07:41 #867671

  • MauiZ1
  • MauiZ1's Avatar Topic Author
  • Offline
  • User
  • Posts: 229
  • Thank you received: 19
Thank you, that is a great tip, I will surely do this, still waiting on some parts to assemble the top end.

Please Log in or Create an account to join the conversation.

1973 Z1 Maui 08 Jun 2022 19:35 #868536

  • blackozvet
  • blackozvet's Avatar
  • Offline
  • User
  • Posts: 182
  • Thank you received: 70
Howdy, now I can comment, have been lurking and following your build - keep it up !
1973 Z1 900 Kawasaki
