Just some my thoughts about KZ650 cylinder studs and information for those who wish to use OEM cylinder studs but couldn't find complete set of them.
Kawasaki KZ650 as well as KZ750 has 12 cylinder studs with M10 thread of following lengths: 4 studs x 153mm (part number 92004-062), 4 studs x 133mm (92004-1004) and 4 studs x 116mm (92004-1007). The shortest, 116mm studs now are not available not in USA nor in Europe. Taking to account this fact, for majority of people who decided replacing cylinder studs of their KZ there is no other choice, as to purchase aftermarket “heavy duty” studs like those made by APE. However such choice is not for me, as I see “small nuance”. This time it’s about how OEM and aftermarket studs are made: OEM studs have thread M10x1.25mm on top and M10x1.5mm on bottom part, but diameter of their bodies is reduced to 8mm:
Such built is common for motorcycle cylinder studs; and it was designed to lessen load on thread in aluminum where lower ends of studs seat. Cylinder head of KZ tightened by steel nuts with 39Nm of torque. During engine work aluminum of cylinder block and cylinder head expands due to heat, thus increasing load on stud and studs threads. Be stud body of the same diameter as its thread, the weakest point of this system would be a thread in a crankcase. But with body of smaller diameter than thread that could slightly play under the load so threads in aluminum are quite safe even if cylinder head nuts are overtightened. Though APE studs might be great thing if you build turbo charged or high performance engine, in fact for case of mild performance engine like mine, they would be O.T.T. or simply said “overkill”. APE cylinder studs are claimed to be made of chrome moly steel and have rolled threads. In this case weakest point of system definitely would be studs threads in crankcase and overtightening of cylinder head nuts may cause wrecking of those threads. In my repair practice I have seen what overtightened hardware may do with thread in aluminum: it just extract the thread from aluminum body. Afterward you may see that thread as uneven cylinder of aluminum on the thread of bolt that caused havoc. You even could unscrew it from bolt and it holds together.
And tell you what: if I planned my engine as highly charged I would use APE cylinder studs. But I’d first update all crankcase cylinder studs’ threads by thread inserts. Sure, this work should be done very accurately, but it would solve the question of “weakness” of original thread in comparison with heavy duty stud: even simple helicoil will distribute load much better and for larger area of crankcase, than original threads.
However, combination of Wiseco K700 piston kit and KZ750 cylinder head is a mild performance set which gives no reason to make the work on thread, considering that all threads are perfectly intact. So APE studs weren’t my choice, I decided to stick to OEM studs. Surely, unavailability of shortest studs didn’t stop me. I just “looked further in the book” and found that Kawasaki ZR-7 has cylinder studs of the same dimensions: 153mm (P/N 92004-1232), 133mm (P/N 92004-1231) and 116mm (P/N 92004-1233). I ordered them and here they are:
Let’s unpack them:
And compare to KZ650 studs:
As you may see, lengths of studs and threads completely identical. Differences are as follows:
ZR7 studs have thread locking agent factory applied to lower threads;
Body of shortest and longest ZR7 cylinder studs are reinforced in lower parts.
Carburetors were ready for assembling, however I have a couple of other works to attend to, thus I placed parts of my Mikuni BS24 carburetors onto the shelves and smaller of them I put in caps from carburetor cleaner spray, grouped according to their destination. Those carburetor cleaner caps are mighty useful things when it comes to sorting small parts/hardware that one doesn’t wish to mess to.
Cap with parts for one carburetor contains such set of parts:
And sure, I have to remind that I have a Keyster FK-5348N set of parts for every carburetor.
Let’s start assembling from start plungers.
Then we are about to assemble throttle assembly for every carburetor.
After some thoughts I decided to grease throttle arm joints and throttle shaft bushings with Plastitube grease. It’s suitable for such kind of application and it withstands high temperatures as it’s designed to be used in brake systems.
Now let’s pack every carburetor body with pilot jet, needle jet, emulsion tube (air bleeding pipe), main jets and starter plungers. Mind, you have to install all starter plungers before assembling carburetors rack, as after starter plunger’ nut on second carburetor couldn’t be easily accessed with wrench or socket.
With that job done we could proceed to heat shield (mounting plate) assembly.
And step by step we came to point where we could connect all four carburetors using choke system pipes and new PMC fuel joints.
Be this carburetors assembly part of restoration project, I’d have no choice, but use original hardware. However, its custom project so I found no objection against using stainless steel hardware with hexagonal sockets, including those screws with countersunk heads for carburetors to heat shield mounting.
Another little warning: don’t forget put throttle pulley into the assembly before you screw carburetors to heat shield.
After rack is assembled, we could put into carburetors throttle assemblies and install throttle shaft and then choke actuator.
Yet one usage for caps from carburetor cleaner rattle cans: rack of carburetors might be installed upside down on two of them. thus installation of last components became easy game. Valve seats and valve needles on their place, as well as small O-ring for accelerating pump jets.
I have two racks of carburetors. so in last moment decided to use floats from second rack just for the reason that their brass parts are more bright.
After I installed floats I adjusted their height according to information in service manual.
I also head a small issue with Keyster float bowl gaskets. The hole for the pilot screw shaft (in fact for shaft where pilot screw has to be, as only early models of VM24 carburetors has it there) turned out to be a little smaller than original one. Keyster gaskets are made not of paper, but of two layers of rubber with reinforcing layer of fabric between them, see photos below:
Thus it was just a matter of some accurate Dremel work to fit them perfectly.
With gaskets issue being solved, installation of float bowls was only a matter of five minutes. For float bowls I chose stainless steel Allen bolts with cylindrical heads. New fuel hoses that connect bowls and are the part of accelerating pump system took a bit more time, but soon I also installed them and fixed with clamps.
My next task was accelerating pump and its fuel valve. OEM diaphragms for both of them are not available now, so I bought this K&L repair kit:
Triangle thing on very bottom of second float bowl is valve actuator. As I wrote in one of my earlier posts, there are three types of Mikuni VM24 carburetors for Kawasaki KZ650 with accelerating pump. On some Mikuni VM24 carburetors chamber of valve actuator connected by channel to mostly same point where vacuum port for fuel tap is. Thus valve cuts fuel off when manifold vacuum is strong enough to overpower valve diaphragm spring. On some VM24 carburetors (like rack I own) there is no vacuum port in body of second carburetor, thus spring always keeps diaphragm in one position and valve is always open. This means that accelerating pump always has fuel and is ready to operate whenever you jerk throttle. Third type of VM24 carburetors have no valve at all, just uncovered place for diaphragm. In these carburetors accelerating pump always has fuel too.

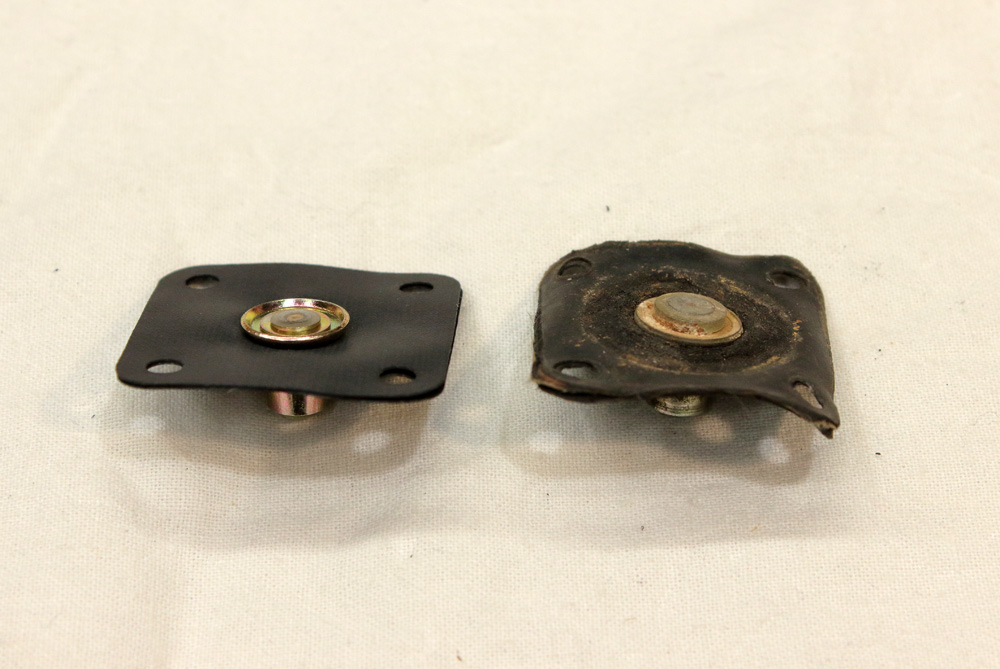

Here is K&L valve diaphragm in comparing to OEM. That needle you may see on one side of diaphragm presses the valve in float bowl and opens it.
Accelerating pump diaphragm is square. K&L diaphragm corresponds OEM in most respects, except of how it holds returning spring. And here I found a little issue. As you may see, OEM diaphragm has protrusion in its center to hold spring on it while K&L has a bowl for this purpose.
K&L returning spring has larger diameter than OEM spring and it doesn’t seat properly in bowl of K&L diaphragm. I tried to tighten slightly the final round of spring but it did no good. Thus, there is possibility that this “unsettled” spring end may move sideways and damage diaphragm. I decided to not take a risk and used old OEM spring. Later I’ll get it zinc plated to protect it from corrosion.
For covers of accelerator pump and its valve I chose stainless steel Allen bolts with button heads.
Once I finished with accelerating pump I had only one task ahead: to install carburetors top covers. I used the same type of screws, as for accelerating pump, they looks great there.
And sure, here are few photos of assembled carburetor rack. I have to check fuel level and make initial synchronization, but this operation, as well as overflow hoses and air vent hoses installation I’ll do later.
Both my sets of carburetors have mostly same angle of float tang (as shown on pictures above) that pretty correspond 23 +/- 1mm of float height indicated in 1981 OEM service manual. In fact I set them to 24mm. However, I will check fuel level later to see if it is correct.
While building motorcycle with custom chassis one has to keep in his mind two essential things:
Front and rear wheels must be positioned inline and centered to longitudinal axis of frame.
Front and rear sprocket must be in one plane.
For Kawasaki KZ650 cafe-racer I’ve built custom spoked wheels based on Honda CBX550 hubs; I used Kawasaki Zephyr 550 swingarm and 41mm Kawasaki Ninja fork in Zephyr 750 triples. That means the whole chassis setup, including rear sprocket’ hub differs hugely from original. However, I managed to get new wheels aligned with frame longitudinal axis and rear sprocket is located soundly in same plane with its front sister.
It took some time to solve both questions for KZ650 project. However, when one get used for solving such tasks it becomes a matter of thinking and calculation. The crucial point is how to check the result after all parts are ready and all necessary modifications done.
Personally I use Profi-CAT Laser for this purpose. This small tool has flat contact base milled from aluminum and laser leveled with that contact base.
However, firstly I have to assemble rear hub, packing it with new bearing and seal. Then to install sprocket studs and rear sprocket itself:
Now is time for tool. As its counterpart I use old eraser.
It has a flat sides and by blind chance Profi-CAT Laser beam points exactly on edge of white strip that separate halves of eraser with the edge of red point slightly on white. The thickness of white strip is 1.5mm; it makes this eraser very useful in measuring sprockets alignment as it is quite easy to observe any deviation of red laser point from “norm” on eraser.
Thus, the only thing I have to do for checking sprockets alignment is to put Laser tool on rear sprocket and aim its laser beam on front sprocket with eraser placed on its side.
For doing so I used old front sprocket from my supplies (for 525 chain and sure of same thickness as rear sprocket) and old KZ650 front sprocket nut and washer. So just don’t mind the appearance of them, but mind where the point of laser beam is. As you may see, it’s exactly where it should be.
I had an ambition to shoot exploded view of Kawasaki KZ650 engine. To shoot that exploded view I have to put on canvas all engine parts, clean and dry. It’s unadvisable to keep engine internals not oiled. May be it’ll work somewhere in Mojave, but not in Kiev, Ukraine: in long run humidity will make steel parts rusty. So I keep most of engine internals as I take them from engine: even thin old film of oil would keep parts safe from rust for long. My intension was to clean parts right before shooting exploded view of engine and then oil them with new fresh oil. But as it was said: man proposes, God disposes: issues with cylinders and two cylinder heads (if shortly, they all were wrecked during quite a standard works performed by specialized workshops) and upcoming winter made this ambition unattainable goal. So I shoved my ambition where the sun does not shine and used last few relatively warm days for engine parts cleaning.
As it always happen with old engine, I had to play gasoline raccoon for quite a long to get result that satisfied me. I cleaned part after part, then I oiled them with new oil that I am about to use in engine after assembling. After such treatment I packed them in boxes which I protected from dust with stretch wrap:
Units like transmission I put apart before washing them.
The engine, parts of which I use, sat for a long years, thus gasoline, numerous brushes and yet one time gasoline applied under pressure is the only way to clean out dirt, hard particles and other depositions. And that’s why this work must be done on fresh air.
Even as service manuals describe in which order all parts should be assembled, with things like gearbox it’s advisable to place all parts in their “natural” order. However, even if parts were messed, their order still may be “read” from signs of their contact with adjacent parts.
I did all measurements according to the book and in result I got confirmation that most of parts were not only in specs but in those range that book calls “standard” which means dimensions of new part. The only “out of spec” thing was copper bushing of first gear on output shaft. It’s curios, even taking into account that it’s the largest gear on the shaft of smallest diameter as it means intensive use of first gear. I could only assume that previous owner of engine was learning how to ride bike. However, looks like he didn’t own the bike for a long enough as most of engine parts look like new. And sure, I found and ordered new first gear to get perfect gearbox for my project.
It's time for me to swap out my original tranny for a low mileage one that I have had soaking in oil for the last 6 years .
I was going to just install it but you may have inspired me to do some deep cleaning first.
You have all the right measuring tools. Some of those I still need to acquire. I made a career being a Quality Control/Production Manager at a metal fabrication shop. Your pictures make me want to shopping!
Please don't get discouraged, personally during the week I usually check in before work and don't have enough in me to write anything other then "looks great!"
but I do appreciate your hard work and eye for detail, I'm learning from you and so are a lot of other folks, 3000 views and climbing.
Thank you for all your hard work, please keep it going
Rest assured gazz, this thread is being watched closely and greatly appreciated by a lot of members and non members alike. The level of detail and quality work is truly inspiring . Thank you for the time you are spending on documenting and sharing this build.
