Re: Saving a 1980 750 twin.
27 Jul 2017 06:06
Nice work on that top mount Vic!
1980B4 1000
1978 Z1R
1978 B3 750
1978 Z1R
1978 B3 750
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- DoctoRot
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Oh, the usual... I bowl, I drive around...
- Posts: 2575
- Thanks: 725
Re: Saving a 1980 750 twin.
29 Jul 2017 15:57
I got the ignition system installed and I was dying to hear this thing run, so I hot wired it. This motor has great compression and is very difficult to turn over with the kick-starter even with my 230lbs behind it, but it still started up first kick!
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23377
- Thanks: 2900
Re: Saving a 1980 750 twin.
29 Jul 2017 16:13
Good job, sounds great. :woohoo:
Steve
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- 531blackbanshee
-
- Offline
- Vendor
-
Vendors
- Posts: 7447
- Thanks: 798
Re: Saving a 1980 750 twin.
31 Jul 2017 07:16
sounds damn good.
leon
leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- DoctoRot
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Oh, the usual... I bowl, I drive around...
- Posts: 2575
- Thanks: 725
Re: Saving a 1980 750 twin.
08 Jan 2018 13:50 - 08 Jan 2018 14:07

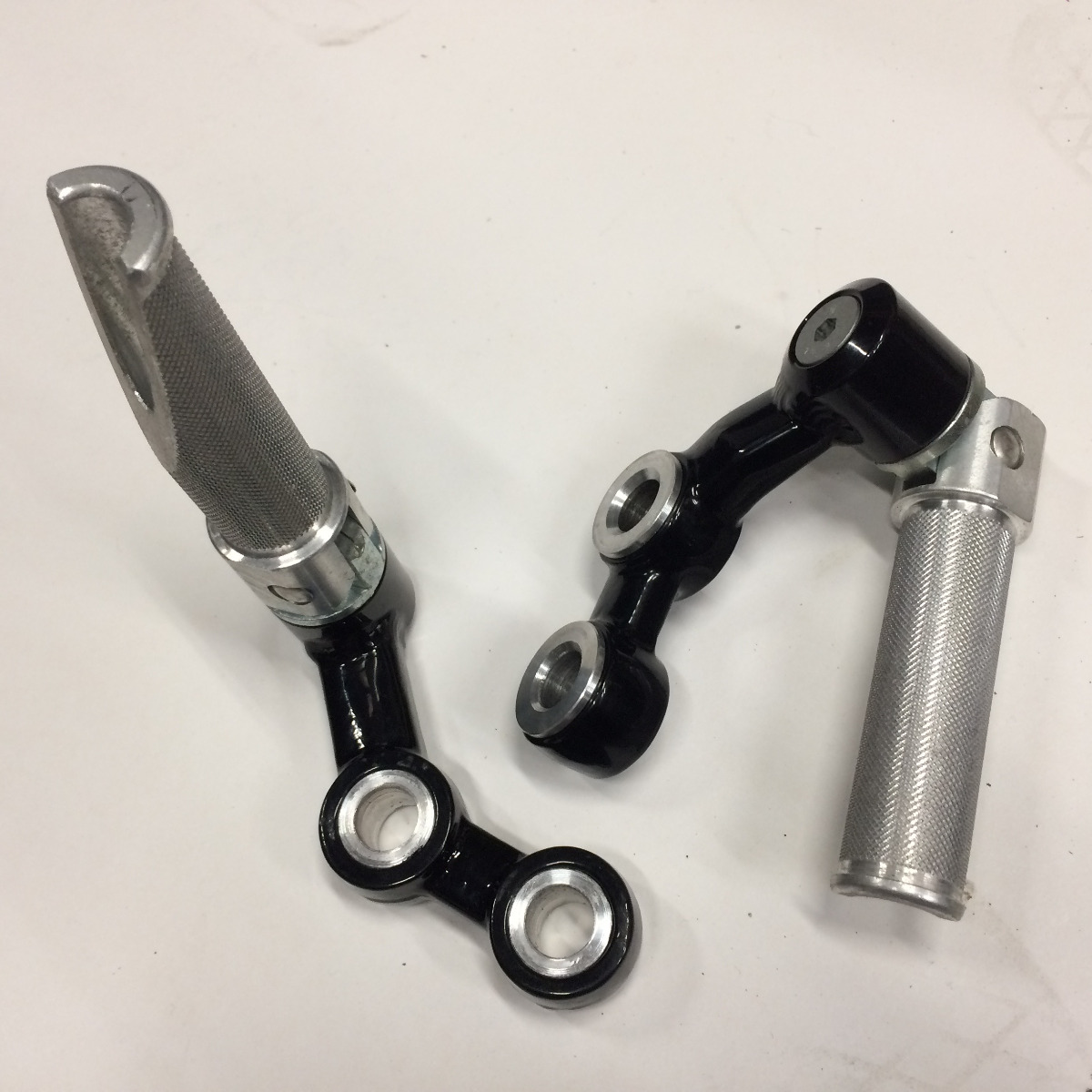

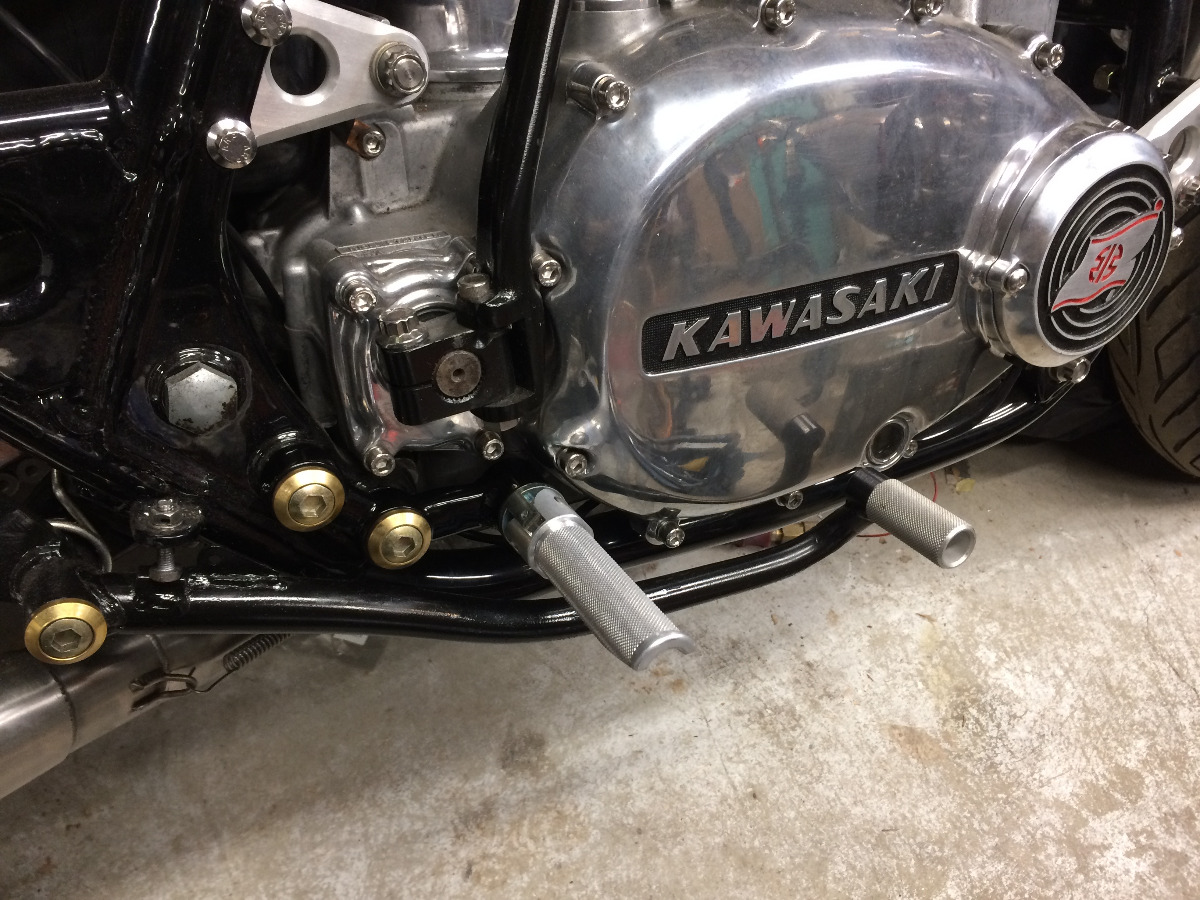

I decided to scrap the custom foot-pegs I was working on and modify the stock brackets to use Tarozzi pegs, I also turned some aluminum spacers so they are solid mounted now. all that remains is wiring, fuel plumbing, and a license plate holder. gettin close!
Attachments:
Last edit: 08 Jan 2018 14:07 by DoctoRot.
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23377
- Thanks: 2900
Re: Saving a 1980 750 twin.
08 Jan 2018 17:33
FOXY :evil:
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Please Log in or Create an account to join the conversation.
- DoctoRot
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Oh, the usual... I bowl, I drive around...
- Posts: 2575
- Thanks: 725
Re: Saving a 1980 750 twin.
09 Jan 2018 02:02

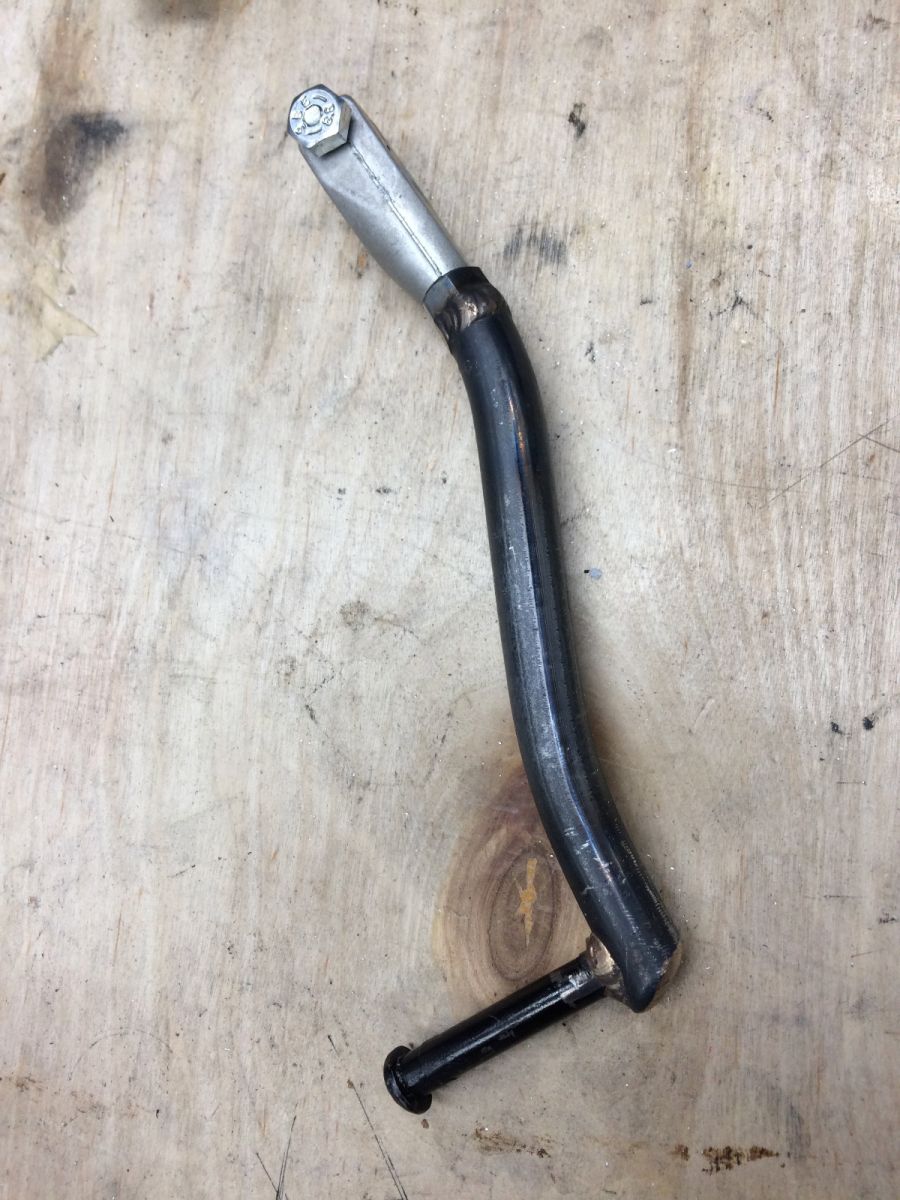

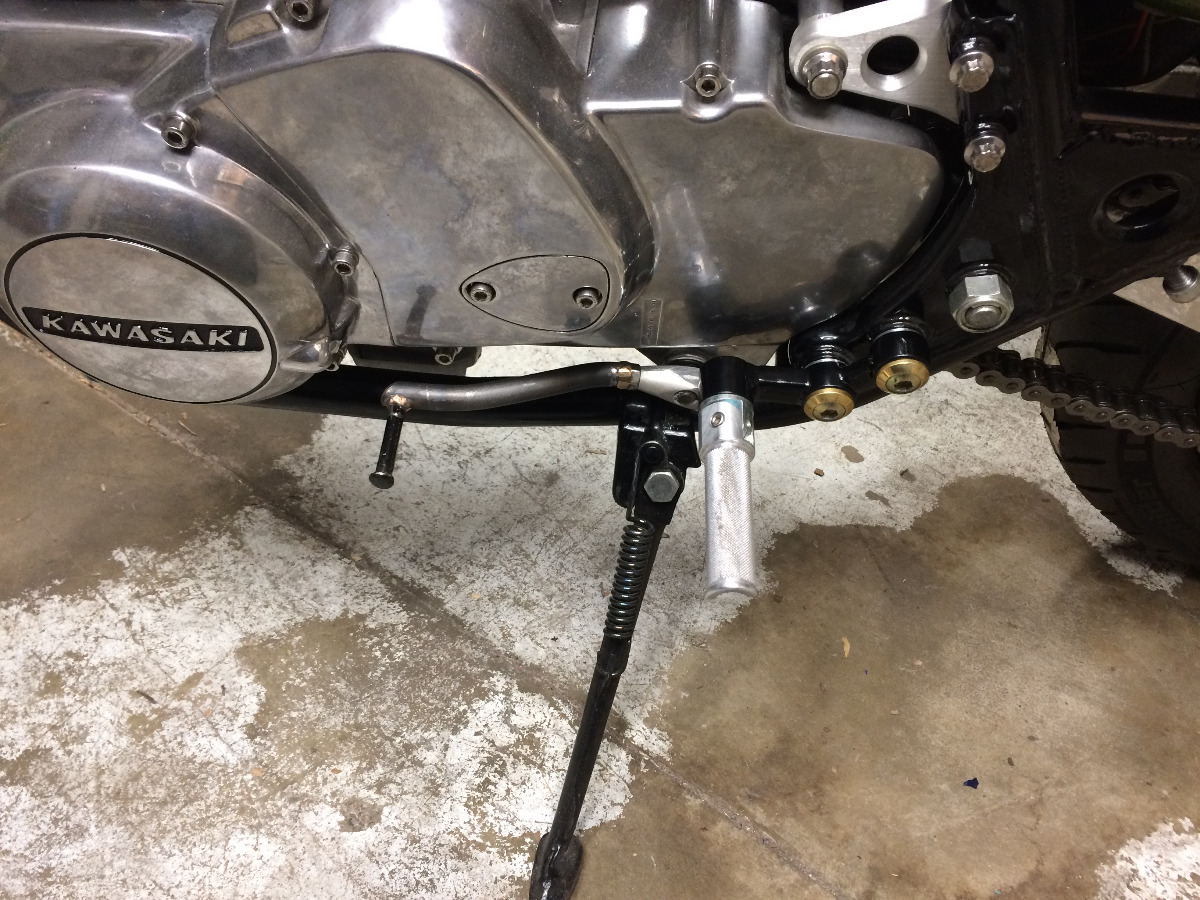

forgot to some add these pics of the new shifter. I went a little overboard on the speed holes with the stock shifter so I re-made it out of thin wall steel tube, and TIG brazed the fittings on. It threads into an aluminum Tarozzi splined clamp.
Attachments:
Please Log in or Create an account to join the conversation.
- DoctoRot
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Oh, the usual... I bowl, I drive around...
- Posts: 2575
- Thanks: 725
Re: Saving a 1980 750 twin.
19 Mar 2018 13:13 - 19 Mar 2018 13:22

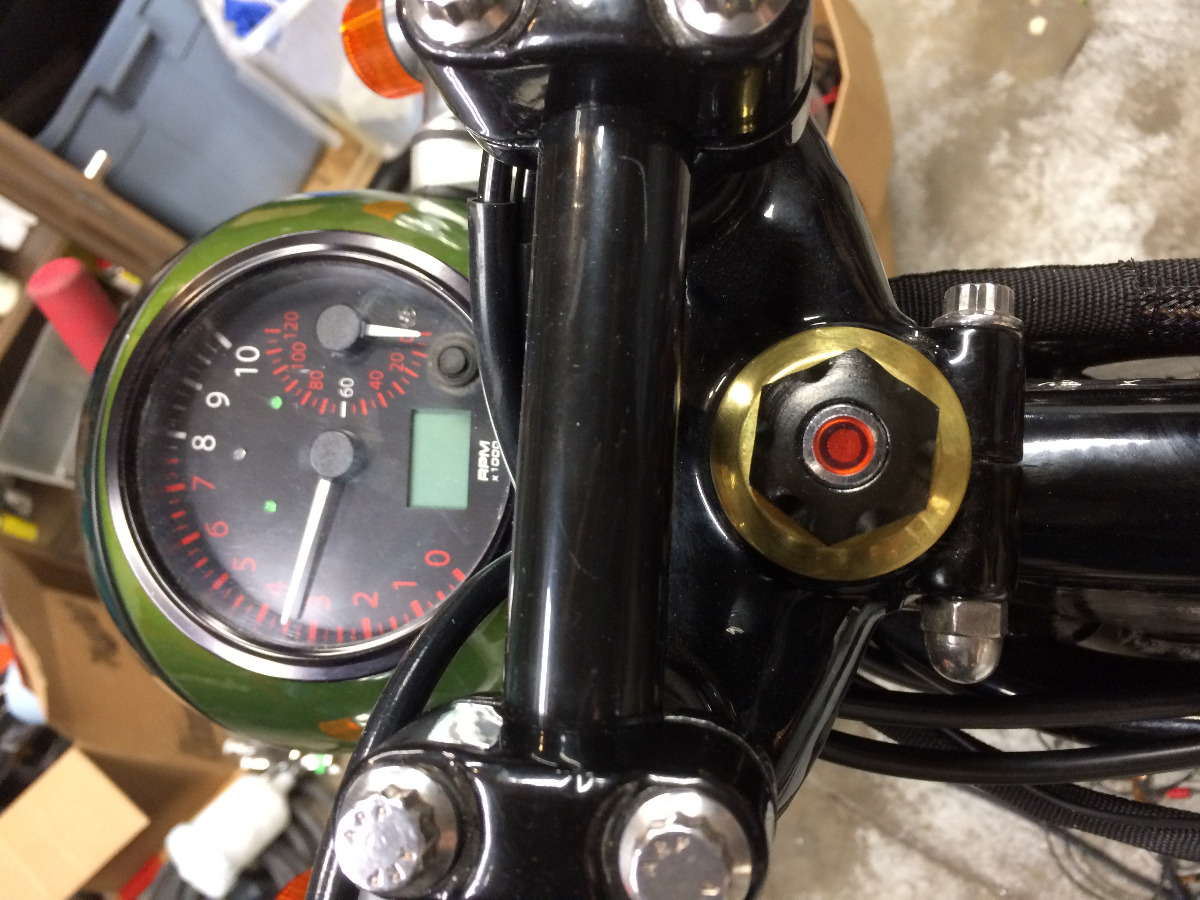

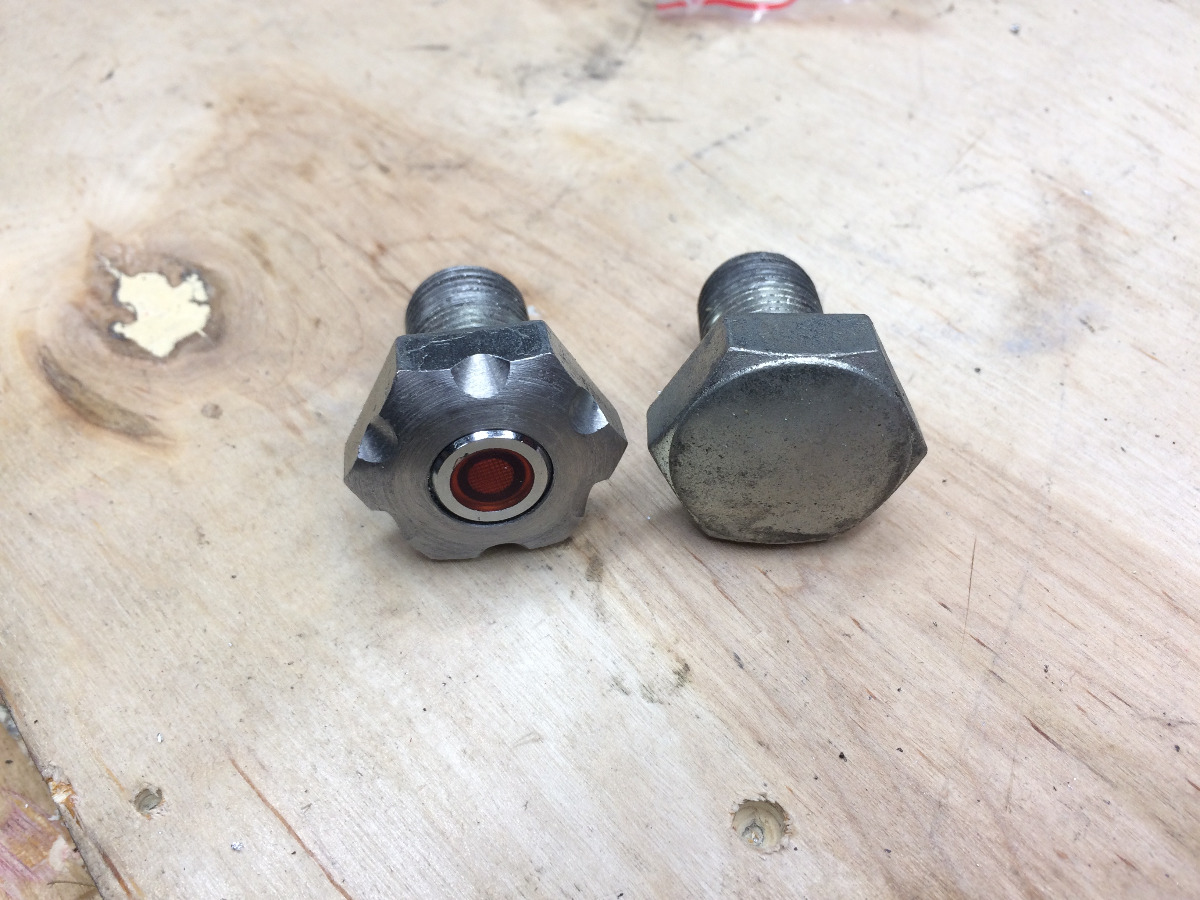

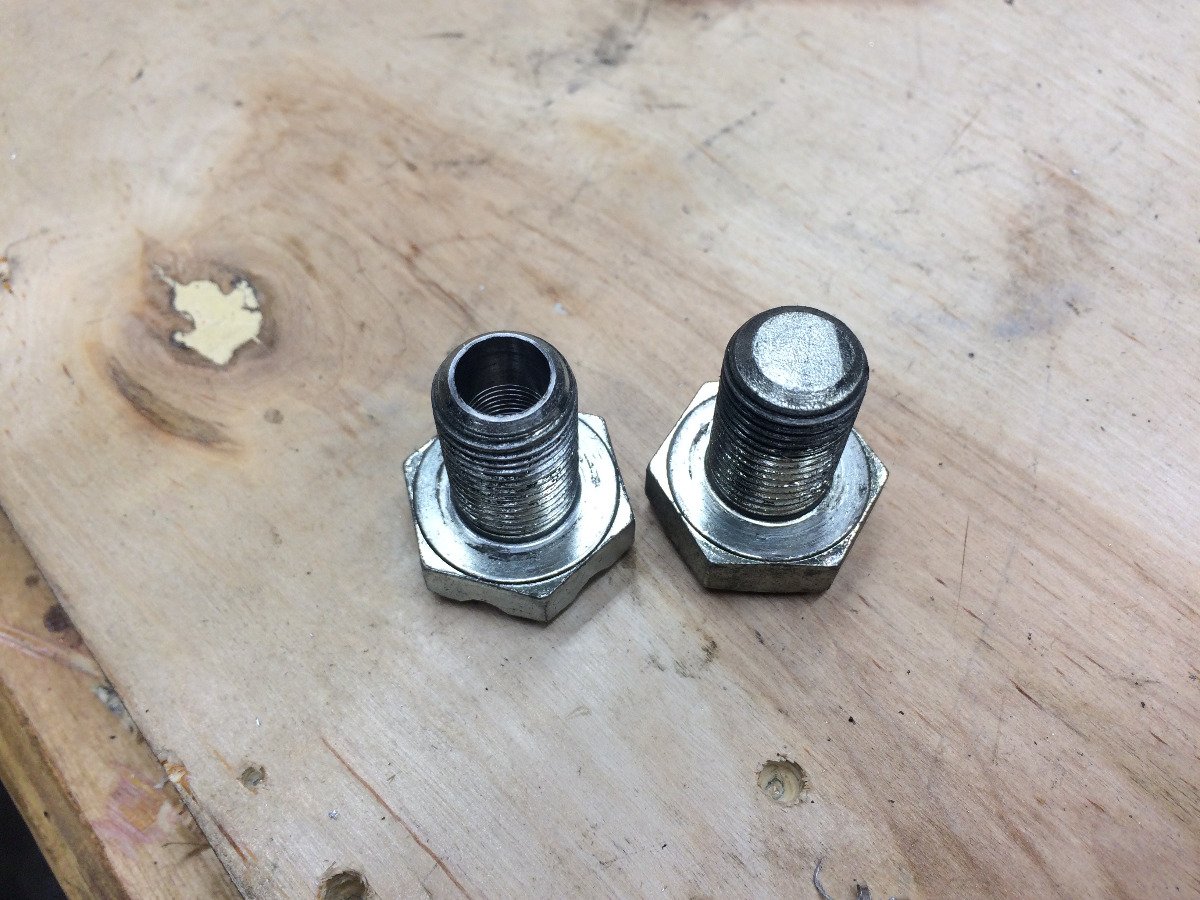

I'd like to get some opinions here as I have compromised the strength of a semi-structural screw and I don't want my own "genius" to kill me. I drilled and tapped this head-stock screw to mount an oil light. The difference between the OD minor thread diameter and the ID major thread diameter is about 4mm so I am left with 2mm thick walls. This screw appears to pretty lightly loaded as the steering stem fits into the top triple and is firmly clamped with a pinch bolt. I torqued the modified screw to the factory value of 36ft/lbs and it seems fine. I have also seen aluminum aftermarket replacement screws available for this application so I can't imagine that this is super critical strength wise. thoughts?
Attachments:
Last edit: 19 Mar 2018 13:22 by DoctoRot.
Please Log in or Create an account to join the conversation.
- Wozza
-
- Offline
- User
-
Registered
- Posts: 136
- Thanks: 30
Re: Saving a 1980 750 twin.
19 Mar 2018 15:37 - 19 Mar 2018 15:41
My thought is the bolt is used to make sure the the top clamp is fully pulled down onto the stem before being locked into place by the pinch bolt,
I cant see how it would cause any catastrophic failure
I cant see how it would cause any catastrophic failure
1982 KZ550H1
Last edit: 19 Mar 2018 15:41 by Wozza.
Please Log in or Create an account to join the conversation.
- Scirocco
-
- Offline
- Premium Member
-
Registered
- Never change a running system
- Posts: 4420
- Thanks: 2268
Re: Saving a 1980 750 twin.

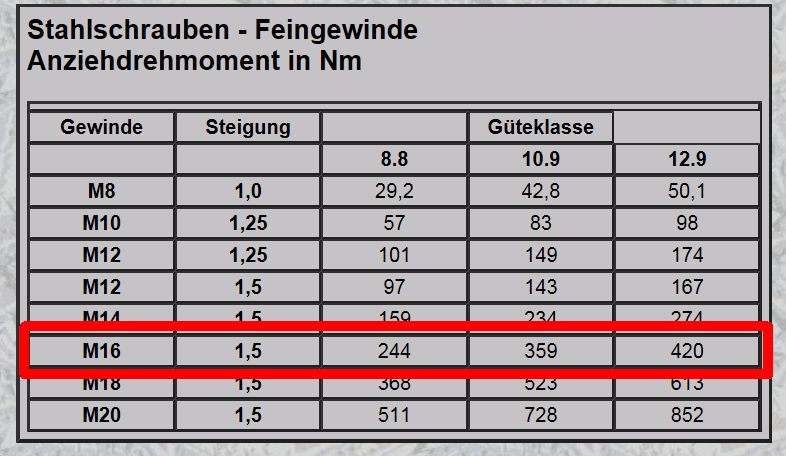

19 Mar 2018 18:20
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Attachments:
Please Log in or Create an account to join the conversation.
- DoctoRot
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Oh, the usual... I bowl, I drive around...
- Posts: 2575
- Thanks: 725
Re: Saving a 1980 750 twin.
21 Mar 2018 01:15Attachments:
Please Log in or Create an account to join the conversation.
- TexasKZ
-
- Offline
- Platinum Member
-
Registered
- Posts: 7882
- Thanks: 2472
Re: Saving a 1980 750 twin.
21 Mar 2018 10:15
Too cool.
