CSR1000 Project Build 27 Mar 2015 13:27 #665423

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265

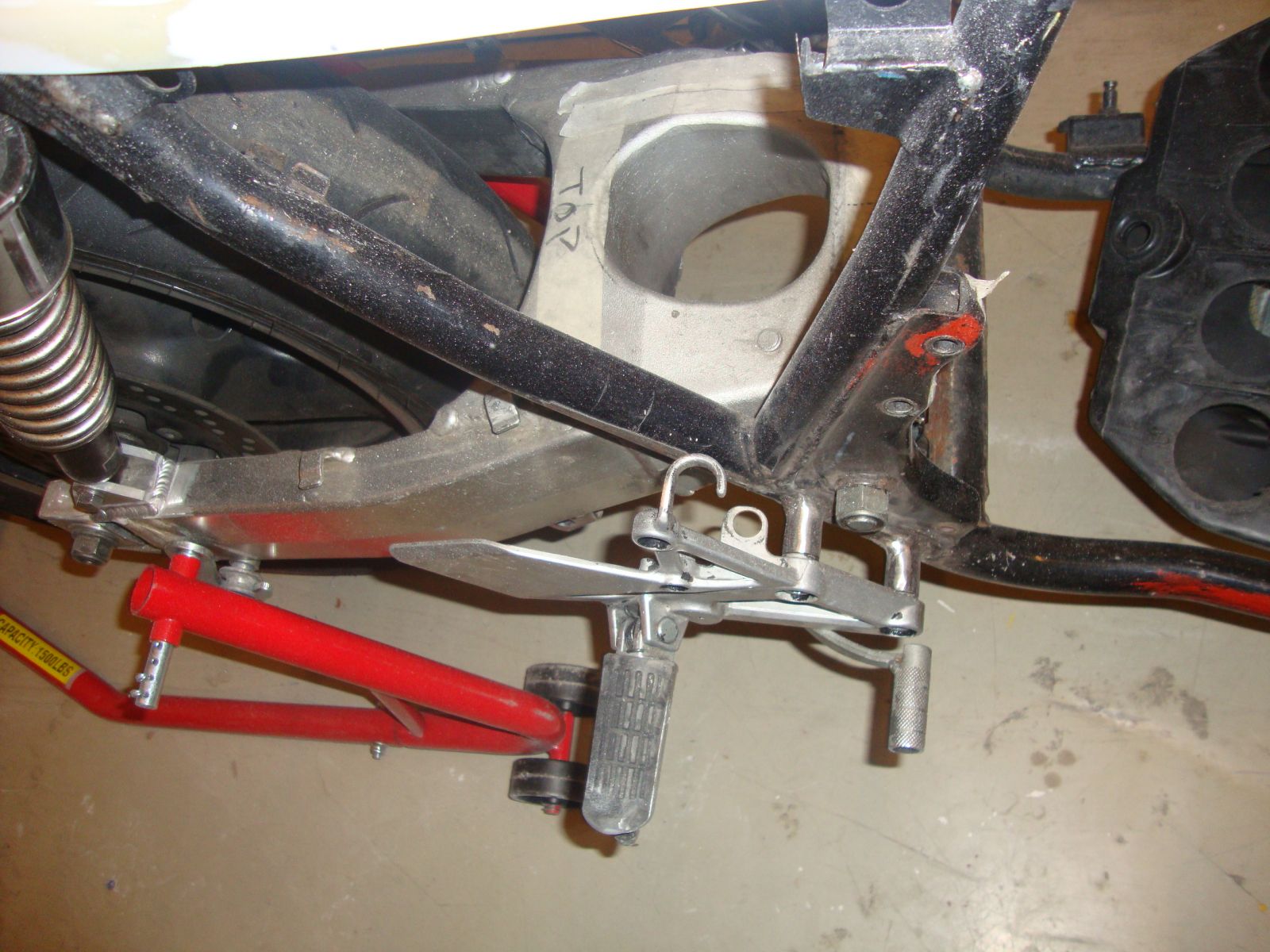

So,next was putting it all together again



www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e
Attachments:

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 30 Mar 2015 06:44 #665766

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
nice progress sir!


leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 31 Mar 2015 11:19 #665934

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265

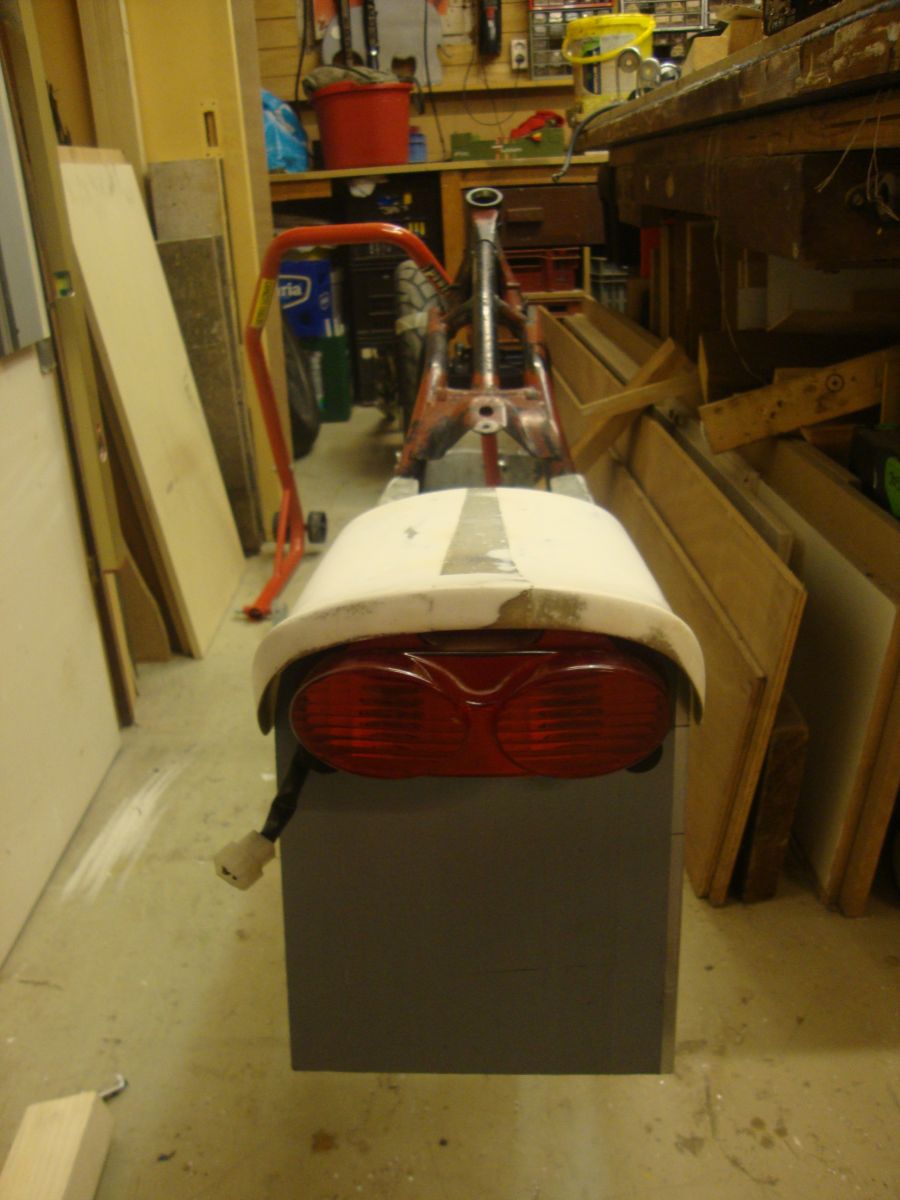

Thanks Leon. Next thing is to get the tail light mounted. I bought a bit of 4mm alu plate to form a mount. I want to get the ZXR light tucked in nice and tidy.Ive also got to weld on something to fix the tailpiece down to the frame. Thatll be my weekend.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 07 Apr 2015 12:51 #666973

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265

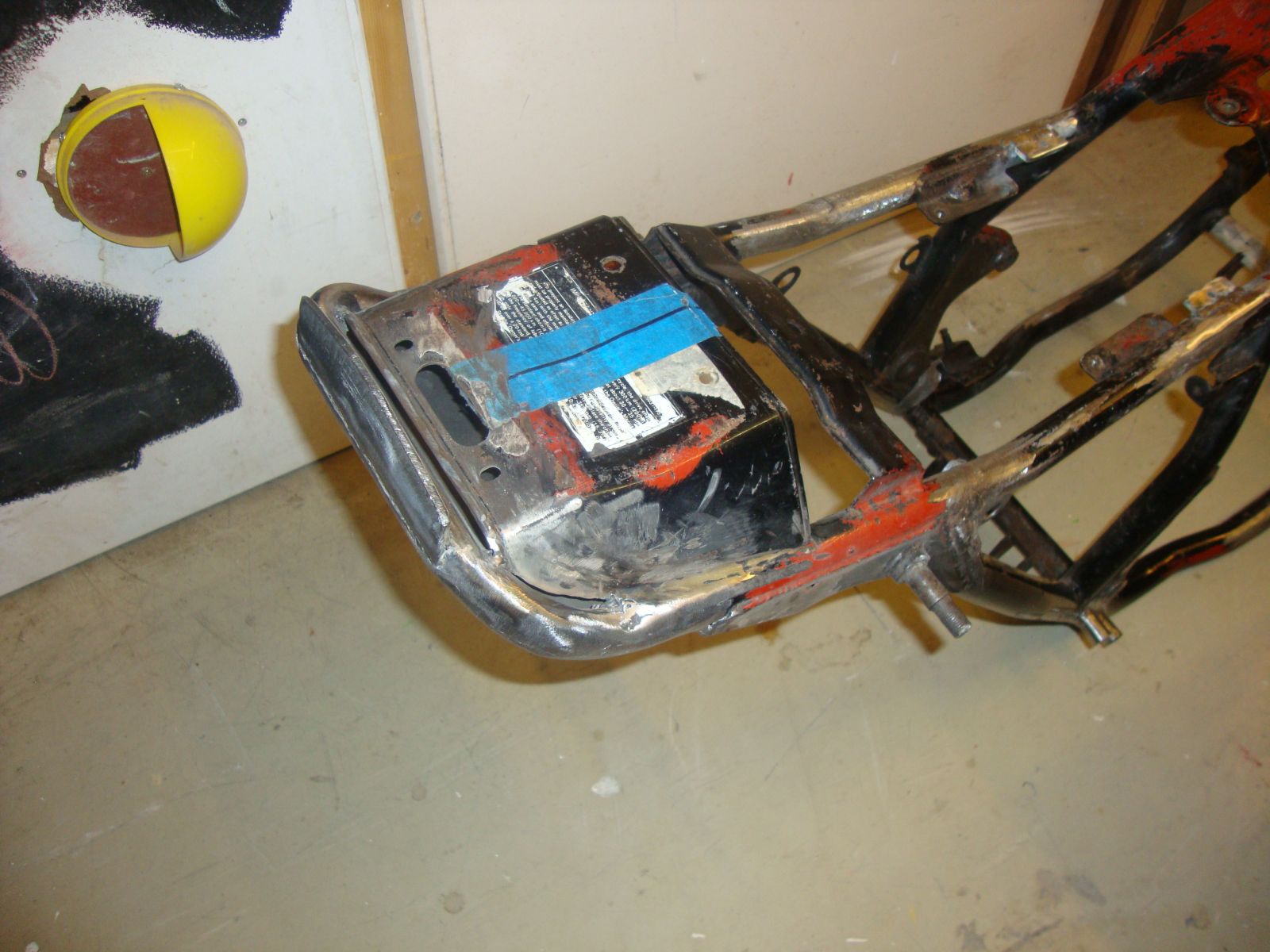

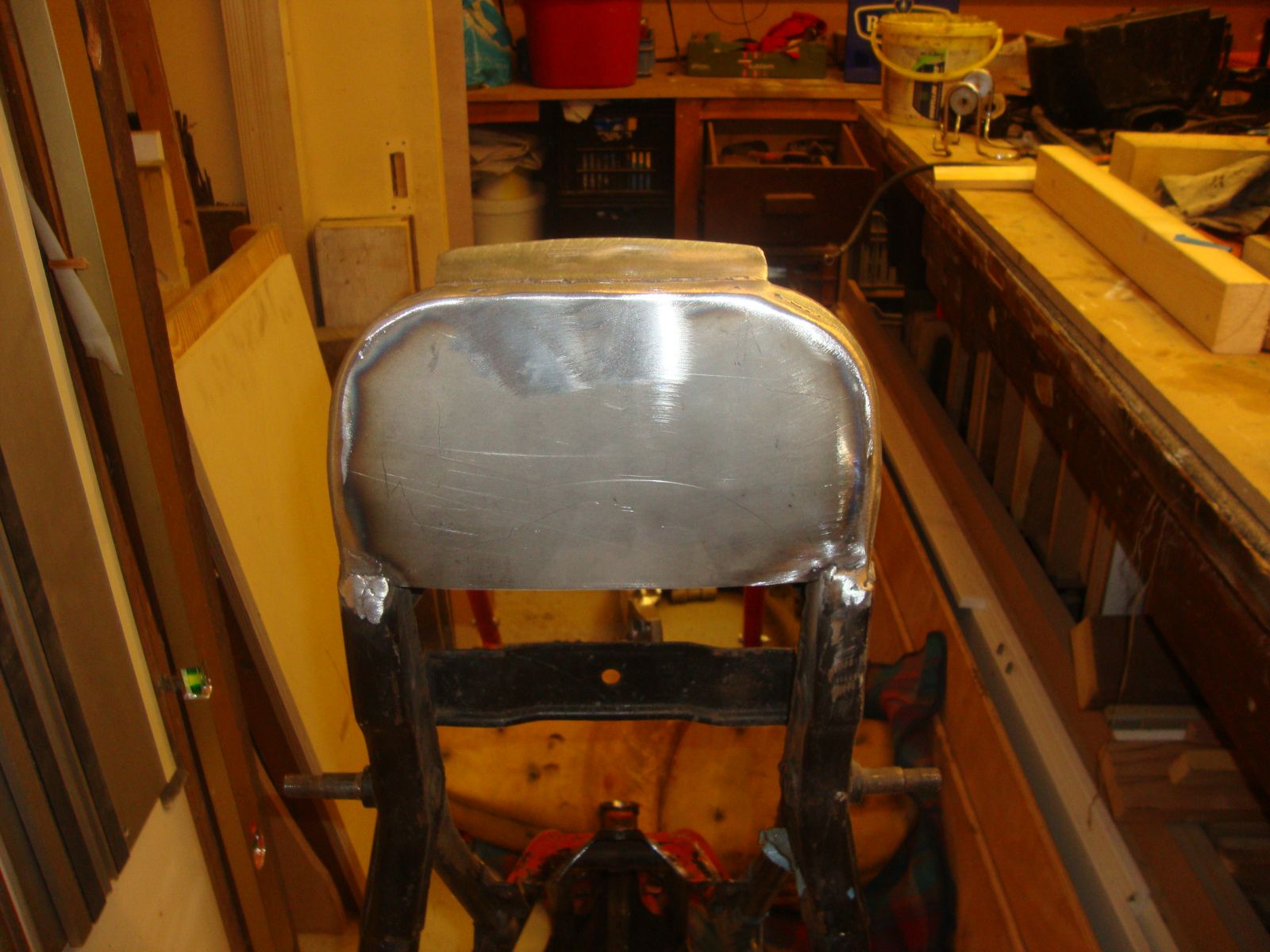

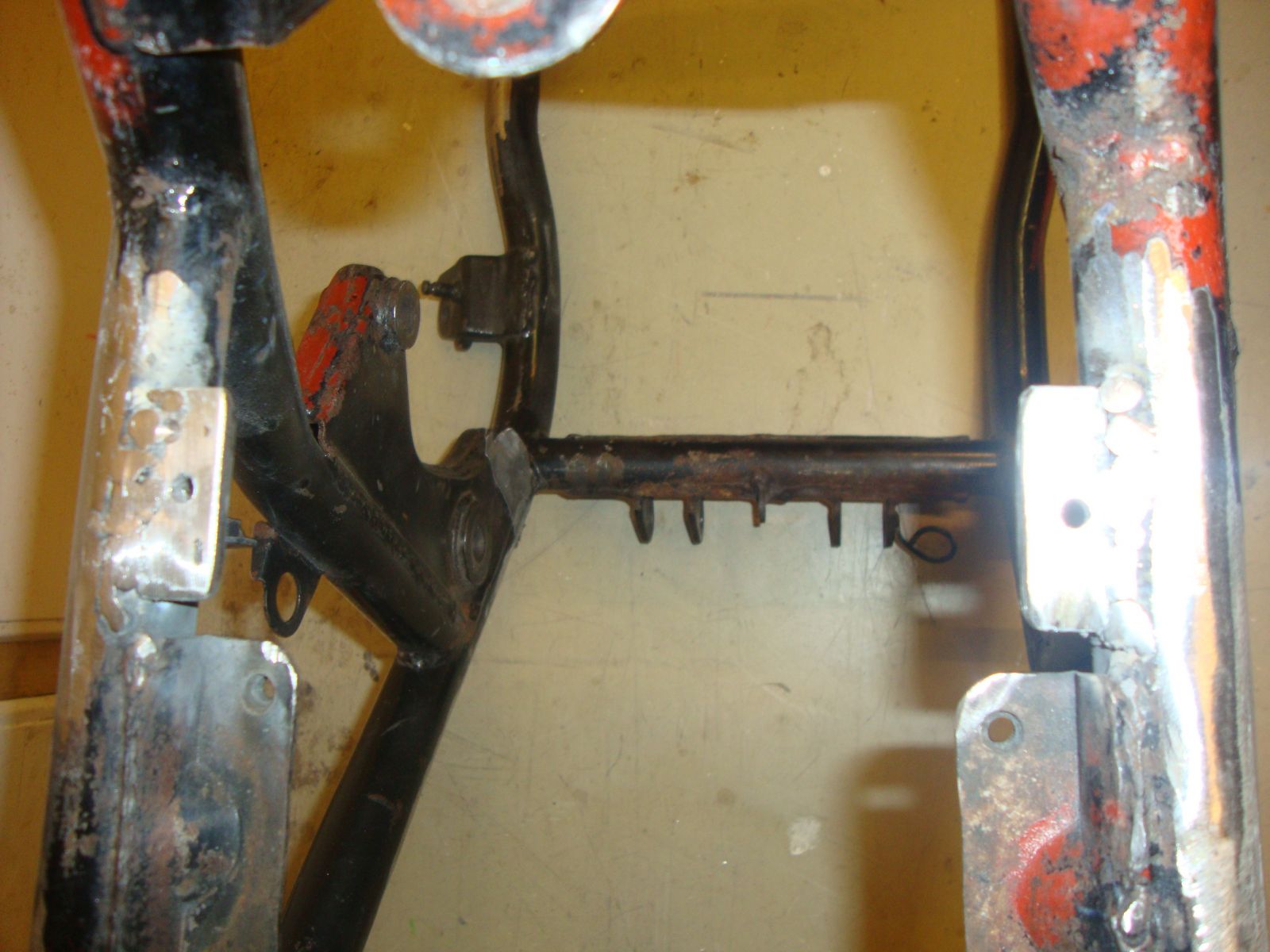

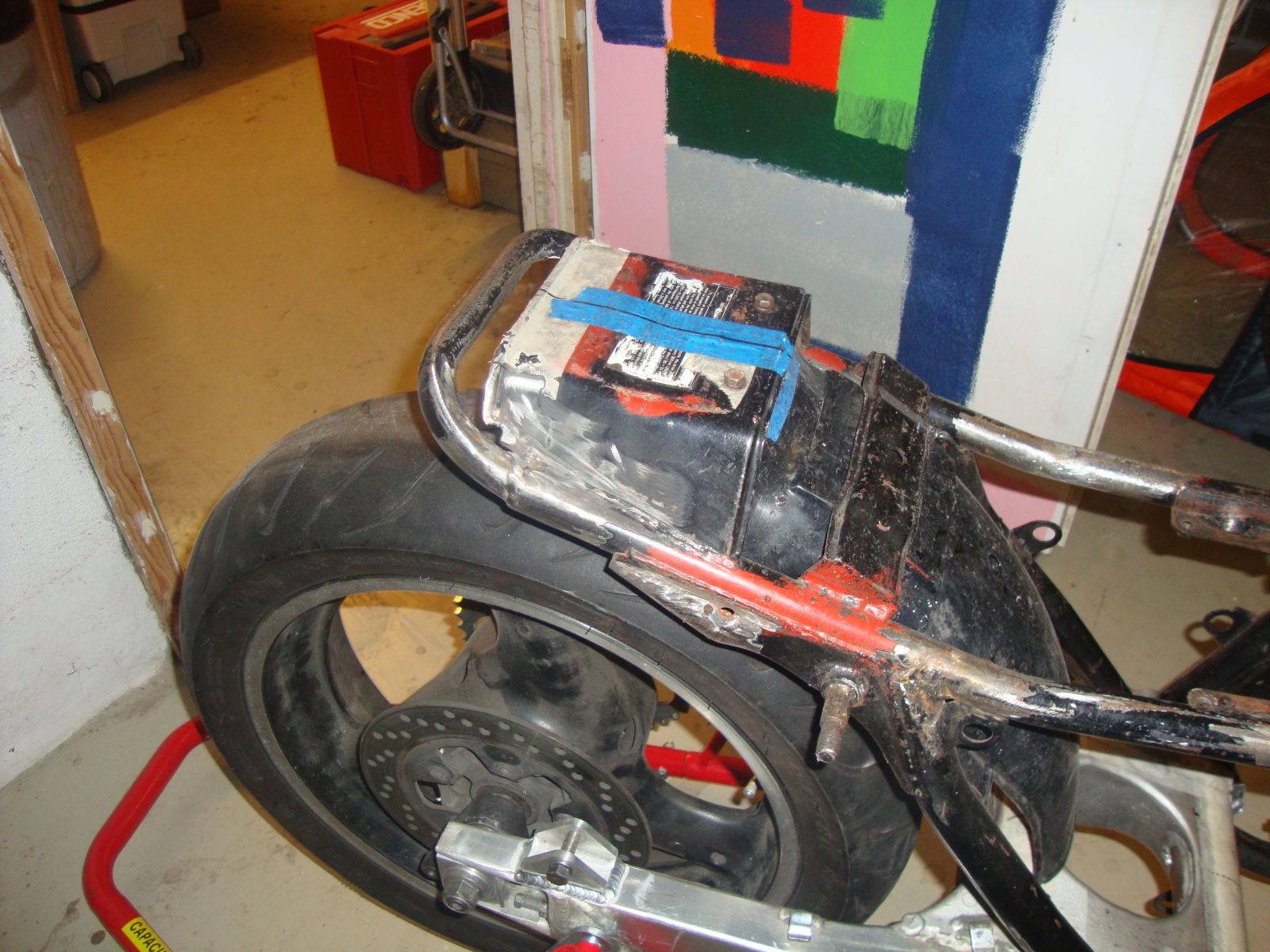

A couple of tabs welded on to bolt the seat down to

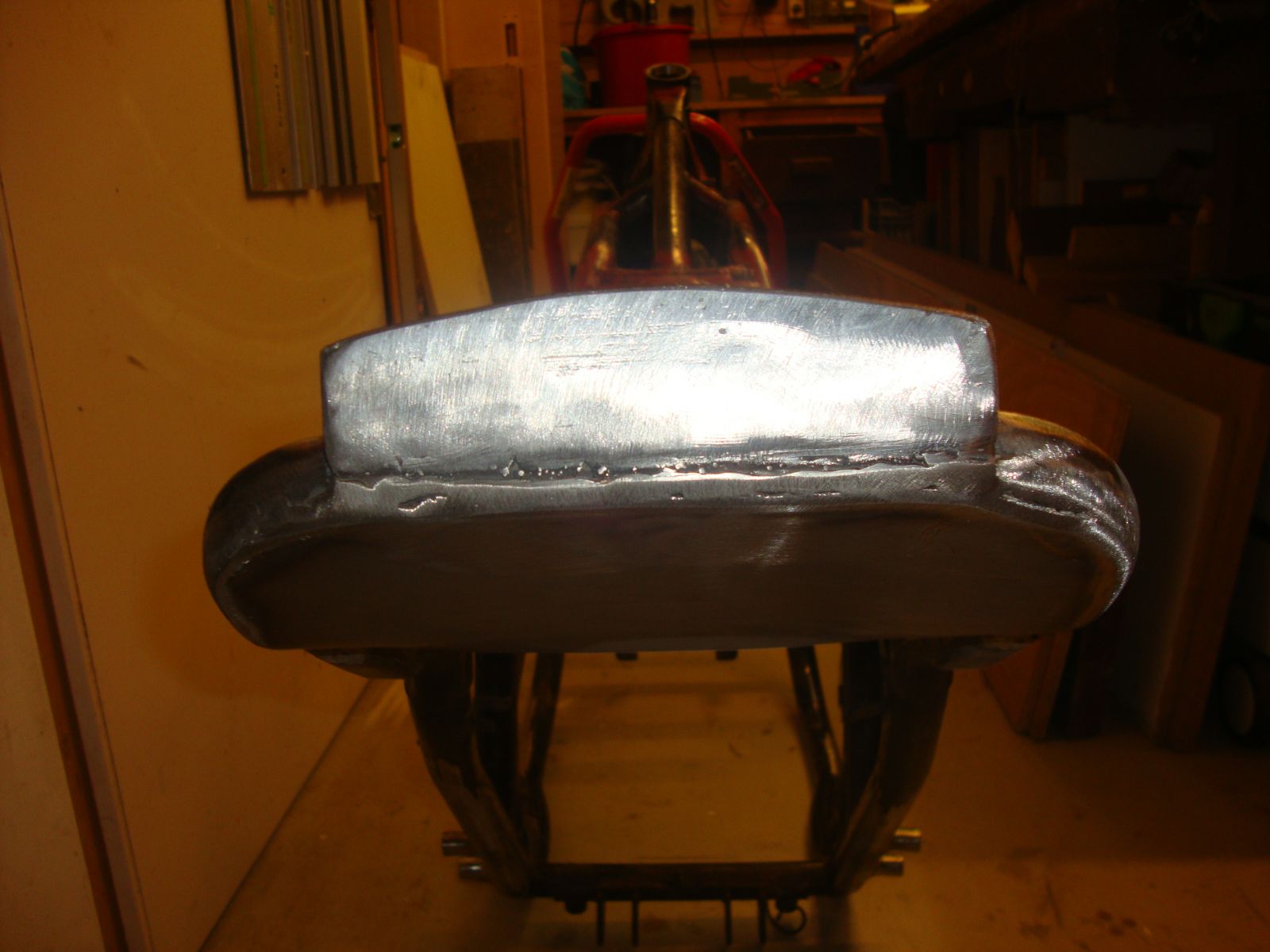

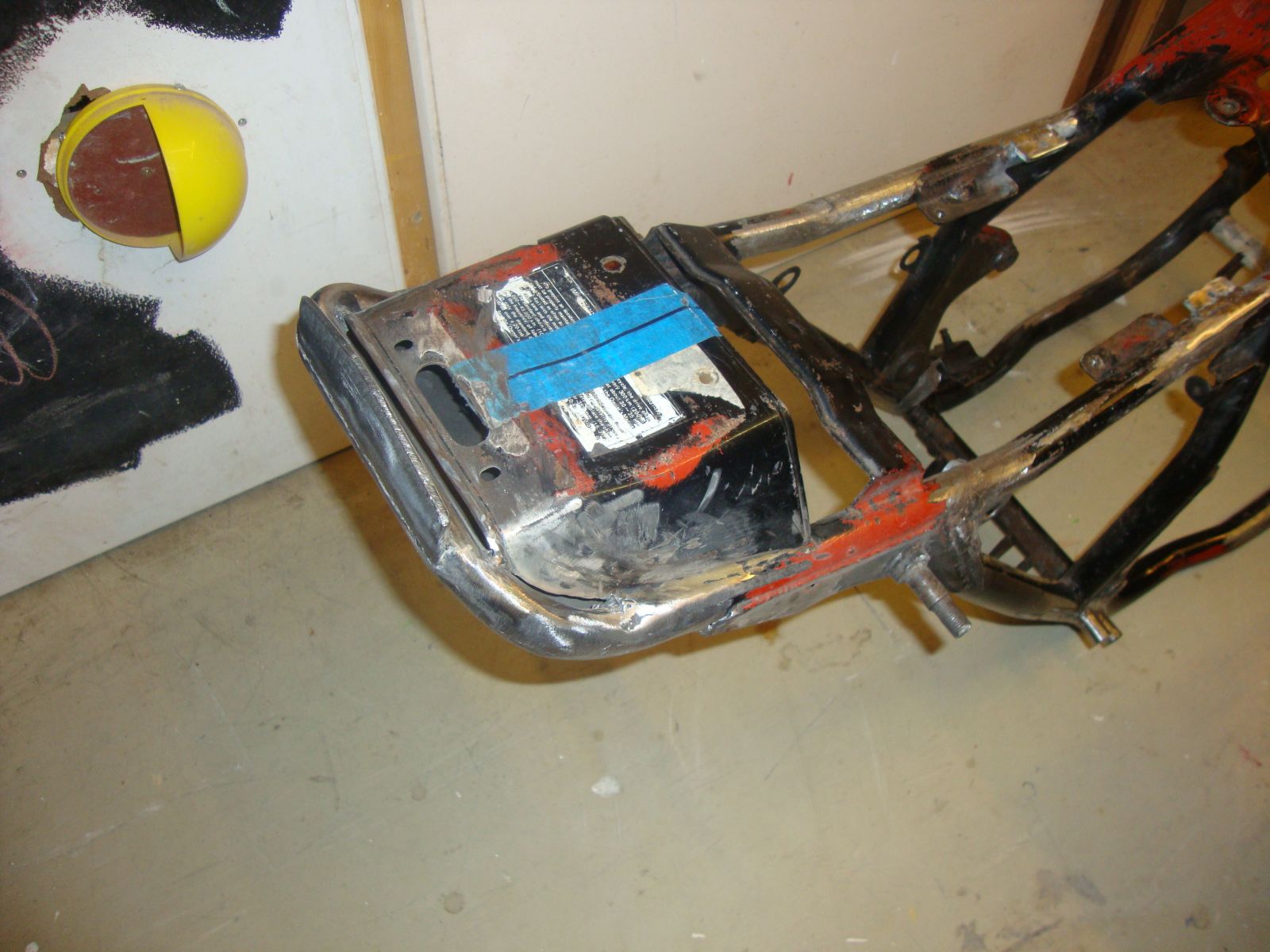

I didnt have enough room to fit the tail light and mount ,nicely under the tailpiece ,so, I had to whack the back hoop off again and shorten it even more..Also I shifted the mounting plate from under the hoop to over the hoop so I can get the tail light tucked in with the minimum of gaps.Unfortunately,with all the grinding and welding,I really thinned the steel on the hoop in places to the extent that I was blowing holes in it as I tacked it up.
Off to my local friendly bike shop again,to get the damage assessed..The result was a 2mm steel plate welded over the bottom of the hoop.


That should keep it from getting too wobbley.
I think (hope)thats it now for the welding.The frame is as ready as its going to be.Tail light mount and the number plate mount are next. Ive got some alu plate downstairsand ,hopefully,I can get that sorted tomorrow.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e
Attachments:

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 08 Apr 2015 11:24 #667125

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265

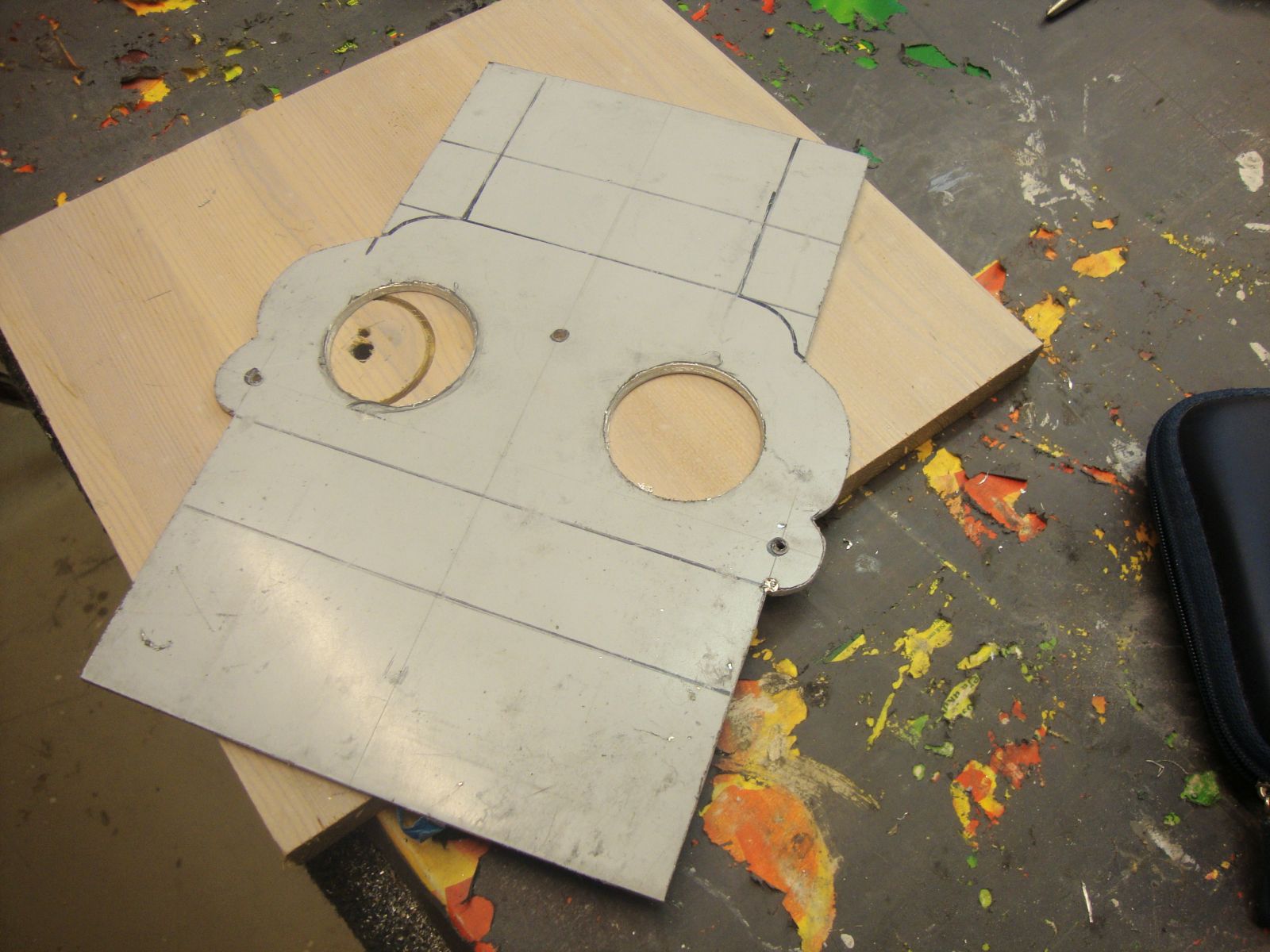

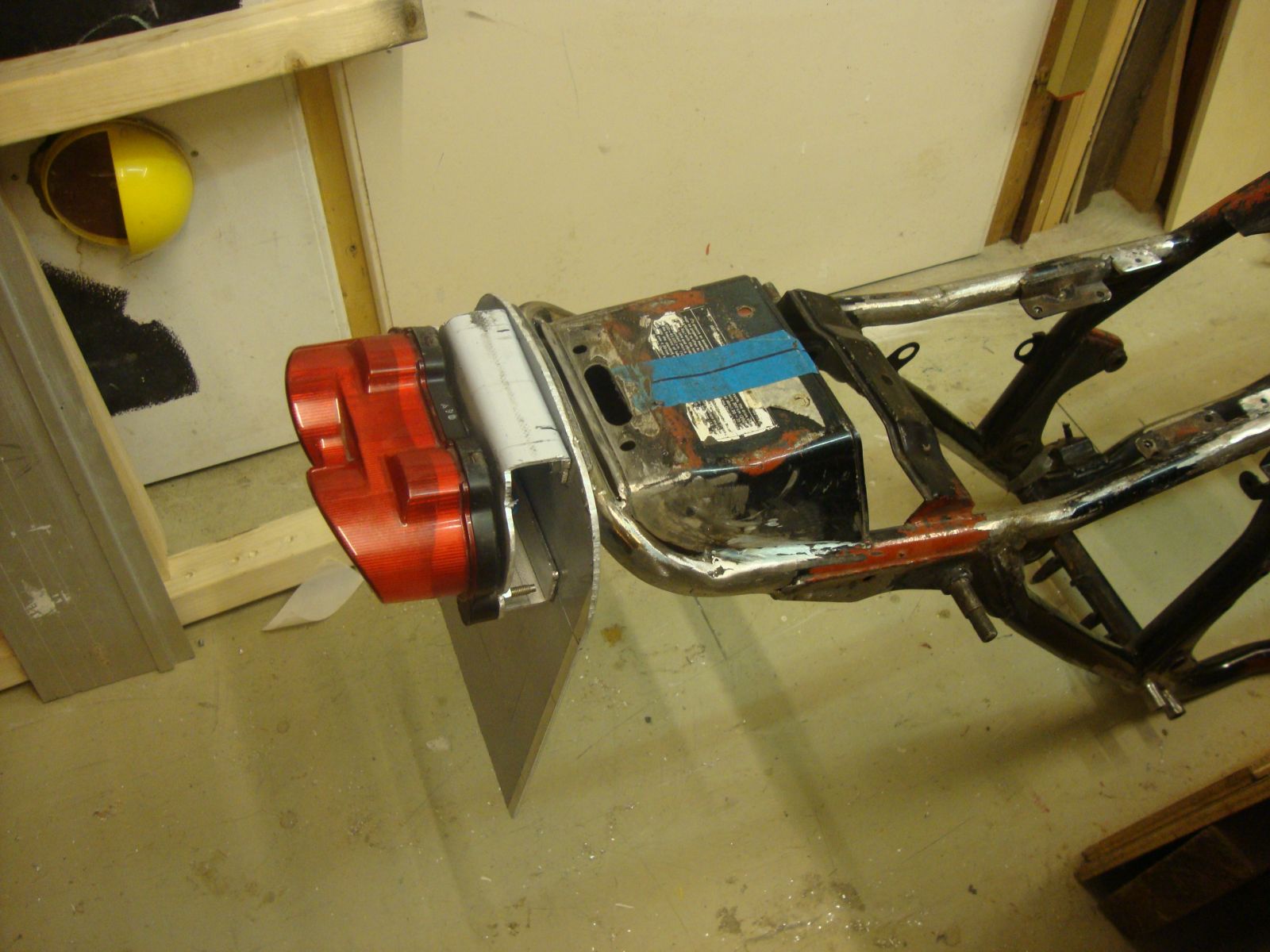

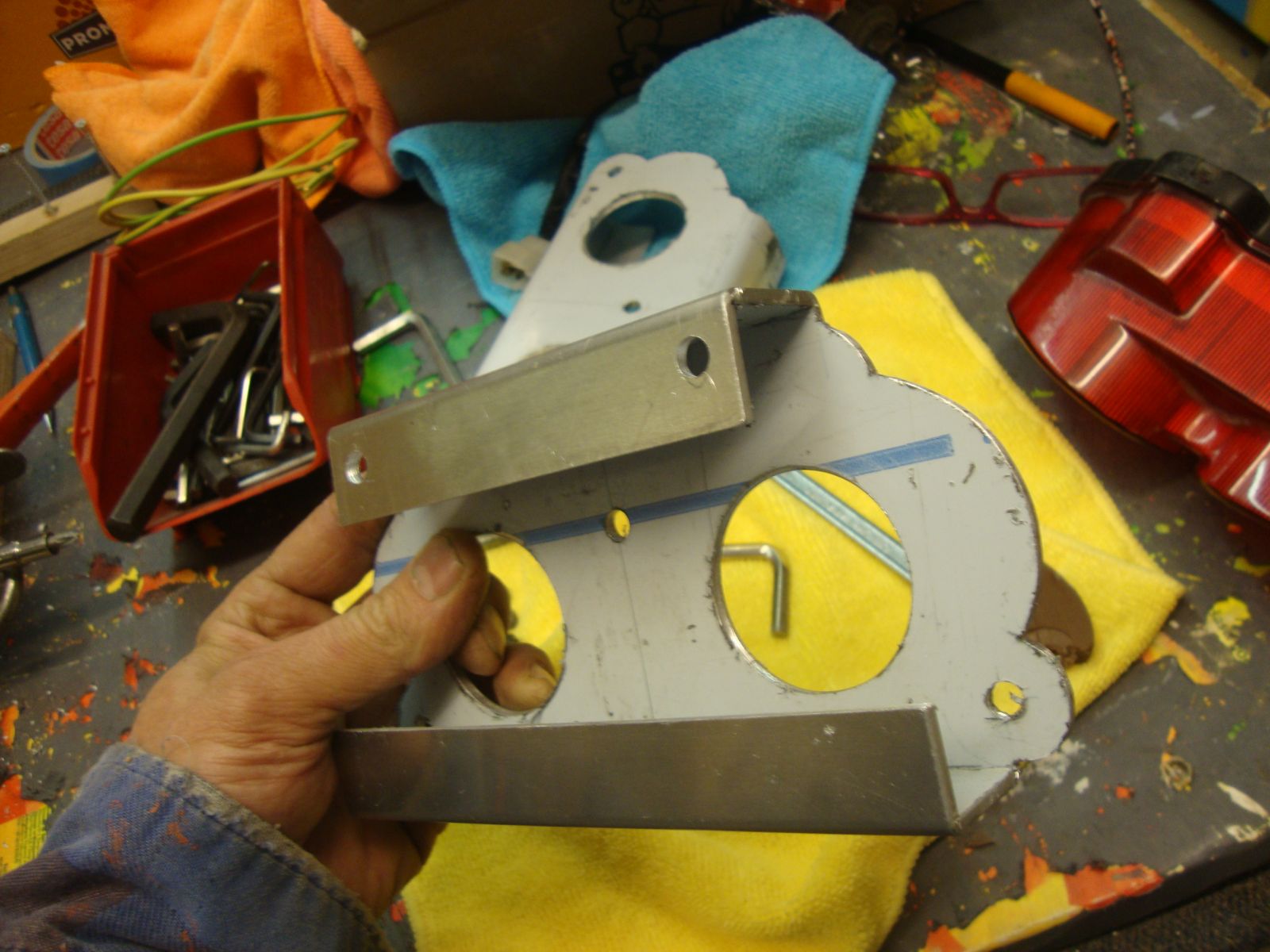

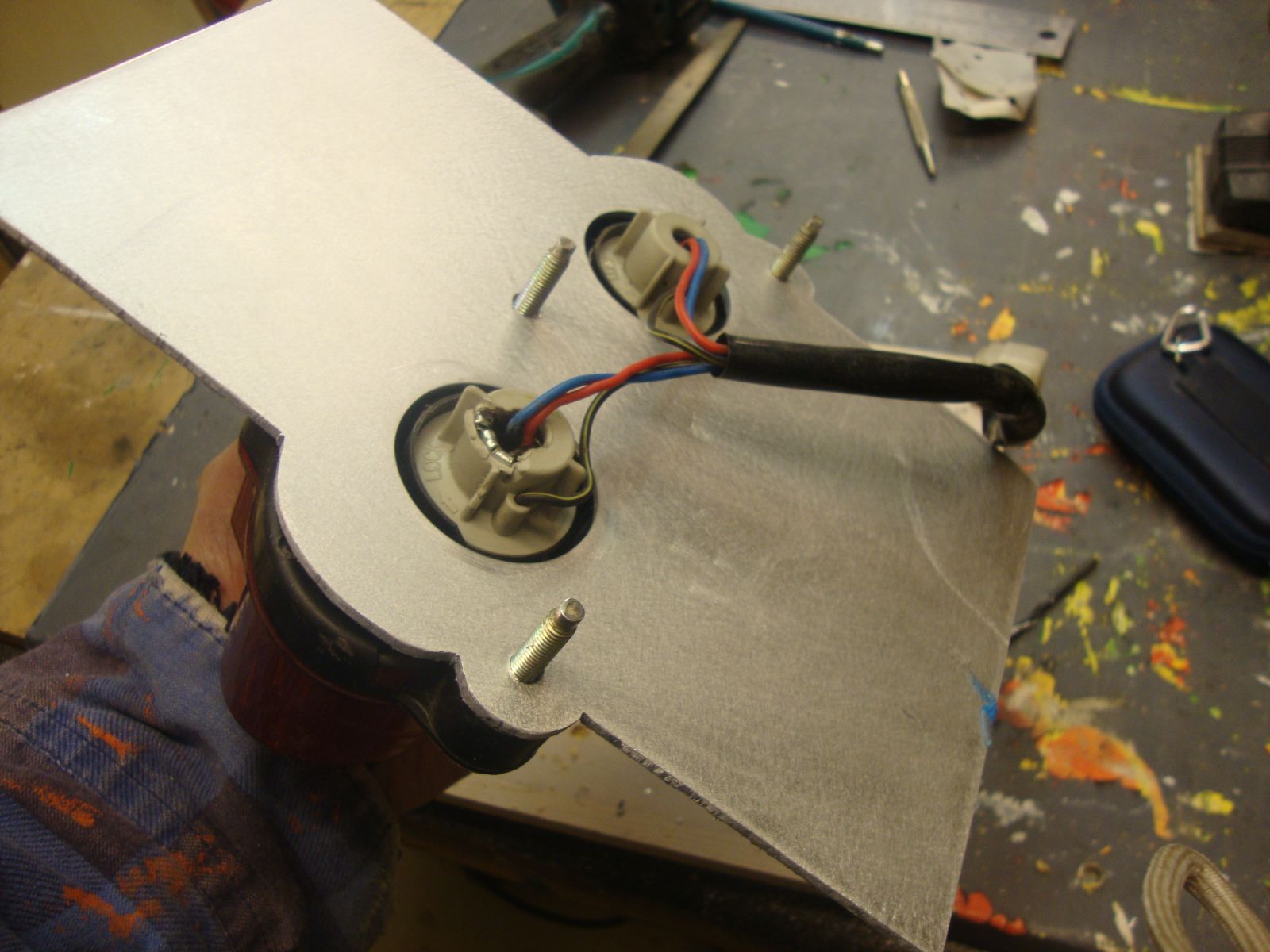

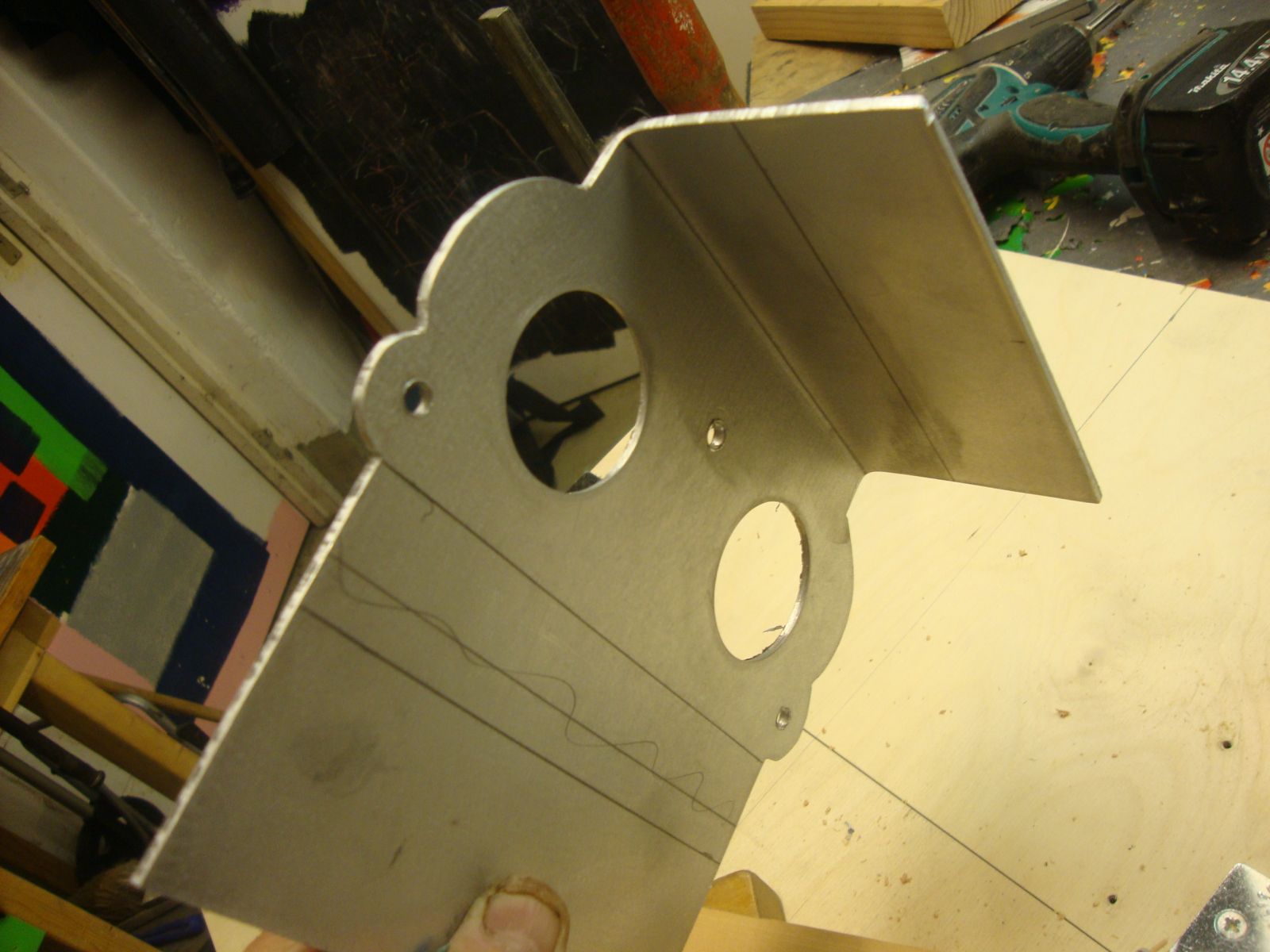

Alu plate for the Tail light mount.





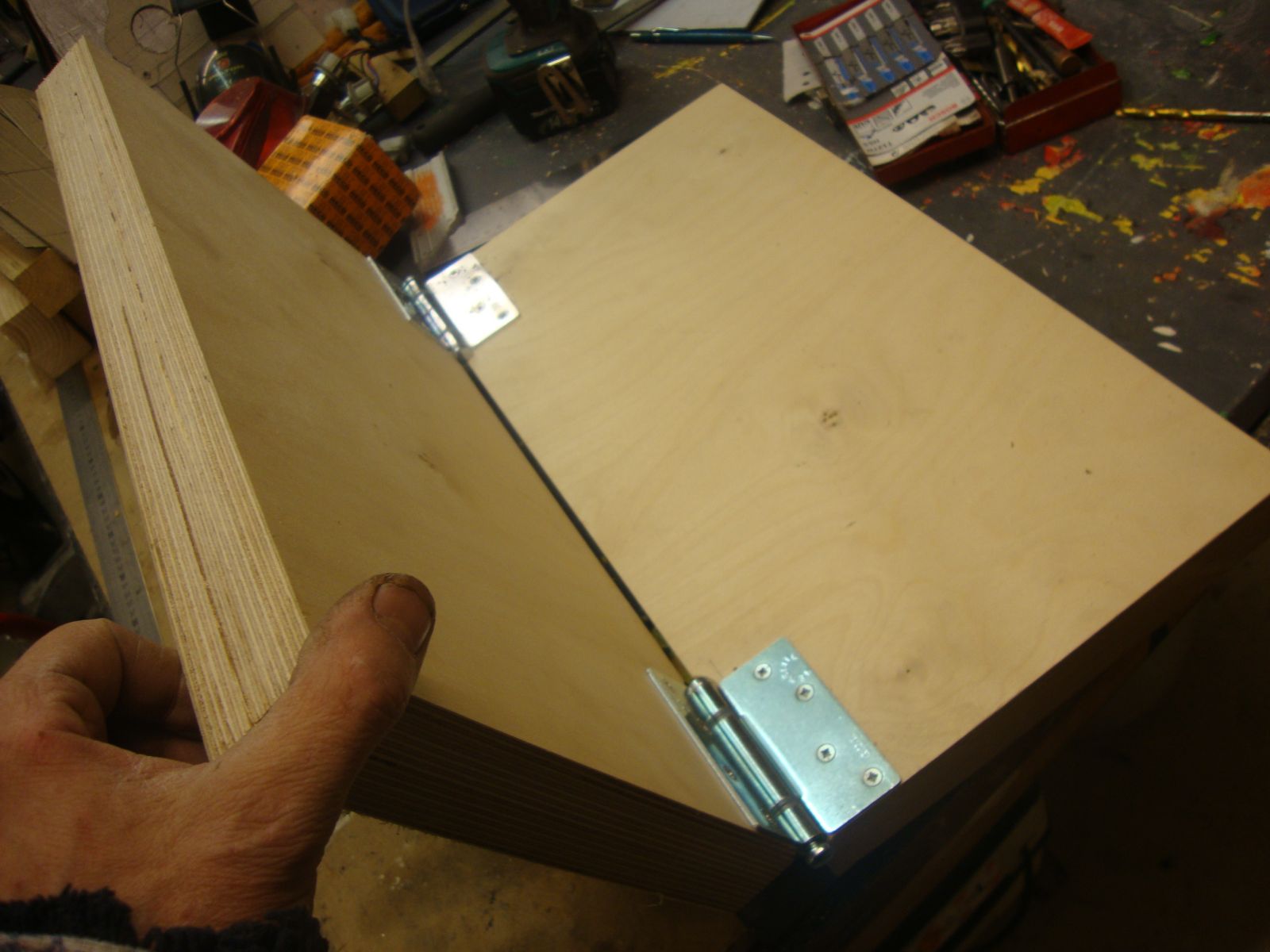

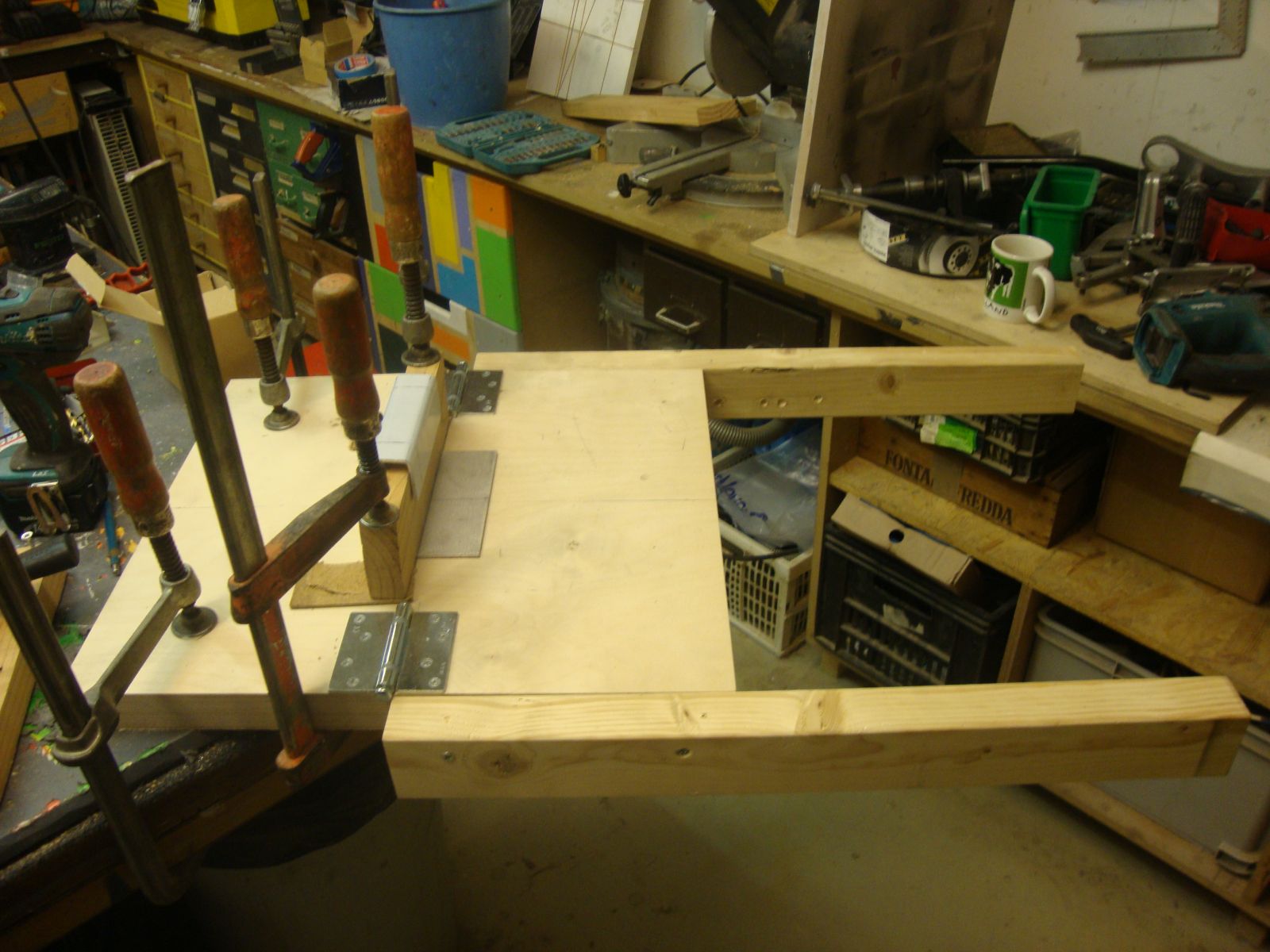

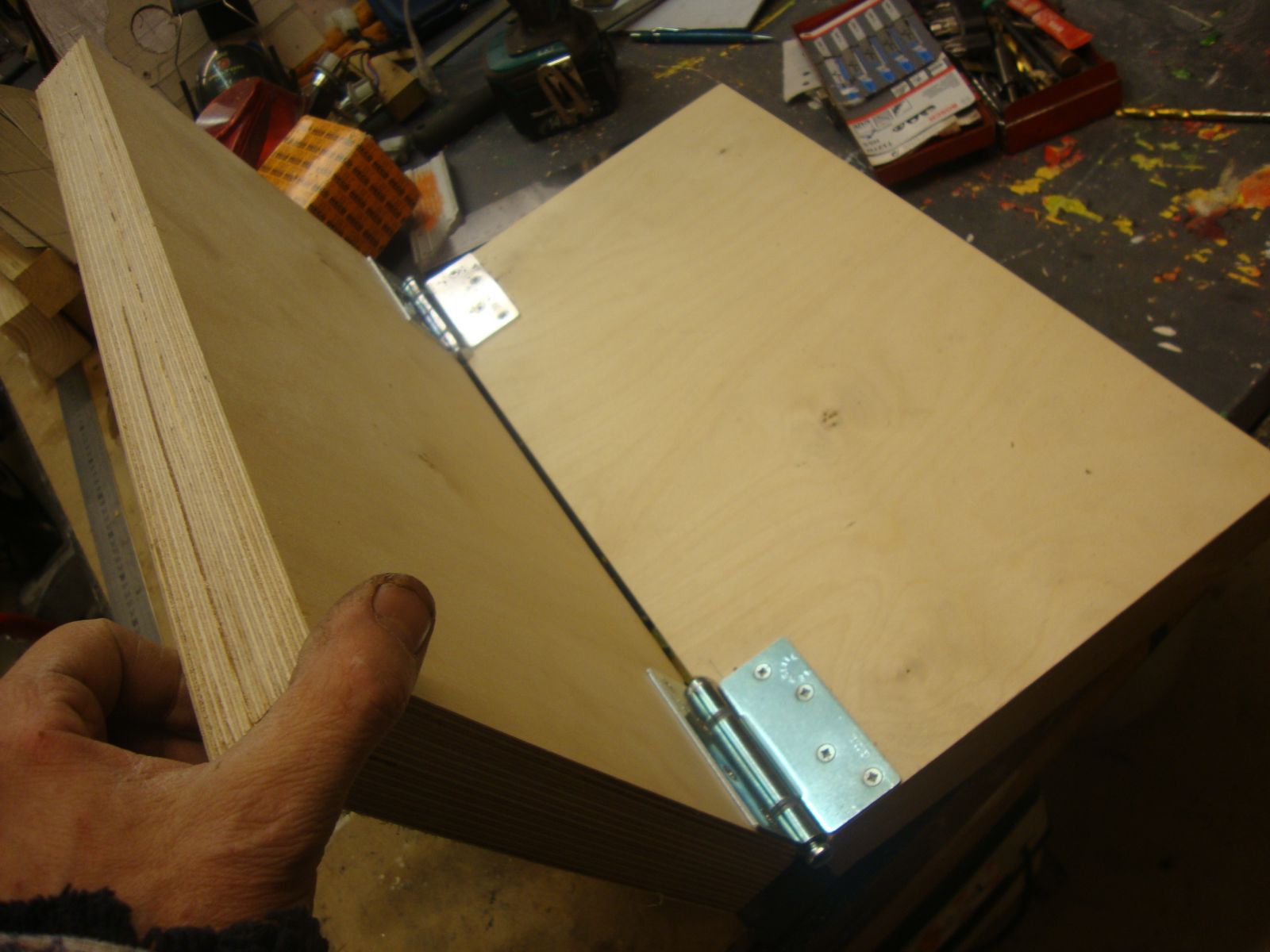

Knocked up a bendy machine








If I was to do it again,I would make a shallow cut on the inside of the bend to get a sharper 90 degree angle. They all came out a bit rounded. Live and learn.

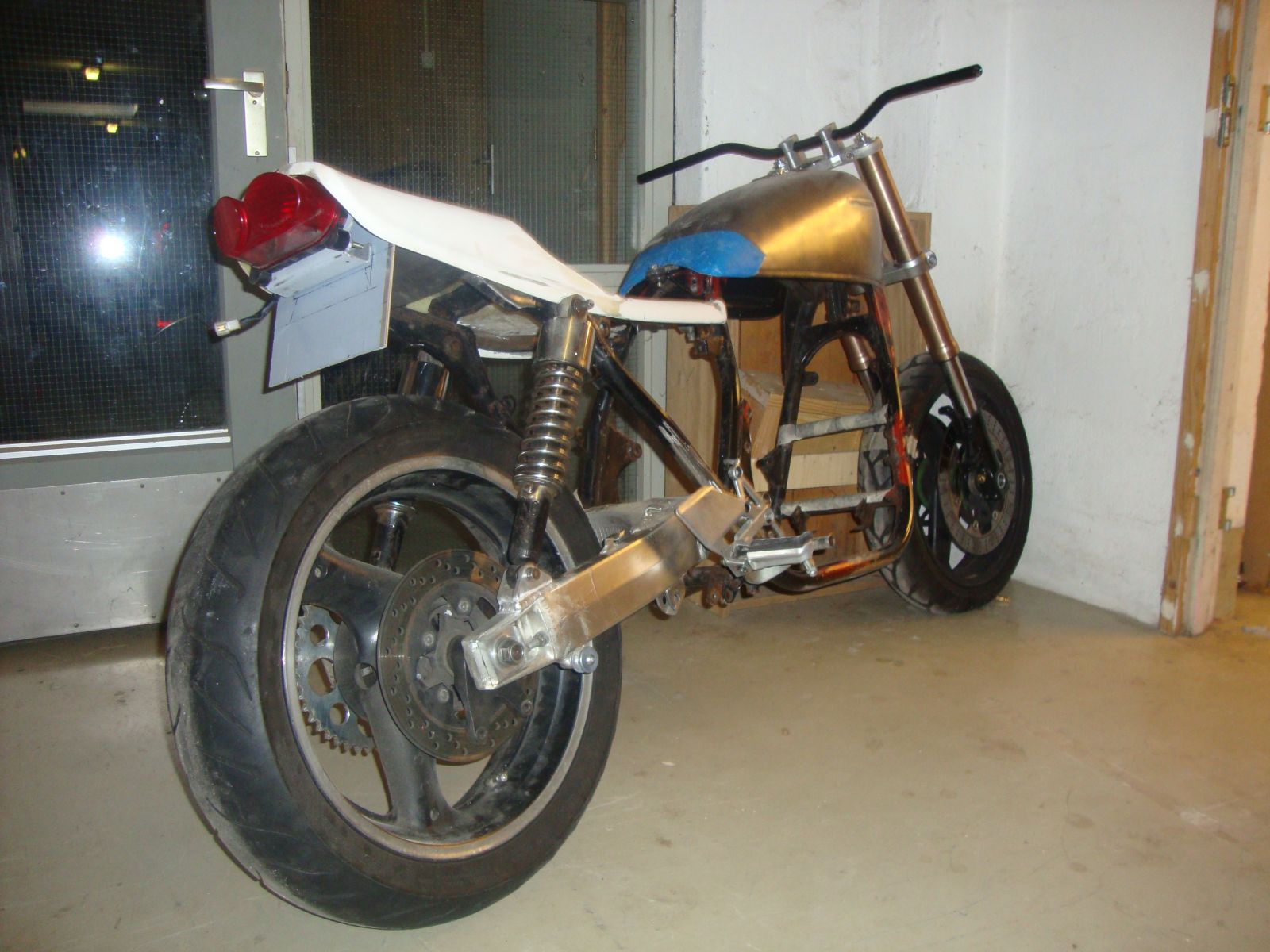

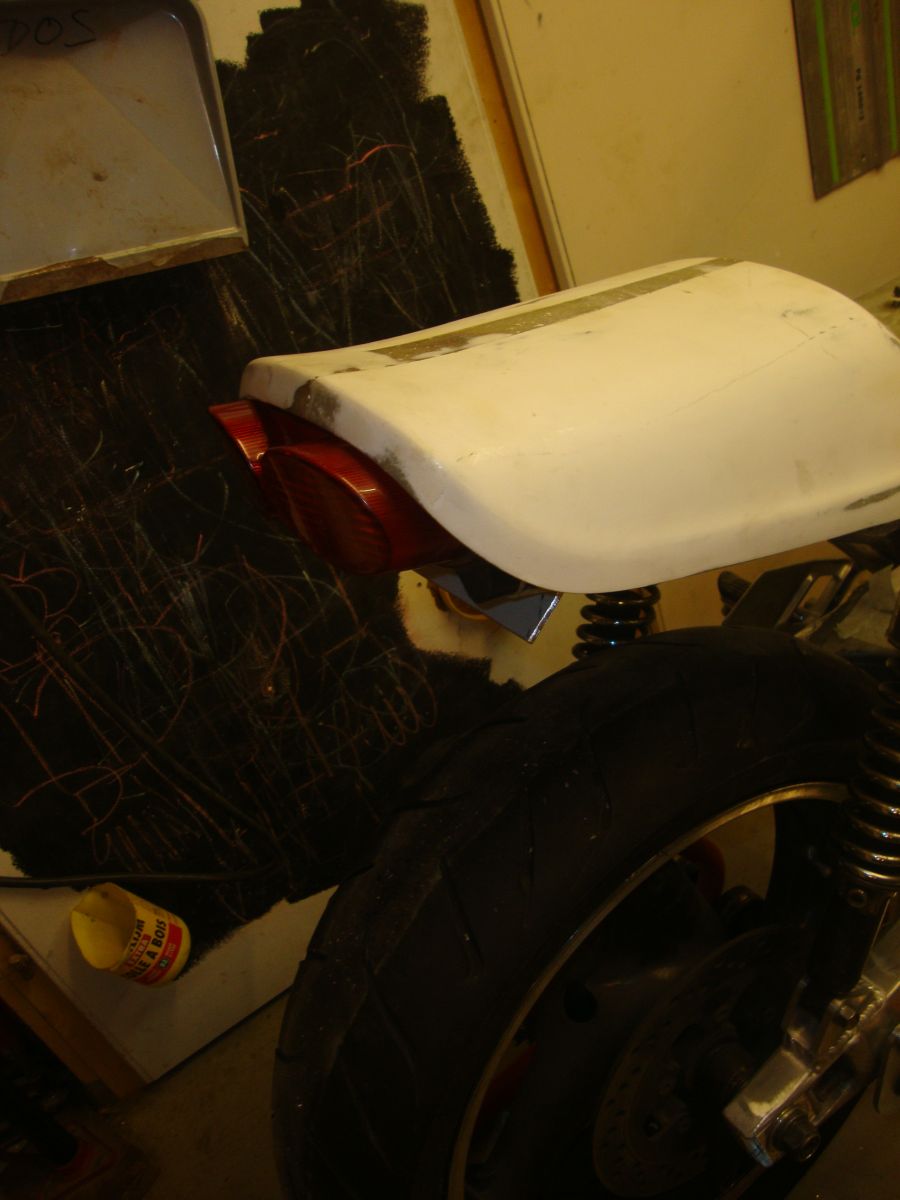

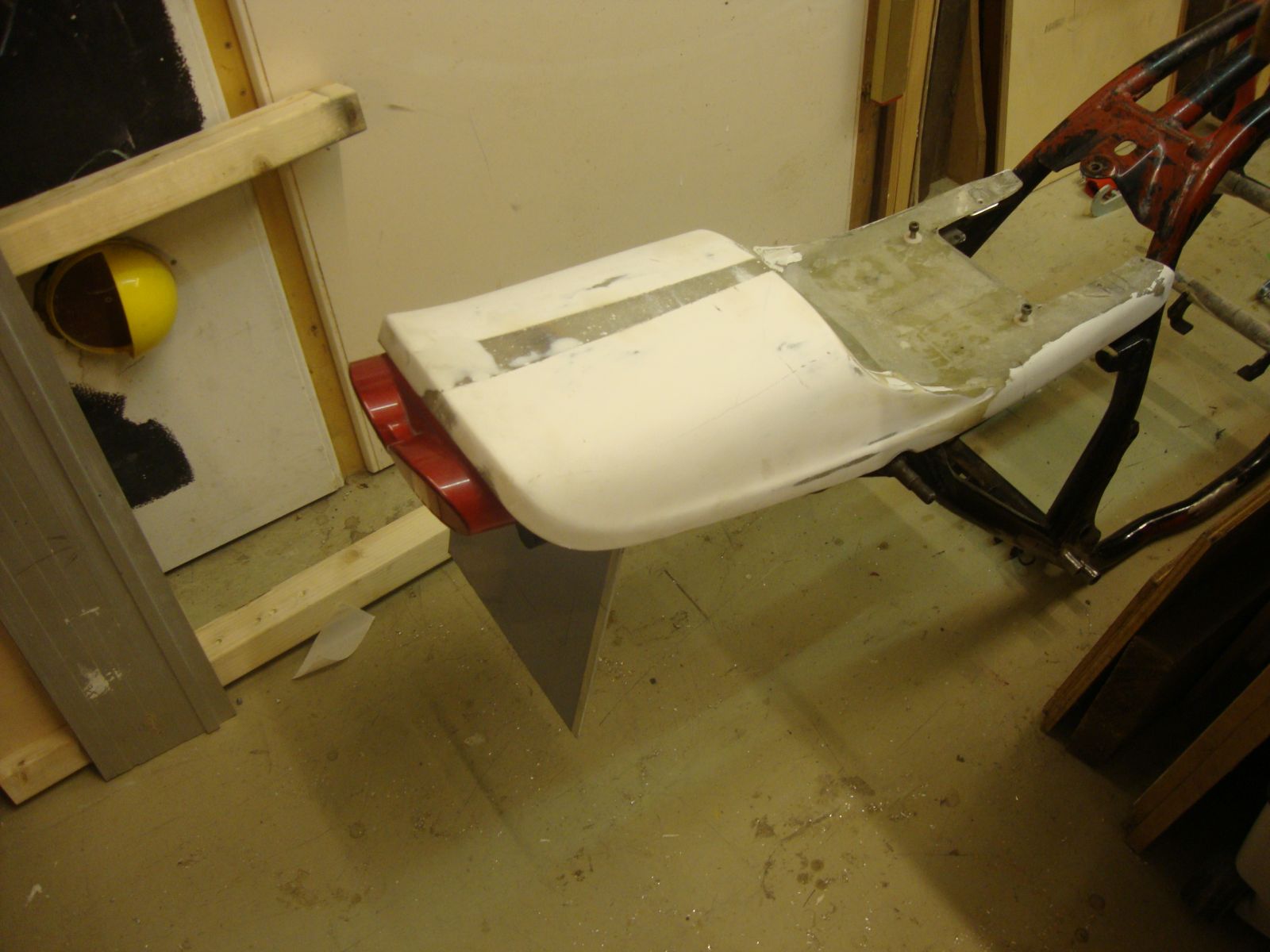

Heres the bike as it stands now.The lower part of alu plate will be cut back and bent out to hold the number plate.

www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

Last edit: by davido.

CSR1000 Project Build 08 Apr 2015 11:44 #667129

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
oh yeah!

coming right along :evil: ,lookin good.

keep us posted,

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 09 Apr 2015 06:02 #667235

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265

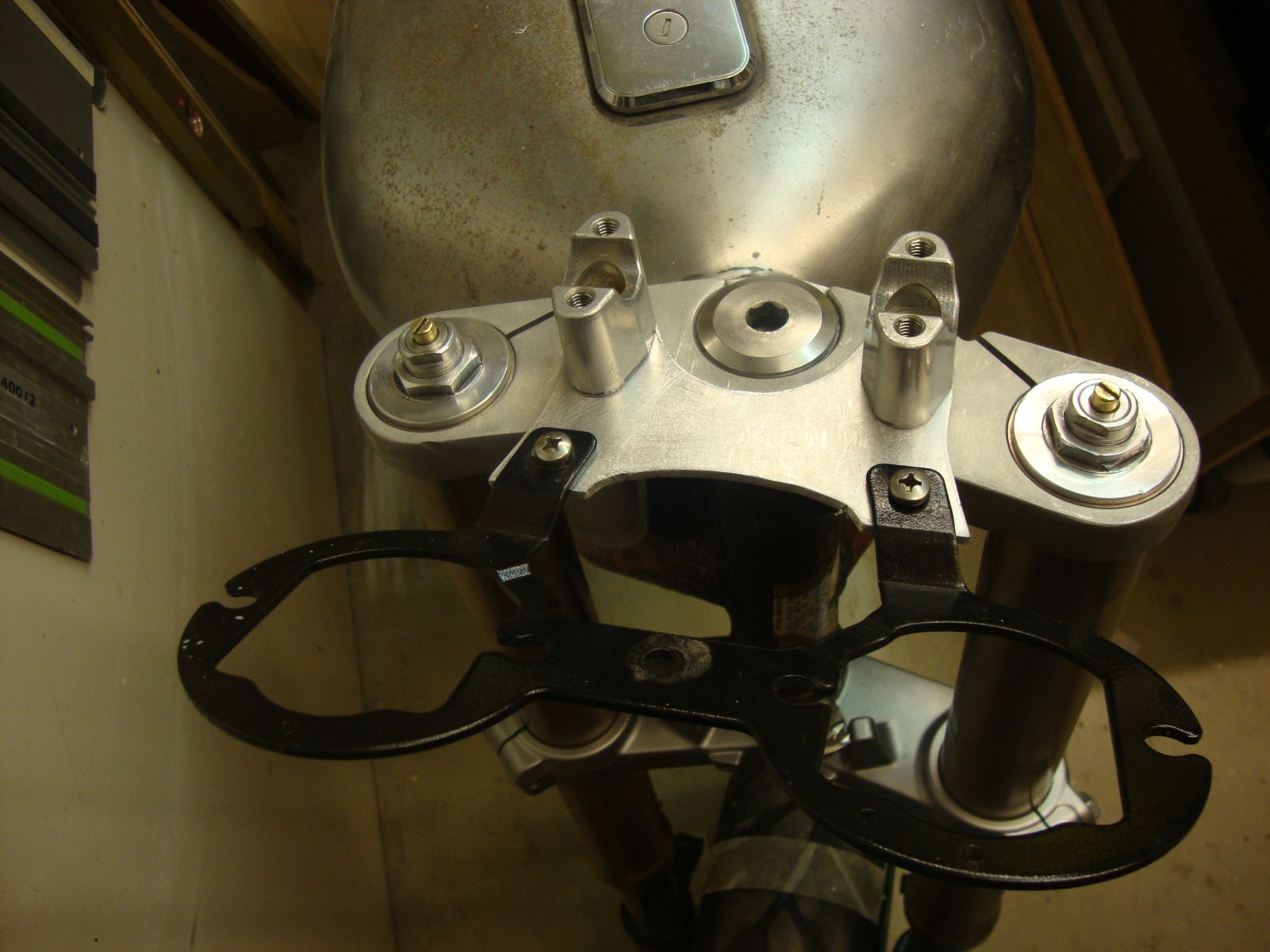

a bit more alu plate work.Something to hang my clocks on.

www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e
Attachments:

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 09 Apr 2015 06:13 #667236

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
that worked out nicely! :evil:

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 14 Apr 2015 04:51 #667877

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265
Well Im just playing here really.Im not sure what I want to do. The tail light mount didnt turn of as i expected but I thought It was ok and itll do.Now Im in 2 minds.Ive bought another piece of alu plate and I think Ill have another go at it.If I cut into it,opposite the bends,I should be able to get a sharper bend on it.I hope.

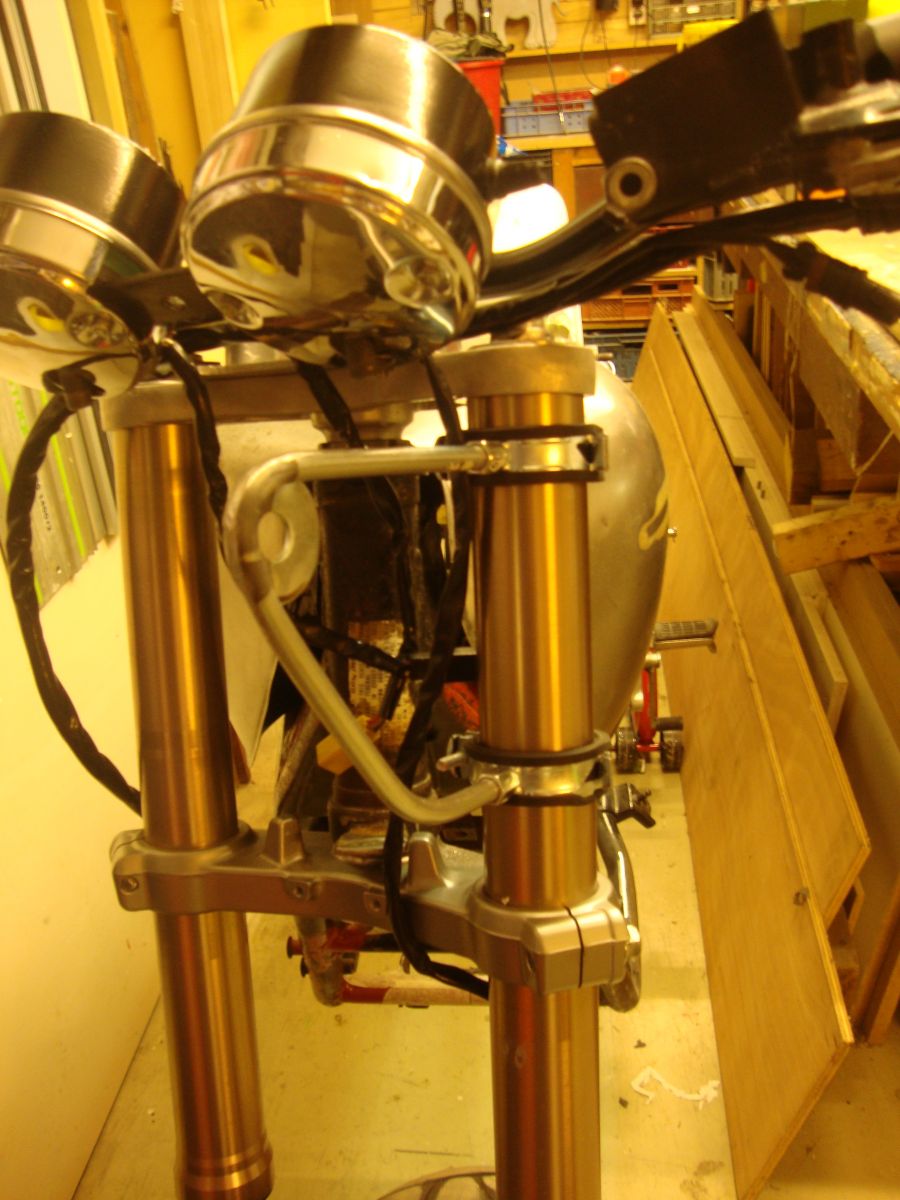

Also had a go at a making headlight mount.The original wont fit on the ZXR front

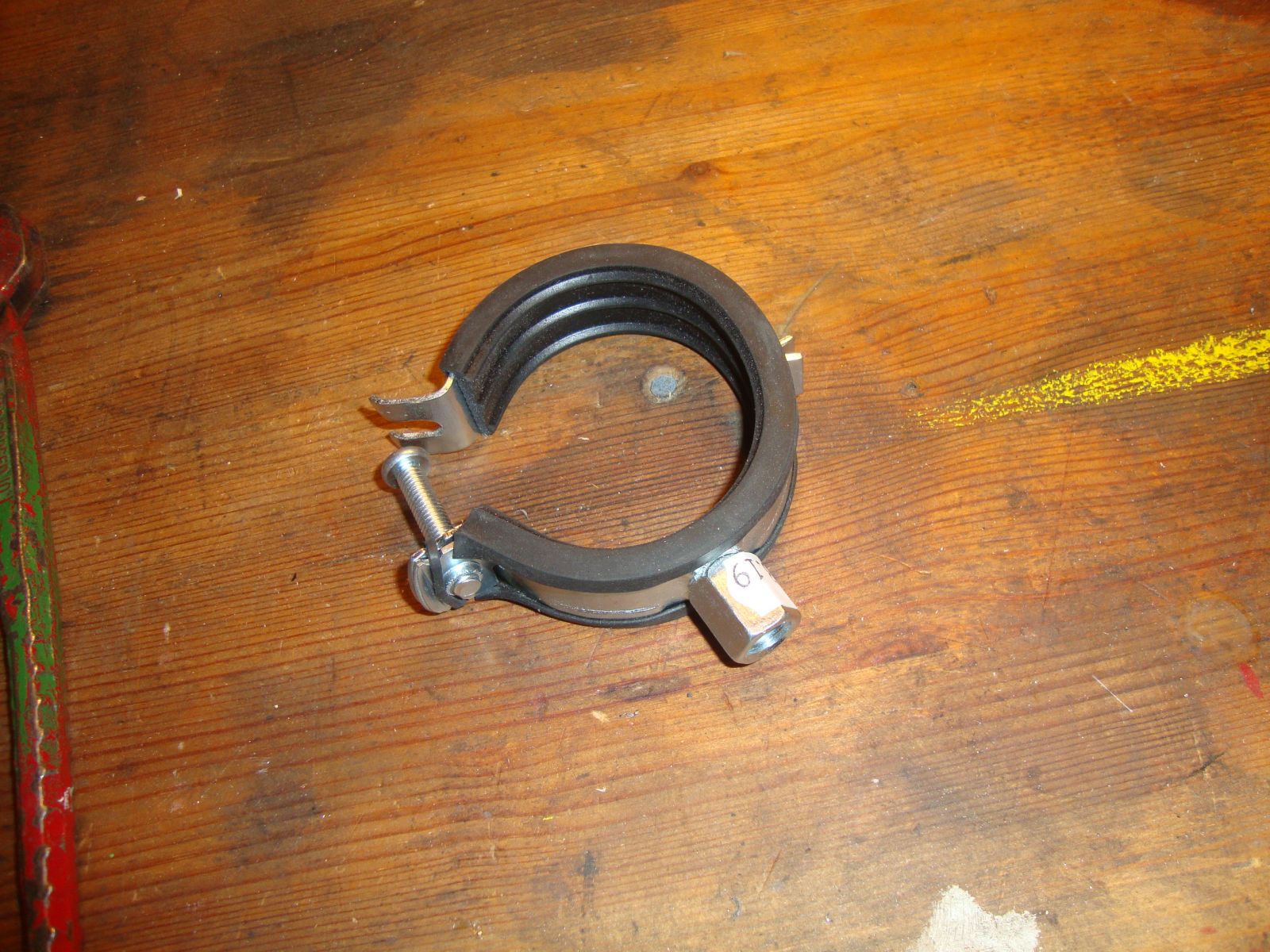

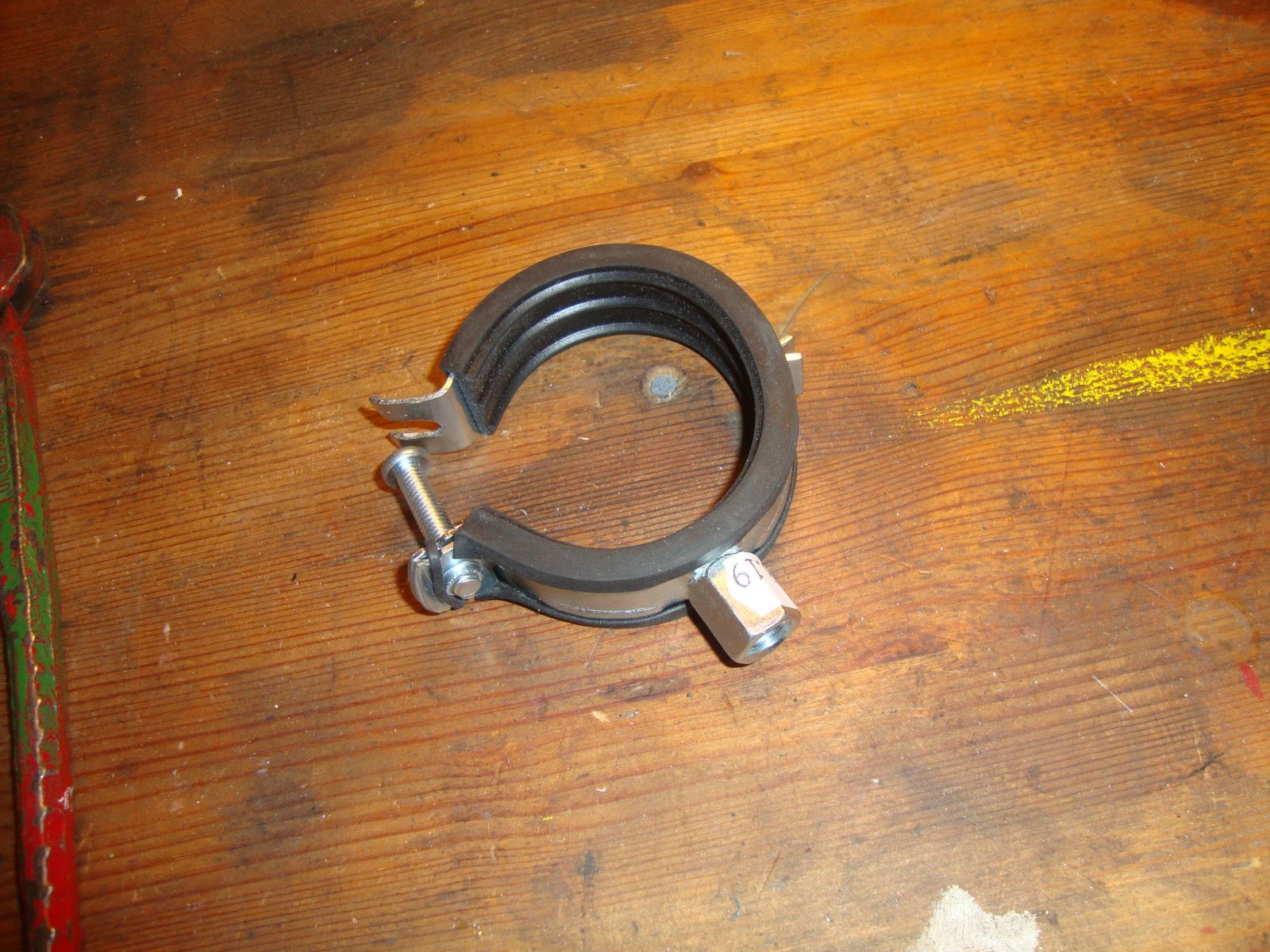

So I bought some pipe hangers from the local plumming shop

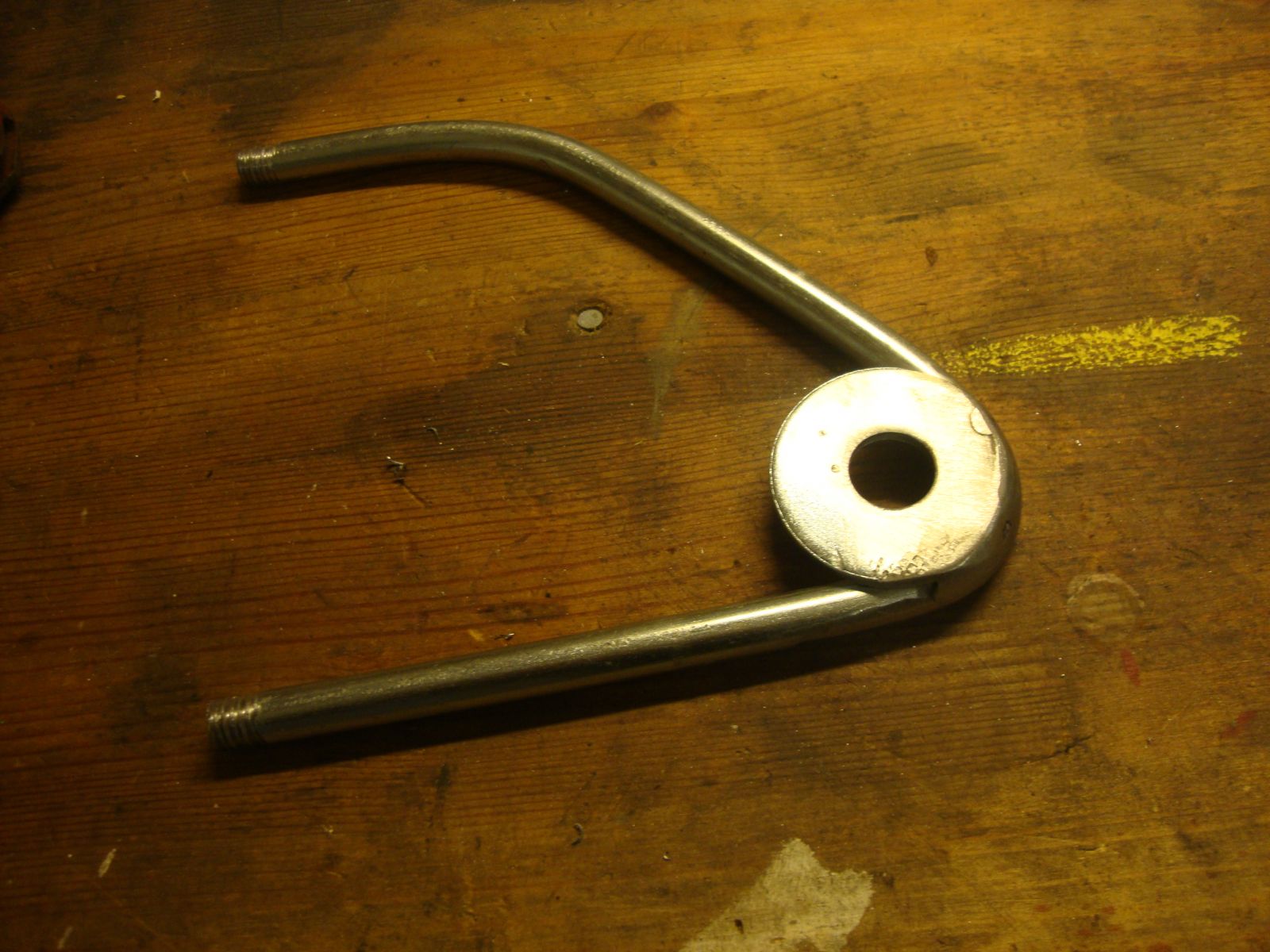

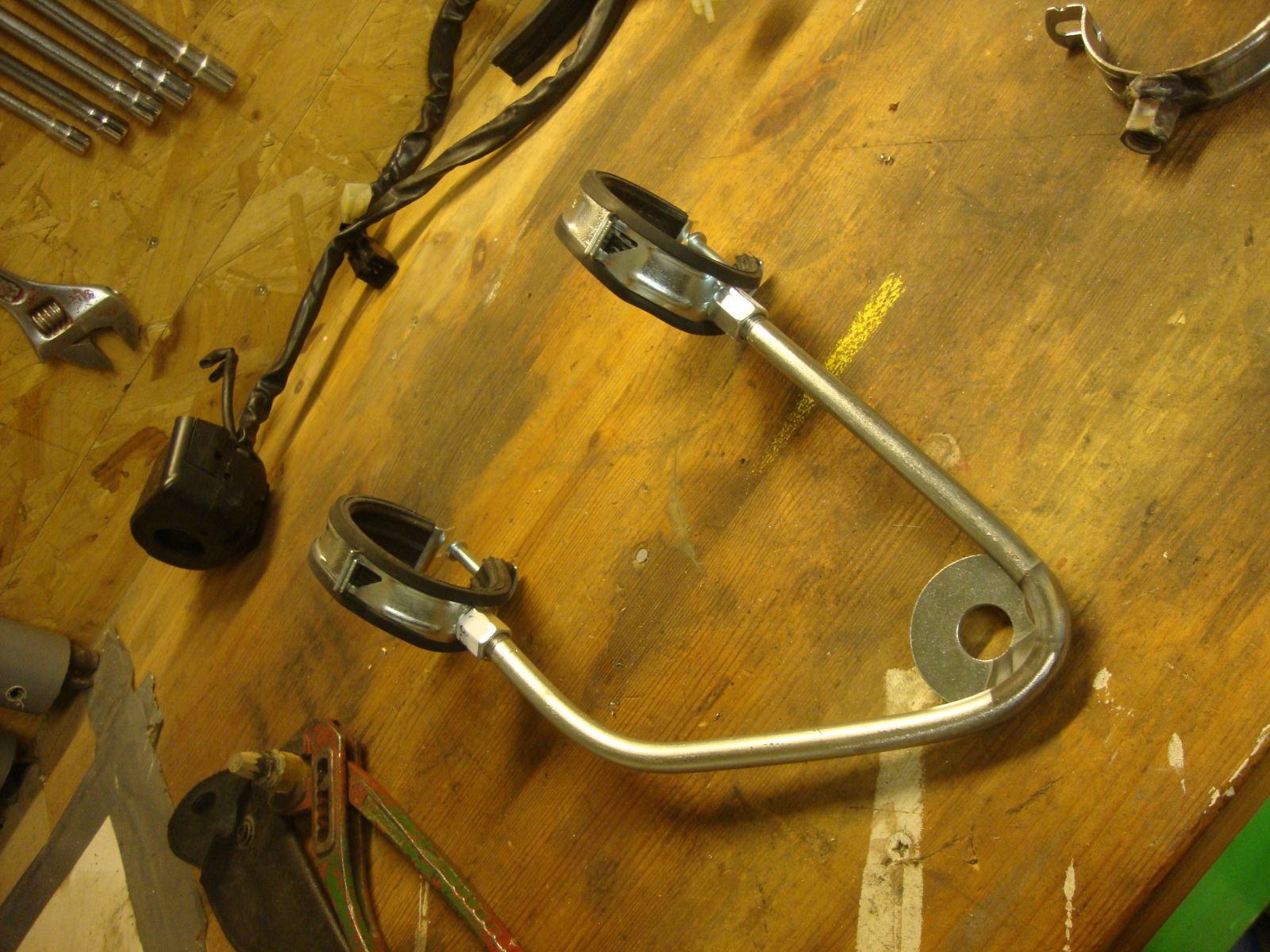

I bent some steel bar ,threaded the ends and welded a couple of washers into it

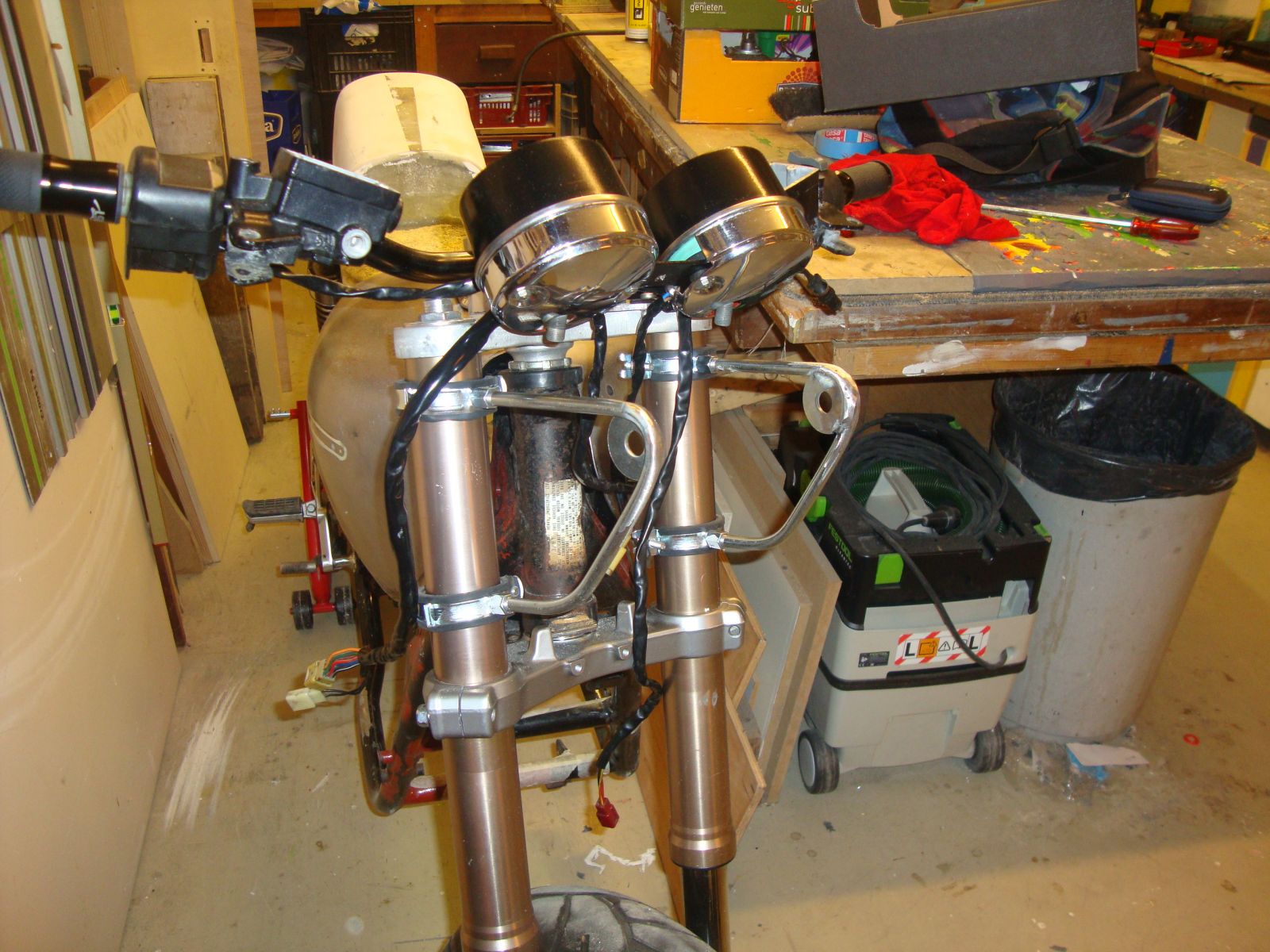

and came up with this

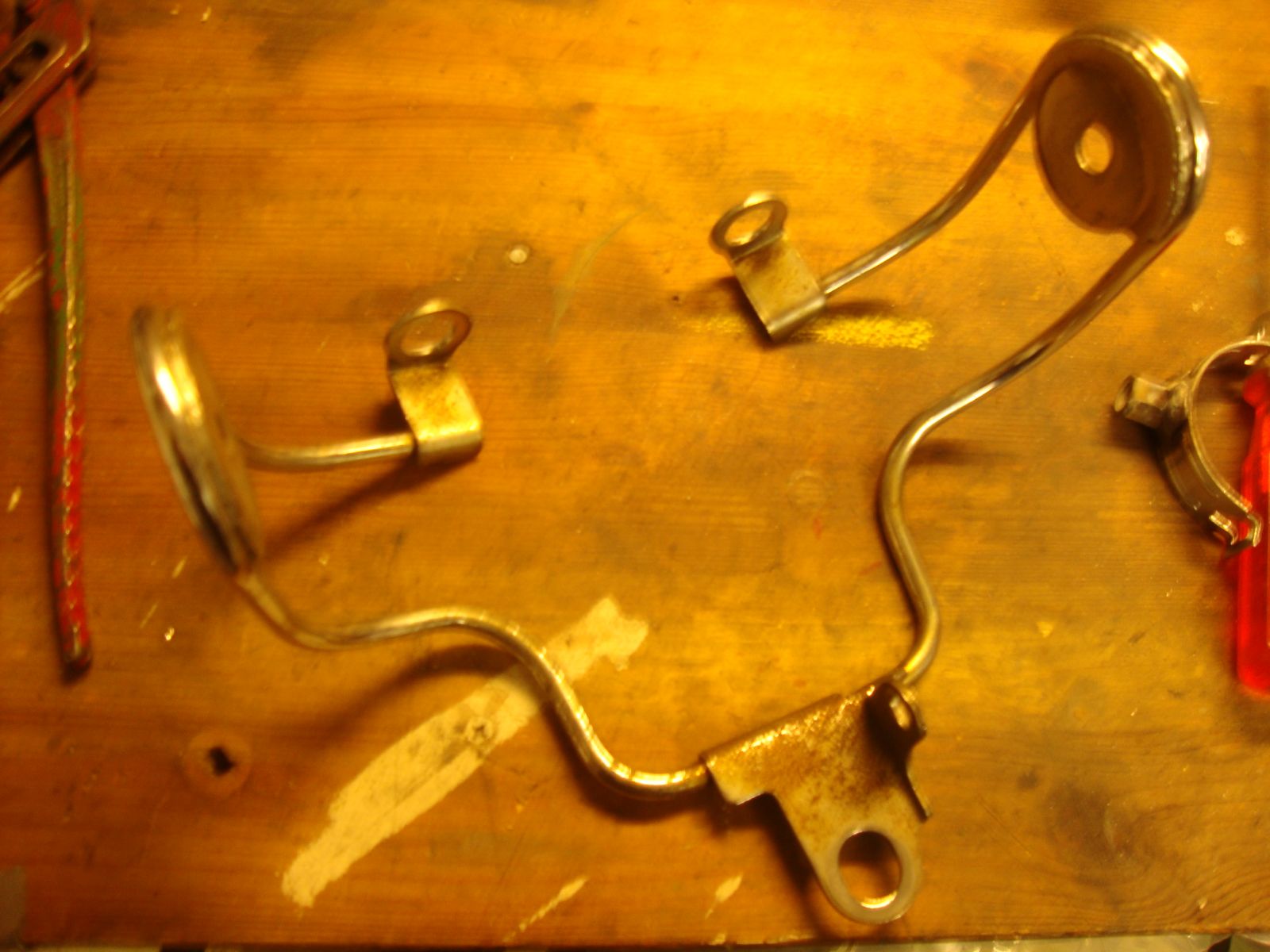

Dont know if iI like them or not.I think theyre a bit too big so I might trimm them down a bit and look again.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 14 Apr 2015 04:54 #667878

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265
No eBay APP ID and/or Cert ID defined in Kunena configurationAlso,I went for it and ordered these;

with a complete set of seals etc.
No more pitted pistons and rusty seized calipers.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

Last edit: by davido.

CSR1000 Project Build 15 Apr 2015 09:04 #668047

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265

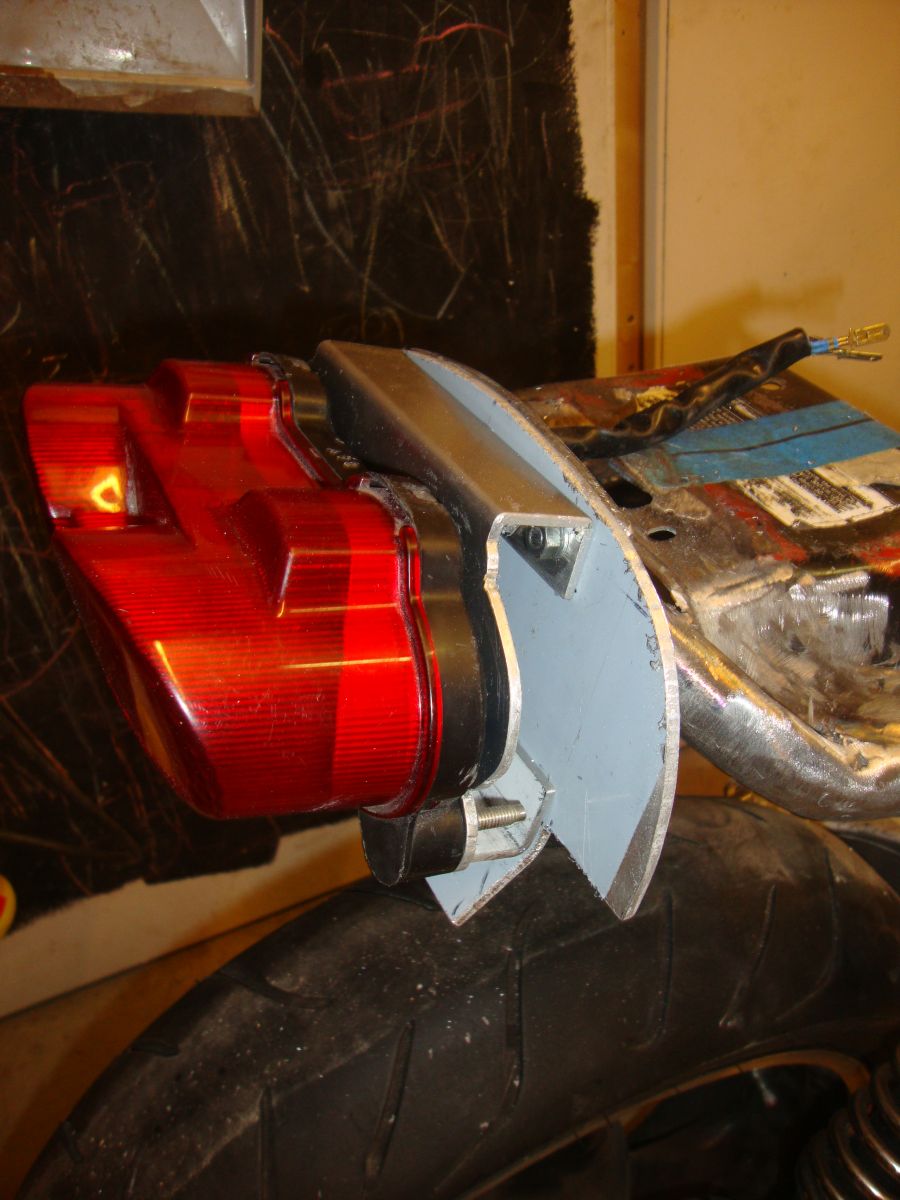

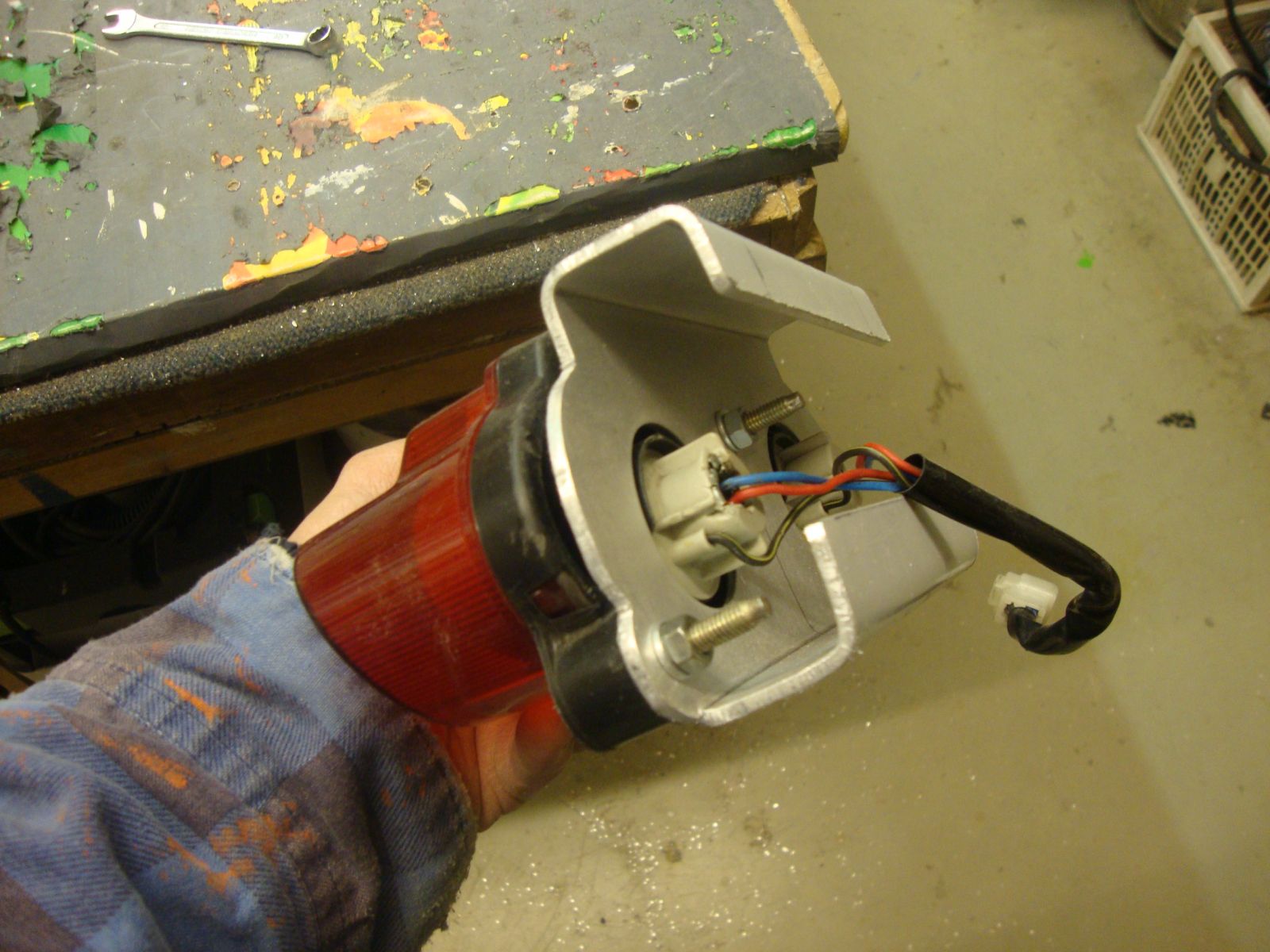

OK,I couldnt live with the tail light hanger,so, I had another go

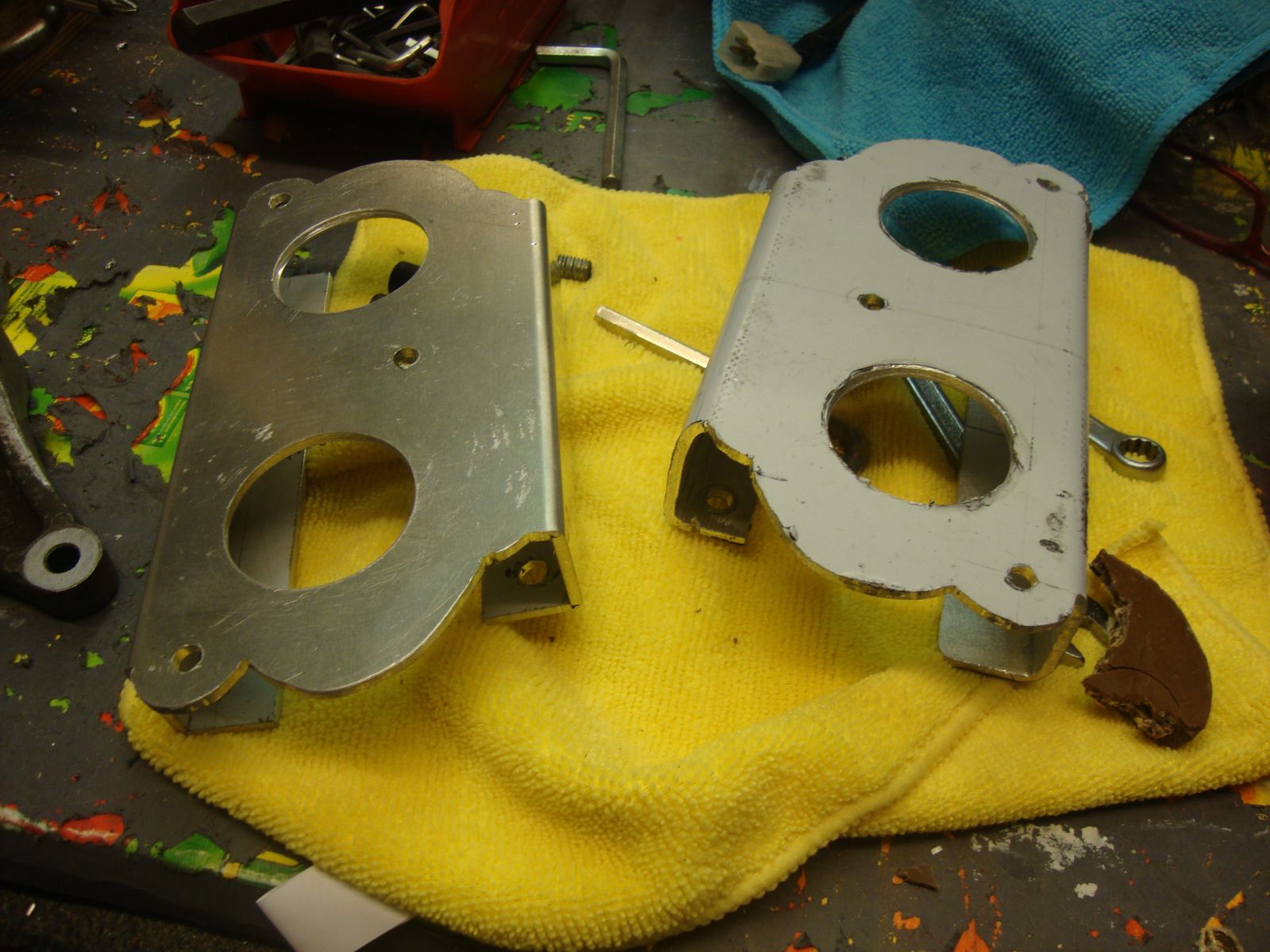

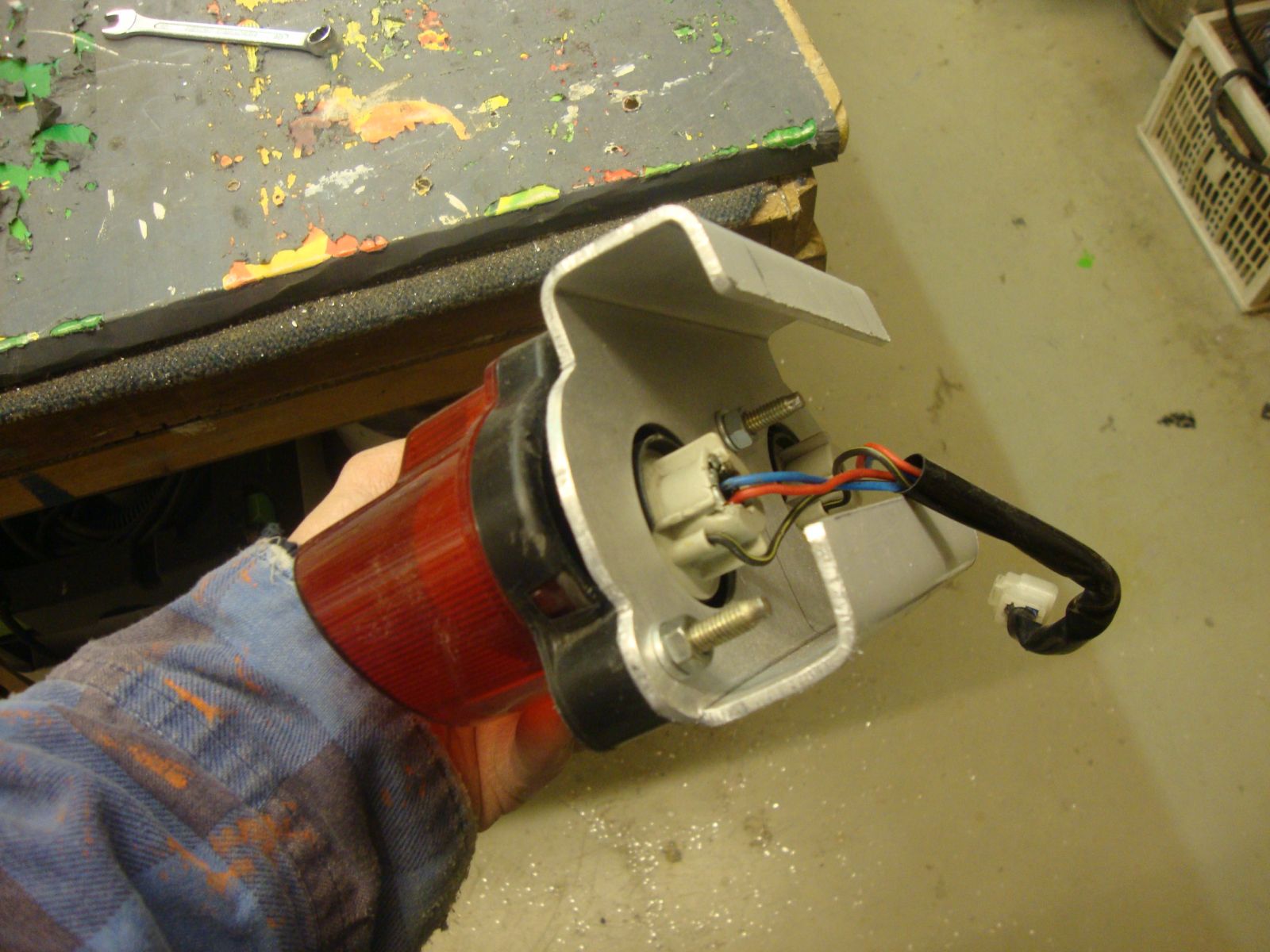

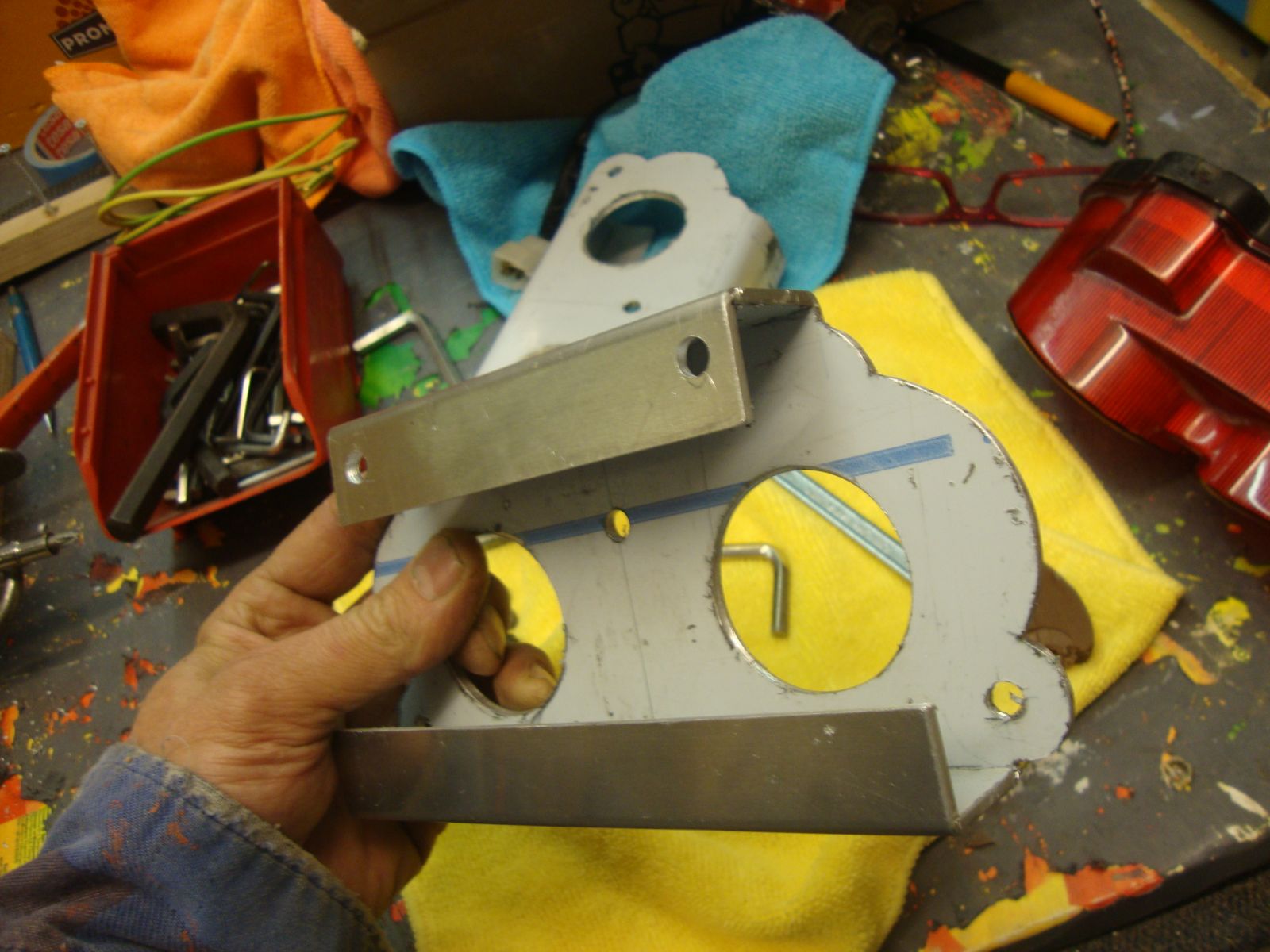

New on on the left,old one on the right



I cut a 1mm slot on the inside of the bends which made them sharper


It looks a lot cleaner alround now.





I also ordered some new brake hoses today.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e
Attachments:

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 15 Apr 2015 12:13 #668075

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
i hate having to redo stuff.

but i hate it worse if i don't !

then it just glares at me everytime i see it.
