frame bracing

  • Powerstroke_fan
  • Powerstroke_fan's Avatar
  • Offline
  • User
  • Posts: 1017
  • Thanks: 83

Re: frame bracing

18 Dec 2012 00:03
#563459
I wanna get my frame braced. Wanna get it done in the next month.
1980 kz1000B4 LTD- 1327cc 9-1 comp
Ported J model head
Psp-3x cams
RS 36s
Welded MK11 crank
Back-cut MK11 trans
MTC 2 stage lock up
Stretched 4-6 over running Hayabusa rear rim with 190 rear tire
Complete frame brace kit installed
And Much Much more- SOLD

2014- ZX14R all stock for now

Please Log in or Create an account to join the conversation.

  • 4TheKZ1000
  • 4TheKZ1000's Avatar
  • User
  • Thanks: 0

Re: frame bracing

18 Dec 2012 00:25
#563465
Powerstroke_fan wrote: I wanna get my frame braced. Wanna get it done in the next month.

Check with WIREMAN he was talking about cutting some steel blank kits I thought?

Please Log in or Create an account to join the conversation.

  • wireman
  • wireman's Avatar
  • Offline
  • User
  • The most interesting prick in the world
  • Posts: 4761
  • Thanks: 299

Re: frame bracing

18 Dec 2012 00:45
#563469
Ive got the templates all made,I just haven't had any time lately to focus on cutting the pieces out! :sick:
I want to get the frame on my bench finished up so I can work the bugs out of the parts before trying to mass produce them,never enough hrs in my day lately! :woohoo:
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.

Please Log in or Create an account to join the conversation.

  • 4TheKZ1000
  • 4TheKZ1000's Avatar
  • User
  • Thanks: 0

Re: frame bracing

18 Dec 2012 00:46
#563470
wireman wrote: Ive got the templates all made,I just haven't had any time lately to focus on cutting the pieces out! :sick:
I want to get the frame on my bench finished up so I can work the bugs out of the parts before trying to mass produce them,never enough hrs in my day lately! :woohoo:

:(

Please Log in or Create an account to join the conversation.

  • 893cv
  • 893cv's Avatar
  • Offline
  • User
  • Posts: 201
  • Thanks: 15

Re: frame bracing

18 Dec 2012 02:48
#563491
Toad,

An engine mount kit can take a lot of slop out of a stock frame. The kit I'm using is from Pingle. The engine castings and frame will need to be drilled and reamed for correct fit, it's worth the work.
1980 kz1000 LTD
1978 Z1R
The following user(s) said Thank You: wireman

Please Log in or Create an account to join the conversation.

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thanks: 797

Re: frame bracing

18 Dec 2012 13:13 - 18 Dec 2012 13:14
#563514
kidkawi,
a stiffer swingarm can make a world of difference in the handling of these old bikes and does not require frame mods.
leon

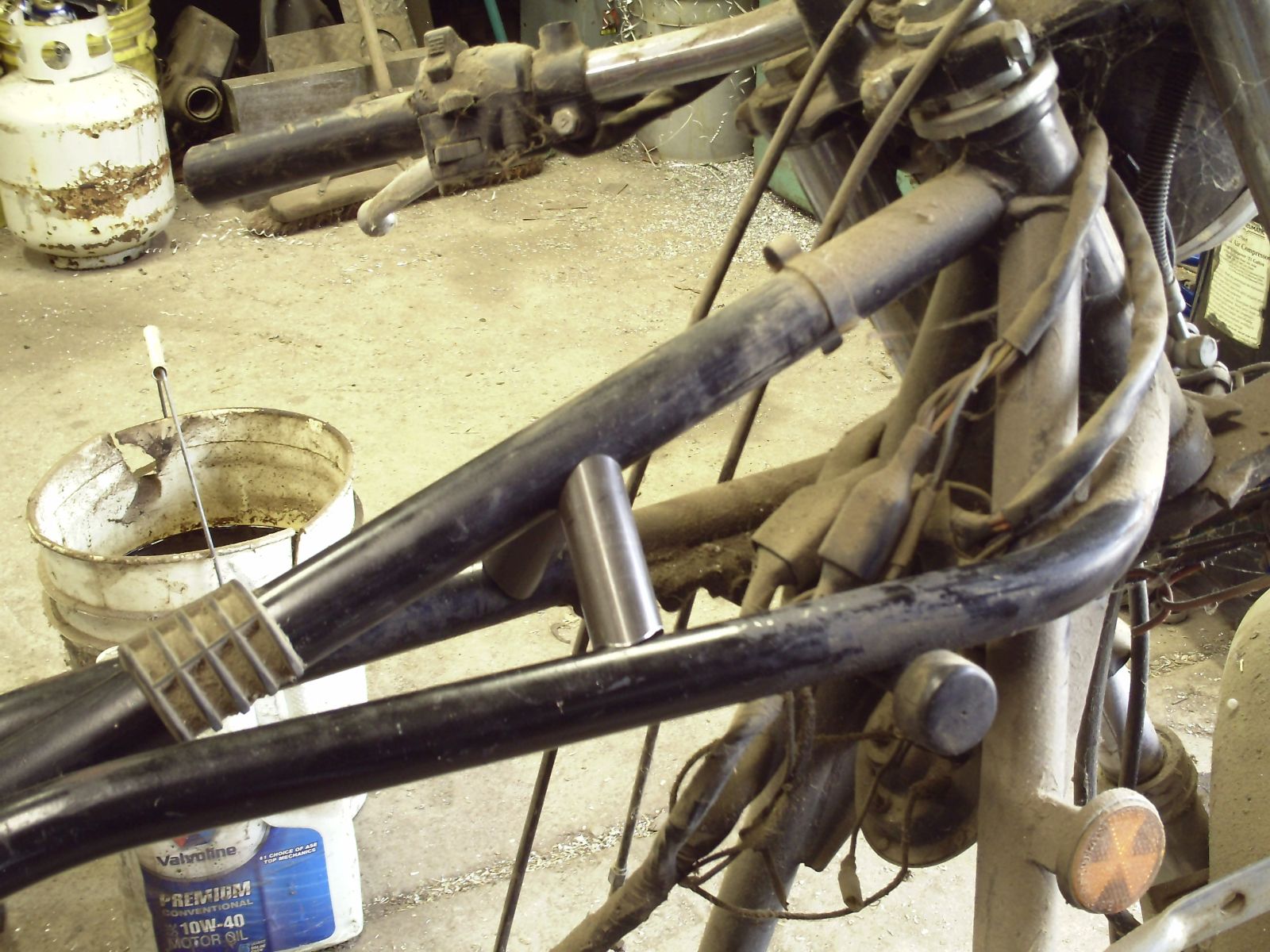

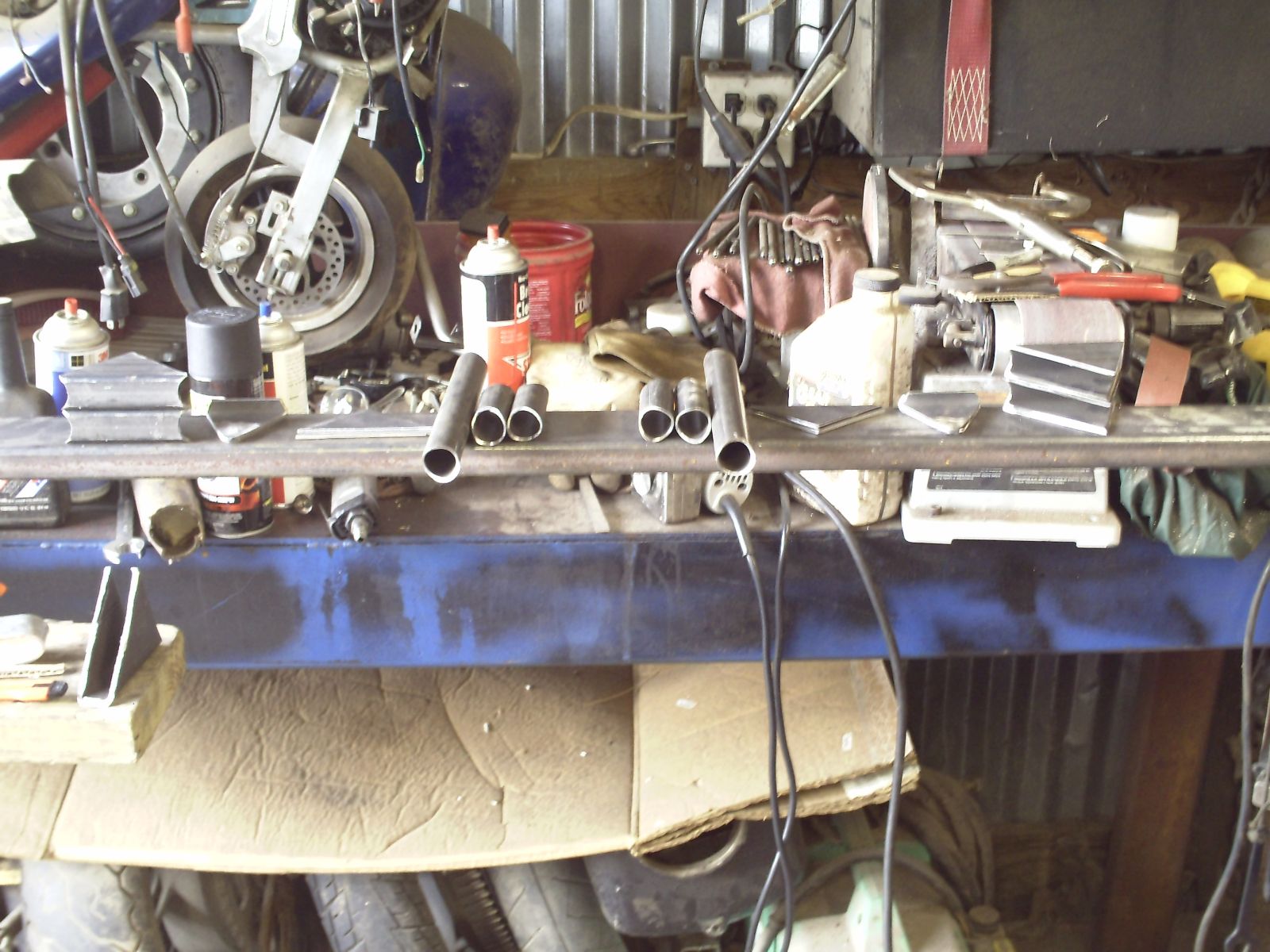

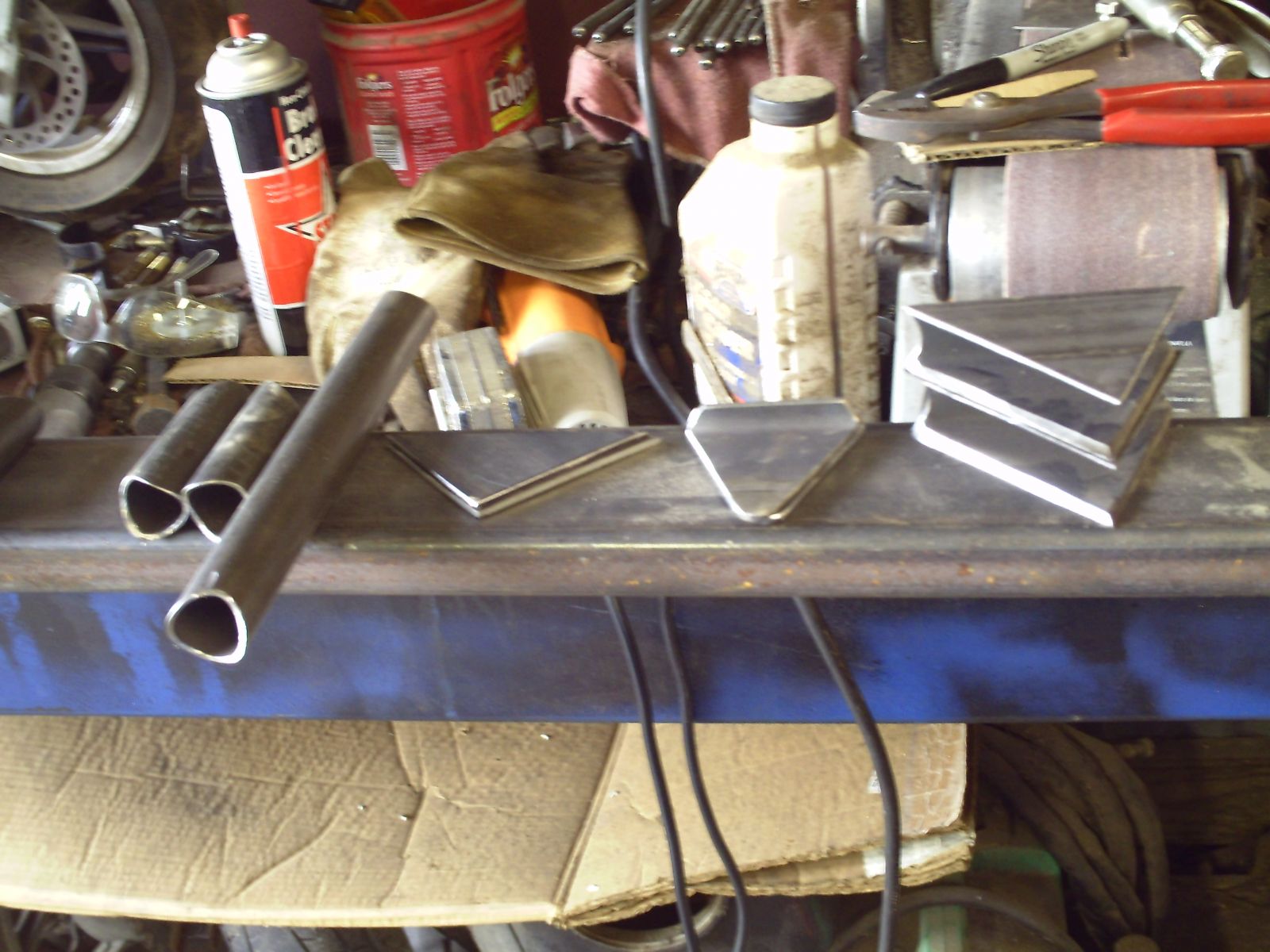

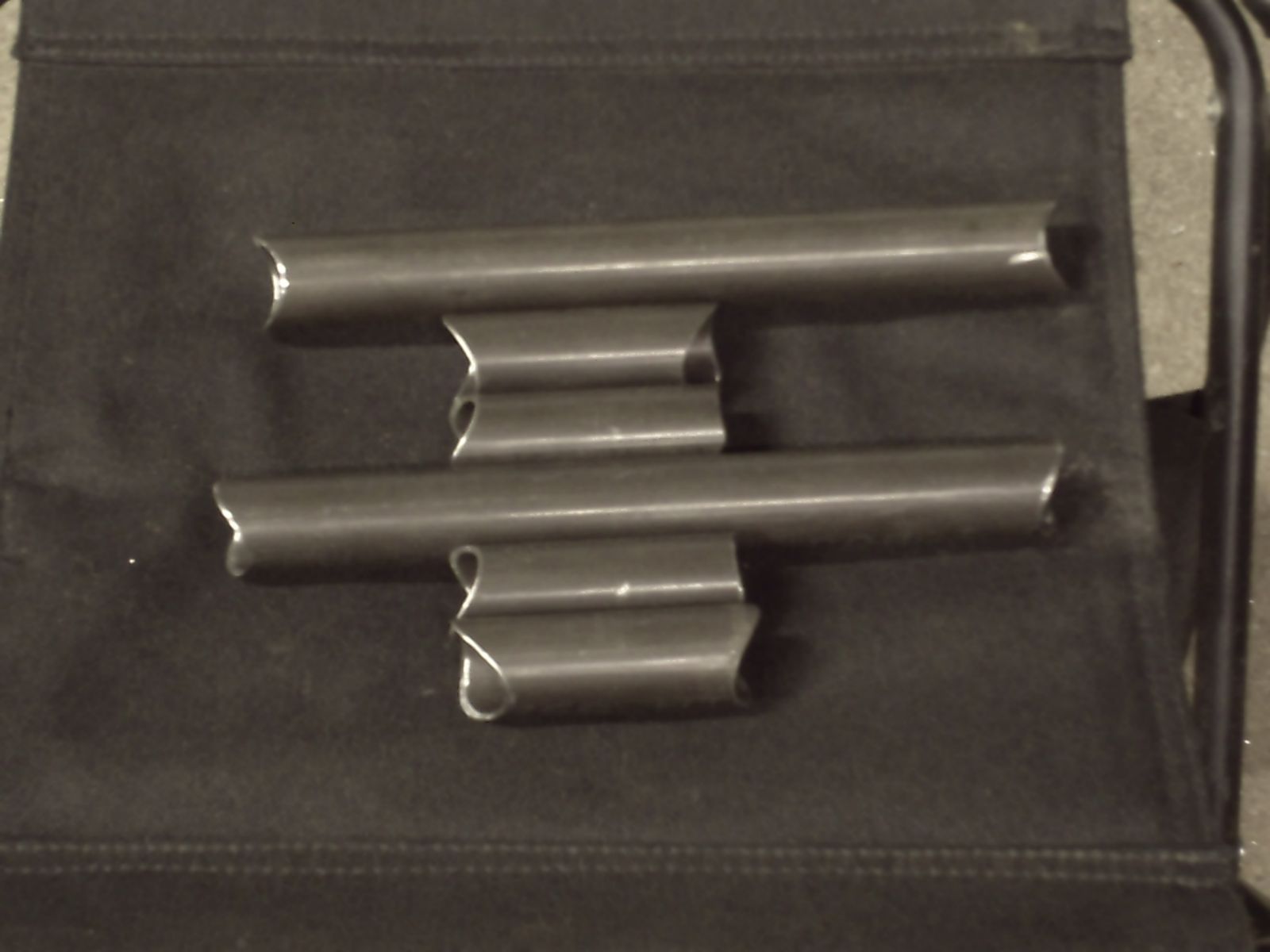

p.s. i have made several frame brace kits.










skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Attachments:

Last edit: 18 Dec 2012 13:14 by 531blackbanshee.

Please Log in or Create an account to join the conversation.

  • Kidkawie
  • Kidkawie's Avatar
  • Offline
  • User
  • I bleed premix
  • Posts: 1913
  • Thanks: 243

Re: frame bracing

18 Dec 2012 13:22
#563518

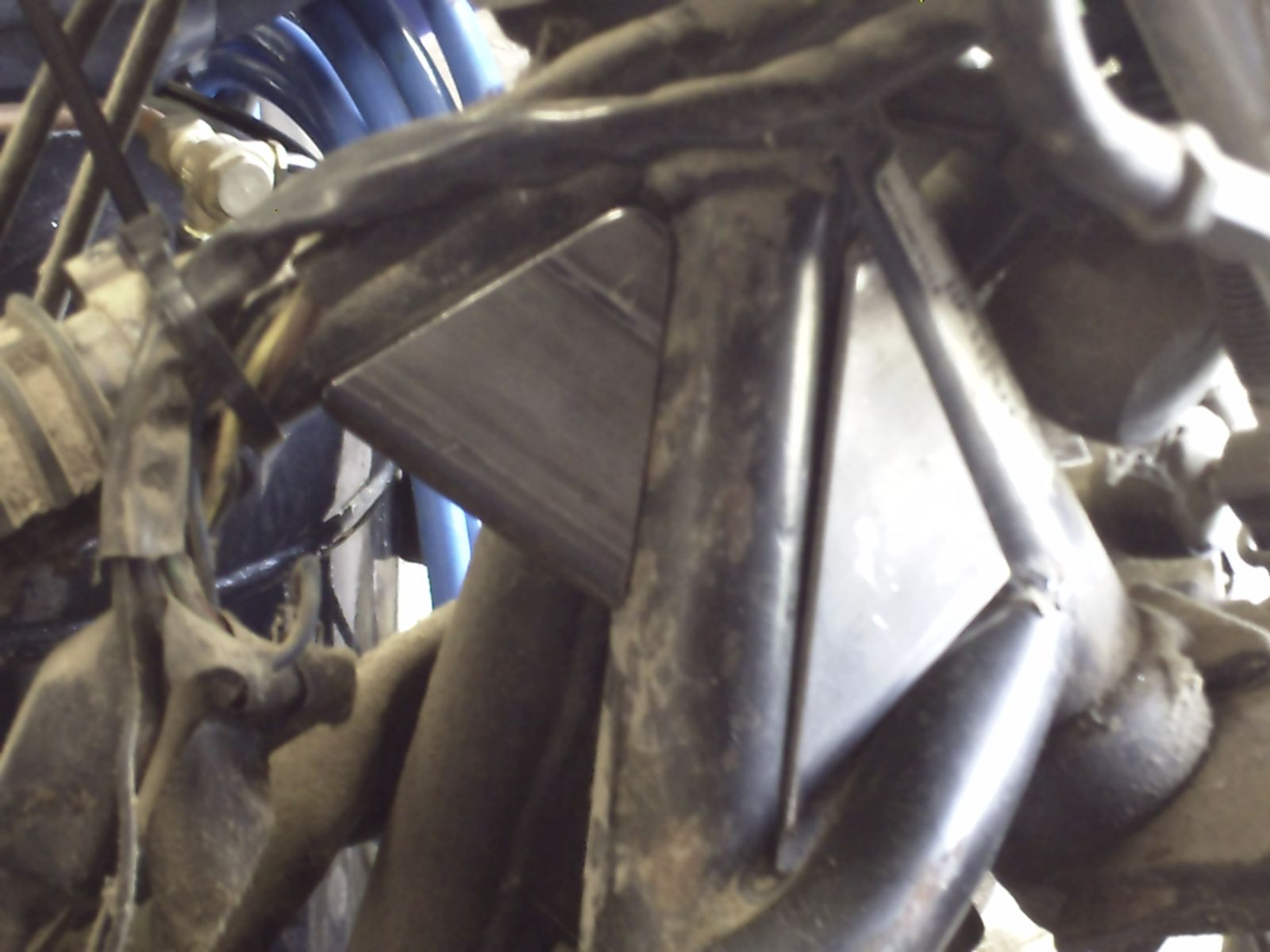

Some of that bracing looks like overkill. The two frame rails that bend around the front down tubes are welded to the down tubes, creating a triangle, so that plate is not needed IMO. I think most of the flex comes from behind the engine, not the steering tube.
1975 Z1 900
1994 KX250 Supermoto
2004 KX125

Please Log in or Create an account to join the conversation.

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thanks: 797

Re: frame bracing

18 Dec 2012 13:30
#563519
the awesome thing about building your own bike is you can use or not use whatever you like.
if you don't think a brace is necessary don't use.
if you like the way a stock swingarm looks,use it.
if you get tired of unwanted lane changes when you hit a bump mid corner,get a stiffer swingarm and maybe try some frame braces.
it is ultimately your decision.

i made mine when i cut out the frame braces you see.

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
The following user(s) said Thank You: wireman, Street Fighter LTD

Please Log in or Create an account to join the conversation.

  • wireman
  • wireman's Avatar
  • Offline
  • User
  • The most interesting prick in the world
  • Posts: 4761
  • Thanks: 299

Re: frame bracing

18 Dec 2012 13:41
#563520
www.speedwaymotors.com/1932-Ford-Frame-C...ing-Plates,7531.html
Hot rodders learned a long time ago that it doesn't matter how big of a motor you shove in a model A ford or how fancy of suspension/axles/brakes you stick under it .
If the frame bends like limp noodle everytime you hit the gas or jump on those big brakes at some point youll find yourself in deep $hit because of it at the worst possible moment! :woohoo:
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.

Please Log in or Create an account to join the conversation.

  • lushbaugh
  • lushbaugh's Avatar
  • Offline
  • User
  • everybodys a pro......
  • Posts: 509
  • Thanks: 35

Re: frame bracing

18 Dec 2012 14:19
#563526
Kidkawie wrote: Some of that bracing looks like overkill. The two frame rails that bend around the front down tubes are welded to the down tubes, creating a triangle, so that plate is not needed IMO. I think most of the flex comes from behind the engine, not the steering tube.

if your bike handles anything like mine the overkill is much appreciated :lol:

plus if i know im building a bike to 160 to 200 hp i want the frame and everything else to be capable of twice that. overkill is bliss
79 kz1000 ltd all apart
the best advice i can give is dont take dnthavakawmans advice..

Please Log in or Create an account to join the conversation.

  • Kidkawie
  • Kidkawie's Avatar
  • Offline
  • User
  • I bleed premix
  • Posts: 1913
  • Thanks: 243

Re: frame bracing

18 Dec 2012 14:39 - 18 Dec 2012 14:39
#563532

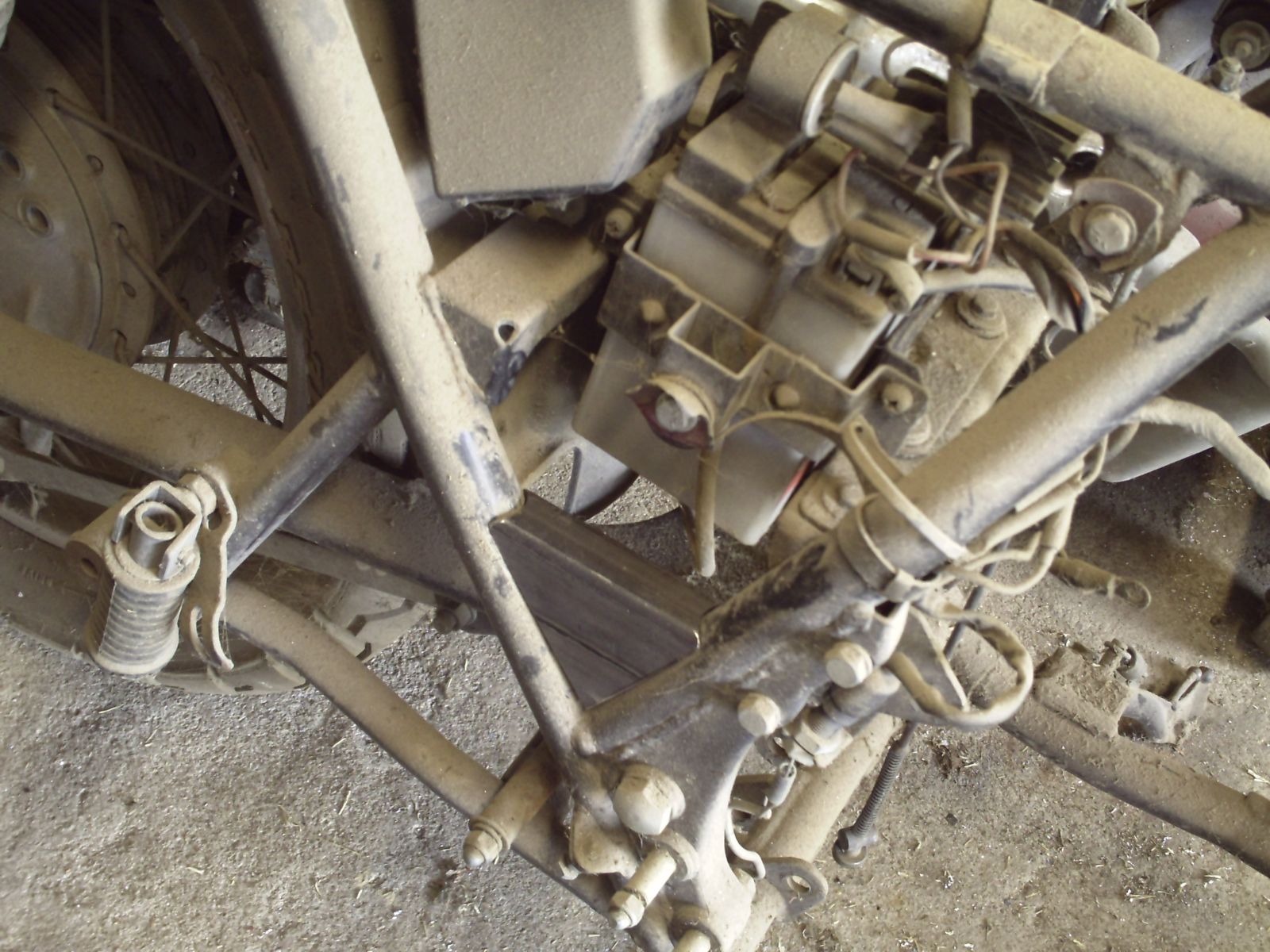

Racing is one thing, I'm talking everyday street riding/cruising. I could easily throw a crapload of gussets on my frame and call it a day, I'm looking for someone to find exactly what the problem is with the older frames. Like I said, riding it seems like behind the engine is the weakest spot, possibly where those triangular gussets are above the swingarm bolt.

I guess the only way to really find out is to put a bare frame/engine in a jig and tray to fold it in half.
1975 Z1 900
1994 KX250 Supermoto
2004 KX125
Last edit: 18 Dec 2012 14:39 by Kidkawie.

Please Log in or Create an account to join the conversation.

  • lushbaugh
  • lushbaugh's Avatar
  • Offline
  • User
  • everybodys a pro......
  • Posts: 509
  • Thanks: 35

Re: frame bracing

18 Dec 2012 14:47
#563533
Kidkawie wrote: Racing is one thing, I'm talking everyday street riding/cruising. I could easily throw a crapload of gussets on my frame and call it a day, I'm looking for someone to find exactly what the problem is with the older frames. Like I said, riding it seems like behind the engine is the weakest spot, possibly where those triangular gussets are above the swingarm bolt.

I guess the only way to really find out is to put a bare frame/engine in a jig and tray to fold it in half.

i think alot of it was inconsistent headtubes and welds then the flimsy swing arm and undersized motor bolts mostly
79 kz1000 ltd all apart
the best advice i can give is dont take dnthavakawmans advice..
