DRL headlight on a 73 Z1

  • lewisj
  • lewisj's Avatar Topic Author
  • Offline
  • User
  • Posts: 146
  • Thanks: 5

Re: DRL headlight on a 73 Z1

01 May 2023 14:01
#884084
Wookie 58
on your three wire relay my orange wire goes to the turn signal switch, the brown I assume is the power, so what goes to the third terminal on the relay?  Thanks
1973 Z1
1075cc MTC kit
Andrews 3X cams
ZRX 1200 swingarm

Vance&Hines header/ exhaust
29mm smoothbores w/pods
ZR7S 41mm Front Forks with 17" wheels

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4288
  • Thanks: 2135

Re: DRL headlight on a 73 Z1

01 May 2023 14:57
#884086
Ground, Negativ, Frame

"B" = Power (battery+ or ignition swichted brown wire 12 Volt)
"E" = Earth (battery- or frame/engine ground)
"L" = Light (to turn signal switch)
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: lewisj, Wookie58

Please Log in or Create an account to join the conversation.

  • lewisj
  • lewisj's Avatar Topic Author
  • Offline
  • User
  • Posts: 146
  • Thanks: 5

Re: DRL headlight on a 73 Z1

01 May 2023 15:06
#884088
Thanks Scirocco, I have one on the way, due here on Wednesday.  Hopefully that will start me on the correct hook-up.  Do you agree with Mikaw that the DRL from the headlight can be tapped into the blue wire that feeds light to the tach and speedo?  Or am I better off tying into the RH light switch?  Thanks!
1973 Z1
1075cc MTC kit
Andrews 3X cams
ZRX 1200 swingarm

Vance&Hines header/ exhaust
29mm smoothbores w/pods
ZR7S 41mm Front Forks with 17" wheels

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 4479
  • Thanks: 2624

Re: DRL headlight on a 73 Z1

01 May 2023 15:23
#884090
lewisj wrote:
Thanks Scirocco, I have one on the way, due here on Wednesday.  Hopefully that will start me on the correct hook-up.  Do you agree with Mikaw that the DRL from the headlight can be tapped into the blue wire that feeds light to the tach and speedo?  Or am I better off tying into the RH light switch?  Thanks!
The choice is yours, the LED DRL won't overload the circuit Mikaw mentioned however if you have the two position light switch that would be my preference (at least then you have the option to turn it off if you wish)
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

Please Log in or Create an account to join the conversation.

  • lewisj
  • lewisj's Avatar Topic Author
  • Offline
  • User
  • Posts: 146
  • Thanks: 5

Re: DRL headlight on a 73 Z1

01 May 2023 16:23
#884094
Sounds good!  I think since I have the switch I will tap it into that. Thanks to everyone, Wookie 58, Mikaw & Scirocco for your help!  I will put things together and let you know how things go by weeks end.
1973 Z1
1075cc MTC kit
Andrews 3X cams
ZRX 1200 swingarm

Vance&Hines header/ exhaust
29mm smoothbores w/pods
ZR7S 41mm Front Forks with 17" wheels
The following user(s) said Thank You: Mikaw, Wookie58

Please Log in or Create an account to join the conversation.

  • blipco
  • blipco's Avatar
  • Offline
  • User
  • 2002 KZ1000P
  • Posts: 555
  • Thanks: 212

Re: DRL headlight on a 73 Z1

02 May 2023 03:44
#884107
You could run a wire from your tail light to the DRL. I’m assuming the DRL is of low wattage/current draw.
"Swim against the current, even a dead fish can go with the flow"-somebody (I forget Who)

Please Log in or Create an account to join the conversation.

  • lewisj
  • lewisj's Avatar Topic Author
  • Offline
  • User
  • Posts: 146
  • Thanks: 5

Re: DRL headlight on a 73 Z1

03 May 2023 11:40
#884183
Scirocco

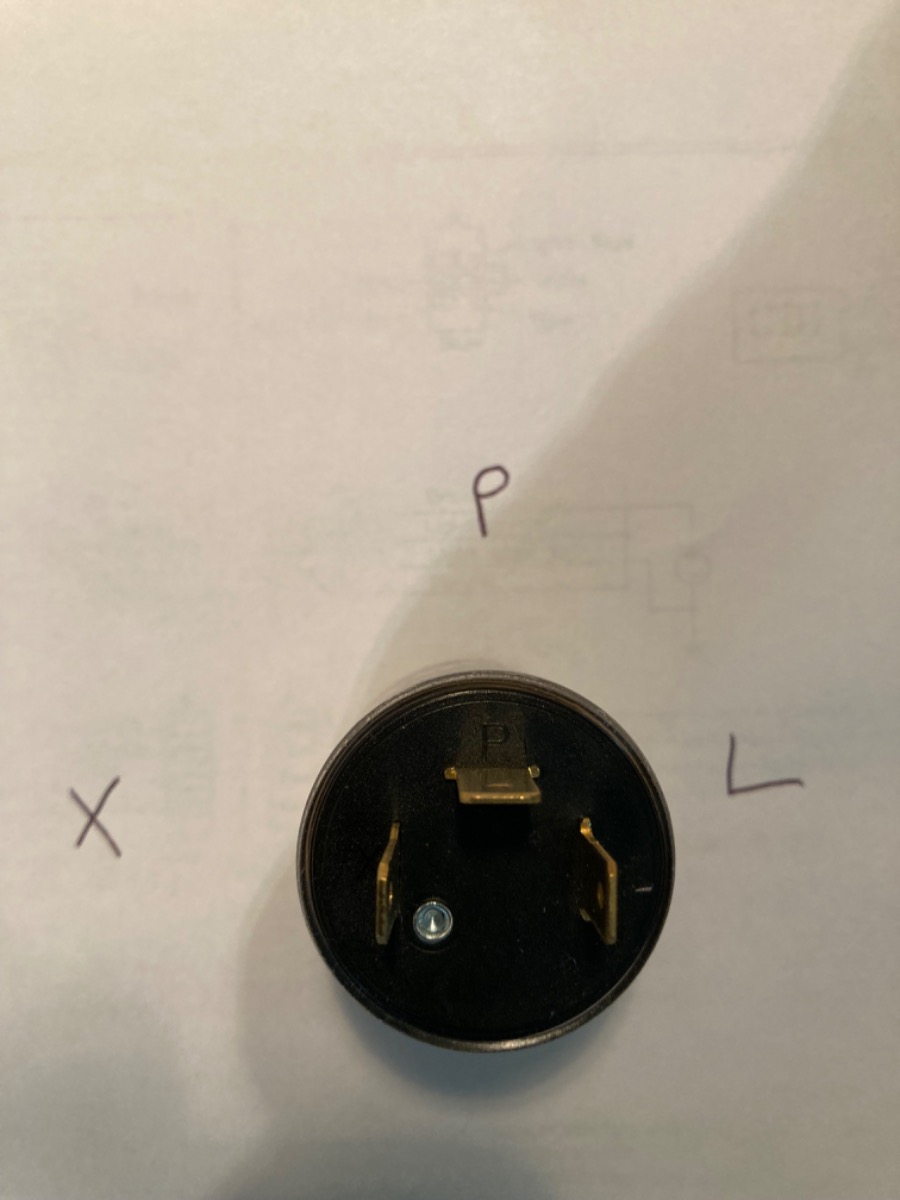

i got the flasher relay today.  Just want to make sure I don’t blow something.  The leads are labeled P,    L,    X.   To what terminal do I connect the brown power wire, turn signal wire and ground?    Thanks again!

ps.  Love your machining skills!  You are an artist with that lathe.  Your bike is beautiful!
1973 Z1
1075cc MTC kit
Andrews 3X cams
ZRX 1200 swingarm

Vance&Hines header/ exhaust
29mm smoothbores w/pods
ZR7S 41mm Front Forks with 17" wheels

Please Log in or Create an account to join the conversation.

  • lewisj
  • lewisj's Avatar Topic Author
  • Offline
  • User
  • Posts: 146
  • Thanks: 5

Re: DRL headlight on a 73 Z1

03 May 2023 11:42
#884184

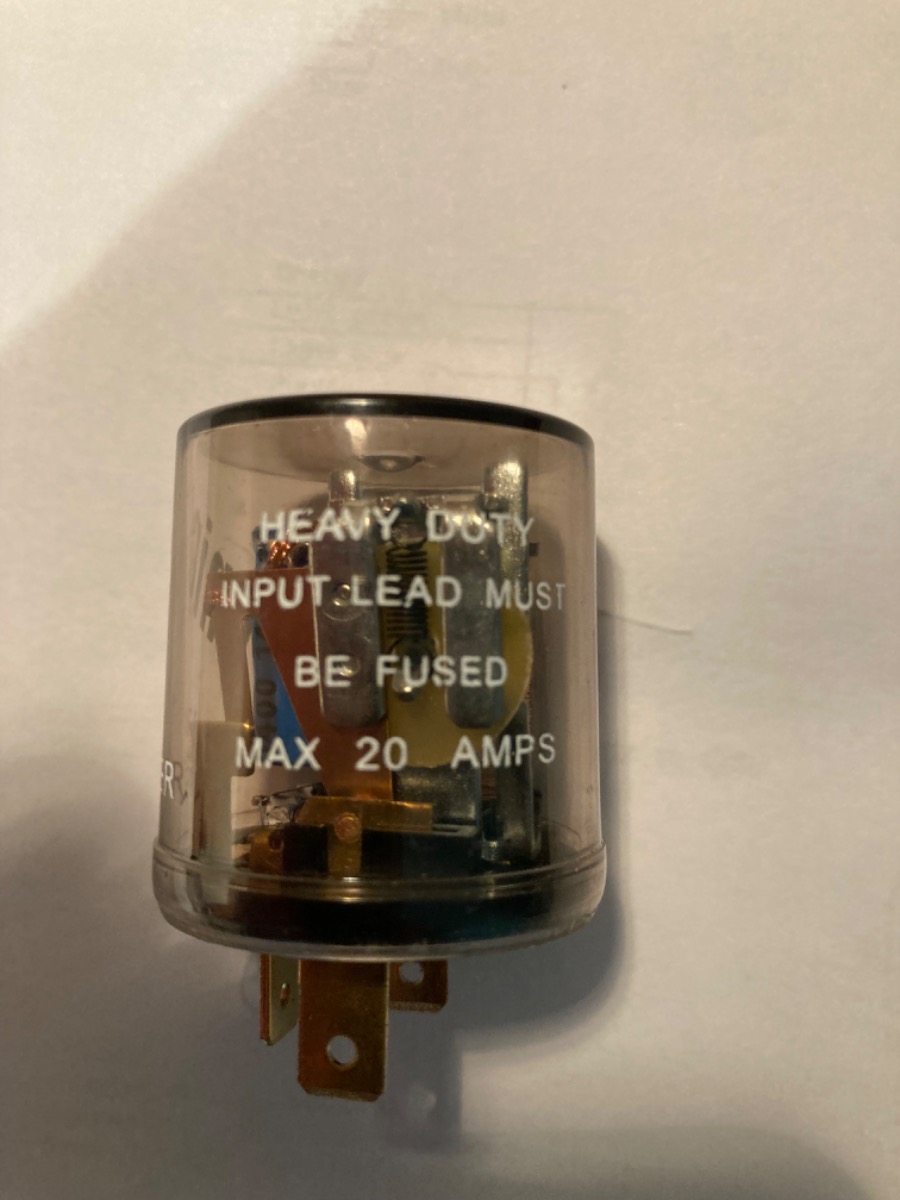

Here is the relay.
1973 Z1
1075cc MTC kit
Andrews 3X cams
ZRX 1200 swingarm

Vance&Hines header/ exhaust
29mm smoothbores w/pods
ZR7S 41mm Front Forks with 17" wheels

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 4479
  • Thanks: 2624

Re: DRL headlight on a 73 Z1

03 May 2023 12:08
#884185

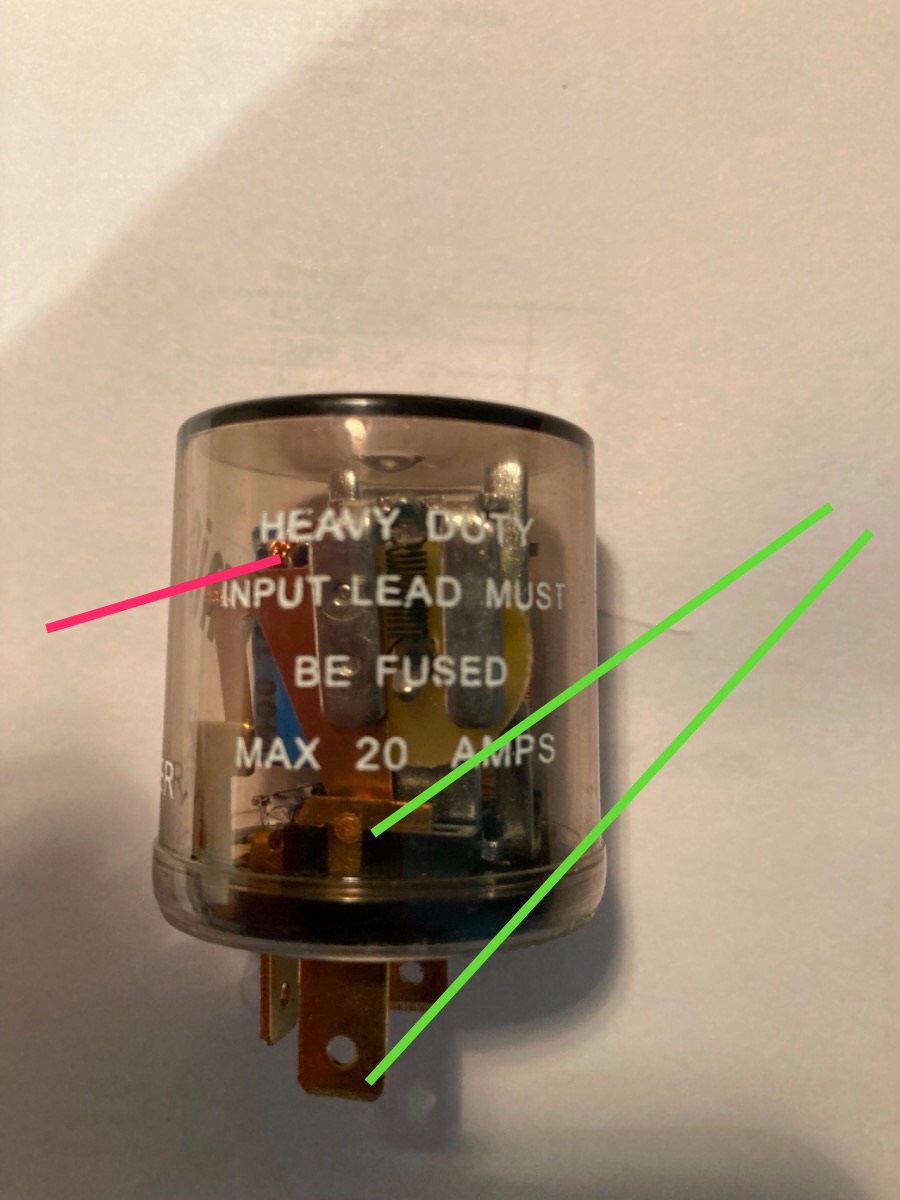

L - green line is output to the turn signal switch
P - pink line - I believe this is your power in, check that the copper wire from the relay contact is going to P
X - if P is the contact connector then X is ground


1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

Please Log in or Create an account to join the conversation.

  • lewisj
  • lewisj's Avatar Topic Author
  • Offline
  • User
  • Posts: 146
  • Thanks: 5

Re: DRL headlight on a 73 Z1

03 May 2023 12:30
#884186
Thanks Wookie 58

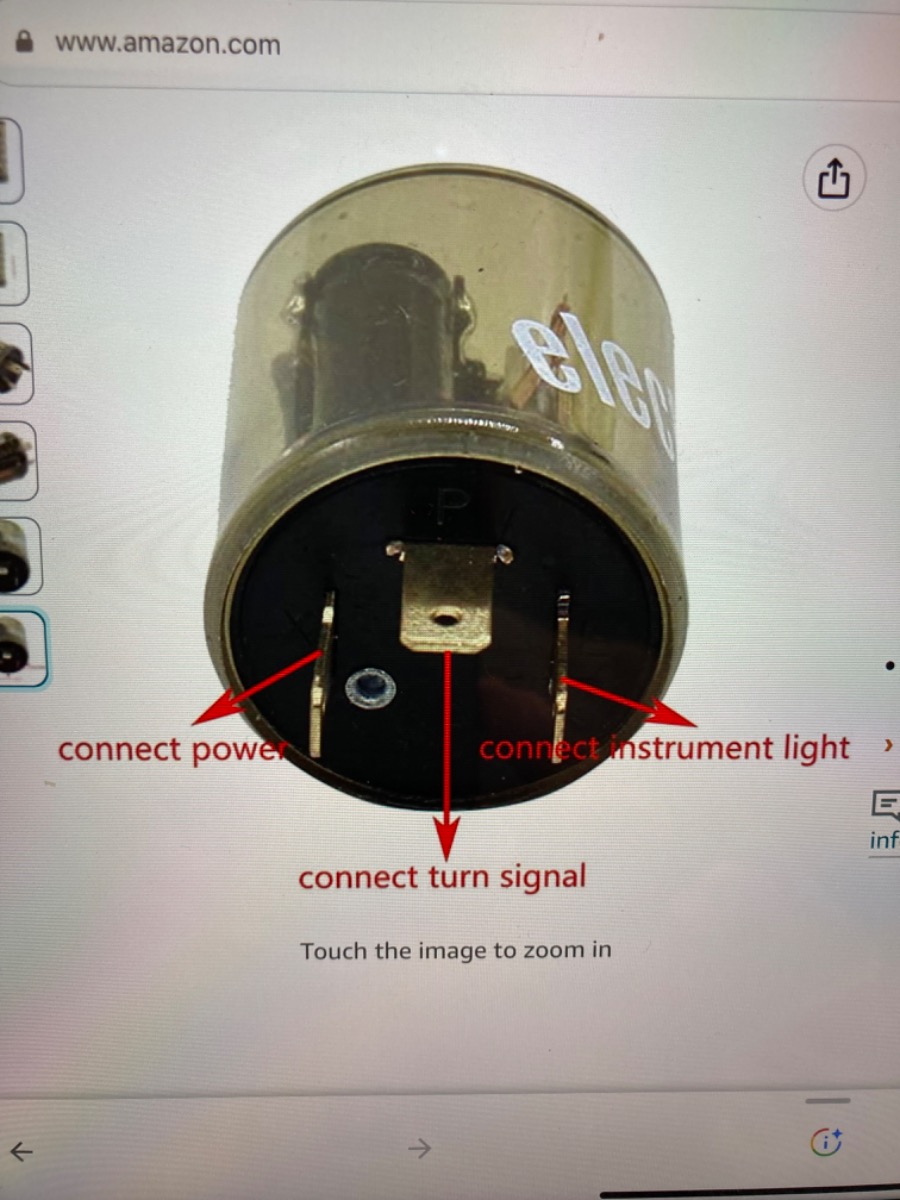

the picture that came with the relay on the internet shows a very different hookup.  I see a single copper strand leading to the “P” terminal like you said.  This is crazy!

1973 Z1
1075cc MTC kit
Andrews 3X cams
ZRX 1200 swingarm

Vance&Hines header/ exhaust
29mm smoothbores w/pods
ZR7S 41mm Front Forks with 17" wheels

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 4479
  • Thanks: 2624

Re: DRL headlight on a 73 Z1

03 May 2023 12:57
#884187

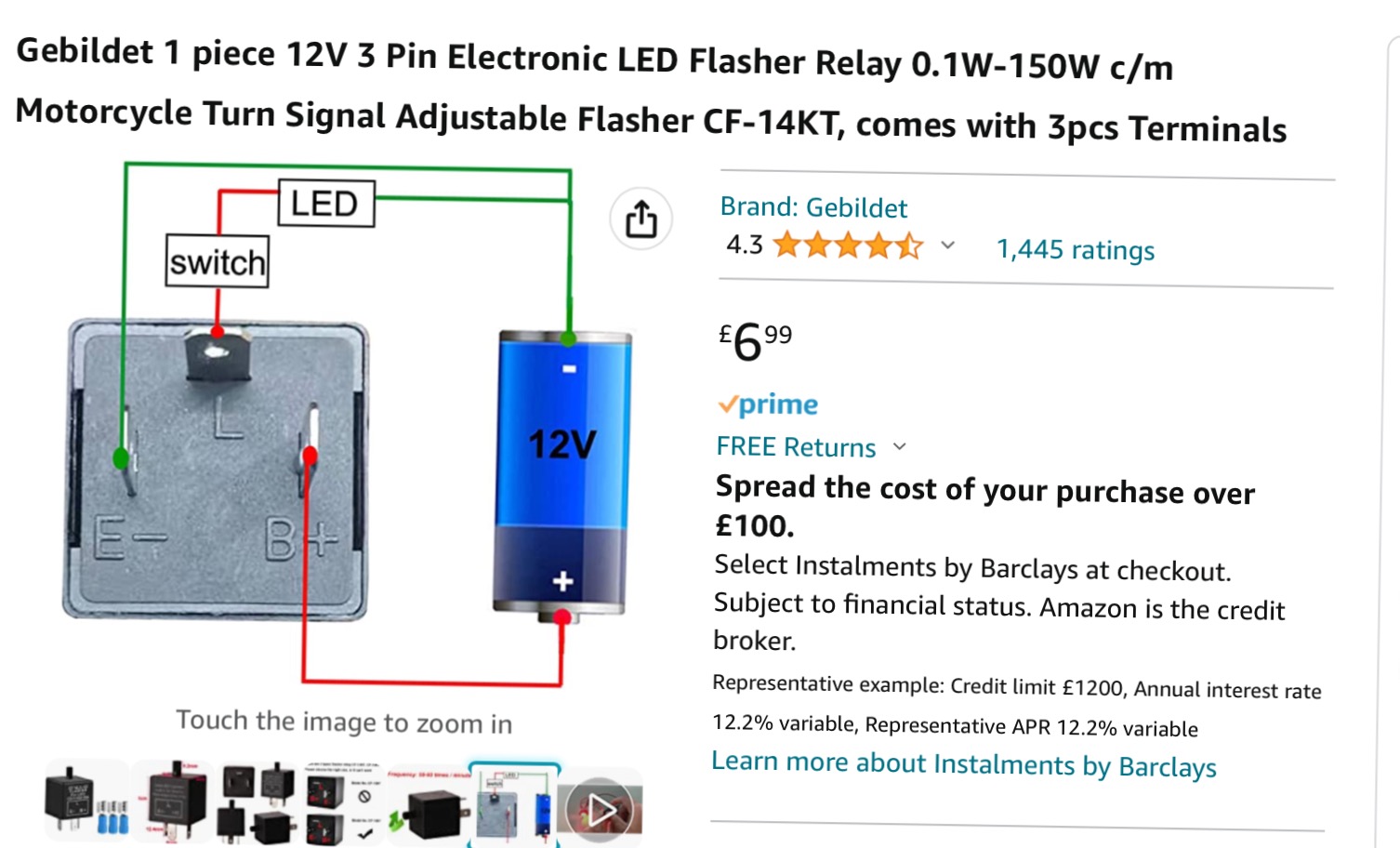

Looking at your latest post you have bought the wrong thing, what you have is a heavy duty flasher relay for towing a trailer/caravan etc. what you need is below


1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

Please Log in or Create an account to join the conversation.

  • lewisj
  • lewisj's Avatar Topic Author
  • Offline
  • User
  • Posts: 146
  • Thanks: 5

Re: DRL headlight on a 73 Z1

03 May 2023 13:37
#884188
Bummer!   It said it was for LED related issues like rapid flashing, no flashing, bulb burnout, etc.  I will get the correct one!  Thanks for catching my mistake!
1973 Z1
1075cc MTC kit
Andrews 3X cams
ZRX 1200 swingarm

Vance&Hines header/ exhaust
29mm smoothbores w/pods
ZR7S 41mm Front Forks with 17" wheels
