1978 kz1000ltd wiring questions 27 May 2022 10:05 #867741

  • rivman15
  • rivman15's Avatar Topic Author
  • Offline
  • User
  • Posts: 59
  • Thank you received: 13
Mikaw.. Thank you... I was just curious if the original positive battery cable had a double female connected to it. Thanks, Joe

Please Log in or Create an account to join the conversation.

1978 kz1000ltd wiring questions 27 May 2022 10:08 #867743

  • rivman15
  • rivman15's Avatar Topic Author
  • Offline
  • User
  • Posts: 59
  • Thank you received: 13
Wookie58... That sure clears up a lot. I believe I have some similar issues. I will take a look at that match up tonight when I get home ... if I can ever get out of this office. I have three employees out sick today and Tomorrow isn't looking much better.

Please Log in or Create an account to join the conversation.

1978 kz1000ltd wiring questions 27 May 2022 10:19 #867746

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1071
  • Thank you received: 426

Wookie58... That sure clears up a lot. I believe I have some similar issues. I will take a look at that match up tonight when I get home ... if I can ever get out of this office. I have three employees out sick today and Tomorrow isn't looking much better.

I feel your pain but remember what pays for your "Z" addiction
1982 KZ1000 Ltd

Please Log in or Create an account to join the conversation.

1978 kz1000ltd wiring questions 27 May 2022 10:32 #867747

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4054
  • Thank you received: 1295
At work. I did find pictures of the battery box and relay bracket on my ‘76 Kz900 and it has a double female 4.9mm on the white. I’ll look at my ‘78B2 when I get home.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: rivman15

Please Log in or Create an account to join the conversation.

1978 kz1000ltd wiring questions 27 May 2022 10:33 #867748

  • rivman15
  • rivman15's Avatar Topic Author
  • Offline
  • User
  • Posts: 59
  • Thank you received: 13

rivman15 wrote:
Wookie58... That sure clears up a lot. I believe I have some similar issues. I will take a look at that match up tonight when I get home ... if I can ever get out of this office. I have three employees out sick today and Tomorrow isn't looking much better.

I feel your pain but remember what pays for your "Z" addiction

HaHa... Addiction is an understatement... This is bike #11 that I have built over the last 20-25 years... All Z1 or KZ..900-1000. Raced some... showed most. Sold most. I still have my original 1975 Z1... this bike the 1978 you have helped me with the wiring has a special place in my heart. My best friend lost his life on it a few years ago. I decided to buy it and restore it in a way that him and I talked about. He and I built almost all of them together... He was a auto body and paint guy. And he painted all of mine. Last year I decided to tear into it . Almost ready to fire it.
The following user(s) said Thank You: Street Fighter LTD, Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by rivman15.

1978 kz1000ltd wiring questions 27 May 2022 10:36 #867749

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4327
  • Thank you received: 1480
Nice tribute

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
The following user(s) said Thank You: rivman15

Please Log in or Create an account to join the conversation.

1978 kz1000ltd wiring questions 27 May 2022 15:55 #867762

  • rivman15
  • rivman15's Avatar Topic Author
  • Offline
  • User
  • Posts: 59
  • Thank you received: 13

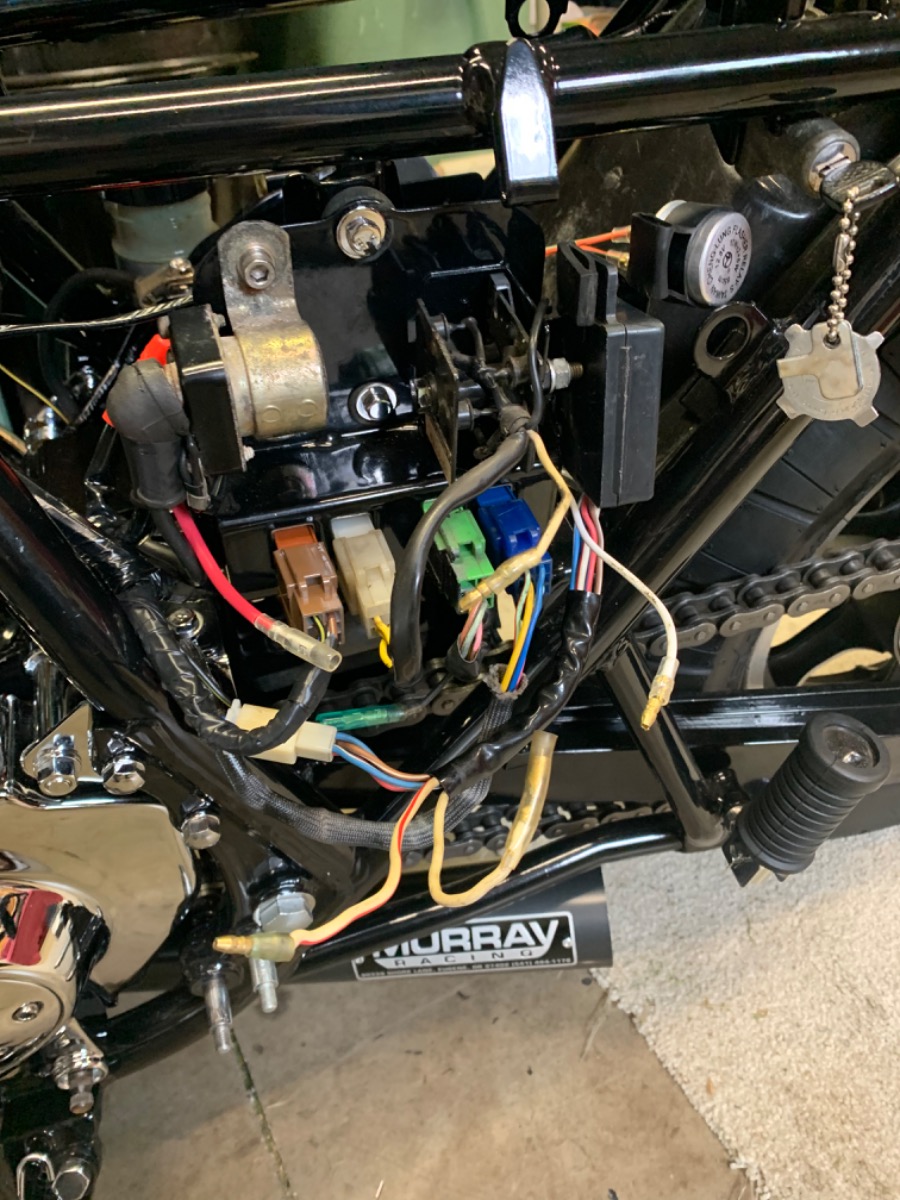

This is why I was asking if it had a double female plug coming off the positive battery cable. Looks like I will have an extra wire without it.
Attachments:

Please Log in or Create an account to join the conversation.

1978 kz1000ltd wiring questions 27 May 2022 16:08 #867764

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4054
  • Thank you received: 1295
I dug up an LTD schematic. There is a double female bullet connector on the battery positive. One is to the 20 amp main fuse and the other is to the rectifier bridge.

EDIT. That condition is consistent with the kz1000 models A1,A2,B1,B2 and the D1.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: rivman15

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

1978 kz1000ltd wiring questions 27 May 2022 17:02 #867766

  • rivman15
  • rivman15's Avatar Topic Author
  • Offline
  • User
  • Posts: 59
  • Thank you received: 13
You know the craziest thing is I have literally every connector known to man.... after all these years I have amast a shit ton of parts and a crazy amount of electrical new and used... BUT I dont have a double female connector in the house... but I will in the morning.. Thanks again guys, Joe

Please Log in or Create an account to join the conversation.

1978 kz1000ltd wiring questions 27 May 2022 17:15 #867768

  • rivman15
  • rivman15's Avatar Topic Author
  • Offline
  • User
  • Posts: 59
  • Thank you received: 13
I mean I could cut one off an old harness ...but that would be cheesy and I do not do that kind of work( and someone may need it in the future).. In fact after putting this wiring together I just realized the only wire or electrical wires and componets that I have not replaced new is the fuse box (besides regulater solonoid and rec all tested perfect)... so i will order a new fuse box in the morning.

Please Log in or Create an account to join the conversation.

Last edit: by rivman15.

1978 kz1000ltd wiring questions 27 May 2022 17:50 #867773

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4054
  • Thank you received: 1295
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: rivman15, Moose1800

Please Log in or Create an account to join the conversation.

1978 kz1000ltd wiring questions 28 May 2022 06:26 #867783

  • rivman15
  • rivman15's Avatar Topic Author
  • Offline
  • User
  • Posts: 59
  • Thank you received: 13
Mikaw , Awesome site. Thank you.
The following user(s) said Thank You: Mikaw
