1982 KZ1000J IGNITER ???? 09 Oct 2021 12:50 #856431

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
5.83 both reds at kill switch

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:06 #856432

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 671
  • Thank you received: 180
go to your fuse block
key on/ignition switch on
meter DC V
black probe on negative battery post
red probe both sides of each fuse(put the probe on the terminal that
slides over the fuse not on the metal part of the fuse)
tell me the voltages of each fuse combo.

move your red probe to the metal fins of the engine case.
the voltage will be really low but i need to know that number

81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

Last edit: by F64.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:16 #856433

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
Fuse block starting from the end that the wires come out. 5.87, 5.87, 5.87, 6.60, 6.60. Meter still on DC volts red to engine case 0 volts

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:19 #856434

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 671
  • Thank you received: 180

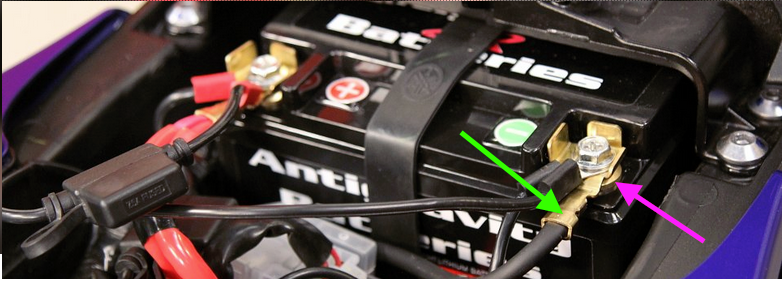

black probe on POSITIVE battery post(pink arrow)
red probe on POSITIVE battery terminal(green arrow)
what is the voltage?
the voltage will be low but i need to know the exact number
photo:revzilla
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Attachments:
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

Last edit: by F64.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:39 #856435

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
Black and red on positive battery post  ? 0 volts

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:46 #856436

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 671
  • Thank you received: 180

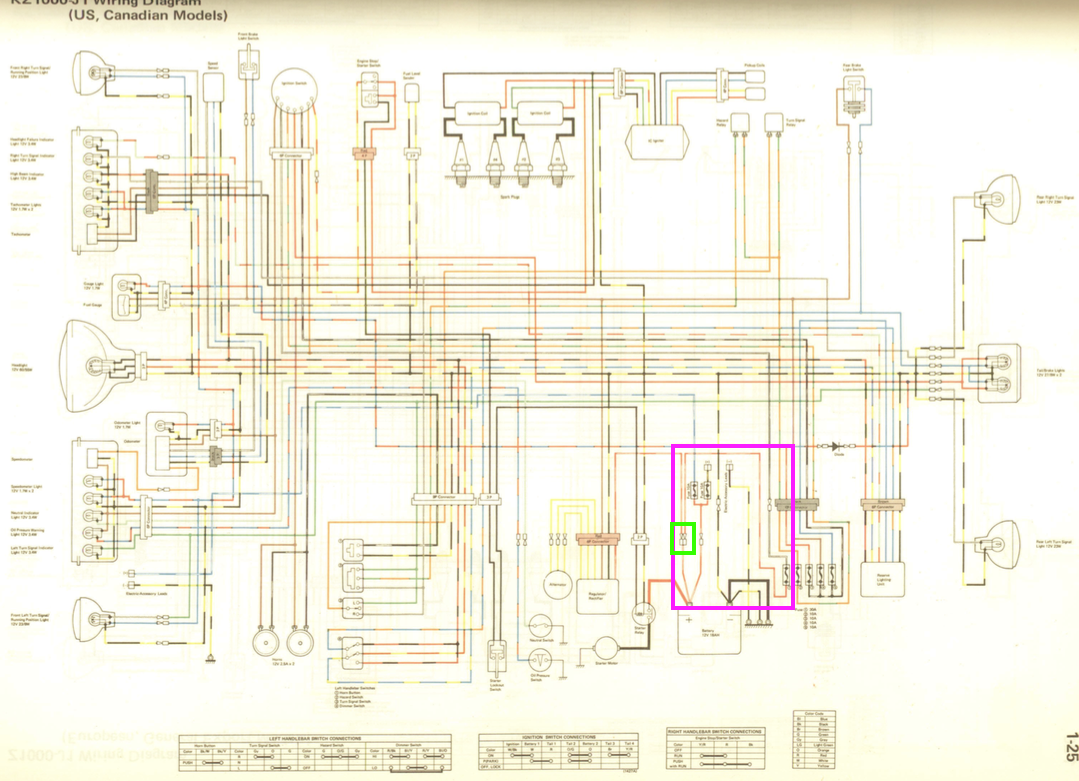

ok, so your issue is around this area(pink square).


black probe on negative battery post
red probe on red wire with white stripe
(inside green box connector--do not disconnect--
back probe both sides of the connector)

photo:filebase/Mcdroid
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Attachments:
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

Last edit: by F64.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:48 #856437

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
Cut off again on the right. you can text me if it's easier 910-713-5455. FB Messenger or whatever is easier for you.

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:50 #856439

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 671
  • Thank you received: 180
can you read it now?
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:51 #856440

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
Nothing there lol

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 09 Oct 2021 13:52 #856441

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 671
  • Thank you received: 180
no voltage at the red/white wire?
black probe on negative battery post?
It will be a 1 into 2 connector.
back probe all 3 wires

back probe both sides of the black wire/yellow stripe
in the blue box with the red probe.
black probe on negative battery post.
Should be less than 0.5V for both sides.


81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

Last edit: by F64.

1982 KZ1000J IGNITER ???? 09 Oct 2021 14:01 #856443

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
11.38 volts on white with red stripe and same on red with white stripe

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 09 Oct 2021 14:10 #856444

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 671
  • Thank you received: 180

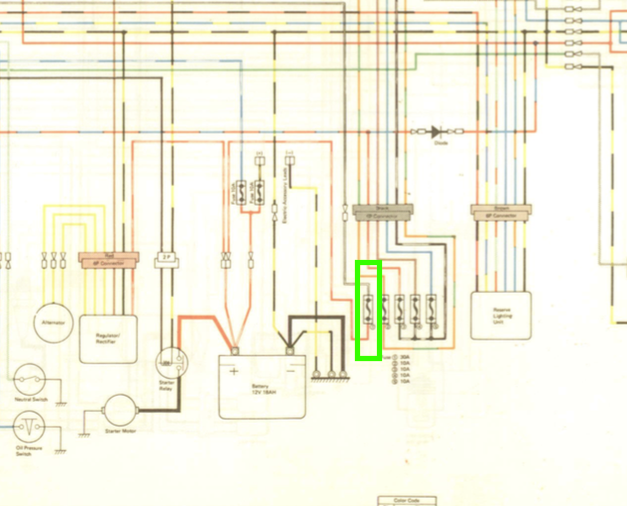

open up your fuse block.
