1982 KZ1000J IGNITER ???? 02 Oct 2021 12:11 #856086

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
Started engine to synchronize the carbs. Shut it down and won't start again. No spark from the coils on any cylinder. New coils,  igniter is original. Any help would be appreciated. Stay safe my friends

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 02 Oct 2021 12:36 #856091

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3301
  • Thank you received: 1445
Check the fuses first, next check primary/secondary ignition coils.

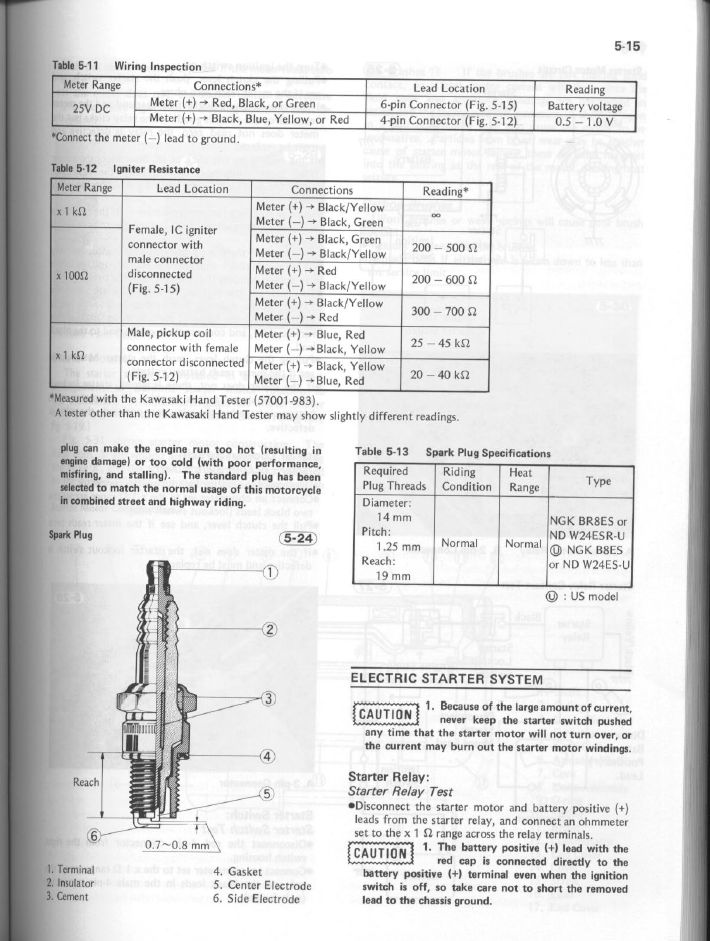

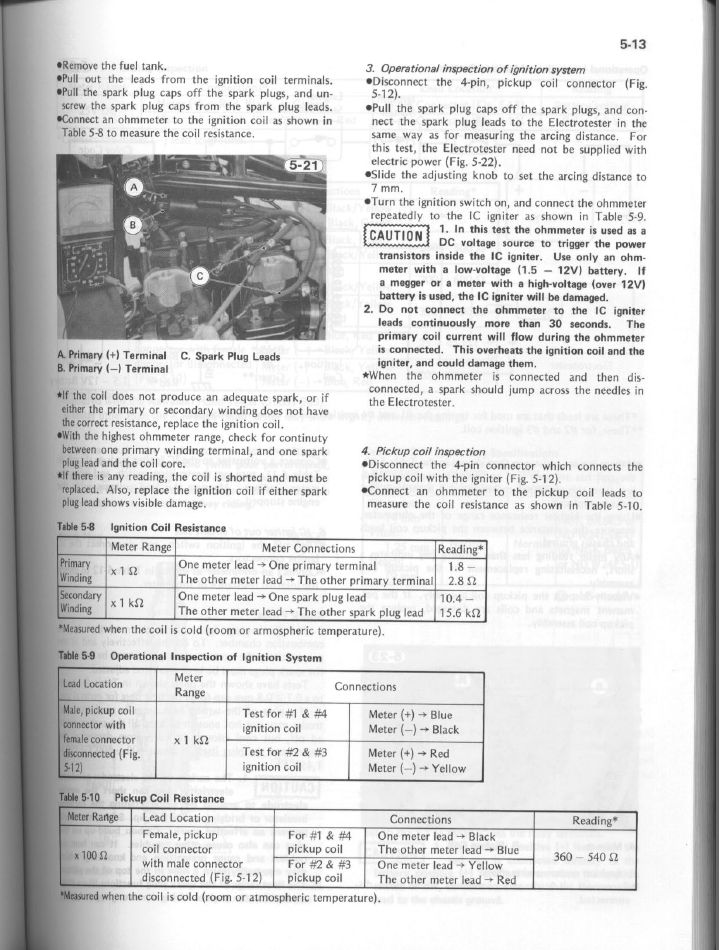

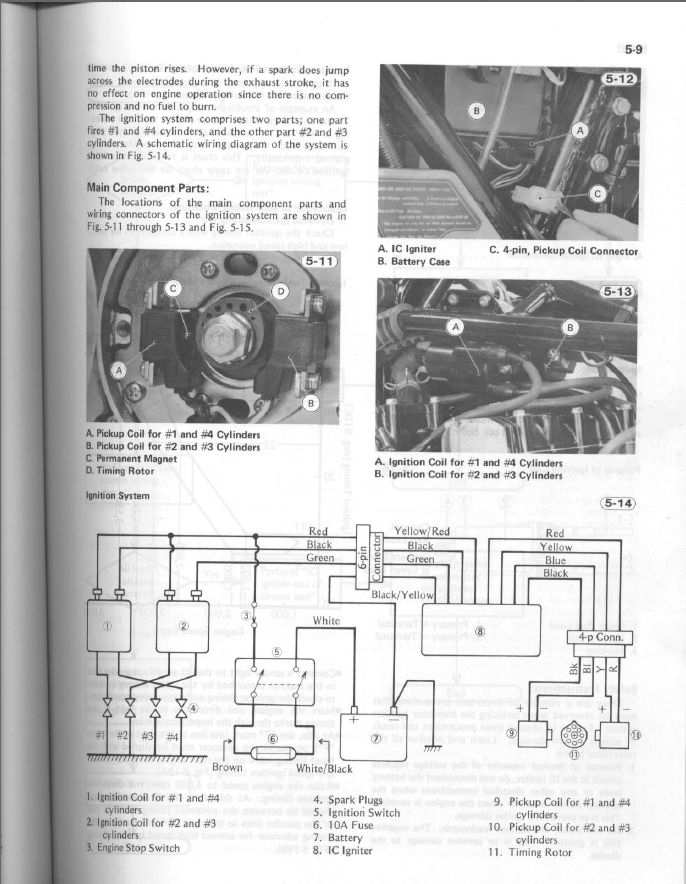

The service manual offers a multimeter test for the coils and ic igniter.


Attachments:
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 02 Oct 2021 13:13 #856095

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
Is the igniter the same as a rectifier  ? Coils are new  and no spark on any of them

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 02 Oct 2021 15:12 #856103

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3301
  • Thank you received: 1445

Is the igniter the same as a rectifier  ? Coils are new  and no spark on any of them

Both are total different divices in function.

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 02 Oct 2021 16:29 #856105

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35

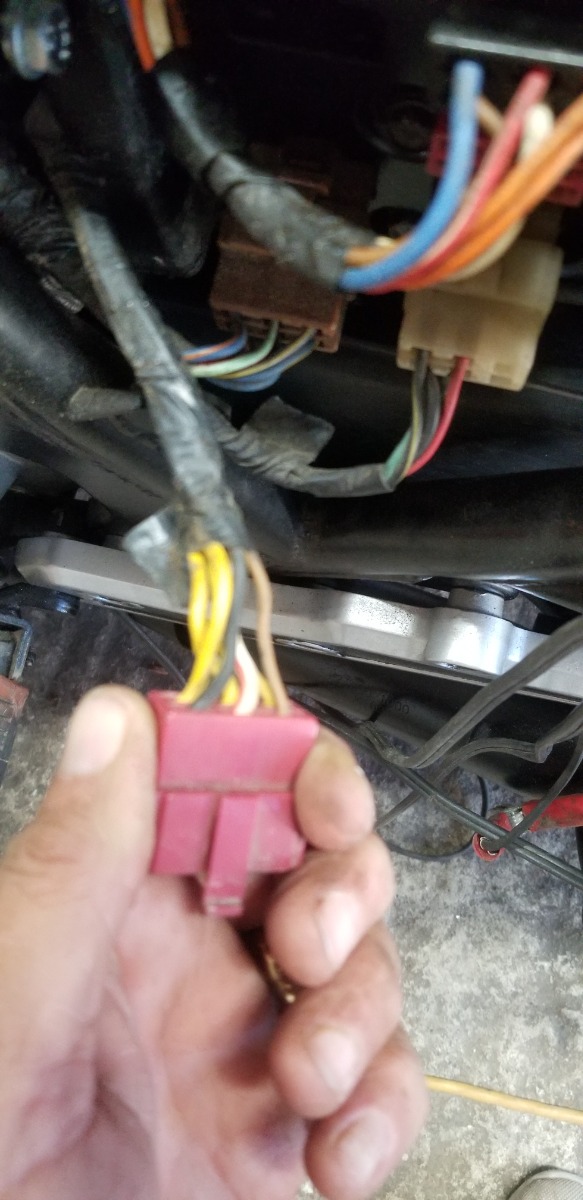

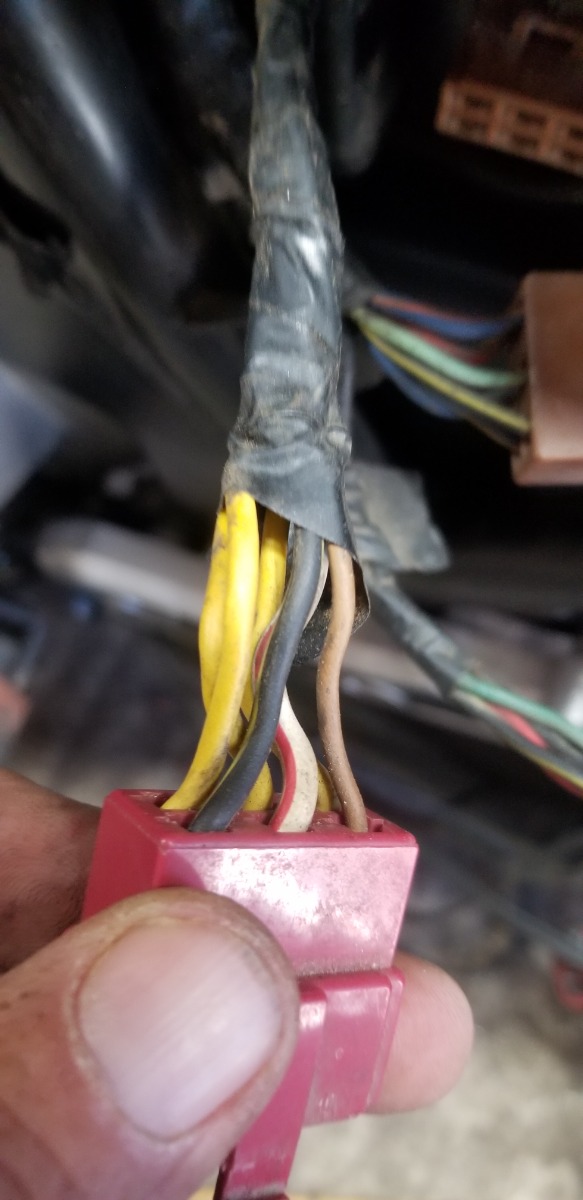

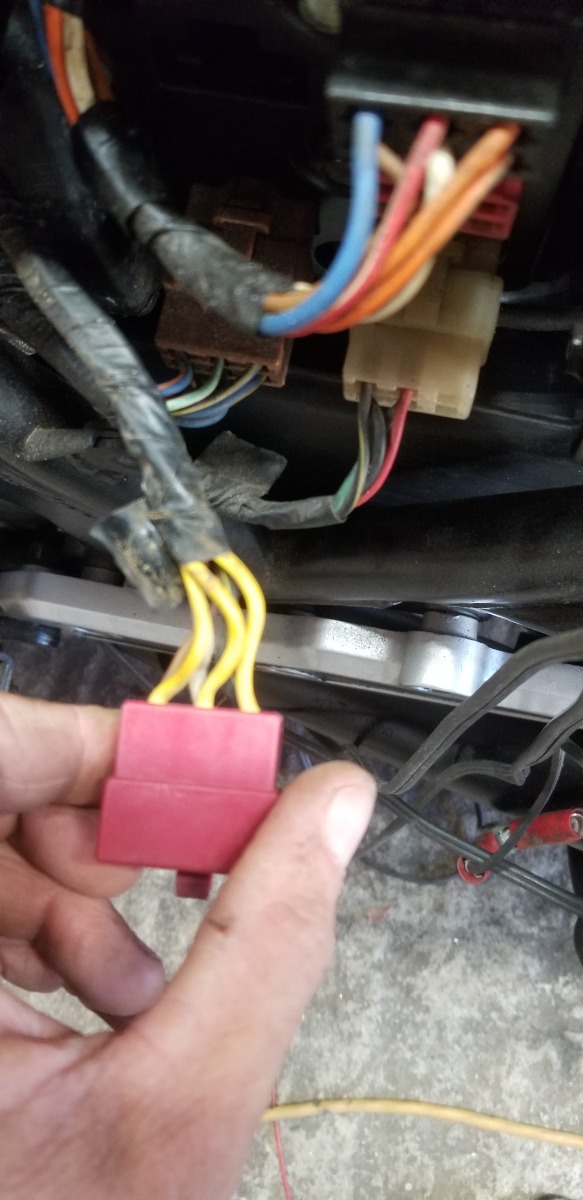

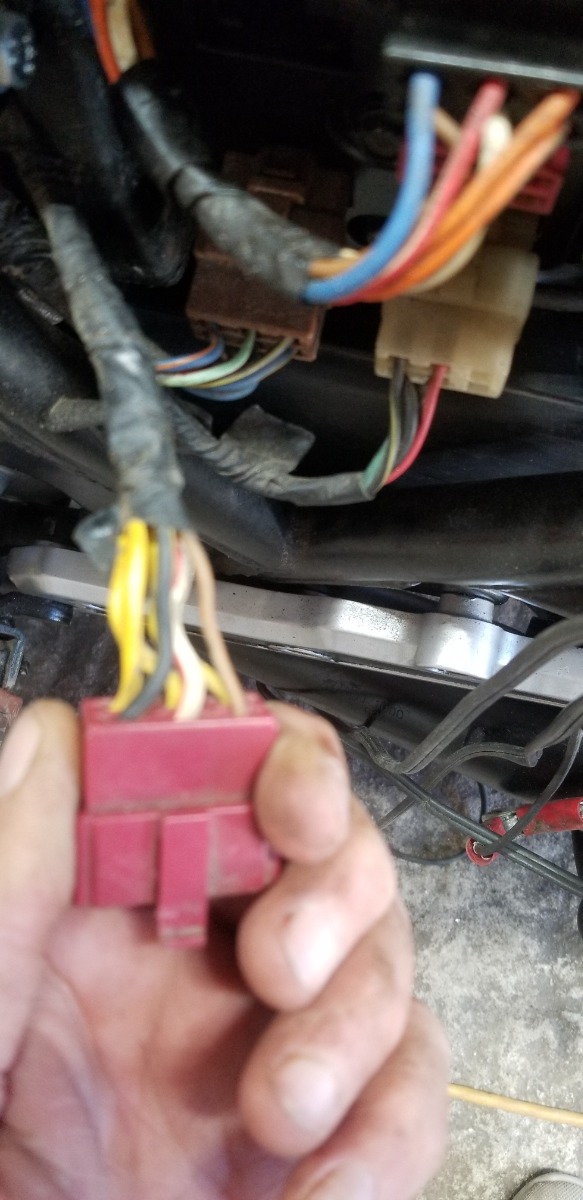

My wire colors don't match the manual mentioned  in the igniter test lol. Attached are pictures of the wires.
Attachments:

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 02 Oct 2021 17:38 #856106

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3301
  • Thank you received: 1445

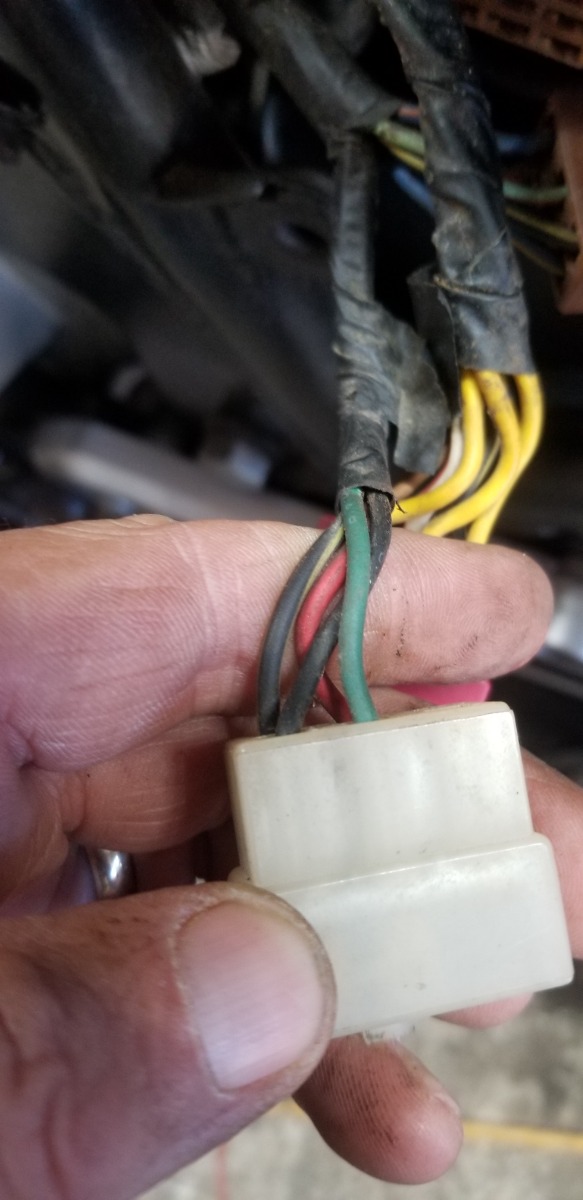

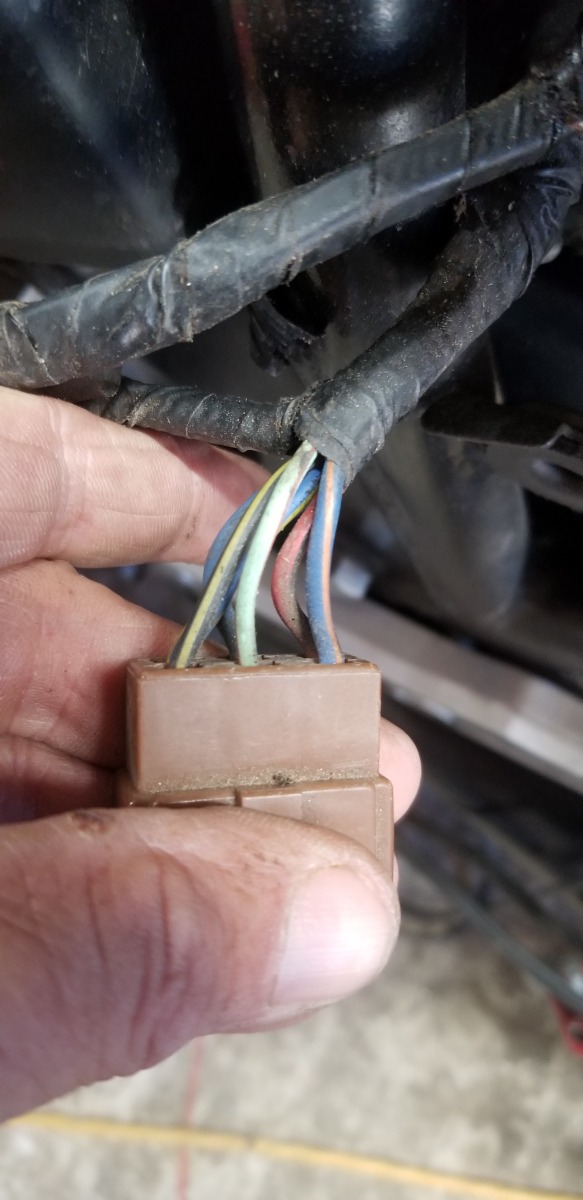

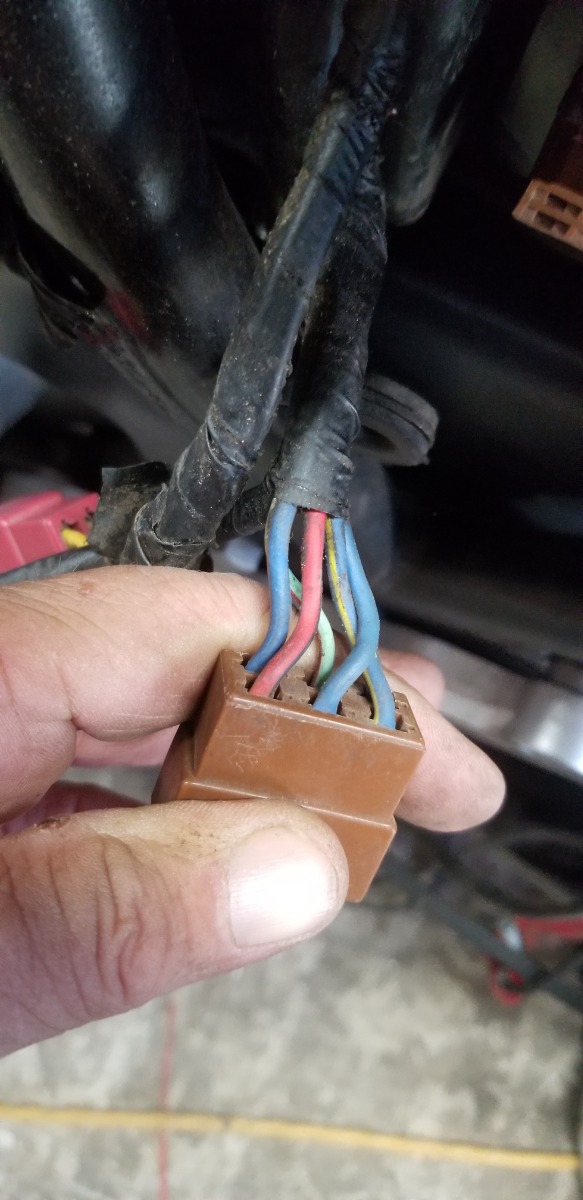

RED CONNECTOR = Recifier/Regulator Unit
BROWN CONNECTOR = Reserve Lighting Device
WHITE CONNECTOR 6 PIN= IC Igniter to ignition coils (YELLOW/RED, BLACK, GREEN, BLACK/YELLOW)
UNKNOWN COLOR 4 PIN CONNECTOR = IC Igniter to pic up coils (RED, YELLOW, BLUE, BLACK)





Read the manual about the connectors, wire colours....
Attachments:
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 03 Oct 2021 06:58 #856122

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
I forgot to mention that I hooked up the vacuum gauges and ran it to synchronize the carbs. I shut it down because of gauge flutter. That is when the issue started. I  had spark on 1 and 4 but nothing on 2 and 3. I installed a new coil and then had no spark. I ordered a new rectifier. I don't think that any of my wires are the same as the manual call out.  I'll going to go out today and look again. I do appreciate you following and helping me. thank you so much. Jon

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 03 Oct 2021 07:06 #856124

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5957
  • Thank you received: 1814

I forgot to mention that I hooked up the vacuum gauges and ran it to synchronize the carbs. I shut it down because of gauge flutter. That is when the issue started. I  had spark on 1 and 4 but nothing on 2 and 3. I installed a new coil and then had no spark. I ordered a new rectifier. I don't think that any of my wires are the same as the manual call out.  I'll going to go out today and look again. I do appreciate you following and helping me. thank you so much. Jon


The charging system (rectifier) has nothing to do with spark (other than the fact that the battery needs to be sufficiently charged to make the bike run.)


The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 03 Oct 2021 08:26 #856125

  • hugo
  • hugo's Avatar
  • Offline
  • Sustaining Member
  • '92 Zephyr 750
  • Posts: 230
  • Thank you received: 29
When doing an alternator test.   And this is following a factory manual.    The alternator is disconnected making leads available to voltmeter, and the engines is run strictly on battery power.     The battery does not need Rectifier/Regulator, as is already 12.6 VDC (unlike the alternator)

.....this is to say, as Nessism said.    You can run the engine....and have spark....with no alternator and no rectifier nor regulator AT ALL, as  long as your battery is healthy.
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

Last edit: by hugo.

1982 KZ1000J IGNITER ???? 03 Oct 2021 09:02 #856126

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
Ok so a rectifier isn't an igniter  ?

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 03 Oct 2021 09:08 #856127

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
Alternator is working. Getting 14 volts at the battery .

Please Log in or Create an account to join the conversation.

1982 KZ1000J IGNITER ???? 03 Oct 2021 09:10 #856128

  • aquaholic
  • aquaholic's Avatar Topic Author
  • Offline
  • User
  • 1981 KZ1000 J1
  • Posts: 186
  • Thank you received: 35
What is the igniter and could this cause the no spark issue if bad. Thank you for your help. I need all I can get lol

Please Log in or Create an account to join the conversation.
