Engine turns over, no spark still

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1122
  • Thanks: 404

Re: Engine turns over, no spark still

27 Jun 2020 15:48
#829141
Rick H. wrote: Somewhere on this I am getting lost. Perhaps it is in the verbiage. I have never heard this diagnosis explained in this fashion.

Rick H.

Where are you getting lost Rick?
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

  • BikeNoob
  • BikeNoob's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thanks: 0

Re: Engine turns over, no spark still

27 Jun 2020 15:51
#829142
When I check the points plate I am getting 16.8mV
78' KZ650-B2 (Under Construction)

Please Log in or Create an account to join the conversation.

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1122
  • Thanks: 404

Re: Engine turns over, no spark still

27 Jun 2020 16:00 - 27 Jun 2020 16:13
#829144
ok
so your ground on your points plate is good.
Ignition on
Move your positive meter probe to these wires.

When you got the 16.8 mv, was the ignition on?
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Attachments:

Last edit: 27 Jun 2020 16:13 by F64.

Please Log in or Create an account to join the conversation.

  • BikeNoob
  • BikeNoob's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thanks: 0

Re: Engine turns over, no spark still

27 Jun 2020 16:18
#829146
F64 wrote: ok
so your ground on your points plate is good.
Ignition on
Move your positive meter probe to these wires.

When you got the 16.8 mv, was the ignition on?

Yes, the ignition was on. For the other two wires I got 12.56v on both
78' KZ650-B2 (Under Construction)

Please Log in or Create an account to join the conversation.

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1122
  • Thanks: 404

Re: Engine turns over, no spark still

27 Jun 2020 16:21
#829147
before the next measurement.
get a small file and sand your point contacts
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1122
  • Thanks: 404

Re: Engine turns over, no spark still

27 Jun 2020 16:25
#829148
Rick,

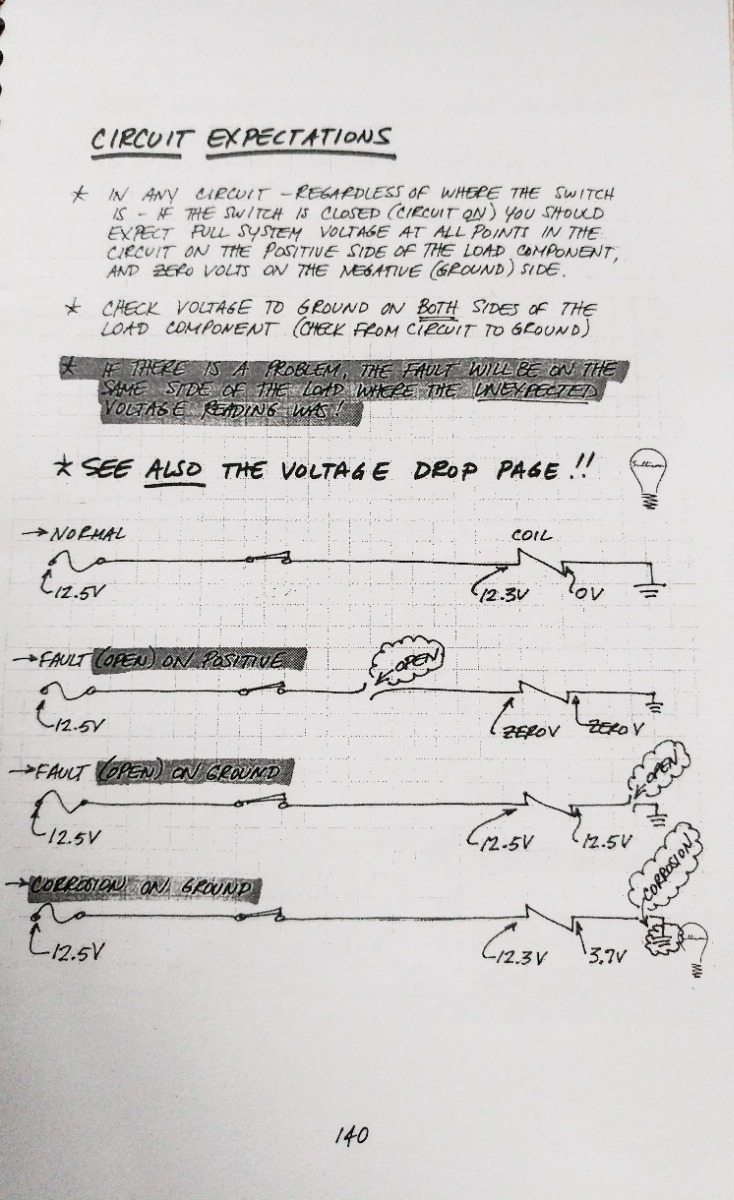

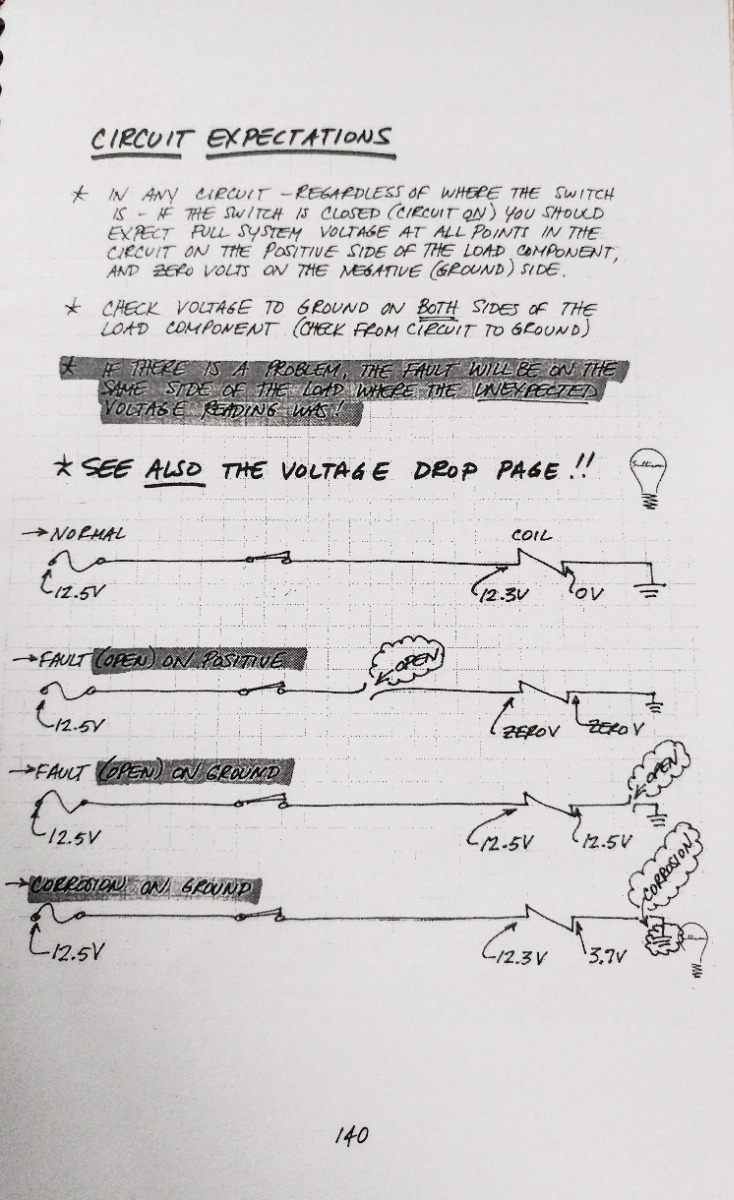

This is where I learned a bit more of troubleshooting.
Dan Sullivan's
Fundamental Electrical Troubleshooting.
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Attachments:

Please Log in or Create an account to join the conversation.

  • BikeNoob
  • BikeNoob's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thanks: 0

Re: Engine turns over, no spark still

27 Jun 2020 16:26
#829149
F64 wrote: before the next measurement.
get a small file and sand your point contacts

Ok, my points are brand new, should I still sand em down a bit?
78' KZ650-B2 (Under Construction)

Please Log in or Create an account to join the conversation.

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1122
  • Thanks: 404

Re: Engine turns over, no spark still

27 Jun 2020 16:35
#829151
yes, lightly and clean with alcohol.
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

  • BikeNoob
  • BikeNoob's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thanks: 0

Re: Engine turns over, no spark still

27 Jun 2020 16:37
#829152
Ok ill work on that, what is the next thing I should measure after I sand the points?
78' KZ650-B2 (Under Construction)

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: Engine turns over, no spark still

27 Jun 2020 16:50
#829155
Be seriously gentle “filing” points... I’d check them first for pitting... if they are smooth and not pitted you not gaining anything... actually you be changing the gap and starting another issue
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1122
  • Thanks: 404

Re: Engine turns over, no spark still

27 Jun 2020 16:51 - 27 Jun 2020 16:53
#829156

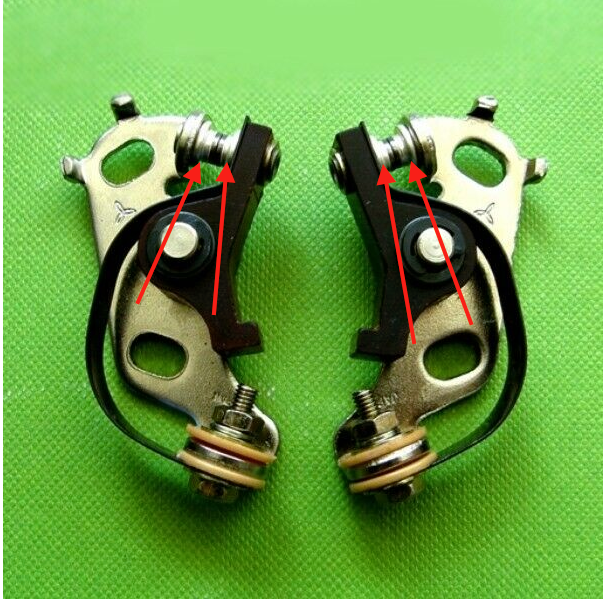

Ignition on
points closed
20v DC scale on meter
negative meter probe on negative battery terminal
positive probe on each of these points
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Attachments:

Last edit: 27 Jun 2020 16:53 by F64.

Please Log in or Create an account to join the conversation.

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1122
  • Thanks: 404

Re: Engine turns over, no spark still

27 Jun 2020 16:58
#829157
Mikaw wrote: Be seriously gentle “filing” points... I’d check them first for pitting... if they are smooth and not pitted you not gaining anything... actually you be changing the gap and starting another issue

Mikaw
The points are new.
I'm eliminating the possibility of a coating or residue on the points.
There is a break in the circuit between the points plate and the wires going out to the coil.
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
