Wiring my kz650h1
- Rockybalboba
- Topic Author
- Offline
- User
Please Log in or Create an account to join the conversation.
- Blue58
- Offline
- User
- Old, Bald and Fast
- Posts: 20
- Thank you received: 1
Please Log in or Create an account to join the conversation.
- Scirocco
- Away
- Premium Member
- Never change a running system
- Posts: 4198
- Thank you received: 2068
Ground is black/yellow.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- hugo
- Offline
- Sustaining Member
- '92 Zephyr 750
- Posts: 279
- Thank you received: 70
Please Log in or Create an account to join the conversation.
- Blue58
- Offline
- User
- Old, Bald and Fast
- Posts: 20
- Thank you received: 1
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
- Posts: 8068
- Thank you received: 1656
Simplified wiring diagrams. KZR topic by loudhvx. bare bones for mattylight.
see pages 11-21 >> pg 14 has one for the 650-CSR.
note: some of the diagrams are no longer there >> pg 1-10. But from pg 11-on many are still available.
....
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
As Martin said, that brown wire, specifically in the original post, is the voltage sense line on the regulator. If the regulator has that wire, it must be connected to a hot wire whenever the bike is running. Without it , the electrical system can get fried by over-voltage.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616

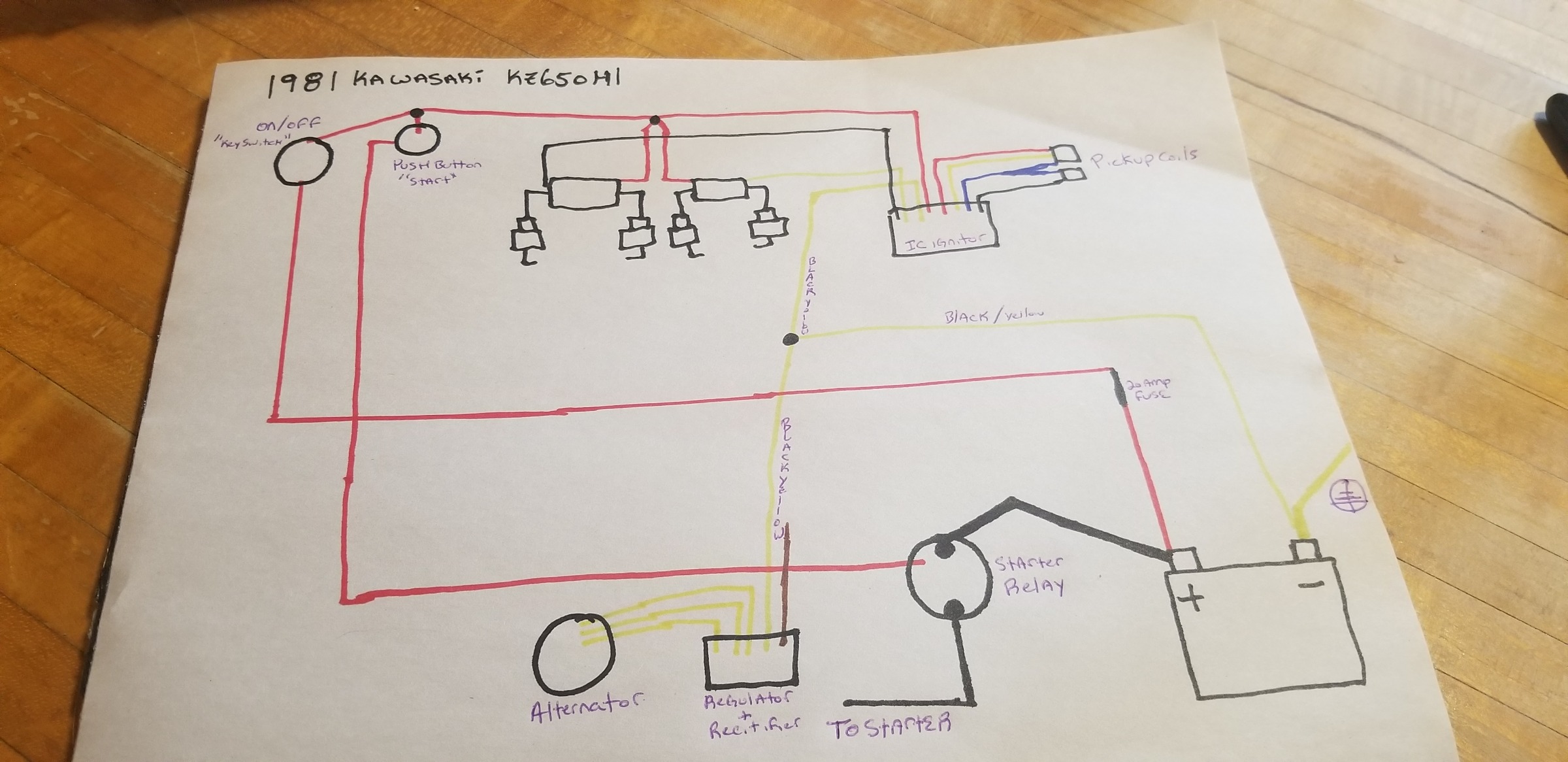

Rockybalboba wrote: Do this look alright for how I have my ignition system hooked up? I am unsure where to connect the brown from the regulator, or what its function was, I know it went to the ignition switch, but that is long junk and gone...
The above diagram incomplete. Don't use it as is.
Find a better diagram. There might be similar ones in the link Martin posted.
(To Martin, I finished putting search tags at the bottom of each entry so a site search with "mattylight" and kz model designation should return results in that thread.)
Page 14 of the Mattylight thread has an 81 Kz650H1 bare bones diagram.
kzrider.com/forum/4-electrical/172746-19...ght?start=260#514373
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- Rockybalboba
- Topic Author
- Offline
- User
- Posts: 34
- Thank you received: 4
