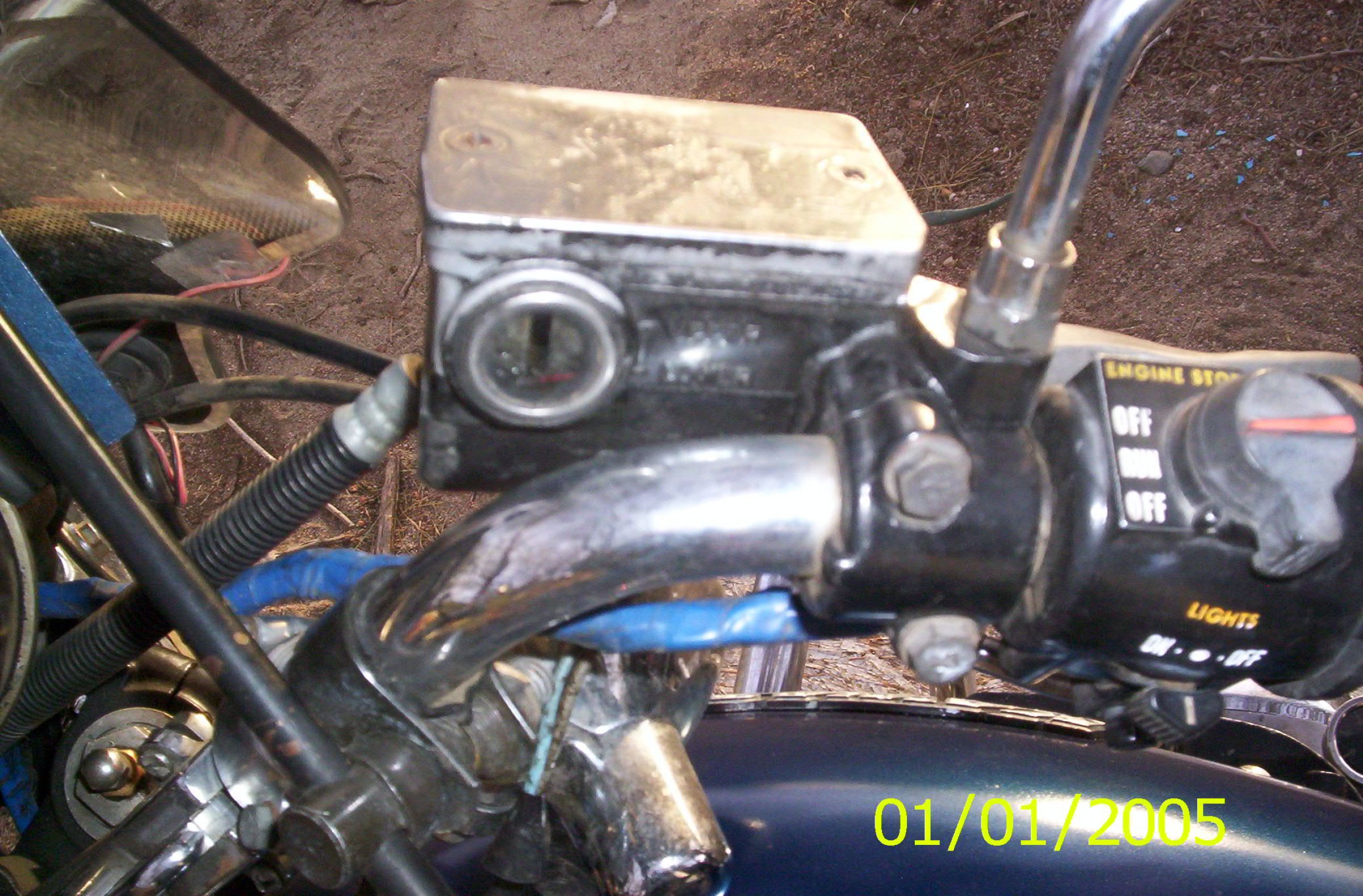

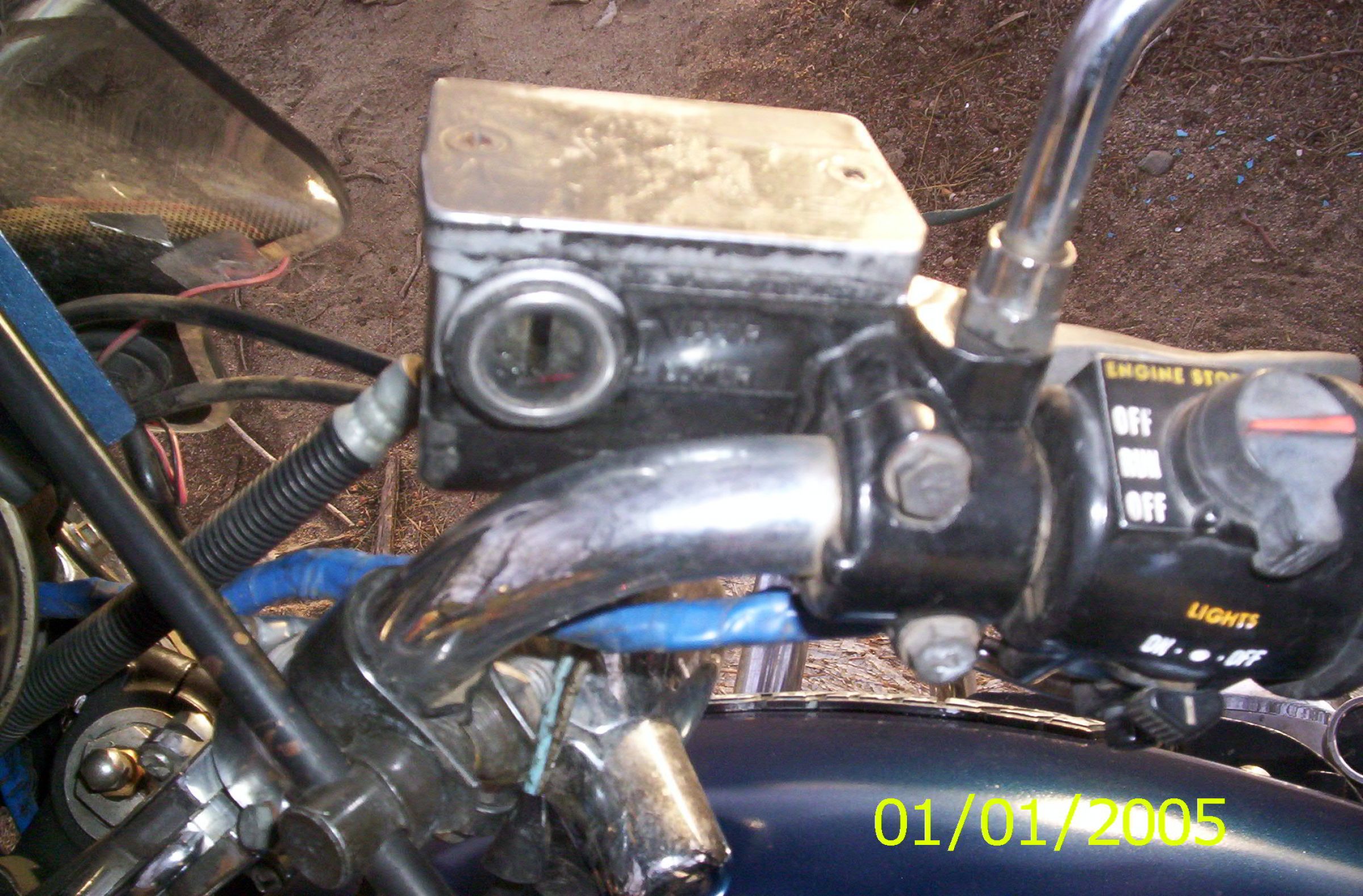

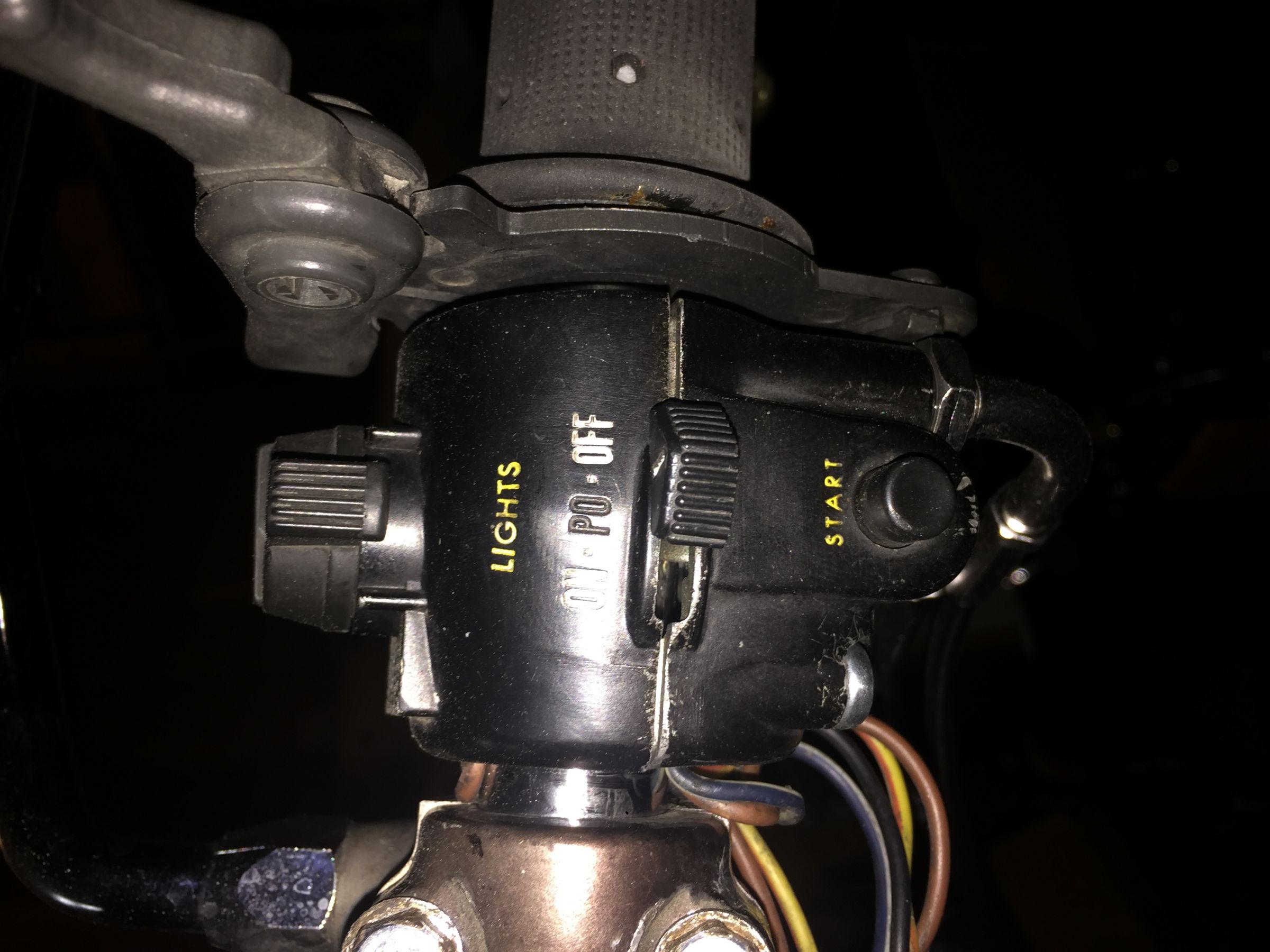

Ferd_Berfal wrote: So I've got a '75 KZ400, and most of the controls are easy to understand but there is this mystery hole labeled ON-PO-OFF Was this even a button? It just seems to go to a rusty bracket of sorts inside.

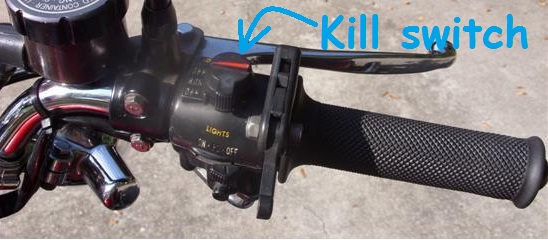

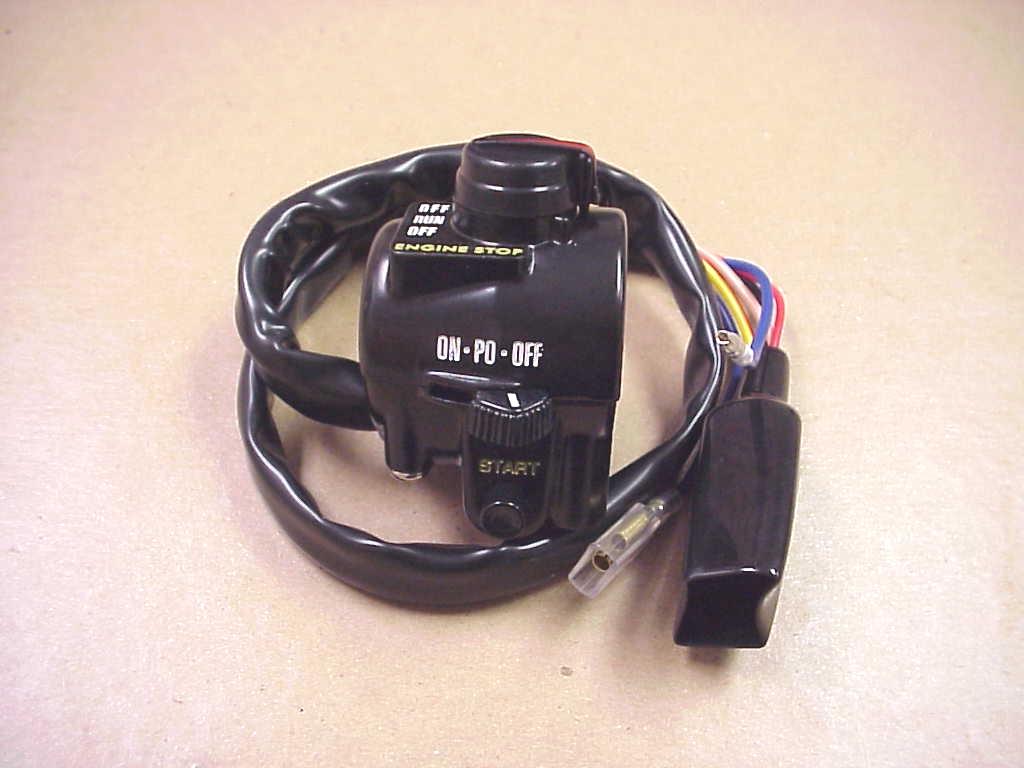

A sliding lever entered the slot whereby the rider could select among three positions for the headlight function:
ON, PO and OFF.
On UK models -- non-USA models -- the PO position was for a parking light aka City Lights which lit a small 4 watt bulb for riding at dusk.
On USA models, the PO position is non-functional and the stamped letters for it aren't high-lighted in white, .
The round push button below the slot is the starter button.
The dimmer switch for selecting between high and low beam is located on the left side of handlebar.
If the headlight on the bike at hand is always ON, would guess that the switch in question has been internally hard-wired into the ON position.
As I recall, the sliding lever was later discontinued on US models incident to enactment of the governmentally required Headlights-Always-On provisions.
