Yeah, no problem. Do you know what starter and ignition switch you will use? Will you keep the kill switch? Sticking with points?

Hey, sorry for the false alarm but I'm going to stick with the stock wiring until I get it running right. Afterwards I'll do something more custom and probably come back here . Thanks for the reply tho!

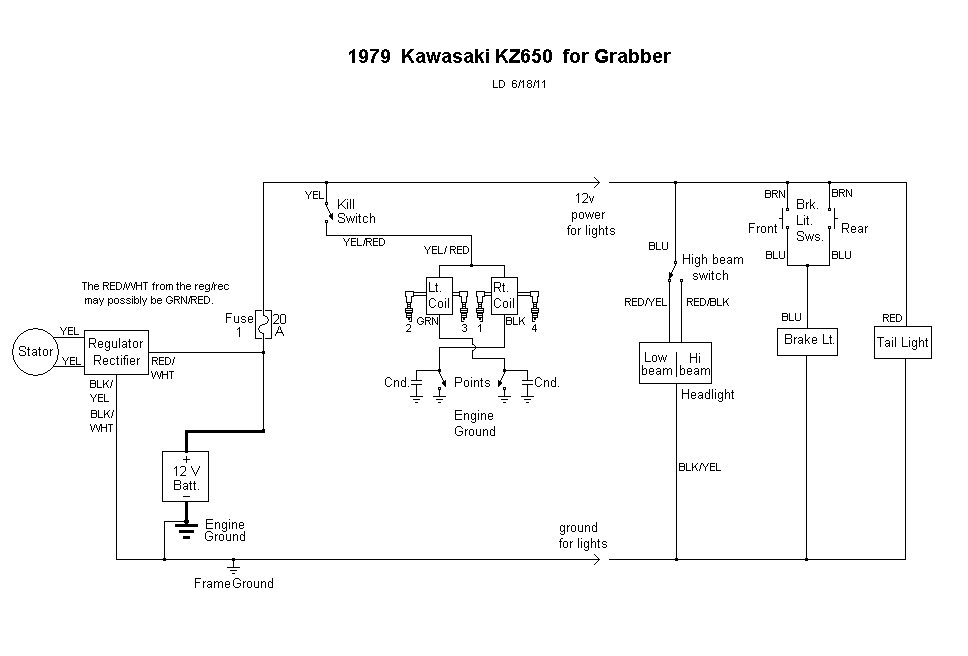

1979 kz650 for grabber.
Drag to the desktep to see in full resolution.
This is for the U.S. models. I don' know if the U.K. models will have variation.

Ignore the stuff to the right of the arrows. That's just for lighting in case you need it in the future. But it would require an ignition switch so the lights won't be on all the time.



EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1979 Kawasaki Kz650 for grabber
Kz 650

That's great thanks

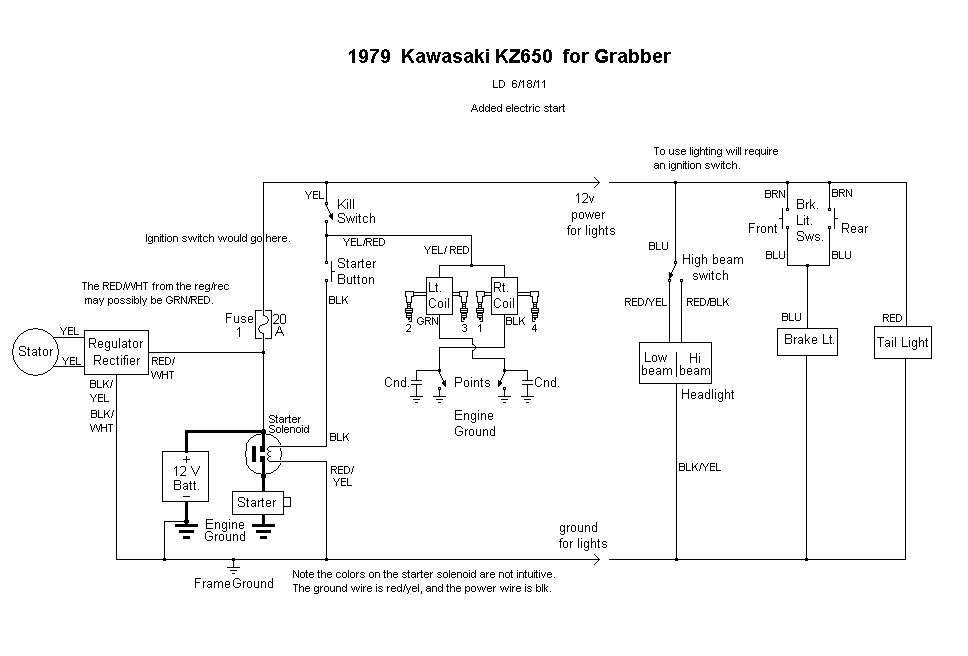

added starter



EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1979 Kawasaki Kz650 for grabber
Kz 650

Hi loudhvx,

I'm back and hoping you can help me out now that I have my plan straight. Again, I have a 78 KZ650 C2 with the following wiring diagram:

diagrams.kz650.info/wiring/images/KZ650-B2,C2.jpg

BUT, my bike didn't come with right hand controls so I found one from a C3:

diagrams.kz650.info/wiring/images/KZ650-B3,C3.jpg

You'll notice the C3 right controls has a mystery yellow wire going to the ignition, and no headlight on/off switch which has me a bit confused.

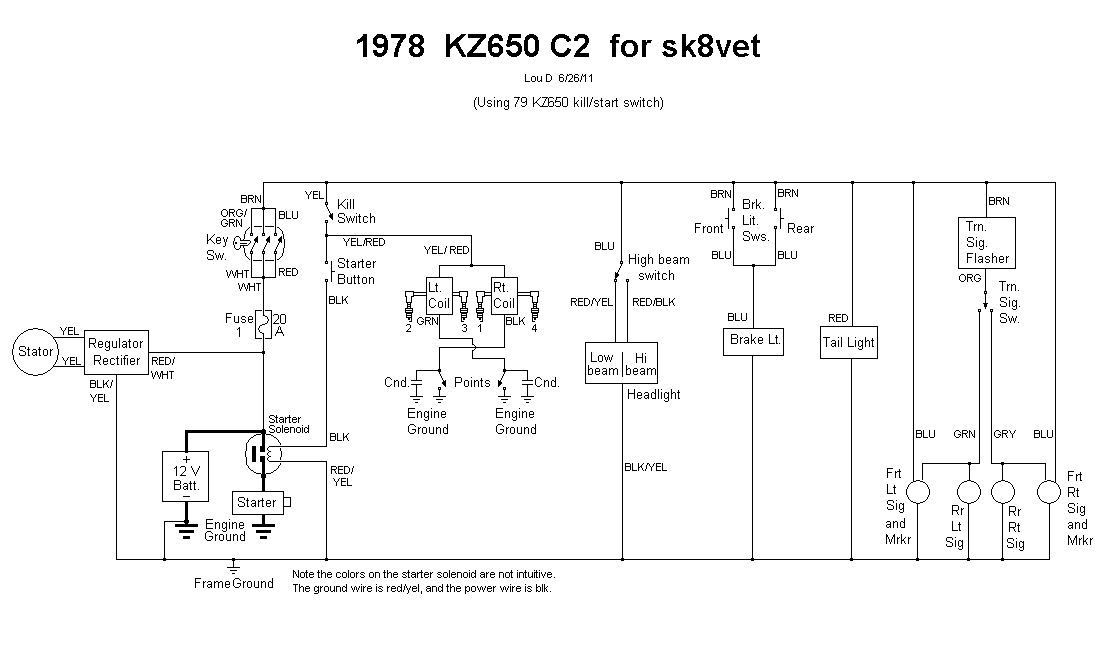

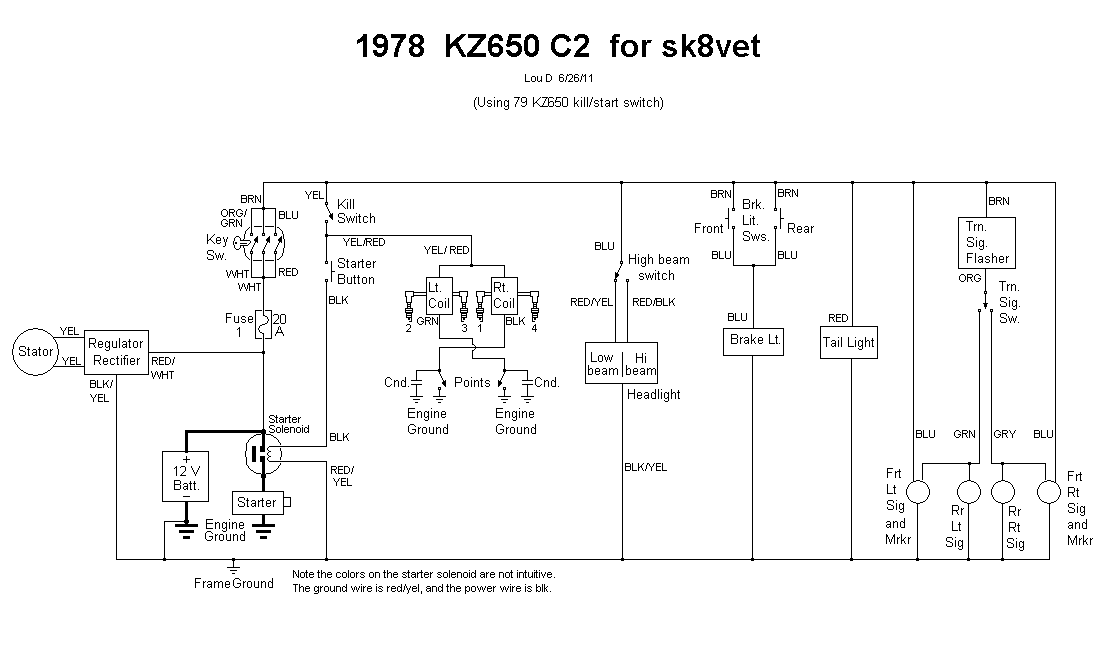

Will you please help me with a wiring diagram based on the C2, with the C3 right controls, and with the following "deletes":

-No hazards
-No horn
-No speedo or tach
-No front indicators (turn signal indicators, neutral, high beam, oil, brake light fail)
-No starter lockout switch

Since I have no headlight on/off switch I'd like them to be on when I turn on the ignition key (ignition is off/on/park). Also, I will be using points for the time being.

What do you think? Doable?

I tripled up on the ignition switch contacts to make the ignition switch more reliable. As it's drawn, the input and output of the ignition switch will have 3 wires tied together. Input will be red and two whites. Output is brown, blue, and orange/green. THe blue may actually be blue with a red stripe, or red with a blue stripe.



EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1978 Kawasaki Kz650C2 for Sk8vet
Kz650C Kz650 C2 Kz 650 C 650C2 650C

If needed, here's how to save a forum image to your computer:
Click > www.kzrider.com/forum/8-about-the-site/4...age-to-your-computer

Good Fortune!

I put a link to it in my signature.
Thanks Patton.

amazing! thank you SO much for your help! next time you're in LA, i owe you beers

No problem. Hope it works out.

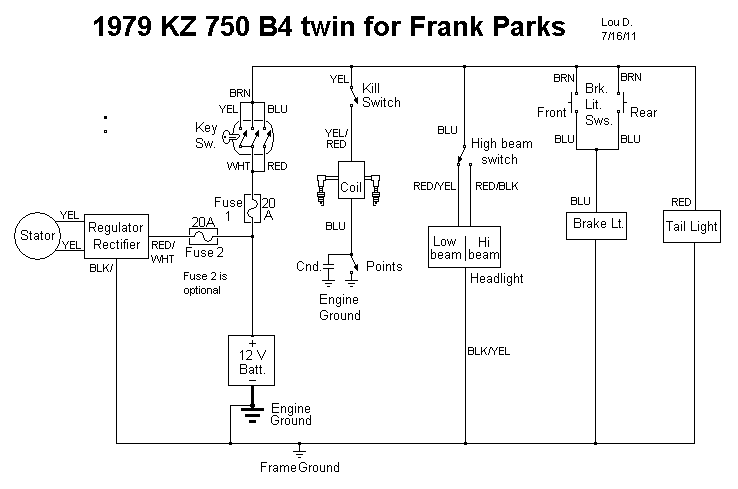

Bare bones 1979 KZ 750 B4 KZ750 B4 750B4 KZ750B4 twin for Frank Parks
