KZ550 carburetor rebuild - now bike won't run well TK26 CV carbs Help!

More
23 Jun 2022 17:26 #869267 by gvin
No eBay APP ID and/or Cert ID defined in Kunena configurationBike is 100% stock. Bike had been off the street for 6 years started only a few times during that period. Carbs leaked gas so I figured it was a good time to rebuild them as I wanted to start riding it once again. Bike is a 1983 KZ550 with TK26 carbs.
Recently I purchased K&L carburetor rebuild kit. Took the carbs apart three times, last time the rack was split and each was put in a ultrasonic cleaner for a few minutes. Carb cleaner was sprayed thru all passages, I ran a thin copper wire thru as much as I could to confirm the passages were not blocked. From the first time the carbs were disassembled they looked quite clean, not signs of gunky dried gas.

After each of the three reassemblies, the bike is hard to start. Once it starts it takes a lot of playing with the choke to get to finally be able to close the choke all the way and have the bike idle. Carburetors have been syncronized. Bike idles fine.

When trying to ride it almost feels like it wants to stall, if I am able to get it going, any gear after 3k I open the throttle and it bogs down. I don't know if this is an indication of too rich or too lean? Bike is almost not rideable.

Stock airbox, brand new air filter. The rubber boots are pliable and appear to seal well and I could not find any vaccuum leaks. Fuel seems to be flowing well, I have fresh gas and an inline fuel filter.

Pilot air screw is 2 1/2 turns out from closed. I have tried to run the bike at 1 1/2 turn from closed or 3 1/2 turn from closed with not apparent difference.

What else should I be checking? I am stumped and hard to believe that I would have to take the carbs apart for the 4th time since they are clean.

This is the rebuild kit I used:


Attachments:

Please Log in or Create an account to join the conversation.

More
24 Jun 2022 09:46 #869292 by linuxrob
Welcome, from what info i have the fuel level could be out.

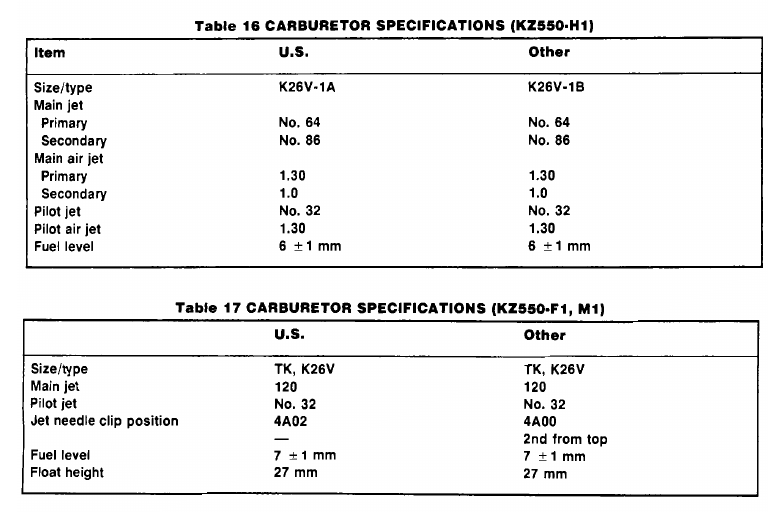

27mm to top of float or 7mm +/- 1mm down from float bowl i think is the spec for the TK26 CV carbs
