Help on diagnosing lean condition
- TexasKZ
- Offline
- Platinum Member
Less
More
12 Jul 2019 07:56 #807432
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic Help on diagnosing lean condition
PS You do know that the needle is connected to the slide, right?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10868
- Thank you received: 1616
12 Jul 2019 08:16 - 12 Jul 2019 08:29 #807433
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic Help on diagnosing lean condition
When the throttle plate is opened, engine vacuum is applied to the carb throat. The bottom of the slide has a hole in it. When vacuum exists, air is pulled through that hole so that creates a vacuum above the slide diaphragm. This naturally pulls the slide upward.
In order to make that happen, the underside of the diaphragm is connected to outside air or airbox air through that wide crescent port at the carb inlet. The diaphragm has vacuum on top and intake air on bottom, so it moves up.
The diagram you posted doesn't show the hole at the bottom of the slide, but you mentioned you altered yours by drilling it so you know it's there.
In order to make that happen, the underside of the diaphragm is connected to outside air or airbox air through that wide crescent port at the carb inlet. The diaphragm has vacuum on top and intake air on bottom, so it moves up.
The diagram you posted doesn't show the hole at the bottom of the slide, but you mentioned you altered yours by drilling it so you know it's there.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Last edit: 12 Jul 2019 08:29 by loudhvx.
Please Log in or Create an account to join the conversation.
- dpivas7
- Topic Author
- Offline
- User
Less
More
- Posts: 166
- Thank you received: 8
12 Jul 2019 11:18 - 12 Jul 2019 11:19 #807438
by dpivas7
Current: '19 Harley Roadster, '72 XLCH, '84 GPz 550
Past: '84 GPz 550, '82 KZ750 LTD, '71 XLCH
Replied by dpivas7 on topic Help on diagnosing lean condition
Oooh I see, it's that kidney bean port is how the air is supplied to the diaphragm.
My crude calculations say that in order to maintain laminar flow at 75mph, you'd want an opening of about 0.4 inches in diameter so I'm going to try making a restrictor that fits inside the pod and see how that works out.
Every now and then I check eBay for an airbox and I got lucky today to find that there was one for sale that actually included the cap. I'm going to try to get the pod works but I will finally have a stock air box. Pretty bummed though, those things aren't cheap.
My crude calculations say that in order to maintain laminar flow at 75mph, you'd want an opening of about 0.4 inches in diameter so I'm going to try making a restrictor that fits inside the pod and see how that works out.
Every now and then I check eBay for an airbox and I got lucky today to find that there was one for sale that actually included the cap. I'm going to try to get the pod works but I will finally have a stock air box. Pretty bummed though, those things aren't cheap.
Current: '19 Harley Roadster, '72 XLCH, '84 GPz 550
Past: '84 GPz 550, '82 KZ750 LTD, '71 XLCH
Last edit: 12 Jul 2019 11:19 by dpivas7.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 23001
- Thank you received: 2753
12 Jul 2019 17:05 #807451
by SWest
Replied by SWest on topic Help on diagnosing lean condition
YOU WON'T REGRET IT
Steve
Steve
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7524
- Thank you received: 2838
12 Jul 2019 20:14 #807457
by Nessism

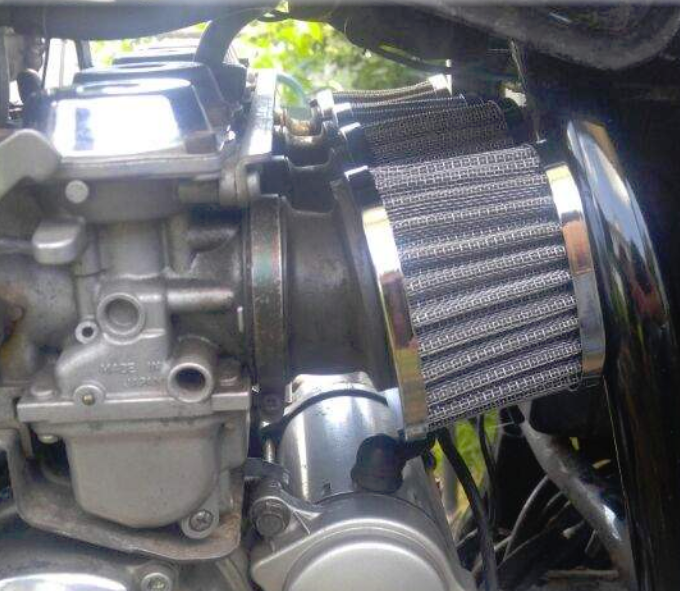

I did a similar thing to this with an XS400; clamped pods onto the stock intake runner tubes. Prior to doing this I couldn't get the bike to run for crap regardless of what jets I installed. On the XS the filters are behind the side covers, one per side. I couldn't afford the proper filters thus the pods. At any rate, I think it's a good approach assuming there is room.
Replied by Nessism on topic Help on diagnosing lean condition
TexasKZ wrote:
I did a similar thing to this with an XS400; clamped pods onto the stock intake runner tubes. Prior to doing this I couldn't get the bike to run for crap regardless of what jets I installed. On the XS the filters are behind the side covers, one per side. I couldn't afford the proper filters thus the pods. At any rate, I think it's a good approach assuming there is room.
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
Less
More
- Posts: 7575
- Thank you received: 2236
13 Jul 2019 16:29 #807488
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic Help on diagnosing lean condition
Here are some visual representations of what I was trying to explain about the interrelatedness of tha various carb circuits.
www.kzrider.com/forum/3-carburetor/61106...rottle-stages#807484
www.kzrider.com/forum/3-carburetor/61106...rottle-stages#807484
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: dpivas7
